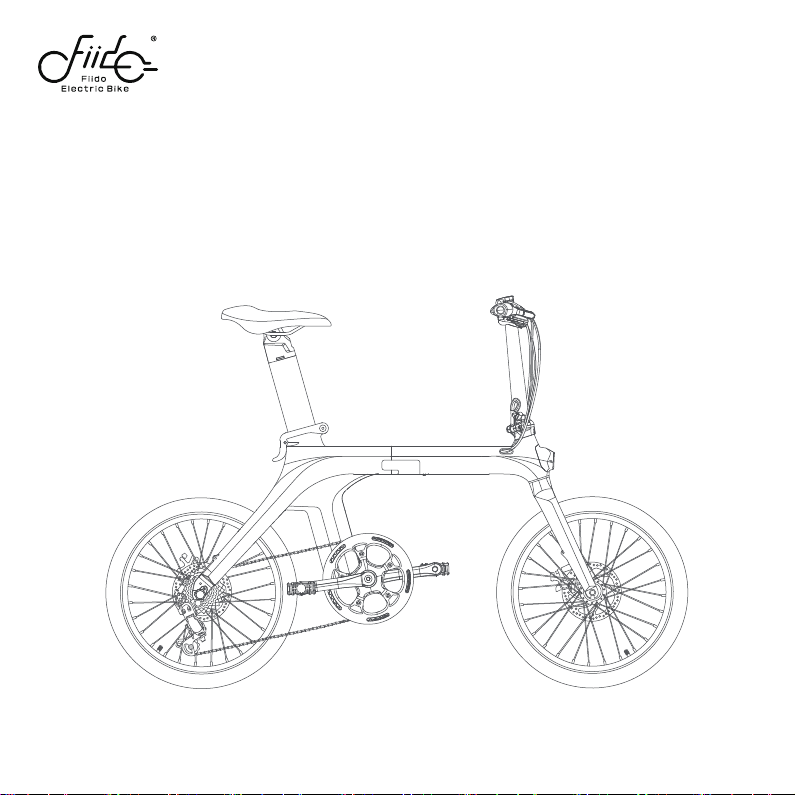

Fiido X User manual

Fiido X
Folding Electric Bike
Dear users! Before enjoying the ride, please be sure to read the user manual carefully, understand the relevant operation
specifications, and take good care of this user manual and the product certificate accompanying the ride.
Don't use the Ebike until you fully know about the function.

Dear user：
Safety precautions
In this manual, we will introduce you the common sense and maintenance of electric power bicycle.
In order to better riding experience, please be sure to read and understand the product performance,
characteristics, precautions and maintenance matters. If you have any questions, please contact the
official after-sales team or local authorized service station. We will provide you with diagnostic assistance
as soon as possible.
1. Please follow the precautions in this instruction to effectively reduce risks. When you enter public areas,
please obey national and local regulations, remain vigilant while riding, and maintain a reasonable safe
distance from other people and vehicles.
2. Please operate by the instruction of the user manual, the loss caused by not following the instructions
shall be borne by oneself.
3. This product is not professional off-road vehicle, do not use this product according to off-road vehicle
standards.
4. For the first time riding, please do not choose the area with many children, pedestrians, pets, vehicles,
or other obstacles and potential hazards. Please be familiar with the bike before riding on public road.
5. Before each ride, please carefully check whether fasteners are loose or parts are damaged. If there’s any
unusual noise, please stop riding immediately, and contact after-sales team for assist.
6. To reduce the injury risk, please read and follow all "Caution", "Danger" and "warning" instructions in this
user manual. No speeding, and do not ride in motorized road under any circumstances.
7. For safety consideration, user must be over 16 years old. Users under the following circumstances are
strongly not recommended to use this product:
- People affected by alcohol or drugs.
- People who are unable to engage in strenuous physical activity due to illness.
- People who are unable to maintain balance or whose balance is impaired by motor skills.
- People whose weight exceeds the max load limit (max load is 120KG/265lb).
- Pregnant woman.

8. Please ride carefully in snow, rain, wet road, ice and other bad weather. Do not ride over too
high or too large obstacles, otherwise it’s very likely to lose balance or grip and cause injuries.
9. Do not attempt to charge while the charger or power supply is wet, please follow the local safety
regulations if you need to charge the bike in public area.
10. For effective protection and as convenient as possible for yourself, please be sure to use Fiido
specific parts.
11. If you need to retrofit your bike,Please follow the local laws and regulations, after consulting
with Fiido after-sales team, then proceed with caution. Serious injury and/or damage caused by
unauthorized modification will result in the void of warranty.

CONTENTS
1.Product introduction 2. Using guide
1.1 Bike overview
1.2 Packing list
1.3 Bike diagrams
1.4 Function DESC
2.1 Installation guide
2.2 First time using
2.3 Coded lock instructions
2.4 Charging instructions
2.5 Folding instructions
3. Maintenance precautions
3.1 Using precautions
3.2 Bike maintenance & repair
3.3 Motor maintenance & repair
3.4 Battery maintenance & repair
3.5 Reflex reflector cautions
4. Service directory
4.1 Troubleshooting methods
4.2 Specifications
4.3 Warranty coverage
4.4 Repair record
* All pictures are for reference only.

1.Product introduction
1.1 Bike overview
1.2 Packing list
1.3 Bike diagrams
1.4 Function DESC

1.1 Bike overview
Fiido X inherits Fiido's consistently minimalist design aesthetics, the design of the whole bike has a sense of future
technology. The body of Fiido X adopts a magnesium alloy integrated molding process, with a smooth and simple
frame line. As the world's first folding electric bicycle with two built-in guide rails in the seat post to transmit battery
power, it equipped with removable battery to solve the problem of travel charging. Also equipped with leading torque
sensor system and high torque motor, which can sense rider’s will. The 7-speed mechanical transmission system can
assist rider to easily cope with various complicated roads.
The unique keyless security system provides a better anti-theft function. Equipped with 2 riding mode, 3 power assisted
mode, 7-speed mechanical transmission system, which provides riders a better and richer riding experience. The bike
can be folded in three sections, the volume of folded ebike is less than 0.5 m³, which is is a perfect balance of comfortable
riding experience and portability.
2
THE FUTURE STARTS HERE

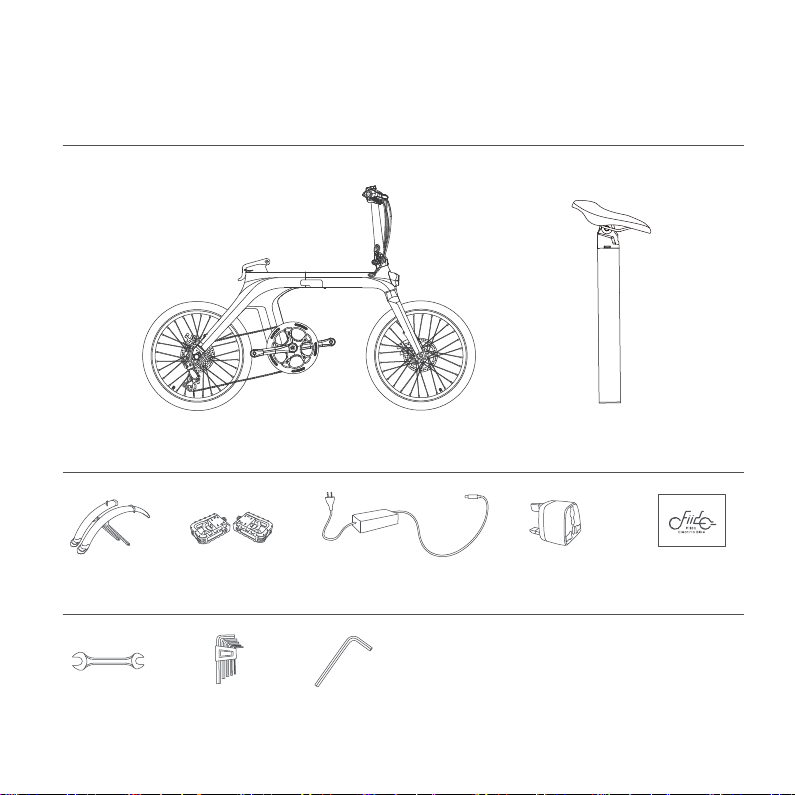

1.2 Packing list
Bike parts
Electric Bike*1
Fenders*2
Open spanner*1
Pendals*2
Hex wrench*5 Hex wrench*1
Charger*1
Seatpost battery*1
Bike accessories
User manual*1Adapter*1
(Equipped for EU and UK regions)
Tools
*Please carefully check whether all items are complete and intact. If there is any problem such as missing or damaged,
please contact the official after-sales team asap. 3

*Non professionals are forbidden to disassemble and assemble the battery.
Please contact after-sales team for assist.
1.3 Bike Diagrams
4
Seatpost battery
Saddle
Seat Clamp
intelligent coded lock
Disc Brake
Tire
Chain Chainwheel
Crank
Pedal
Frame Clamp
Safety
Hook
Bike Code
Motor
Charge Valve
Derailleur
Handlebar
Stem Clamp
Headlight
Disc Brake
Stem

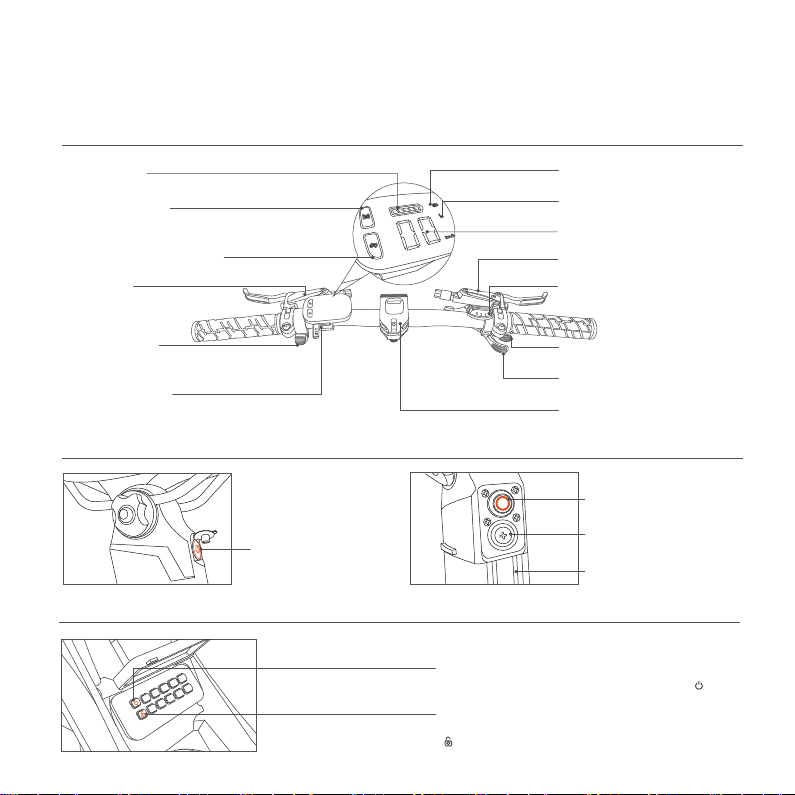

1.4 Function DESC
5
(Unlock the seatpost battery, enter the password then clock the
button to remove the seatpost battery.)
Bike
Battery
Front Brake
Instrument Power
① Long press for more than 3 sec：turn on/off the power
assisted mode
② Short press for 1 sec：turn on/off the front and rear lights
(Display remaining power)
(Click to change the gear, a total of 3 gears)
(The left side is front brake) (Display the current derailleur gear)
(Pull the handle outward to shift down)
(Open/close to adjust the handlebar)
(Click to turn on/off the battery
power)
(Pull the handle outward to shift up)
(On means the front and rear lights are on)
(Display the current speed)
(The right side is rear brake)
(Display the current power assisted gear)
(In case of overtaking, road section affecting safety
visibility or emergency, slow down and ring the bell
for signal)
(For emergency charge ONLY)
Power Assisted Gear Display
Speed
Battery Status Lights Display
Power Assisted Gear Switch Rear Brake
Speed Gear Display
Quick Release
7 Speed Shirft Up
7 Speed Shift Down
USB Charging Port
Mechanical Bell
Charging Port
ON/OFF Button
(Battery protection, DO NOT touch)
Fuse
(Battery discharge device, DO NOT
touch)
(Insert the Fiido charger ONLY) Discharge Guide
(Bike power button, enter the password and click the button
to start the bike power.)
Coded lock
Power Button
Unlock Button
01234
56789

2. Using Guide
2.1 Installation guide
2.2 First time using
2.3 Coded lock instructions
2.4 Charging instructions
2.5 Folding instructions

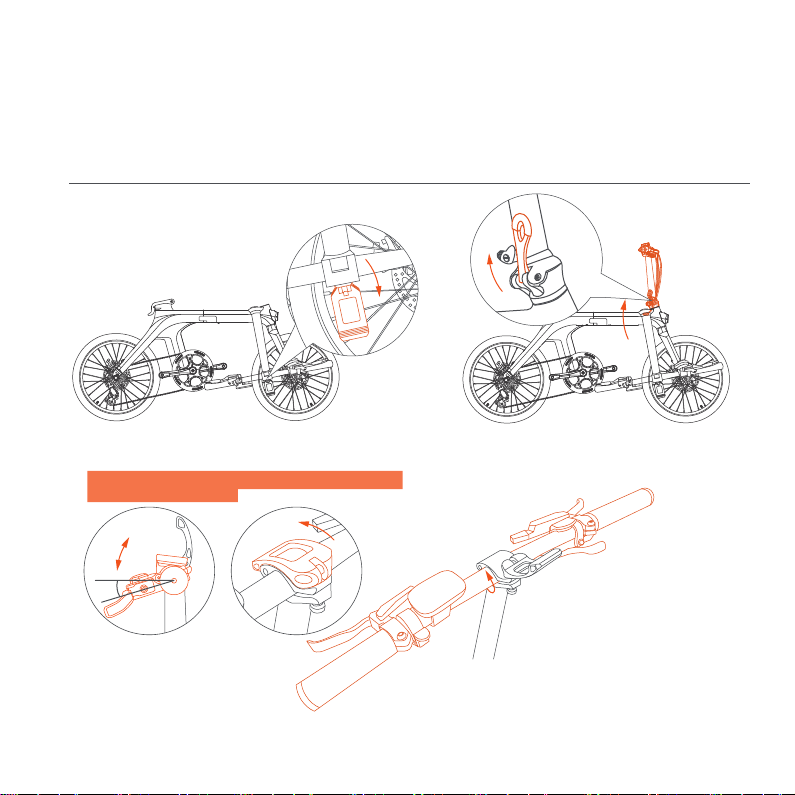

2.1 Installation guide
Unfold the stem
The basic installation of the bike has been completed before leaving the factory. After receiving the bike, you only need
to unfold the stem, install the seatpost battery and pendals for complete installation.
① Open the quick release, adjust the handlebar direction
upward to loose the wire.
③ Adjust the handlebar direction, to make it at an angle of 15°-20° with the horizontal line, then close the quick release,
to complete the unfolding stem.
② Lift the stem from bottom to top, open the stem
clamp, adjust the handlebar and close the stem clamp.
15°-20°
Caution: Please operate by the instruction, otherwise
may cause wire breaking
7

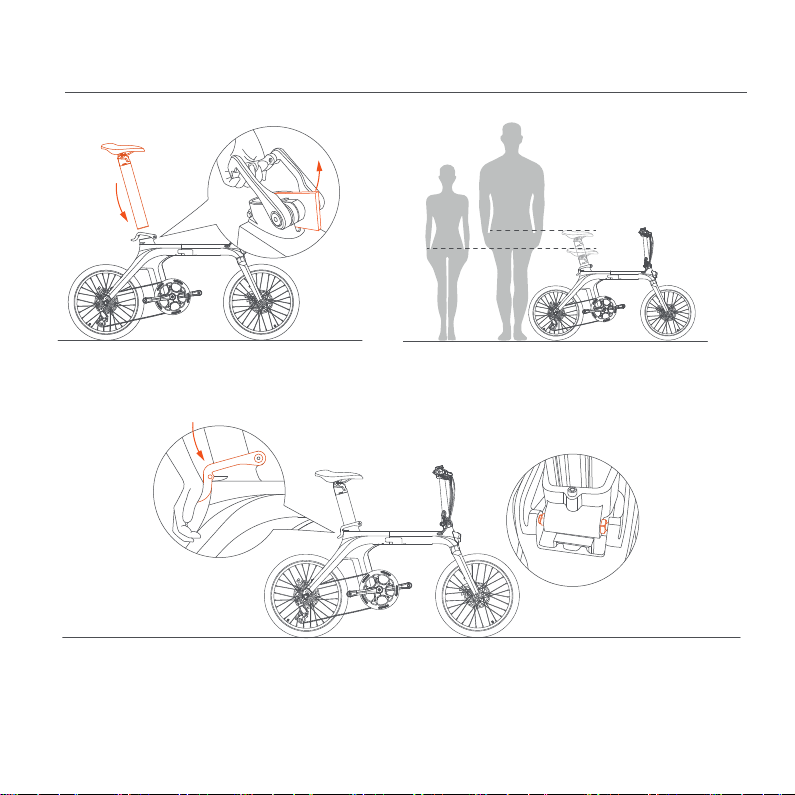

Install the seatpost battery
① Open the seat clamp, take off the EVA protective
cotton, insert the seatpost battery.
③ Close the seat clamp till the screws on the seat clamp is aligned, to finish the completed installation of seatpost battery.
② Adjust the seatpost battery to suitable height, the
recommended height is when the saddle is level with
the user’s pelvis when standing naturally.
(Caution: Do not adjust the height beyond the maximum
and minimum heights on the battery holder scale.)
(Caution: Using the coded lock and turn on the power, to check whether the battery is properly installed. If the power can
be turned on normally,means the installation is successful. Please refer to P13 for details of coded lock operation.)
8

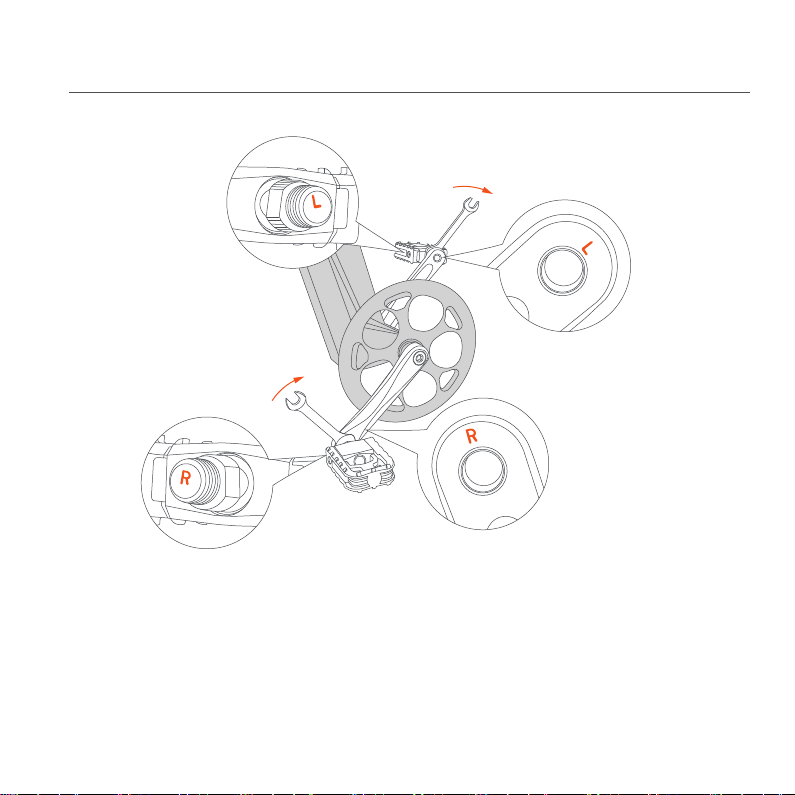

Use the open spanner of the tools bag, screw the pedal shaft into the threaded hole and tighten it in
the direction of the arrow.
Caution: While installing the pendal, pay attention to the left / right pendal corresponding to the left /
right crank, the pendal screw and the inside of the crank are respectively marked L(left) / R(right). Please
install the pendal correctly to prevent it from sliding out of the crankt.
Install pendals
9

2.2 First time using
Before riding, please follow the installation guide to install components properly, check whether the firmware is loose,
ensure sufficient power, and take appropriate protection for riding.

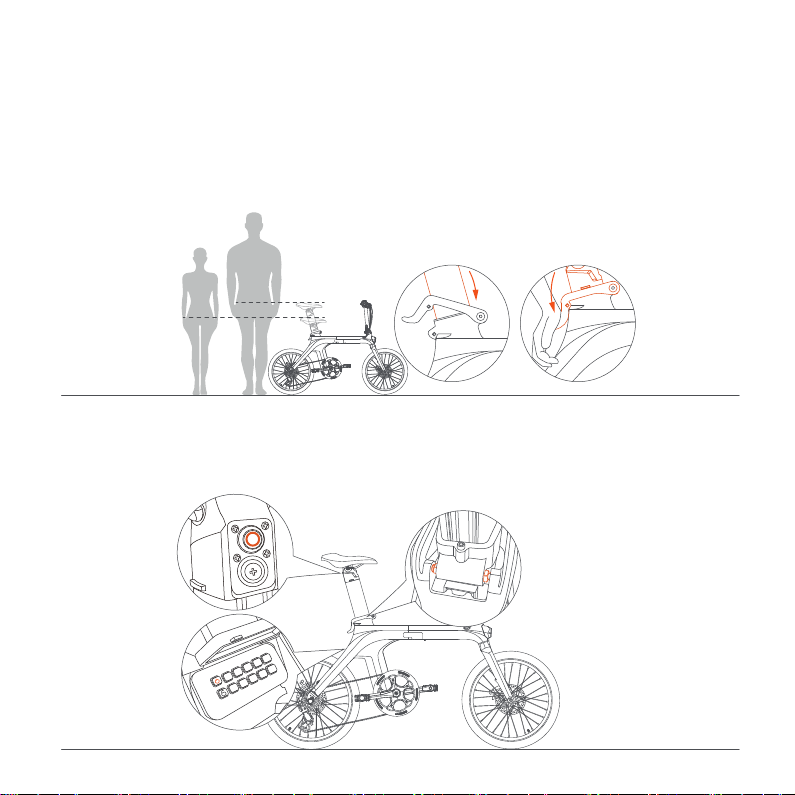

Step 1：Adjust the seat
Please adjust the seat to the appropriate riding height according to your height.
（the recommended height is when the saddle is level with the user’s pelvis when standing naturally.）
Step 2：Turn on the power
① Check the seat clamp to ensure it’s in closed status.
② Click the ON/OFF button, to turn on the battery power.
③ Input the six-digit password then click the power button, to turn on the vehicle power.
(Please refer to P13 for details of coded lock operation.)
01234
56789
o
10

Step 4：Start riding
Please take corresponding protection before starting riding.
The left side is front brake, the right side is rear brake. While riding, it’s recommended to use the rear brake
first, then the front brake to slow down the speed to stop, in order to avoid the front wheel brake is too urgent,
resulting in the bike center of gravity instability caused by falling accident.
Step 5：Braking introduction
Step 3：Adjust the power assisted gear
Adjust the power gear according to the cycling road conditions.
（Equipped with 3 power assisted gears, the 1st gear is suitable for relatively flat road conditions, the more/higher
the road slope, the larger gear can be adjusted accordingly.）
11

1. Start the power: Input the original password “012345”+” ”, to start the bike power.
2. Change the password: ① Press " " + " " at the same time till 4 sec, then loose hand.

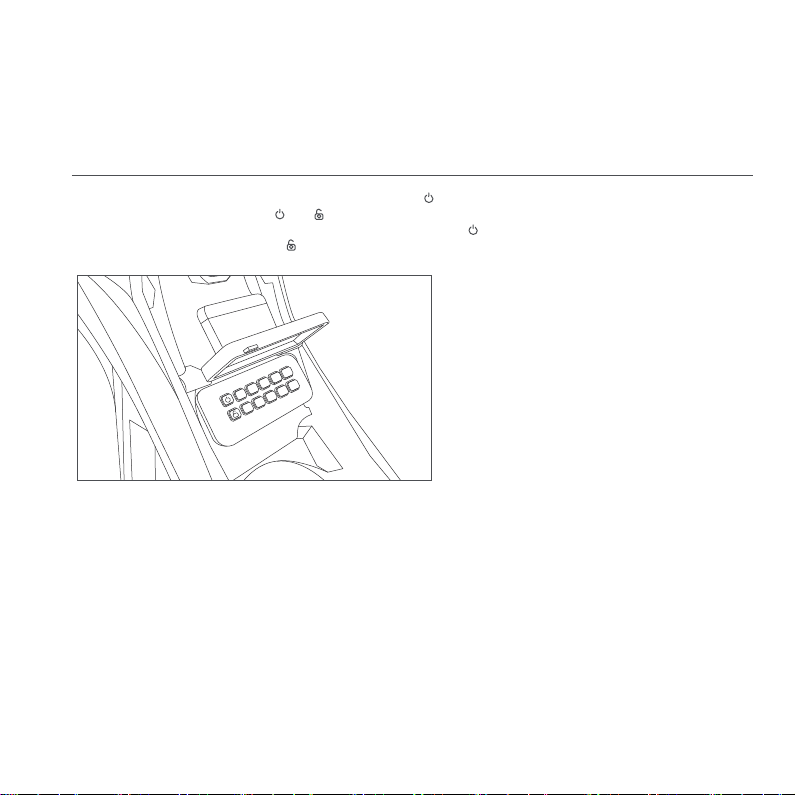

2.3 Coded lock instructions
The original password is “012345”. After receiving the bike, the password can be customized.
Please follow the following steps:
Caution:
① The setting will with a long beep if it’s succeed.
② The setting will with 3 short beeps if it failed, then you may need to repeat the above steps, or contact the after-sales
team by sending the operation video.
Password modification
01234
56789
o
② Input the orginal password “012345”+” ”, then input the new six-digit password
“******”+” ”to finish the password modification.
12

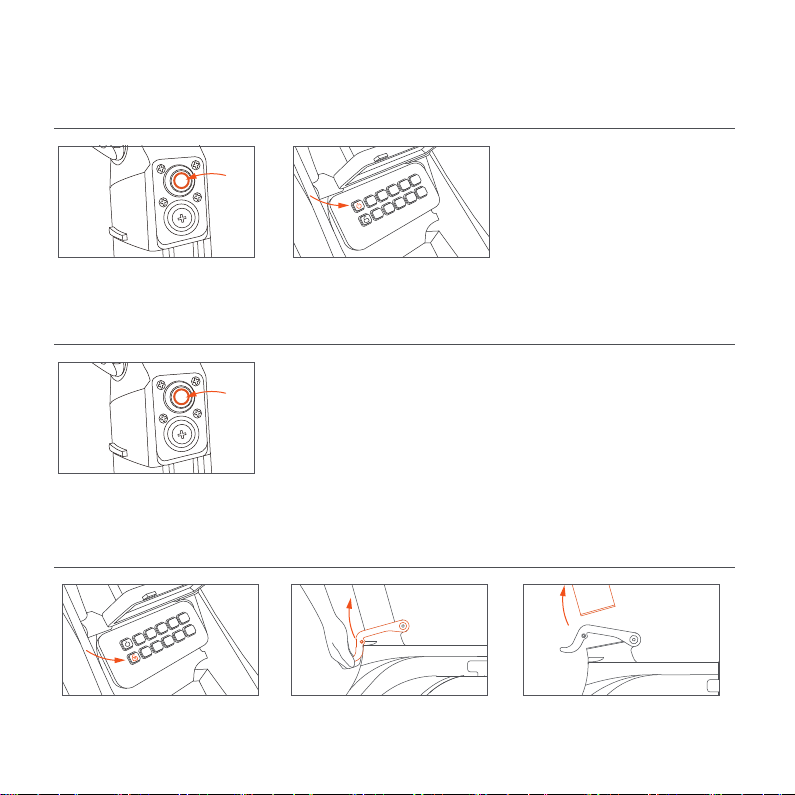

The coded password can be operated to turn on/off the bike power, and remove the seatpost battery.
Please follow the following steps:
1. Click the ON/OFF button, to turn
on the battery power. The green
light is on means it succeed.
1. Click the ON/OFF button, to turn
off the battery power and bike power.
The green light is off means it succeed.
2. Input six-digit password, then
click the power button to start the
bike power.
Turn on power
Turn off power
1. Input six-digit password, then
click the unlock button. A long beep
means unlocking the battery is
succeed.
2. Open the seat clamp upward. 3. Lift the seatpost battery till it is
completely detached from the frame,
to successfully remove the battery.
How to remove the seatpost battery
01234
56789
o
01234
56789
13

2.4 Charging instructions
The seatpost battery comes with a small amount of electricity, before the first time use, please make sure to charge it
to full power before riding.
1. Charging connection: Connect the charging interface of the charger to the charging port, then connect the power
plug of the charger to the power socket.
2. Fully charged：When the indicator light of the charger is red, means it’s normal charging. When the light is green,
means it’s fully charged.
3. Charging hour: Charging hour is around 7-9 hours, The duration depends on the situation.
4. Disconnect charging: When the indicator light turns green, means it’s fully charged. Unplug the power plug first,
then remove the charging interface from the battery. Close the battery dust cover.
5. Charging mode: The bike supports two charging modes: vehicle charging and disassembly battery charging. Please
see P13 for how to remove the battery.
Caution: Charger has high voltage device, DO NOT repair without permission. In order to avoid danger, battery and
charger should be placed away from children. There should be no inflammable and explosive objects
around the batteries (such as car seat cushions, sofas, etc.). Keep the battery in a ventilated and dry place,
and make sure NOT to charge in open-air place, to avoid electrical short circuit fire and other accidents
caused by rain and other factors, and to prevent liquid and metal particles into the electrical parts.
Danger: Charging can be allowed on public charging equipment, but the matching between the bettery and the
charging equipment should be fully considered.
Warning: If there’s any odor or high temperature during charging, please stop charging immediately and contact
after-sales team for assist.
Charging
14

2.5 Folding instructions
Lift the seat clamp upward, to keep it in open status. Gently press down the seatpost battery to the bottom. Press down
the seat clamp to keep it in closed status.
Open the stem safety hook, turn the stem clamp downward to keep it in open status. Gently turn the stem downward to
the bottom, to finish the stem folding.
Lower the seatpost
Fold the stem
15

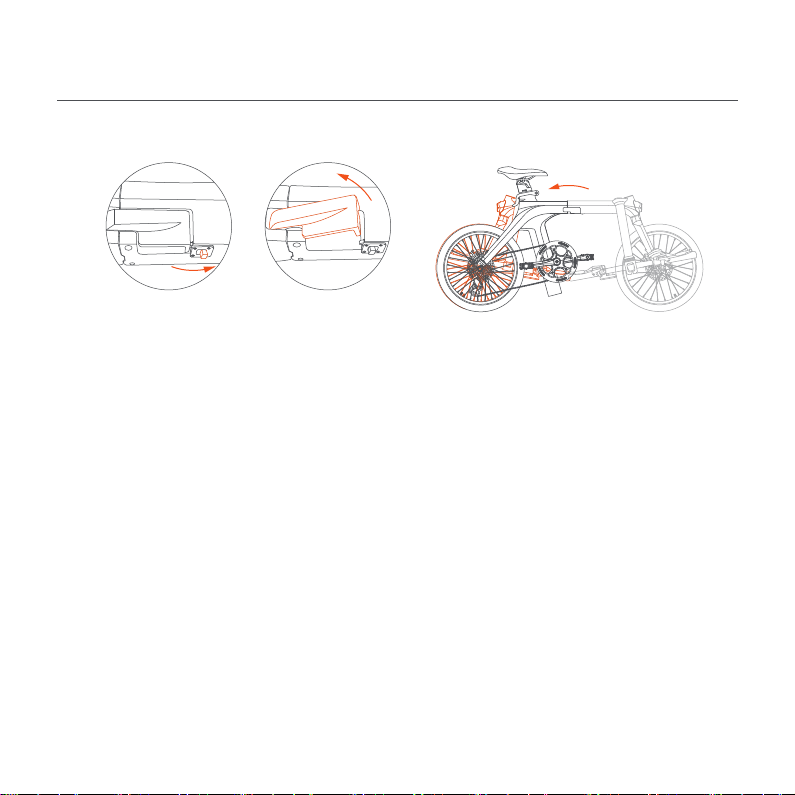

① Open the safety hook, open the frame clamp outward and keep it in open status.
② Fold the front part of the bike backward, to finish the bike folding.
Fold the bodywork
16
