Fimco TRL-45-REM-4 User manual

Page 1
Model: TRL-45-REM-4 (5303636)
(45 Gallon Lawn & Garden Trailer Sprayer w/4-Nozzle Boom Assembly)
www.fimcoindustries.com
1000 FIMCO Lane, P.O. Box 1700, North Sioux City, SD 57049
Toll Free Phone: [phone] : Toll Free Fax: [phone]
[5195735 (05/22)]
OWNER’S MANUAL
General Information
Thank you for purchasing this product. The purpose of this
manual is to assist you in operating and maintaining your lawn
& garden Trailer sprayer.
Retain a copy of your receipt for your unit, as it will be required
to validate any warranty service.
Warranted against manufacturer or workmanship defects from
date of purchase with copy of receipt:
Homeowner Usage: One Year.
Commercial Usage: 90 Days.
BEFORE RETURNING THIS PRODUCT
FOR ANY REASON, PLEASE CALL
1-800-831-0027
MONDAY-FRIDAY, 8:00 AM TO 5:00 PM CST
If you should have a question or experience a problem with
your Fimco Industries Product: Visit our website @
www.fimcoindustries.com or call the Toll free number above. Our
technical support representatives will be happy to help you.
In most cases a customer service rep. can resolve
the problem over the phone.
To obtain prompt, efficient service, always remember to give the
following information....
• Correct Part Description and/or part number
• Model number and Serial Number

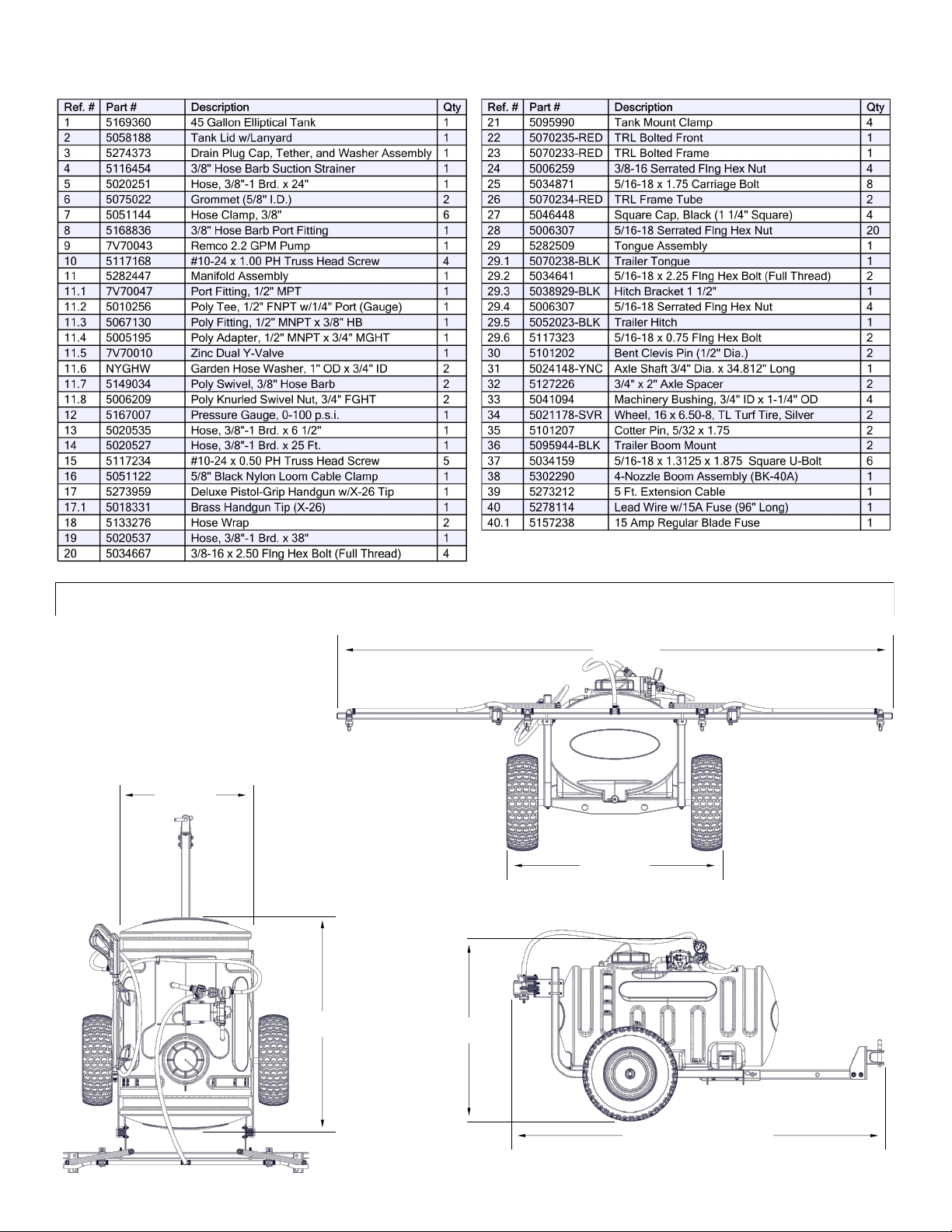

Part descriptions and numbers can be obtained from the
illustrated parts list section(s) of this manual.
IMPORTANT:
Occasionally check the strainer screen to ensure it is clean
and clear of any debris. Strainer is located on the end of
the intake hose, inside of the tank. Use protecve gear
when removing hose from tank and cleaning the strainer.
WARNING: Cancer and Reproducve Harm.
www.P65Warnings.ca.gov
WARNING: To reduce the risk of injury, the
user must read and understand the operator’s
manual before using this product.
NOTE: Maximum Speed - 10 MPH
Refer to vehicle’s manual for towing instrucons.

Page 2
Contents
Technical Specicaons......................................................... 2Remco Pump Info...............................................................9
Sprayer Contents ................................................................... 3Troubleshoong ..........................................................8 - 10
Assembly Instrucons....................................................... 4 - 5 Sprayer Exploded Views...................................................11
Operaon............................................................................... 6Sprayer Parts List and Dimensions ...................................12
Calibraon and Tank Care ..................................................... 7Boom Exploded View/Parts List .......................................13
Maintenance and Winter Storage ......................................... 8Warranty ..........................................................................14
Model: TRL-45-REM-4 (5303636)
(45 Gallon Lawn & Garden Trailer Sprayer w/4-Nozzle Boom Assembly)
Technical Specicaons
• 45 Gal. Corrosion-Resistant Polyethylene Tank
• 12 Volt Remco Pump, 2.2 GPM - 60 PSI
• Deluxe Pistol-Grip Handgun w/25’ Handgun Hose
• 25 Ft. max. vercal throw, 40 Ft. horizontal throw
• 16x6.50-8 Turf Tires
• 4-Nozzle Boom (120” Spray Coverage)
• Corrosion-Resistant Nylon Nozzles
• Check Valve Strainers, 50 Mesh, 5 PSI
• Breakaway Outer Boom Members
Cauon: When fully lled with water, this sprayer will weigh approx. 485 lbs..
Consult the owner’s manual for your vehicle to verify that you are within it’s load carrying capacity.
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~IMPORTANT~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
Remove tank lid and be sure the tank is clean and free of any foreign material. Rinse tank out of any tank residue before lling with
water to test.
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~IMPORTANT~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
It is VERY important to test this sprayer with plain water before actual spraying is aempted. This will enable you to familiarize
yourself with the sprayer and check for leaks without the possibility of losing any expensive chemicals.
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~WARNING~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
Read and Understand the Owner’s Manual before using this sprayer. Test and use in accordance to instrucons.
Read and Follow chemical label instrucons and wear protecve gear when lling, using, cleaning and servicing the
sprayer.
Exercise Cauon in vehicle handling when towing/hauling a lled sprayer to avoid loss of control or overturning.
Keep Sprayer and Spray materials away from other people, children and pets.
Do Not Turn on Power to the sprayer, unl ready to spray in order to avoid unintenonal spray release.
Do Not Use on steep slopes. A full sprayer could cause loss of control or overturn sprayer and vehicle.
Always operate up and down a slope, never across the face of a slope.
Keep all movement on slopes slow and gradual. Do not make sudden changes in speed, direcons or turning. Do not start or stop
suddenly when going uphill or downhill.
Stop on level ground, set the parking brake and shut o engine before leaving the operator’s posion for any reason.
Keep all parts in good condion and properly installed. Fix damaged or warn parts immediately.
Cauon should be taken when towing and/or using any sprayer. This sprayer combined with the weight distribuon, turning radius
and speed of vehicle can result in damage to vehicle and/or sprayer or severe injury or death, if not used properly.
Improper use of this sprayer or handling of chemicals could result in serious injury or illness, or could cause damage to the
environment.

Page 3
Contents of your sprayer’s carton:
Tank Lid
& Lanyard
Owner’s
Manual
Tank/Plumbing
Pre-Assembly
TRL
Bolted
Frame
4-Nozzle Boom Assembly
Tongue Assembly
TRL Trailer
Frame
Contents of TRL Parts Bag (#5195750)
Contents of TRL Parts Bag (#5195748)
Axle, 3/4” Dia. x 34-13/16”
(2) Wheel
Assemblies
TRL
Bolted
Front
Contents of TRL Bolt Bag (#5195749)

Page 4
Assembly Instrucons
Your sprayer has been parally assembled at the factory.
Remove all parts from the box and follow the instrucons on pages 4 and 5 to complete assembly of this unit.
Step 1
A) Loosely, aach the TRL bolted frame to the two TRL frame tubes, using four carriage bolts and hex
nuts. Do Not Tighten.
B) Loosely, aach the TRL bolted front to the two TRL frame tubes, using four carriage bolts and hex
nuts.
Tighten all bolts.
Step 2
Mount the preassembled tank unit on to the frame, using
the four tank mount clamps, securing each clamp with a hex
bolt and hex nut. Do not over-ghten.
Step 3
Insert the trailer tongue assembly into the TRL bolted front
and secure with the bent clevis pin, as shown.
This is an adjustable tongue, made to slide in and out for
storage, using the clevis pin.
Step 2
Step 1
Step 3

Page 5
Step 4
NOTE: grease wheel bearings before installing wheels.
Insert the axle through the holes in the frame tubes. Then slide an
axle spacer on to the axle, followed by a machine bushing. Slide the
wheel on to the axle, then another machine bushing and secure with
the coer pin.
Repeat for the other side.
Step 5
Aach the trailer boom mounts to the upright arms of the frame
tubes and secure with square u-bolts and hex nuts.
Unfold the outer boom arms. With the boom springs on top, center
the boom between the boom mounts and secure to the boom
mounts with square u-bolts and hex nuts.
Now, aach the nozzle harness to the boom with the nozzle
clamps. and the nozzles to the inside of the fold, poinng down.
Starng with the center hose barb tee of the nozzle harness, center
on the boom. Mount the nozzles 30” apart. Place a clamp half over
the top of the boom tube and another clamp half
below the boom tube, slide the clamp halves together into the
groove in the square part of the nozzle.
Secure the clamps to the boom tube.
Loosely slide a hose clamp on to the feeder hose, connect the
boom feeder hose to the hose barb tee on the nozzle harness
and secure with the hose clamp.
Step 6
Thread the pressure gauge into the port on the manifold. Hand
ght should be sucient.
Aach the hose wraps to the side of the tank, as shown, with 4
screws.
Finally, thread the lid on to the tank, if not already done.
Make sure all hose clamps are ght.
• Make sure all hose clamps are ght before tesng or spray-
ing for the rst me.
• Connect sprayer lead wire to a fully charged 12V baery to
power the sprayer pump. The towing vehicle baery can be used
or a stand-alone 12V baery.
The Sprayer is now ready to TEST w/plain water before actual use**
Step 4
Step 5
Step 6

Page 6
IMPORTANT: Remove tank lid and be sure the tank is clean and free of any foreign material. Rinse tank out of any tank residue
before lling with water to test.
Tesng the Sprayer
NOTE:
It is VERY important to test this sprayer with plain water before actual spraying is
aempted. This will enable you to check the sprayer for leaks without the possibility
of losing any expensive chemicals.
Fill the tank about 1/2 full with plain water and drive to the starng place for spray-
ing.
When you are ready to spray, turn the boom valve to the “on” posion (Detail A).
This will start soluon spraying from the ps of the boom. The pressure will decrease
slightly when the boom is spraying.
Adjust the pressure by turning the “ON/OFF” valve lever on the bypass valve
(Detail B). Make sure your paern is sucient. You may down-pressure the system
by ‘bypassing’ soluon back into the tank. This is achieved by opening the bypass
valve. Regulang pressure is also done in this manner.
Read the operang instrucons and inially begin spraying by closing the bypass
valve and opening the boom line valve (Detail A). This will enable the air in the line to
be eliminated (purged) through all the ps, while building pressure. When everything
tests all right (no leaks and good pressure), add the desired chemicals to the mixture
and water combinaon and start your spraying operaon. Adjust the pressure and
spray as you did in the tesng procedure.
Condions of weather and terrain must be considered when seng the sprayer. Do
not spray on windy days. Protecve clothing must be worn in some cases.
Be sure to read the chemical label(s) before applicaon!
Operaon
The pumping system draws soluon from the tank, through the strainer and to the
pump. Pump forces the soluon under pressure to the handgun or boom nozzles.
Fill the tank part way with water and then add the desired amount of chemical to be
sprayed. Finish lling tank to proper level.
Only ll the tank with what you’re going to spray in a day, never leave chemicals sit
in tank.
Connect the lead wire to a fully charged 12 volt baery. You may use either a stand-alone baery or the baery on your towing
vehicle.
Connect to the posive (red) terminal rst, then connect to the negave (black) terminal. Then connect the end of the lead wire to
the end of the pump. When disconnecng, disconnect the end of the pump wire from the lead wire, then disconnect the negave
(black) connecon and nally the posive (red) connecon. The lead wire has an On/O switch to acvate the pump.
“-” is on and “O” is o. Turn the pump on and by depressing the “-” side of the rocker switch. The pump is equipped with a pres-
sure switch that is pre-set at the factory to shut the pump o when all discharges are closed.
The pump will turn back on when one of the following acons occurs:
 Handgun lever is squeezed to spray the handgun.
 Boom valve is opened to broadcast spray with the boom.
 Bypass valve is opened to re-circulate soluon back into the tank.
When spraying with either the boom or the handgun, pressure may be reduced by slowly opening the bypass valve unl desired
pressure is achieved. Opening the valve decreases pressure, closing the valve increases pressure. When spraying with the boom,
the proper method to set the pressure is to open the boom valve completely and if a lower pressure is desired, then slowly open
the bypass valve unl that pressure is obtained.
For the safest and most ecient chemical applicaon, you will need to calibrate your sprayer using the p and speed charts. Once
you have determined the proper speed and pressure sengs, you will need to consult your chemical label for the amount of chem-
ical to be added to the tank. Read the enre label. Use only according to label direcons.
Manifold Valves CLOSED
Detail A
Detail B

Page 7
Calibraon
Chemical labels may show applicaon rates in gallons per acre, gallons per 1000 square feet or gallons per 100 square feet. You will
note that the p chart shows 2 of these rang systems. Once you know how much you are going to spray, then determine (from
the p chart) the spraying pressure (PSI), and the spraying speed (MPH).
Determining the proper speed of the pulling vehicle can be done by marking o 100, 200 & 300 feet. The speed chart indicates the
number of seconds it takes to travel the distances. Set the throle and with a running start, travel the
distances. Adjust the throle unl you travel the distances in the number of seconds indicated by the speed chart. Once you have
reached the throle seng needed, mark the throle locaon so you can stop and go again, returning to the same speed.
Add water and proper amount of chemical to the tank and drive to the starng place for spraying.
Using the Boom Nozzles
Four things must be considered before spraying with the boom.
 How much chemical must be mixed in the tank.
 Rate of spray (gallons per acre to be sprayed).
 What pressure (PSI) will be used.
 Speed traveled (mph) while spraying.
 Refer to the chemical label to determine your chemical mixture
 See the p chart to determine the pressure to be used. The chart will also show the speed used when spraying.
 Start the pump and open the valve to the boom nozzles.
 Check the spray paern. Usually you can see the coverage beer on a solid concrete surface, such as a driveway.
Tank Care & Maintenance
Warning: Do not use the tank as a container for fuel oils, kerosene, gasoline or any other petroleum disllate product. All polyole-
ns are soened and permeated by such products. In an enclosed area the vaporizaon of these materials from the outside sur-
face of the tank could create a dangerous condion.
The tank should not be used as a pressure vessel nor used with chemicals or soluons having a weight of more than 12 pounds per
gallon.
Store the tank in a dry dark place when not in use. Storage out of sunlight will prolong the life of the tank.
Do not drop, strike or kick the tank, especially at low temperatures. Tanks become brile and are subject to cracking at tempera-
tures below 20° Fahrenheit.
Always ush the tank with water and a neutralizing agent at the end of each use, to prevent contaminaon of soluons.
Speed in M.P.H.
(Miles Per Hour)
100 Ft. 200 Ft. 300 Ft.
1.0 68 sec. 136 205
2.0 34 68 102
3.0 23 45 68
4.0 17 34 51
5.0 14 27 41
Time Required in seconds to travel a distance of
Speed Chart
NOTE: Maximum Speed - 10 MPH
Refer to vehicle’s manual for towing instrucons.
Pressure
(psi)
Capacity
(GPM)
1
MPH
2
MPH
3
MPH
4
MPH
5
MPH
6
MPH
15 .12 23.50 11.70 7.80 5.90 4.70 3.90
20 .14 27.50 13.70 9.10 6.90 5.50 4.60
30 .17 33.30 16.60 11.10 8.30 6.70 5.50
40 .20 39.30 19.70 13.10 9.80 7.90 6.50
15 .12 .54 .27 .18 .13 .11
20 .14 .64 .32 .21 .16 .13
30 .17 .76 .38 .26 .19 .15
40 .20 .90 .45 .30 .22 .18
Gallons Per
Acre
Based on Water
Gallons Per
1000 Sq. Ft.
Based on Water
AIXR11002VP Spray Tip Rate Chart (30" Spacing)

Page 8
Maintenance During/Aer Spraying
Periodically check the strainer and clean the screen on your intake line.
If sprayer becomes clogged during use, disconnue use immediately. DO NOT aempt to service while chemicals are in the sprayer
and power is connected.
Proper care and maintenance will prolong the life of your sprayer.
Aer use, drain the tank and store or dispose of chemical properly. Fill the sprayer half way with clean water. Start the pump and
allow the water to pump through the enre plumbing system and nozzles. Drain and then rell half full, add the recommended
amount of a good quality tank cleaner, such as FIMCO Tank Neutralizer and Cleaner. (If no tank cleaner is available, you may sub-
stute dish soap for this step, about 1-2 oz. per gallon). But a neutralizer/cleaner should be used to thoroughly clean the system.
Turn pump on and circulate through system for 15 minutes and then spray out through boom and handgun nozzles. Rell sprayer
half way with clean water and repeat. Follow the chemical manufacturer’s disposal instrucons of all wash or rinsing water.
If boom (if applicable) or handgun nozzles need cleaning, remove them from the sprayer and soak in warm soapy water. Clean with
a so bristled brush or toothpick if necessary. Never use a metal object. Even the slightest damage can change the ow rate and
spray distribuon. Water rinse and dry the ps before storing.
WARNING: Some chemicals will damage the pump valves if allowed to soak untreated for a length of me! ALWAYS ush the
pump as instructed aer each use. DO NOT allow chemicals to sit in the pump for extended mes of idleness. Follow the chemical
manufacturer’s instrucons on disposal of all waste water from the sprayer.
Winter Storage
Prepare the sprayer for end-of-season storage by running RV anfreeze through the system. This will keep internal parts lubricat-
ed, protect against corrosion and keep the unit from freezing. Note: RV anfreeze is non-toxic and biodegradable and generally
safer for the environment than automove anfreeze.
Before storing your sprayer for winter or long term storage, thoroughly clean and drain it as much as possible. Then pour enough
pink RV anfreeze into the tank so that when the pump is turned on you can pump the anfreeze throughout the enre plumbing
system, including the bypass. Make sure to operate the boom and handgun unl you see pink uid spraying from the nozzles.
Leave any remaining anfreeze in the tank. Before your next usage, rinse the anfreeze from the sprayer with clean water.
It is nearly impossible to drain all of the water from the sprayer and any trapped water can freeze in cold weather and damage
parts of the sprayer. Pumping the anfreeze through the system will displace the water and help prevent this damage.
Removing from storage: drain the anfreeze. Fill the tank with fresh water and run through the system. Dispose of anfreeze and
ush water properly.
Before Troubleshooting or Attempting to Service the Pump:
♦ Review Troubleshooting Chart: Do Not attempt to repair until steps below are followed.
♦ Personal Protective Gear: Wear protective gear when servicing pump.
♦ Disconnect Power: Disconnect the power to the pump and relieve the pressure from the system.
♦ Empty and Flush the pump system with water, never attempt to service the pump until it has been emptied and
flushed.
♦ Perform Repairs: Follow directions provided in the troubleshooting section to repair the pump.
♦ Test: Always test the pump for leaks with plain water after any repairs before using.

Page 9
Check the fuse spray pattern
Check for defective pressure switch
12 Volt Power Source
Discharge hose may be too long
Check for clogged strainer/filter
Check for worn or dirty check valve
Slightly open bypass (if applicable) to overcome
Pressure switch may need to be adjusted
1/4 turn at a time clockwise until surging stops
Try another 12-Volt battery
Pump
will not run:
Check for loose wiring
Make sure the ON/OFF switch is on
Check to see if connected to good
Check for Low Voltage
Troubleshooting
Check for a clogged strainer
Check for proper voltage
Check for leaks in the discharge line
Check for restrictions in the discharge line
Check for debris in intake
Check for debris in nozzle orifice
Check for worn or dirty check valve
Low Pressure/
Low Flow:
Pump Does Not
Prime
(No Discharge
w/Motor
Running)
Check for clogged strainer/filter
Check for kinked inlet/outlet hoses
Check for empty product supply
Check for defective check valve
Check for debris in the check valve assembly
Check for cracks in the pump housing
Check for air leaks in supply line
Pump surges:
Low flow may cause pump to surge
Spray Wand is adjusted to small or fine of a
Check for defective pressure switch
Check for leaks in the discharge line
Check for debris in nozzle orifice
Fuse blows:
Excessive voltage
Improper adjustment of pressure switch
Damaged or defective wiring harness
Defective pressure switch
Pump continues
to run:
Check for worn or dirty check valve
Check for empty product supply
Check for Low Voltage
Check for leaks in the discharge line
Check for defective pressure switch
System has leaks
Air trapped in outlet line or pump head
DO
• Clean and rinse your pump after each use with Fimco Tank
Neutralizer.
• Winterize your pump or sprayer by rinsing, draining and
running RV Antifreeze through it before storing for the winter.
• Use clean water for your spray mixture.
• Store inside a building when not in use.
DON’T
• Use to pump bleach.
• Use to pump petroleum products such as diesel fuel, gaso-
line or kerosene.
• Use to pump chemicals w/petroleum distillates or surfac-
tants.
• Use to store flammable or combustible liquids.
• Leave your pump sit with spray mixture in it for extended
periods.
• Use dirty or unfiltered water for spraying.
Pump Model: 91-3313-1E1-82B
Part #: 7V70043
2.2 GPM Pump
w/Quick Aach
GPM 2.2
PSI 60
Port 3/4" Quick Attach
Priming Capability 8 Ft.
Sealed Motor
Low Amp Draw
Superior Priming Capabilities

Page 10
Sprayer and Pump FAQs:
♦ Why does the pump not run all the me?
This is an on-demand pump and only runs when a discharge is open (spray gun, bypass, boom (if applicable) or a system leak.
♦ Why does the pump surge while using the spray gun?
Low ow/high pressure may cause the pump to surge (or cycle). Typically the spray wand is adjusted at too ne of a mist, to
overcome, adjust the nozzle for a higher ow.
♦ How do I adjust the pressure?
Pressure can only be adjusted by opening the pressure adjust (bypass) valve to allow some of your water or soluon to return
to the tank (if equipped).
♦ Pump quit and will not run, what do I need to do?
Squeeze trigger on spray gun to ensure that the system isn’t just pressurized up with discharges closed.
Check electrical connecons, ensure switch is on. Check fuses. Check for proper voltage. Check pressure switch.
♦ Low ow or no ow at all, what do I need to check for?
Check for a clogged intake hose and/or intake strainer. Check for proper voltage.
You will need to occasionally check your intake strainer to ensure that it is clean of any debris.
♦ What is causing the fuse to blow each me I turn the pump on?
Check for excessive voltage. Improper adjustment of the pressure switch. Damaged or defecve wire harness or defecve
pressure switch.
Warning:
Ensure the wiring harness does not become pinched or damaged in any way. This may damage the pump or cause the wiring
harness to overheat, resulng in a melt down or re.

Page 11
Exploded View:
TRL-45-REM-4 (5303636)
(See Parts List Next Page)
See Boom
Assembly
Page 13 for
Breakdown & Parts List
See Manifold Detail
Above
See Tongue Assembly
Detail Below
Manifold
Detail
Tongue Assembly
Detail
Handgun
Hose
Boom Feeder
Hose
Intake
Hose

Page 12
Parts List: TRL-45-REM-4 (5303636)
Approx. Dimensions:
36-7/32”
93-1/2”
30-23/32”
62-63/64” (Extended)
52-3/32” (for Storage)
23”
37-1/4”

Page 13
4-Nozzle Boom Assembly (5302290)
(with 3/8” Hose, 1” Sq. Tubing & AIXR11002VP Tips)
Clamp
Bag of 4:
5277728
Hinge Detail
Based on the minimum overlap required to obtain uniform
distribuon with 110° ps and 30” spacing.
Suggested Minimum Spray Height: 20”-22” above what is
being sprayed (to plant, not ground).
Opmum Spray Height: 20”
• 110° wide, tapered at spray angle with air inducon tech-
nology for beer dri management
• Made of 2-piece UHMWPE polymer construcon which
provides excellent chemical resistance, including acids, as
well as exceponal wear life
• Compact size to prevent p damage
• Excellent for systemic products and dri management
Opposite side has typical hardware & nozzle configuration.
See Hinge Detail
Elbow Tee

Page 14
Warranty
LIMITED WARRANTY FOR NEW FIMCO, IND. EQUIPMENT
WHO MAY USE THIS LIMITED WARRANTY. This limited warranty (the “Limited Warranty”) is provided by Fimco, Ind. to the original purchaser
(“you”) of the Equipment (as dened below) from Fimco, Ind. or one of Fimco, Ind.’s authorized dealers. This Limited Warranty does not apply to
any subsequent owner or other transferee of the Equipment. THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO
HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.
WHAT THIS LIMITED WARRANTY COVERS AND FOR HOW LONG. Fimco, Ind. warrants that any new Equipment will be free from defects in
material and workmanship for a period of one (1) year for sprayer and pump (homeowner), 90 days for sprayer and pump (commercial user),
aer delivery of the Equipment to you (the “Warranty Period”). The Warranty Period is not extended if Fimco, Ind. repairs or replaces the Equip-
ment.
WHAT IS NOT COVERED BY THIS LIMITED WARRANTY. This Limited Warranty does not apply to: (1) used Equipment; (2) any Equipment that has
been altered, changed, repaired or treated since its delivery to you, other than by Fimco, Ind. or its authorized dealers; (3) damage or deprecia-
on due to normal wear and tear; (4) defects or damage due to failure to follow Fimco, Ind.’s operator’s manual, specicaons or other wrien
instrucons, or improper storage, operaon, maintenance, applicaon or installaon of parts; (5) defects or damage due to misuse, accident or
neglect, “acts of God” or other events beyond Fimco, Ind.’s reasonable control; (6) accessories, aachments, tools or parts that were not manu-
factured by Fimco, Ind., whether or not sold or operated with the Equipment; or (7) rubber parts, such as res, hoses and grommets.
HOW TO OBTAIN WARRANTY SERVICE. To obtain warranty service under this Limited Warranty, you must (1) provide wrien noce to Fimco,
Ind. of the defect during the Warranty Period and within thirty (30) days aer the defect becomes apparent or the repair becomes necessary, at
the following address: Fimco, Ind., 1000 Fimco Lane, North Sioux City, SD 57049; and (2) make the Equipment available to Fimco, Ind. or an
authorized dealer within a reasonable period of me. For more informaon about this Limited Warranty, please call: 800-831-0027.
WHAT REMEDIES ARE AVAILABLE UNDER THIS LIMITED WARRANTY. If the condions set forth above are fullled and the Equipment or any part
thereof is found to be defecve, Fimco, Ind. shall, at its own cost, and at its opon, either repair or replace the defecve Equipment or part.
Fimco, Ind. will pay for shipping and handling fees to return the repaired or replacement Equipment or part to you.
LIMITATION OF IMPLIED WARRANTIES AND OTHER REMEDIES. THE REMEDIES DESCRIBED ABOVE ARE YOUR SOLE AND EXCLUSIVE REMEDIES,
AND FIMCO, IND.’S SOLE LIABILITY, FOR ANY BREACH OF THIS LIMITED WARRANTY. TO THE EXTENT APPLICABLE, ANY IMPLIED WARRANTIES,
INCLUDING, WITHOUT LIMITATION, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, SHALL BE LIM-
ITED IN DURATION TO THE WARRANTY PERIOD, AND THE REMEDIES AVAILABLE FOR BREACH THEREOF SHALL BE LIMITED TO THE REMEDIES
AVAILABLE UNDER THIS EXPRESS LIMITED WARRANTY. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY
LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. IN NO EVENT SHALL FIMCO, IND.’S LIABILITY UNDER THIS LIMITED WARRANTY EX-
CEED THE ACTUAL AMOUNT PAID BY YOU FOR THE DEFECTIVE EQUIPMENT, NOR SHALL FIMCO, IND. BE LIABLE, UNDER ANY CIRCUMSTANCES,
FOR ANY CONSEQUENTIAL, INCIDENTAL, SPECIAL OR PUNITIVE DAMAGES OR LOSSES, WHETHER DIRECT OR INDIRECT. SOME STATES DO NOT
ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT
APPLY TO YOU.
