Firegear FPB-40SFBSMT-N User manual

Outdoor Square Flat Disc Fire Pits
Installation and Operating Instructions
IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS
DO NOT ATTEMPT TO INSTALL OR OPERATE THIS APPLIANCE
Warning: For Outdoor Use Only
PLEASE RETAIN THIS MANUAL FOR FUTURE REFERENCE
INSTALLATION PRECAUTION:
This re pit requires a minimum 18-square inches (per side) of cross ventilation.
Failure to provide proper ventilation can void the warranty.
Natural Gas Models Description Propane Gas Models
FPB-25SFBSMT-N 25” Square Flat Disc (MT System) FPB-25SFBSMT-P
FPB-25SFBSTMSI-N 25” Square Flat Disc (TMSI System) FPB-25SFBSTMSI-P
FPB-25SFBSTFS-N 25” Square Flat Disc (TFS System) FPB-25SFBSTFS-P
FPB-30SFBSMT-N 30” Square Flat Disc (MT System) FPB-30SFBSMT-P
FPB-30SFBSTMSI-N 30” Square Flat Disc (TMSI System) FPB-30SFBSTMSI-P
FPB-30SFBSTFS-N 30” Square Flat Disc (TFS System) FPB-30SFBSTFS-P
FPB-34SFBSMT-N 34” Square Flat Disc (MT System) FPB-34SFBSMT-P
FPB-34SFBSTMSI-N 34” Square Flat Disc (TMSI System) FPB-34SFBSTMSI-P
FPB-34SFBSTFS-N 34” Square Flat Disc (TFS System) FPB-34SFBSTFS-P
FPB-40SFBSMT-N 40” Square Flat Disc (MT System) FPB-40SFBSMT-P
FPB-40SFBSTMSI-N 40” Square Flat Disc (TMSI System) FPB-40SFBSTMSI-P
FPB-40SFBSTFS-N 40” Square Flat Disc (TFS System) FPB-40SFBSTFS-P
FPB-46SFBSMT-N 46” Square Flat Disc (MT System) FPB-46SFBSMT-P
FPB-46SFBSTMSI-N 46” Square Flat Disc (TMSI System) FPB-46SFBSTMSI-P
FPB-46SFBSTFS-N 46” Square Flat Disc (TFS System) FPB-46SFBSTFS-P

REV. 8-30-18 Page 2
Square Flat Disc Fire Pits
Fuels used in gas red appliances, and the products of combustion such as fuels, contain
chemicals known to cause cancer, birth defects and/or other reproductive harm.
This warning is issued pursuant to the California Health & Safety Code Sec. 25249.1
DANGER
CARBON MONOXIDE HAZARD
This appliance can produce carbon monoxide
which has no odor.
Using it in an enclosed area can kill you.
Never use this appliance in an enclosed
space such as a camper, tent, car or home.
If you smell gas:
1. Shut off gas to the appliance
2. Extinguish any open ame.
3. If odor continues, keep away from
the appliance and immediately call
your gas supplier or re department.
DANGER WARNING
Do not store or use gasoline or other
ammable vapors and liquids in the
vicinity of this or other appliances.
Any LP cylinder not connected for use
shall not be stored in the vicinity of this
or other appliances.
WARNING
Do not leave unattended during use.
Do not use for cooking.
Follow all gas leak procedures in this
manual prior to operation.
WARNING
Improper installation, adjustment,
alteration, service or maintenance
can cause injury or property damage.
Read the installation, operating and
maintenance instructions thoroughly
before installing or servicing this
equipment.
WARNING
If the information in these instructions is not followed exactly, a re or explosion
may result causing property damage, personal injury or death.
FOR YOUR SAFETY
Do not store or use gasoline or other ammable vapors and liquids in the vicinity
of this or other appliances.

Square Flat Disc Fire Pits REV. 8-30-18 Page 3
TABLE OF CONTENTS
All media (i.e. lava rock, lava stones, lava boulders and re glass) has the potential of thermal
spalling. This is a process that may occur when media is wet and moisture gets trapped inside of
the material due to rapid temperature differences. When this happens the media has the potential
to crack or “pop” outside the replace.
WE HIGHLY RECOMMEND COVERING ALL FIRE FEATURES WHEN NOT IN USE
The use of a cover can lessen the impact of thermal spalling; however, heavy rains, high
humidity and the presence of moisture may still cause the media to pop.
ALWAYS USE CAUTION WHEN USING THE FIRE FEATURE
Extra caution should be taken when lighting a replace when heavy rains, high humidity and
moisture are present. Light the replace; leave the area allowing any moisture in the media to
dissipate. We strongly recommend that during this drying out time that you monitor the re feature
from a distance. This drying out period should be no less than 30 minutes. Continue monitoring
the ame from distance to ensure that all popping has ceased before fully enjoying the re.
Specications 4-5
Disc Specications 4
Btu Specications 5
Preparation for Non-Combustible Structure 6
Hard Piping to Fire Pit 6
Cross Ventilation Requirements 6
High Elevation 6
Gas Pipe Sizing Chart 7
Installation into an Approved Enclosure 8-10
Section A Match Light (MT) Installation 10
Operation & Lighting 11
MT Troubleshooting/Maintenance 12
Expanded MT Model View 13
Section B Thermocouple Manual Safety (TMSI) Installation 14-16
Operation & Lighting 17
TMSI Troubleshooting/Maintenance 18
Expanded TMSI Model View 19
Section C Thermocouple Flame Sense (TFS) Installation 20-23
Operation & Lighting 24
TFS Troubleshooting/Maintenance 25-27
Expanded TFS Model View 28
Replacement Parts 30
Replacement Parts List 31-32
Optional Accessories 33
CALIFORNIA PROPOSITION 65
WARNING
This product can expose you to Chromium, which is
known to the state of California to cause cancer
and birth defects or other reproductive harm.
(For more information, go to www.p65warnings.ca.gov)

REV. 8-30-18 Page 4
Square Flat Disc Fire Pits
SPECIFICATIONS
Table1. Disc Dimensions
Fig. 1 Flat Disc Dimensions; refer to Table 1.
*(2” overlap around the perimeter, if applicable, is recommended to
secure disc into place)
Model:
Natural Gas (NG)
Model:
Propane Gas (LP) A
Disc
Depth
B
Pan
Diameter
C
Min.Install
Opening
D
Ground
Level
E
Side
Wall
F
Combustible
Ceiling
G
Combustible
Floor
FPB-25SFBSMT-N FPB-25SFBSMT-P 1/16” 19¾” 25 1/2” 18” 19” 69” 18”
FPB-25SFBSTMSI-N FPB-25SFBSTMSI-P 1/16” 19¾” 25 1/2” 18” 19” 69” 18”
FPB-25SFBSTFS-N FPB-25SFBSTFS-P 1/16” 19¾” 25 1/2” 18” 19” 69” 18”
FPB-30SFBSMT-N FPB-30SFBSMT-P 1/16” 29” 30 1/2” 18” 19” 69” 18”
FPB-30SFBSTMSI-N FPB-30SFBSTMSI-P 1/16” 29” 30 1/2” 18” 19” 69” 18”
FPB-30SFBSTFS-N FPB-30SFBSTFS-P 1/16” 29” 30 1/2” 18” 19” 69” 18”
FPB-34SFBSMT-N FPB-34SFBSMT-P 1/16” 29” 34 1/2” 18” 19” 69” 18”
FPB-34SFBSTMSI-N FPB-34SFBSTMSI-P 1/16” 29” 34 1/2” 18” 19” 69” 18”
FPB-34SFBSTFS-N FPB-34SFBSTFS-P 1/16” 29” 34 1/2” 18” 19” 69” 18”
FPB-40SFBSMT-N FPB-40SFBSMT-P 1/16” 34” 40 1/2” 18” 19” 69” 18”
FPB-40SFBSTMSI-N FPB-40SFBSTMSI-P 1/16” 34” 40 1/2” 18” 19” 69” 18”
FPB-40SFBSTFS-N FPB-40SFBSTFS-P 1/16” 34” 40 1/2” 18” 19” 69” 18”
FPB-46SFBSMT-N FPB-46SFBSMT-P 1/16” 29” 46 1/2” 18” 19” 69” 18”
FPB-46SFBSTMSI-N FPB-46SFBSTMSI-P 1/16” 34” 46 1/2” 18” 19” 69” 18”
FPB-46SFBSTFS-N FPB-46SFBSTFS-P 1/16” 44” 46 1/2” 18” 19” 69” 18”
AB
C
*
*
D
Ground Level (Earth)
Valve
Box 10.0”
Fig. 2. Clearance to Combustibles
(Not to be used in an enclosed space)
F
E
G

Square Flat Disc Fire Pits REV. 8-30-18 Page 5
Table 2. Btu Specications
Pressure NG LP
Min. Inlet 5.0” WC 10.5” WC
Max. Inlet 10.5” WC 13.0” WC
Normal Inlet 7.0” WC 11.0” WC
Manifold 5.0" WC 10.5" WC
Table 3. Gas Pressures
Disclaimer: Btu listings are based on 7.0”WC for Natural Gas and 11.0”WC for Liquid Propane (LP) at the burner orice. Flex line
size and proper gas pipe sizing will also affect Btu’s. As a result your Btu’s may vary slightly from Table 2 specications.
Model:
Round Disc NG
NG
Orice
NG Btu’s
High
NG
Btu’s
Low
Model:
Round Disc LP
LP
Orice
Btu’s
High
LP Btu’s
Low
FPB-25SFBSMT-N #29 65,000 N/A FPB-25SFBSMT-P #41 65,000 N/A
FPB-25SFBSTMSI-N #29 65,500 N/A FPB-25SFBSTMSI-P #41 65,000 N/A
FPB-25SFBSTFS-N #7 105,000 51,000 FPB-25SFBSTFS-P #31 100,000 49,500
FPB-30SFBSMT-N #29 65,000 N/A FPB-30SFBSMT-P #41 65,000 N/A
FPB-30SFBSTMSI-N #29 65,500 N/A FPB-30SFBSTMSI-P #41 65,000 N/A
FPB-30SFBSTFS-N #7 105,000 51,000 FPB-30SFBSTFS-P #31 100,000 49,500
FPB-34SFBSMT-N #29 65,500 N/A FPB-34SFBSMT-P #41 65,000 N/A
FPB-34SFBSTMSI-N #29 65,500 N/A FPB-34SFBSTMSI-P #41 65,000 N/A
FPB-34SFBSTFS-N #7 105,000 51,000 FPB-34SFBSTFS-P #31 100,000 49,500
FPB-40SFBSMT-N #29 65,500 N/A FPB-40SFBSMT-P #41 65,000 N/A
FPB-40SFBSTMSI-N #29 65,500 N/A FPB-40SFBSTMSI-P #41 65,000 N/A
FPB-40SFBSTFS-N #7 105,000 51,000 FPB-40SFBSTFS-P #31 100,000 49,500
FPB-46SFBSMT-N #29 65,500 N/A FPB-46SFBSMT-P #41 65,000 N/A
FPB-46SFBSTMSI-N #29 65,500 N/A FPB-46SFBSTMSI-P #31 65,000 N/A
FPB-46SFBSTFS-N #7 105,000 51,000 FPB-46SFBSTFS-P #31 100,000 49,500
Firegear Outdoors re pits are constructed and tested to follow the rigid ANSI standards for gas appliances and
manufactured safely providing dependable and certied products. If these re pits are not installed according to the
installation manual (i.e. not providing ventilation, not providing proper drainage, installing re pits below grade or
modifying the existing products from a normal installation) Firegear Outdoors cannot be responsible if the product does
not operate as designed.
Modifying the re pit directly out of the carton will void the warranty and nullify the UL listing it was certied for. Before
you consider creating your own custom design with a certied product ensure you contact Firegear Outdoors to consult
the installation before proceeding. If you move forward and modify a product without consulting, Firegear Outdoors
cannot be responsible if the product does not operate as designed.
NOTICE
SPECIFICATIONS
NOTE: All disc (MT & TMSI) models come from the factory as Natural gas and can be converted to Propane (LP) gas in
the eld. TFS models, must be order specically as Natural gas or Propane; they cannot be converted from one gas to
another.

REV. 8-30-18 Page 6
Square Flat Disc Fire Pits
WARNING: Proper clearances from combustible materials must be maintained from all sides, top and bottom of this
appliance. Use the specications listed on page 3 for proper clearance to combustibles.

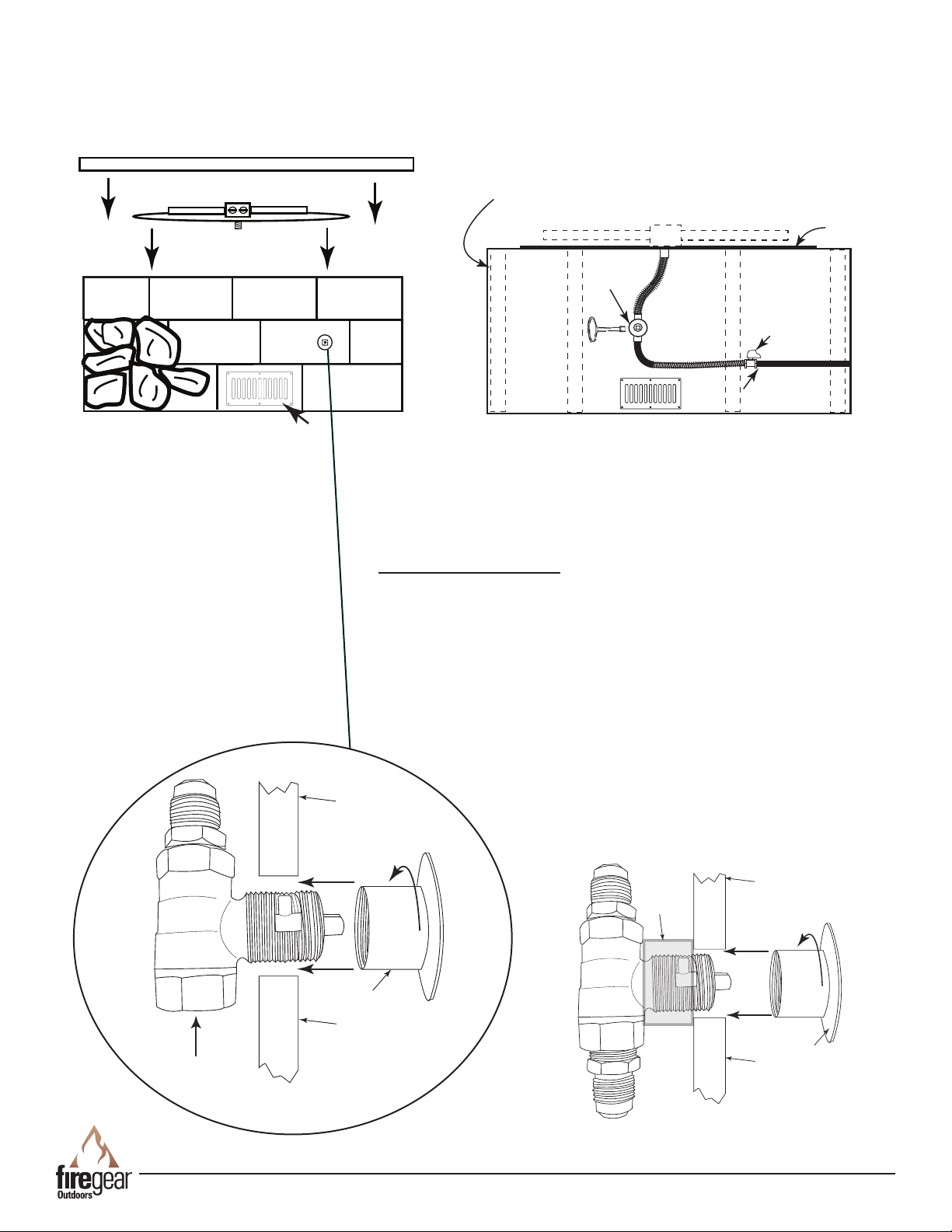

PREPARING A NON-COMBUSTIBLE STRUCTURE
The re pit can be installed on a at, stable surface, away from any combustible materials. Install re pit on any level,
outdoor non-combustible, at stable surface or a combustible oor according to the clearances specied in this manual.
NOTE: Do not place re pit directly on grass, dirt, or rocks as this may prevent proper ventilation (Fig. 3). Ensure proper
water drainage is also incorporated into the re pit enclosure.
HARD PIPING TO FIRE PIT WITHOUT GAS PROXIMITY
NOTE: Refer to the NFPA54 (National Fuel Gas Code) for proper pipe sizing. See gas line sizing chart on page 6 as a
reference.
1. Turn OFF gas supply system. NOTE: All gas connections (except for brass to brass) require the following. Clean pipe
threads using either a wire brush or steel wool. Apply pipe sealant to the ttings before making any connection.
2. BE CAREFUL! Ensure all gas connections are snug, but do not over tighten!
3. Consult a plumber for proper installation to ensure you are providing adequate gas supply for your application.
4. The primary gas shut-off (not supplied) will require a ½” male ared tting to enable connection of the stainless steel
ex gas line supplied with the re pit.
5. Do not place an LP tank inside any re pit enclosure. Locate all propane (LP) tanks outside the enclosure.
6. To prevent performance problems in Propane (LP) re pits, do not use a Propane tank less than 100lbs. capacity.
IMPORTANT
Installation of Natural or LP gas should be done by a qualied installer, service agency or gas supplier.
This appliance must be isolated from the gas supply piping system by closing its manual shutoff valve during any
pressure testing of the gas supply piping system at test pressures equal to or less than ½” psig (3.5kPa)
VENTILATION FOR NON-COMBUSTIBLE ENCLOSURE
Fire pits are subjected to many outdoor elements such as rain,
snow, wind, heat or cold. A minimum of 18 square inches of
cross ventilation (2 sides) is required to keep the
components in good working order. Use Fig. 3 as guide to
assist to incorporate proper ventilation.
HIGH ELEVATION INSTALLATION
This appliance is listed for elevations from 0-4500 feet in
Canada and the U.S. If elevation exceeds 4500 feet it may be
necessary to decrease the input rating by changing the
existing burner orice to a smaller size. Input should be
reduced 4% for each 1000 feet beyond the 4500 feet above
sea level. Check with your local gas utility for assistance in
determining the proper orice in your location. In some cases
the heating value may already be reduced and downsizing the
orice may not be necessary.
Fig 3. Cross Ventilation Example
(2) 6”x12”
Fire Pit
Examples of Cross Ventilation
3 - 2”x3”Slots Per Side or
2- 1”x 9”Slots Per Side or
2- Firegear 6 x12 vents
Cross Flow Ventilation
(Min. 18 Sq. In. Per Side)
Fire Pit
Enclosure

Square Flat Disc Fire Pits REV. 8-30-18 Page 7
REFERENCE
GAS PIPE SIZING
Length of Pipe in Feet 1/2” 3/4” 1” 1 - 1/4” 1 - 1/2” 2” 2 - 2 1/2” 3” 4”
10 275 567 1071 2205 3307 6221 10140 17990 35710
20 189 393 732 1496 2299 4331 7046 12510 25520
30 152 315 590 1212 1858 3465 5695 10110 20620
40 129 267 504 1039 1559 2992 4778 8481 17300
50 114 237 448 913 1417 2646 4343 7708 15730
60 103 217 409 834 1275 2394 3908 6936 14150
70 89 185 346 724 1086 2047 3329 5908 12050
80 78 162 307 630 976 1811 2991 5309 10830
90 69 146 275 567 866 1606 2654 4711 9613
100 63 132 252 511 787 1496 2412 4281 8736
125 54 112 209 439 665 1282 2083 3618 7382
150 48 100 185 390 590 1138 1808 3210 6549
175 43 90 168 353 534 1030 1637 2905 5927
200 40 83 155 325 491 947 1505 2671 5450
300 37 77 144 303 458 887 1404 2492 5084
NATURAL GAS : PIPE SIZING CHART
• Natural Gas (NG) flow is given in
thousands of BTU/hr. = 1cubic
foot of NG gas - 1000 BTU
• Nominal pressure at the burner
for Natural Gas is 3.5” of water
column. (Typical machine supply
5”-7”)
• Pipe length must include
additional length for all fittings.
Add approximately 5 feet of pipe
per fitting.
• Natural Gas Example: A machine
with a burner that requires
440,000 BTU would need a 1 -1/4”
pipe for a 20” long run.
LIQUID PROPANE : PIPE SIZING CHART
NOTE: The sizing charts above list the specific pipe sizes required for the amount of BTU’s for a new gas line installations. If you
are using an existing gas line you must take into consideration the existing gas line capacities to ensure you will have proper
pressure. This chart is for reference only, we recommend you consult with a Licensed Plumber/Gas Fitter or NFPA54 (National Fuel
Gas Code - current edition) for more details.
Length of Pipe in Feet 1/2” 3/4” 1” 1 - 1/4” 1 - 1/2” 2” 2 - 2 1/2” 3” 4”
10 108 230 387 793 1237 2259 3640 6434 -
20 75 160 280 569 877 1610 2613 5236 9521
30 61 129 224 471 719 1335 2165 4107 7859
40 52 110 196 401 635 1143 1867 3258 6795
50 46 98 177 364 560 1041 1680 2936 6142
60 42 89 159 336 513 957 1559 2684 5647
70 38 82 149 317 476 896 1447 2492 5250
80 36 76 140 239 443 840 1353 2315 4900
90 33 71 133 275 420 793 1288 2203 4667
100 32 68 126 266 411 775 1246 2128 4518
125 28 60 117 243 369 700 1143 1904 4065
150 25 54 105 215 327 625 1008 1689 3645
175 23 50 93 196 303 583 993 1554 3370
200 22 47 84 182 280 541 877 1437 3160
300 17 37 70 145 224 439 686 1139 2539
• Liquid Propane (LP) Gas flow is
given in thousands of BTU/hr. =
1cubic foot of LP gas - 2500 BTU.
• This chart refers to low pressure LP,
after regulation, Standard nominal
pressure at the burner for Liquid
Propane Gas is 11” of water column.
• Pipe length must include additional
length for all fittings. Add
approximately 5 feet of pipe per
fitting.
• LP Example: A machine with a
burner that requires 440,000 BTU
would need a 1” pipefor a 20’ long
run.
GAS PIPE SIZING CHART
Table 4: Gas Pipe Sizing Chart

REV. 8-30-18 Page 8
Square Flat Disc Fire Pits
Section A
Match Light (MT)
Installation

Square Flat Disc Fire Pits REV. 8-30-18 Page 9
REQUIREMENTS
1. Only non-combustible materials should come in direct contact with any part of the re pit. Underneath area should
be non-combustible or a at level combustible surface according to the clearances specied in this manual..
2. Refer to the NFPA54 (National Fuel Gas Code) for proper pipe sizing. See gas pipe sizing chart on page 7.
3. Determine the size of the round re pit you are preparing to install (Refer to page 4).
4. You must provide a round opening cut-out opening to place the at disc onto the non-combustible enclosure. Do not
exceed the maximum opening from Table 1, dimension B located on page 4.
5. Follow the local code requirements for the gas type being used. This re pit should be installed in accordance with
local codes and ordinances or in the absence of local codes, with the latest National Fuel Gas Code, ANSI Z223.1
NFPA54 or CSA B149.1, Natural and Propane Installation Code in Canada.
6. Fire pits create high temperatures, it is very important to have any combustibles at a safe distance. Refer to page 4.
7. CAUTION: A minimum of 18 square inches of cross ventilation (per side) is required to keep the inside of the
enclosure dry. We recommend installation of a VENT-KIT-6x12. See accessory section.
8. These products are designed for outdoor use only. Not approved for any indoor use.
9. This re pit is designed to have lava rock completely covering the spur burner, so that the burner is not visible. Do
not cover more than 1” above the top of the burner. When purchasing lava rock use 1” to 2” diameter as a base to
cover the at disc.
10. Gas lines and ttings must be installed in to the non-combustible structure. All gas connections must be leak tested
before installation of the re pit. Soapy water leak detection is required before regular use of the re pit.
11. Do not use material that will absorb moisture over time and will not release this moisture quickly. Moisture can boil
in this material and can rapidly break apart and cause damage or personal injury.
12. Never leave any other combustible material on top of the re pit. This could cause unsafe operation of this system
and damage to the component that will not be covered under our warranty.
13 . Ensure proper water drainage is also incorporated into the re pit enclosure.
INSTALLATION OF FIRE PIT INTO AN APPROVED ENCLOSURE
SECTION A - MATCH LIGHT (MT) INSTALLATION

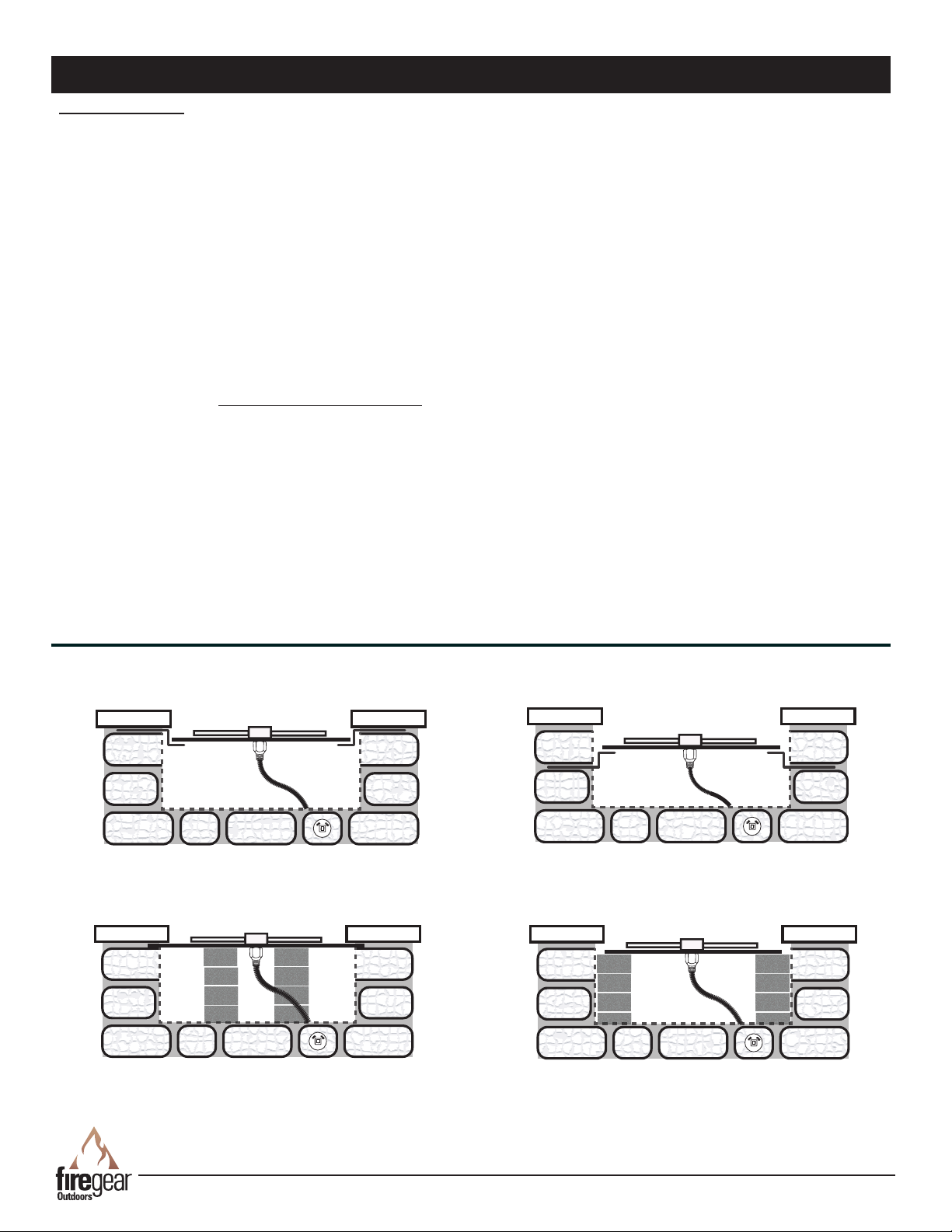

Flat disc’s are typically used with landscape blocks. The illustrations below show examples of possible installations.
ON
OFF
ON
OFF
Fig.4 Shows disc secured under stone caps. Fig. 5 Shows disc secured between layer of block.
ON
OFF
Fig. 6 Shows blocks supporting center of disc.
ON
OFF
Fig. 7 Shows blocks supporting an oversized opening.

REV. 8-30-18 Page 10
Square Flat Disc Fire Pits
Key Valve Flange
Non-
Combustible
Wall Material
Non-
Combustible
Wall Material
Key Valve
Primary Gas
Supply
K
e
y
V
a
l
v
e
S
i
d
e
V
i
e
w
D
e
t
a
i
l
Fig. 8 Typical installations.
NOTE: Key valve and exible gas lines
are supplied. Gas shut-off is not supplied.
Note: A 1¼” x 2” black iron or galvanized
coupler/nipple (not supplied) can be used
as a spacer between the manual valve
and the valve ange to add additional
support to hold the manual key valve in
place.
Key Valve Flange
Non-
Combustible
Wall Material
Non-
Combustible
Wall Material
Key Valve
Black Iron
Nipple
SECTION A - MATCH LIGHT (MT) INSTALLATION
ON
OFF
Stone Cap
Flat Disc With Spur
Man Made Stone 6x12 Vent
Cement Block Illustration
INSTALLING KEY VALVE
The key valve contents: 1- key valve, 1- key and 1- ange. The valve
requires a 1” round clearance hole in the non-combustible enclosure wall.
See the instructions supplied with the key valve for more specic details.
Note: Be sure to leak test all tting before operation. Figures 8 shows an
example of a typical installation.
Key Valve
Gas Supply
Fire Pit Disc
Non-Combustible
Fire Pit Enclousure
Shut-O

Square Flat Disc Fire Pits REV. 8-30-18 Page 11
SECTION A - MATCH LIGHT (MT) INSTALLATION
CAUTION: Children and adults should be alerted to the hazards on high surface temperatures and should stay away to
avoid burns or clothing ignition. Young children should be carefully supervised when they are in the area of the appliance.
WARNING: Do not use this appliance if any part has been under water. Immediately call a qualied service technician
to inspect the appliance and to replace any part of control system and any gas control, which has been under water.
OPERATION
SAFETY WARNINGS
1. Never leave the re pit unattended during operation.
2. Clothing or other ammable materials should not be placed on or near the appliance.
3. Any guard or other protective device removed for servicing the appliance must be replaced prior to operating the
appliance.
4. Installation and repair should be done by a qualied service person. The appliance should be inspected before
use and at least annually by a qualied service person. More frequent cleaning may be required as necessary. It
is imperative the control compartment, burners and circulating air passageways of the appliance be kept clean.
5. Inspect the fuel supply connection before each use of the appliance.
6. Temporary storage of this appliance indoors is permissible only if it has been disconnected from its fuel supply
(Natural or L.P. gas line).
WARNING
1. This appliance is hot when operated and can cause severe burns if contacted.
2. Do not burn any solid fuels in this appliance.

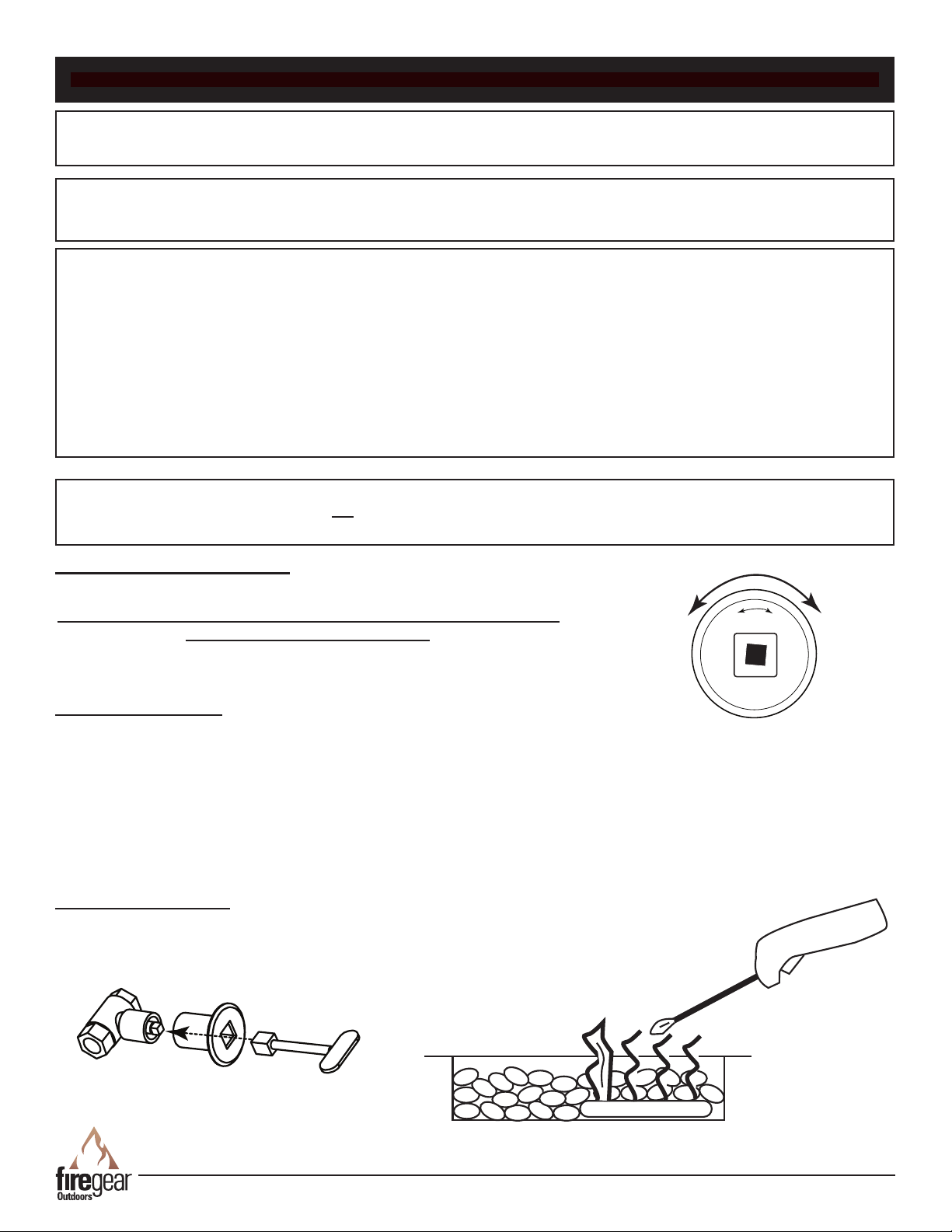

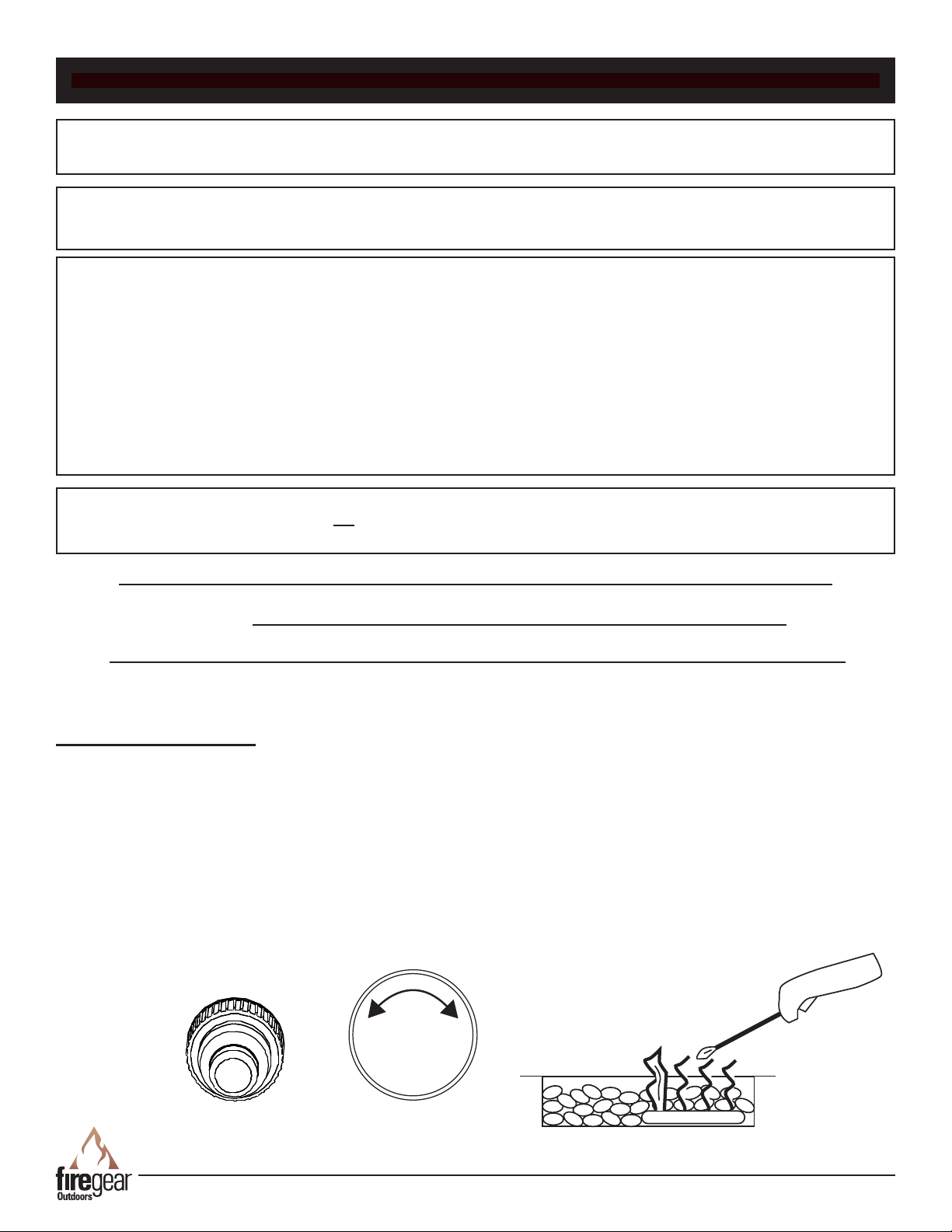

LIGHTING INSTRUCTIONS
Key
Fig. 10 Inserting Key into Valve
ON
OFF
Fig. 9. Key Valve Face
Butane Lighter
Fig. 11 Lighting re pit with lighter
READ ALL WARNING AND SAFETY INFORMATION ABOVE BEFORE
ATTEMPTING TO LIGHT FIRE PIT
CAUTION: Ensure you have leak tested the re pit before operating.
TURNING ON FIRE PIT
1. Insert key into shut-off valve and secure into square end (see Figs 9 & 10).
2. Light a long match or butane lighter and hold it near the burner (see Fig. 11).
3. Turn the key counter-clockwise in gas valve (until it stops) to allow gas to ow and
simultaneously apply the long burning match or Butane lighter as close to the end
burner as possible to light the re pit.
4. Gas should ignite within 10 seconds or less. If re pit does not light within 10 seconds
turn key clockwise to turn OFF the gas supply. Ensure there is not too much media on
top of the burner that might inhibit gas ow and try again in 5 minutes.
TURNING OFF FIRE PIT
1. Insert key into shut-off valve and secure into square end.
2. Turn key clockwise until it stops.
3. After cooling off install cover.

REV. 8-30-18 Page 12
Square Flat Disc Fire Pits
FIRE PIT MAINTENANCE
1. The re pit should be inspected and cleaned before initial use at least annually by a qualied eld service person.
2. Any component that is found faulty must be replaced with an approved component.
3. Any tampering or modifying with the re pit is dangerous and voids all warranties.
4. During winter months in cold climates and various seasons operation the re pit may be affected by weather
conditions. It is recommended to use a cover/lid for your re pit to protect it from humid/rainy weather conditions
when not in use. Heavy rains/downpours could affect the re pit operation if not covered; if this occurs
ensure you allow the re pit time to dry out before attempting to operate. NOTE: If a combustible type cover is used
over the re pit when not in use be sure to remove it before operation to prevent a severe safety hazard.
5. Over time stainless steel parts can discolor when heated, usually a golden or brown hue. This discoloration is normal
and does not affect the performance of the appliance.
MT TROUBLE SHOOTING
Symptom Remedy
Fire pit won’t light 1. Bleed gas line.
2. Ensure all gas supply lines are turned ON.
3. Ensure there is not too much media overtop of burner; it can inhibit gas from owing.
4. Check gas pressure.
Low ame 1. Ensure the base media is at least 1 to 2-inches in diameter and top media is no more than
1-inch over top of burner.
2. Ensure all shut-off valves and key valve is fully open. See page 11.
3. Check for spider webs inside the orice.
4. Check gas pressure.
Water in my re pit 1. Excess dust/sand material from media may be blocking the weep holes to relieve water.
Remove all media and unplug weep holes. Clean or install new media free of dust and dirt.
2. Ensure re pit enclosure has proper drainage for water and proper ventilation to dry out.
3. Recommend to purchase a cover/lid to keep excessive water out of the re pit.
Whistling Noises 1. Check media to ensure it is not too tightly packed around the burner tube.
2. Ensure a non-whistling ex connector is being used.
SECTION A - MATCH LIGHT (MT) INSTALLATION

Square Flat Disc Fire Pits REV. 8-30-18 Page 13
/” Washer
Brass Nut
OASNG#
(Burner Orice)
U3-8D-S
(Fitting)
Spur Burner
CVR-BVL2CP
(Chrome cover plate)
BVL25
(Key Valve)
U1-8D-S
U1-8D-S
(Fitting)
Fire Pit Pan
Inlet Gas Supply
Expanded View of Match Throw (MT) Fire Pits
T200-9898-46
(Flex Connector)
Note: Use joint compound or
Teon tape resistant to all
gasses on all male NPT
threads; not ared ttings.
Ensure all connections are
tight and check for gas leaks
before and after assembly is
complete.
(Not Supplied)

REV. 8-30-18 Page 14
Square Flat Disc Fire Pits
Section B
Thermocouple
Manual Safety
(TMSI)
Installation

Square Flat Disc Fire Pits REV. 8-30-18 Page 15
INSTALLATION OF FIRE PIT INTO AN APPROVED ENCLOSURE

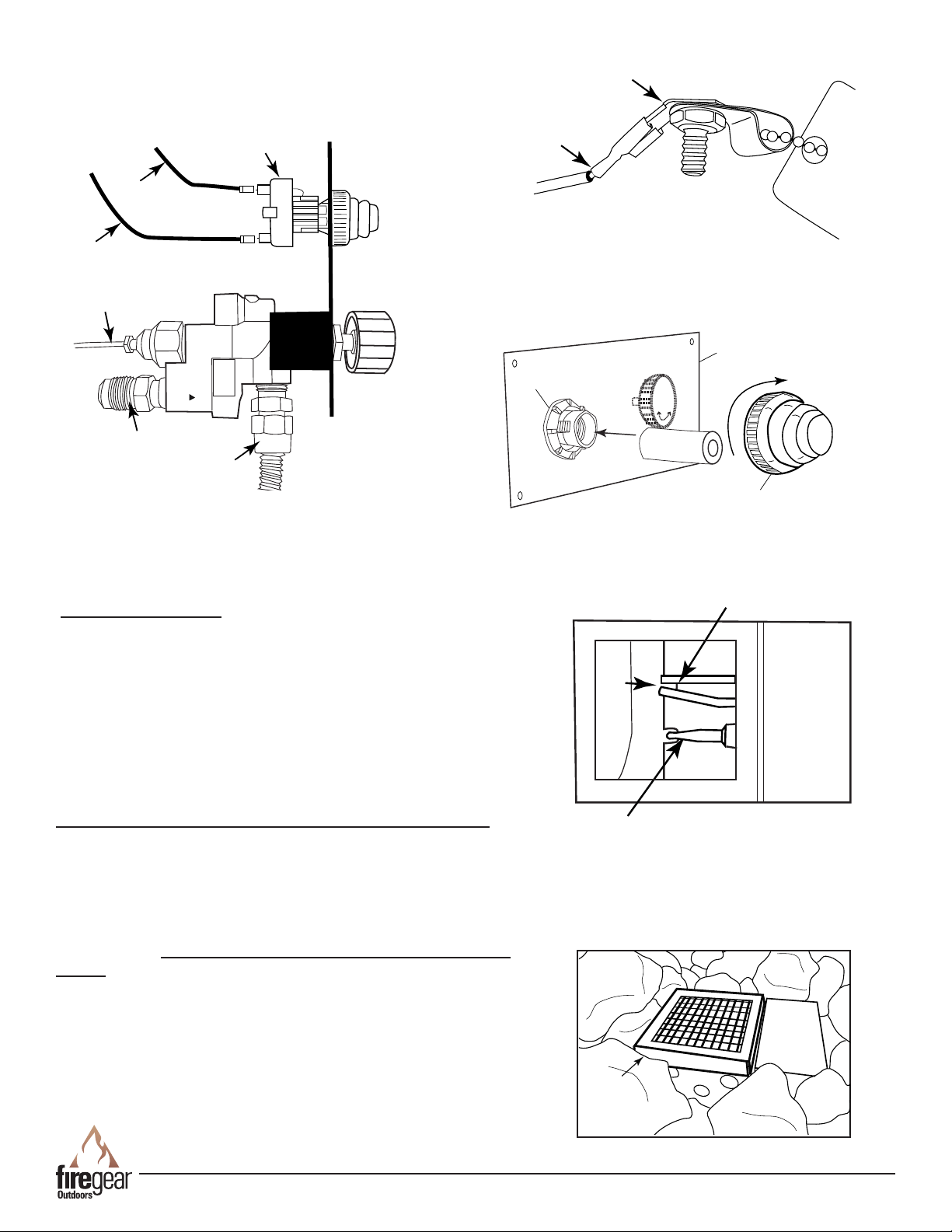

INSTALLING GAS VALVE
The gas valve is secured into the mounting plate with a nut.
Fig. 12 shows an example of a typical installation.
Fig. 14 Gas valve components.
Mounting Stem
with Securing
Nut
Primary Inlet Gas Supply
(tting not suplied)
Gas Outlet
to Fire Pit
Thermocouple
Connection
Control
Knob
Valve Mounting
Plate
Fig. 12 Shows disc secured under stone caps. Fig.13 Shows disc secured between layer of block.
Flat disc pans are typically uses with landscape blocks. The illustrations below show examples of possible installations.
REQUIREMENTS
1. Only non-combustible materials should come in direct contact with any part of the re pit. Underneath area should
be non-combustible or a at level combustible surface according to the clearances specied in this manual.
2. Refer to the NFPA54 (National Fuel Gas Code) for proper pipe sizing. See gas pipe sizing chart on page 7.
3. Determine the size of the round re pit you are preparing to install (Refer to page 4).
4. You must provide a round opening out to place the at disc onto the non-combustible enclosure. Do not exceed the
maximum opening from Table 1, dimension B located on page 4.
5. Follow the local code requirements for the gas type being used. This re pit should be installed in accordance with
local codes and ordinances or in the absence of local codes, with the latest National Fuel Gas Code, ANSI Z223.1
NFPA54 or CSA B149.1, Natural and Propane Installation Code in Canada.
6. Fire pits create high temperatures, it is very important to have any combustibles at a safe distance. Refer to page 4.
7. CAUTION: A minimum of 18 square inches of cross ventilation (per side) is required to keep enclosure dry. We
recommend installation of a VENT-KIT-6x12. See accessory section.
8. These products are designed for outdoor use only. Not approved for any indoor use.
9. This re pit is designed to have lava rock completely covering the spur burner, so that the burner is not visible.
Do not cover more than 1” above the top of the burner. When purchasing lava rock use 1” to 2” diameter as a base to
ll the at disc.
10. Gas lines and ttings must be installed in to the non-combustible structure. All gas connections must be leak
tested before installation of the re pit. Soapy water leak detection is required before regular use of re pit.
11. Do not use material that will absorb moisture over time and will not release this moisture quickly. Moisture can boil
in this material and can rapidly break apart and cause damage or personal injury.
12. Never leave any other combustible material on top of the re pit. This could cause unsafe operation of this system
and damage to the component that will not be covered under our warranty.
13 . Ensure proper water drainage is also incorporated into the re pit enclosure.
SECTION B THERMOCOUPLE MANUAL SAFETY (TMSI) INSTALLATION
NOTE: Methods of supporting the center of the disc underneath or supporting an oversized opening
are shown on page 6 in gures 6 & 7.

REV. 8-30-18 Page 16
Square Flat Disc Fire Pits
INSTALLATION OF LAVA ROCK/MEDIA INTO BURNER PAN
Install lava rock into the burner pan. Ensure the lava rock is a
1-inch diameter for proper operation. Note: Do not pour Lava
Rock directly from bag. It should be placed naturally and NOT
packed in tight. Loose tting is important to ensure robust ames.
Be sure rocks are free of any excessive dust. This prevents the
burner pan weep holes from being plugged and holding water.
IMPORTANT: Do not place rock over top or under the screen
cover. The screen must be free of any debris to ensure proper
lighting of burner and good ame sense (See Fig. 17).
Cover the burner completely with media but do not make the depth
greater than 1-inch overtop of the burner portholes.
Do NOT cover the screen mesh with any rock or glass. It must be
free an any debris to operate properly.
IGNITOR ALIGNMENT
It is important check that the ignitor probes be properly aligned over-
top of the burner port holes and did not move during shipping. Use
the Fig.16 as a guide. Before lighting remove the screen cover of the
ignition hood to burner and ensure the thermocouple is directly over-
top of a burner port hole. The sparking probes and the thermocouple
must be in the path of a ame to ignite the gas for proper ignition of
the ame. Replace the screen cover and follow the operating
instructions.
Fig. 16 Proper alignment of thermocouple.
Fig. 15 TMSI typical installation.
Note: See optional mounting method of TMSI face plate on back of this manual.
Fig. 17 Keep screen cover exposed
Lava Rock Lava Rock
Lava Rock
Ignition Hood
Screen Cover
SECTION B THERMOCOUPLE MANUAL SAFETY (TMSI) INSTALLATION
Thermocouple
1/8”Gap at Ignitor Probes
Igniton
Hood
⅛”
Gas Outlet
to Fire Pit
Gas Inlet
Thermocouple
Lead
PIEZO48WH
PIEZO23WH
Ignitor Module
+-
AAA
Plastic Nut
Red Button Cap
Mounting Plate
Illustration shows side view of valve and
Piezo ignitor.
Remove red button cap and install battery into Piezo
ignitor module.
Piezo Ground Tab
Ra
t
i
ng
P
la
t
e
Bottom of Burner Pan
PIEZO48WH
Illustration above shows ground tab
connection underneath the burner pan.

Square Flat Disc Fire Pits REV. 8-30-18 Page 17
SECTION B THERMOCOUPLE MANUAL SAFETY (TMSI) INSTALLATION
CAUTION: Children and adults should be alerted to the hazards on high surface temperatures and should stay away to
avoid burns or clothing ignition. Young children should be carefully supervised when they are in the area of the appliance.
WARNING: Do not use this appliance if any part has been under water. Immediately call a qualied service technician
to inspect the appliance and to replace any part of control system and any gas control, which has been under water.
OPERATION
SAFETY WARNINGS
1. Never leave the re pit unattended during operation.
2. Clothing or other ammable materials should not be placed on or near the appliance.
3. Any guard or other protective device removed for servicing the appliance must be replaced prior to operating the
appliance.
4. Installation and repair should be done by a qualied service person. The appliance should be inspected before
use and at least annually by a qualied service person. More frequent cleaning may be required as necessary. It
is imperative the control compartment, burners and circulating air passageways of the appliance be kept clean.
5. Inspect the fuel supply connection before each use of the appliance.
6. Temporary storage of this appliance indoors is permissible only if it has been disconnected from its fuel supply
(Natural or L.P. gas line).
WARNING
1. This appliance is hot when operated and can cause severe burns if contacted.
2. Do not burn any solid fuels in this appliance.
Fig. 18. Gas Valve Knob
Butane Lighter
Fig. 19 Lighting with Butane lighter
READ ALL LIGHTING INSTRUCTIONS BEFORE ATTEMPTING TO LIGHT FIRE PIT
CAUTION: ENSURE YOU HAVE LEAK TESTED THE FIRE PIT BEFORE OPERATING.
WARNING: Do not stand over re pit during ignition or operation due to high surface temperatures.
LIGHTING INSTRUCTIONS
TURNING ON FIRE PIT
1. Depress and hold the red Piezo ignitor button and ensure sparking is occurring at the probes inside ignition hood.
2. Rotate control knob on gas valve counter clockwise to the ON position.
3. Depress control knob inward to light the burner.
4. After the re pit lights release the Piezo button but continue to depress the control knob for at least 30 seconds then
release knob. If re pit does not light within 30 seconds, release control knob, turn knob clockwise to turn OFF and
wait 5 minutes before trying again. Turn gas supply OFF to check probe spacing and Piezo battery if re pit does not
light.
5. Repeat steps 1-4.
TURNING OFF FIRE PIT
1. Slight push inward on control knob and turn clock wise until it stops. Fire pit
will turn OFF.
2. After cooling off install cover.
ON OFF
AT ON POSITION
SLIGHT PUSH TO
TURN OFF
FULL PUSH TO
LIGHT
Red Piezo Button Control Knob

REV. 8-30-18 Page 18
Square Flat Disc Fire Pits
FIRE PIT MAINTENANCE
1. The re pit should be inspected and cleaned before initial use at least annually by a qualied eld service person.
2. Any component that is found faulty must be replaced with an approved component.
3. Any tampering or modifying with the re pit is dangerous and voids all warranties.
4. During winter months in cold climates and various seasons operation the re pit may be affected by weather
conditions. It is recommended to use a cover/lid overtop of your re pit to protect it from humid/rainy weather
conditions when not in use. Heavy rains/downpours could affect the re pit operation if not covered; if this
occurs ensure you allow the re pit time to dry out before attempting to operate. NOTE: If a combustible type cover is
used over the re pit when not in use be sure to remove it before operation to prevent a severe safety hazard.
5. Carbon (soot) may build up on the surface of logs (if installed) during heavy use. Sooting may also occur periodically
on the screen of the ignitor hood. To clean, brush off with a dry bristle brush or cloth. Keep soot away from clothing or
furniture.
6. Over time stainless steel parts can discolor when heated, usually a golden or brown hue. This
discoloration is normal and does not affect the performance of the appliance.
TMSI TROUBLE SHOOTING
Symptom Remedy
Fire pit won’t light 1. Bleed gas line.
3. Ensure all gas supply lines are turned ON.
4. Ensure there is not too much media overtop of burner; it can inhibit gas from owing.
Low Flame 1. Ensure the base media is at least 1-inch in diameter and top media is no more than 1-inch over
top of burner.
2. Ensure all shut-off valves and valve is fully open. .
3. Check for spider webs inside burner orice.
Water in my re pit 1. Excess dust/sand material from media may be blocking the weep holes to relieve water.
Remove all media and unplug weep holes. Clean or install new media free of dust and dirt.
2. Ensure re pit enclosure has proper drainage for water and proper ventilation to dry out.
3. Recommend to purchase a cover/lid to keep excessive water out of the re pit.
Whistling Noises 1. Check media to ensure it is not too tightly packed around the burner tube.
2. Ensure a non-whistling ex connector is being used.
Fire pit won’t stay lit 1. Check alignment of thermocouple over rainshield on page 16, Fig.16
2. Ensure thermocouple is not screwed too tight into gas valve. It should be nger tight plus a
quarter turn with a wrench.
3. Ensure thermocouple is clean and free of any debris. Excessive soot can be an issue.
SECTION B THERMOCOUPLE MANUAL SAFETY (TMSI) INSTALLATION

Square Flat Disc Fire Pits REV. 8-30-18 Page 19
REV. 2-16-17
TMS Expanded View
/”Washer
Brass Nut
OASNG#
(Burner Orice)
U3-8D-S (Fitting)
Expanded View of
Thermocouple Manual (TMSI) Safety Fire
Pit
T200-9898-46
(Flex Connector)
Note: Use joint compound or Teon
tape resistant to all gasses on all
male NPT threads; not ared ttings.
Ensure all connections are tight and
check for gas leaks before and after
assembly is complete.
Manual Gas Valve
(ST3-080-1009) Mounting Nut
Thermocouple
Inlet
Gas Supply
Male Threads: Requires
Compound or Tape
(No compound/tape on
ared ttings)
48-86
(Fitting not supplied: ½” Flare
to /”Male Thread Fitting)
U1-8C-S
(Fitting)
Spur Burner
Fire Pit Pan
Knob

REV. 8-30-18 Page 20
Square Flat Disc Fire Pits
Section C
Thermocouple
Flame Sense
(TFS)
Installation
