FireplaceXtrordinair 4237 EG User manual

4237 EG
Fireplace
Installation Manual
WARNING:
If the information in these instructions is not followed exactly, a fire or explosion may result
causing property damage, personal injury, or loss of life.
- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any
other appliance.
- WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call the fire department.
- Installation and service must be performed by a qualified installer, service agency, or the gas supplier.
HOT GLASS WILL CAUSE
BURNS
DO NOT TOUCH GLASS
UNTIL COOLED
NEVER ALLOW CHILDREN
TO TOUCH GLASS
A barrier designed to reduce the risk of burns from
the hot viewing glass is provided with this appliance
and shall be installed for the protection of children
and other at-risk individuals.
Listed by
Omni-Test Laboratories, Inc.
Report # 0028GF104S
ANSI Z21.88:19
CSA 2.33:19
CSA 2.17-2017
Built-In Direct-Vent Fireplace
Natural Gas
LP (Propane)
This appliance may be installed in an aftermarket, permanently located, manufactured home
(USA only) or mobile home, where not prohibited by local codes.
This appliance is only for use with the type of gas indicated on the rating plate. A conversion
kit is supplied with the appliance.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
French language manuals at fireplacex.com
Manuels de langue Française à fireplacex.com
Travis Industries, Inc. 12521 Harbour Reach Dr., Mukilteo, WA 98275 www.travisproducts.com
Copyright 2021, T.I. $10.00 9/22/21 100-01561

2 Introduction
© Travis Industries 9/22/2021 - 1561 4237 EG
Overview
This manual details the installation
requirements for the 4237 EG fireplace.
For operating and maintenance
instructions, refer to the Owner's Manual.
Listing Details
This appliance was listed by OMNI-Test
Laboratories, Inc. to ANSI Z21.88:19.
The listing label is chained to the
appliance near the glass frame. A copy
is shown to the right.
Massachusetts Approval
This manual has been submitted to the
Massachusetts Board of State
Examiners of Plumbers and Gas Fitters
National Fireplace Institute
Dealer Information
Please record your dealer information
here for future reference:
Dealer Name: ____________________
Dealer Address: ___________________
Dealer E-Mail: ____________________
Dealer Phone #: ___________________

Safety Precautions 3
© Travis Industries 9/22/2021 - 1561 4237 EG
Contents
Overview 2
Listing Details 2
Safety Warnings: 4
Installation Options 6
Heating Specifications 6
Dimensions 6
Packing List 7
Recommended Installation Procedure 7
Fireplace Unboxing and Moving Into Position 8
Massachusetts Requirements 9
Requirements for the Commonwealth of
Massachusetts 9
MANUFACTURER REQUIREMENTS 9
Fireplace Placement Requirements 10
Clearances 10
Raised Fireplaces 10
Televisions Placed Above the Fireplace 11
Minimum Framing Dimensions 12
Min. Framing - Without CoolSmart TV kit 12
Min Framing – With CoolSmart TV Kit 12
Minimum Vent “Bump Out” application 13
Nailing Brackets – Standard Install 14
Nailing Brackets – Extended Install (Slab Over) 15
Corner Installations 16
Outdoor Fireplace Installations 17
Gas Line Requirements 18
Fuel 18
Gas Line Connection 18
Gas Inlet Pressure 18
Gas Line Location 18
Directions for Connecting a Gas Pressure Test
Gauge 19
Electrical Connection 20
Vent Requirements 21
Vent Clearances 21
Vertical Penetrations Require Vent Firestop 21
Horizontal Penetrations Require Thimble 21
Altitude Considerations 21
Approved Vent 21
Approved Vent Terminations 21
Vent Installation 21
Vertical Pipe Shield 22
Horizontal Terminations Require Vinyl Standoff
and Termination Shield (on Combustible walls
only) 22
Exhaust Restrictor 23
Minimum Vent Configuration 24
Vent Configuration: Horizontal Terminations using NG 25
Vent Configuration: Horizontal Terminations using LP 26
Vent Configuration: Vertical Terminations using NG 27
Vent Configuration: Vertical Terminations using LP 28
Termination Requirements 29
Hearth Requirements 30
Vinyl Flooring Hearth Requirements 30
Facing Requirements 31
Facing Warning (Ironworks Face Only) 32
Facing Example –Standard Install 33
Facing Example – Extended (Slab Over) Install 33
Adjustable Tile Stop 34
Mantel Requirements 35
Non-Combustible Mantels 35
Steps for Finalizing the Installation 36
Air Shutter Adjustment 36
Pilot Fuel Conservation Timer (GSB & GSR units) 37
Glass Frame Removal and Installation 38
Installing the Firebacks 40
Log Set Installation 41
Packing List 41
Installation Warnings 41
Installation – Oak vs. Birch 41
Log Set Overview - Oak (sku# 94500983) 41
Log Set Overview - Birch (sku# 94500982) 42
Log Set Installation 43
LP Conversion Instructions 51
LP Conversion Parts 51
Wiring Diagram 54
Replacement Parts List 54
CoolSmart TV – Installation Overview (Optional) 55
CoolSmart TV - Installation Requirements 56
CoolSmart TV - Framing the Chase 57
CoolSmart TV - Mantel Clearances with
CoolSmart TV 58
CoolSmart TV - Fireplace Preparation 59
CoolSmart TV Kit Installation 60
Using oval pipe to get past an obstruction 63

4 Safety Precautions
© Travis Industries 9/22/2021 - 1561 4237 EG
Safety Warnings:
Failure to follow all of the requirements may result in property damage, bodily injury, or even death.
Young children should be carefully supervised when they are in the same room
as the appliance. Toddlers, young children, and others may be susceptible to
accidental contact burns. A physical barrier is recommended if there are at risk
individuals in the house. To restrict access to a fireplace or stove, install an
adjustable safety gate to keep toddlers, young children, and other at risk
individuals out of the room and away from hot surfaces.
Children and adults should be alerted to the hazards of high surface temperature
and should stay away to avoid burns or clothing ignition. Do not touch the hot
surfaces of the heater. Educate all children of the danger of a high-temperature
heater.
Due to the high temperature, the heater should be located out of traffic and away
from furniture and draperies.
This unit must be installed by a qualified installer to prevent the possibility of an explosion.
This appliance must be installed in accordance with all local codes if any; if not, in U.S.A. follow ANSI
Z223.1 and NFPA 54(88), in Canada follow CSA B149.1. In Australia follow AS/NZS 5601.1.
A manufactured home (USA only) or mobile home OEM installation must conform with the
Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280, or, when such a
standard is not applicable, the Standard for Manufactured Home Installations, ANSI/NCSBCS
A225.1, or Standard for Gas Equipped Recreational Vehicles and Mobile Housing, CSA Z240.4. This
appliance may be installed in Manufactured Housing only after the home is site located.
All exhaust gases must be vented outside the structure of the living area. Combustion air is drawn
from outside the living-area structure. The venting must not be connected to a chimney flue serving a
separate solid-fuel burning appliance.
Notify your insurance company before hooking up this fireplace.
The instructions in this manual must be strictly adhered to. Do not use makeshift methods or
compromise in the installation. Improper installation will void the warranty and safety listing.
This heater is approved for use with natural gas (NG) or propane (LP). Burning the incorrect fuel will
void the warranty and safety listing and may cause an extreme safety hazard. Direct questions about
the type of fuel used to your dealer.
Contact your local building officials to obtain a permit and information on any installation restrictions
or inspection requirements in your area.
If the flame becomes sooty, dark orange in color, or extremely tall, do not operate the heater. Call
your dealer and arrange for proper servicing.
It is imperative that control compartments, screens, or circulating air passageways of the heater be
kept clean and free of obstructions. These areas provide the air necessary for safe operation.
Do not operate the heater if it is not operating properly in any fashion or if you are uncertain. Call
your dealer for a full explanation of your heater and what to expect.
Do not store or use gasoline or other flammable liquids in the vicinity of this heater.
Do not operate if any portion of the heater was submerged in water or if any corrosion occurs.
Immediately call a qualified service technician to inspect the appliance and to replace any part of the
control system and any gas control which has been underwater.

Safety Precautions 5
© Travis Industries 9/22/2021 - 1561 4237 EG
Safety Warnings (continued)
Because this heater can be controlled by a thermostat there is a possibility of the heater turning on
and igniting any items placed on or near the appliance.
Light the heater using the built-in igniter. Do not use matches or any other external device to light
your heater.
Never remove, replace, modify or substitute any part of the heater unless instructions are given in this
manual. All other work must be done by a trained technician. Don't modify or replace orifices.
The viewing glass should be opened only for conducting service.
Allow the heater to cool before carrying out any maintenance or cleaning.
Operate the heater according to the instructions included in this manual.
If the main burners do not start correctly turn the gas off and call your dealer for service.
This unit is not for use with solid fuel.
Do not place anything inside the firebox (except the optional artwork).
Warning: Do not operate appliance with the glass front removed, cracked, or broken. Replacement
of the glass should be done by a licensed or qualified service person.
Do not throw this manual away. This manual has important operating and maintenance instructions
that you will need at a later time. Always follow the instructions in this manual.
Instruct everyone in the house how to shut the gas off to the appliance and at the gas main shutoff
valve. The gas main shutoff valve is usually next to the gas meter or propane tank and requires a
wrench to shut off.
Clothing or other flammable material should not be placed on or near the appliance.
Any safety screen, guard, or barrier removed for servicing an appliance must be replaced prior to
operating the appliance.
Installation and repair should be done by a qualified service person. The appliance should be
inspected before use and at least annually by a professional service person. More frequent cleaning
might be required due to excessive lint from carpeting, bedding material, et cetera. It is imperative
that control compartments, burners, and circulating air passageways of the appliance be kept clean.
Travis Industries, Inc. grants no warranty, implied or stated, for the installation or
maintenance of your heater, and assumes no responsibility for any consequential damage(s).
Proposition 65 Warning: Fuels used in gas, woodburning or oil fired appliances, and the products of combustion of such fuels,
contain chemicals known to the State of California to cause cancer, birth defects, and other reproductive harm.
California Health & Safety Code Sec. 25249.6
Travis Gas Fireplaces. Stoves and Inserts are protected by one or more of the following patents; U.S. 8,469,021,
7,066,170, 6,602,068, 6,443,726, 6,953,037; Canada 2755517 as well as other U.S. and Foreign Patents pending.

6 Features and Specifications
© Travis Industries 9/22/2021 - 1561 4237 EG
Installation Options
Raised or Floor Placement
Internal or External Chase
Horizontal or Vertical Vent
Bedroom Approved
Heating Specifications
Natural Gas Propane
Maximum BTU Input Per Hour 60,000 60,000
Approximate Heating Capacity (in square feet)* Up to 3,000 Up to 3,000
* Heating capacity will vary with floor plan, insulation, and outside temperature.
Dimensions
(a) 8” x 5” Co-Axial Vent (b) Gas Inlet (1/2” MPT) (c) Electrical Junction Box
(d) Vertical Pipe Shield (e) Power Heat Duct/Coolsmart location (f) CoolSmart TV Wall kit location
A power heat duct kit and a CoolSmart TV kit are available for this fireplace. You may use up to (2)
power heat vent kits or (1) CoolSmart TV kit, but not both. If using the CoolSmart TV kit, all (6) of the
knockouts on top of the fireplace must be used.

Installation (for qualified installers only) 7
© Travis Industries 9/22/2021 - 1561 4237 EG
Packing List
Included Hardware
Screen Box (shipped on front of fireplace, includes screen, trim, and optional tile stop)
Owner’s Pack (ember chunks, rockwool)
Exhaust Restrictor
Remote Control
Horizontal Termination Shield
Additional Equipment Required
Log Set (Traditional Oak, Birch, or Bonfire)
Firebacks
Vent Pipe (installation specific)
Electrical Equipment (min. 14 gauge, grounded line)
LP Installations require GSR stepper motor (4-pack = 94400999, single = 250-01463)
Optional Equipment
Power Heat Duct kit (1 or 2)
CoolSmart TV Wall Kit
Trim
Ironwork Doors
Power Vent
Recommended Installation Procedure
Frame the opening for the fireplace. Make sure to allow for vent installation.
This fireplace is designed to accommodate 1/2" (13mm) drywall. Drywall may be mounted to the
side of the fireplace (standard) or flush with the facing (flush). See "Nailing Brackets" on page 13
for details). Secure the fireplace to the framing.
Install the vent, electrical, and gas line (convert to LP gas if applicable). We recommend you test
the operation of the fireplace at this point.
Install the drywall.
Install the hearth (if applicable).
Install the facing (if applicable).
Install the mantel (if applicable).
Install firebacks
Install logs
Finalize the installation (see page 36).

8 Installation (for qualified installers only)
© Travis Industries 9/22/2021 - 1561 4237 EG
Fireplace Unboxing and Moving Into Position
This fireplace is larger than most fireplaces and requires special attention when moving into position. The
directions below are intended as a guideline for this process.
WARNING
Do not lift the fireplace from below with lifting forks. This may cause the base to bend
and warp
WARNING
Always use proper lifting techniques when moving heavy objects (bend your knees, not
your back).
We recommend using the Travis Industries lifting handles (sku 98500711) for moving the fireplace. See
the instructions included with the brackets for installation instructions.
1. Unpack the fireplace.
2. Remove the screen box in front of the firebox opening and place it aside.
3. Remove the glass frame and place it aside (the glass tool is located inside the fireplace to the
right).
4. The fireplace may now be moved into location once the internal components have been removed.
We recommend using the Travis Industries lifting handles (sku 98500711) for this process. The
handles attach to the two brackets attached to the side of the fireplace.
5. Unscrew the bolts on the side of the fireplace that secures the brackets to the pallet.
6. Move the fireplace into position, taking care not to damage the fireplace or surrounding area. If
you do wish to move the fireplace with a forked stove lift (e.g. Escalara), we recommend lifting
from the firebox roof (place 2x4’s into the firebox to distribute the load).
7. Once the fireplace is near its final position, remove the shipping brackets from the side of the
fireplace and slide it into place.

Installation (for qualified installers only) 9
© Travis Industries 9/22/2021 - 1561 4237 EG
Massachusetts Requirements
NOTE: The following requirements reference various Massachusetts and national codes not contained in this document.
Requirements for the Commonwealth of Massachusetts
For all side wall horizontally vented gas fueled equipment installed in every dwelling, building, or structure used in whole or in
part for residential purposes, including those owned or operated by the Commonwealth and where the side wall exhaust vent
termination is less than seven (7) feet above finished grade in the area of the venting, including but not limited to decks and
porches, the following requirements shall be satisfied:
Installation of Carbon Monoxide Detectors
At the time of installation of the side wall horizontal vented gas fueled equipment, the installing plumber or gasfitter shall
observe that a hard wired carbon monoxide detector with an alarm and battery back-up is installed on the floor level where the
gas equipment is to be installed. In addition, the installing plumber or gasfitter shall observe that a battery operated or hard
wired carbon monoxide detector with an alarm is installed on each additional level of the dwelling, building, or structure served
by the side wall horizontal vented gas fueled equipment. It shall be the responsibility of the property owner to secure the
services of qualified licensed professionals for the installation of hard wired carbon monoxide detectors.
In the event that the side wall horizontally vented gas fueled equipment is installed in a crawl space or an attic, the hard wired
carbon monoxide detector with alarm and battery back-up may be installed on the next adjacent floor level.
In the event that the requirements of this subdivision can not be met at the time of completion of installation, the owner shall
have a period of thirty (30) days to comply with the above requirements; provided, however, that during said thirty (30) day
period, a battery operated carbon monoxide detector with an alarm shall be installed.
Approved Carbon Monoxide Detectors
Each carbon monoxide detector as required in accordance with the above provisions shall comply with NFPA 720 and be
ANSI/UL 2034 listed and IAS certified.
Signage
A metal or plastic identification plate shall be permanently mounted to the exterior of the building at a minimum height of eight
(8) feet above grade directly in line with the exhaust vent terminal for the horizontally vented gas fueled heating appliance or
equipment. The sign shall read, in print size no less than one-half (1/2) inch in size, “GAS VENT DIRECTLY BELOW. KEEP
CLEAR OF ALL OBSTRUCTIONS”.
Inspection
The state or local gas inspector of the side wall horizontally vented gas fueled equipment shall not approve the installation
unless, upon inspection, the inspector observes carbon monoxide detectors and signage installed in accordance with the
provisions of 248 CMR 5.08(2)(a)1 through 4.
Exemptions
The following equipment is exempt from 248 CMR 5.08(2)(a)1 through 4:
• The equipment listed in Chapter 10 entitled “Equipment Not Required To Be Vented” in the most current edition of NFPA 54
as adopted by the Board; and
• Product Approved side wall horizontally vented gas fueled equipment installed in a room or structure separate from the
dwelling, building, or structure used in whole or in part for residential purposes.
MANUFACTURER REQUIREMENTS
Gas Equipment Venting System Provided
When the manufacturer of Product Approved side wall horizontally vented gas equipment provides a venting system design or
venting system components with the equipment, the instructions provided by the manufacturer for installation of the equipment
and the venting system shall include:
• Detailed instructions for the installation of the venting system design or the venting system components; and
• A complete parts list for the venting system design or venting system.
Gas Equipment Venting System NOT Provided
When the manufacturer of a Product Approved side wall horizontally vented gas fueled equipment does not provide the parts
for venting the flue gases, but identifies “special venting systems”, the following requirements shall be satisfied by the
manufacturer:
• The referenced “special venting system” instructions shall be included with the appliance or equipment installation
instructions; and
• The “special venting systems” shall be Product Approved by the Board, and the instructions for that system shall include a
parts list and detailed installation instructions.
A copy of all installation instructions for all Product Approved side wall horizontally vented gas fueled equipment, all venting
instructions, all parts lists for venting instructions, and/or all venting design instructions shall remain with the appliance or
equipment at the completion of the installation.
See Gas Connection section for additional Commonwealth of Massachusetts requirements.

10 Installation (for qualified installers only)
© Travis Industries 9/22/2021 - 1561 4237 EG
Fireplace Placement Requirements
Fireplace must be installed on a level surface capable of supporting the fireplace and vent
Fireplace must be placed directly on wood or non-combustible surface (not on linoleum or carpet)
Fireplace should be located out of traffic and away from furniture and draperies.
Fireplace may be placed in a bedroom (be aware of the large amount of heat from this fireplace).
Clearances
(a) Clearance to Sides of Fireplace: 5/8” (16mm) – 0” to standoffs – see “e” below for exception
(b) Clearance to Adjacent Walls in Front of Fireplace: 0”
(c) Clearance to Back of Fireplace: 5/8” (16mm) – 0” to standoffs
(d) Clearance to Bottom of Fireplace: 0” (may be placed directly on subfloor)
(e) Drywall (or other combustibles) may contact the front 1/2” (13mm) of the fireplace along the top and sides
(f) The base of the fireplace must be a minimum 61” (1550mm) below the room ceiling
Raised Fireplaces
The fireplace (and hearth, if desired) may be placed on a platform designed to support the fireplace
and vent.
The base of the fireplace must be a minimum 61” (1550mm) below the room ceiling.
The firebox opening is 1” (26mm) above the base of the fireplace. For a typical raised fireplace of
10” (254mm), place the fireplace on a platform 9” (229mm) tall.

Installation (for qualified installers only) 11
© Travis Industries 9/22/2021 - 1561 4237 EG
Televisions Placed Above the Fireplace
The following section gives guidelines to place a television above the fireplace.
IMPORTANT NOTE REGARDING TELEVISIONS AND THIS FIREPLACE
Most television manufacturers instruct the homeowner not to place the television above a heat source like this
fireplace. Doing so may decrease the longevity of the television and negate the warranty. If you do place a television
above the fireplace, you should place a mantel (or build-out) between the fireplace and television (or use a
CoolSmart TV Wall™ kit). Follow the guidelines below to reduce the amount of heat reaching the television. Travis
Industries does not take responsibility for any negative impact on televisions placed near this fireplace.
Minimum Dimensions:
(a) Minimum Mantel Height above Base of Fireplace* 56” (1448mm) with 8” (203mm) mantel depth*
(b) Mantel Depth* Minimum 8” (203mm)* Maximum 12” (305mm)
(c) Optional Columns (or Build-Out) Must Meet Side Wall Clearances: 0” (0mm)
(Measured to the side of fireplace ZC-can)
* Minimum mantel depth must be 8” to allow heat to dissipate. If using a mantel larger than 8”, make sure to
adjust the mantel height (a) to meet the mantel clearance (see mantel requirements and/or chart above).
The mantel must extend 2” in front of the television and 1” to both sides.
If you have a television that is greater than 6” deep (including the 1” gap behind), you will need to alter the
mantel depth and height (see the example below).
The television must have a 1” gap to the wall to allow for proper cooling. Any build-out near the television
must maintain a 3” gap to the top and sides to prevent heat from being trapped near the television.
EXAMPLE: If you have a television that is 9” deep (including the 1” gap behind), the mantel must be 11”. The mantel
height would need to be 56-3/4” above the base of the fireplace.
WIRING NOTE: If running wiring into the enclosure, you may wish to use thermal insulating wrap around the wiring.
Secure the wiring to protect from contact with hot surfaces.
Fireplace
Min. 1" (26mm)
Min. 1" (152mm) Min. 2" (51mm)
a
b
c
Optional Column
or Build-Out

















Min. 1" (26mm) Air Gap Behind TV
Min. 3"
(77mm)
Television (TV)




















12 Installation (for qualified installers only)
© Travis Industries 9/22/2021 - 1561 4237 EG
Minimum Framing Dimensions
Min. Framing - Without CoolSmart TV kit
WARNING
When using a CoolSmart TV kit, see section: “CoolSmart TV - Framing the Chase”
on page 57.
The fireplace enclosure must be a minimum 89” (2261mm) tall. Do not build into the fireplace enclosure.
Min Framing – With CoolSmart TV Kit
When using a CoolSmart TV kit, see section: “CoolSmart TV - Framing the Chase” on page 57 of this
manual or the installation instructions included with the kit for minimum framing dimensions.

Installation (for qualified installers only) 13
© Travis Industries 9/22/2021 - 1561 4237 EG
Minimum Vent “Bump Out” application
4237
LP & NG Installations
24” Vertical Vent Section (Min. Rise)
Vent
Centerline Approx. 81” (2058mm)
FP Base to
Roof Eave Approx. 101” (2566mm)
a
b

14 Installation (for qualified installers only)
© Travis Industries 9/22/2021 - 1561 4237 EG
Nailing Brackets – Standard Install
The fireplace has three (3) nailing brackets on each side. In the “standard” position, the brackets are
flush with the front edge of the fireplace (see illustration below). This allows for the facing
underlayment (such as HardieBacker® cement board other non-combustible) to cover the front of the
fireplace and butt up to the drywall (see “Facing Requirements” for details). This style of installation
should be used for tile and cultured stone finishes. Once the fireplace is properly placed, secure the
fireplace to the framing (see illustration below).
NOTE: Make sure the fireplace is square and plumb when placed in the framing. Measured corner-
to-corner the fireplace should be square. Use shims to ensure the fireplace is square.

Installation (for qualified installers only) 15
© Travis Industries 9/22/2021 - 1561 4237 EG
Nailing Brackets – Extended Install (Slab Over)
The fireplace has three (3) nailing brackets on each side. In the “extended” position, the brackets are
1/2” (13mm) from the front edge of the fireplace (see illustration below). This allows slab material,
such as marble, granite, or other natural stone slabs to be placed over the fireplace and surrounding
drywall (see “Facing Requirements” for details). Once the fireplace is properly placed, secure the
fireplace to the framing (rotate the nailing brackets as shown below).
NOTE: Make sure the fireplace is square and plumb when placed in the framing. Measured corner-
to-corner the fireplace should be square. Use shims to ensure the fireplace is square.

16 Installation (for qualified installers only)
© Travis Industries 9/22/2021 - 1561 4237 EG
Corner Installations

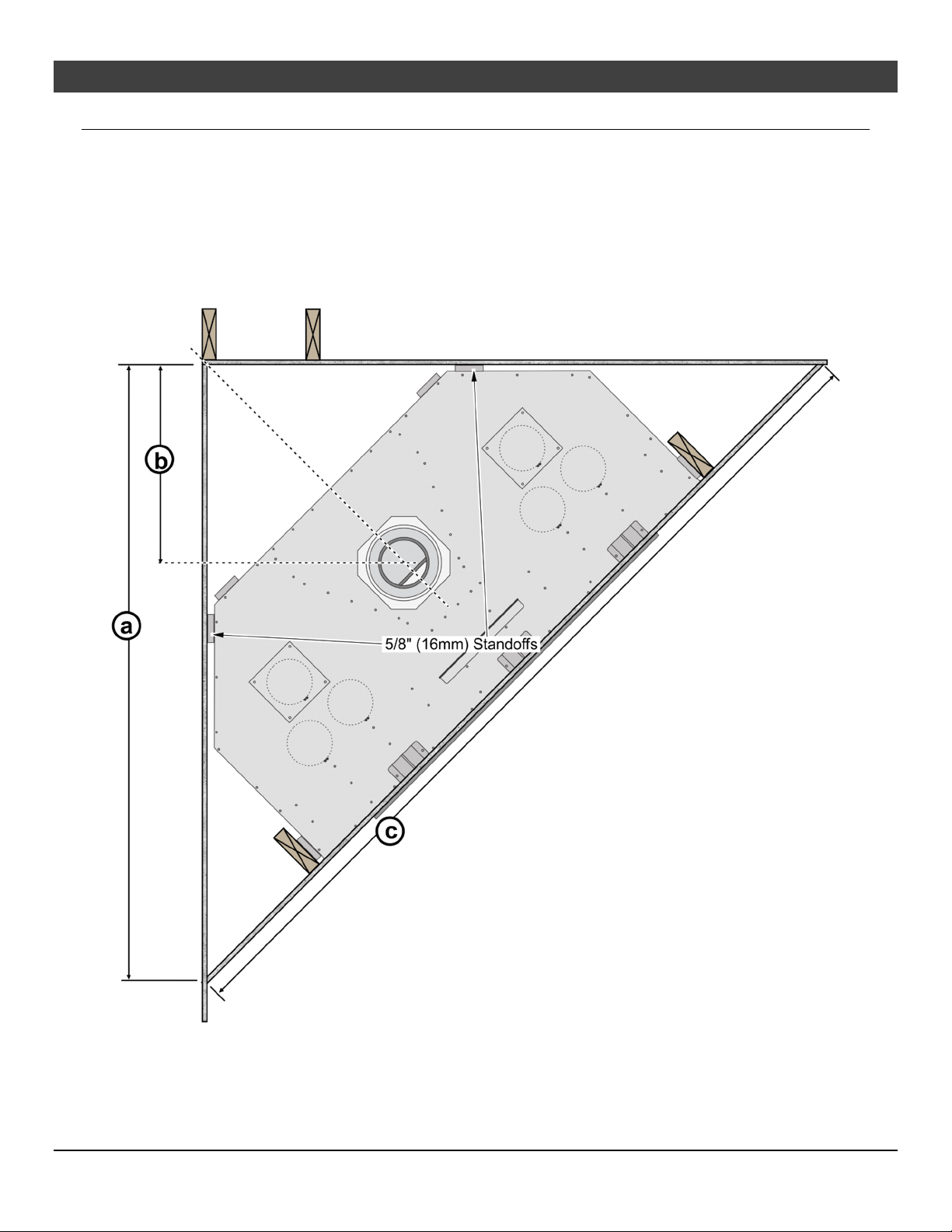

Approximate framing dimensions for 45° installations are shown below. Additional space may be required
for vent installation depending on the framing location and other site-specific conditions.
(a) 68-3/4” (1747mm)*
(b) 22-1/4” (566mm)
(c) 97-1/4” (2471mm)
* These dimensions are for “Standard” installations.

Installation (for qualified installers only) 17
© Travis Industries 9/22/2021 - 1561 4237 EG
Outdoor Fireplace Installations
Travis Industries Inc. gas-fired fireplaces are suitable for installation into outdoor areas protected from
direct water impingement. In addition to maintaining listed mantel and combustibles clearances, a rain
protection overhang factor of 1/2 shall be constructed to the front and to each side of installed appliances
(see the illustration to the right). All wiring connections to line power shall be in accordance with the
outdoor requirements of NECA NFPA 70.
Travis Industries is not responsible for any damage caused by
water, corrosion, oxidation, or rust to the fireplace, its components,
or any optional accessories (e.g. faces, trim, firebacks, etc.)

18 Installation (for qualified installers only)
© Travis Industries 9/22/2021 - 1561 4237 EG
Gas Line Requirements
MASSACHUSETTS INSTALLATIONS - WARNING:
THIS PRODUCT MUST BE INSTALLED BY A LICENSED PLUMBER OR GAS FITTER WHEN INSTALLED WITHIN THE
COMMONWEALTH OF MASSACHUSETTS.
OTHER MASSACHUSETTS CODE REQUIREMENTS:
Flexible connector must not be longer than 36 inches.
Shutoff valve must be a “T” handle gas cock.
Only direct vent sealed combustion products are approved for bedrooms or bathrooms.
Fireplace dampers must be removed or welded in the open position prior to the installation of a fireplace insert or gas log.
A carbon monoxide (CO) detector is required in the same room as the appliance.
The gas line must be installed in accordance with all local codes and the requirements listed below.
In the absence of local codes, follow ANSI 223.1 in US/Canada or AS/NZS 5601.1 in Australia.
The fireplace and gas control valve must be disconnected from the gas supply piping during any
pressure testing of that system at test pressures in excess of 1/2 psig (3.5 kPA). For pressures under
1/2 psig (3.5 kPA), isolate the gas supply piping by closing the manual shutoff valve.
Leak test all gas line joints and the gas control valve prior to and after starting the fireplace.
This unit has been listed using the included internal gas shutoff valve.
Fuel
This fireplace is designed either for natural gas or for propane (but not for both).
Gas Line Connection
Installation must be performed by a qualified installer, service agency, or the gas supplier (In Massachusetts a
licensed plumber/gasfitter).
Gas Inlet Pressure
Maximum Input Pressure Minimum Input Pressure
Natural Gas 7" W.C. (1.74 kPA) 5.5” W.C. (1.37 kPA)
Propane 13" W.C. (3.23 kPA) 11” W.C. (2.74 kPA)
If the pressure is not sufficient, make sure the piping used is large enough, the supply regulator is adequately
adjusted, and the total gas load for the residence does not exceed the amount supplied.
The supply regulator (the regulator that attaches directly to the residence inlet or the propane tank) should supply
gas at the input pressure listed above. Contact the local gas supplier if the regulator is at an improper pressure.
Gas Line Location
The gas line is located on the left side of the appliance in the location shown below. The gas inlet
accepts a 1/2” FPT.

Installation (for qualified installers only) 19
© Travis Industries 9/22/2021 - 1561 4237 EG
Directions for Connecting a Gas
Pressure Test Gauge
The gas control valve (shown to the left)
has two accessible ports for testing line
pressure and output pressure. Loosen the
brass screw on either test port and place a
5/16” i.d. rubber or plastic tubing over the
tapered test port. Connect the tubing to the
test gauge.
WARNING: The brass screw must be
tightened after testing to prevent gas
leakage.

20 Installation (for qualified installers only)
© Travis Industries 9/22/2021 - 1561 4237 EG
Electrical Connection
The electrical line must be connected to the wires inside the junction box (hot, common, and 2 ground
wires) by a qualified installer or electrician and must meet all local codes.
Make sure the household breaker is shut off prior to working on any electrical lines.
The appliance, when installed, must be electrically grounded in accordance with local codes or, in the
absence of local codes, with the National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical
Code, CSA C22.1.
The electrical line must be a min. 14 gauge, and supply 120 Volts, 60 Hz (typical max amps: 5).
Route the electrical connection through the ZC cover plate and junction box cover plate and attach to
the hookup wires pictured below.
Caution: Label all wires prior to disconnection when servicing controls. Wiring errors can cause
improper and dangerous operation.
