44 ELITE-ZC INSTALLATION MANUAL
10850 117th Place N.E. Kirkland, WA 98033 Part # 93508093 4020405 $10.00

PAGE 2TABLE OF CONTENTS
Features & Specifications
Features:.........................................................................................1
Installation Options: ...........................................................................1
Heating Specifications........................................................................1
Dimensions......................................................................................1
Installation
Installation Preparation.......................................................................2
Packing List .....................................................................................2
Fireplace Placement Requirements.......................................................3
Minimum Framing Dimensions..........................................................3
Clearances ...................................................................................4
Corner Installation ..........................................................................4
Raised Fireplaces...........................................................................5
Facing Requirements.........................................................................5
Mantel Requirements.........................................................................7
Hearth Requirements.........................................................................7
Cooling Vents...................................................................................8
Blower.............................................................................................9
Blower Duct Connection ..................................................................9
Blower Electrical Connection ............................................................10
Chimney..........................................................................................11
Chimneys Part Numbers..................................................................11
Chimney Connection to Fireplace ......................................................11
Chimney Height .............................................................................12
Special Chimney Requirements.........................................................12
Using Offsets.................................................................................13
Clearances to Combustibles.............................................................14
Firestops ......................................................................................14
Framing the Roof ...........................................................................15
Chimney Termination Requirements...................................................15
Finalizing the Installation.....................................................................16
Listing Information
Safety Label.....................................................................................21
Index
Index ..............................................................................................22
Symbols Used in this Manual
The illustration below details what the symbols used along the left margin indicate.
Requirement
•1!?+
Hint
NoteWarningStep

FEATURES AND SPECIFICATIONS PAGE 3
Features:
• EPA Phase II approved (2.5 g/hr.)
• Maximum Log Length of 32"
• Large firebox capacity - 4.3 cu. ft.
• Long burn time - up to 10 Hours.
• Large glass doors for maximum visibility.
• Firebrick lining for firebox protection.
• 388 CFM blower for convection heat.
• Thermostat for automatic blower control.
Installation Options:
• Interior or Exterior Blower
• Straight or Corner Placement
• Flush or Recessed Face
• Raised or Floor Hearth
• Internal or External Chase
• 8' lead for the power (120 Volts A.C.)
• Set-up face included for facing installation
• 3 blower duct locations (left, right, or below)
Heating Specifications
Approximate Heating Capacity (square feet)* up to 3,000 * Will vary with the
home's floor plan,
Maximum Burning Time Up to 12 Hours insulation, and
outside temperature.
BTU Output per Hour (Cord Wood Method) 10,700 to 76,700
A
A
AA
A
AA
AA
A
A
A
AA
A
AA
AA
A
A
A
A
AA
A
AA
AA
A
A
A
AA
AA
A
AA
A
A
A
A
A
A
6-1/2"
46"
26-1/8"*
49"*
24"
31-1/2"
* Includes the
1/2" stand-offs
44"
The set-up face shipped on the
fireplace is 44-1/8" wide and
31-9/16" tall (dimensions
shown are for the finished face)
Cooling vents
have an external
diameter of 7"
Weight: 680 Lbs.
Dimensions:
1-1/2" Wide Nail
Down Flange
3-7/8"
11-5/8"*
1/2"
Stand-offs
1"
26-5/8"*
4-1/2"*
24-1/2"*
See "Chimney
Requirements"
6" Blower hook-ups are on both sides and on the bottom
(centered 7" from the rear edge). Remove the cover plate
to access the blower hook-up.
Optional Electrical
Conduit Exit Location
Electrical
Conduit
Location
5"*
8-1/8"*
3-1/4"
Center
Line

PAGE 4INSTALLATION
Installation Preparation
!Read this entire manual before installing the fireplace.
!Failure to install this fireplace in accordance with all local codes and the requirements listed in this
manual may result in property damage, bodily injury, or even death.
!Notify your insurance company before installing this fireplace.
!The requirements listed below are divided into sections. All requirements must be met
simultaneously. The order of installation is not rigid – the qualified installer should follow the
procedure best suited for the installation.
!Modifications of the fireplace (doors, blower, air inlet systems, damper control, or any other
component supplied by Travis Industries) or use of any component part not approved by Travis
Industries in combination with this fireplace system will void the listing and warranty.
Packing List
Shipped with the Fireplace:
• Installation Manual
• Grate
• Baffle
• Blower Assembly
• Ember Strip
• Log Retainer (includes allen wrench & instructions)
• Flex Duct w/ start collar – 3' Length, 6" Dia (For Blower)
• Two 10' Flex Ducts, 7" Diameter (For Cooling Vents)
• Two Vent Hoods (For Cooling Vents)
• Two Vent Hood Storm Collars (For Cooling Vents)
• New Door Heat Shield (for use with 44A doors)
Shipped with the Faceplate:
• Faceplate (two switch plate screws are attached)
• Switch Plate (includes blower rheostat)
• 12 Faceplate Screws
Shipped with the Door(s):
• Owner's Manual
• Installation Hardware Pack
• Pair of Gloves
• Efficiency and Registration Cards
• Touch-up Paint
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
See the section
"Facing Requirements"
See the section "Blower
Electrical Connection"
See the section
"Mantel Requirements"
Insulation must not fill the
spaces between the stand-offs
See the section
"Fireplace
Placement
Requirements"
See the section
"Chimney Requirements"
See the section
"Hearth Requirements"
See the section
"Blower Duct Connection"
See the section
"Cooling Vent Installation"
See the section
"Minimum Framing
Dimensions"
18" Min.

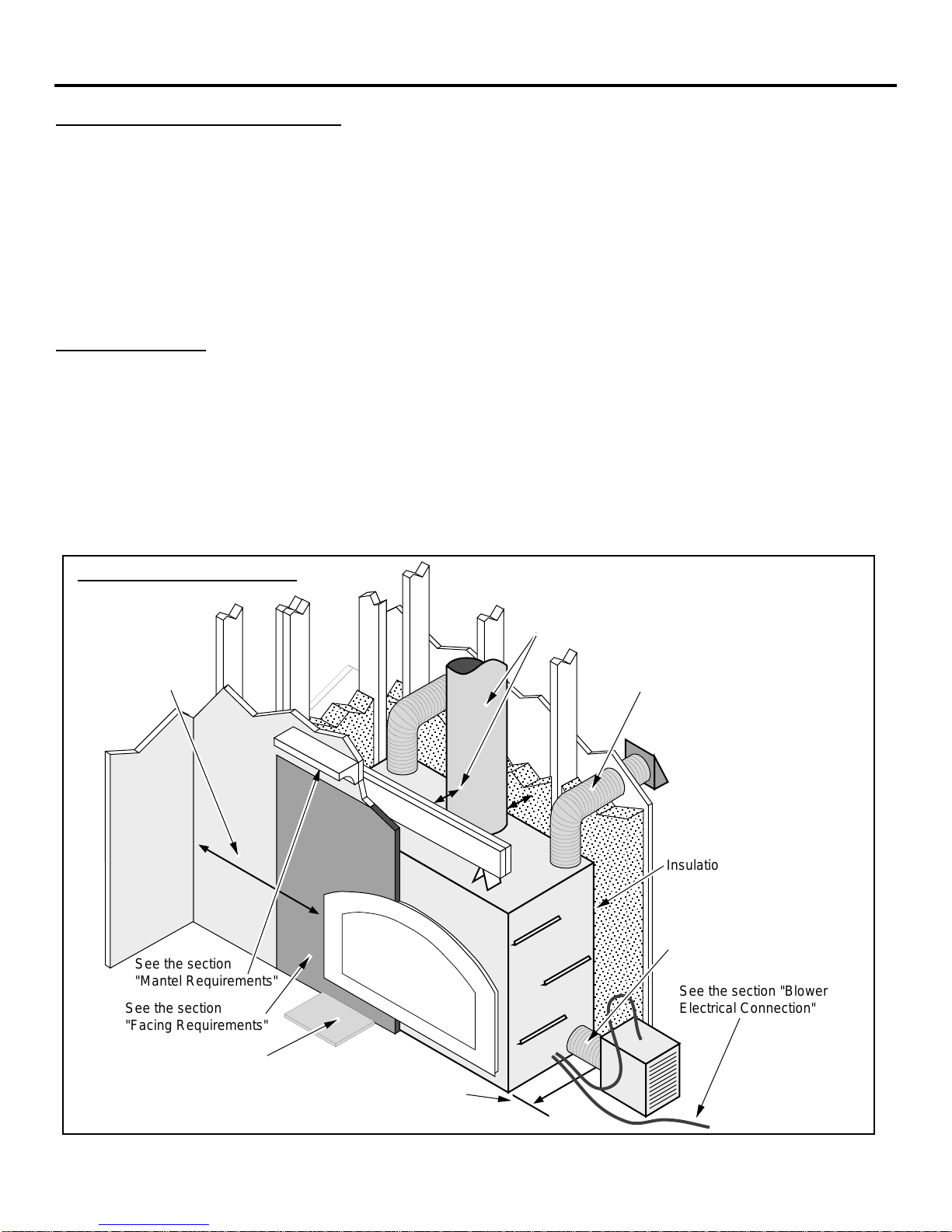

Installation Overview

INSTALLATION (CONTINUED)PAGE 5
Fireplace Placement Requirements
Minimum Framing Dimensions
We recommend installing the
shaded framing members
after installing the chimney.
Arrange the framing
members so there is not a
vertical member directly in
the center of the opening
where it would interfere with
pipe clearances.
26"
Header
(install veritcally to
ensure proper pipe to
header clearance)
A firestop is required at the top of
the fireplace enclosure or ceiling
level (whichever is lower).
Min. 4-1/2"
NOTE: make sure the
enclosure is wide enough to
accommodate the blower
(see the section"Blower" for
details).
The fireplace enclosure must not be
less than 81" above the base of the
fireplace.
•If the fireplace is raised, the
enclosure height must be raised to
maintain the 81".
•Do not build into this area.
•Do not slope the walls inward.
•The header, vertical framing
members, and all interior wall
surfaces may protrude a maximum
4" into this area.
50"
50-1/2"
•The fireplace uses 1/2" standoffs on the back and sides and 4" stand-offs on the top to space the
fireplace away from framing members or walls. These stand-offs may contact the framing members or
walls but do not place insulation or other material in the space between the stand-offs and fireplace.
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AAA
AAA
AAA
AAA
AAA
AAA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
Travis Industries
recommends the chase
around the fireplace be
insulated. This insulation
should only be placed
between the framing
members and secured so
it does not fill the space
between the fireplace and
standoffs.
Bend this bracket down
on each side and nail it
to the floor, securing the
fireplace in position.
These lifting handles are
removed (use a 7/16" wrench)
once the fireplace is in place.
Standoffs (also
located on back)
The fireplace (and
firebox) must be made
level and plumb during
installation. Use shims
under the fireplace to
properly level the
fireplace.
Zero
Clearance
Can
Firebox
WARNING:
Failure to correctly level and plumb
this fireplace will lead to doors that
swing open or closed.
AAA
AAA
AAA
AAA
AAA
AAA
AAA
•The fireplace must be secured to the floor (use the lifting handle brackets - see illustration above).
•Fireplace must be placed directly on wood or non-combustible surface (not on linoleum or carpet)

PAGE 6INSTALLATION (CONTINUED)
•Fireplace must be installed on a level surface capable of supporting the fireplace and chimney
•Place the ember strip included with the fireplace below the front edge of the fireplace.
Place this ember
strip under the front
of the fireplace and
the back edge of the
hearth.
NOTE: On the 36 ZC,
36 BI, and 44 BI the
ember strip will need to
be shortened.
The ember strip
insures no ember falls
between the fireplace
and hearth onto the
combustible floor.
EMBER STRIP
INSTRUCTIONS
Clearances
•When installed, walls in front of the fireplace must be a minimum 18" to the side of the faceplate (or
15-1/2" from the side of the fireplace) – see the illustration on page 2
•Fireplace should be located such that no doors, drapes, furniture or other combustibles can be placed
close or swing closer than the minimum 36" clearance. Due to the high heat output of this fireplace,
choose a location away from high traffic areas.
•Fireplace must be placed so the vents below and above the glass do not become blocked
Corner Installation (minimum framing dimensions at 45°)
AAA
AAA
AAA
AAA
AAA
AAA
A
A
A
A
A
A
A
A
A
A
AAAAAAAAAA
27"
72" 49"
26"
Fireplace
(includes
1/2"
standoffs)
25"
102"
25"

INSTALLATION (CONTINUED)PAGE 7
Raised Fireplaces
• If the fireplace is raised more than 15” above the sub-floor, the fireplace
enclosure will have to be raised accordingly (see “Minimum Framing
Dimensions” on page 3).

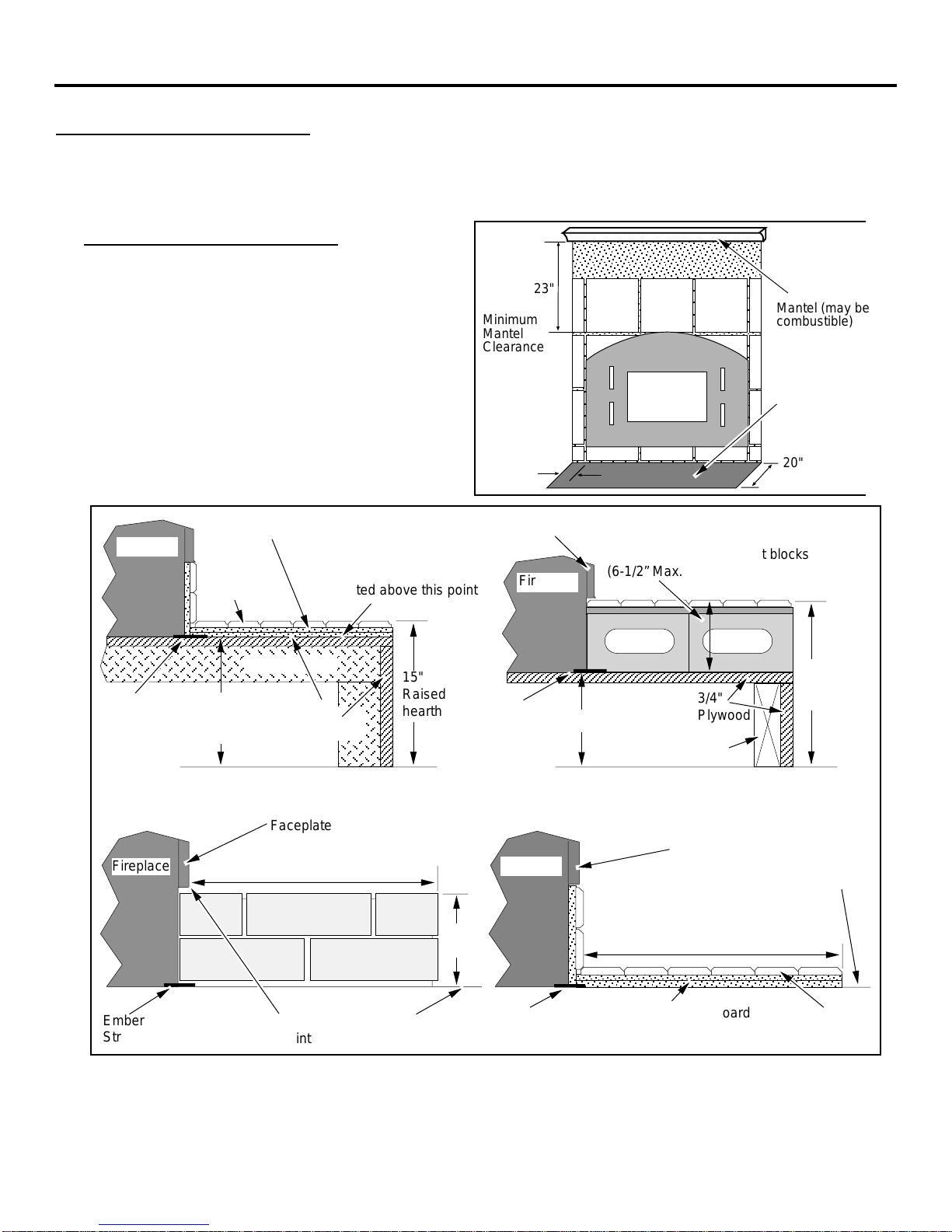

+The fireplace may be placed on a platform designed to support the fireplace and vent
(Approximately 600 Lbs.).
AAAAAA
AAAAAA
AA
AA
AA
AAAAAAAAA
AAAAAAAAA
A
A
A
A
AAAAAAAAA
AAAAAAAAA
AA
AA
AA
Minimum 1" cement board
Fireplace
Ember
Strip
2 x 4 Framing
No combustible material
permitted above this point
15"
Raised
hearth 3/4"
Plywood
AAAAAAAAA
AAAAAAAAA
A
A
A
Fireplace
2 x 8 Framing
Faceplate
Ember
Strip
15"
Raised
hearth
Elevated hearths must be
constructed of non-combustible
materials such as cement blocks
(6-1/2” Max.).
Header height needs to be
increased this dimension.
Header height will
need to be increased
this dimension.
Tile or
marble
3/4"
Plywood
Tile or
marble

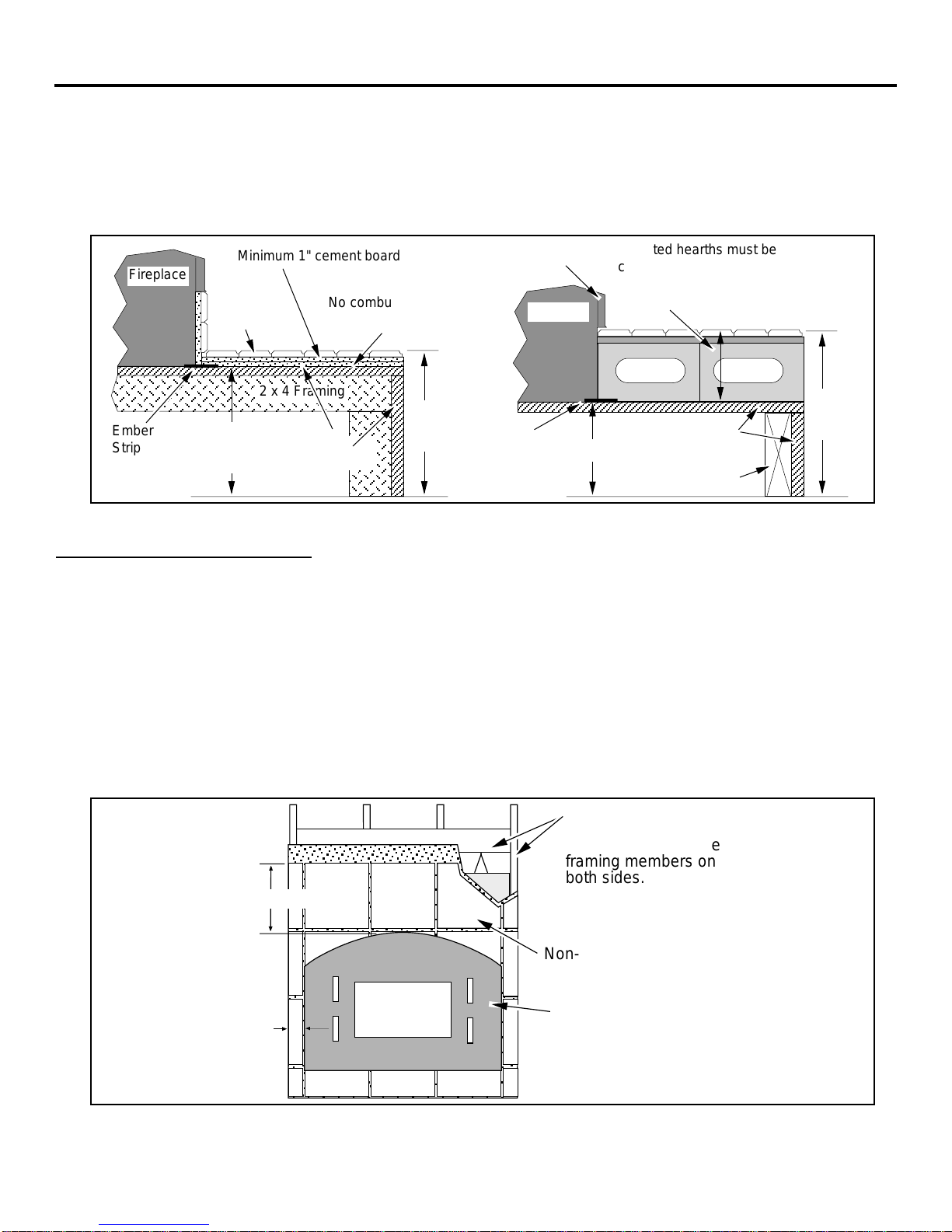

Facing Requirements
NOTE: Artisan faces vary in size. If the facing is over 1” thick (brick, river-
rock, etc.) use the face being installed to create a template.
•The fireplace is shipped with a set-up face that is 1/16" larger on the top, bottom and each side than
the faceplate. Leave the set-up face in place to act as a template when installing the facing.
•The fireplace requires 1/2" thick concrete-board or other non-combustible to extend from the header
to the base of the fireplace and to the framing members on both sides (do not use sheetrock or
drywall).
•The non-combustible facing must extend a minimum of 12" above and 2-1/2" to each side of the
faceplate.
•The non-combustible facing must be a minimum 1" thick
• The facing may be attached to the front of the fireplace with screws. Do not penetrate the fireplace
more than 3/4”.
AAAAAA
AAAAAA
AAAAAA
AAAAAA
AAAAAA
AAAAAA
12" (min.)
2-1/2"
(min.)
Cement-board must
extend from the header
to the floor and to the
framing members on
both sides.
Non-combustible
Facing
Keep the set-up face
on the fireplace when
installing the facing.
•Facing may be installed so it inserts behind the faceplate. NOTE: the faceplate protrudes 1" from the
front of the fireplace, has a 1/8" overlap on the sides, and 1/4" overlap on top.

PAGE 8INSTALLATION (CONTINUED)
Facing Requirements (continued)
• The combustible area above the facing must not protrude more than 3/4" from the facing. If it does,
it is considered a mantel and must meet the mantel requirements listed in this manual.
•To achieve a facing that is flush with the drywall to the side of the fireplace, recess the framing
directly next to the fireplace. See the illustration below.
1/2" Drywall
AAAA
AAA
1/2" Concrete Board
3/8" Tile
Fireplace
Overlapped Facing
Framing
1/2" Drywall
AAA
AAAA
1/2" Concrete Board
3/8" Tile
Fireplace
Flush Facing
Framing
1/2" Drywall
AAA
AAA
AAAAA
AAAAA
Brick
Fireplace
Brick Facing
Framing
AAA
AAA
TOP VIEW
(cross section of fireplace, framing, and face)
Faceplate
Fireplace
1"
Nail Down Flange
(used to secure the
fireplace to the framing)
1/2"
1/8" (1/4" overalap on
top, 0" on bottom)
1-1/2"

INSTALLATION (CONTINUED)PAGE 9
Mantel Requirements
•The optional mantel must be a minimum 23" above the top of the faceplate (61" above the base)
•The mantel must not extend more than 8-1/2" in front of the facing surface (combustible or non-
combustible).
•Mantel side columns that protrude more than 3/4" must maintain an 18" clearance to the faceplate
Hearth Requirements
?Local building codes may require a minimum
hearth requirement different of what this
manual states
•Hearth must extend 20" in front of the
faceplate when it is not elevated (see local
building codes). Hearths raised 6-1/2" must
extend a minimum 18".
•Hearth must extend a minimum 8" to both
sides of the faceplate (60" wide)
•Hearth must be a minimum 1" thick of
cement board (or equivalent)
• Hearth must not rise more than 6-1/2" above
the base of the fireplace
AAAAAAA
AAAAAAA
AAAAAAA
AAAAAAA
AAAAAAA
AAAAAAA
AAAAAAA
AAAAAAA
23" Mantel (may be
combustible)
Minimum
Mantel
Clearance
20" (18" in
some cases)
Minimum
Hearth
Width = 60"
8" Min.
AAAAAA
AAAAAA
AAAAAAAAA
AAAAAAAAA
Combustible
Floor
No hearth material can
go above this point
Fireplace
Faceplate
Ember
Strip
6 1/2"
Max.
18" Min.
(Check Local Building Codes)
AA
AA
AA
AAAAAAAAA
AAAAAAAAA
A
A
A
A
AAAAAAAAA
AAAAAAAAA
AA
AA
AA
Minimum 1" cement board
Fireplace
Ember
Strip
2 x 4 Framing
No combustible material
permitted above this point
15"
Raised
hearth 3/4"
Plywood
AAAAAAAAA
AAAAAAAAA
A
A
A
Fireplace
2 x 8 Framing
Faceplate
Ember
Strip
15"
Raised
hearth
Elevated hearths must be
constructed of non-combustible
materials such as cement blocks
(6-1/2”Max.).
20" Min.
(Check Local Building Codes)
Tile or
marble
Fireplace
A
A
A
A
Faceplate
Combustible Floor
Ember
Strip
Header height needs to be
increased this dimension.
Header height will
need to be increased
this dimension.
Min. 1" cement board
(or equivalent)
Tile or
marble
3/4"
Plywood
Tile or
marble

PAGE 10INSTALLATION (CONTINUED)
Cooling Vents
!The cooling vents provide cooling air for the fireplace and chimney system.
Failure to correctly install the cooling vents will lead to an extremely
dangerous installation and possibly a fire.
•The two cooling vents must be installed so as to route air from the outside to the two starter collars
on the top rear corners of the fireplace. Secure the vents to the collars using high-temperature
aluminum tape and/or sheet metal screws.
•A maximum of two 90° bends may be used on each vent. However, if a 180° bend is placed directly
off the starter collar, one additional 90° bend may be used.
•The maximum distance for the cooling ducts is listed below:

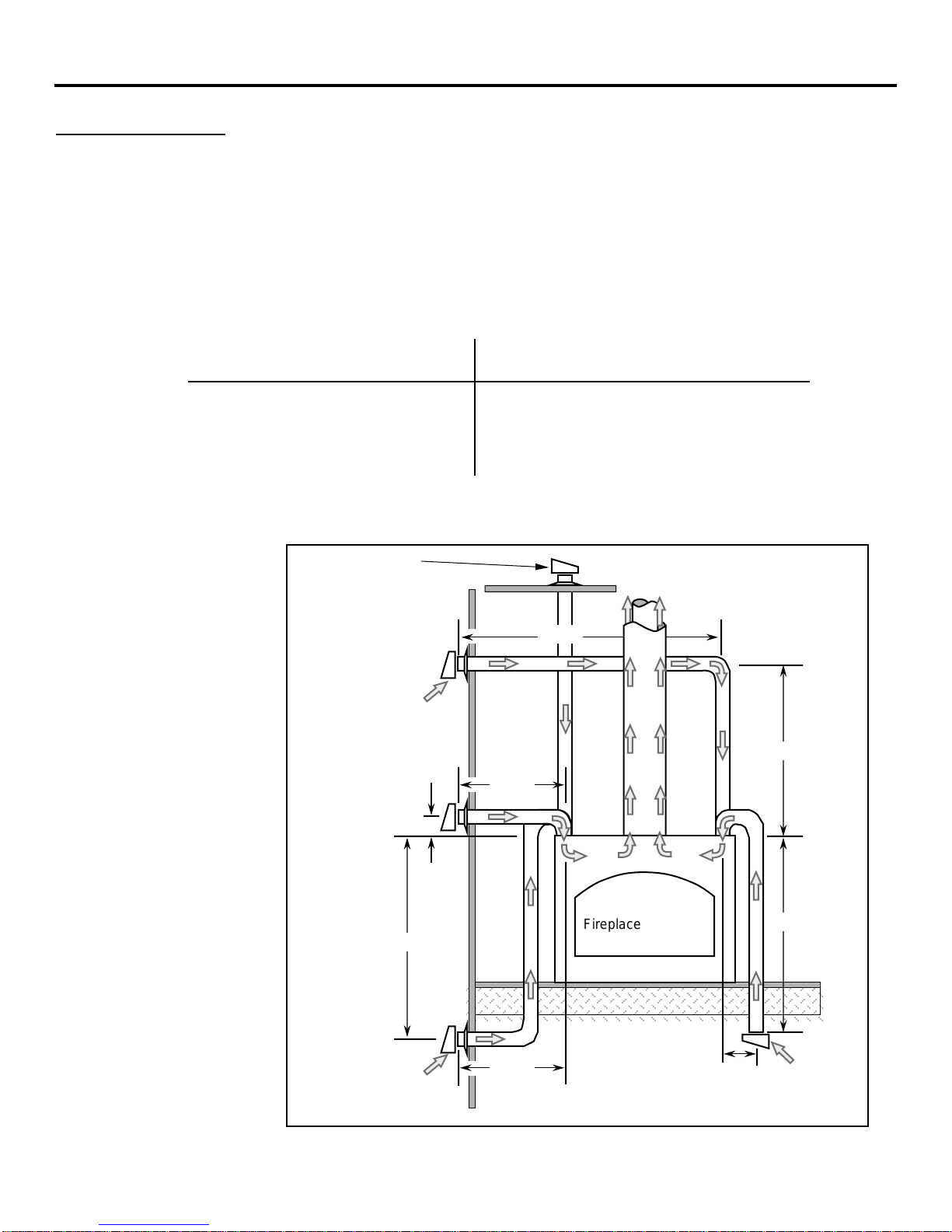

When the vertical rise is
between: The maximum horizontal run may be:
6' and 10' (max) 5'
3' and 6' 15'
1' and 3' 20'
0' and 1' 25'
•Included with the fireplace are two 12' lengths of vent, use a connector and seal if adding more length
•The duct terminations must be located so they can not be blocked (e.g. snow drifts)
•Included with the
fireplace is a set of
storm collars and vent
hoods. Place the
collars around the
vent on the exterior
and attach with screws
or caulking to seal the
wall from the vent
penetration. Place the
hood, with open
portion facing down,
over the cooling vents
and secure.
?The cooling air duct
terminations may be
installed to draw air
from a ventilated
crawl space or attic if
approved by local
building codes.
NOTE: certain codes
require a fire curtain
damper in these cases.
AAAAAAAAAA
Fireplace
Xtrordinair
Vertical
Rise
Vertical
Rise
Horizontal
Run
Horizontal
Run
Horizontal
Run
Horizontal
Run
Vertical
Rise
Vertical
Rise
The cooling
vent terminations
must terminate a
minimum of 10'
away from the
chimney
termination.
Crawl Space –
See information to the left on
crawl spaces or attics.
Cooling
Air
Air exits out of the outer
liner of the chimney.
Cooling
Air
Cooling
Air

INSTALLATION (CONTINUED)PAGE 11

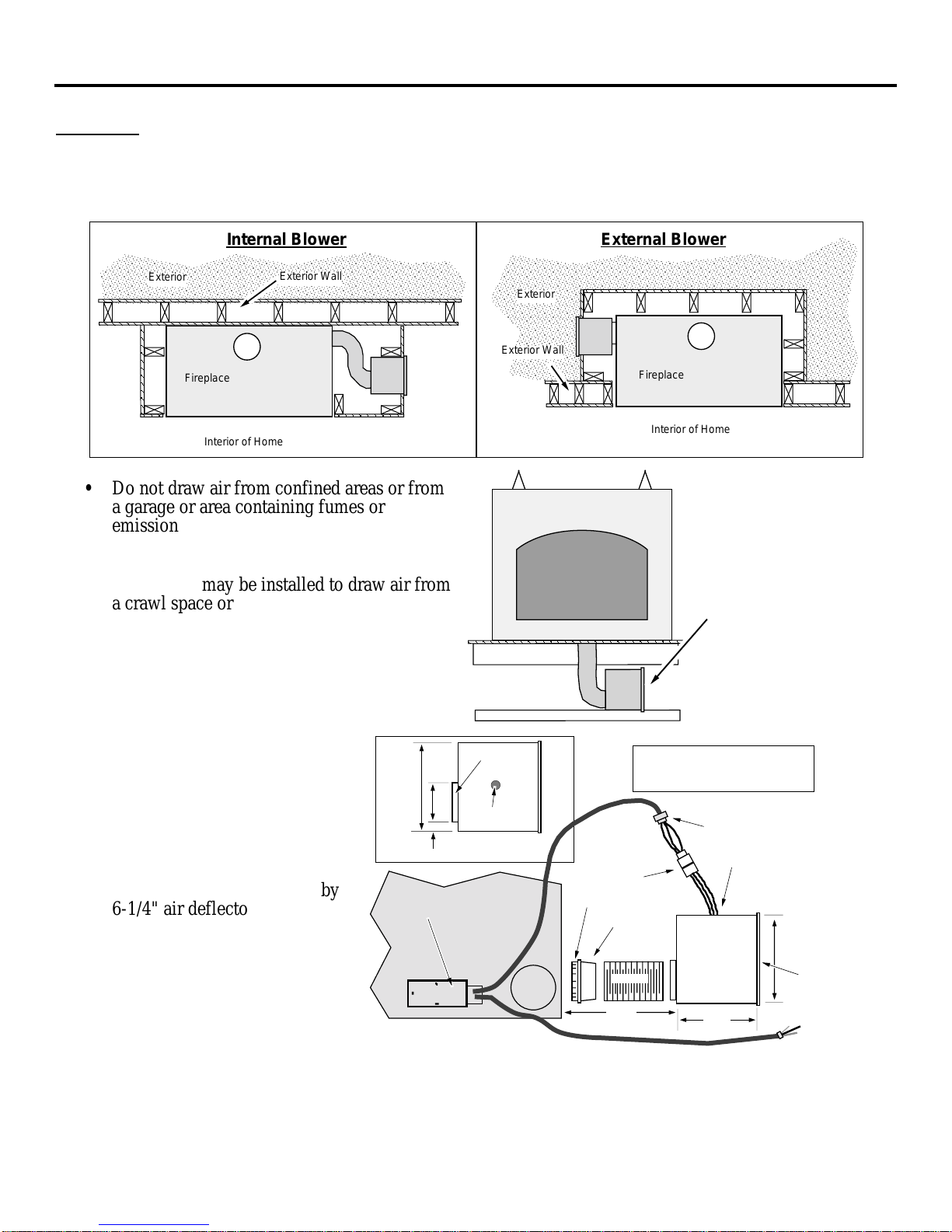

BlowerThe external blower pushes air through blower duct to the fireplace, where it is heated and
distributed into the room. The blower may be located to draw air from the exterior of the home,
producing positive pressure inside the home. Or, if desired, the blower may be located to draw
air from the interior of the home.
AAAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAA
AAAA
AAAA
AAAAAAAAAAA
A
A
A
A
A
AAAA
A
A
A
A
A
AAAA
Exterior
Fireplace
Interior of Home
Exterior Wall
External Blower
Internal Blower
AAAAAAAAAAAAAAAAA
AA
A
A
A
A
A
AAAAAAAAAAAAAAAAA
AAAA
A
A
A
A
A
Exterior
Fireplace
Interior of Home
Exterior Wall
•Do not draw air from confined areas or from
a garage or area containing fumes or
emissions. The blower inlet must be a
minimum 36" below any exhaust vent.
•The blower may be installed to draw air from
a crawl space or attic if approved by local
building codes. NOTE: certain codes
require a fire curtain in these cases.
Blower Duct Connection
The blower may be placed
in a ventilated crawl space
(if approved by the local
building department).
AAAAAAAAAAA
AAAAAAAAAAA
•The shorter the blower duct, the
greater the air flow.
•Connect the blower duct to the
right, left, or bottom of the
fireplace. Each location is
sealed with a cover plate (use a
5/16" nutdriver to remove cover
plate). If using the bottom
location, remove the 8-1/2" by
6-1/4" air deflector directly
above the cover plate and attach
the duct to the 6" hole above the
deflector. Insert the starter
section into the blower hook-up
hole and bend the flanges
outwards, locking the starter
section in place.
Blower
Housing
Intake grill
must be
accessible.
Snap conduit
connector into the
hole in the top of
the blower housing.
Start Collar
Power Source
(120 Volt A.C.)
13"
6"
11-3/8"
1-1/2”
TOP
VIEW Ring for
duct
Hole for
Conduit
FRAMING
DIMENSIONS: Height: 13"
Width: 11-3/8"
Depth: 11-1/2”
6" Blower
Hook-Up
Locking Tabs
Conduit Cover Plate
(On both sides)
Fireplace
Xtrordinair
11 1/2"
Flex Duct
Min. 4"
Wire
Plugs
•Attach the flex duct to the collar on the blower box and start collar using duct tape and/or screws
•The maximum length for 6" diameter blower duct is 15' (use the included duct & start collar)

PAGE 12 INSTALLATION (CONTINUED)
Blower Duct Connection (continued)
•The maximum length for 8" diameter blower
duct is 25' (use two 6" to 8" adapters)
•A maximum of two 90° bends may be used.
•The blower, if located on an external wall,
must be weatherproofed. Remove the
blower cover and install the blower. Apply
caulk around the perimeter of the blower
housing where it contacts the external wall
and vapor barrier (apply sparingly). Replace
the blower cover.
Blower Electrical Connection
AAAA
AAAA
Blower
Housing
Blower
Cover
Caulk around all
four sides of the
blower housing
External Wall (&
vapor barrier)
•Connect the electrical
conduit to a 120 Volt, 60
Hz (2 Amp) electrical
supply. Use a junction
box to protect the
electrical connection.
•Connect the blower
conduit to the blower
box by attaching the two
molex connectors
together. Insert the
molex connectors into
the blower box. Then
attach the conduit to the
blower box by inserting
it into the top until it
snaps in place.
AAA
AAA
Blower
Conduit
Snap this piece
into the top of the
blower housing
White (Common)
Junction
Box
Exposed (Ground) Black (Hot)
Screw this piece into
the junction box Use wire nuts or other approved method to connect the power
conduit wires to a power source (a junction box is required).
Power
Conduit
Blower
Housing
!Do not run either conduit over the top of the fireplace or within 2" of the chimney
•If the blower or power supply is located to the left, the electrical conduit(s) may be directed to the
left side of the fireplace. To do this, remove the conduit cover plate on both sides of the fireplace.
Feed the conduit(s) through the hole on the right side and out the left side (removing the cover
allows the conduit to be fed through without kinking). Switch the cover plates by attaching the right
cover plate to the left side and vice-versa.
•The blower utilizes a filter that requires periodic cleaning - see the illustration below.
Remove the four
screws that go into
these holes with a
1/4" nutdriver.
Shake the filter to remove any
dirt that may have accumulated.
Intake GrillBlower Housing Filter Screen Filter

INSTALLATION (CONTINUED)PAGE 13
Chimney Requirements
• Use one of the following brands and type of chimney:
• Temco 82 • Superior TF8 • FMI 8DM • Marco 8D
Chimneys Part Numbers
Chimney
Components Temco 82 Superior
TF8 FMI 8DM Marco 8D
12" Chimney Section 8212D TF8-12 12-8DM 12 - 8D
18" Chimney Section 8218D TF8-18 18-8DM 18 - 8D
24" Chimney Section 8224D --- 24-8DM ----
36" Chimney Section 8236D TF8-36 36-8DM 36 - 8D
48" Chimney Section 8248D TF8-48 48-8DM 48 - 8D
Offsets 8232E TF8-30, TF8-E30 30E-8DM 30E - 8D
Flashing 8206F 8-F6 6F8 or 12F8 12F - 8D
Chimney Cap 8203D TF8-CTO RTL-8HT BT - 8D
Roof Support 8204S 8-54 38 RS 12CPS - 8D
Firestop Spacer --- 8FS-2 FS-8DM FS30 - 8D

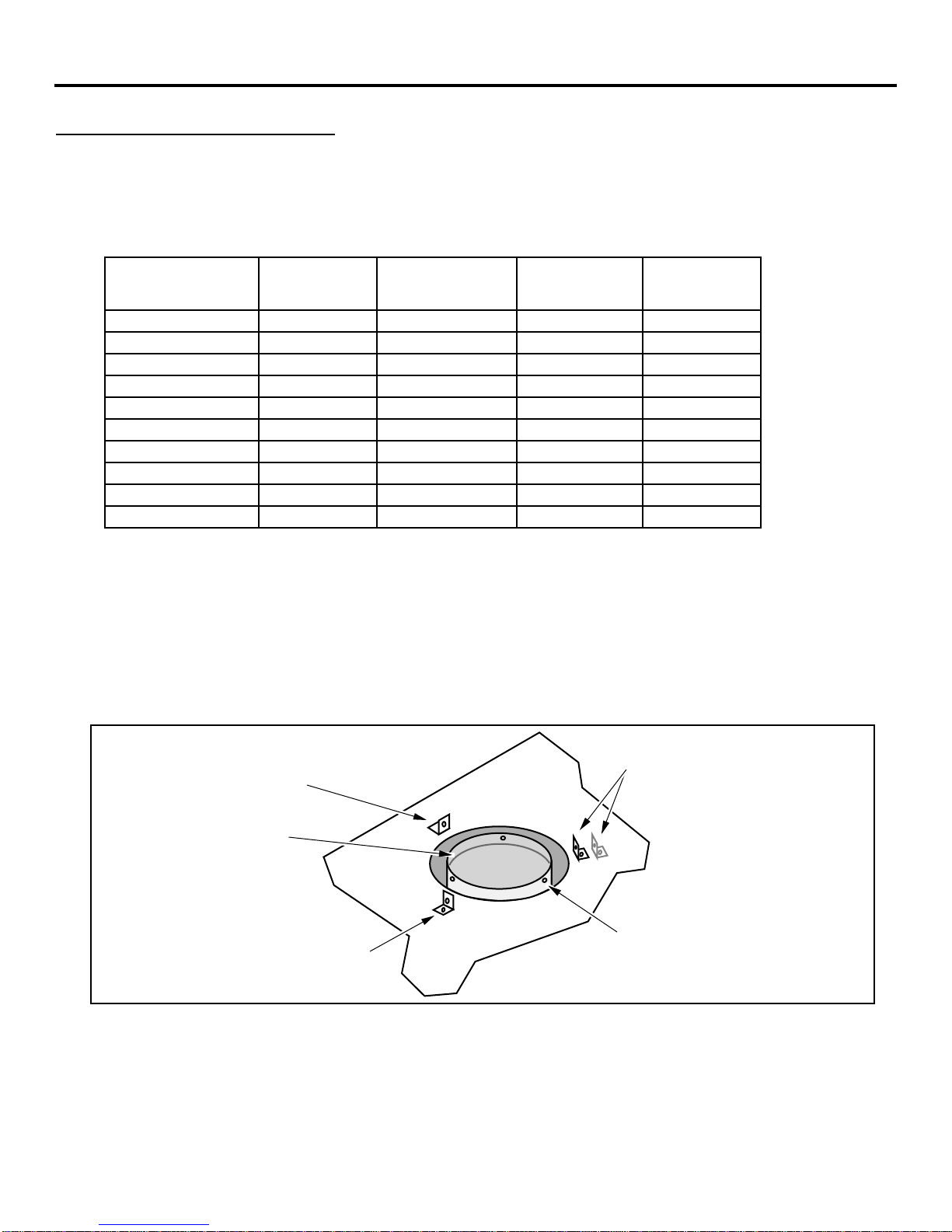

Chimney Connection to Fireplace
•Each brand of chimney has a slightly different outside diameter. To accommodate this, the fireplace
has three "L" brackets (outer liner connectors) on the top of the fireplace can. Center a section of
chimney over the chimney opening and mark the exterior location of the chimney. Then reposition
the "L" brackets, if necessary, so they are directly adjacent the exterior of the chimney. Use a drill
with a 5/16" driver bit to re-install the "L" brackets (use the existing sheet metal screws).
Outer Pipe Brackets
Use sheet metal screws to attach
the outer liner to these brackets.
Inner Liner (ledge along
inside accepts differed
sized chimney pipes)
If the outer pipe does not line up
with the brackets, remove the
brackets and re-attach them to
the top of the fireplace.
Connect the inner pipe to
the inner liner with three
sheet metal screws.
•When attaching the chimney to the fireplace, first slide down the inner liner of the chimney pipe into
the inner liner of the fireplace. Certain brands of chimney pipe will stop at the ledge, while others
will insert beyond the ledge. When the chimney pipe is fully seated and aligned, drill three holes in
the chimney pipe where it lines up with the holes in the fireplace inner liner. Secure the fireplace to
the chimney pipe with three sheet metal screws. If there are any large gaps between the chimney
pipe and fireplace, use furnace cement to seal (allow 24 hours to dry before burning the fireplace).

PAGE 14 INSTALLATION (CONTINUED)
Chimney Height
•Minimum 15'
system height
(measured from the
base of the
fireplace)
•Maximum 35'
system height
(measured from the
base of the
fireplace)
?In some
problematic
situations,
additional chimney
height above the
specified
minimums may be
necessary to reduce
wind-induced
down drafting and
back puffing, or to
increase draft,
thereby improving
fireplace operating
characteristics.
Required
Chimney
Equipment
Chimney must be totally
enclosed when passing
through living space with a
minimum 2" clearance to
combustibles.
3' Min.
2' Min.
10'
System Height
35' Max.
15' Min.
2" Min. Air
Space to
Combustibles
Rain Cap
Storm Collar
Flashing
Firestop Between Floor Levels
Attic Firestop (with insulation shield)
Cooling
Vent
!Depending on the manufacturer and where the chimney is to be installed, chimney supports, roof
braces, radiation shields, attic insulation shields, attic enclosures, spark arrestors, locking bands,
etc... may be required as part of the chimney system. The manufacturer's installation instructions,
which are reviewed by the listing agency, specifies when and where each of these components must
be used. Follow the manufacturer's instructions for the use of flashing and an adjustable storm collar
at the roof line to prevent water from entering the house. Manufacturers require that chimneys
extending beyond a certain height above the roof (frequently above 5') must also be braced.

INSTALLATION (CONTINUED)PAGE 15
Using Offsets
•30° Elbows may be used to offset the chimney (to
align the chimney or gain clearance to combustibles
•A maximum four 30° elbows may be used
•Each elbow must be used in conjunction with a
return elbow (so the chimney returns to a vertical
direction)
•If using a single offset (two 30° elbows) a
maximum of 8' of inclined chimney may be used
between elbows.
•If using two offsets (four 30° elbows) a maximum
of 4' of inclined chimney may be used between
each set of elbows.
•For every 6' of inclined chimney a flue support is
required
•Elbows may be used directly off the top of the
fireplace (maintain a 5" clearance to combustibles
on the back wall, 4 1/2" minimum on the front wall
and header, and 18" minimum to the side walls)
•The table below details the amount of offset ("X")
and rise ("R") gained from various chimney
lengths when used with 30° elbows. Make sure to
add the amounts for both elbows. Two sections
may be added together to form a combined length.
For example, 12" and 18" Temco chimney sections
give an offset of 17-5/8" (3-7/8" + 5-3/8" + 8-3/8"
= 17-5/8"). The rise ("R") equals 38-1/8" (14-3/8"
+ 9-1/4" + 14-1/2" = 38-1/8").
X
R
Max. of 30
degrees
4' Max.
Chimney must be totally
enclosed when passing
through living space with a
minimum 2" clearance to
combustibles.
Firestop
Firestop
2"
Min.
Cooling Vents
Temco 82 Series Superior TF8 FMI 8DM Marco 8D
MEASURED OFFSET RISE OFFSET RISE OFFSET RISE OFFSET RISE
IN INCHES "X" "R" "X" "R" "X" "R" "X" "R"
2 Elbows 3 7/8 14 3/8 4 15 4 3/8 16 3/8 5 1/4 19 1/4
12" Section 5 3/8 9 1/4 5 1/4 9 5 3/8 9 1/8 5 1/4 9
18" Section 8 3/8 14 1/2 8 1/4 14 1/4 8 3/8 14 3/8 8 1/4 14 1/2
24" Section 11 3/8 19 5/8 --- --- --- --- --- ---
36" Section 17 3/8 30 17 1/4 30 17 3/8 29 7/8 17 1/4 30 1/4
48" Section 23 3/8 40 3/8 23 1/4 40 1/4 23 3/8 40 1/4 23 1/4 40 1/2
Flue Support 1 1/2 2 3/8 1 1/2 2 1/2 6 3/4 11 3/4 5 1/4 9 1/4

PAGE 16 INSTALLATION (CONTINUED)
Clearances to Combustibles
!Follow the clearances listed below - do not follow the clearances listed in the chimney instructions
•Maintain a 2" clearance from the chimney to combustibles (measured horizontally)
•Use offsets, if necessary, to maintain clearances
•In the area above the fireplace before the chimney penetrates the ceiling (use a firestop), the chimney
must maintain the clearances listed below:
5" to the rear of the chimney
4-1/2" to the front of the chimney
Min. Clearance 2" (from this
point upwards)
Min. 4-1/2" clearance
to the front.
Min. 2" clearance to
the sides with offsets
Min. 5" clearance
to the rear.
Firestop
The fireplace enclosure must not be
less than 81" above the base of the
fireplace.
•If the fireplace is raised, the
enclosure height must be raised to
maintain the 81".
•Do not build into this area.
•Do not slope the walls inward.
•The header, vertical framing
members, and all interior wall
surfaces may protrude a maximum
4" into this area.
Firestops
•Whenever the chimney penetrates a floor or
ceiling a firestop is required on the bottom side
of the floor joists
•When passing through an attic the firestop must
be placed on the attic side of the joists
•When the chimney passes through a living space
it must be totally enclosed (maintain the
minimum 2" clearance to combustibles)
•The space between frames that hold the firestop
in place should be measured as follows:
Temco 16"
Superior 16 1/2"
FMI 16 1/2"
Marco 16 1/2"
NOTE: Many firestops are
designed for a 1"
clearance, this fireplace
requires a 2" clearance.
Space
between
frames Firestop
AAA
AAA

INSTALLATION (CONTINUED)PAGE 17
Framing the Roof
•Follow the manufacturer's instructions for the use of flashing and an
adjustable storm collar at the roof line to prevent water from entering the
house.
•The table below may be used to determine the appropriate framing size.
When installing into a sloped roof, it is important to determine the size of
the framing for clearance purposes. Use the appropriate column for 2 x 4 or
2 x 6 rafters. It is not necessary to frame around the hole opening if the
clearance to combustibles can be maintained between two rafters. Framing Size
Chimney Type Chimney Type
SLOPE Temco (12" diameter) Superior, FMI, or Marco (12-1/2"
2 by 4 Rafter 2 by 6 Rafter 2 by 4 Rafter 2 by 6 Rafter
0/12 16 x 16 16 x 16 16 1/2 x 16 1/2 16 1/2 x 16 1/2
1/12 16 x 16 1/2 16 x 16 5/8 16 1/2 x 17 16 1/2 x 17 1/8
2/12 16 x 17 16 x 17 1/4 16 1/2 x 17 1/2 16 1/2 x 17 3/4
3/12 16 x 17 1/2 16 x 18 16 1/2 x 18 16 1/2 x 18 1/2
4/12 16 x 18 1/4 16 x 18 7/8 16 1/2 x 18 3/4 16 1/2 x 19 3/8
5/12 16 x 19 16 x 19 1/4 16 1/2 x 19 1/2 16 1/2 x 19 3/4
6/12 16 x 19 7/8 16 x 20 7/8 16 1/2 x 20 3/8 16 1/2 x 21 3/8
7/12 16 x 20 3/4 16 x 21 1/2 16 1/2 x 21 1/4 16 1/2 x 22
8/12 16 x 21 3/4 16 x 23 16 1/2 x 22 1/4 16 1/2 x 23 1/2
9/12 16 x 22 3/4 16 x 24 1/4 16 1/2 x 23 1/4 16 1/2 x 24 3/4
10/12 16 x 23 3/4 16 x 25 1/2 16 1/2 x 24 1/4 16 1/2 x 26
11/12 16 x 25 16 x 26 3/4 16 1/2 x 25 1/2 16 1/2 x 27 1/4
12/12 16 x 26 1/8 16 x 28 1/8 16 1/2 x 26 5/8 16 1/2 x 28 5/8

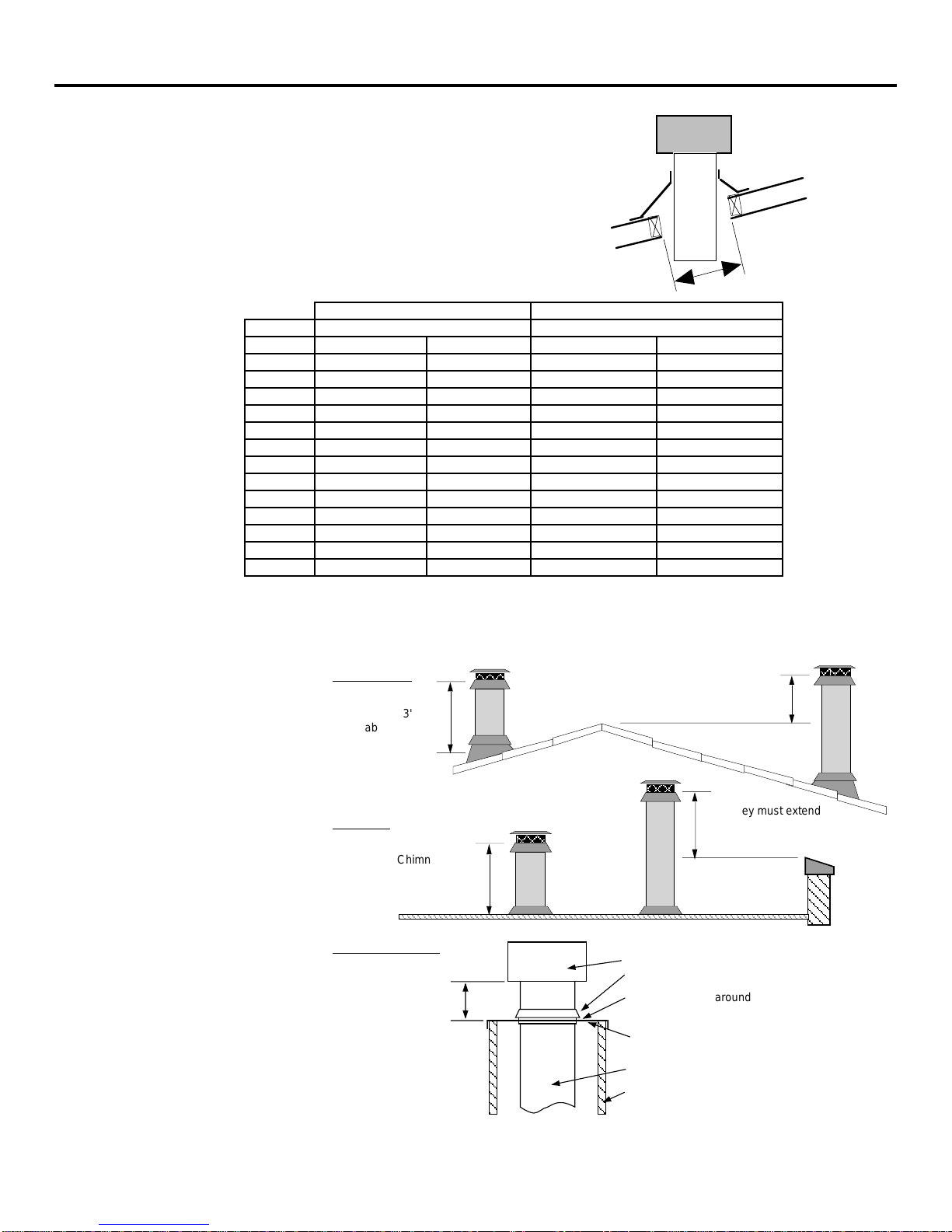

Chimney Termination Requirements
•The chimney must terminate a minimum 3' above the roof and 2' above any portion within 10' (measured horizontally).
This applies to flat and sloped roofs.
•The chimney must have a
chimney cap
• When using a chase to enclose a
chimney, the chimney termination
is not required to be 3' above the
chase as long as the chase is
above the roof structure. The
chimney cap must still maintain
the 2, 3, 10 clearance to any other
structure. See the illustration to
the right.
•Chimneys extending beyond a
certain height (frequently 5')
above the roof may require braces
(check the chimney instructions
for details)
?In some problematic situations,
additional chimney height above
the specified minimums may be
necessary to reduce wind-induced
down drafting and back puffing,
or to increase draft, thereby
improving fireplace operating
characteristics.
Slanted Roofs
F
lat Roofs
AA
A
A
A
Chimney must
extend 3'
above the roof
AAAAAAAAAAAAAA
Chimney must extend 2'
above any portion of the roof
within 10' of the chimney
A
A
AA
AA
Chimney must
extend 3'
above the roof
Chimney must extend 2'
above any portion of the roof
within 10' of the chimney
A
A
A
A
A
A
A
A
Cap
Chase
Drip Collar (seal around edges)
Storm Collar
Chimney Pipe
Sheet Metal Chase Top
6” Min.
Chase Installations

PAGE 18 INSTALLATION (CONTINUED)

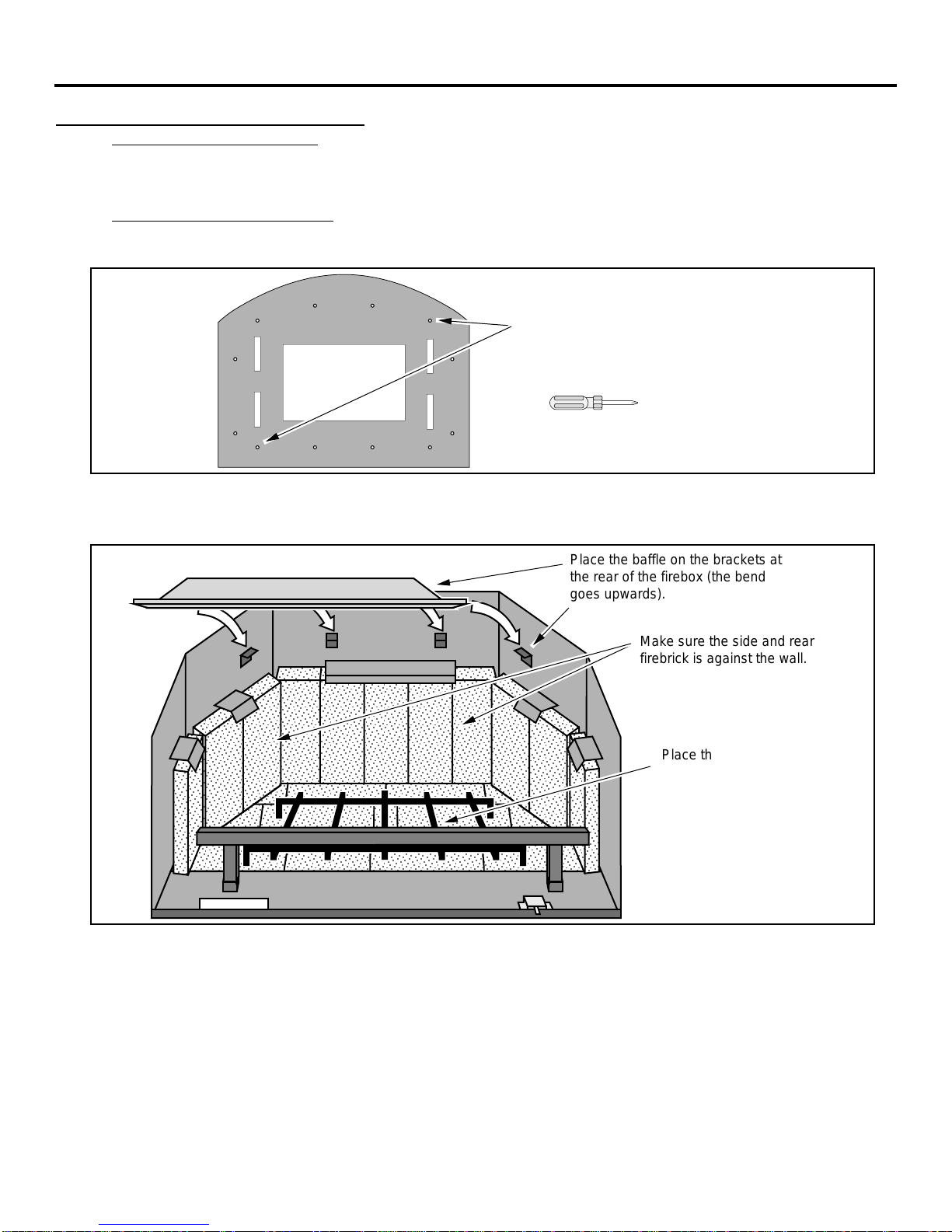

Finalizing the Installation
! ACID WASH WARNING: Before installing the faceplate, make sure any masonry that has been
treated with acid wash has been properly neutralized (this is used primarily with brick faces). Acid
wash (muriatic acid) is used to remove excess mortar. If not properly neutralized with an ammonia
solution, the gold face may develop a permanent tarnish when the acid evaporates over time.
!
WOOD SCRAP WARNING : Never burn wood scraps in the fireplace. Treated wood breaks down
the catalyst inside the fireplace, decreasing efficiency and increasing emissions.
1Remove the set-up face using a phillips screwdriver included with the faceplate.
Use a phillips screwdriver to remove
the 12 screws holding the set-up
face in place.
Phillips
Screwdriver
2Make sure the firebrick is properly in place.
3Install the log retainer using the included 1/8" allen wrench.
4Install the baffle and grate.
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAA
AAAA
AAAA
AAAA
AAAA
AAAA
A
A
A
A
A
AAAA
AAAA
AAAA
AAAA
AAAA
AAAA
A
A
A
A
A
Place the baffle on the brackets at
the rear of the firebox (the bend
goes upwards).
Make sure the side and rear
firebrick is against the wall.
Place the grate in the center
of the firebox.

INSTALLATION (CONTINUED)PAGE 19
5Make sure the insulation between the firebox and fireplace can is still in place
AAAAAAA
AAAAAAA
AAAAAAA
AAAAAAA
AAAAAAA
AAAAAAA
AAAAAAA
AAAAAAA
AAAAAAA
AAAAAAA
AAAAAAA
AAAAAAA
Before putting on the faceplate, make
sure the insulation is in place and forms
a barrier between the firebox and the
zero-clearance can. Check both sides
and above the firebox.
Zero Clearance Can
Firebox
6If installing a catalyst temperature meter, do so now (see the instructions included with the
temperature meter).
7The faceplate is packaged with the faceplate attachment screws. Use a phillips screwdriver to attach
the faceplate.
NOTE: do not pinch any of the wires in the lower right between the faceplate and the fireplace.
AAAAAAAAAAAAAA
AAAAAAAAAAAAAA
AAAAAAAAAAAAAA
AAAAAAAAAAAAAA
AAAAAAAAAAAAAA
AAAAAAAAAAAAAA
AAAAAAAAAAAAAA
AAAAAAAAAAAAAA
AAAAAAAAAAAAAA
AAAAAAAAAAAAAA
12 faceplate
attachment screws
come included with
the faceplate.
Faceplate
The switch plate
is installed here.
Phillips
Screwdriver

PAGE 20 INSTALLATION (CONTINUED)
8Attach the two male quick-connects from the switch plate to the two female quick-connects leading
from the fireplace. If the optional summer fan switch is being used, connect the other two quick
connects, otherwise tuck the two male quick-connects leading from the fireplace into the cavity
behind the faceplate. Attach the switch plate to the faceplate using a standard screwdriver (NOTE:
the attachment screws are threaded into the faceplate).
+Blower operation may be checked by jumping the two male quick-connects leading from the
fireplace (BE CAREFUL - THIS CIRCUIT IS ACTIVE). Make sure the door is closed.
Attach the two male quick-connects from the
switch plate to the two female quick-
connects leading from the fireplace.
These male quick-connects are for the summer fan switch
(connect them together to test if the blower operates).
Use a standard
screwdriver to attach
the switch plate
Lower Right
of Faceplate
9Test the blower circuit by following the directions below.
Remove the right
forward side brick.
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAA
AAAAAAA
AAAAAAA
AAAAAAA
AAAAAAA
AAA
AAA
AAA
AAA
AAA
AA
AA
AA
AA
AA
AAA
AAA
AAA
AAA
AAA
AA
AA
AA
AA
AA
a
Use a propane torch or
other heat source to heat
the area at the center of
this plate. The blower, if
connected properly,
should start within 30 to 60
seconds.
b
Depress the
door switch.
c
