FireplaceXtrordinair ProBuilder 24 CF GSB2 User manual

ProBuilder 24
CleanFace GSB2
Owner’s Manual
WARNING: FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly could result in serious injury, death, or property damage.
- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any
other appliance.
- WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Leave the building immediately
• Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call the fire department.
- Installation and service must be performed by a qualified installer, service agency or the gas supplier.
HOT GLASS WILL CAUSE
BURNS
DO NOT TOUCH GLASS
UNTIL COOLED
NEVER ALLOW CHILDREN
TO TOUCH GLASS
A barrier designed to reduce the risk of burns from
the hot viewing glass is provided with this appliance
and shall be installed for the protection of children
and other at-risk individuals.
Listed by
Omni-Test Laboratories, Inc.
Report # 0028GF115S
ANSI Z21.88-2016
CSA 2.33-2016
CSA 2.17-2017
 Operation
 Maintenance
This appliance may be installed in an aftermarket, permanently located, manufactured home
(USA only) or mobile home, where not prohibited by local codes.
This appliance is only for use with the type of gas indicated on the rating plate. A conversion
kit is supplied with the appliance.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
French language manuals at fireplacex.com.
Manuels de langue Française à fireplacex.com
Travis Industries, Inc. 12521 Harbour Reach Dr., Mukilteo, WA 98275 www.travisproducts.com
 Copyright 2019, T.I. $10.00 4/22/21 100-01514

2 Table of Contents
© Travis Industries 4/22/21 - 1514 PB 24 CF GSB2 Operation
Introduction
We welcome you as a new owner of a ProBuilder GSB2 gas fireplace. This manual details operation and
maintenance of this fireplace. Please familiarize yourself with the Owner's Manual before operating your
heater and save the manual for future reference.
Important Information
No other ProBuilder gas fireplace has the same serial
number as yours. The serial number is on the listing
label that is chained to the gas control valve. This
serial number may be needed in case you require
service.
Model: ProBuilder 24 CF GSB2____
Serial Number:
Purchase Date:
Purchased From:
Register your warranty online at:
traviswarranty.com
Save Your Bill of Sale.
To receive full warranty coverage, you will
need to show evidence of the date you
purchased your heater.
We suggest that you attach your Bill of Sale
to this page so that you will have all the
information you need in one place should the
need for service or information occur.
Installation Warnings
 Installation requirements are printed in the ProBuilder GSB2 Installation Manual. All
requirements in the installation manual must be met.
 Failure to follow all of the requirements may result in property damage, bodily injury,
or even death.
 This heater must be installed by a qualified installer who has gone through a training
program for the installation of direct vent gas appliances.
 This appliance must be installed in accordance with all local codes, if any; if not,
follow ANSI Z223.1 and NFPA 54(88). In Australia follow AS/NZS 5601.1.
 In Manufactured or Mobile Homes must conform with Manufactured Home
Construction and Safety Standard, Title 24 CFR, Part 3280, or, when such a standard
is not applicable, the Standard for Manufactured Home Installations, ANSI/NCSBCS
A225.1. This appliance may be installed in Manufactured Housing only after the
home is site located.
 The fireplace is designed to operate on natural gas, or propane (LP).
 All exhaust gases must be vented outside the structure of the living-area.
Combustion air is drawn from outside the living-area structure.
 Notify your insurance company before hooking up this fireplace.

Introduction 3
© Travis Industries 4/22/21 - 1514 PB 24 CF GSB2 Operation
Table of Contents
Introduction ................................................... 2
Important Information ................................... 2
Installation Warnings .................................... 2
Table of Contents .......................................... 3
Features ......................................................... 3
Heating Specifications .................................. 3
Before You Begin .......................................... 6
Location of Controls ..................................... 6
Starting the Fireplace for the First Time ..... 7
Turning the Fireplace On and Off ................ 7
Adjusting the Flame Height .......................... 8
Adjusting the Blower Speed (Optional) ...... 8
Continuous Pilot / GreenSmart™ Pilot
Switch ............................................................. 8
Starting the Heater for the First Time.......... 9
Adjusting the Blower Speed (Optional) ...... 9
Normal Operating Odors .............................. 9
Power Outages .............................................. 9
Glass Frame Removal and Installation ..... 10
Log Set Installation ..................................... 13
Installation Warnings ......................................... 13
Log Set Overview – MV/GSB2 Models.............. 13
Ember Installation.............................................. 18
Rock Wool Placement ....................................... 18
Maintaining Your Heater's Appearance .... 19
Replacement Parts List .............................. 19
Yearly Service Procedure ........................... 20
Troubleshooting Table ............................... 21
Wiring Diagram ........................................... 22
36 CF Safety Label............................................ 23
CONDITIONS & EXCLUSIONS ................... 24
IF WARRANTY SERVICE IS NEEDED: ...... 24
Index ............................................................. 26
Features
 Works During Power Outages
 Contemporary Look
 Optional Blower for Heat Distribution
 Optional Remote Thermostat
 Standing Pilot
 Standing or Intermittent (GreenSmart) Pilot
 Variable-Rate Heat Output
 Low Maintenance
Heating Specifications
Natural Gas Propane
ProBuilder 24 CF Approximate Heating Capacity (in square feet)* Up to 750 Up to 750
Maximum BTU Input Per Hour 18,000 18,000
* Heating capacity will vary with floor plan, insulation, and outside temperature.

4 Safety Precautions
© Travis Industries 4/22/21 - 1514 PB 24 CF GSB2 Operation
IF YOU SMELL GAS:
* Do not light any appliance
* Extinguish any open flame
* Do not touch any electrical switch or plug or unplug anything
* Open windows and vacate building
* Call gas supplier from neighbor's house, if not reached, call fire department
This unit must be installed by a qualified installer to prevent the possibility of an explosion.
Your dealer will know the requirements in your area and can inform you of those people
considered qualified. The room heater should be inspected and cleaned before use and at
least annually by a qualified service person. More frequent cleaning may be required due
to excessive lint from carpeting, bedding material, etc.
The instructions in this manual must be strictly adhered to. Do not use makeshift methods
or compromise in the installation. Improper installation will void the warranty and safety
listing.
This heater is either approved for natural gas (NG) or for propane (LP). Burning
the incorrect fuel will void the warranty and safety listing and may cause an
extreme safety hazard. Direct questions about the type of fuel used to your dealer.
Check for a label on the flame adjust knob on the gas control valve (this is the best
place to check). You may also check for a label on the gas control valve body.
Contact your local building
officials to obtain a permit and
information on any installation
restrictions or inspection
requirements in your area.
Notify your insurance company
of this heater as well.
If the flame becomes sooty, dark
orange in color, or extremely tall,
do not operate the heater. Call
your dealer and arrange for
proper servicing.
It is imperative that control
compartments, screens, or
circulating air passageways of
the heater be kept clean and
free of obstructions. These
areas provide the air necessary
for safe operation.
Do not operate the heater if it is
not operating properly in any
fashion or if you are uncertain.
Call your dealer for a full
explanation of your heater and
what to expect.
Do not store or use gasoline or
other flammable liquids in the
vicinity of this heater.
Do not operate if any portion of
the heater was submerged in
water or if any corrosion occurs.
Immediately call a qualified
service technician to inspect the
appliance and to replace any part
of the control system and any
gas control that has been under
water.

Safety Precautions 5
© Travis Industries 4/22/21 - 1514 PB 24 CF GSB2 Operation
Do not place clothing or other
flammable items on or near the
heater. Because this heater can
be controlled by a thermostat
there is a possibility of the
heater turning on and igniting
any items placed on or near it.
Light the heater using the built-in
igniter. Do not use matches or
any other external device to light
your heater.
Allow the heater to cool before
carrying out any maintenance or
cleaning.
The viewing glass should be
opened only for conducting
service. Do not operate with
cracked, broken, or removed
glass.
Any safety screen or guard
removed for servicing must be
replaced prior to operating the
heater.
Never remove, replace, modify or
substitute any part of the heater
unless instructions are given in
this manual. All other work must
be done by a trained technician.
Don't modify or replace orifices.
Operate the heater according to
the instructions included in this
manual.
If the main burners do not start
correctly turn the gas off at the
gas control valve and call your
dealer for service.
Instruct everyone in the house
how to shut gas off to the
appliance and at the gas main
shutoff valve. The gas main
shutoff valve is usually next to
the gas meter or propane tank
and requires a wrench to shut off.
This unit is not for use with solid
fuel
Do not place anything inside the
firebox (except the crushed
glass).
If any component becomes
damaged, replace with Travis
Industries components.
Do not throw this manual away.
This manual has important
operating and maintenance
instructions that you will need at
a later time. Always follow the
instructions in this manual.
Children and adults should be
alerted to the hazards of high
surface temperature and should
stay away to avoid burns or
clothing ignition. Young children
should be supervised when they
are in the same room as the
heater.
Travis Industries, Inc. grants
no warranty, implied or stated,
for the installation or
maintenance of your heater,
and assumes no responsibility
of any consequential
damage(s).

6 Operation
© Travis Industries 4/22/21 - 1514 PB 24 CF GSB2 Operation
Before You Begin
 Read this entire manual before you use your new fireplace (especially the section "Safety
Precautions" on pages 4 & 5). Failure to follow the instructions may result in property damage, bodily
injury, or even death.
Location of Controls
There is a door on the lower portion of the screen assembly to provide access to the manual controls on
the fireplace. The door is held closed by two magnets. Open the door by gently pulling outward on the
upper portion of the lower trim.
On/Off Switch This control is used to turn the heater on and off.
Gas Control Knob This knob is used to control gas to the heater and for starting the pilot. There
are three positions, ON, OFF, & PILOT. The pointer to the left of the knob
indicates the position this knob is in.
Flame Adjust Knob This knob controls the flame height from low ("LO") to high ("HI"). The
pointer above the knob points to the position this knob is in.
Continuous Pilot --
GreenSmart Pilot
This switch controls how the pilot flame works. See
the section “Continuous
Pilot / GreenSmart Pilot” for det
ails.
Optional Remote Receiver The receiver is used in conjunction with the optional remote thermostat. It is
used to control the remote and replaces the on/off switch for direct operation.
Optional Blower Dial This knob controls the speed of the internal convection blower that pushes
the heated air into the room.
Optional Light Dial This dial controls the brightness of the optional accent lights (if applicable).

Operation 7
© Travis Industries 4/22/21 - 1514 PB 24 CF GSB2 Operation
Starting the Fireplace for the First Time
 Burn the heater at a high setting with the blower off for an extended period (up to 48 hours). This will
cure the painted surfaces. Fumes from the paint curing and oil burning off the steel will occur. This
is normal. We recommend opening a window to vent the room.
 Condensation may appear on the glass each time you start the fireplace - this is normal.
 Blue Flames will occur on the fireplace when it first comes on. After fifteen minutes the flames will
turn a more realistic yellow and orange color.
 Certain installations use a remote, thermostat, or wall switch to turn the fireplace on and off. If this is
the case, leave the ON/OFF switch "ON".
 Verify the power backup and control light batteries are installed.
Turning the Fireplace On and Off
 Do not place any combustible items on top of or directly in front of the heater, even temporarily. The
optional thermostat may start the heater causing a combustible item to ignite.
 If the heater turns on and off frequently while using the thermostat, you may want to adjust the flame
height down until it produces just enough heat needed.

8 Operation
© Travis Industries 4/22/21 - 1514 PB 24 CF GSB2 Operation
Adjusting the Flame Height
This fireplace has an adjustable flame to tailor the look and
heat output to your specific needs. It is adjusted by turning the
flame adjust knob.
Adjusting the Blower Speed (Optional)
The optional blower helps transfer heat from the heater
into the room. It will not turn on until the heater is up to
temperature (approximately 10 minutes after starting).
See the illustration to the right for instructions on adjusting
the blower speed.
Continuous Pilot / GreenSmart™ Pilot Switch
This fireplace may run with the pilot continuously running or in GreenSmart (intermittent) mode. For most
homeowners, the GreenSmart mode is preferred (this saves fuel, doesn’t give off un-needed heat).
However, in some situations the homeowner may prefer to switch the fireplace to continuous pilot. The
most typical reasons for switching to continuous pilot are:
 Very Cold Conditions – in very cold conditions you may
notice that the burner does not light quickly, and the flames
lift off the burner. If this is situation, we recommend you
switch to continuous pilot. This will create a slight draft in the
vent, allowing for the burner to light quickly and draft
correctly.
 Excessive Condensation on Glass after Startup – certain
installations may encounter excessive fogging on the window
after startup (not just the first time the fireplace was started).
This is an aesthetic condition that may be remedied by
switching the fireplace to continuous pilot.
 Cold Glass or Fireplace Front – in very cold conditions you
may notice that the fireplace front and glass become very
cold. To remedy this, switch the fireplace to continuous pilot.
 Frequent On / Off Operation – if you are frequently turning the
fireplace on and off, you may wish to leave it in continuous pilot.
This allows the burner to turn on more quickly, without pilot ignition
delay.

Operation 9
© Travis Industries 4/22/21 - 1514 PB 24 CF GSB2 Operation
Starting the Heater for the First Time
 Burn the heater at a low setting with the blower off for an extended period (up to 48 hours). This will
cure the painted surfaces. Fumes from the paint curing and oil burning off the steel will occur. This is
normal. We recommend opening a window to vent the room.
 Condensation may appear on the glass each time you start the heater - this is normal.
 Blue Flames will occur on the heater when it first comes on. After fifteen minutes the flames will turn
a more realistic yellow and orange color.
 Verify the batteries are installed.
Adjusting the Blower Speed (Optional)
The optional blower helps transfer heat from the heater into the room. It will not turn on until the heater is
up to temperature (approximately 10 minutes after starting). See page 8 for details on adjusting the
blower speed.
Normal Operating Odors
This appliance has several areas that reach high temperatures. Dust or other particles on these areas
may burn and create an odor. This is normal during start-up. You may notice the smell is more acute if
the appliance was left idle for a long period.
Power Outages
Four AA batteries are used as a power backup for the fireplace in case the household (AC) power goes
out. These batteries must be inserted into battery holder (or remove receiver is using the optional GS
thermostatic remote). The fireplace controller will beep once these batteries start to go dead. Replace
batteries before each heating season to insure proper operation.

10 Maintenance
© Travis Industries 4/22/21 - 1514 PB 24 CF GSB2 Operation
Glass Frame Removal and Installation
A barrier designed to reduce the risk of burns from the hot viewing glass is provided with this
appliance and shall be installed for the protection of children and other at-risk individuals.
If the barrier becomes damaged, the barrier shall be replaced with the manufacturer’s barrier for
this appliance.
The appliance must be completely cool before removing the glass.
Do not strike or slam the glass.
Warning: Do not operate appliance with the glass front removed, cracked or broken.
Replacement of the glass should be done by a licensed or qualified service person.
 Remove the screen-trim assembly by lifting the assembly up slightly and tilting it toward you. The
mounting hooks on the back of the assembly will disengage the fireplace. Set the assembly
aside for reinstallation.
NOTE: Opening the access door on the front of the assembly allows for an easy location to get a secure
grip on the assembly for removal
Replacement Barrier Part #
24 CF ProBuilder 250-05282
Top Corner Bottom Corner
Bottom hook
engages this slot in
bracket
Top hook engages
this slot in bracket

Maintenance 11
© Travis Industries 4/22/21 - 1514 PB 24 CF GSB2 Operation
Remove the glass frame following the directions below.
Replacement Glass Frame Part #
ProBuilder 24 CF 250-05285

12 Maintenance
© Travis Industries 4/22/21 - 1514 PB 24 CF GSB2 Operation
The latch can come loose from glass frame anchor. This occurs when it is turned 1/4 turn when it
is disengaged. Follow the directions below to re-install the latch if it becomes loose.

Maintenance 13
© Travis Industries 4/22/21 - 1514 PB 24 CF GSB2 Operation
Log Set Installation
Installation Warnings
NOTE: Consult the installation manual for order of installation. If using propane (LP), convert the
appliance before installing the log set. If using firebacks, install them prior to installing the log
set.
 The logs are fragile, especially after being exposed to heat.
 Make sure the gas control valve is OFF and the heater is cool prior to installing logs.
 Failure to position the parts in accordance with these diagrams or failure to use only parts
specifically approved with this appliance may result in property damage or personal injury.
 The burner must be correctly positioned before installing the log set. Make sure the burner is fully
seated and the pilot is properly aligned. See owner’s manual for details on burner removal.
Log Set Overview – MV/GSB2 Models

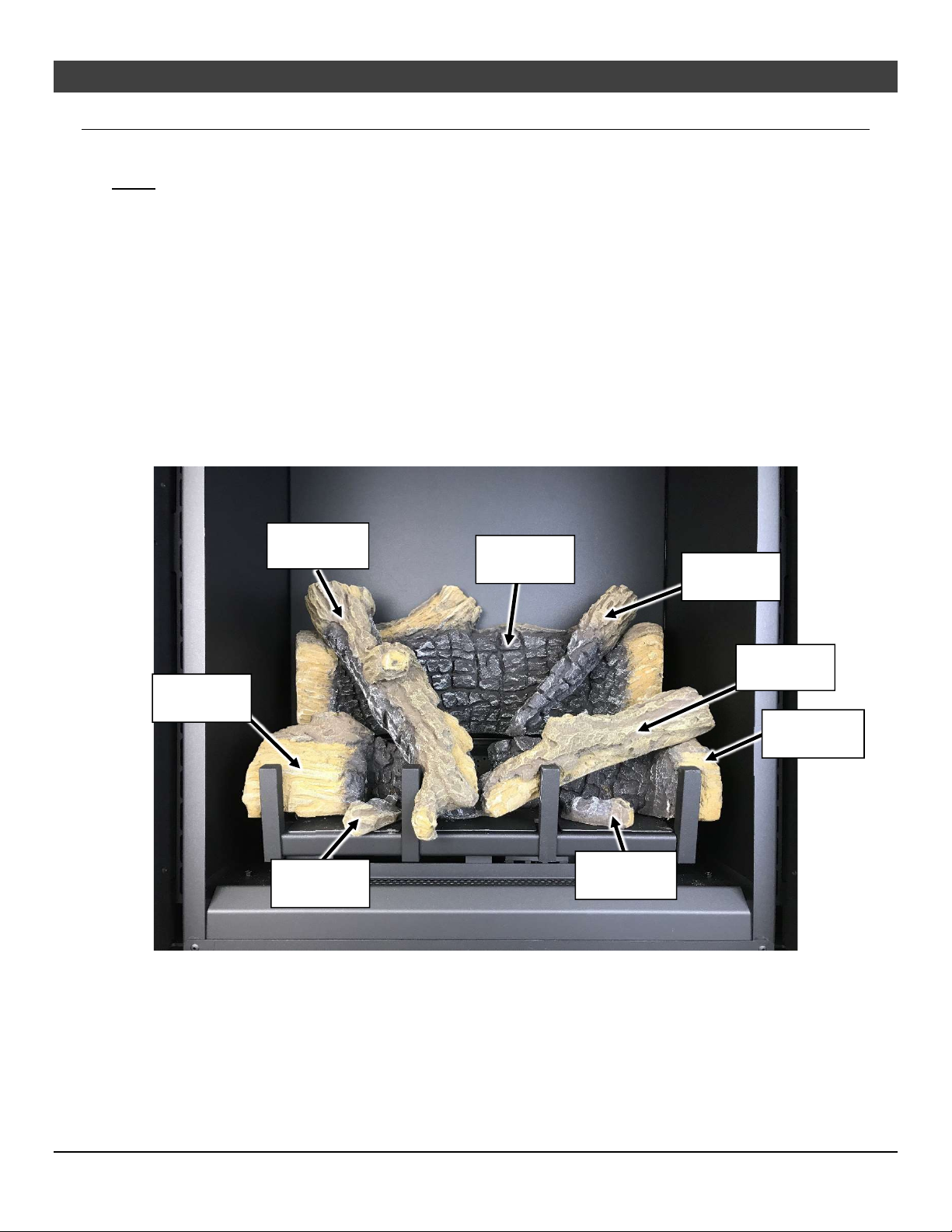

When installed, the (8) logs should appear as shown below. See the following pages for installation.
Log #1
250
-
05261
Log #6
250
-
05262
Log #3
250-05263
Log #7
250
-
05264
Log #5
250
-
05265
Log #4
250
-
05266
Log #2
250
-
05267
Log #8
250-05268

14 Maintenance
© Travis Industries 4/22/21 - 1514 PB 24 CF GSB2 Operation
Log #1
Install log #1 as shown below. There are two holes on the bottom of the log that fit over the pins on the
corners of the top burner.
Log #2
Install log #2 as shown below. The log rests on the bottom burner. There is a notch in the front right of
the log that aligns the log with the right finger of the log grate. Pull the right end of the log forward until it
is in contact with the grate. Push the left side of the log backwards until it contacts the sloped portion of
the burner.
Push left side of
log backward Pull right side
of log forward

Maintenance 15
© Travis Industries 4/22/21 - 1514 PB 24 CF GSB2 Operation
Log #3
Install log #3 as shown below. The log rests on the bottom burner. There is a notch in the front left of the
log that aligns the log with the left finger of the log grate. Pull the left end of the log forward until it is in
contact with the grate. Push the right side of the log backwards until it contacts the sloped portion of the
burner (see below).
Log #4

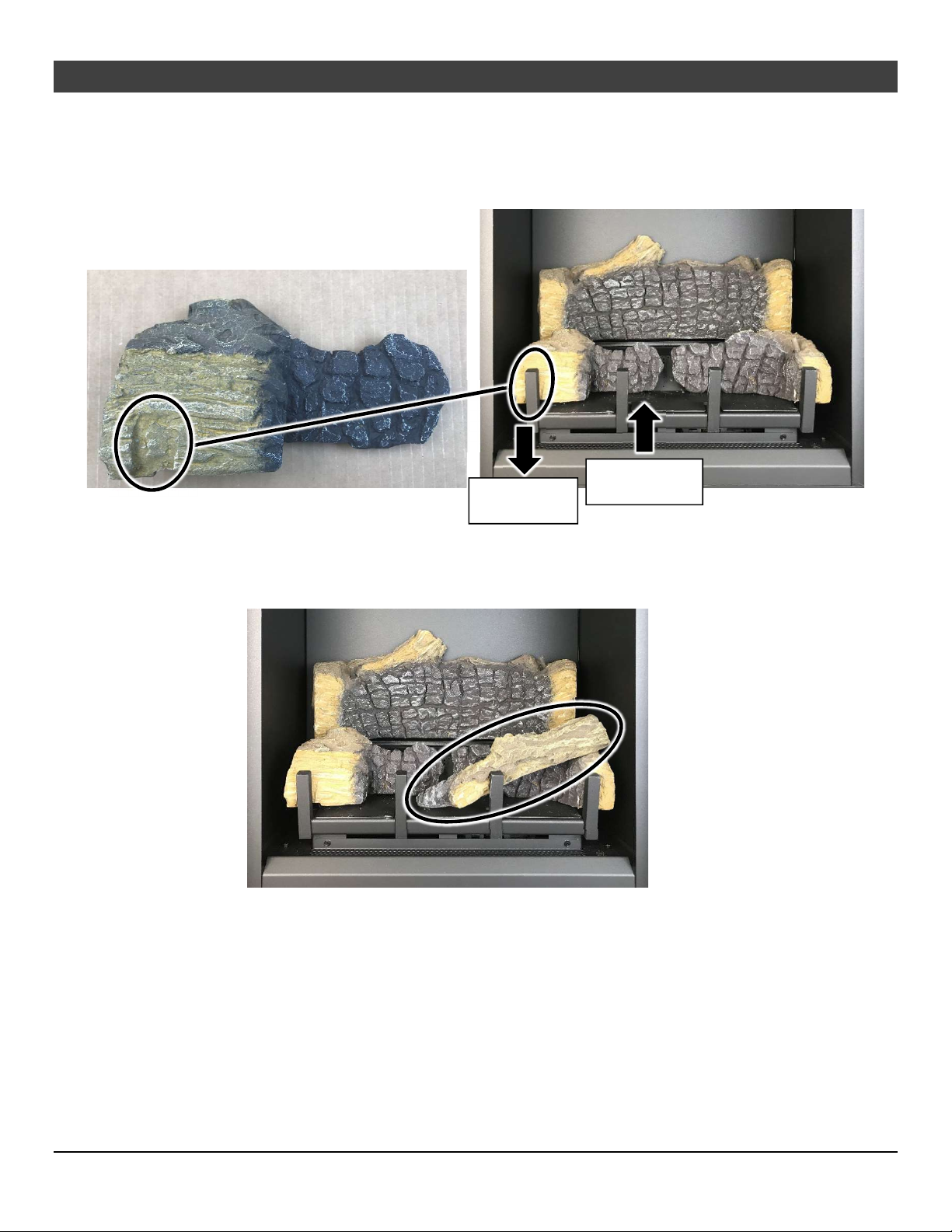

Install log #4 as shown below. The hole on the bottom of the log rests on the pin on log #2. The left end
of the log rests on the bottom burner surface and should be pulled forward until the log contacts the log
grate.
Push right side
of log backward
Pull left side of
log forward

16 Maintenance
© Travis Industries 4/22/21 - 1514 PB 24 CF GSB2 Operation
Log #5
Install log #5 as shown below. The hole on the bottom of the log rests on the right pin on log #1. The left
end of the log rests on log #2.
Log #6
Install log #6 as shown below. The hole on the bottom of the log rests on the left pin on log #1. The right
end of the log rests on the tip of log #4. The right end of the log should be moved left until it contacts the
side of the log grate finger.

Maintenance 17
© Travis Industries 4/22/21 - 1514 PB 24 CF GSB2 Operation
Log #7
Install log #7 as shown below. The burnt end of the log points toward the center of the burner. Make
sure the log does not cover any burner holes or creates any flame impingement.
Log #8
Install log #8 as shown below. The burnt end of the log points toward the center of the burner. Make
sure the log does not cover any burner holes or creates any flame impingement.

18 Maintenance
© Travis Industries 4/22/21 - 1514 PB 24 CF GSB2 Operation
Ember Installation
A bag of embers is provided to further enhance the firebox. Place the embers on the firebox floor and on
the burner. Do not place embers over any of the burner holes or air channels.
Rock Wool Placement
The included rock wool is placed on top of the burner to enhance the glow from the burner. The rock
wool works best when it is applied in a very thin layer. The best method for applying the rock wool is
to brush it on to the burner. Compress a clump of rockwool between your thumb and forefinger. Use a stiff
brush to apply a thin layer of rockwool fibers onto the burner. Do not use the entire bag of rockwool. Use
only a small amount and save the remainder. Over-use of rockwool will diminish the glow and may cause
sooting or other adverse conditions.

Maintenance 19
© Travis Industries 4/22/21 - 1514 PB 24 CF GSB2 Operation
Maintaining Your Heater's Appearance
The appliance must be completely cool prior to conducting service.
Cleaning The Glass
The glass may be cleaned with a non-
abrasive cleaner. To clean the inside of
the glass, simply remove the glass frame,
place it on a non-scratching surface, and
clean the surface.
Cleaning the Fireplace
Use a duster to remove dust from the visible portions of the fireplace. Contact your dealer if you wish to
re-paint any surfaces. Heat-resistant stove-paint (with instructions) is available from your dealer.
Replacement Parts List
Caution: Use only Travis Industries replacement parts. Do not use substitute materials.
Warning: Do not operate appliance with the glass front removed, cracked, or broken. Replacement of
the glass should be done by a licensed or qualified service person.
24PB Part Numbers
GLASS w/FRAME 250-05285
SCREEN BARRIER, FRONT 250-05282
PILOT ASS'Y, 2-WAY PSE 250-04480
VALVE, NG w/MANUAL H/L 250-04398
VALVE REGULATOR, LP MAN HI-LO 250-01427
Contact your local Travis Industries Dealer to purchase replacement parts

20 Maintenance
© Travis Industries 4/22/21 - 1514 PB 24 CF GSB2 Operation
Yearly Service Procedure
WARNING: Failure to inspect and maintain the stove may lead to improper combustion and a potentially
dangerous situation. We recommend the following procedures be done by a qualified
technician.
 Shut off gas to the fireplace and let it cool for 15 minutes. Remove the glass. Inspect and operate the
pressure relief mechanism to verify relief mechanisms are free from obstruction to operate.
 Clean glass window with a suitable fireplace glass cleaner. Abrasive cleaners must not be used. Be
careful not to scratch the glass when cleaning.
 Vacuum and clean any debris in the firebox.
 Check all accessible gas-carrying tubes, connections, pipes and other components for leaks.
 Inspect the burner and firebox. Make sure the burner is not warped, cracked, or damaged. Check the
firebox and area around the pilot to make sure there is no damage. Inspect primary air openings for
blockage. If any problem is found, discontinue use and contact your dealer for service.
 Inspect the area behind the access door; clean if necessary. Check the gas control valve and the gas
lines. If damage is found, discontinue use and contact your dealer for service. Clean the air channels,
ducts, and blower (if applicable)
 Inspect vent and vent termination for sooting, obstructions, or damage. Make repairs as needed.
Remove any debris or vegetation near the vent termination. Contact your dealer if any sooting or
deterioration is found near the vent termination.
 Reinstall the glass assembly. If the glass is damaged, replace. Make sure the gasket along the
perimeter of the glass contacts the face of the firebox and forms an air-tight seal. If it does not, re-align or
replace the gasket to insure an air-tight seal.

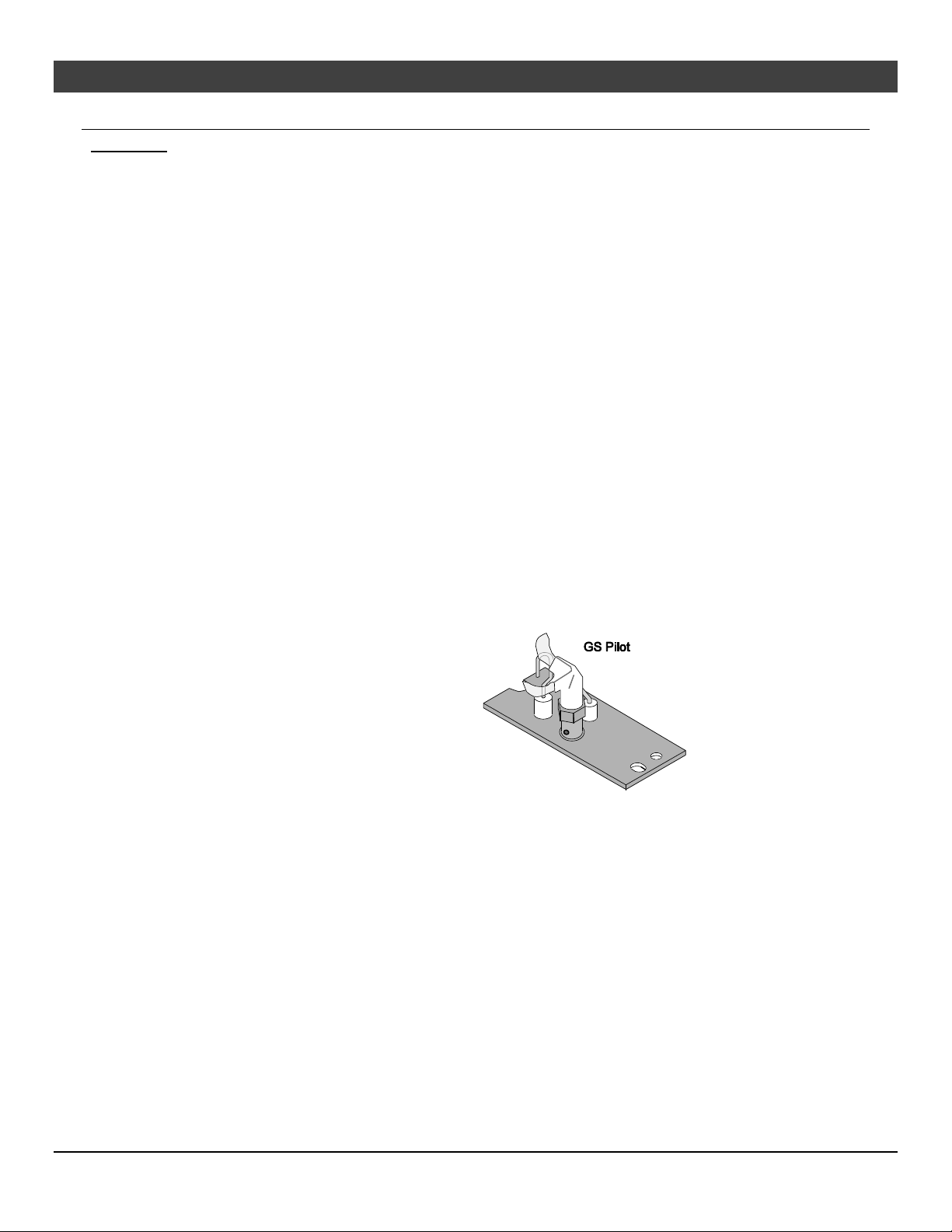

 Turn the pilot flame on (continuous pilot). It should touch approximately 3/8" of the top of the flame
sensor (see below). If it does not, contact your dealer.
 Start the main burner. Inspect and ensure the lighting of the main burner occurs within 4 seconds of the
main gas valve opening.
 Test the flame failure response time of the flame safety system. It must de-energize the safety shutoff in
no more than 30 seconds.
 After 15 minutes the flames should be orange/yellow and not touch the top of the firebox. If the pilot or
main burners do not burn correctly, contact your dealer for service. Monitor blower operation
