36-Elite Owner's Manual
• Operation • Maintenance • S afety Information •
SAFETY NOTICE:
Ifthisapplianceisnotproperlyinstalled,ahousefiremayresult.For
yoursafety,followtheinstallationdirections.Contactlocalbuilding
orfireofficialsaboutrestrictionsandinstallationinspection
requirementsinyourarea.
4800 Harbour Pointe Blvd SW
Mukilteo, WA 98275
 Cop right 2010, T.I.
$10.00 93508091
4050923
Listed
Tested to: U.L. 127 and
portions of U.L. 1482 & 907

Introduction 1
Travis Industries 405923 93508091
Introduction
We welcome you as a new owner of a Fireplace Xtrordinair wood fireplace. In purchasing a Fireplace
Xtrordinair you have joined the growing ranks of concerned individuals whose selection of an energy
system reflects both a concern for the environment and aesthetics. The Fireplace Xtrordinair is one of
the finest home heaters the world over. This manual will explain the installation, operation, and
maintenance of this fireplace. Please familiarize yourself with the Owner's Manual before operating
your heater and save the manual for future reference. Included are helpful hints and suggestions
which will make the operation and maintenance of your new fireplace an easier and more enjoyable
experience. We offer our continual support and guidance to help you achieve the maximum benefit
and enjoyment from your heater.
Important Information
No other Fireplace Xtrordinair wood fireplace has the
same serial number as yours. The serial number is
behind the left side door just inside the firebox.
This serial number will be needed in case you require
service of any type.
Model:
Serial Number:
Purchase Date:
Purchased From:
Mail your Warranty Card
Today, and Save Your Bill of
Sale.
To receive full warranty coverage,
you will need to show evidence of
the date you purchased your
heater. Do not mail your Bill of
Sale to us.
We suggest that you attach your
Bill of Sale to this page so that you
will have all the information you
need in one place should the need
for service or information occur.

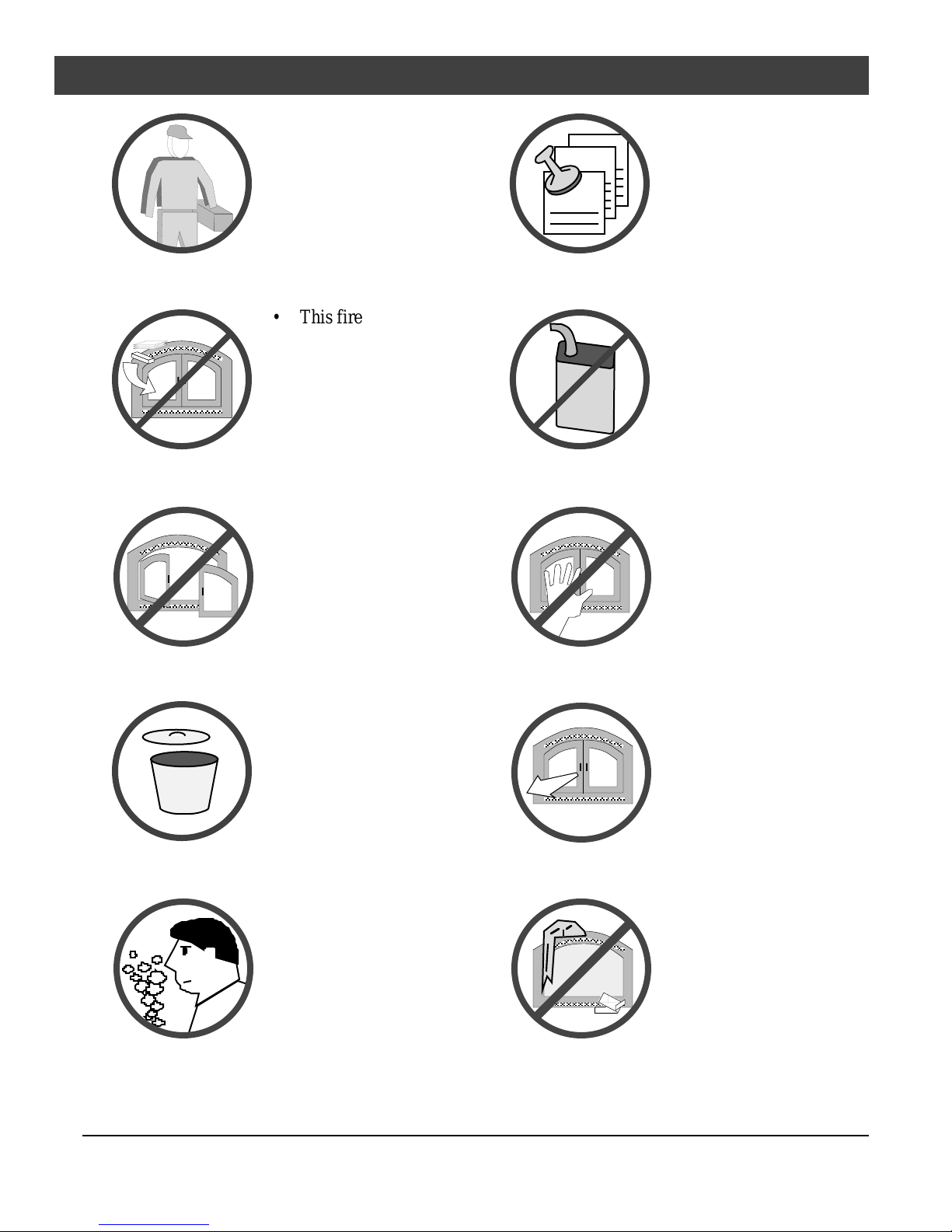

2Safety Precautions
Travis Industries 93508091 220602
• This fireplace must be
installed by a qualified
installer. Installation
instructions are shipped
inside the fireplace and
must be strictly adhered
to.
Ok
• Contact your local
building officials to obtain
a permit and information
on installation restrictions
or inspection requirements
in your area. Notify your
insurance company of this
fireplace.
AAAA
AAA
AAA
• This fireplace is designed
and listed for cord wood
only. Burning of any
other material will void the
warranty and listing and
may create a fire hazard.
Gas
• Do not store gasoline or
other flammables near the
fireplace. Do not use
gasoline or other
flammable liquids to start
or invigorate a fire.
• The door(s) must be
closed and latched during
operation. Open the
door(s) only when re-
loading the fireplace or
conducting maintenance.
This prevents smoke,
embers from entering the
room.
• Do not touch the hot
surfaces of the fireplace.
Educate all children of the
danger of a high-
temperature fireplace.
Young children should be
supervised when they are
in the same room as the
fireplace.
ASHES
• Ashes must be disposed of
in a metal container with a
tight fitting lid. Place the
container on a non-
combustible surface until
the ashes have fully cooled
before final disposal.
36"
• Keep all furniture or other
combustible items at least
36" away from the front of
the fireplace (this includes
drapes or doors that may
swing within 36" of the
front of fireplace).
• If you smell smoke, see
the section "Smoke Smell
in Home" on page 13 of
this manual for a remedy.
• Do not place clothing or
other flammable items on
or near the fireplace.
• Never block free airflow
through the vents.

Safety Precautions 3
Travis Industries 93508091 220602
• Do not repair, alter, or
replace any part of the
fireplace and chimney
unless instructions are
give in this manual. All
other work must be done
by a qualified service
person.
• Allow the fireplace to cool
before carrying out any
maintenance or cleaning.
• The chimney must be
inspected twice a year for
creosote build-up or
chimney damage.
Creosote build-up must be
removed and damage fixed
prior to using the
fireplace.
This
Manual
• Do not throw this manual
away. This manual has
important operating and
maintenance instructions
that you will need at a later
time. Always follow the
instructions in this
manual.
• This fireplace was
designed to burn solid
wood fuel only (cord
wood). Never use treated
wood, wax logs, coal,
garbage, or other
materials. These materials
will void the safety listing
and may damage the
combustor.
•Travis Industries, Inc. grants no warranty, implied or stated, for
the installation or maintenance of your fireplace, and assumes no
responsibility of any consequential damage(s).

4Table of Contents
Travis Industries 93508091 220602
Introduction
Introduction................................................1
Important Information...................................1
Safety Precautions
Safety Precautions ......................................2
Specifications
Features ....................................................5
Heating Specifications..................................5
Electrical Specifications................................5
Packing List................................................5
EPA Compliance..........................................5
Operation
Safety Notice..............................................6
Before Your First Fire....................................6
Verify the Installation...............................6
Curing the Paint ......................................6
Over-Firing the Fireplace...........................6
Acid Wash .............................................6

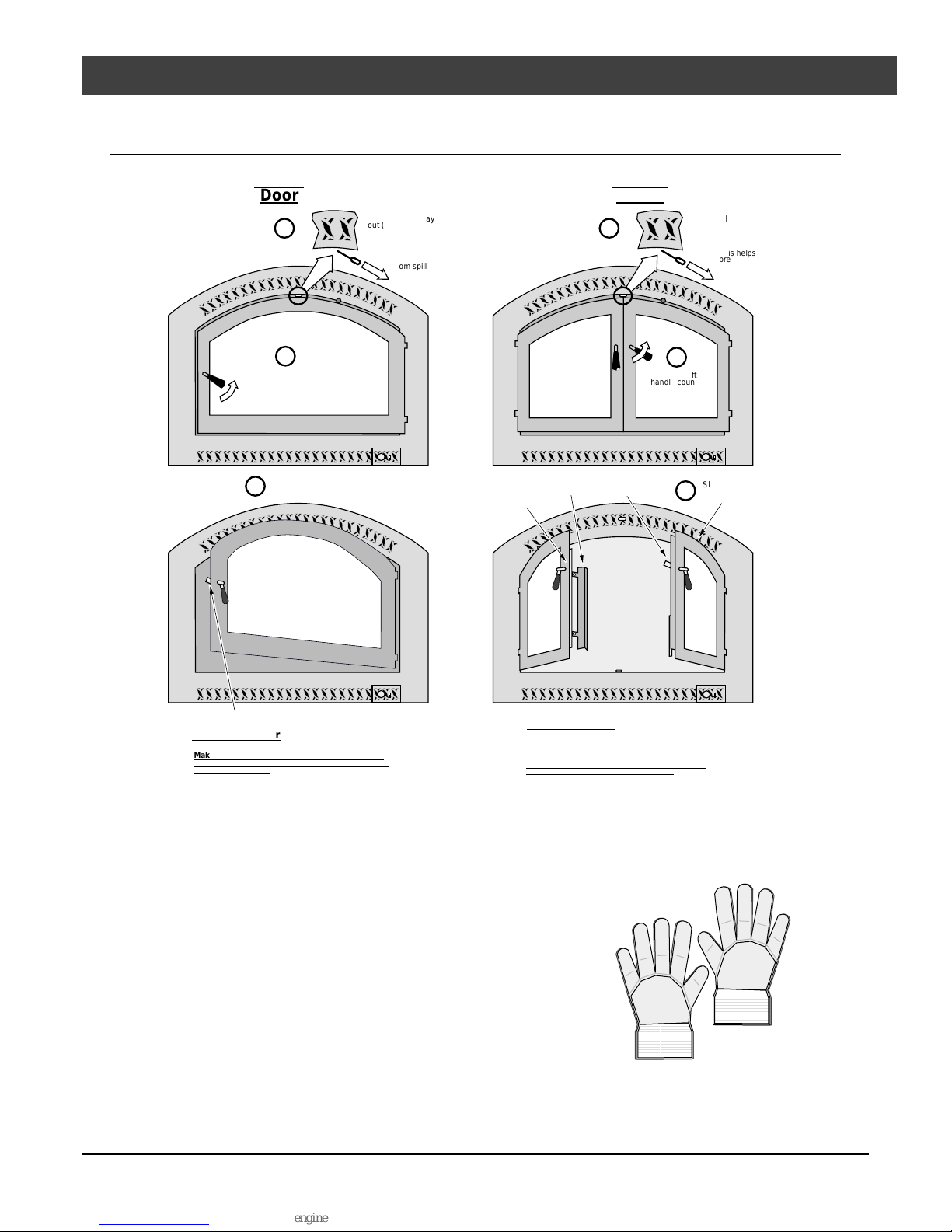

Opening the Doors .......................................7
Opening the Doors while Fireplace is Hot......7
Location of Controls .....................................8
Starting a Fire..............................................8
Maintaining Catalytic Burn-Off........................9

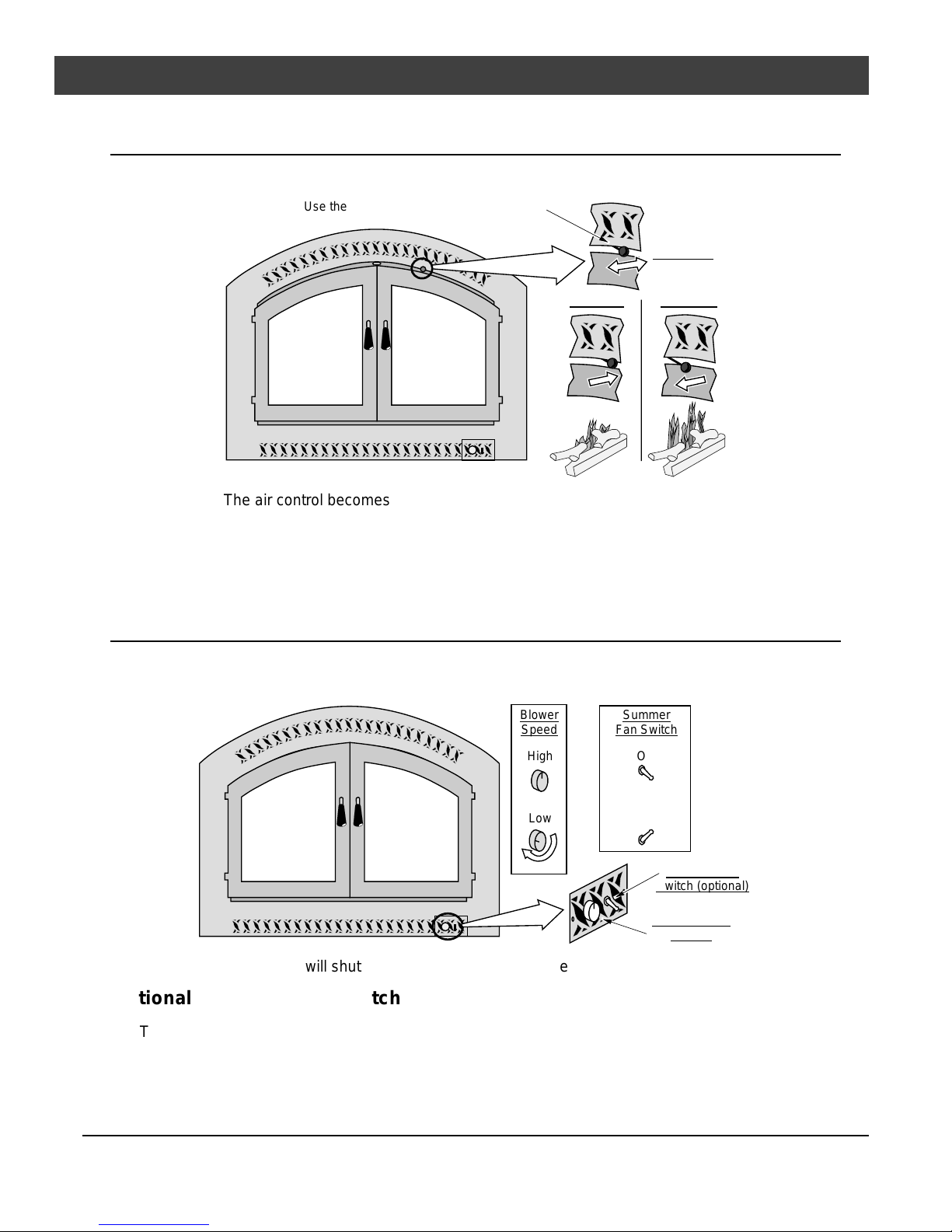

Adjusting the Burn Rate.................................10
Blower Operation .........................................10
Optional Summer Fan Switch .....................10
Re-Loading the Fireplace...............................11
Overnight Burn............................................11
Normal Operating Sounds..............................11
Hints for Burning..........................................11
Selecting Wood ...........................................12
Dry Wood is Key......................................12
Testing Wood Moisture.............................12
Why Dry Wood is Key...............................12
Wood Cutting and Storage.........................12
Don't Burn Treated Wood, Wax Logs, Etc.....12
Troubleshooting...........................................13
Maintenance
Daily Maintenance (while fireplace is in use) ......14
Check Ash, Remove if Necessary...............14
Clean any Gold Surfaces if Necessary.........14
Twice Yearly Maintenance.............................15

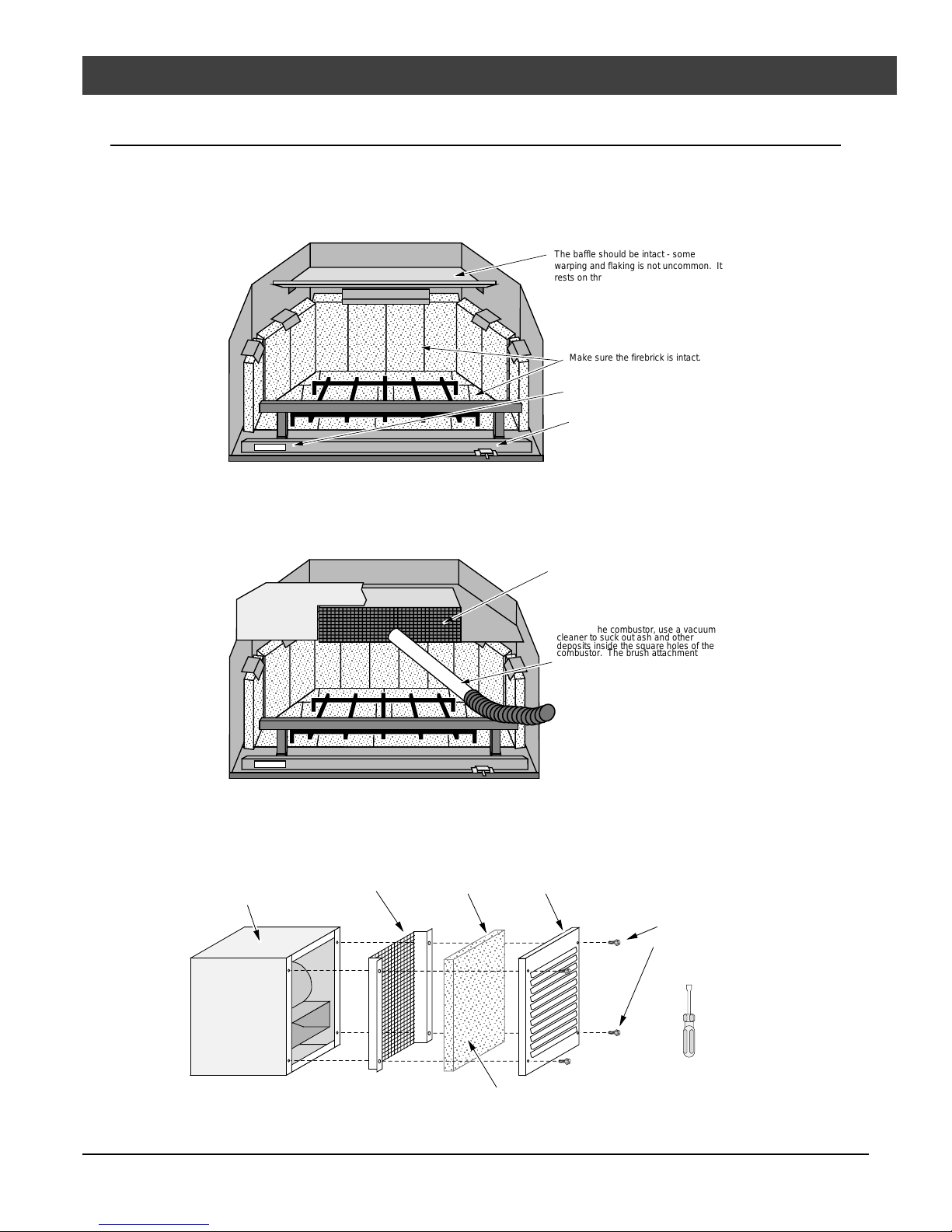

Check Firebrick, Baffle.............................15
Clean Combustor.....................................15
Clean the Blower Filter..............................15

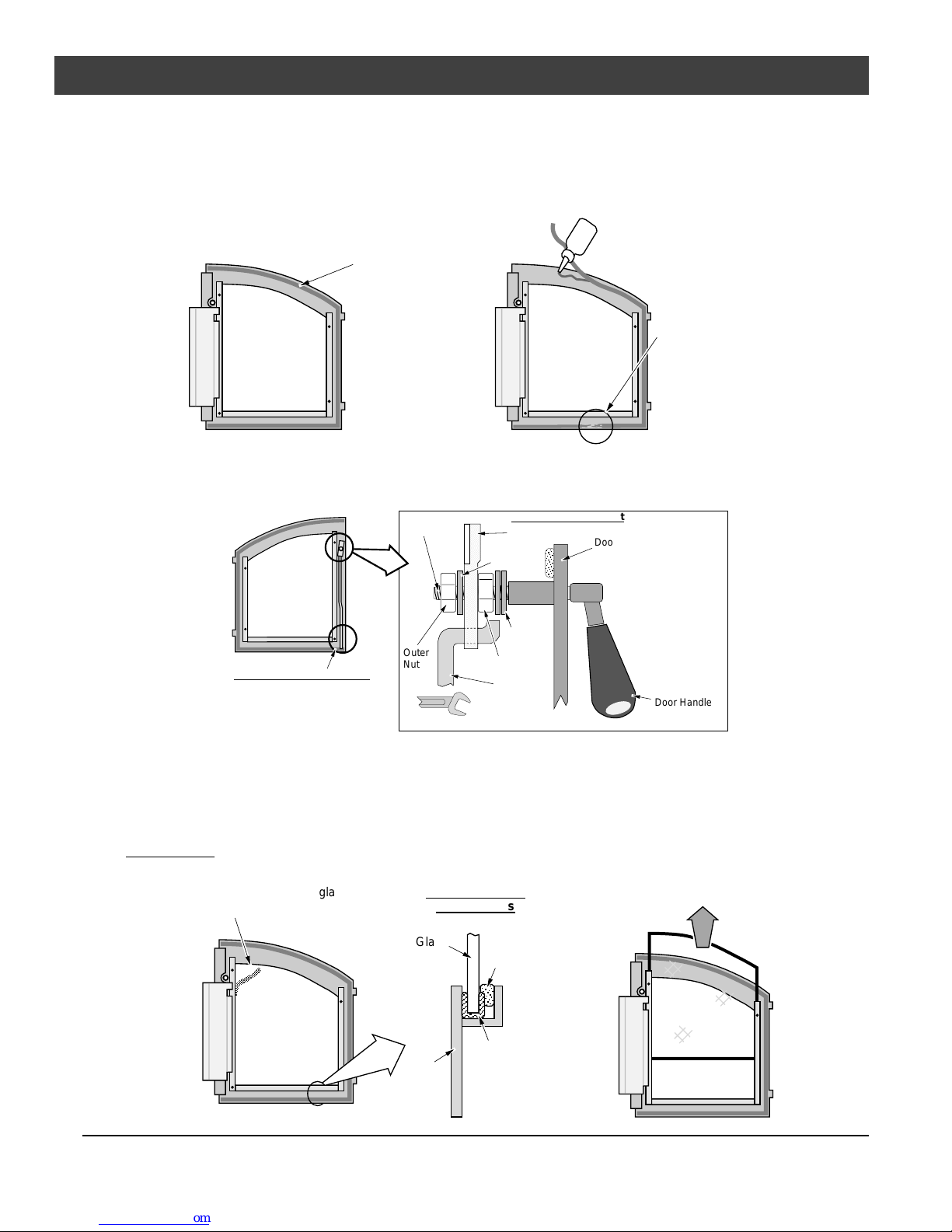

Check Door Seal, Adjust if Necessary .........16
Check Chimney for Creosote Build-Up .........16
Replacement Parts List.................................17
Safety Label
Safety Label ...............................................18
Warranty
Warranty....................................................19
Optional Equipment
Temperature Meter.......................................20
Index
Index.........................................................22

Specifications 5
Travis Industries 93508091 220602
Features:
•Maximum Log Length of 24"
•Large firebox capacity - 3.7 cu. ft.
•Long burn time - from 8 to 10 Hours
•Large glass doors for maximum visibility
•Firebrick lining for firebox protection
•388 CFM blower for convection heat and outside combustion air
•Thermostat for automatic control of the blower
Heating Specifications
Approximate Heating Capacity
(Will vary with the home's floor plan, insulation, and outside
temperature.)
up to 2,500 Square Feet
Maximum Burning Time Up to 10 Hours
BTU Output per Hour (Cord Wood Method) 10,300 to 66,000
Electrical Specifications:
The blower on "HIGH" draws 1.1 Amps on 120 Volts A.C. (approximately 130 watts).
Packing List
Shipped with the Fireplace:
•Installation Manual
•Grate
•Baffle
•Blower Assembly
•Ember Strip
•Log Retainer (includes allen wrench & instructions)
•Flex Duct w/ start collar – 3' Length, 6" Dia (For Blower)
•Two 12' Flex Ducts, 6" Diameter (For Cooling Vents)
•Two Vent Hoods (For Cooling Vents)
•Two Vent Hood Storm Collars (For Cooling Vents)
Shipped with the Faceplate:
•Faceplate (two switch plate screws are attached)
•Switch Plate (includes blower rheostat)
•10 Faceplate Screws
Shipped with the Door(s):
•Owner's Manual
•Installation Hardware Pack
•Pair of Gloves
•Efficiency and Registration Cards
•Touch-up Paint
EPA Compliance:
This heater meets EPA Phase II requirements (2.3 grams per hour)

6Operation
Travis Industries 407202 93508091
Safety Notice:
• If thisappliance isnot properlyinstalled, a house fire may result.For
your safety, follow the installation directions. Contact local building
or fire officials about restrictions and installation inspection
requirementsin your area.
• Read and follow allof the warnings on pages 2 and 3 of this manual.
Before Your First Fire
Clean Any Gold Surfaces
If you have an optional gold face,
clean the surface prior to starting
the fireplace. Any marks left on the
gold may become etched-in by the
heat of the fireplace. Use
denatured alcohol and a soft cloth
to clean.
Denatured
Alcohol
Soft Cloth
Verify the Installation
Before starting the fireplace, verify that the fireplace is properly installed and all of the requirements in
the 36 Elite-ZC Installation Manual have been followed.
Keep all flammables 36" away from the front of the fireplace (drapes, furniture, clothing, etc.).
Do not use a fireplace insert or other products not specified for use in this fireplace.
Curing the Paint
This heater uses a heat-activated paint that will emit some fumes
while starting the first fire. Open doors and windows to the
room to vent these fumes. This typically lasts two to four hours.
You may also notice oil burning off of the interior of the heater.
This rust-stopping agent will soon dissipate.
Door Gasket – The door gasket might adhere to the paint on
the front of the fireplace. Leave the door slightly ajar for the first
fire and be careful when opening the door after the first fire.
AA
AA
AA
A
A
A
A
2 to 4 hours
Over-Firing the Fireplace (Over-Firing may void your warranty)
This fireplace was designed to operate at a high temperature. But due to differences in vent
configuration, fuel, and draft, this appliance can be operated at an excessive temperature. If the area
behind the faceplate or other area starts to glow red, you are over-firing the fireplace (this may damage
the optional gold surface, internal components, and void the warranty). Do not burn excessively large
fires for a long time. Shut the air control down and allow the fireplace to cool if you detect over-firing.
Operating the Fireplace During a Power Outage
This fireplace includes a blower to dissipate heat from the firebox. During power outages build small to
medium-sized fires to prevent the fireplace from over-firing (especially if you have a gold face).
Acid Wash
Some installations utilize a masonry facing or hearth. This masonry is often cleaned with muriatic acid.
This acid may damage gold finish once the fireplace reaches temperature. Verify with your mason that
all masonry is fully neutralized using ammonia water or other alkaline.

Operation 7
Travis Industries 93508091 220602
Opening the Door(s)
c
A
A
Slowly open both
doors simutaneously.
Closing the Door
Close both doors simutaneously.
Make sure the door latch fits between the heat
shield and door frame of the left door.
Door
Latch
Heat
Shield
Door
Frame
A
A
A
AAA
AAA
AAA
This helps
prevent smoke
from spilling into
the room.
AA
AA
AA
AA
a
b
AA
AA
Twist the left
handle counter-
clockwise.
A
Pull the By-Pass
Control all the way
out (use gloves or
other tool if hot).
AA
AA
AA
AA
This helps
prevent smoke
from spilling into
the room.
AA
AA
A
A
a
A
Pull the By-Pass
Control all the way
out (use gloves or
other tool if hot).
b
AA
AA
Twist the handle counter-
clockwise.
S
ingle
Door Double Doors
AA
A
A
c
Swing the door open.
Door Latch
Closing the Door
Make sure the handle is rotated up to prevent the
door latch from striking the face. This will prevent
damage to the face.
Warning: When closing the doors, make sure the door latch does not strike the front of the left side
door. This will damage the finish on the doors.
Opening the Doors while the Fireplace is Hot
Warning: Open the by-pass prior to opening the doors. This
will help prevent smoke from entering the room.
Also, open the doors slowly, to allow airflow inside
the firebox to stabilize.
Warning: The door handles becomes hot during operation -
use gloves if necessary.
AAAA
AAAA
AAAA
AAAA
AAAA
AAAA

8Operation
Travis Industries 93508091 220602
Location of Controls
AA
AA
Blower Speed
Control
AA
AA
A
A
AA
AA
Summer Fan
Switch (optional)
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAA
AAAAAA
AAAAAA
Air
Control
By-Pass
Control
A
A
AAAAA
AAAAA
AA
AA
AA
AA
AAAAAA
AAAAA
A
AAA
A
A
AAA
A
A
AAA
A
A
AAA
A
AAAAA
AA
AA
AA
When hot, use
gloves to adjust
the controls.
Starting a Fire
Since the dawn of time man has debated the best way to start a fire. Some use the boy-scout "tee-
pee", some prefer the "tic-tac-toe" stack. Either way, review the hints and warnings below to ensure
proper fire starting.
• Make sure the by-pass is open while starting a fire (leave it open for the first 15 minutes).
AA
AA
Make sure the By-Pass
is all the way out.
AA
AA
• Make sure the air control is open (all the way to the left). If additional air is needed, open the doors
1/4" during the first five minutes of start-up.
• If the smoke does not pass up the chimney, ball up one sheet of newspaper, place it in the center of
the grate and light it. This should start the chimney drafting (this eliminates "cold air blockage").
•Neveruse gasoline, gasoline-type lantern fuel, kerosene, charcoal lighter fluid, or similar liquids to
start or "freshen up" a fire in this fireplace. Keep all such liquids well away from the fireplace while it is
in use.
• If using a firestarter, use only products specifically designed for
fireplaces - follow the manufacturer's instructions carefully.
• Use plenty of kindling to ensure the fireplace reaches a proper
temperature. Once the kindling is burning rapidly, place a few
larger pieces of wood onto the fire.

Operation 9
Travis Industries 93508091 220602
Maintaining Catalytic Burn-Off
This fireplace uses a catalytic combustor to increase heat transfer to the room and reduce emissions.
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
The catalytic combustor
takes dirty smoke and turns it
into extra heat and cleaner
emissions.
NOTE: If the combustor is engaged
(bypass closed) when the fireplace
is still cool, it will not work, leading
to dirty smoke, no extra heat, and a
dirtier combustor.
Warning: The bypass control becomes hot during operation - use gloves or a tool to prevent burns.
Follow the directions below to utilize the combustor to its fullest potential.
• Keep the by-pass open (pulled out) until the fireplace becomes hot (approximately 15 to 30 minutes).
• Close the by-pass (push in) when the fireplace is hot.
• Keep the by-pass closed (pushed in) while the fireplace is operating, except when re-loading.
Hint: The combustor can be viewed through the glass from below. You will notice the
combustor glowing red when the combustor is working effectively.
AAA
AAA
AAA
AAA
oke
Sm
With the by-pass closed (pushed in), the
smoke passes through the combustor.
With the by-pass open (pulled out), the smoke passes through
the by-pass and does not go through the combustor.
AA
AA
AA
AA
Smoke
AAA
AAA
AA
A
Combustor
By-Pass
Plate
By-Pass Control
Chimney
AA
AA
AA
AA
AA
AA
AA
AA
Smoke
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
oke
AAA
AAA
AAA
Smoke
AAA
AAA
AAA
AAA
Sm
oke
Sm
AAA
AAA
AAA
oke
Sm
AAA
AAA
AAA
AAA
Smoke
• An optional combustor temperature probe is available from your dealer. It allows you to monitor the
combustor temperature, which light off if the temperature is above 600°F.

10 Operation
Travis Industries 93508091 220602
Adjusting the Burn Rate
Use the air control slider to control the burn rate of the fireplace. See the illustration below for details.
Air Control
AA
AA
AA
AA
Use the air control to change the burn rate.
Low Burn High Burn
AAAA
AAAA
AA
A
A
AAAAAA
AAAAAA
Warning: The air control becomes hot during operation - use gloves or a tool to prevent burns.
Hint: The air control may take several minutes to influence the burn rate. When making
adjustments, you may wish to let the fireplace burn for 10 minutes to gauge performance.
Hint: The blower may be used to affect heat output (i.e.: to reduce heat output, turn the blower
down).
Blower Operation
The blower will turn on once the fireplace is up to temperature. This is typically 15 to 30 minutes after
starting the fire. Follow the directions below to alter the blower speed.
AAAA
A
AA
A
A
AA
A
A
AA
A
A
AA
A
AAAA
AAA
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
AAA
AAAA
AAAA
Blower Speed
Control
AA
AA
AA
AA
A
Summer Fan
Switch (optional)
A
High
AA
AA
AA
Low
Blower
Speed
AA
AA
Summer
Fan Switch
Off
On
Note: The blower will shut off when the doors are opened.
Optional Summer Fan Switch
The optional summer fan switch allows the blower to be turned on even if the fireplace is cool. This
allows the blower to circulate air into the home during summer months.

Operation 11
Travis Industries 93508091 220602
Re-Loading the Fireplace
Follow the directions below to minimize smoke spillage while re-loading the fireplace.
1Pull the by-pass out all the way (use a glove or tool).
2Move the air control to high (all the way left).
3Open the door slightly. Let the airflow inside the firebox to stabilize before opening the doors fully.
4Load wood onto the fire (on top of the grate).
Overnight Burn
This fireplace is large enough to accommodate overnight, 10 to 12 hour burns. Follow the steps
below to achieve an overnight burn.
1Get the fireplace hot by opening the air control (all the way left) and letting the fireplace burn on high
for 15 minutes.
2Load as much wood as possible. Use large pieces if possible.
3Let the fireplace burn on high for 15 minutes to keep the fireplace hot, then turn the air control to low.
4In the morning the fireplace should still be hot, with embers in the coal bed. Stir the coals and load
small pieces of wood to re-ignite the fire, if desired.
Note: Differences if chimney height and draft may lower overall burn times.
Normal Operating Sounds
Blower Air
Dependent upon blower placement, you
may hear a slight "whirring" sound
coming from the blower. Turning the
blower down may reduce the sound.
Firebox Body
You may notice some "clicks" and
"creaks" coming from inside the fireplace.
This is most noticeable when the fireplace
is warming up to temperature and cooling
down.
A
Hints for Burning
• Get the appliance hot before adjusting to low burn
• Use smaller pieces of wood during start-up and high burns to increase temperature
• Use larger pieces of wood for overnight or sustained burns
• Stack the wood tightly together to establish a longer burn
• Leave a bed of ashes (1/2" deep) to allow for longer burns
• Be considerate of neighbors & the environment: burn dry wood only
• Burn small, intense fires instead of large, slow burning fires when possible
• Learn your appliance's operating characteristics to obtain optimum performance

12 Operation
Travis Industries 93508091 220602
Selecting Wood
Dry Wood is Key
Dry wood burns hot, emits
less smoke and creates
less creosote.
Wet
Wood
Leads
To Leads
To
Dry
Wood
Leads
To Leads
To
Less
Heat More Heat
More Smoke
and Creostoe Less Smoke and Creostoe
Testing Wood Moisture
Wood cut, split and stored in a dry area will be fully dry within a year. This insures dry wood. If
purchasing wood for immediate use, test the wood with a moisture meter. Some experienced wood
burners can measure wood moisture by knocking pieces together and listening for a clear "knock" and
not a "thud".
Why Dry Wood is Key
Wet wood, when burned, must release water stored within the wood. This cools the fire, creates
creosote, and hampers a complete burn. Ask any experienced wood burner and he or she will agree:
dry wood is crucial to good performance.
Wood Cutting and Storage
Cut wood to length and
chop into quarters. Store the wood off the ground in a
covered area. Allow for airflow
around the wood to dry the wood.
Air Flow
Air Flow
Air Flow
Don't Burn Treated Wood, Wax Logs, Coal, Garbage, Etc.
This fireplace has a catalytic combustor (see page 9) designed specifically to work with emissions from
cord wood. Other fuels may clog or contaminate the combustor, leading to a drastic loss in heat
output, increased emissions, and damage to the combustor.
In addition, fuel other than cord wood may burn excessively hot, leading to a serious fire hazard.

Operation 13
Travis Industries 93508091 220602
Troubleshooting
Problem Possible Cause
Smoke Enters Room
During Start-Up • Cold Air Blockage - burn a piece of newspaper to
establish a draft.
• By-pass is Closed - Open the by-pass by pulling the
ring above the door all the way out.
• Close the doors - if the flame is not getting enough air,
first make sure the air control is open (all the way left). If
additional air is needed, a small crack in the door is all
that is needed.
Kindling Does Not Start -
Fire Smolders • Cold Air Blockage - burn a piece of newspaper to
establish a draft.
• Not enough starter paper - use additional newspaper if
necessary.
• By-pass is Closed - Open the by-pass by pulling the
ring above the door all the way out.
• Not enough air - first make sure the air control is open
(all the way left). If additional air is needed, a small crack
in the door is all that is needed.
Smoke Enters Room
While Re-Loading • By-Pass is Closed - Open the by-pass (the ring above
the doors) using gloves or a tool before opening the
door.
• Insufficient Draft - Chimney height and outside
conditions can negatively affect draft. In these cases a
small amount of smoke may enter the home. Adding
more pipe or a draft-inducing cap may help.
Fireplace Does Not Burn
Hot Enough • Wood is Wet - see the section "Selecting Wood" on
page 12 for details on wood.
• Insufficient Draft - Chimney height and outside
conditions can negatively affect draft. In these cases
the fire may burn slowly. Adding more pipe or a draft-
inducing cap may help.
• Air Control is Not Wide Open - Make sure the air control
is all the way to the left. Slide the control back and forth
rapidly to insure the control is not stuck.
Blower Does Not Run • Fireplace is Not Up to Temperature - This is normal.
The blower will come on when the fireplace is hot -
usually 15 to 30 minutes.
• Electricity is Cut to the Blower - Check the household
breaker or fuse to make sure it is operable.
Faceplate is Cold • This is Normal - The air leading into the firebox comes
from the exterior. In some cases this air comes into the
firebox and exits up the chimney. This will not damage
the fireplace nor cool the home much.
Fireplace Does Not Burn
Overnight • The doors are not sealing - See the section "Check the
Door Seal, Adjust if Necessary" on page 16 for details.

14 Maintenance
Travis Industries 93508091 220602
Daily Maintenance (while fireplace is in use)
Check Ash, Remove if Necessary
Ash can build up inside the firebox without affecting performance. Generally, remove ash once it has
built up over 1" (or more often if desired). Follow the directions below to remove ash.
1Let the fireplace cool completely (at least two hours after the last coal has extinguished).
2Place a cloth or cardboard protector over the hearth to catch ash and protect against scratching.
3Open the doors. Remove the grate and place it on the protector.
4Scoop the ash into an air-tight, metal container. Place a lid over the container and take outside. Store
the container away from the structure to ensure the ashes are entirely cold. Then dispose the ashes.
ASHES
Warning: Improperly disposed ashes lead to fires. Hot ashes placed in cardboard boxes, dumped
in back yards, or stored in garages, are recipes for disaster.
Note: Wood-burning fireplaces are inherently dirty. During cleaning have a vacuum ready to
catch spilled ash (make sure ash is entirely extinguished).
Note: There are vacuum cleaners specifically made to remove ash (even if the ash is warm).
Contact your Fireplace Xtrordinair dealer for details.
Clean any Gold Surfaces if Necessary
With the fireplace cool, clean any gold surfaces. Any marks left on the gold may become etched-in by
the heat of the fireplace. Use denatured alcohol and a soft cloth to clean.
Denatured
Alcohol
Soft Cloth

Maintenance 15
Travis Industries 93508091 220602
Twice Yearly Maintenance
Check Firebrick, Baffle
With the fireplace completely cool, remove ash from the firebox (see the instructions on the previous
page) and check the firebrick and baffle.
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAA
AAAAAA
AAAAAA
AAAAAA
AAA
AAA
AAA
AAA
AAA
AA
AA
AA
AA
AA
AAA
AAA
AAA
AAA
AAA
AA
AA
AA
AA
AA
Make sure the firebrick is intact.
The baffle should be intact - some
warping and flaking is not uncommon. It
rests on three tabs at the rear of the
firebox and should be pushed all the
way back. NOTE: the bend should go
upwards.
Door Switch (turns blower off
when doors are opened)
Serial Number Label
Clean the Combustor
With the fireplace completely cool (at least two hours after the last coal has extinguished), use a
vacuum cleaner to draw all ash from the catalytic combustor (see the illustration below).
AAAAAAAAAAAAAA
AAAAAAAAAAAAAA
AAAAAAAAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAA
AAA
AAA
AAA
AAA
AA
AA
AA
AA
AAAA
AAAA
AAAA
AAAA
AAAA
AA
AA
AA
AA
The catalytic combustor is located
above the firebox. It can be seen by
looking from below with the doors open.
To clean the combustor, use a vacuum
cleaner to suck out ash and other
deposits inside the square holes of the
combustor. The brush attachment is
especially effective in removing ash.
WARNING: The combustor becomes
extremely hot during operation. Wait at
least two hours after the last coal has
extinguished before cleaning.
Clean the Blower Filter
The remote blower has a removable cover to allow for cleaning of the filter. This filter can be removed
and washed to clean dust and debris. See the directions to the right to remove the filter.
Remove the four
screws that go into
these holes.
Shake the filter to remove any
dirt that may have accumulated.
Intake Grill
Blower
Housing Filter Screen Filter
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
1/4" Nutdriver

16 Maintenance
Travis Industries 93508091 220602
Check Door Seal, Adjust if Necessary
The door latch and door gasket work in conjunction to seal the firebox. If the doors do not seal, air will
leak into the firebox and cause the fire to burn too fast. This reduces the ability to burn the fireplace
overnight or precisely adjust the burn rate. Follow the directions below to check the door gasket.
Check the door
gasket. It should
adhere to the door
and be intact
(check both
doors). The
gasket follows the
perimter of the
door along the
outside edge (the
inside edge does
not have gasket).
Use wood stove gasket
cement to re-adhere
loose gasket.
Severely frayed
or thread-bare
gasket should be
replaced.
Follow the directions below to check the door latch.
Latch
Inner
Washer(s)
If the door latch rod does not keep
the bottom of the doors snug
against the firebox, bend the rod in
slightly to create a tighter fit.
When closing the doors, the handle should pull the doors in and dreate a snug fit. If it
doesn’t check the following two items.
AA
AA
AA
A
A
A
A
A
A
A
A
A
A
AA
AA
Door Handle
Outer
Nut
AA
AA
Door Latch Adjustment
Doo
r
Door
Latch
Rod
If the door latch is
loose, move one of
the washers from the
inner side of the
latch shaft to the
outer side. For finer
adjustments, tighten
the outer nut against
the inner nut to
create a precise fit.
Inner Nut
Door Latch Rod Adjustment
Latch Shaft
Outer
Washer(s)
9/16" Wrench
Glass Inspection & Removal
If the glass is cracked or broken, it must be replaced. The glass & gasket should seal against the door.
See the illustration below for glass removal. When re-installing the glass, gently press the rope gasket
in place (use a putty knife).
WARNING: The top of the glass comes close to the face of the fireplace. The glass must be all the
way down to prevent is from striking the fireplace when the door is closed.
AA
A
A
The rope gasket pins the glass in place.
Remove it to access the glass. The glass slides up
and out of the door
frame.
AA
AA
Cross-Section of
Door & Glass
Glass
Door
Frame
Channel
Gasket
1/2” Dia.
Rope Gasket
A
A

Maintenance 17
Travis Industries 406420 93508091
Check Chimney for Creosote Build-Up
Remove the chimney cap and carefully inspect for creosote build-up over the entire length of
chimney. If creosote build-up is over 1/4", the chimney must be thoroughly cleaned. Failure to clean
the chimney may lead to a fire.
Hint: Chimney cleaning is a very dirty, complicated, and dangerous task. We strongly
recommend you have a professional chimney sweep conduct this service.
Warning: Chimney fires are created by excessive creosote build-up. To prevent this dangerous
situation, have your chimney inspected twice per year minimum.
Replacement Parts List
Title Part #
Air Control Slider Bar, FPX 36 Elite 91001600
Baffle Plate, Firebox Back, FPX 36 Elite 98500721
Baffle, Rear, Catalytic, FPX 36 Elite 91001602
Brick, Box of 8 Bricks 99900102
Brick, (Cut) 3.2 x 9 251-00040
Brick, (Angle Cut) 4.5 x .97 x 2.95 251-00041
Brick, (Angle Cut) 4.5 x 2.95 x 4.9 251-00042
Bypass Assembly and Catalytic Holder, FPX 36 Elite 91001601
Bypass Pull Ring, Cast Steel 98900336
Bypass Rod Assembly, FPX 36 Elite 91001604
Bypass Slider, FPX 36 Elite 91001603
Catalytic Combustor, FPX 36 Elite and 44 Elite 98500761
Catalytic Combustor Gasket, FPX, 36 Elite 91001612
Catalytic Temperature Meter, FPX Woodburning Fireplaces 98500763
Door Gasket, FPX Wood Fireplace 98500717
Door Handle, Black Phenolic, FPX , (One Handle) 91001605
Door Hinge Replacement Kit, FPX 44 & 36 Fireplaces 98500714
Door Latch Assembly, Right Side of Double Door, FPX 36A & 36 Elite 98500712
Door, Single, Black, Complete Assembly, FPX 36 Elite 98500458
Door, Single, Gold, Complete Assembly, FPX 36 Elite 98500457
Electrical Wiring Harness, FPX Wood, Thermodisc in Firebox Wall 98500757
Fan, Convection, FPX, Without Mounting Box 98500780
Fan, FPX Convection, Complete Assembly with Mounting Box & Grill 98500785
Fan Switch, FPX, Auto Door Shut-off 98500759
Filter Replacement for FPX Fan 98500788
Glass, Double Door, Clear (One side), FPX 36A & 36 Elite 98500730
Glass, Etched Floral Design, Double Door, FPX 36A & 36 Elite 98500751
Glass Gasket for FPX 36A & 36 Elite Doors 98500731
Glass Gasket, Lopi, Wood & Pellet Stoves 99900405
Glass, Single Door, Clear, FPX 36 Elite 98500745
Grate, Firewood, FPX Wood Burning Fireplaces 98500738
Knob, Fan Control, Solid Brass 98500782
Log Retainer, FPX Woodburning Fireplaces. 98500739
Rheostat Fan Control with Black Plate 98500786
Rheostat Fan Control, with Gold Plate 98500784
Rheostat, Fan, FPX & Pellet, No Off Position 98500787
Snap DIsc, FPX Convection Blower (Firebox Side Location) with Plate 91001634
Snap Disc Gasket, FPX, for Firebox Mounted Fan Snap Disc 91001635
Summer Switch Option, Black, For FPX Convection Fan 98500601
Summer Switch Option, Gold, For FPX Convection Fan 98500600
Template, Installation, Arched for FPX 36 A & 36 Elite 98500690
Windshield for FPX Blower 98500778

18 Safety Label
Travis Industries 93508091 220602
U.S. ENVIRONMENTAL PROTECTION AGENCY
Certified to comply with July, 1990 particulate emission standards.
This wood heater contains a catalytic combustor which needs periodic inspection and replacement for
proper operation. Consult the owner’s manual for further information. It is against the law to operate
this wood heater in a manner inconsistent with operating instructions in the owner’s manual or if the
catalytic element is deactivated or removed.
Do not use a fireplace insert or other products not specified for use with this product. This fireplace
has not been tested with an unvented gas log set. To reduce risk of fire or injury, do not install an
unvented gas log set into fireplace.
DO NOT REMOVE THIS LABEL
Fireplace Xtrordinair
LISTED FACTORY BUILT FIREPLACE MODEL NO. 36 ELITE
TESTED TO: UL-127 REPORT NO. 028-F-60-4 MANUFACTURE DATE:
2005 Jan. Apr. Jul. Oct.
2006 Feb. May Aug. Nov.
2007 Mar. Jun. Sep. Dec.
WARNING: • Operate with feed doors closed. Open to feed fire only. • For use with solid fuel only.
0260 (IGN)
SERIAL NO.
Manufactured by:
TRAVIS INDUSTRIES, INC.
4800 Harbour Pointe Blvd. SW
Mukilteo, WA 98275
