Firesense PH01-S XL Series User manual

1
XL Series Patio Heater
Instruction Manual
Supplier Model# PH01-S, PH01-SS
Item # 61587,61588,61589,61590,61591,61592,61593
61594,61595,61600,61601
Questions, problems, missing parts? Before returning to your
retailer, call our customer service hotline at 1-866-985-7877,
9 a.m. –6 p.m., EST, Monday –Friday or email at
[e-mail].
ATTACH YOUR RECEIPT HERE
Serial Number ______________ Purchase Date _____________

2
Table of Contents………………………………….....................Page 2
Before You Begin............................................................Page 2
Safety Information.........................................................Page 3-4
Package Contents………………………………….....................Page 5
Hardware Contents..........................................................Page 6
Assembly.........................................................................Page 7-16
Operating Instructions……………......................................Page 16-19
Care and Maintenance……………………..............................Page 19-20
Troubleshooting……………………………………......................Page 21
Replacement Parts List.....................................................Page 22
Warranty Information…………….....................................…Page 23
BEFORE YOU BEGIN
Please read and understand this entire manual before attempting to assemble, operate or install this appliance.
If you have any questions regarding the product, please call customer service 1-866-985-7877, 9 a.m. –
6 p.m., EST, Monday –Friday.
This manual contains important information about the assembly, operation and maintenance of this patio
heater. General safety information is presented in the first few pages and is also located throughout this manual.
Keep this manual for future reference and to educate new users of this appliance. This manual should be read
in conjunction with the labeling on the appliance. Safety precautions are essential when any mechanical or
propane fueled equipment is involved. These precautions are necessary when using, storing, and servicing.
Using this appliance with the respect and caution demanded will reduce the possibilities of personal injury or
property damage. The following symbols shown below are used extensively throughout this manual. Always
heed these precautions, as they are essential when using any mechanical or propane fueled equipment.
TABLE OF CONTENTS

3
SAFETY INFORMATION

4
SAFETY INFORMATION

5

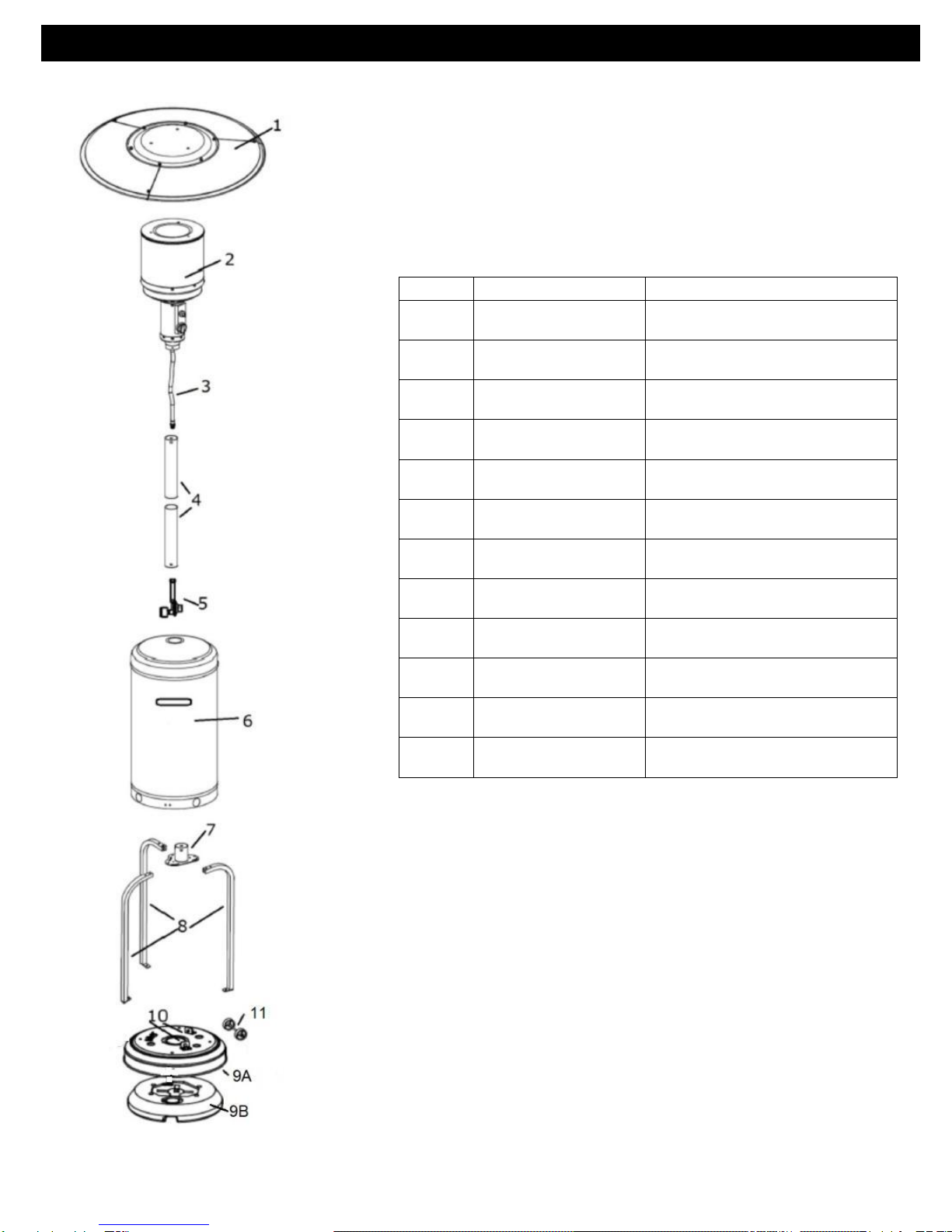

PACKAGE CONTENTS
ASSEMBLY
PART
DESCRIPTION
QTY
1
Reflector
3 outer pcs and 1 center cap
2
Head Assembly
1
3
Gas Hose
1 pc (attached to head assembly)
4
Post Assembly
2 pcs
5
Regulator
1
6
Tank Housing
1
7
Post Support
1
8
Support Legs
3 pcs
9A
Base
1
9B
Sand/Waterbox
1 (pre-assembled to base)
10
LPG Cylinder Holder
3
11
Wheel Assembly
1 pc (hardware is pre-assembled
to wheel assembly)
*Some XL Series models include an optional table assembly
which is to be installed immediately after Step 9. Please refer to
page 12 for a list of table components and assembly instructions.

6
Blister Pack Hardware Contents: (Packaged inside the top section of the Heater Carton)
Zip Lock Bag Hardware Contents: (Packaged inside the Heater Carton)
4-PC Reflector Hardware Bag: (Packaged with the 4-Pc reflector panels)
HARDWARE CONTENTS

7
PREPARATION
Before beginning assembly of this appliance, make sure all parts are present. Compare all parts with package
contents list as listed on page 5 of this manual. If any part is missing or damaged, do not attempt to assemble
this product. Contact customer service for replacement parts.
ESTIMATED ASSEMBLY TIME: 60 minutes
Tools Required for Assembly (Included)
Open end wrench 10mm and 13mm
Tools Required for Assembly (NOT included):
Philips screwdriver w/medium blade
Leak Test Solution (one part liquid dishwashing detergent and three parts water)
Adjustable opening wrench, 8" long
Other items required for assembly:
AAA Battery: This heater has a Rapid-Spark Electronic Ignition system and will require installation of
1) AAA battery. (NOT INCLUDED) The battery should be installed by unscrewing the RED IGNITER
BUTTON on the front of the burner head assembly.
Once the battery has been installed please test the ignition system by briefly pressing the red igniter
button. If you hear a rapid series of sparks your Rapid-Spark Electronic Ignition system is working
properly. If you do not hear any sparks please check to make sure the battery in installed in the correct
direction and that it is fresh and fully charged.
Otherwise please refer to the troubleshooting guide on page 21 of this manual for further assistance.
Sand (25 Lbs) for filling the Sand/Waterbox: Your Fire Sense XL Series patio heater comes standard
with an empty PVC Sand/Waterbox container which is pre-assembled to the heater base. Once filled with
sand, this weighted container will add approximately 25 lbs. to the base of the heater providing extra
stability and safety.
Tip: When filling with sand, having a funnel on hand will be helpful. If possible, use easy-to-pour, dry
silica sand (available at most home improvement centers.)
Note: The Sand/Waterbox container may also be filled with water (mild weather climates) or automotive
windshield washer fluid (cold weather climates) however, the additional weight when filled with water or
windshield washer fluid will only add approximately 18 lbs. to the heater base as compared to the 25 lbs. when
filled with sand.
Tip: To add an additional 5-6 lbs. of weight to a sand filled base, add water (mild weather climates) or windshield
washer fluid to the base after filling it with sand.
ASSEMBLY

8
Step 1 Sand/Waterbox assembly:
Your XL Series patio heater comes standard with an empty PVC Sand/Waterbox container which is preassembled
to the heater base. Once filled with sand and topped off with water/windshield washer fluid, this weighted
container will add approximately 30 Lbs. to the base of the heater providing extra stability and safety.
Hardware Used: None
Disassemble the Sand/Waterbox container from the base:
a) Please disassemble the 3) (tall) Leg support posts which are preassembled to the heater base by removing the
bolt that secures each leg to the base. (Please take note of the position of the legs prior to disassembling as they
will later need to be reassembled in the same manner.)

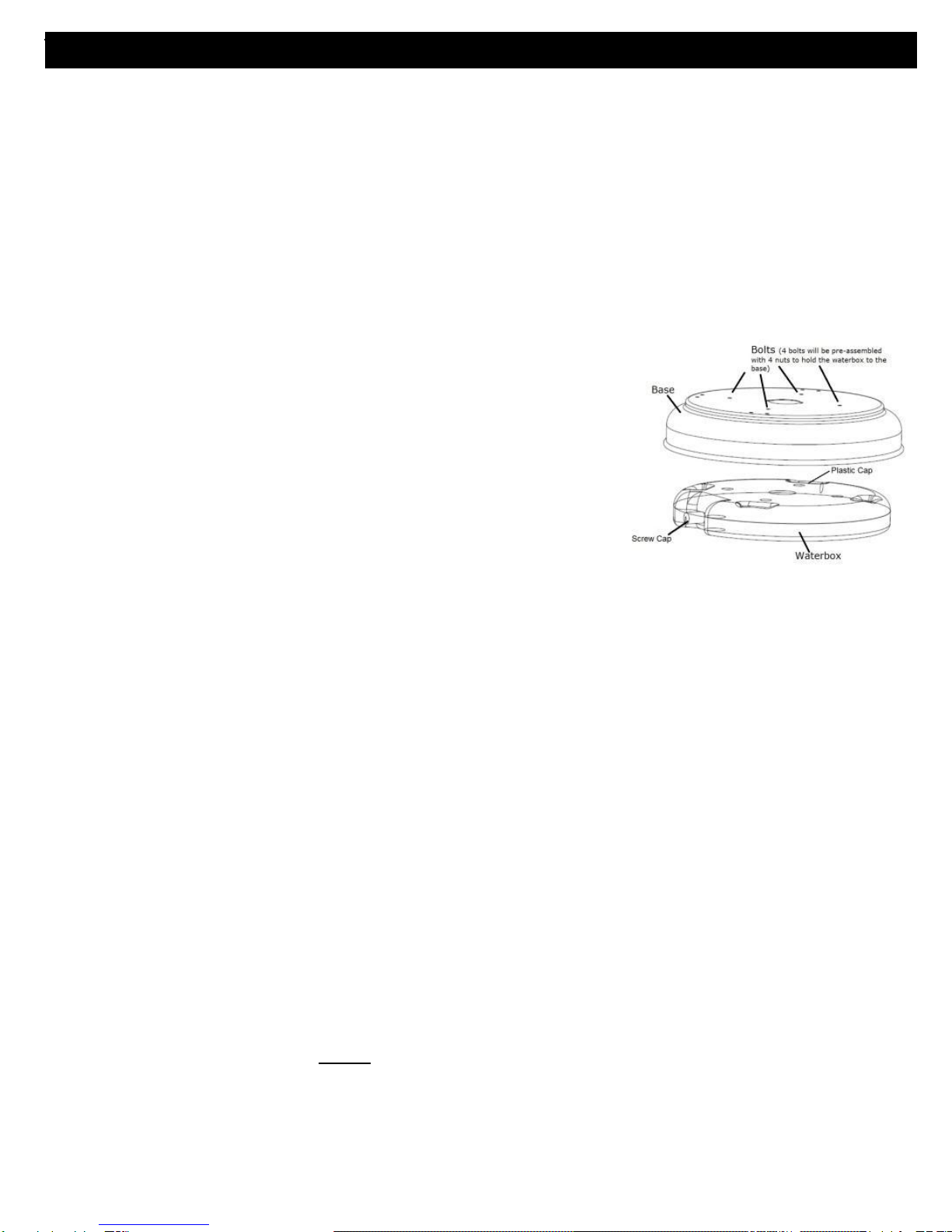

b) Please disassemble the Sand/Waterbox container (9B) from the
Heater Base (9A) by removing the 4 Phillips Head bolts and nuts that
secure the heater base to the container. (Note: Please keep removed
hardware nearby for reassembly during Step 4.)
c) Pry off the 2" cap on the top of the Sand/Waterbox container and
fill the container with either sand or water/windshield washer fluid
(or with sand then topped off with water/windshield washer fluid to add the
maximum weight possible) then snap the 2" PVC cap back into place.
NOTE: DO NOT reinstall the Sand/Waterbox to the base until AFTER
completing Step 2 and Step 3 below. Please see Step 4 for instructions
on reassembling the Sand/Waterbox to the base.
Tip: When filling with sand, having a funnel will be helpful.
Note: The Sand/Waterbox container may also be filled with water (mild weather climates) or automotive
windshield washer fluid (cold weather climates) however the added weight of the base filled with water or
windshield washer fluid will only add approximately 18 Lbs. to the heater base as compared to 30 Lbs. when filled
with sand and topped off with water (mild climates) or Windshield Washer Fluid (Cold Climates.)
STEP 2: Install the 3) LPG Tank/Cylinder Hardware Brackets to the Heater Base
Hardware Used:
H: Qt 3) LPG Cylinder Brackets
I: Qt 3) M8x25 Bolt (Preinstalled on Cylinder Brackets H)
J: Qt 6) M6x12 Bolt
K: Qt 6) M6 Flat Washer
L: Qt 6) M6 Nut
Note: The 3) LPG Tank/Cylinder Hardware Brackets (H) are an important safety feature used to secure the 20lb
cylinder tank to the base of the heater preventing the tank from becoming dislodged in the unlikely event that
the heater were to be accidentally tipped over or moved.
1) Align the 2 holes in each of the 3) brackets with the holes in the base.
(Important: Please make sure that the brackets (H) are positioned on the base with the
preinstalled M8x25 bolt heads (I) facing toward the outside edge of the base, with the flush
side of the bracket facing inward, toward the middle of the base. See illustration on pg 9)
ASSEMBLY

9
2) Insert 2) M6x12 Bolts (J) through the holes in each bracket and
through the holes in the base.
3) Attach an M6 flat washer (K) and an M6 nut (L) to the end of each
bolt on the underside of the base and tighten with a wrench.
TIP: You may find it easier to attach the cylinder brackets by first removing the preassembled
M8x25 cylinder bolts (I) from the brackets.
Step 3: Install Wheel Assembly to heater Base:
Hardware Used: None
(Note: All hardware used to complete Step 3 is already preassembled to the components)
1) Locate Wheel Assembly (11) and 2 nuts/bolts contained in plastic bag with
Wheel Assembly.
Turn Base (9) so that holes for attachment of Wheel Assembly are facing you.
Align holes in Wheel Assembly with holes on Base. Insert bolts through
both sets of holes and secure nuts on end of bolt.
Wheel Assembly should now be attached to Base as shown.
ASSEMBLY

10
Step 4: Reassemble the fully-filled Sand/Waterbox container to the heater base:
Hardware used: None
(Note: All hardware used to complete Step 4 was originally preassembled to the components)
Position the heater base (which is now fully assembled with the wheels and cylinder brackets attached) over the
fully filled Sand/Waterbox and reinstall the 4 bolts and nuts which were removed during step #1.
(Important: The top heater base MUST be positioned over the Sand/Waterbox container with the
twist cap on the side of the Sand/Waterbox container pointing toward the wheels) To reinstall, insert
the 4 bolts through holes in the top of the base and through the holes in the Sand/Waterbox below, and secure
by tightening bolts to the end of the nuts.(Please make sure that you do not over-tighten as this could warp the
top of the base)
Tip: Since the fully filled Sand/Waterbox weighs a hefty 30lbs, reassembling it to the heater base
will be more challenging then the initial disassembly. To assist with the reassembly you may find it
helpful to use a raised platform such as a table or bench and follow steps a-f below.
a) Set the filled Sand/Waterbox on a sturdy raised platform/bench.
b) Position the heater base over the top of the Sand/Waterbox with the wheels aligned directly in front of the
twist off water cap on the side of the Sand/Waterbox container.
c) Allow the bottom of the Sand/Waterbox to overhang the bench just enough to allow access to one of the
four holes used for securing the 1st nut and bolt.
d) Slide one of the hexagon nuts into the hexagon shaped hole in the bottom of the Sand/Waterbox and hold
it in place with your finger.
e) With your other hand, insert the bolt through the top of the base and using a Phillips Head screw driver
turn clockwise until the bolt begins to thread a few turns into the nut (don’t fully tighten until all 4 bolts
and nuts are attached)
f) Rotate the base slightly on the bench until the next bolt hole is just overhanging the table and repeat
attaching the next nut/bolt. Do this until all four bolts are attached. Then use a Phillips Head screwdriver
to hand tighten (evenly) all four bolts/nuts until they are tight. (Please make sure that you do not
over-tighten as this could warp the top of the base) Then place the assembled heater base back on the
ground.
Step 5: Reassemble the three (tall) support legs to the heater base
Hardware Used: None
(Note: All hardware used to complete step #5 was originally preassembled to the components)
Align the bottom of the 3 (tall) Support Legs (8) with the holes in the heater base
(9A) in the same alignment as they were prior to being disassembled in Step 1.
Re-insert each bolt (which had previously been removed) through the hole in the leg
support and finger-tighten into the base so that the legs remain loose and moveable.
(Note: Bolts will be fully tightened after completion of Step 6)
ASSEMBLY

11
Step 6: Install post support bracket to the top of the 3 leg supports
Hardware Used:
A: Qt 6) M6x30 Bolt
B: Qt 6) M6 Flat Washer
C: Qt 6) M6 Nut
M: Qt 6) M6 Lock Washer
a) Place the Post Support Bracket (7) on top of the 3 assembled Support Legs
and align the holes in the Post Support with the holes in the Support Legs.
b) Place an M6 Flat Washer (B) on each of the 6 M6x30 Bolts (A) and then insert
each bolt through the top of the holes in the post support bracket and through
the holes in the top of each leg support.
c) Place an M6 Lock Washer (M) and an M6 nut (C) on the end of each bolt, and
finger-tighten until all 6 bolts/nuts are snug.
d) After making sure that the bottom of the support legs are aligned on the Base
without any torque/twist or stress in any of the legs, proceed to evenly tighten
all 6 Bolts/Nuts on the post support assembly with a wrench.
e) Once the 6 Bolts/Nuts on the post support assembly are tightly secured proceed
to then use a wrench to evenly tighten each of the 3 leg support bolts to the base.
Step 7: Attach and secure the bottom section of the 2-pc post to the post support
Hardware Used:
D: Qt 4) M6x10 Bolt
M: Qt 4) M6 Lock Washer
Attach the lower section of the 2-pc post assembly (4) to the Post Support bracket (7) using 4) M6x10 Bolts (D)
and 4) M6 Lock Washers (M)

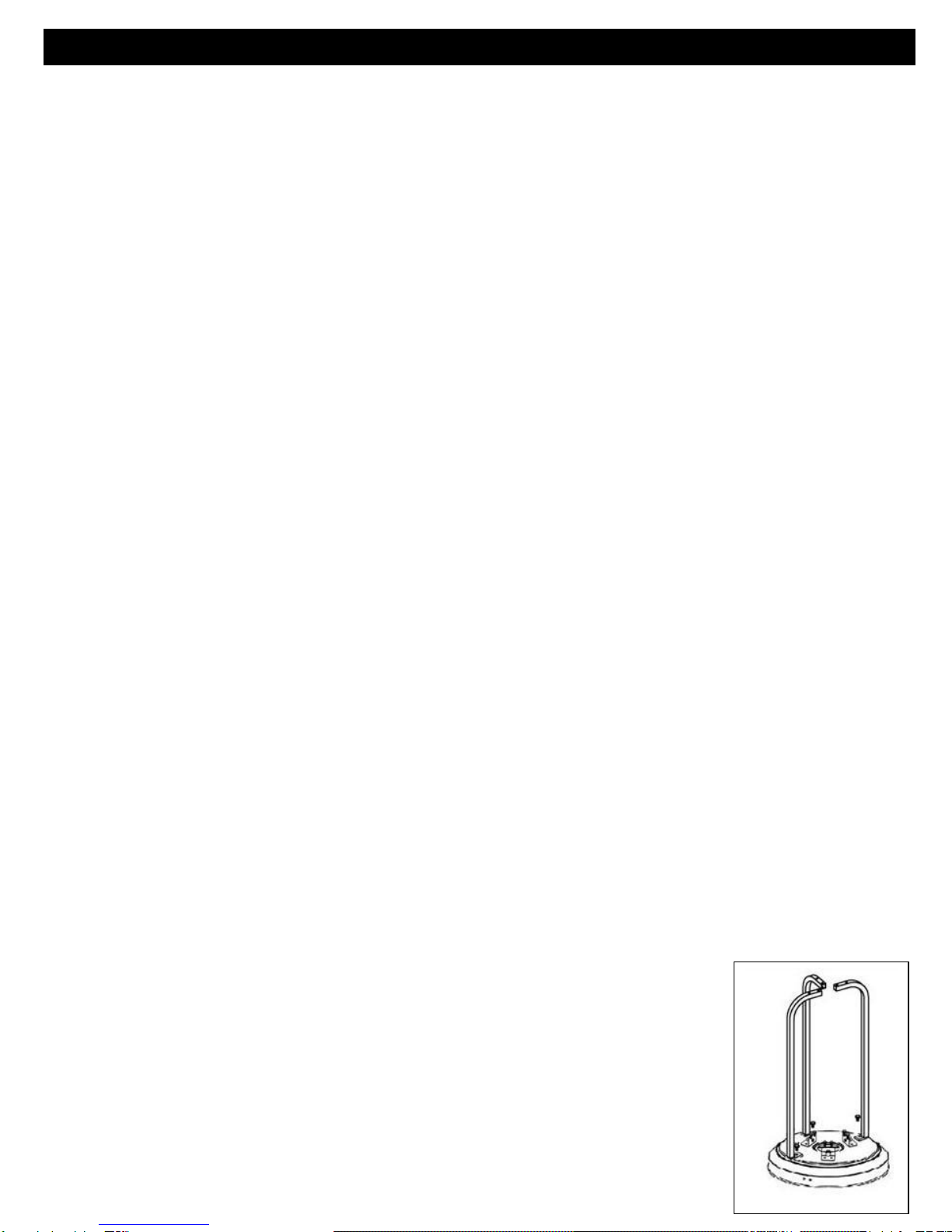

a) Slide the bottom section of the 2-pc post assembly over the post support and line
up the 4 holes in the bottom of the post with the 4 holes in the post support.
(Note: The bottom section of the 2-pc post is the section without the
attached label)
b) Place an M6 Lock washer (M) on each of the 4) M6x10 Bolts (D). Insert the bolts
through the holes in the Post into the 4 pre-threaded holes in the Post Support
and tighten with a wrench.
ASSEMBLY

12
Step 8: Attach the top section of 2-pc post to the bottom section
Hardware Used: None
Attach the top section of the 2-pc post assembly to the bottom section by screwing
the top section clockwise onto the bottom section of the post assembly until the
connection is tight.
Step 9: Install the tank housing
Hardware Used: None
Place the Tank Housing (6) over the top of the assembled 2-pc Post and slide it down
the post and over the Post Supports until it comes to rest on top of the base.
Step 10: Optional: Install adjustable drink table assembly
(For XL Series Models which include a table assembly)
Hardware Used: None

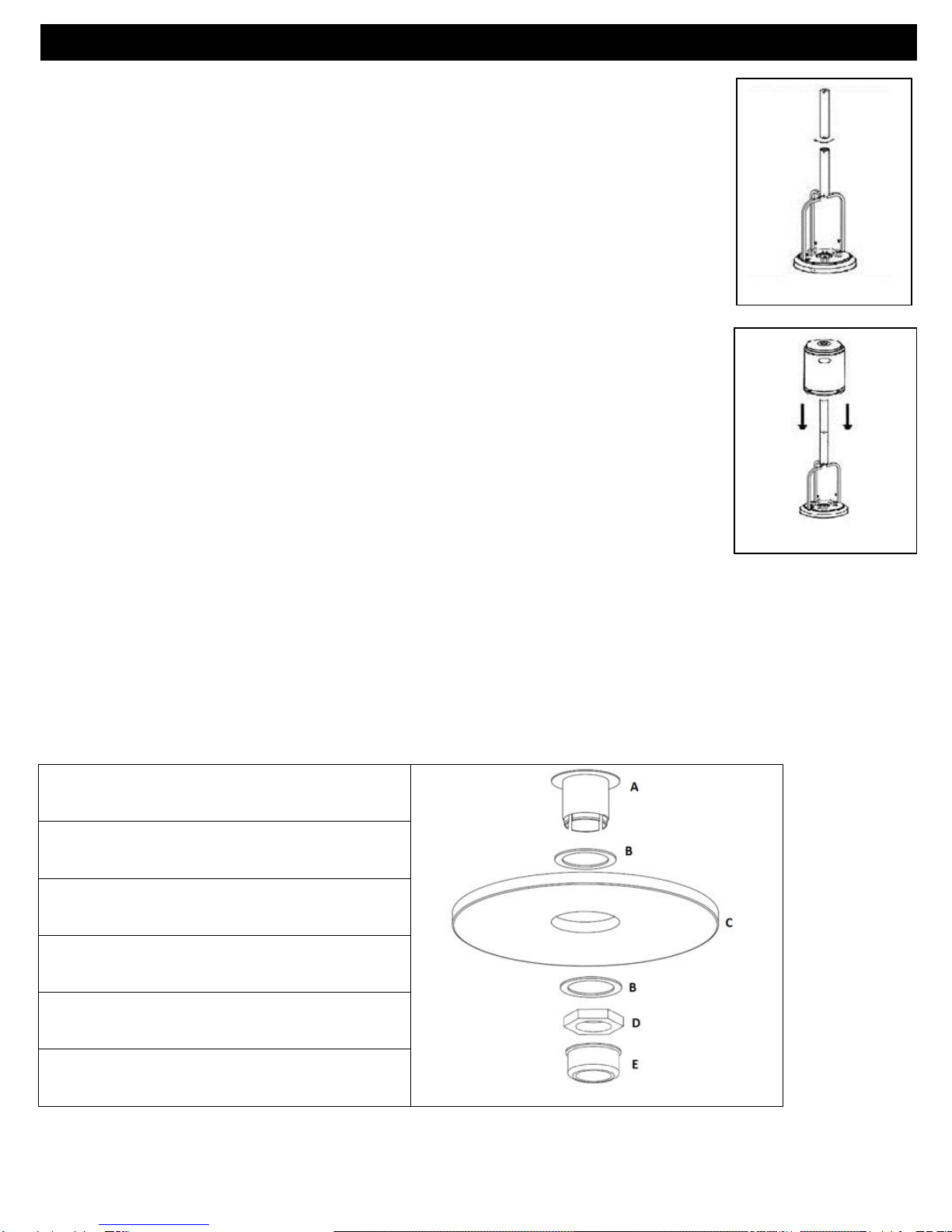

Some XL Series models include an adjustable drink table assembly which may be installed on the heater.
If you wish to install this feature, please follow the instructions below (no tools required for assembly)

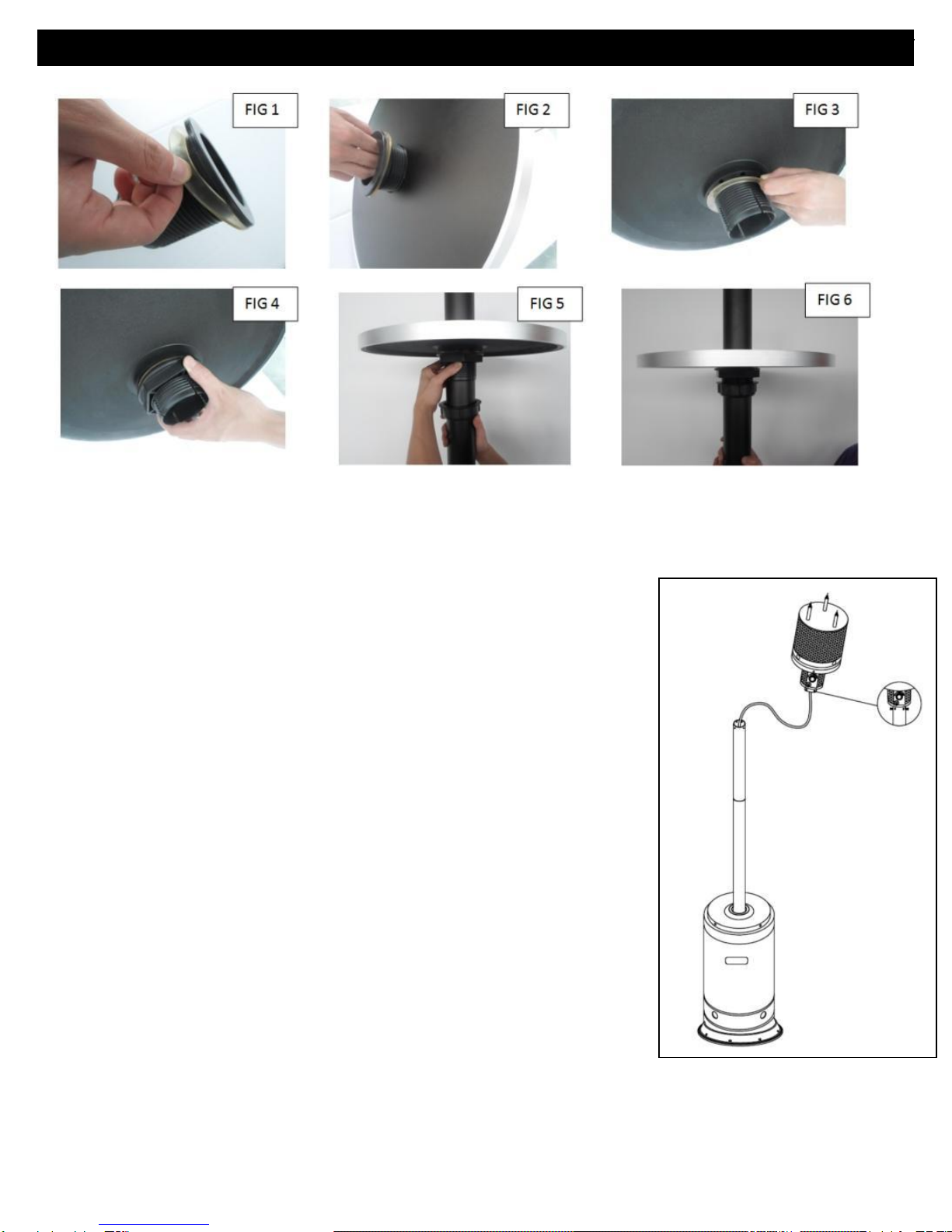

FIG 1: Slide 1 piece part B over part A and up
to the top of part A.
FIG 2: Insert part A through hole in part C.
FIG 3: Slide 1 piece part B over part A until it
is flush against the underside of part C.
FIG 4: Screw part D onto end of part A and up
until it is flush with the underside of part C.
FIG 5: Slide part E down over pole, then slide
table assembly over pole and stop at desired
height.
FIG 6: Screw part E over part A to secure
table in position. Once table is at desired
height, tighten part E.
ASSEMBLY

13
Step 11: Install burner head assembly to the top of the post
Tip: A safe and sturdy ladder will come in handy for the remaining installation steps
Hardware Used:
E: Qt 3) M8x90 Barrel Bolts
a) Raise the table assembly (if installed in step 10) to approx. 6” below
the top of the post. Then raise the Tank Housing and rest the bottom of
the housing on the post supports to allow access to the tank/cylinder
compartment.
b) Screw the 3) M8 x 90 Barrel Bolts (E) into the holes located on the
top of the Head Assembly (2) and hand tighten until secure
c) Remove the 4) M6x10 Bolts and 4) M6 lock Washers that come
preassembled on the bottom of the burner head assembly.
d) Hold the Head Assembly over the top of the Post and fully route the
Gas Hose (3) down into the Post until it extends into the cylinder
compartment.
e) Rest the Head Assembly on the top of the Post and turn the head
assembly until the controls on the head assembly are lined up directly
above the decal on the post below.
f) Align the 4 pre-threaded holes on Head Assembly with the 4 holes in
the Upper Post and then re-install the 4) Bolts and 4) Lock washers
which were removed earlier and tighten securely.
ASSEMBLY

14

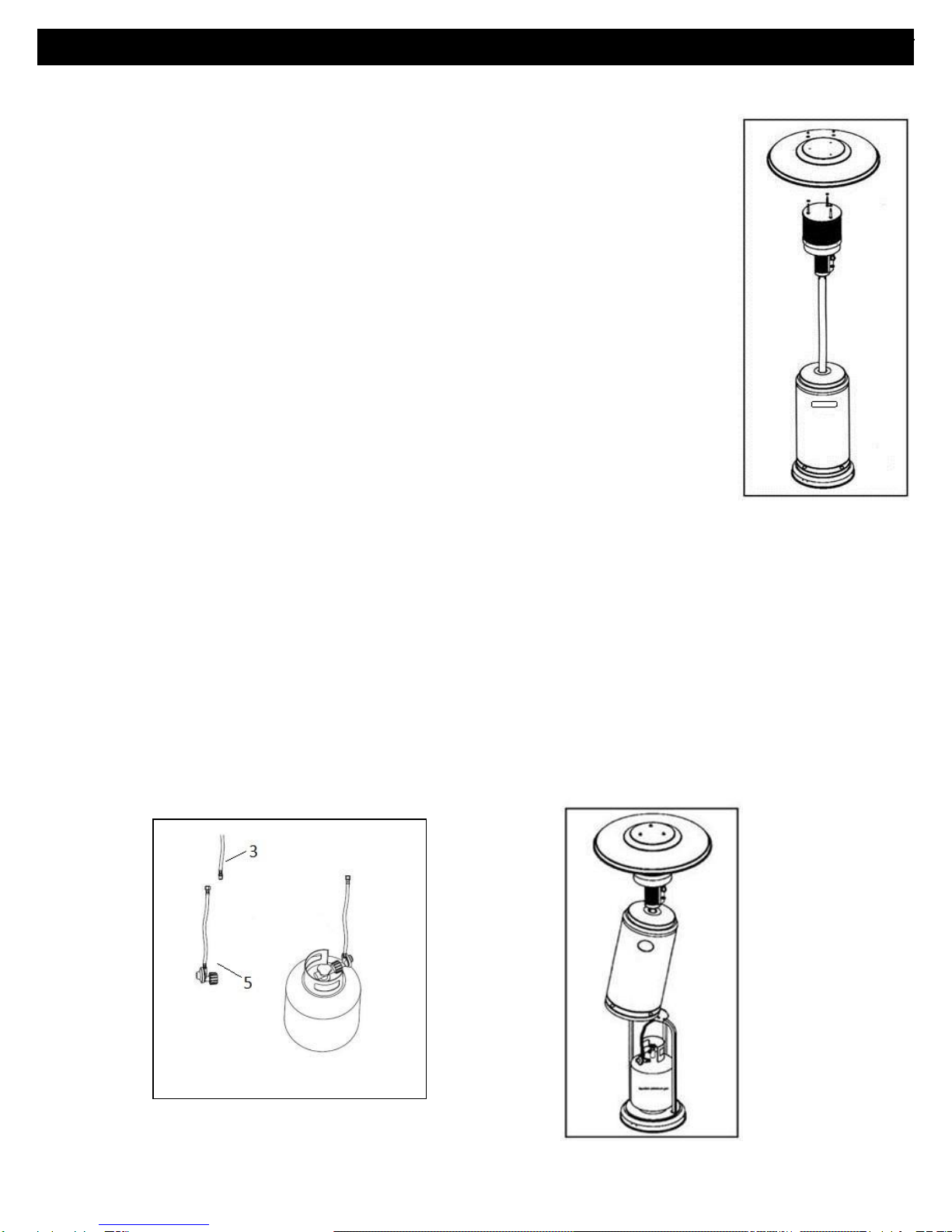

Step 12: Assemble the 4-pc Reflector Dome Top
Tip: To watch a helpful 2 minute instructional video demonstrating how to easily assemble the 4-pc
reflector top, please to go to www.youtube.com and search for:“How To Assemble A Firesense Patio
Heater Reflector Hood”.
Hardware Used: (Note: Hardware is packaged with the 4-pc Reflector Panels)
N: Qt 9) M6 Phillips Head Bolt
O: Qt 9) M6 Cap Nut
Reflector (1) is comprised of 3 - outer pieces and 1 - center piece. Locate all 4 pieces of the Reflector which are
wrapped in bubble wrap. Unwrap and remove all pieces and peel off the protective blue plastic on each piece.
Locate 9 bolts and 9 cap nuts in the plastic bag. Align the 3 - outer pieces with the 1 - center piece and place a
bolt through the center hole on each piece as shown below. Tighten castle nut on each bolt.
Next, align the sides of each outer piece and the center piece and insert the next 3 bolts through both holes.
Tighten castle nuts on bolts. Finally, insert bolt through holes located at outside edge of adjoining panels of the
reflector side pieces (3 bolts required) and tighten castle nuts on bolts.
ASSEMBLY

15
Step 13: Install the Assembled Reflector Dome to the top of the Burner Head Assembly
Hardware Used:
F: Qt 3) M8 Wing Nut
G: Qt 6) M8 Flat Washer
a) While supporting the heater, slide 1) M8 Flat Washer (G) over each of the
3 Barrel Bolts (E) on the top of the Head Assembly, then slide the assembled
Reflector over the 3 Barrel Bolts.
b) Secure the Reflector to the top of the Burner Assembly using 3) M8 Flat
Washers (G) along with the 3) M8 Wing Nuts (F) and then tighten the wing nuts
securely.
Note: You can also install the assembled reflector dome to the top of the Head
Assembly by tilting the heater on its wheels, carefully and securely resting it into
place on an angle which will allow you to complete the assembly.
Step 14: Connect the LP Hose and Regulator to the LP Cylinder Tank
Hardware Used: None
With the bottom of the Tank Housing lifted up and resting on the Post Supports, screw the Regulator (5) onto the
Gas Hose (3). Do not cross thread. Hand tighten securely. Attach Regulator (5) to the valve on LP cylinder and
hand tighten securely.
Note: The LP cylinder tank is sold separately. Use a standard 20 lb. propane cylinder only.
NOTE: Use this heater only with a propane vapor withdrawal supply system. See
chapter 5 of the standard for storage and handling of liquefied petroleum gas,
ANSI/NFPA 58. Your local library or fire department should have this book.
ASSEMBLY

16
Step 15: Secure the bottom of the LP Tank/Cylinder to the Base of the Heater
Hardware Used: None
Place the LP Tank/Cylinder onto the base of the heater and secure the Base to the Tank by evenly tightening the
3) M8x25 Bolts (I) which were originally preassembled to the 3 LPG Cylinder Brackets (H) which were thereafter
assembled to the inside floor of the base during Step #2. Once the bolts are secured against the base rim of the
Tank, lower the Tank Housing.
Caution: It is important to secure the cylinder tank to the heater base to ensure that the tank is not dislodged
if accidentally tipped over during severe weather or while being moved.
A minimum supply pressure of .5 psi is required for the purpose of input adjustment of propane gas. Storage of
an appliance indoors is permissible only if the cylinder is disconnected and removed from the appliance. A
cylinder must be stored outdoors in a well-ventilated area out of the reach of children. A disconnected cylinder
must have dust caps tightly installed and must not be stored in a building, garage, or any other enclosed area.
The minimum permissible gas supply pressure of 11 W.C. is required for purpose of hose adjustment. The
minimum hourly of 17,500 BTU is required input rating for a heater for automatic operation rating less than full
input rating.
The pressure regulator and hose assembly supplied with the appliance must be used.
The installation must conform with local codes, or in the absence of local codes, with national fuel gas code, ANSI
Z223.1/NFPA54, natural gas and propane Installation Code, CSA B149.1, or propane storage and handling code,
B149.2
A dented rusted or damaged propane cylinder may be hazardous and should be checked by your local cylinder
supplier. Never use a propane cylinder with a damaged valve connection.
The propane cylinder must be constructed and marked in accordance with the specifications for LP gas cylinders
of the U.S. Department of Transportation (DOT) or the standard for cylinders, spheres and tubes for
transportation of dangerous goods and commission, CAN/CSA-B339.
The cylinder must have a listed overfilling prevention device.
The cylinder must have a connection device compatible with the connection for the appliance.
The cylinder used must include a collar to protect the cylinder valve.
Never connect an unregulated propane cylinder to the heater.
Do not store a spare LP-gas cylinder under or near this appliance.
Never fill the cylinder beyond 80 percent full.
Place the dust cap on the cylinder valve outlet whenever the cylinder
is not in use. Only install the type of dust cap on the cylinder valve
that is provided with the cylinder valve. Other types of caps or
plugs may result in leakage of propane.
OPERATING INSTRUCTIONS
ASSEMBLY

17
Leak Test
1. Make 2-3 oz. of leak test solution (one part liquid dishwashing detergent and three parts water).
2. Apply several drops of solution where hose attaches to regulator.
3. Apply several drops of solution where regulator connects to cylinder.
4. Make sure all patio heater valves are OFF.
5. Turn cylinder valve ON.
IF BUBBLES APPEAR AT ANY CONNECTION, THERE IS A LEAK.
1. Turn cylinder valve OFF.
2. If leak is detected at hose/regulator connection, tighten connection and perform another leak test. If bubbles
continue to appear, call our customer service hotline at 1-866-985-7877, 9 a.m. –6 p.m., EST, Monday –
Friday.
3. If leak is detected at regulator/cylinder valve connection, disconnect, reconnect, and perform another leak
check. If you continue to see bubbles after several attempts, cylinder valve is defective. Call our customer
service hotline at 1-866-985-7877, 9 a.m. –6 p.m., EST, Monday –Friday
IF NO BUBBLES APPEAR AT ANY CONNECTION, THE CONNECTIONS ARE SECURE.
Note: Whenever gas connections are loosened or removed, you must perform a complete leak test.
Caution: Do not attempt to operate this appliance until you have read and understand all Safety Information in
this manual and all assembly is complete and leak checks have been performed.
Before Turning Gas Supply ON:
1. Your heater was designed and approved for OUTDOOR use only. Do NOT use it inside a building, garage, or
any other enclosed area.
2. Make sure surrounding areas are free of combustible materials, gasoline, and other flammable vapors or
liquids.
3. Ensure that there is no obstruction to air ventilation. Be sure all gas connections are tight and there are no
leaks.
4. Be sure the cylinder cover is clear of debris. Be sure any component removed during assembly or servicing is
replaced and fastened prior to starting.
Before Lighting:
1. Heater should be thoroughly inspected before each use, and by a qualified service person at least annually. If
re-lighting a hot heater, always wait at least 5 minutes.
2. Inspect the hose assembly for evidence of excessive abrasion, cuts, or wear. Suspected areas should be leak
tested. If the hose leaks, it must be replaced prior to operation. Only use the replacement hose assembly
specified by the manufacturer.
OPERATING INSTRUCTIONS

18
Lighting:
NOTE: NOTE: For initial start-up or after any cylinder change, hold the Control Knob in for 2 minutes to purge
air from all gas lines before proceeding. When lighting the burner make sure that the Control Knob is held in while
pressing the igniter button. The Control Knob can be released after the burner has been lit for 15-30 seconds.
1. Turn the Control Knob to the “OFF” position.
2. Fully open the LP cylinder valve.
3. Press and turn the Control Knob counterclockwise 90˚to the "HI" position.
While pressing inward on the Control Knob in the "HI" position also press and
hold the RED igniter button until the burner flame ignites.
(You should hear a rapid series of sparks when pressing the igniter button)
After the burner ignites you can release the RED igniter button but you MUST
continue to press inward on the Control Knob for an additional 15-30 seconds
to allow time to heat up the safety thermocouple which keeps the burner lit.
4. To increase the flame, turn the Control Knob towards "HI" and to decrease
the flame, turn the Control Knob towards "LO."
5. To turn the appliance OFF, push down the Control Knob and turn
clockwise to the "OFF" position.
6. Turn the gas cylinder valve to OFF or closed.
7. Wait at least 5 minutes before attempting to re-light the heater
If you experience any ignition problems, please consult “Troubleshooting” on page 21.
Caution: Avoid inhaling fumes emitted from the heater’s first use. Smoke and odor from the burning of oils used in the manufacturing will
appear. Both smoke and odor will dissipate after approximately 30 minutes. The heater should NOT produce thick black smoke.
When Heater is ON:
Emitter screen will become bright red due to intense heat. The color is more visible at night. Burner will display
tongues of blue and yellow flame. These flames should not be yellow or produce thick black smoke, indicating an
obstruction of airflow through the burners. The flame should be blue with straight yellow tops. If excessive yellow
flame is detected, turn off heater and consult “Troubleshooting” on page 21.
Re-Lighting:
Note: For your safety, the Control Knob cannot be turned OFF without first depressing the Control Knob and then
rotating to OFF.
1. Turn Control Knob to OFF.
2. Wait at least 5 minutes to allow gas to dissipate before attempting to re-light pilot.
3. Repeat the “Lighting” steps listed above on page 18.
Shut Down:
1. Turn Control Knob clockwise to OFF while depressing the knob.
(Normally, burner will make a slight popping noise when extinguished).
2. Turn cylinder valve clockwise to OFF and disconnect regulator when heater is not in use.
NOTE: After use, some discoloration of the emitter screen is normal.
OPERATING INSTRUCTIONS

19
Operation Checklist:
For a safe and pleasurable heating experience, perform this check before each use:
Before Operating:
1. I am familiar with entire owner’s manual and understand all precautions noted.
2. All components are properly assembled, intact and operable.
3. No alterations have been made.
4. All gas connections are secure and do not leak.
5. Wind velocity is below 10 mph.
6. Unit will operate at reduced efficiency below 40 degrees F.
7. Heater is for use outdoors (outside any enclosure).
8. There is adequate fresh air ventilation.
9. Heater is away from gasoline or other flammable liquids or vapors.
10. Heater is away from windows, air intake openings, sprinklers and other water sources.
11. Heater is at least 36 in. on top and at least 24 in. on sides from combustible materials.
12. Heater is on a hard and level surface.
13. There are no signs of spider or insect nests in heater orifices.
14. All burner passages are clear.
15. All air circulation passages are clear.
16. Children and adults should be alerted to the hazards of high surface temperatures and
should stay away to avoid burns or clothing ignition.
17. Young children should be carefully supervised when they are in the area of the heater.
18. Clothing or other protective material should not be hung from the heater, or placed on or near the heater.
19. Any guard or other protective device removed for servicing the heater must be replaced prior to operating
the heater.
20. Installation and repair should be done by a qualified service person. The heater should be inspected before
each use and at least annually by a qualified service person.
21. More frequent cleaning may be required as necessary. It is imperative that control compartment burner and
circulating air passageways of the heater be kept clean and free of debris and/or spider or insect nests.
After Operation:
1. Gas Control Knob is in OFF position.
2. Gas tank valve is OFF.
3. Disconnect gas line.
To enjoy years of outstanding performance from your heater, make sure you perform the following maintenance
activities on a regular basis:
Keep exterior surfaces clean.
1. Use soapy water for cleaning. Never use flammable or corrosive cleaning agents.
2. While cleaning your unit, be sure to keep the area around the burner and control compartment dry at all times.
Do not submerge the control valve assembly. If the gas control is submerged in water, do NOT use it. It must be
replaced.
3. Air flow must be unobstructed. Keep controls, burner, and circulating air passageways clean. Signs of possible
blockage include:
Gas odor with extreme yellow tipping of flame.
Heater does NOT reach the desired temperature.
Heater glow is excessively uneven.
CARE AND MAINTENANCE
OPERATING INSTRUCTIONS

20
Heater makes popping noise.
Spiders and insects can nest in burner or orifices. This dangerous condition can damage heater and
render it unsafe for use. Clean burner holes by using a heavy-duty pipe cleaner. Compressed air may help
clear away smaller particles.
Carbon deposits may create a fire hazard. Clean dome and burner screen with warm soapy water if any
carbon deposits develop.
Note: In a salt-air environment (such as near an ocean), corrosion occurs more quickly than normal. Frequently
check for corroded areas and repair them promptly.
TIP (FOR STAINLESS STEEL MODELS):
Use high-quality automobile wax to help maintain the appearance of your heater. Apply to exterior
surfaces from the post down. DO NOT apply to emitter screen or domes.
Storage:
Between uses:
Turn Control Knob OFF.
Disconnect LP source.
Store heater upright in an area sheltered from direct contact with inclement weather (such as rain, sleet,
hail, snow, dust and debris).
If desired, cover heater to protect exterior surfaces and to help prevent build-up in air passages. Never
leave LP cylinder exposed to direct sunlight or excessive heat.
Note: Wait until heater is cool before covering.
CAUTION: When using a patio heater cover or other material to cover the heater it is extremely important
to make sure that the heater is properly secured. A patio heater cover will tend to act as a “sail” potentially
causing the heater to blow over during severe winds.
Service:
Only a qualified service person should repair gas passages and associated components.
Caution: Always allow heater to cool before attempting service.
CARE AND MAINTENANCE
