Firmtech FZ200BS User manual

Zigbee USB
Serial Adapter
ABOUT FZ200BS
Zigbee 2006 Support
USB Interface
4dBi Dipole Antenna Provided
AT Command provided

FZ200BS Manual VERSION 0.1.0
2
(C) Copyright FIRMTECH Co., Ltd. 2005
All rights reserved
The products and operation descriptions contained herein shall be protected by copyright
law.
Any part or whole of products or operation description shall not be copied, reproduced,
translated, nor transformed into readable form by electronic device or machines, without
prior consent in writing by FIRMTECH Co., Ltd.
There might be some misprinting or technical faults in the products and operation
description which are subject to change without prior notice.
FCC Information to User
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
con-nected.
• Consult the dealer or an experienced radio/TV technician for help.
Caution
Modifications not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
FCC Compliance Information : This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation
IMPORTANT NOTE:
FCC RF Radiation Exposure Statement:
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance of
20 centimeters between the radiator and your body. This transmitter must not be co-located
or operating in conjunction with any other antenna or transmitter.

FZ200BS Manual VERSION 0.1.0
3
FIRMTECH Co., Ltd. 2005
Room B-606, Ssangyong IT Twin Tower, Sangdaewon-dong, 442-5, Jungwon-gu, Seongnam-si,
Gyeonggi-do, Korea 462-120
Homepage : www.firmtech.co.kr
Marketing Inquiry : [email protected]
Technical Support Inquiry : [e-mail]
Tel : [phone]
Fax : [phone]

FZ200BS Manual VERSION 0.1.0
4
What is zigbee?
1. Features of Bluetooth
1) Objectives of Zigbee : To realize Personal Wireless Communication for short distance and slow
speed with Low Power consumption and Low Cost, which is based on IEEE 802.15.4 Standard.
2) Frequency in Use : To use ISM(Industrial, Scientific, Medical) Band which does not require any
permission to use.
- 2.405 ~ 2.480 GHz: 16 channels in all nations (No.11 ~26 channel)
3) Transmission Rate
- 2.405 ~ 2.480 GHz: 250Kbps
4) Working distance
- Inside: 30m, Outside: 100m
5) Configuration
- Zigbee device is configured of Coordinator, Router and End Device.
- Coordinator configures Network
- Router expands Network
- End device participates in Network
- With 64bit address, can configure a maximum of 65536 Networks connected
6) Reliability
- Supports Network level and Device level using Authentication-Network Key and Link Key.
- Supports encrypted packet transmission using 128bit AES Encryption.
- Guarantees data reliability on the application layer using ACK option in APS Packet
- Guarantees data reliability on the physical layer using ACK option in MAC Packet.

FZ200BS Manual VERSION 0.1.0
5
2. Zigbee operation
< Zigbee Mesh network configuration>
1) Coordinator configures the Zigbee Network.
Coordinator communicates with Router and End Device.
2) Router expands Network by connecting Coordinator or other Routers.
3) End Device participates in Zigbee network and communicates with Router or Coordinator.

FZ200BS Manual VERSION 0.1.0
6
Products overview
FZ200BS can configure Zigbee network with low power consumption and low capacity by using
Zigbee stack.
Serial data transmission via USB interface is available
FZ200BS can be used in conjunction with the FZ100BS/FZ750BS/FZ750BC.
< Major features of FZ200BS>
1. Zigbee 2006 support
2. Mesh network support
3. USB Interface is configured as easy as installing a USB driver for the serial data input / output
available
4. Supports AT command, and control Devices by using the AT command.
5. Can check whether data is successfully transmitted or not by using ACK option.
6. By using Key Option, can obtain new Zigbee Network Routes so that data re-transmission is
possible even if finding the communication route is failed for the first time.
7. Use 2.400 ~ 2.4835 GHz(ISM Band) 15 channels (No.11 ~25 channel)
11 (0x0B): 2405MHZ, 12 (0x0C): 2410MHZ, 13 (0x0D): 2415MHZ,
14 (0x0E): 2420MHZ, 15 (0x0F): 2425MHZ, 16 (0x10): 2430MHZ,
17 (0x11): 2435MHZ, 18 (0x12): 2440MHZ, 19 (0x13): 2445MHZ,
20 (0x14): 2450MHZ, 21 (0x15): 2455MHZ, 22 (0x16): 2460MHZ,
23 (0x17): 2465MHZ, 24 (0x18): 2470MHZ, 25 (0x19): 2475MHZ,
26 (0x20): 2480MHZ
※ We request the new users of FZ200BS to read the information on this description carefully before
they start to use the products.
※ Please consult Firmtech.co., Ltd if you want to configure Zigbee Network using more than 30
devices of FZ200BS

FZ200BS Manual VERSION 0.1.0
7
FZ200BS Overview
(1) To configure the Zigbee network, set each device (FZ200BS) to Coordinator, Router and End
Device.
The initial factory set value of FZ200BS is set to Router.
(2) Do not use Broadcast accompanied by a lot of traffic in the Zigbee network unless it is vital to be
used.
It is not recommended to make a lot of traffic in the Zigbee network because it causes lots of trouble
when transmitting data and bothers to set the new route toward target devices.
(3) Do not set short time for data transmission in the Zigbee Network. The more nodes the Zigbee
Network has, the longer time for transmission time should be set.
Example.1) Zigbee Network Contribution using 10 FZ200BSs,
Set a time space to 2seconds for data transmission between FZ200BSs.
(set 2sec minimally per 10 FZ200BSs)
Example.2) Zigbee Network Contribution using 20 FZ200BSs,
Set a time space to 4seconds for data transmission between FZ200BSs.
(set 2sec minimally per 10 FZ200BSs*2=4sec)
It is not recommended to make a lot of traffic in the Zigbee Network.
It is not recommended to make a lot of traffic in the Zigbee network because it causes lots of trouble
when transmitting data and bothers to set the new route toward target devices.

FZ200BS Manual VERSION 0.1.0
8

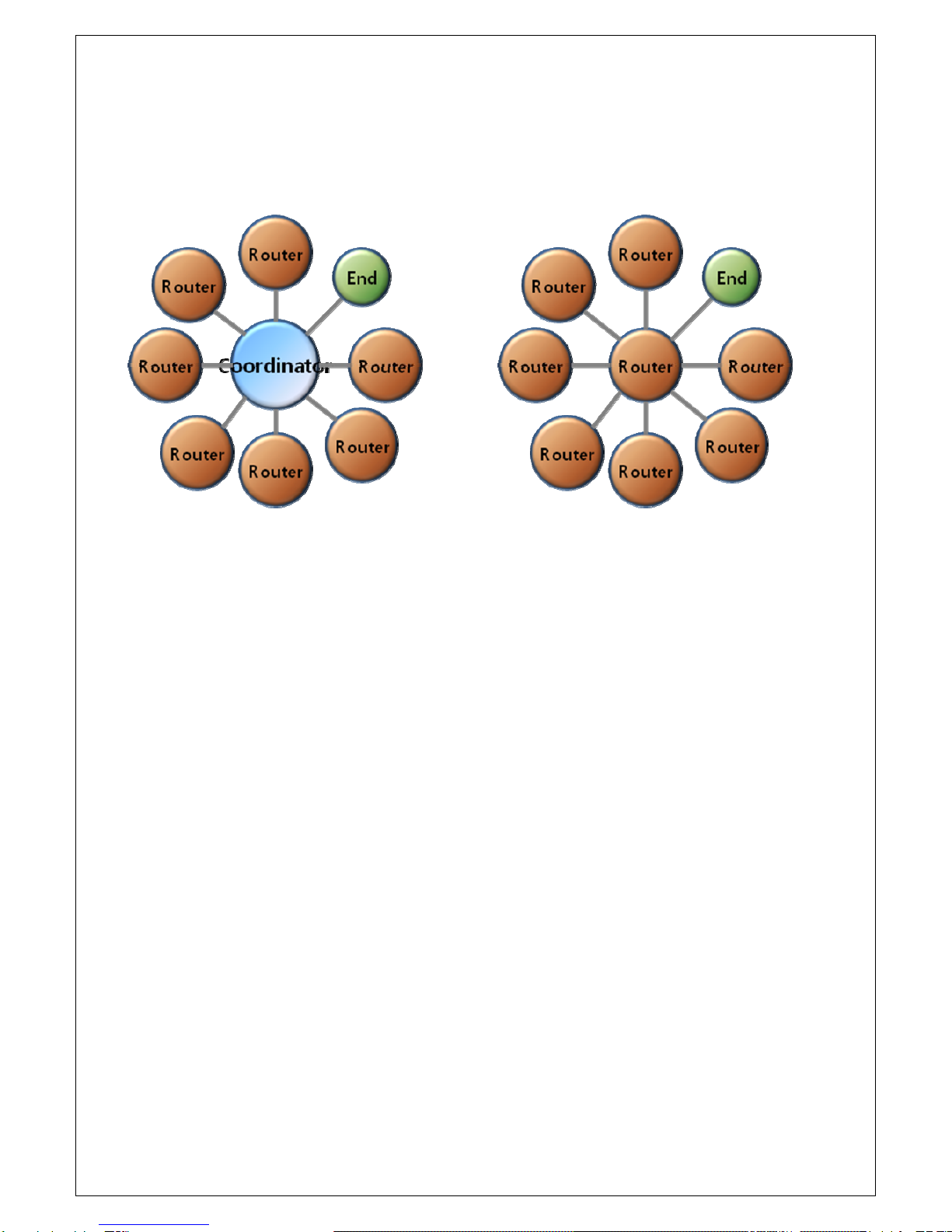

(4) Coordinator and Router can configure child nodes up to 8
(5) End Devices cannot configure Child nodes
Setting FZ200BS to End Devices should be prior to the Zigbee Network Configuration. If you want to
change the device type of FZ200BS from Router to End Device in the Zigbee Network, you had
better re-configure the whole Zigbee Network in advance.
FZ200BS can configure Child nodes after they are set to Routers and participated in the Zigbee
Network. Also, other devices can participate in the Zigbee Network by setting the FZ200BS set to
Routers to their parent nodes, as well. If you change the FZ200BS set to parent nodes to End
Devices, the current End Devices cannot configure child nodes. In this situation, it is possibly can
happen that other devices set the Routers to their parent nodes before the Routers are changed to
End devices.
FZ200BS supports mesh network, so you can expect the stable Zigbee Network. However, in order
to make sure of proper Zigbee Network configuration, FZ200BS of child nodes had better save
FZ200BSs set to Router (or coordinator) as their parent nodes.
Thus, you had better set the type of each Device (especially End Device) before the Zigbee Network
Configuration.

FZ200BS Manual VERSION 0.1.0
9
(6) FZ200BS can configure the Zigbee Network up to 4 Depth.
(7) FZ200BSC configures the Zigbee Network with one Coordinator.
(8) FZ200BS can transmit data by multipath because it supports mesh network.
Contribute the Zigbee Network which has multipath.
(9) If you input Serial data into FZ200BS, It transmits the Serial data to its target device.
(10) FZ200BS has STATUS LED for showing the status of the Device.
(OK Status LED, ERROR Status LED, Condition Status LED)
(11) When you transmit data by using FZ200BS, you need to check the result value for the transmission

FZ200BS Manual VERSION 0.1.0
10
through the OK/ERROR LED.
(12) FZ200BS has an IEEE ADDRESS and a NETWORK ADDRESS.
64 Bit IEEE ADDRESS is a physical address of FZ200BS.
Every device has its own IEEE ADDRESS and the IEEE ADDRESS is not changeable.
FZ200BS set target devices by using IEEE ADDRESS.
In conclusion, “target device set-up” is an inquiry using IEEE ADDRESS for NETWORK ADDRESS
of its target devices
FZ200BS has a 16 Bit of NETWORK ADDRESS for the Zigbee Network communication.
NETWORK ADDRESS is given when FZ200BS participates in the Zigbee Network.
NETWORK ADDRESS can be changed depending on the Zigbee Network Configuration.
NETWORK ADDRESS cannot be shown unless FZ200BS participates in the Zigbee Network.
FZ200BS performs data transmission by using NETWORK ADDRESS.
(13) If you configure the Zigbee Network and perform data transmission, the result value is shown as
[volume of received data > volume of transmitted data].
FZ200BS on a MAC layer automatically re-transmits data depending on the Zigbee Network
Configuration.
In case of using ACK option, FZ200BS on an application layer automatically re-transmits data
depending on the Zigbee Network Configuration. Thus, Received data could be more than 2
depending on the Zigbee network configuration even if only one data is transmitted.

FZ200BS Manual VERSION 0.1.0
11
※ < Routing table update of FZ200BS >
Routing table is assigned to each FZ200BS after the Zigbee Network Configuration.
Below is the Zigbee network status when data is transmitted from Router2 to Router1
to Coordinator.
Data is input into Router2, the Router2 transmits the data to Router1, and then the
Router1 transmits the data to Coordinator. Consequently, the data inputted into
Router2 is transmitted to Coordinator by routing table belonging to Router2 and
Router1
If Router 1 is in abnormal status in the Zigbee Network, Router2 cannot
transmit data, and shows its error status through ERROR port.
When ACK Option is disabled (NACK communication) of FZ200BS, Device is
automatically reset and Router2 creates a new routing table if the Router2
happens to show its error status 5times successively through the error port
because of the abnormal Router1. Multipath set-up is required ahead of the
time to update the routing table.
When the ACK Option of FZ200BS is enabled (ACK communication), users
should control the routing table directly to update it. If the data transmission is successively failed,
users need to reset its target device’s address (same as the existing one) and the Device.

FZ200BS Manual VERSION 0.1.0
12
■ List of contents
IMPORTANT NOTE:.......................................................................................................................................................2
FCC RF RADIATION EXPOSURE STATEMENT:......................................................................................................2

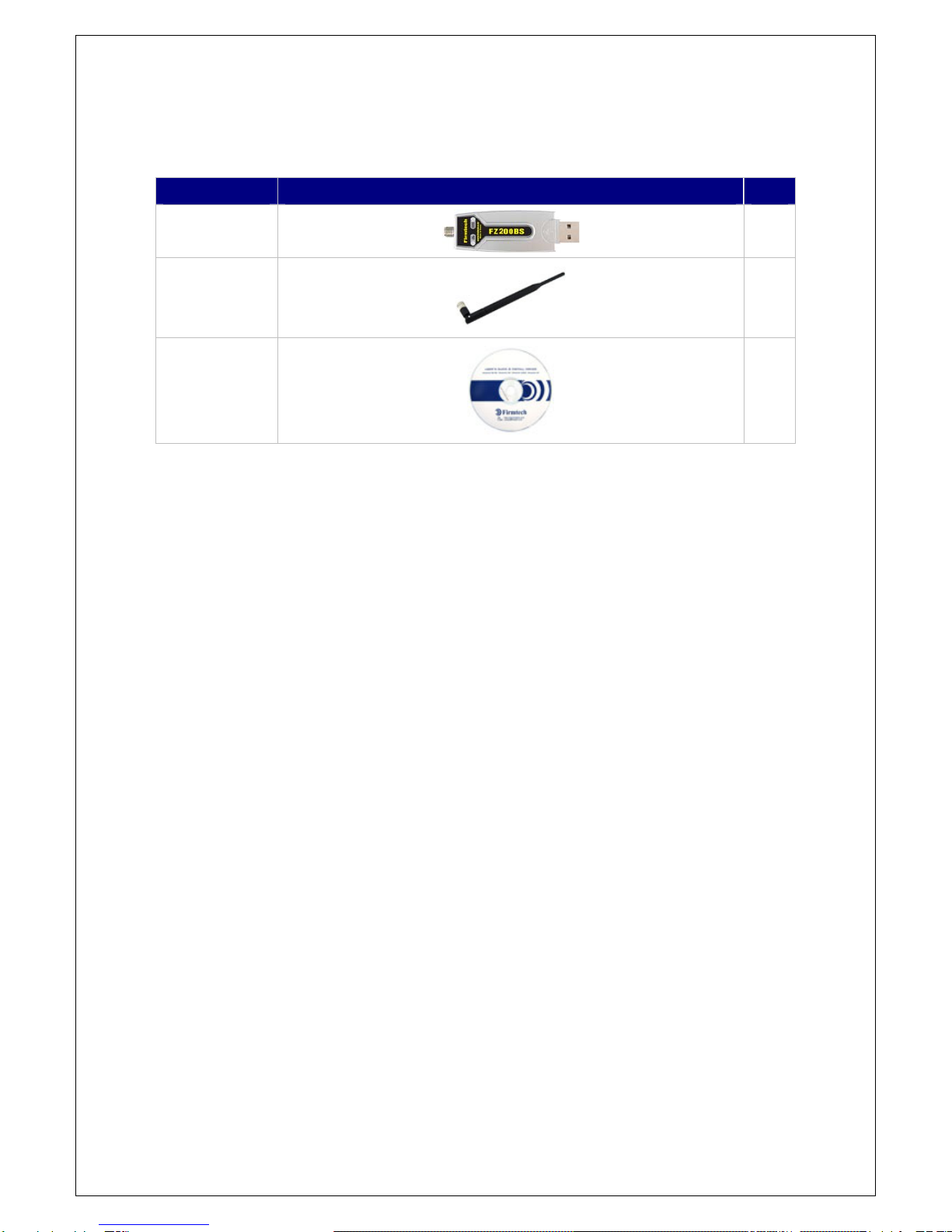

1. PRODUCT COMPONENTS ......................................................................................................................................13

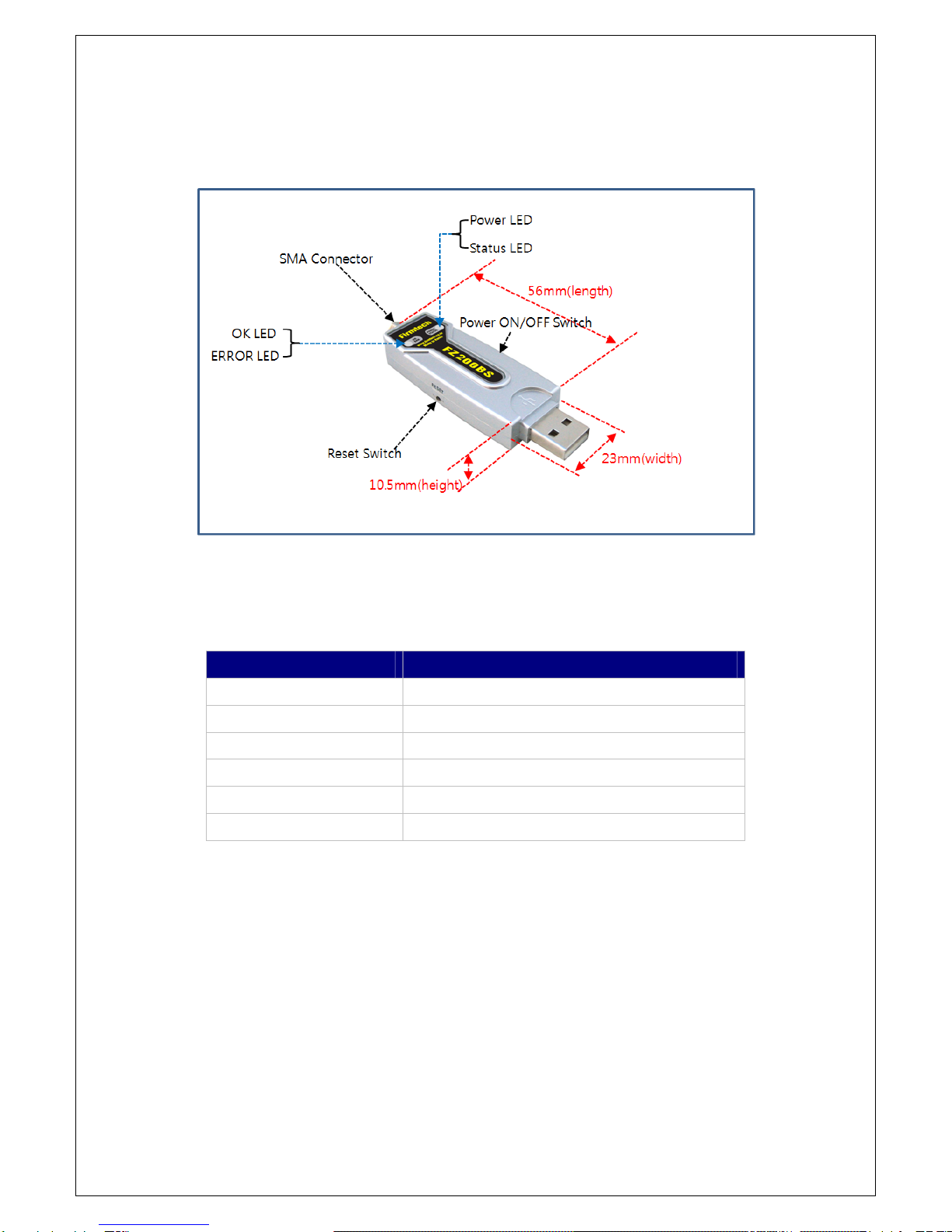

2. PRODUCT APPEARANCE........................................................................................................................................14
3. USB INTERFACE.......................................................................................................................................................14
4. DIP SWITCH & INTERFACE SOCKET ...................................................................................................................15
5. LED INDICATION / RESET SWITCH......................................................................................................................16
6. PRODUCT PERFORMANCE ....................................................................................................................................17
7. CURRENT CONSUMPTION .....................................................................................................................................17
8. SET VALUE OF PRODUCT......................................................................................................................................17
9. USES GUIDE..............................................................................................................................................................18
9-1. SERIAL COMMUNICATION (HYPER TERMINAL) PROGRAM EXECUTE......................................................................19
9-2. SET-UP FZ200BS DEVICE TYPE ........................................................................................................................21
9-2-1. FZ200BS End Device Set-up..............................................................................................................22
9-2-2. FZ200BS Router Set-up.......................................................................................................................23
9-2-3. FZ200BS Coordinator set-up..............................................................................................................24
9-3. THE ZIGBEE NETWORK CONFIGURATION..............................................................................................................25
9-3-1. The Zigbee Network configuration.....................................................................................................25
9-3-2. Zigbee Network Extension ...................................................................................................................25
9-3-3. Zigbee Network Participation ..............................................................................................................26
9-4. TARGET DEVICE SET-UP.......................................................................................................................................26
9-4-1. Searching for an IEEE ADDRESS of Coordinator ...........................................................................27
9-4-2. Target device set-up ............................................................................................................................27
9-5. SERIAL DATA TRANSMISSION................................................................................................................................28
10. FZ200BS MANAGEMENT TIP ...............................................................................................................................30
10-1. FZ200BS DEVICE TYPE SET-UP ......................................................................................................................30
10-2. ZIGBEE NETWORK CONFIGURATION ...................................................................................................................30
10-3. [SET-UP] TARGET DEVICE & TRAFFIC ...............................................................................................................31
10-4. START MESSAGE...........................................................................................................................................32
10-5. RESET OPTION...............................................................................................................................................34

FZ200BS Manual VERSION 0.1.0
13
1. Product components
Model Name Pictures Q’ty
FZ200BS
1EA
WE – 2405TO
1EA
CD
1EA
※ If you find any of above components is defective, or not included in the package, please contact
the seller you purchased.

FZ200BS Manual VERSION 0.1.0
14
2. Product Appearance
< Figure 2 Details and Dimension of FZ200BS >
3. USB Interface
Signal Name Description
STATUS (DCD) Status Indication
TX Transfer Data(Data Output)
RX Received Data(Data Input)
GND Ground
ERROR (DTR) Status Indication
OK (RTS) Status Indication

FZ200BS Manual VERSION 0.1.0
15
4. Dip Switch & Interface Socket
번호 FEATURES ON OFF BASIC SET
1 Do not use - - -
2 Do not use - - -
3 Firmware Download
Select
Firmware Download
Mode Operation Mode OFF
4 Do not use - - -
<Table 4-1 Features of Dip Switch >
NO. Port Description
1 VCC(3.3V) 3.3V Output Port
2 ADC Analog Data Input Port
3 GPIO_0 Digital Data Input / Output Port
4 GPIO_1 Digital Data Input / Output Port
5 GPIO_2 Digital Data Input / Output Port
6 GPIO_3 Digital Data Input / Output Port
7 GPIO_4 Digital Data Input / Output Port
8 GPIO_5 Digital Data Input / Output Port
9 GPIO_6 Digital Data Input / Output Port
10 GPIO_7 Digital Data Input / Output Port
11 GND Ground
12 KEY Digital Data Input Port
< Table 4-2 Features of Interface Socket >

FZ200BS Manual VERSION 0.1.0
16
5. LED Indication / Reset Switch
LED State Description
Power LED Power Input Red Power LED is lit.
Create a network or networks involved
in the case, Status LED flashes about
one second intervals.
Network Creation
or Participation Did not create the network or the
network did not participate in the
case, Status LED blinks rapidly.
If the target is set, the Status LED is
lit
Target Setting If you have not set a target of
approximately 1 second intervals
Status LED blinks.
Status LED
Check the
Operation Mode
AT Command Mode is turned off if
the Status LED
Check data
transmission
If data transmission is completed, the
OK LED blinks once.
OK LED Check the
Operation Mode
AT Command Mode if the OK LED is
lit.
Check data
transmission
If you did not complete the data
transmission has ERROR LED flashes
once
STATUS LED
ERROR LED
Check the
Operation Mode
AT Command Mode if the ERROR LED
is lit.

FZ200BS Manual VERSION 0.1.0
17
6. Product Performance
List Specification
Zigbee Spec. Zigbee 2006 Specification Support
Communication Distance 120 M
Frequency Range 2405~2480MHz
Sensitivity -98 dBm
Transmit Power 6 dBm
Input Power 5V
Current Consumption 00 mA (Max)
Operating Temperature -20 ℃ - +50 ℃
Max Operating Temperature -30 ℃ - +80 ℃
Communication Speed 9,600 bps ~ 230,400 bps
Antenna Dipole Antenna (4 dBi)
Interface USB
7. Current consumption
Current Consumption
Device type Low Power
Consumption mode Data transmission
Coordinator - 40mA
Router - 40mA
Wake-up - 40mA
Low power consumption mode1 2mA -
Low power consumption mode2 2mA -
End Device
Low power consumption mode3 2mA -
8. Set value of Product

FZ200BS Manual VERSION 0.1.0
18
List Initial set value
Device Name FZx00 Vx.x.x
Device Type ROUTER
Device Channel 0B
Device Transmit Power 00
UART (baud rate-data bit-parity bit-stop bit) 115200 (8, N, 1 fixed)
KEY Option 0(Disable)
ADC Option 0(Disable)
Count Option 0(Disable)
GPIO Option 0(Disable)
Internal Time 10
ACK Option 0(Disable)
Retry Option 9
Power Mode 1
Reset Option 0(Disable)
Target Device Address 0000000000000000
Link Quality Option 0(Disable)
Start Message Option 1(Enable)
Debug Message Option 0(Disable)
Battery Low Option 0(Disable)
Quick Low Power Entry 0(Disable)
To change the set values of FZ200BS, use PC Software (Window HyperTerminal, Firmtech
configuration program) after connecting FZ200BS to PC with AT Command.
Note: Please, refer to the contents in “9. Uses Guide” or “FZx00_Appendix_2_GUI” for further
information on Set-up Modification.
9. USES GUIDE
The following is a procedure for FZ200BS Set-up using Serial communication (HyperTerminal)

FZ200BS Manual VERSION 0.1.0
19
Program.
The signal speed of FZ200BS is basically 115200bps.
9-1. Serial Communication (Hyper Terminal) Program Execute
FZ200BS first power ON. Using a USB virtual COM Port FZ200BS By using the device's power is not ON
unless you can not run the HyperTerminal.
Select [Start][All Programs][Accessories][Communication][Hyper Terminal] in order, and
then a window for Connection Set-up comes up. Put a name in the name blank, and click the OK
button.
When a window for Connection target comes up, select COM ports connected to FZ200BS, and click
the OK button.

FZ200BS Manual VERSION 0.1.0
20
Select each blank as below “Bit/sec: 115200, data Bit: 8, Parity: None, Stop Bit: 1, Flow Control: None”,
and click the OK button. Hyper Terminal is executed.
Hyper Terminal simply does not show any letters inputted.
If you check on “Echo typed characters locally” to get to know what letters are inputted, the
Recommends between FZ200BS and Hyper Terminal are mixed up. Do not check this.
