FISCHER DELTASCOPE FMP10 User manual

DELTASCOPE®FMP10
ISOSCOPE®FMP10
DUALSCOPE®FMP20
Guidelines
Coating Thickness Material TestingMicrohardnessMaterial Analysis

Order number: Version 1.0
901-095 08/08
Table of Contents
1 Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
2 Areas of Application . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
3 Description of the Instrument . . . . . . . . . . . . . . . . . . . 3
3.1 LCD Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
3.2 Control Panel Key Functions . . . . . . . . . . . . . . . . . . . . 5
4 Probe handling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
5 The Path to the First Measurement . . . . . . . . . . . . . 6
6 System Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
6.1 Install the batteries/rechargeable batteries . . . . . . . . . . 7
6.2 Probe connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
6.3 Instrument On/Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
7 Adjusting Instrument and Probe . . . . . . . . . . . . . . . 11
7.1 Assigning a New Probe . . . . . . . . . . . . . . . . . . . . . . . . 11
7.2 Normalization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
7.3 Corrective Calibration . . . . . . . . . . . . . . . . . . . . . . . . . 13
7.4 Reference Measurements . . . . . . . . . . . . . . . . . . . . . . 16
8 Measuring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
9 Service Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Please study the safety information in the operator’s
manual as well.
Observe the warnings and hints in the operator’s manual
in order to avoid injury and damage to the instrument!

Brief Guide FMP10 / FMP20 Page 1
Notes
1Notes
This brief guide offers a first, brief overview of your instrument's operation and
provides quick steps towards your first measurement results. An extensive oper-
ator's manual can be found on the CD-ROM that is supplied with the instrument.
The following symbols are used in this brief guide.
Indicates safety information referring to danger for per-
sons and warnings regarding damage to the measuring
instrument or to accessories.
Indicates particularly important information and hints.
Indicates a reference to a page or chapter in this guide.

Page 2 Brief Guide FMP10 / FMP20
Areas of Application
2 Areas of Application
The instrument is used for coating thickness measurements.
The following table lists the measurement methods that are used in the various
FMP instruments.
The instrument has the capability of setting up up to 1000 readings to save.
Instrument Area of application Measurement method /
Probe type
DELTA-
SCOPE
Determination of the thickness of non-magnetic
coatings onsteeloriron. E.g,chrome,copper,zinc
as well as paint, lacquer, enamel or plastic coat-
ings on steel or iron.
Magnetic Induction Method
According to DIN EN ISO
2178.
Probe: e.g., FGAB1.3
ISO-
SCOPE
Determination of the thickness of electrically non-
conducting, non-magnetic coatings on non-ferro-
magnetic electrically conducting base materials.
Paint, lacquer or plastic coatings on, for example,
aluminum, copper, zinc, etc. as well as anodized
coatings on aluminum.
Amplitude-Sensitive Eddy
CurrentMethodAccordingto
DIN EN ISO 2360.
Probe: e.g., FTA3.3
DUALSCOPE
Determination of the thickness of non-magnetic
coatings onsteel oriron. E.g,chrome,copper,zinc
as well as paint, lacquer, enamel or plastic coat-
ings.
Magnetic Induction Method
According to DIN EN ISO
2178.
Probe: e.g., FD10
Determination of the thickness of electrically non-
conducting, non-magnetic coatings on non-ferro-
magnetic electrically conducting base materials.
Paint, lacquer or plastic coatings on, for example,
aluminum, copper, zinc, etc. as well as anodized
coatings on aluminum.
Amplitude-Sensitive Eddy
CurrentMethodAccordingto
DIN EN ISO 2360.
Probe: e.g., FD10

Brief Guide FMP10 / FMP20 Page 3
Description of the Instrument
3 Description of the Instrument
Fig. 3-1 Front and rear view of the instrument, connections
1 Probe connector socket,
Page 8
2 LCD Display, Page 4
3 Keys for directly retrieving
functions, Page 5
4 USB port for connecting a
PC
5 ON/OFF key to turn the in-
strument on or off,
Page 9
6 Cover; additional function
keyscanbefoundunderthe
cover, Page 5
7 Non-slip rubber supports
8 Foldable instrument stand
9 Battery compartment,
Page 7
1
2
3
4
5
6
7
8
9
7

Page 4 Brief Guide FMP10 / FMP20
Description of the Instrument
3.1 LCD Display
The LCD display consists of several display elements.
When powering up the instrument using ON/OFF, all
display elements will appear briefly at the same time.
Display
element Explanation
A normalization is performed (on the uncoated specimen =
base material).
A calibration is carried out.
The measurement uses the magnetic induction method.
The measurement uses the eddy current method.
Padlock:
Restricted operating mode is enabled, i.e., the keys ZERO and
CAL are not active, the service functions cannot be retrieved.
Arrow circle: “Free-running” display is enabled, measurements
are displayed continuously when the probe is placed on the
specimen
Alternatively:
Area measurement display
Automatic measurement display
-8.8.8.8 Numeric elements for presenting readings, errors and warning
messages.
Unit of measurement for the displayed reading.
Battery: The battery must be replaced or the rechargeable bat-
tery must be charged because the voltage has dropped below a
minimum value.

Brief Guide FMP10 / FMP20 Page 5
Description of the Instrument
3.2 Control Panel Key Functions
Hourglass: Measurements are currently not possible because
an instrument-internal routine is running.
...SCOPE ...
FKA...
Information lines:
Instrument type
Instrument-internal software version
Key Function
DEL zDeletes the last measured reading
zReturns to the previous menu or
zCancels the procedure
FINAL-RES Retrieves the final result
ON/OFF Turns the instrument on and off
ZERO Retrieves the normalization
CAL Retrieves the corrective calibration
∧zChanges the information shown on the LCD display.
zThe display will change faster if ∧is pressed for longer than
3 seconds.
∨zChanges the information shown on the LCD display.
zTurns the “free-running” display mode on/off.
zThe display will change faster if ∨is pressed for longer than
3 seconds.
SEND Transfers the values to a connected computer.
ENTER Confirms entries
5 x ENTER: Calls the service functions
The instrument settings in the Service Functions menu are
password-protected. “157” will be displayed after pressing EN-
TER 5 times. Press ∧2 times to increase this value to the fac-
tory-default password “159” and confirm the entry with
ENTER.
Display
element Explanation

Page 6 Brief Guide FMP10 / FMP20
Probe handling
4 Probe handling
5 The Path to the First Measurement
zInstrument Start Up ( 6 ‘System Setup’, beginning on Page 7)
insert the batteries, connect the probe and turn on the instrument
zAdjust the instrument and probe to the base material to be measured
(7 ‘Adjusting Instrument and Probe’, beginning on Page 11) Normaliza-
tion and Calibration
zMake measurements on the specimen ( 8 ‘Measuring’, beginning on
Page 16)
zAlways hold the probe at its grip sleeve (right figure).
zAlways place the probe gently and at a right angle on
the specimen surface.
zSlide the grip sleeve to the specimen surface such that
the sleeve rests on the specimen (center and bottom
Figure, right).
zWith the default setting, a beep will signal the mea-
surement capture.
zLift the probe off the specimen before making the
next measurement.
Avoid hard impacts.
Do not allow the probe to hover directly above
the surface. Doing so will lead to erroneous
readings.
Do not bend the probe connector cable! Doing
so can lead to broken wires.

Brief Guide FMP10 / FMP20 Page 7
System Setup
6 System Setup
6.1 Install the batteries/rechargeable batteries
Fig. 6-1 Installing batteries
Use only type MIGNON, 1.5 V, LR6 - AA - AM3 - MN1500 batteries or 4
individual rechargeable batteries 1.2 V 2400 mAh Type AA.
Using other batteries may lead to instrument damage.
Use only non-damaged batteries/rechargeable batteries.
If the battery voltage is too low, the instrument will turn off
automatically!
1.
-
+
---
+++
LR6 1.5V LR6 1.5V
LR6 1.5V
LR6 1.5V
Observe the cor-
rect polarity when
installing the bat-
teries.
2.
3.

Page 8 Brief Guide FMP10 / FMP20
System Setup
6.2 Probe connection
A measurement probe must beconnected to the instrument to make coating thick-
ness measurements. This must be an appropriate probe suitable for the base ma-
terial.
Fig. 6-2 Connecting a probe
Connect probes only when the instrument is off!
To turn the instrument off: Press the ON/OFF key on the right side of the
control panel. The LCD display is not backlit and no characters are visi-
ble.
Protect the instrument and accessories from electrostatic
charges!
Electrical discharges may damage internal components or
delete internal memories.
Such discharges may occur, for example, when connecting the probe to
the instrument. Thus, please ensure that the person connecting a probe
is properly grounded.
It is recommended to store the instrument with the connected probe.
1.
Probe connector plug
Connector socket
Instrument
2.

Brief Guide FMP10 / FMP20 Page 9
System Setup
6.3 Instrument On/Off
Turning the instrument on

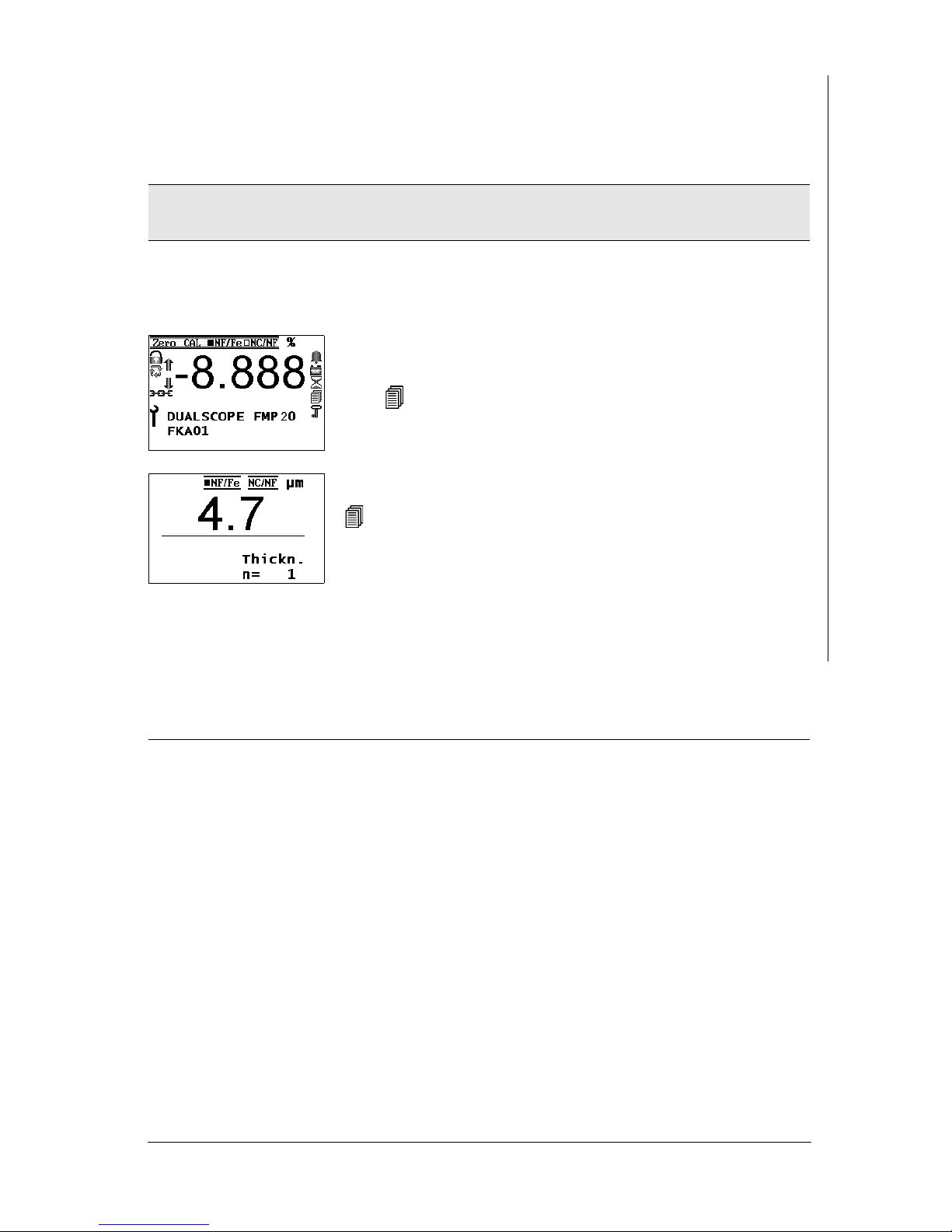

Detail of the LCD
display Explanation
Press the ON/OFF key to turn on the instrument.
An audible signal will sound.
A monitoring routine will run automatically. All display ele-
ments of the LCD display will appear briefly at the same
time ( Page 4).
At the end of the monitoring routine, the instrument is
ready to make measurements. The icon of the measure-
ment method of the connected probe is displayed
( Page 10).
[μm] or [mm] or [mils]:
Unit of measurement for the displayed reading
[Thickn.]: Measurement program “Coating thickness”
(alternative display options can be set from the service
functions in menu option Measurement/Display)
[n=]: Number of the stored measurements

Page 10 Brief Guide FMP10 / FMP20
System Setup
Measurement Method of the Connected Probe
Turning Off the Instrument
Press the ON/OFF key to turn the instrument off manually.
Theinstrument shutsdown automatically ifforabout 5minutes no measurements
are made or no key is pressed.
Display Explanation
[NF/Fe] Magnetic induction probe connected.
[NC/NF] Eddy current probe connected
[NF/Fe NC/NF] Dual probe connected and dual method [both] set (i.e., in
the open application, both measurement methods can be
used to make measurements).
[NF/Fe NC/NF] Dual probe connected and dual method [NF/Fe] set (i.e.,
in the open Application, only the magnetic induction meth-
od can be used to make measurements). Or: The probe
was last placed on an Fe base material.
[NF/Fe NC/NF] Dual probe connected and dual method [NC/NF] set (i.e.,
in the open Application, only the eddy current method can
be used to make measurements).
Or: The probe was last placed on an NF base material.

Brief Guide FMP10 / FMP20 Page 11
Adjusting Instrument and Probe
7 Adjusting Instrument and Probe
The following options exist after the instrument is turned on:
1. The instrument recognizes the connected probe. The measurement screen
appears on the LCD display. The display of the measurement method does
not flash. In this case, you can start immediately making measurements.
2. If the instrument is turned on and a probe other than the one used last is
connected, the following display will appear: “W006 Probe changed”. The
probe must be assigned ( Chapter 7.1).
7.1 Assigning a New Probe

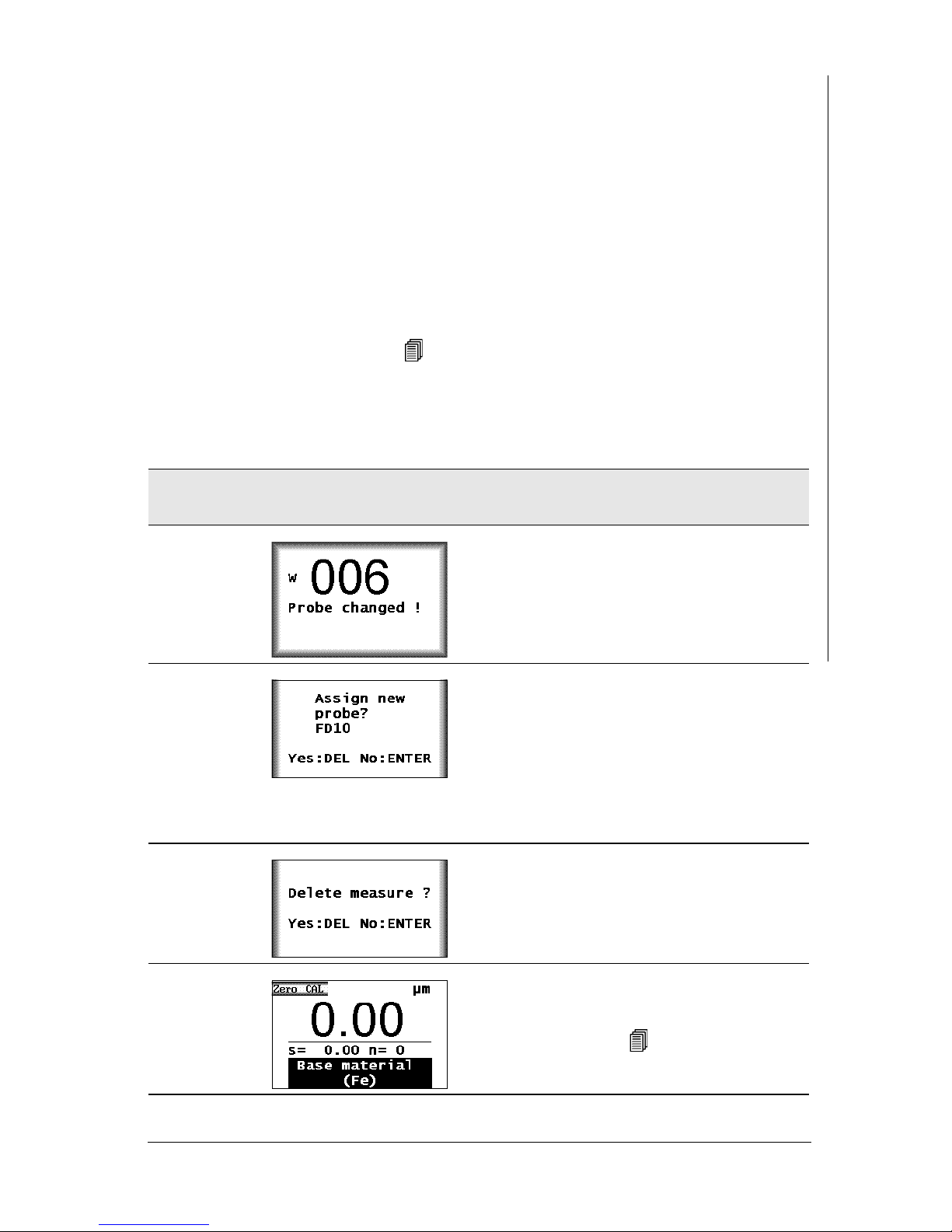

Key sequ. /
Action Detail of the LCD display Explanation
This warning appears briefly after power-
up if a probe other than the last one used
is connected to the instrument.
After a brief time, the display to the left will
appear.
Example: FD10 = Name of the connected
probe
DEL: Probe assignment starts
ENTER: Probe will not be assigned, mea-
surement method display flashes
DEL DEL: All stored readings will be deleted.
ENTER: The probe will not be assigned,
measurement method display continues to
flash
ZERO and CAL appear on the display. A
normalization and a corrective calibration
must be performed (beginning on
Page 12).

Page 12 Brief Guide FMP10 / FMP20
Adjusting Instrument and Probe
7.2 Normalization
With the normalization, a new zero point is established for the calibration curve
and stored in the instrument.
Required materials
Reference part: Uncoated part from the production.
Procedure
Key sequ. /
Action Detail of the LCD display Explanation
ZERO Use ZERO to start the normalization.
ZERO appears and remains on the LCD
display while the normalization is per-
formed.
[s]: Standard deviation
[n]: Number of measurements
[Base material (Fe/NF)]: Measurements
should be performed on an uncoated spec-
imen (Fe or NF display for the type of base
material).
When using dual probes, the type of base
material will be displayed only after the 1st
measurement is completed.
Perform measurements on the uncoated
specimen (base material).
Make measurements at various points of
the reference area.
The mean value of all readings obtained
for the normalization will be displayed.
ENTER A confirmation indicating that the normal-
ization has been carried out successfully
appears.
Pressing ENTER confirms the message.

Brief Guide FMP10 / FMP20 Page 13
Adjusting Instrument and Probe
7.3 Corrective Calibration
Options
One-point calibration with one calibration standard: A new zero point and
one additional point are established for the calibration curve and stored in the in-
strument.
Two-point calibration with two calibration standards: A new zero point and
two additional points are established for the calibration curve and stored in the
instrument.
Required materials
zReference part (uncoated part from the production)
zCalibration Standards
Selecting the Calibration Standards for the Corrective Calibration
A corrective calibration using the calibration standards included with the probe
shipment provides the best measuring precision for the entire measurement range
of the probe.
ENTER The new characteristic will be computed
automatically and stored. The instrument
is again ready to make measurements.
Key sequ. /
Action Detail of the LCD display Explanation

Page 14 Brief Guide FMP10 / FMP20
Adjusting Instrument and Probe
Procedure
Key sequ. /
Action Detail of the LCD display Explanation
CAL Use CAL to start the corrective calibration.
CAL appears and remains on the LCD dis-
play while the corrective calibration is per-
formed.
[s]: Standard deviation
[n]: Number of measurements
[base material (Fe/NF)]: Measurements
should be performed on an uncoated spec-
imen (Fe or NF display for the type of base
material), i.e., a Normalization is carried
out.
When using dual probes, the type of base
material will be displayed only after the 1st
measurement is completed.
Perform measurements on the uncoated
specimen (base material) (normalization).
Make measurements at various points of
the reference area.
The mean value of all readings obtained
for the normalization will be displayed.
ENTER [Entry: ∧∨]: Use the arrow keys to set the
nominal thickness value of the calibration
standard. The rated value is printed onto
the calibration standard.
The rated value can be set faster if a mea-
surement is performed on the calibration
standard and then the rated value is cor-
rected using the arrow keys.
[CAL Nom. v. 1: 23.70]: Display of the set
rated value for the thickness of the calibra-
tion standard (Example: 23.7 µm)

Brief Guide FMP10 / FMP20 Page 15
Adjusting Instrument and Probe
Place the calibration standard 1 (in the ex-
ample with a thickness of 23.7 µm) on the
uncoated specimen and perform measure-
ments.
Make individual measurements at various
points of the reference area. Displayed is
the mean value of all measurements per-
formed for this step.
∧or ∨[Entry: ∧∨]: Use the arrow keys to set the
nominal thickness value of the calibration
standard. The rated value is printed onto
the calibration standard. The rated value
can be set faster if a measurement is per-
formed on the calibration standard and
then the rated value is corrected using the
arrow keys.
This step is not required if - as shown in
the example - the rated value for the thick-
ness of the calibration standard coincides
with the stored thickness.
ENTER If a corrective calibration is desired with 2
standards, proceed in the same manner
with calibration standard #2.
Otherwise: Use ENTER to end the correc-
tive calibration.
The new characteristic will be computed
automatically and stored.
The instrument is again ready to make
measurements.
ENTER A confirmation indicating that the correc-
tive calibration has been carried out suc-
cessfully appears.
Pressing ENTER confirms the message.
Key sequ. /
Action Detail of the LCD display Explanation

Page 16 Brief Guide FMP10 / FMP20
Measuring
7.4 Reference Measurements
zPerform several reference measurements by measuring the thickness of a
calibration standard placed on the uncoated reference area in order to verify
a correct normalization or corrective calibration. The thickness of the stan-
dard should be close to the nominal thickness value of the coating to be mea-
sured.
zIf the obtained mean value is within the guaranteed error limits stated on the
foil, delete the readings of the reference measurement before starting with
the measurements on your specimens.
zIf the mean value is not within the guaranteed error limits, perform a correc-
tive calibration, or repeat the corrective calibration, respectively.
8 Measuring
To make a measurement, place the probe at a right angle on thespecimen surface.
The probe can be lifted off after the measurement acquisition, i.e., after the read-
ing appears on the LCD display. The instrument is again ready to make measure-
ments.
Observe the following during the measurement:
zMeasurements should be made within the reference area.
zTo avoid erroneous readings, do not allow the probe to hover above the spec-
imen.
zHow high the probe should be lifted off depends on the measurement range
of the probe. To obtain a correct air value, the distance to the specimen
should be at least 3 to 4 times the max. measurable coating thickness.
zTo allow sufficient time for a measurement acquisition, the time between
individual measurements must be greater than 0.5 seconds.
The information stated in the operators's manual must be
observed when making measurements!

Brief Guide FMP10 / FMP20 Page 17
Service Functions
9Service Functions
How to access the “Service function” menu
How to exit the “Service functions” menu
Key sequ. /
Action Detail of the LCD display Explanation
ON/OFF
5 x ENTER Use ON/OFF to turn the instrument on After pressing ENTER 5 times, the identifi-
cation number 157 appears on the LCD
display.
2 x ∧Enter the identification number 159 by
pressing the arrow key ∧2 times.
Use ENTER to confirm the setting.
ENTER The Service settings menu will be dis-
played.
Press the arrow keys ∧or ∨to select the
desired service function.
Key sequ. /
Action Explanation
DEL Press the DEL key to exit the Service func-
tions menu.
The instrument is ready to make measure-
ments.
