USER GUIDE
NZ AU GB IE
FREESTANDING COOKER
OR90SDG6 & OR90SCG6 models

Do not store or use gasoline or other flammable
vapours and liquids in the vicinity of this or any
other appliance.
NEVER use this appliance as a space heater to
heat or warm the room. Doing so may result in
carbon monoxide poisoning and overheating of
the appliance.
WHAT TO DO IF YOU SMELL GAS
yDo not try to light any appliance.
yDo not touch any electrical switch.
yDo not use any phone in your building.
yImmediately call your gas supplier from a
neighbour’s phone. Follow the gas supplier’s
instructions.
yIf you cannot reach your gas supplier, call the
fire department.
Installation and service must be performed by
a qualified installer, service agency or the gas
supplier.
WARNING!
If the information in this manual is not
followed exactly, a fire or explosion may
result causing property damage, personal
injury or death.
!

1
CONTENTS
IMPORTANT!
SAVE THESE INSTRUCTIONS
The models shown in this user guide may not be available in all markets and are subject to change at
any time. For current details about model and specification availability in your country, please visit our
website listed on the back cover or contact your Fisher & Paykel dealer.
Safety and warnings 2
Introduction 9
First use 11
Cooking guide 18
Oven functions 20
Cooking charts 24
Setting the timer 30
Auto Cook 32
Using the rotisserie 36
Locking the oven controls 38
User preference settings 40
Sabbath Mode 42
Using your gas cooktop 44
Cooking guidelines and cookware 47
Using the warming drawer 49
Care and cleaning 50
Using the Self Clean function 62
Troubleshooting 65
Alert codes 70
Warranty and service 72
Energy guidelines (GB IE only) 74

2
SAFETY AND WARNINGS
!WARNING!
Explosion Hazard
Failure to follow this advice may result in
death or serious injury.
• Do not store flammable materials such as
gasoline near the cooktop.
• Do not use or store flammable materials
in the appliance drawer or near this
appliance
• Do not spray aerosols on the vicinity of
this appliance while it is in operation.
!WARNING!
Electrical Shock Hazard
Failure to follow this advice may result in
electrical shock or death.
• Switch the cooker off at the wall before
replacing fuses or the oven lamp.
!WARNING!
Poisoning Hazard
Failure to follow this advice may result in
poisoning or death.
• Do not use this appliance as a space
heater. Doing so may result in carbon
monoxide poisoning and overheating of
the appliance.

3
SAFETY AND WARNINGS
!WARNING!
Cut Hazard
Failure to use caution could result in injury
or cuts.
• Take care - some edges are sharp.
!WARNING!
Fire Hazard
Failure to follow this advice may result in
overheating, burning, and injury.
• Never leave the cooktop unattended when
in use. Boilover causes smoking and greasy
spillovers that may ignite.
• Do not place aluminium foil, dishes, trays,
water or ice on the oven floor during
cooking, as doing so will irreversibly
damage the enamel; lining the oven with
aluminium foil may even cause fire.
• Never use your appliance for warming
or heating the room. Persons could be
burned or injured or a fire could start.
• Storage in or on appliance: flammable
materials should not be stored in an oven
or near its surface.

4
SAFETY AND WARNINGS
!WARNING!
Hot Surface Hazard
Failure to follow this advice could result in
burns and scalds.
• Accessible parts may become hot when
this cooker is in use.
• To avoid burns and scalds keep children
away.
• Do not touch hot surfaces inside the oven.
• Use oven mitts or other protection when
handling hot surfaces such as oven shelves
or dishes.
• Take care when opening the oven door.
• Let hot air or steam escape before
removing or replacing food.
• Do not touch the cooktop components,
burners, trivets/pan supports or the base
when hot.
• Before cleaning, turn the cooker off and
make sure it is cool.

5
SAFETY AND WARNINGS
IMPORTANT SAFETY INSTRUCTIONS!
zRead all the instructions before using the appliance.
Use the appliance only for its intended purpose as
described in these instructions.
zProper installation: be sure your appliance is properly
installed and earthed by a qualified technician. A risk
of tip-over exists when the appliance is not installed
in accordance with the installation instructions.
zDo not operate the appliance if it is damaged or
not working properly. If you received a damaged
product, contact your dealer or installer immediately.
zClean only the parts listed in this manual.
zDo not modify this appliance.
zThis appliance is to be serviced only by a Fisher &
Paykel trained and supported service technician.
zIsolating switch: make sure this cooker is connected
to a circuit which incorporates an isolating switch
providing full disconnection from the power supply.
zHousehold appliances are not intended to be played
with by children.
zDo not leave children alone – children should not
be left alone or unattended in the area where the
appliance is in use. They should never be allowed to
play with the appliance or to sit or stand on any part
of the appliance.
zChildren of less than 8 years old must be kept away
from the appliance unless continuously supervised.
This appliance can be used by children aged from 8
years and above, and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge, if they have been given supervision
or instruction concerning the use of the appliance in
a safe way and they understand the hazards involved.
Cleaning and user maintenance shall not be done by
children without supervision.

6
SAFETY AND WARNINGS
IMPORTANT SAFETY INSTRUCTIONS!
zDo not store things children might want above the
oven. Children could be burned or injured while
climbing on the oven to retrieve items.
zSafe food handling: leave food in the oven for as
short a time as possible before and after cooking.
This is to avoid contamination by organisms which
may cause food poisoning. Take particular care
during warmer weather.
zDo not place aluminium foil, dishes, trays, water
or ice on the oven floor during cooking as this will
irreversibly damage the enamel.
zDo not use aluminum foil to line any part of the oven,
storage drawer or cooktop. This will cause heat to be
trapped underneath it. This trapped heat can upset
the cooking performance and damage the finish of
the oven or cooktop parts.
zDo not stand on the door, or place heavy objects on it.
zDo not use harsh abrasive cleaners or sharp
metal scrapers to clean the oven door glass since
they scratch the surface, which may result in
shattering of the glass.
zDo not use a steam cleaner to clean any
part of the cooker.
zDo not use an asbestos mat or decorative covers
between the flame and the saucepan as this may
cause serious damage to your cooktop.
zDo not store flammable items in the oven or storage
drawer or on the cooktop surface.

7
SAFETY AND WARNINGS
IMPORTANT SAFETY INSTRUCTIONS!
zDo not place aluminium foil or plastic dishes on the
cooktop burners.
zDo not let large saucepans or frying pans overlap the
bench as this can deflect heat onto your benchtop
and damage the surface.
zDo not let large saucepans, frying pans or woks
push any other pans aside. This could make them
unstable or deflect heat onto your benchtop and
damage the surface.
zSaucepan handles may be hot to touch. Ensure
saucepan handles do not overhang other gas burners
that are on. Keep handles out of reach of children.
zIf the electrical supply cord is damaged, it must only
be replaced by a qualified technician.
zThis cooker is not to be used as a space heater,
especially if it is installed in marine craft
or in a caravan.
zThe use of a gas cooking appliance results in the
production of heat and moisture in the room in which
it is installed. Ensure the kitchen is well ventilated.
Keep natural ventilation holes open or install a
mechanical ventilation device (mechanical extractor
hood). Prolonged intensive use of the appliance
may call for additional ventilation, for example
opening of a window, or more effective ventilation,
for example increasing the level of mechanical
ventilation where present.

8
SAFETY AND WARNINGS
IMPORTANT SAFETY INSTRUCTIONS!
zWear proper apparel. Do not wear loose fitting or
hanging garments when using the appliance. They
could ignite or melt if they touch an element or hot
surface and you could be burned.
zAlways keep oven vents unobstructed.
zUse only dry oven mitts or potholders. Moist or damp
potholders on hot surfaces could result in burns
from steam. Do not let potholders touch hot areas or
heating elements. Do not use a towel or a bulky cloth
for a potholder. It could catch fire.
zCaution: hot air can blow from the vent at the top of
the oven as part of the oven’s cooling system.
zPlacement of oven shelves: always position shelves in
the desired location before preheating the oven. If a
shelf must be removed while the oven is hot, do not
let the oven mitts or potholder contact hot heating
elements in the oven or the base of the oven.

9
INTRODUCTION

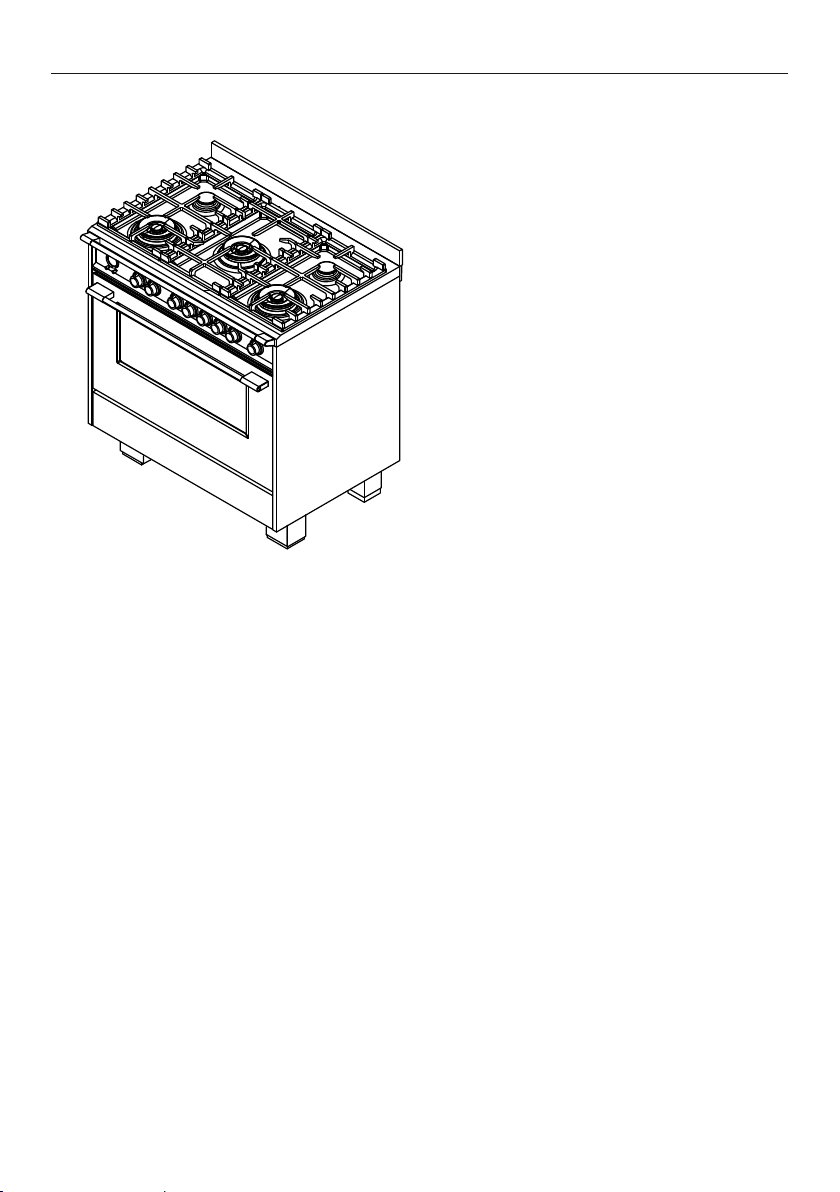

90cm models
OR90SCG6
OR90SDG6

10
INTRODUCTION
Before you start
1 Make sure that the anti-tip bracket at the right rear of the cooker has been properly
installed.
2 Make sure that the installer has completed the ‘Final checklist’ in the Installation
instructions.
3 Read this guide, taking special note of the ‘Safety and warnings’ section.
4 Remove all accessories and packaging from the oven and cooktop. Recycle items that
you can. If any adhesive residue is left on surfaces, remove this using dishwashing liquid
on a soft cloth. Do not use any harsh or abrasive cleaners.
5 Make sure you follow the instructions under ‘First use’ before using your cooker
for cooking.
Overview
Features may vary.
Control panel
Oven frame
Oven door gasket
Step down wire shelf
Oven function and
temperature dials
Foot (cover)
Warming drawer
Grill rack
Roasting dish
Full extension sliding shelf
Label with model
and serial numbers
Warming drawer
control
Side racks
Back trim
Burner
Burner grates
Clock display and controls
Cooktop
burner dials

11
FIRST USE
1 Oven display
2 Cancel/back button
3 Select/Scroll control
4 Function dial
5 Temperature dial
6 Cooktop control dials
7 Warming drawer dial
8 Warming drawer indicator
Control panel layout
Clock display and controls
1 8
23 4 5 6 7
Cancel/back button
zPress to go back
zPress and hold to cancel
Select
zPress to accept or to enter a menu
(Remote mode is not available
on this product)
Scroll control
zTurn clockwise or anticlockwise to
scroll through menu options
Timer (see ‘Setting the timer’)
Auto Cook
(see ‘Auto Cook’)
Lock
(see ‘Locking the oven controls’)
CANCEL REMOTE
Rotisserie (see ‘Using the rotisserie’)
Remote Mode
(not available on this product)
Wireless connection
(not available on this product)

12
FIRST USE
Setting the clock
When your oven is first turned on, or after a power cut, the display will flash. You will need
to set the clock in order to use the oven.
REMOTE REMOTECANCELCANCEL
REMOTE REMOTECANCEL
Set
Time of day
12:00pm 12:00pm
minutes
CANCEL
Set
Time of day
minutes
REMOTEREMOTECANCEL
Set
Time of day
12:00pm
hours
Set
Time of day
12:00pm
hours
CANCEL
REMOTECANCEL
1 Scroll to choose your preferred
clock display. Select between:
zAnalog
z24-hr digital
z12-hr digital
zDisplay off**
2 Press to confirm.
** With this option saved, you can still use
the oven and timer, however the display will
remain unlit.
You cannot use any automatic cooking
functions when this option is selected.
To quit this option and enable the display,
press and hold CANCEL.
2A If you have set analog or 12-hr
digital display:
zScroll to select am or pm.
zPress to confirm.
3 Scroll to set the minutes.
zScroll to select am or pm.
zPress to confirm.
4 Scroll to set the hours.
zPress to confirm.
5 Press to confirm the time is
correctly set.
zThe clock is now set and you can begin
using your oven.
CANCEL REMOTE
NOV 25
CANCEL REMOTE
NOV 25
Set
Time of day
am pm
Set
Time of day
pm
am pm pm

13
FIRST USE
Positioning the shelves
zShelf positions are numbered from the bottom.
zPosition the shelves you will need before turning the oven on.
zFor advice on which shelf position to use, see sections ‘Oven functions’, ‘Cooking guide’,
and ‘Cooking charts’.
IMPORTANT!
Always position the oven shelves before turning the oven on. Remove any unused shelves
and baking utensils from the oven.
Oven shelves
1
2
3
4
5
6
7
Wire shelf
Safety stop
Slide
Wire shelf
Front stop
Safety stop
Front safety stop
Flat wire shelf and step-down wire shelf
(not pictured)
zThese shelves have safety stops to
keep them from sliding out of the
oven when pulled forward.
zThe front stops prevent the
shelves from hitting against the
back of the oven.
Full extension sliding shelf
zThe wire shelves and slides are built
together as one unit.
zWhen positioned correctly, the slides
will prevent the wire shelves from tilting
when pulled forward.
zBeware: these shelves are heavy.

14
FIRST USE
To insert the sliding shelves
1 Make sure the guard rail is at the
back, facing up and the slides are
not extended.
To remove the shelves
1 Wait for the oven to cool down completely.
2 Hold the shelf firmly with both hands, making sure you grip the wire shelf too to stop it
sliding forward.
3 Pull the shelf forward about ¾ of the way.
4 Lift the rear of the shelf slightly so that the tags clear the side rack wires, then remove.
2 Hold the shelf firmly with both hands,
making sure you grip the wire shelf too
to stop it sliding forward.
3 Hook the rear tags over the wires of
the desired shelf position on both
side racks.
4 Push the shelf all the way into the oven,
ensuring the front and rear tags either
side are securely locked behind the
side rack wires.
Guard rail
3
4

15
FIRST USE
To insert the wire shelves
1 Make sure the guard rail is at the back,
facing up.
3 Tilt the front up slightly to help the safety stops clear the side rack wires.
4 Lower the shelf back onto the side rack wires and slide all the way into the oven.
To remove the shelves
1 Wait for the oven to cool down completely.
2 Pull the shelf forward about ¾ of the way.
3 Tilt the front up slightly to help the safety stops clear the side rack wires.
4 Remove the shelf.
2 Position the shelf: it should rest on
the side rack wires, as shown.
Guard rail
Safety stop

16
FIRST USE
Conditioning the oven
It is important to condition your oven before using it for cooking and baking. Conditioning
will burn off any manufacturing residues and ensure that you get the best results right
from the start.
Before you start:
zMake sure you have removed all packaging and any cable ties used to secure the
shelving during transit.
zMake sure all shelves are fitted in the oven.
zMake sure all oven control dials are turned to O(OFF).
1 Select the Bake function.
zThe halo will glow white.
3 After 30 minutes, select the
Fan Grill function.
zHeat at 200°C for 10 minutes.
4 After 10 minutes, select the
Fan Forced function.
zHeat at 200°C for 20 minutes.
2 Set the temperature to 200°C for
30 minutes.
zThe halo will glow red while the oven
is heating up.
zThe actual temp will show on the screen.
zWhen the oven has heated a tone will
sound and the halo will turn white.
Fan
Grill Fan Forced
200C
--->

17
FIRST USE
5 After 20 minutes turn both the function and temperature dials to O(OFF).
The halos will go out.
zThere will be a distinctive smell and a small amount of smoke during the conditioning
process as manufacturing residue is burnt off. This is normal, but make sure the kitchen
is well ventilated during the conditioning.
zOnce cooled, wipe out the oven and warmer drawer with a damp cloth and mild
detergent, and dry thoroughly.
Conditioning the warming drawer
IMPORTANT!
Make sure the drawer is empty and all packaging has been removed.
1 Push in the warmer dial and turn
clockwise to HI.
yHeat on HI for 2 hours.
2 After 2 hours turn warmer dial to
O(OFF).
yThe indicator will go out.
yThere will be a distinctive smell and a small amount of smoke during the conditioning
process as manufacturing residue is burnt off. This is normal, but make sure the kitchen
is well ventilated during the conditioning.
yOnce cooled, wipe out the drawer with a damp cloth and mild detergent,
and dry thoroughly.
FUNCTION TEMPERATURE
Rapid preheating stage
For some cooking functions, the oven will go through an initial rapid preheat stage. In this
stage, the fan and both bake and grill elements will turn on to quickly heat the oven to the
set temperature. Depending on the cooking function, the fan, bake and grill elements will
turn off once the oven reaches the set temperature.

18
COOKING GUIDE
Oven cooking guidelines
IMPORTANT!
zUse all the oven modes with the oven door closed.
zNever use aluminum foil to cover the oven shelves or to line the floor of the oven. The
trapped heat can irreversibly damage the enamel and may even cause fire.
zDo not place water, ice, or any dish or tray directly on the oven floor, as this will
irreversibly damage the enamel.
zDo not cover the roasting dish with aluminum foil. This will catch the grease and
could cause fire.
zDo not use plastic wrap or wax paper in the oven.
zFor food safety reasons, do not leave food in the oven for longer than two hours before
and after cooking or defrosting. This is to avoid contamination by organisms which may
cause food poisoning. Take particular care during warmer weather.
zIn the event of power failure while cooking, return the oven dials in off position to
prevent overheating of the appliance.
Baking
zFor best results when baking, always preheat your oven. The temperature halo will
change from red to white when the set temperature is reached.
zWhile the oven is heating the grill element will be on.
zWe advise you do not open the door until at least ¾ of the way through cooking.
zMake sure cake pans do not touch each other or the sides of the oven.
zWhen baking double the recipe (especially cookies) cook time may need to increase.
zYour cookware will influence baking times. Dark pans absorb the heat more quickly than
reflective pans; glass cookware may require a lower temperature.
zMulti-shelf baking may also require a slight increase in cooking time.
Shelf Position Guide
zSingle shelf: place your baking on a shelf that will have the top of your pan near the
center of the oven cavity.
zMulti shelf: always leave a space between shelves to allow the air to circulate.
Lower
Element
(concealed)
Fans Upper Elements Shelf positions
1
4
7
6
5
23
