Fisher & Paykel Elba OR61 Series Mounting instructions

NZ
Installation instructions
and User guide
Freestanding cooker
OR61 models

1
Safety and warnings 2
Installation instructions 4
Oven controls and setting the clock 9
First use – conditioning the oven 11
and warmer drawer
Using the oven and warmer drawer 12
Oven functions 13
Oven cooking charts 15
Oven cooking tips 18
Using the timer 19
Automatic cooking 20
Using the ceramic glass cooktop 21
Using the radiant cooktop 22
Cookware 23
Care and cleaning 24
Troubleshooting 31
Warranty and service 34
Important!
SAVE THESE INSTRUCTIONS
The models shown in this user guide may not be available in all markets and are
subject to change at any time. For current details about model and specification
availability in your country, please visit our website listed on the back cover
or contact your local Fisher & Paykel dealer.
Contents

2
WARNING!
Tipping Hazard
All cookers can tip. Keep children away and take care. The anti-tip brackets
supplied must be installed.
Failure to follow these instructions could result in injury.
WARNING!
Electrical Shock Hazard
Switch the appliance off at the power supply before replacing fuses or the oven lamp.
If the cooktop surface is cracked, switch the appliance off at the power supply and
contact your service centre. Do not use until repaired.
Failure to follow these instructions could result in death or electric shock.
WARNING!
Hot Surface Hazard
Accessible parts will become hot when this appliance is in use.
Take care to avoid touching hot surfaces inside the oven or on the cooktop.
Use oven mitts or other protection when handling hot surfaces such as oven shelves
or dishes.
Take care when opening the oven door. Let hot air or steam escape before removing
or replacing food.
Supervise children and keep them safely away until the oven is cool.
Failure to follow these instructions could result in burns and scalds.
WARNING!
Fire Hazard
Never leave the cooktop unattended during use – Boilover causes smoking and
greasy spillovers that may ignite.
Cooking grease or oil may also self-ignite at high temperatures. Take extreme care
when frying.
Never use your appliance for warming or heating the room. Persons could be injured
or a fire could start.
Keep the area around the appliance free from combustible materials (e.g. wall
coverings, curtains, drapes), gasoline and other flammable vapours and liquids.
Do not let cooking grease or other flammable materials accumulate on or near the
appliance.
Do not hang any articles (e.g. dish towels) off the oven handle. Some fabrics may
ignite or melt from the heat.
Be sure that all the controls are turned off and the appliance is cool before using any
type of aerosol cleaner on or around the appliance. Chemicals in such cleaners could,
in the presence of heat, ignite or cause metal parts to corrode.
Failure to follow this advice may result in death or serious injury.
Safety and warnings

3
Safety and warnings
Important safety instructions
Isolating switch: make sure this appliance is connected to a circuit which incorporates an
isolating switch providing full disconnection from the power supply.
Household appliances are not intended to be played with by children.
Children of less than 8 years old must be kept away from the appliance unless continuously
supervised. This appliance can be used by children aged from 8 years and above, and persons
with reduced physical, sensory or mental capabilities or lack of experience and knowledge, if
they have been given supervision or instruction concerning the use of the appliance in a safe way
and they understand the hazards involved. Cleaning and user maintenance shall not be done by
children without supervision.
After use, ensure the dials are all in the `OFF’ position.
Safe food handling:
Food should be left in the oven for as short a time as possible before and after cooking. This is to
avoid contamination by organisms which may cause potential food poisoning. Particular care
should be taken during warmer weather.
Do not place aluminium foil, dishes with reflective qualities, water, ice or any object on the oven
floor as this will cause a heat build-up which irreversibly damages the enamel.
If the electrical supply cord is damaged, it must only be replaced by an authorised person.
Do not stand or place heavy objects on the door.
Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since
they scratch the surface, which may result in shattering of the glass.
Do not use a steam cleaner to clean any part of the cooker.
Do not keep flammable substances in the oven or in the drawer.
Do not operate your appliance by means of an external timer or separate remote-control system.
Under unfavourable electrical supply conditions, the appliance may cause temporary voltage
drops.

4
15 mm
CLEARANCE
15 mm
CLEARANCE
PRODUCT DEPTH = 610 mm
5 mm
905 mm
1145 mm
240 mm
610 mm
CLEARANCE
5 mm
CLEARANCE
Installation instructions
Installing your cooker
Important!
Connection of this cooker to fixed or flexible wiring must be made by a suitably registered
person. Connection by an unregistered person can cause a safety hazard.
Dimensions and clearances
Electrical connection
Some models have two side-mounted power outlets: the power socket on these cookers are
rated at 250V 10A AC only.
We recommend that the cooker sub circuit is protected by a suitably rated Miniature Circuit
Breaker (M.C.B) but not connected to a Residual Current Device (R.C.D) or an Earth Leakage
Breaker (E.L.C.B).
In New Zealand this appliance must be connected to the electrical supply using a cable fitted
with an appropriately rated plug. The plug must be compatible with the socket-outlet fitted to
the final subcircuit in the fixed wiring that is intended to supply the appliance.
Power
OR61S2CEWW
220-240/380-415 V 2N AC 50 Hz 47.6A
OR61S4CEWW
220-240/380-415 V 2N AC 50 Hz 47.6A
OR61S8CEWSW
220-240/380-415 V 2N AC 50 Hz 53.7A
WARNING!
Electrical Shock Hazard
Before obtaining access to terminals, all supply circuits must be
disconnected.
Failure to do so may result in death or electrical shock.

5
Remove for two-phase
connection
Single phase connection:
The supply cable should be at least equivalent to an ordinary PVC sheathed and insulated min. 4
mm
2
, three-core (twin and earth), min. 1 m long flexible cable.
Two-phase connection:
The supply cable should be at least equivalent to an ordinary PVC sheathed and insulated,
min. 2.5 mm
2
, four-core, min. 1 m long flexible cable. If fitted the bridging link between 2 and 3
should be removed, as shown. Failure to this will result in damage to the appliance.
This appliance must be connected to a circuit which incorporates an isolating switch providing
full disconnection from the power supply.
If you raised the cooker to align it with the bench, make sure the base of the cooker cannot slip.
Connecting the cable
1 Remove the cable access cover (lower right hand corner).
2 Provide a minimum of 1 metre of cable.
For 220-240 single phase operation, connect phase wire to terminal 1 ( with links between
1-2 and between 2-3 fitted).
For 380-415V two phase operation, remove the link between 2-3 and connect phase 1 wire
to terminal 1 (with link between 1-2 fitted); then connect phase 2 wire to terminal 3.
3 Connect neutral wire to terminal 5 (with link between 4-5 fitted).
4 Connect ground wire to earth terminal .
5 Replace cover; check that no conductors are trapped by the wiring cover.
Note: clocks are suitable for 50Hz supply only.
Installation instructions

6
ANTI-TIP
BRACKET
ANTI-TIP
BRACKET
Installation instructions
Anti-tip brackets
Two anti-tip brackets are supplied with the accessories so that the cooker can be secured to
the wall to prevent it from tipping over. Use the two screws on the back panel of the cooker, as
shown.
WARNING!
Tipping Hazard
All cookers can tip. Keep children away and take care. The anti-tip brackets
supplied must be installed.
Failure to follow these instructions could result in injury.

7

8

9
Oven controls and setting the clock
1
1
1
2
2
2
3
3
5
5
4
4
4
6
6
6
7
7
7
Two-function model
with electronic clock
Four-function model
Eight-function model
1 Function knob
2 Temperature knob
3 Temperature indicator light
4 Warmer drawer knob
5 Warmer drawer indicator light
6 Clock display
7 Control buttons
35

10 Oven controls and setting the clock
Buttons
sets the timer
sets the cooking time for automatic cooking
sets the stop time for automatic cooking
sets the clock, returns oven to manual mode,
cancels automatic cooking
decreases time and beep volume
increases time
Illuminated symbols
To set the clock
When the power to the cooker is turned on or restored after a power failure, 0.00 and AUTO
will flash in the display.
1 Press .
2 Press and until you have the correct time of day.
If the display shows It means that... For more information
A
U
T
O
flashing with 0.00 The clock needs to be set. See instructions below.
steadily lit The oven is set for automatic
cooking.
See section ‘Automatic cooking’
flashing and beeping
Automatic cooking has finished
or has been set incorrectly (the
stop time is before the time of
day).
steadily lit The timer is set. See section ‘Using the timer’
flashing and beeping The set time is up.

11
We recommend conditioning the oven before any cooking or baking and conditioning the
warmer drawer before using it for keeping food warm. Conditioning will burn off any
manufacturing oil residues and ensure that you get the best results right from the start.
Conditioning the oven
1 Read this user guide, taking special note of the ‘Safety and warnings’ section.
2 Make sure that the cooker is secured to the wall with the two anti-tip brackets.
3 Remove all accessories and packaging. Make sure you peel any protetctive film off the surfaces.
Discard the film immediately, keeping it out of reach of children.
4 If your model has an electronic clock, set the clock. See ‘Oven controls and setting the clock’ for
instructions.
Important!
The oven will not work until the clock has been set.
5 Slide in the shelves as shown in ‘Using the oven and warmer drawer’.
6 Heat the oven for 1 hour at 200
o
C on BAKE (two-function models) or FAN BAKE (four - and eight-
function models).
There will be a distintcive smell during the conditioning. This is normal, but make sure your
kitchen is well ventilated.
7 Once cooled, wipe out the oven with a damp cloth and mild detergent, and dry thoroughly.
Conditioning the warmer drawer (some models only)
1 Turn the empty warmer drawer on and leave it on for 30 minutes.
2 Turn off and allow the warmer drawer to cool, then wipe out with a damp cloth and mild
detergent and dry thoroughly.
First use - conditioning the oven and warmer drawer

12 Using the oven and warmer drawer
To start cooking
1 Slide in the shelves you will need, making sure that:
the safety stops point down
the guard rail is at the back.
2 Select a function.
The oven light will come on.
3 Set the temperature.
The temperature indicator light will come on.
It will go out when the oven has reached the set temperature.
During cooking
The temperature indicator light may come on and go out again as the oven maintains the
temperature.
Set the temperature back to o(OFF) before changing functions.
When you have finished cooking
Turn both the function and temperature knobs to the o(OFF) position.
Warmer drawer (some models only)
The warmer drawer has a low-powered element and is useful for keeping hot food warm or for
warming plates and serving dishes. To use, turn the warmer drawer knob to ON. Its indicator
light will glow when the drawer is on.
Note:
The warmer drawer is not suitable for reheating food from cold.
In models with no electronic clock, the drawer below the oven does not have a heating
element and is therefore used for storage only.
3
2
1
4

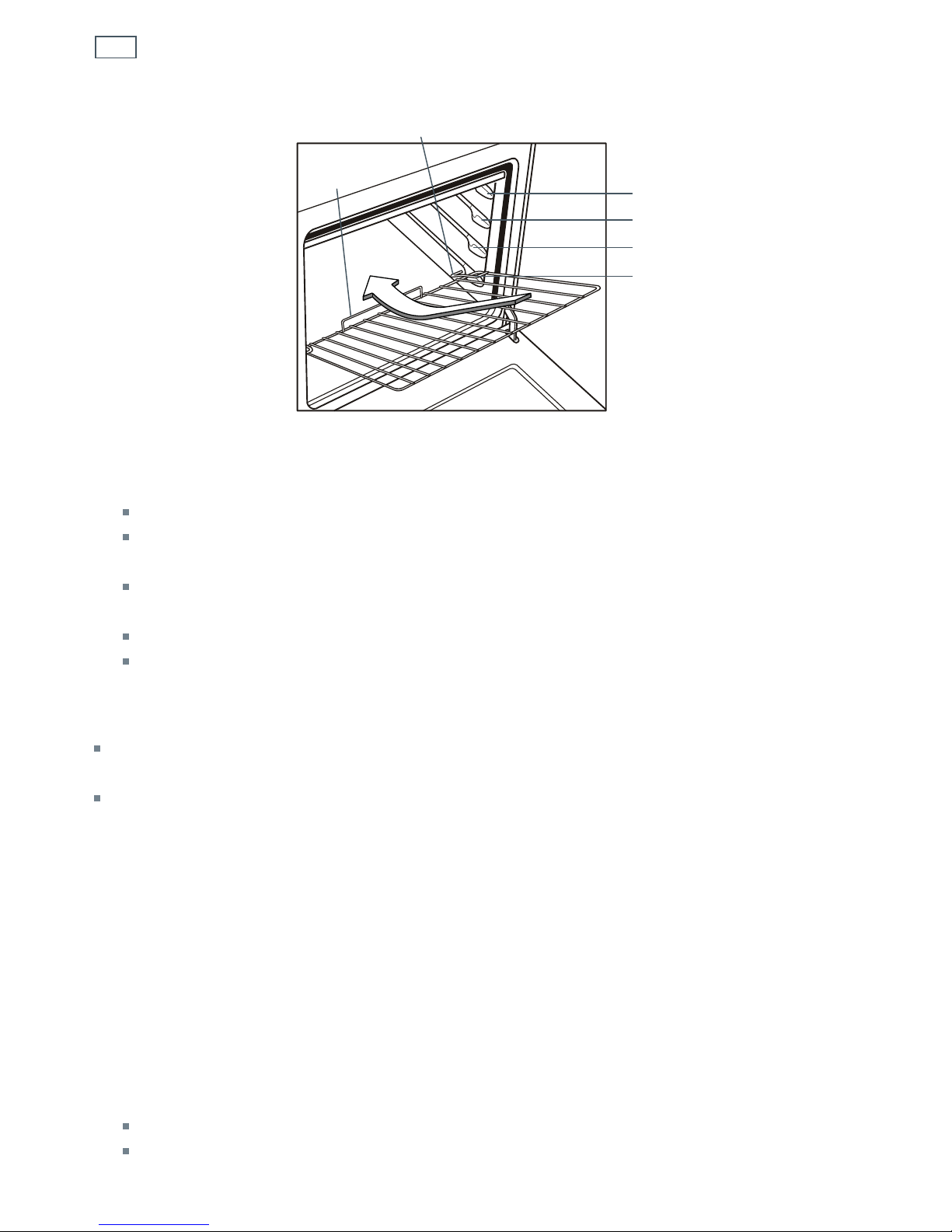

Shelf positions
Guard rail
Safety stop

13
Oven functions
Depending on your model, your oven may have only some or all of the functions below.
See sections ‘Oven cooking tips’ and check the ‘Oven cooking charts’ for the recommended shelf
positions.
ALL MODELS
BAKE
This is the traditional method of cooking. It is most suitable for food that
requires long cooking such as rich fruit cakes and traditional roasts. Heat comes
from the top and bottom elements in the oven. The bottom element is
concealed beneath the oven floor. You will achieve a better result with baking
if the oven is preheated first. Cooking one shelf of food at a time is preferable.
Use FAN FORCED for multi-shelf baking (available in four-function and eight-
function models only).
GRILL
GRILL cooks a large area of food by using heat from the upper element and is
suitable for family meals or larger amounts of food. Do not set the temperature
higher than 225
o
C in this function. We recommend you use 225
o
C to grill meats.
For best results when grilling, leave the oven door open at the first stop position.
FOUR-FUNCTION & EIGHT-FUNCTION MODELS ADD
FAN GRILL
The fan circulates heat from the grill element around the oven. FAN GRILL is
suitable for foods you would normally fry, eg sausages and meatballs. It also
cooks larger cuts of meat and whole chickens well, giving a result that
is similar to a rotisserie. Fan grilling is carried out with the door closed, and the
oven does not need to be preheated. Do not set the temperature higher than
200
o
C in this function.
FAN FORCED
Fan forced cooking circulates heat from the element around the fan throughout
the oven. This function is particularly good for multi-shelf cooking, batch baking
or cooking several dishes together. Use also for casseroles and baked vegetables,
as you can place them anywhere in the oven except on the oven floor.

14 Oven functions
EIGHT-FUNCTION MODELS ONLY ADD
FAN BAKE
A fan at the rear of the oven circulates hot air from the top and bottom elements
around the oven. The fan tends to dry the surface of the food being cooked,
which makes it suitable for crisping foods, eg slices, pastries and oven-roasted
vegetables. FAN BAKE can be used at a low temperature (50°C) for drying fruit,
vegetables and herbs.
CLASSIC BAKE
CLASSIC BAKE uses heat from the bottom element only. It is particularly suitable
for quiches, pies and slices that require more cooking on the bottom. We
recommend that you preheat the oven on BAKE or FAN BAKE then switch to
CLASSIC BAKE once the oven is at the desired temperature.
ECO GRILL
ECO GRILL is suitable for single servings or small pieces of food. By using it you
can save energy because you heat a smaller portion of the grill element. Do not
set the temperature higher than 225°C in this function. For best results when
grilling, leave the oven door open at the first stop position.
DEFROST
DEFROST allows you to defrost food using the oven fan without any heat. This
prevents food from drying out or starting to cook. Leave the temperature
setting at the o(OFF) position as no heat is required. Defrosting this way is
particularly good for delicate foods. Remove food from the oven as soon as it is
thawed.

15
Oven cooking charts
BAKE FAN FORCED FAN BAKE CLASSIC BAKE GRILL FAN GRILL
Baking
Biscuits- single tray
Biscuits- 2-3 trays
Slices/squares
Butter cake
Fruit cake
Sponge
Meringues
Scones
Muffins
Pizza
Single shelf baking
Multi-shelf baking
Pastry & pies
Bacon &egg pie
Lemon meringue
Quiche
Meats
Beef roast
Steak
Lamb roast
Lamb chops
Pork roast
Pork chops
Poultry
Chicken-whole
Chicken pieces
Family favourites
Casserole
Lasagne
Macaroni cheese
Complete oven meals
Reheating
Key: Recommended function Alternative function

16
The times and temperatures in the cooking charts are a guide only and are based on the oven
being preheated first (except in the case of FAN GRILL).
Baking chart
FAN FORCED BAKE
Food Shelf
position
Temp
(oC)
Time
(min)
Shelf
position
Temp
(oC)
Time
(min)
Baked foods
Light fruit cake 1 135 - 155 90 -120 1 150 90 - 120
Banana cake 1 160 - 170 60 - 65 1 160 - 170 55 - 60
Biscuits 2-3 175 - 180 0 - 12 3 175 - 180 10 - 12
Scones 3 210 - 220 10 - 15 3 225 10 - 15
Slices 2 160 - 175 20 - 25 2 160 - 180 20 - 25
Meringues 2-3 100 - 120 55 - 65 2 100 - 120 60 - 70
Sponge 1 165 - 185 20 - 30 2 170 - 190 20 - 30
Chicken - whole (per 500g) 1 175 - 180 30 - 35 1 180 30 - 35
Custard tart - pastry case 1 170 - 190 14 - 16 1 180 - 200 14 - 48
Custard tart - filling 1 170 then
150*
6 - 8
then
30 - 35*
1170 then
150*
6 - 8
then
30 - 35*
* This is a two-stage baking process: adjust the temperature after the first stage.
Grilling chart
GRILL FAN GRILL
Food Shelf
position
Temp
(oC)
Time
(min)
Shelf
position
Temp
(oC)
Time
(min)
Toast 4 225 50 - 60
secs/side
Sausages (well done)** 3 225 10 - 15
Chicken (whole) 1 175 - 180 30 - 35 per
500 g
**When grilling thicker items such as sausages, turn often to ensure even browning.
Oven cooking charts

17
Oven cooking charts
Roasting chart
BAKE
Food Temp (oC) Minutes per
500 g
Internal
Temp (oC)
Beef
Rare 160 - 170 30 - 35 60 - 65
Medium 160 - 170 35 - 45 65 - 75
Well done 160 - 170 45 - 60 75 - 80
Mutton
Well done 160 - 170 45 - 60 80 - 85
Hogget/lamb
Medium 160 - 170 30 - 40 79- 82
Well done 160 - 170 45 - 60 82 - 85
Pork
Well done 180 - 185 40 - 45 78
Chicken
Well done 160 - 180 25 - 30 82
Venison
Rare* 220 3
per cm
thickness
65 - 70
*Brown prior to roasting in an oiled frypan on high heat.

18
Generally, the top shelf positions are for grilling, and the middle and lower positions are suitable
for baking, roasting and casseroles. Do not place anything on the oven floor.
Important!
Do not place aluminium foil, dishes with reflective qualities, water, ice or any object on the oven floor as this
will cause a heat build-up which irreversibly damages the enamel.
Baking
Always position the oven shelves before turning the oven on.
Grease tins and line bases with non-stick paper. For rich mixtures and fruitcakes, line the sides of
the tins as well.
Turn cakes onto baking racks when cool. Leave sponges in tins for at least 10 minutes before
inverting.
Always preheat the oven until the temperature indicator light turns off. This is particularly
important when baking.
Grilling
The length of time your food takes to grill will be affected by its thickness and temperature.
When grilling thicker items such as sausages, turn them often to ensure even browning.
Always grill with the door open to the first stop position unless you use FAN GRILL, when the
door should be closed and the oven does not need preheating.
The door and cooktop may become hot. Take care and keep children away.
Roasting
A large piece of meat requires fewer minutes per 500 g than a smaller piece. Meat with a bone
will cook faster than a rolled roast.
Do not add water to your roast as this has a steaming effect.
Use a meat thermometer to ensure an accurate result. As the internal temperature of the meat
will continue to rise during standing, please allow for this in your calculation. This is particularly
important if you want a rare or medium rare roast.
Oven cooking tips
