Fisher & Paykel CE604DTB User manual

TOUCH CONTROL
CERAMIC GLASS COOKTOPS
CE604DTB, CE704DTB and CE754DTB models
INSTALLATION GUIDE / USER GUIDE
NZ AU

1
CONTENTS
Safety and warnings 2
Installation instructions 8
Introduction 14
Using your cooktop 16
Using your cooktop’s special features 20
Cooking guidelines 25
Care and cleaning 28
Troubleshooting 30
Warranty and service 32
IMPORTANT!
SAVE THESE INSTRUCTIONS
The models shown in this user guide may not be available in all markets and are subject
to change at any time. For current details about model and specification availability in
your country, please go to our website www.fisherpaykel.com or contact your local
Fisher & Paykel dealer.

2
SAFETY AND WARNINGS
Your safety is important to us. Please read this information before using your cooktop.
Installation
WARNING!
Electrical Shock Hazard
Disconnect the appliance from
the mains electricity supply
before carrying out any work or
maintenance on it.
Connection to a good earth
wiring system is essential and
mandatory.
Alterations to the domestic
wiring system must only be
made by a qualified electrician.
Failure to follow this advice
may result in electrical shock or
death.
!
WARNING!
Cut Hazard
Take care - some edges are
sharp.
Failure to use caution could
result in injury or cuts.
!

3
SAFETY AND WARNINGS
IMPORTANT SAFETY INSTRUCTIONS
Installation
●Read these instructions carefully
before installing or using this
appliance.
●No combustible material or products
should be placed on this appliance at
any time.
●Please make this information
available to the person responsible
for installing the appliance as it could
reduce your installation costs.
●In order to avoid a hazard, this
appliance must be installed according
to these instructions for installation.
●This appliance is to be properly
installed and earthed only by a
suitably qualified person.
●This appliance should be connected
to a circuit which incorporates
an isolating switch providing full
disconnection from the power supply.
●Failure to install the appliance
correctly could invalidate any
warranty or liability claims.

4
SAFETY AND WARNINGS
Operation and maintenance
WARNING!
Electrical Shock Hazard
Do not cook on a broken or
cracked cooktop. If the cooktop
surface should
break or crack, switch the
appliance off immediately at the
mains power
supply (wall switch) and contact
a qualified technician.
Switch the cooktop off at
the wall before cleaning or
maintenance.
Failure to follow this advice
may result in electrical shock or
death.
!
WARNING!
Fire Hazard
Unattended cooking on a hob
with fat or oil can be dangerous
and may result in fire.
NEVER try to extinguish a fire
with water, but switch off the
appliance and cover flame, eg
with a lid or fire blanket.
Do not store items on cooking
surfaces.
Failure to follow this advice may
result in serious burns or death.
!

5
SAFETY AND WARNINGS
WARNING!
Hot Surface Hazard
During use, accessible parts of
this appliance will become hot
enough to cause burns.
Do not let body, clothing or
any item other than suitable
cookware contact with the
ceramic glass until the surface is
cool.
Never leave metal objects on the
cooktop as they can become hot
very quickly.
Keep children away.
Handles of saucepans may be
hot to touch. Check saucepan
handles do not overhang other
cooking zones that are on. Keep
handles out of reach of
children.
Failure to follow this advice
could result in burns and scalds.
!
WARNING!
Cut Hazard
The razor-sharp blade of a
cooktop scraper is exposed
when the safety
cover is retracted. Use with
extreme care and always store
safely and out
of reach of children.
Failure to use caution could
result in injury or cuts.
!

6
SAFETY AND WARNINGS
Operation and maintenance
IMPORTANT SAFETY INSTRUCTIONS
●CAUTION: The cooking process
has to be supervised. A short term
cooking process has to be supervised
continuously.
●Never leave the appliance unattended
when in use. Boilover causes smoking
and greasy spillovers that may ignite.
●Never use your appliance as a work or
storage surface.
●Never leave any objects or utensils
other than suitable cookware on the
appliance.
●Never use your appliance for warming
or heating the room.
●Do not allow children to play with the
appliance or sit, stand or climb on it.
●Do not store items of interest to
children in cabinets above the
appliance. Children climbing on the
cooktop could be seriously injured.
●Do not leave children alone or
unattended in the area where the
appliance is in use.
●Children of less than 8 years old must
be kept away from the appliance
unless continuously supervised.

7
SAFETY AND WARNINGS
IMPORTANT SAFETY INSTRUCTIONS
●This appliance can be used by
children aged from 8 years and above,
and persons with reduced physical,
sensory or mental capabilities or
lack of experience and knowledge,
if they have been given supervision
or instruction concerning the use of
the appliance in a safe way and they
understand the hazards involved.
●Cleaning and user maintenance shall
not be done by children without
supervision.
●Do not repair or replace any part
of the appliance unless specifically
recommended in the manual. All
other servicing should be done by a
qualified technician.
●Do not use a steam cleaner to clean
your cooktop.
●Do not place or drop heavy objects
on your cooktop.
●Do not stand on your cooktop.
●Do not use pans with jagged edges
or drag pans across the ceramic glass
surface as this can scratch the glass.
●Do not use scourers or any other
harsh/abrasive cleaning agents to
clean your cooktop, as these can
scratch the ceramic glass.
●If the power supply cable is damaged,
it must only be replaced by a qualified
technician.
●Do not operate your cooktop by
means of an external timer or
separate remote-control system.

8
INSTALLATION INSTRUCTIONS

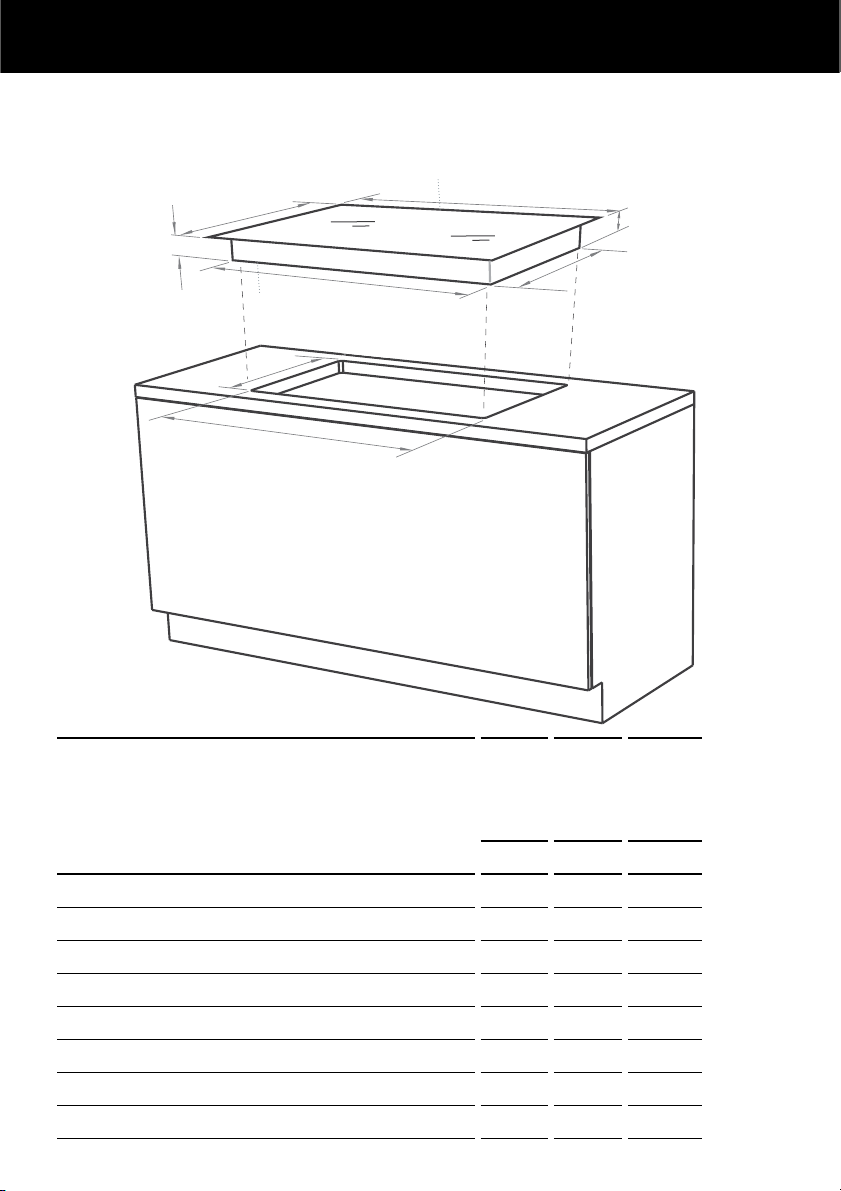

Cooktop and cutout dimensions
X Terminal block location:
Electrical connection is made at the middle rear
A
E
B
X
I
CC
D
G
F
Drawings for illustration purposes only
PRODUCT AND CUTOUT DIMENSIONS
CE604DTB
CE704DTB
CE754DTB
MM MM MM
AOverall width of cooktop 600 700 750
BOverall depth of cooktop 530 530 530
CHeight of chassis (below top of bench) 48 48 48
CIHeight of terminal block (below top of bench) 58 58 58
DWidth of chassis 552 552 715
EDepth of chassis 480 480 480
FOverall width of cutout 560 560 725
GOverall depth of cutout 490 490 490

9
INSTALLATION INSTRUCTIONS
A
E
B
C
C
D
Drawings for illustration purposes only
CLEARANCE DIMENSIONS
CE604DTB
CE704DTB
CE754DTB
MM MM MM
AMinimum clearance from rear edge of cutout to:
nearest combustible surface
55 55 55
BMinimum clearance from glass surface to:
rangehood
650 650 650
CMinimum clearance from side edges of cutout to:
nearest combustible surface
85 135 78
DMinimum clearance from benchtop to:
overhead cabinet not directly above the cooktop
450 450 450
EMinimum clearance below top of benchtop to:
thermal protection barrier
68 68 68
Clearances

10
INSTALLATION INSTRUCTIONS
Before you install the cooktop, make sure that
●the benchtop is square and level, and no structural members interfere with space
requirements
●the benchtop is made of a heat-resistant material
●the cooktop will not be installed directly above a dishwasher, as the humidity may
damage the cooktop
●the installation will comply with all clearance requirements and applicable standards and
regulations
●a suitable isolating switch providing full disconnection from the mains power supply
is incorporated in the permanent wiring, mounted and positioned to comply with the
local wiring rules and regulations. The isolating switch must be of an approved type
and provide a 3 mm air gap contact separation in all poles (or in all active [phase]
conductors if the local wiring rules allow for this variation of the requirements)
●the isolating switch will be easily accessible to the customer with the cooktop installed
●you consult local building authorities and by-laws if in doubt regarding installation
●you use heat-resistant and easy-to-clean finishes (such as ceramic tiles) for the wall
surfaces surrounding the cooktop.
When you have installed the cooktop, make sure that
●the power supply cable is not accessible through cupboard doors or drawers
●there is adequate flow of fresh air from outside the cabinetry to the base of the cooktop
●if the cooktop is installed directly above an oven or its base is accessible through a
cupboard or drawer space after installation, a thermal protection barrier is installed
below the base of the cooktop (see below)
●the isolating switch is easily accessible by the customer
●you complete the ‘Final checklist’ at the end of these installation instructions.
The thermal protection barrier must be:
●removable
●heat-resistant
●made from low thermal conductivity material
●at least 20 mm below the base of the cooktop to ensure adequate ventilation
20
mm min.
Thermal protection barrier
< Fresh air from
outside the
cabinetry

11
INSTALLATION INSTRUCTIONS

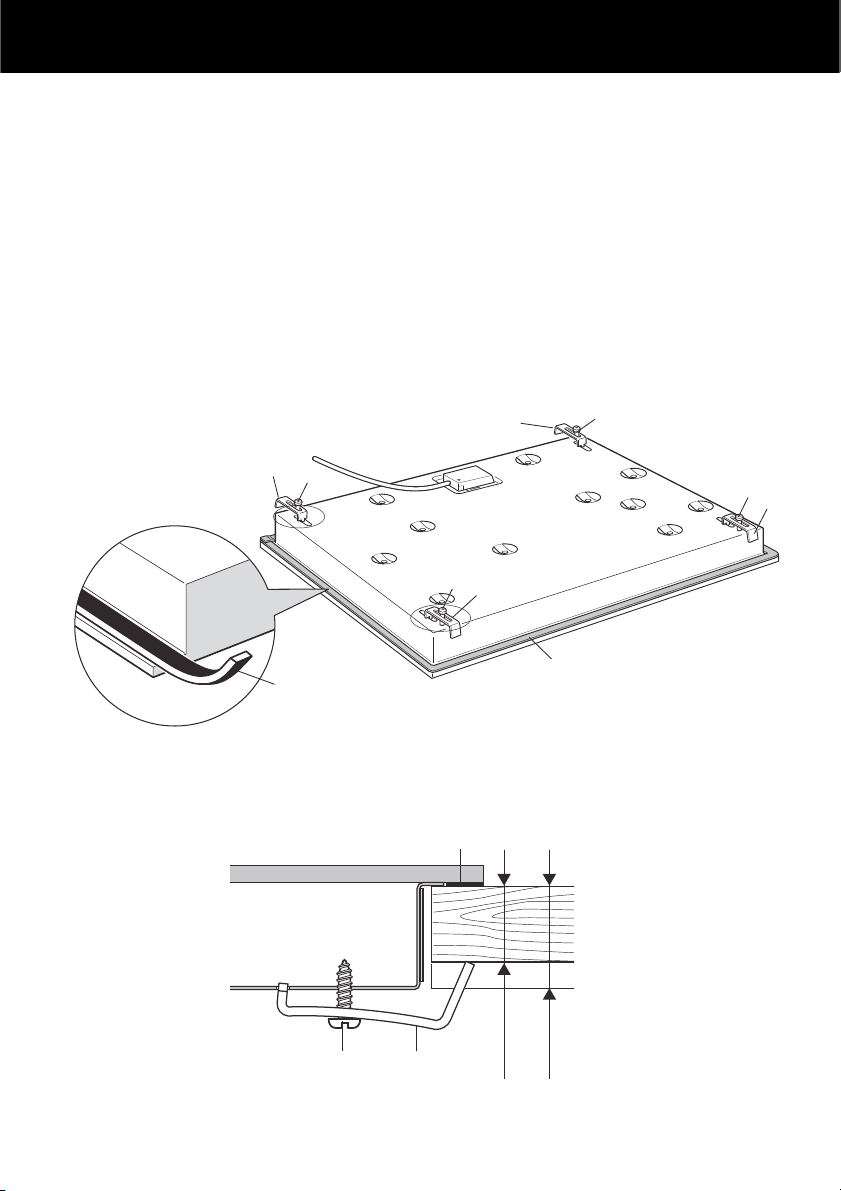

Fastening the cooktop to the bench
1Turn the cooktop upside down and place it on a soft surface.
2Spread the seal around the edges of the ceramic glass with the adhesive side facing
down, making sure that the whole perimeter is sealed. Cut off any excess material.
3Mount the supplied clamps (A) and screws (B) onto the cooktop, as shown (without
tightening the screws).
4Place the cooktop into the cutout, then tighten the screws to clamp the cooktop
securely to the bench.
5Using a sharp cutter or trimmer knife, trim the excess sealing material around the edge
of the cooktop. Take care not to damage the benchtop.
Note: if your bench is thicker than 40 mm, recess the underside to between
30 and 40 mm.
Preparing the cooktop before installation (models may vary)
Fastening the cooktop to the bench
A
A
A
AB
Seal
B
B
B
Adhesive side
30 mm min.
40 mm max.
A
B
Seal

12
INSTALLATION INSTRUCTIONS
Connecting the cooktop to the mains power supply
IMPORTANT!
●This cooktop must be connected to the mains power supply only by a suitably
qualified person.
●This cooktop must be earthed.
●Before connecting the cooktop to the mains power supply, check that:
●the domestic wiring system is suitable for the power drawn by the cooktop
●the voltage corresponds to the value given on the rating plate
●the power supply cable sections can withstand the load specified on the rating plate.
●To connect the cooktop to the mains power supply, do not use adapters, reducers, or
branching devices, as they can cause overheating and fire.
●The power supply cable must not touch any hot parts and must be positioned so that its
temperature will not exceed 75 oC at any point.
Power supply
CE604DTB 6400W @ 220-240/380-415V 2N~ (28A)
CE704DTB 6400W @ 220-240/380-415V 2N~ (28A)
CE754DTB 7300W @ 220-240/380-415V 2N~ (32A)
IMPORTANT!
Check with an electrician whether the domestic wiring
system is suitable without alterations. Any alterations
must only be made by a qualified electrician.
Connection diagrams Opening the terminal block cover
PE
1
2
3
4
5
N (L2)L1
220 - 240 V
220-240 V ~
1
2
3 5
4
N L2
PE
L1
1
2
3 5
4
PE
N
L1 L2
380-415 V 2N ~
Single-phase connection Two-phase connection
PE
1
2
3
4
5
380 - 415 V 2N
N
L2L1
Bridging links
removed

13
INSTALLATION INSTRUCTIONS
TO BE COMPLETED BY THE INSTALLER
Is the cooktop earthed?
Check that the power supply cable is NOT touching the base of the cooktop. This
will ensure that the cable is not damaged by heat from the cooktop.
Check that the power supply cable is not accessible via cupboard doors or drawers.
Is the cooktop clamped down securely?
Check that all the cooking zones function correctly. Turn on all of them to a high
setting and leave them on for at least one minute.
Are all elements glowing?
Are all touch controls and displays functioning?
To check that the ‘hot surface’ indicators function correctly, turn off all the cooking
zones. Is Hdisplayed in all the cooking zone displays?
Have you shown the customer how to use the cooktop? Make sure you explain to
the customer about the ‘Hot surface’ indicators. Encourage them to read the full
user guide before using the cooktop.
Complete and keep for safe reference:
Model
Serial No.
Purchase Date
Purchaser
Dealer Address
Installer’s Name
Installer’s Signature
Installation Company
Installation Date

14
INTRODUCTION
About your new cooktop
Thank you for buying a Fisher & Paykel ceramic glass cooktop. This guide introduces
you to all its special features. We recommend you read the whole guide before using
your new cooktop, for both safety and cooking success.
For more information, visit our website listed on the back cover.
Before using your new cooktop
●Read this user guide, taking special note of the ‘Safety and warnings’ section.
●Remove any protective film that may still be on your cooktop.
Touch
controls/
displays
Setting
selector
Dual cooking zone

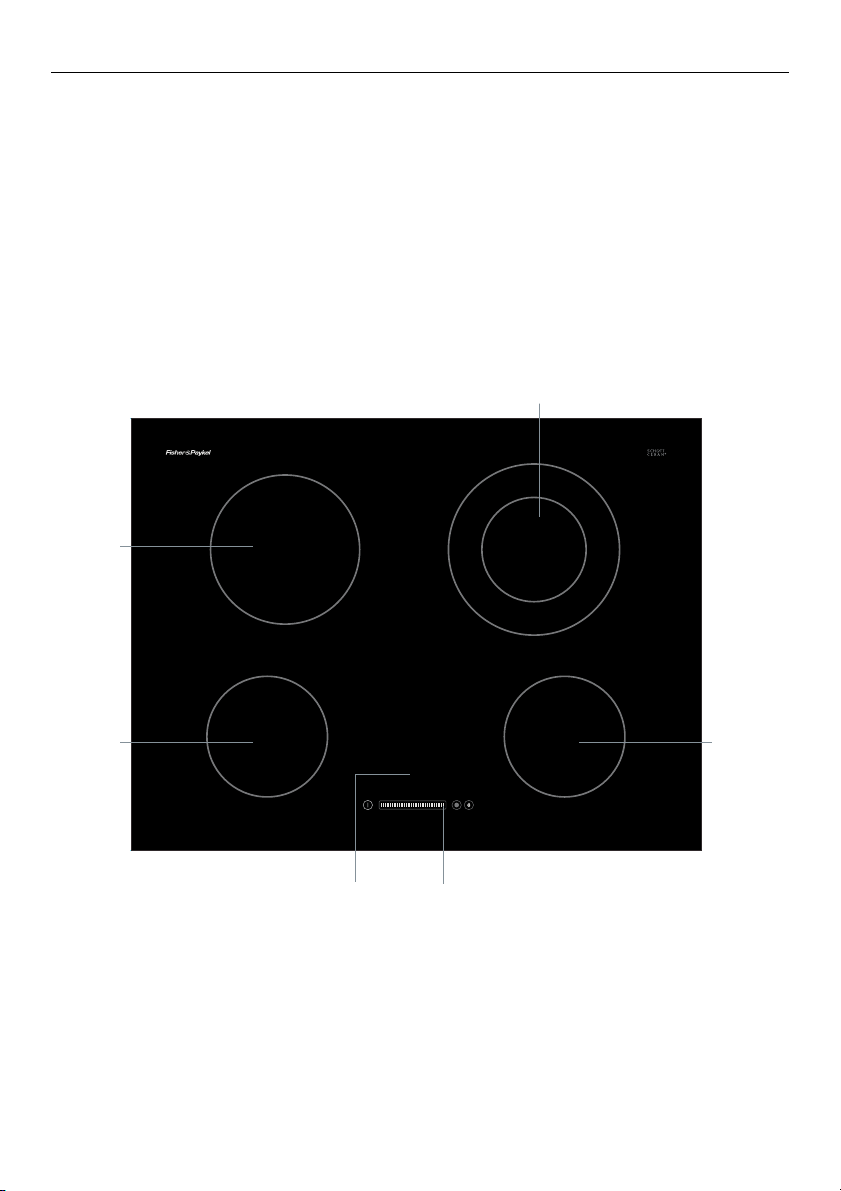

Cooktop layout
(layouts vary)
Cooking
zone
Cooking
zone
Cooking
zone

15
INTRODUCTION
Touch controls overview
ON/OFF control
Turns the cooktop
on and off
Keylock control:
Locks the
controls
(except ON/
OFF) to prevent
unintended use
Dual zone
control:
Turns the
outer section
of the dual
cooking zone
off and on
Warning!
The
cooking
zone is not
in use but
its surface
is still very
hot!
if on:
outer section of the dual
cooking zone is on
if off:
outer section of the dual
cooking zone is off
if on:
controls
(except ON/
OFF) are
locked and
unresponsive
if off:
controls are
responsive
Timer display:
- shows the
number of
minutes set/
remaining
- shows CL
(cleared) if
the timer is
not set
if on:
cooktop is
on
if off:
cooktop is
off
if on:
cooking zone
is selected
and ready to
be set
These indicators show
which cooking zone(s)
the timer is set for:
if flashing:
timer is selected and
ready to be set
if steadily lit:
timer is set and
counting down
if flashing and beeping:
set time is up
Setting selector:
Touch this area
or slide your
finger along it to
select the heat
or timer setting.
The lights above
the selector
correspond to
the setting levels
(0-u-9)

16
USING YOUR COOKTOP

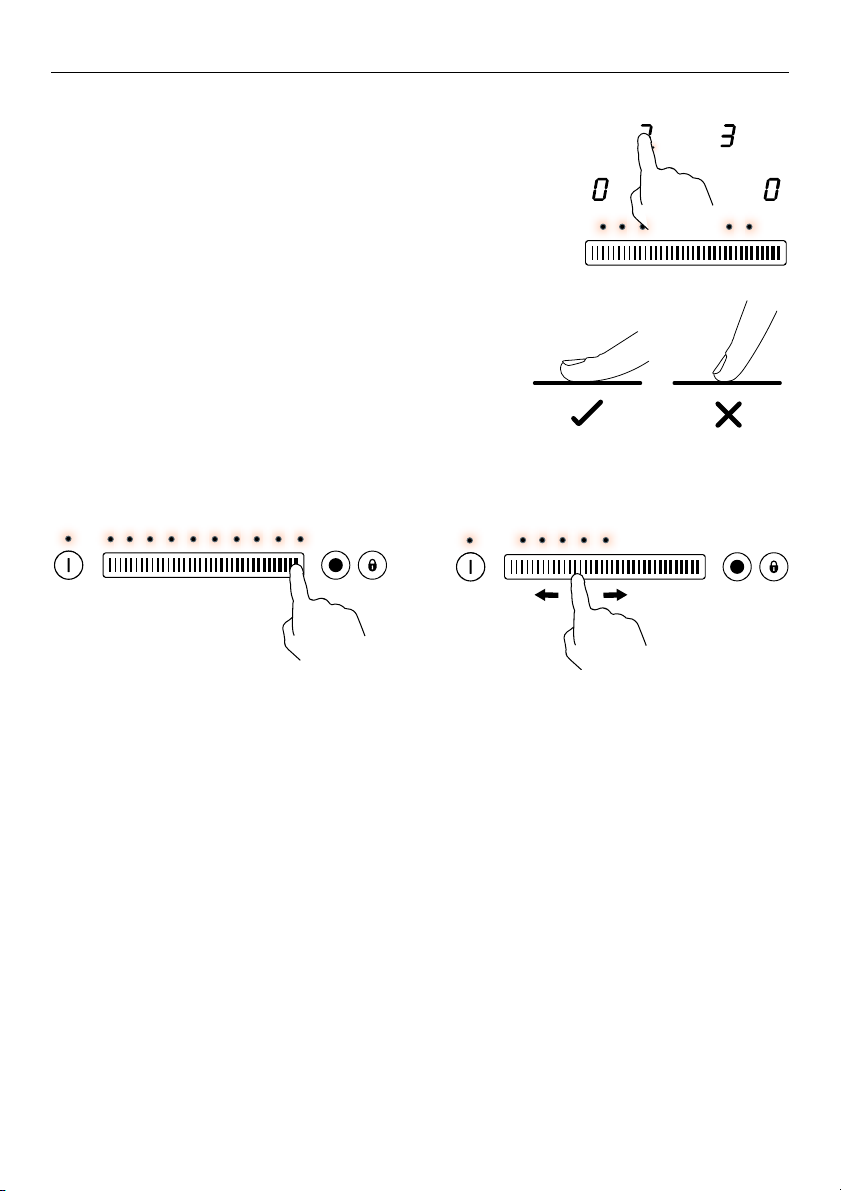

Using the touch controls
●The cooking zone and timer displays also function as
touch controls. To select a cooking zone or the timer,
simply touch its display. Use the ball of your finger,
not its tip. The controls respond to touch, so you
don’t need to apply any pressure.
●Once you have selected a cooking zone or the timer,
you have 10 seconds to set it (while the little red light
at the bottom right of the display is on). If the little
red light goes out before you have had a chance to
select a setting, simply re-select the cooking zone or
timer by touching its display again.
●Make sure the controls are always clean, dry, and
thereis no object (eg a utensil or a cloth) covering
them. Even a thin film of water may make the controls
difficult to operate.
To select a setting on the selector:
Touch at one point to “jump”
to a specific setting
OR slide your finger along
the selector

17
USING YOUR COOKTOP
To start cooking
1Turn on the cooktop.
Notes:
●CL (cleared) in the timer display means
that the timer is not set.
●If you do not select a cooking zone
within 20 seconds, the cooktop will
automatically turn off.
3Select a heat setting (0-9).
Note: setting u(between 0and 1) provides continuous gentle heat between 0and 1.
See ‘Using your cooktop’s special features’.
2Select a cooking zone.

18
USING YOUR COOKTOP

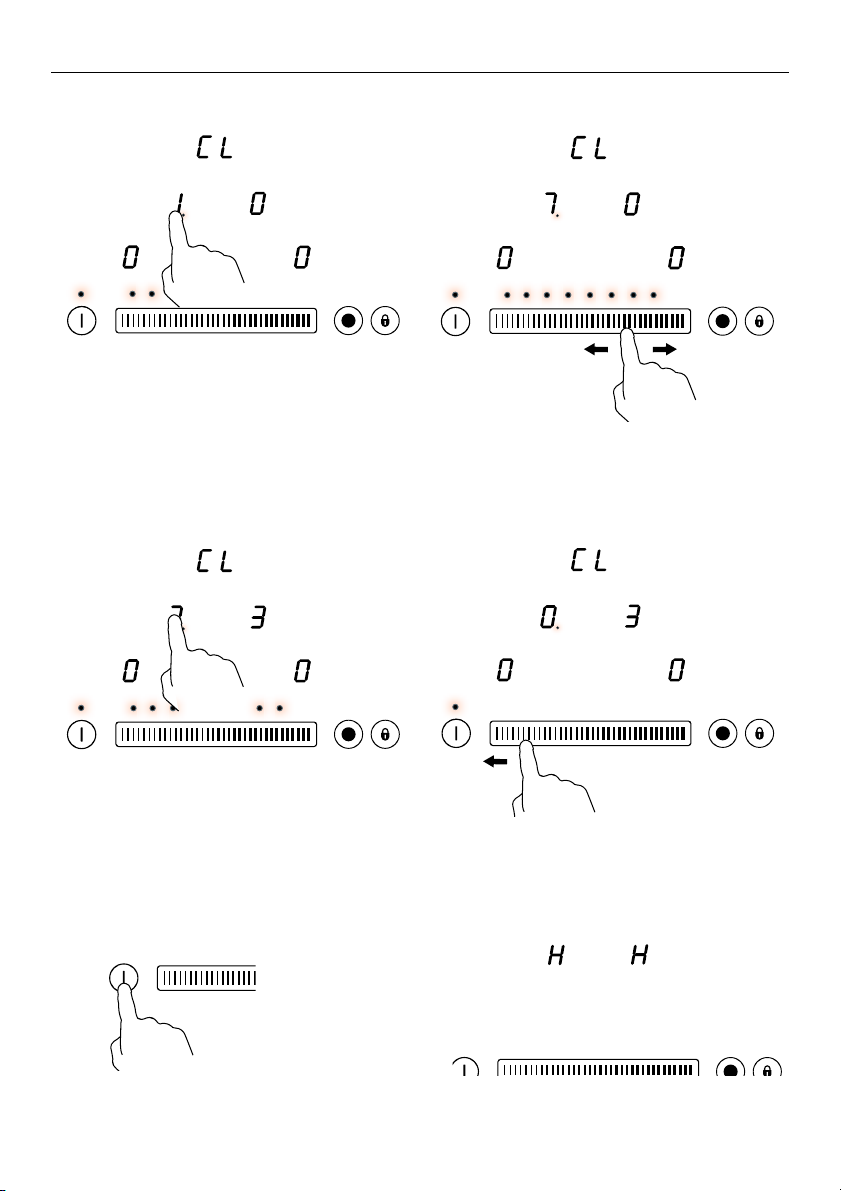

To modify the heat setting during cooking
When you have finished using a cooking zone, you can turn it off, but continue to use
other cooking zones:
turn the whole cooktop off:
1Select a cooking zone.
1Select the cooking zone you want to
turn off.
2Hwill show which cooking zone surface is too
hot to touch. It will disappear when the surface
has cooled down to a safe temperature.
1Turn the cooktop off.
2Modify its heat setting.
2Decrease its heat setting until the
display shows 0. If the cooking zone
surface is too hot to touch, Hwill
replace 0in the display.
