Fisher & Paykel CI122DTB User manual

Induction cooktop
CI122DTB, CI244DTB,
CI304DTB & CI365DTB
models
US CA
USER GUIDE

1
CONTENTS
IMPORTANT!
SAVE THESE INSTRUCTIONS
The models shown in this user guide may not be available in all markets and are subject
to change at any time. For current details about model and specification availability in
your country, please go to our website www.fisherpaykel.com or contact your local
Fisher & Paykel dealer.
Safety and warnings 2
Introduction 9
Choosing the right cookware 10
Using your induction cooktop 12
Using your cooktop’s special features 18
Cooking guidelines 31
Care and cleaning 34
Troubleshooting 35
Warranty and service 37

2
SAFETY AND WARNINGS
Operation and maintenance
WARNING!
Electrical Shock Hazard
Do not cook on a broken or cracked cooktop. If the cooktop surface
should break or crack, switch the appliance off immediately at the mains
power supply (wall switch) and contact a qualified technician.
Switch the cooktop off at the wall before cleaning or maintenance.
Failure to follow this advice may result in electrical shock or death.
WARNING!
Fire Hazard
Unattended cooking on a hob with fat or oil can be dangerous and may
result in fire.
NEVER try to extinguish a fire with water, but switch off the appliance and
cover flame, eg with a lid or fire blanket, or use dry chemical or foam-type
extinguisher.
Do not store items on cooking surfaces.
Failure to follow this advice may result in serious burns or death.
WARNING!
Health Hazard
This appliance complies with electromagnetic safety standards.
However, persons with cardiac pacemakers or other electrical implants
(such as insulin pumps) must consult with their doctor or implant
manufacturer before using this appliance to make sure that their implants
will not be affected by the electromagnetic field.
Failure to follow this advice may result in death.
WARNING!
Hot Surface Hazard
DO NOT TOUCH SURFACE UNITS OR AREAS NEAR UNITS – Surface units
may be hot even though they are dark in color.
During use, accessible parts of this appliance will become hot enough to
cause burns.
Do not let body, clothing or any item other than suitable cookware
contact with the ceramic glass until the surface is cool.
Never leave metal objects (such as kitchen utensils) or empty pans on the
cooktop as they can become hot very quickly.
Beware: magnetisable metal objects worn on the body may become hot in
the vicinity of the cooktop. Gold or silver jewellery will not be affected.
Keep children away.
Handles of saucepans may be hot to touch. Check saucepan handles do
not overhang other cooking zones that are on. Keep handles out of reach
of children.
Failure to follow this advice could result in burns and scalds.
!
!
!
!

3
SAFETY AND WARNINGS
WARNING!
Cut Hazard
The razor-sharp blade of a cooktop scraper is exposed when the safety
cover is retracted. Use with extreme care and always store safely and out
of reach of children.
Failure to follow this advice could result in injury and cuts.
!
IMPORTANT SAFETY INSTRUCTIONS!
Operational
● Read these instructions carefully before using this product.
● Proper installation — Be sure your appliance is properly installed and grounded by a
qualified technician.
● Never leave the appliance unattended when in use. Boilover causes smoking and
greasy spillovers that may ignite.
● Never use your appliance as a work or storage surface.
● Wear proper apparel — Loose-fitting or hanging garments should never be worn while
using the appliance.
● Never leave any objects or utensils on the appliance.
● Do not place or leave any magnetisable objects (eg credit cards, memory cards) or
electronic devices (eg computers, MP3 players) near the appliance, as they may be
affected by its electromagnetic field.
● We recommend using plastic or wooden kitchen utensils for cooking with your
induction cooktop.
● Storage in or on appliance — Flammable materials should not be stored in an oven or
near surface units.
● Do not place or leave aluminum foil on the cooktop.
● Never use your appliance for warming or heating the room.
● Do Not Use Water on Grease Fires – Smother fire or flame or use dry chemical or
foam-type extinguisher.
● Use only dry potholders — Moist or damp potholders on hot surfaces may result in
burns from steam. Do not let potholder touch hot heating elements. Do not use a
towel or other bulky cloth.
● Use proper pan size — This appliance is equipped with one or more surface units of
different size.
Select utensils having flat bottoms large enough to cover the surface unit heating
element. The use of undersized utensils will expose a portion of the heating element
to direct contact and may result in ignition of clothing. Proper relationship of utensil
to burner will also improve efficiency.
● After use, always turn off the cooking zones and the cooktop as described in this
manual (ie by using the touch controls). Do not rely on the pan detection feature to
turn off the cooking zones when you remove the pans.
● Do not allow children to play with the appliance or sit, stand, or climb on it.
● Do not store items of interest to children in cabinets above the appliance. Children
climbing on the cooktop could be seriously injured.
● Do not leave children alone or unattended in the area where the appliance is in use.

4
SAFETY AND WARNINGS
IMPORTANT SAFETY INSTRUCTIONS!
Operational
● Children of less than 8 years old must be kept away from the appliance unless
continuously supervised. This appliance can be used by children aged from 8 years
and above, and persons with reduced physical, sensory or mental capabilities or
lack of experience and knowledge, if they have been given supervision or instruction
concerning the use of the appliance in a safe way and they understand the hazards
involved. Cleaning and user maintenance shall not be done by children without
supervision.
● Do not repair or replace any part of the appliance unless specifically recommended in
the manual. All other servicing should be done by a qualified technician.
● Do not use a steam cleaner to clean your cooktop.
● Do not place or drop heavy objects on your cooktop.
● Do not stand on your cooktop.
● Do not use pans with jagged edges or drag pans across the ceramic glass surface as
this can scratch the glass.
● Do not use scourers or any other harsh/abrasive cleaning agents to clean your
cooktop, as these can scratch the ceramic glass.
● If the power supply cable is damaged, it must only be replaced by a qualified
technician.
● Do not operate your cooktop by means of an external timer or separate remote-
control system.
● Do not cook on broken cooktop — If cooktop should break, cleaning solutions and
spillovers may penetrate the broken cooktop and create a risk of electric shock.
Contact a qualified technician immediately.
● Clean cooktop with caution — If a wet sponge or cloth is used to wipe spills on a hot
cooking area, be careful to avoid steam burn. Some cleaners can produce noxious
fumes if applied to a hot surface.
● If the appliance is malfunctioning, it will display an alert code: first note down the
alert code (see section ‘Alert codes’ in this manual), then contact your Authorized
Service Center or Customer Care to arrange for service. Do not use your appliance
until it has been repaired by a Fisher & Paykel authorized technician.
● This induction cooktop generates and uses ISM frequency energy that heats cookware
by using an electromagnetic field. It has been tested and complies with Part 18 of the
FCC Rules for ISM equipment. This induction cooktop meets the FCC requirements to
minimize interference with other devices in residential installation. Induction cooktops
may cause interference with television or radio reception. If interfence occurs, the
user should try to correct the interference by:
● Relocating the receiving antenna of the radio or television
● Increasing the distance between the cooktop and the receiver
● Connecting the receiver into an outlet different than the receiver.

5
INTRODUCTION
Introducing your cooktop
Congratulations on your new purchase. Your Fisher & Paykel induction cooktop is
the ultimate in induction cooking, giving you the speed, precision, and simplicity of
electronic control, and the easy-care elegance of a ceramic glass surface. For more
information, visit our local website listed on the back cover.
A word on induction cooking
Induction cooking is a safe, advanced, efficient, and economical cooking technology.
It works by electromagnetic vibrations generating heat directly in the pan, rather than
indirectly through heating the glass surface. The glass becomes hot only because
the pan eventually warms it up. This technology has a number of advantages over
traditional radiant energy cooking:
● Heat-up times are much faster.
● Use is safer as no heating takes place unless a suitable pan is placed on the cooking
zone.
● As heat is transferred without loss, you save energy.
Before using your new cooktop
● Read this guide, taking special note of the ‘Safety and warnings’ section.
● Remove any protective film that may still be on your cooktop.
Using the touch controls

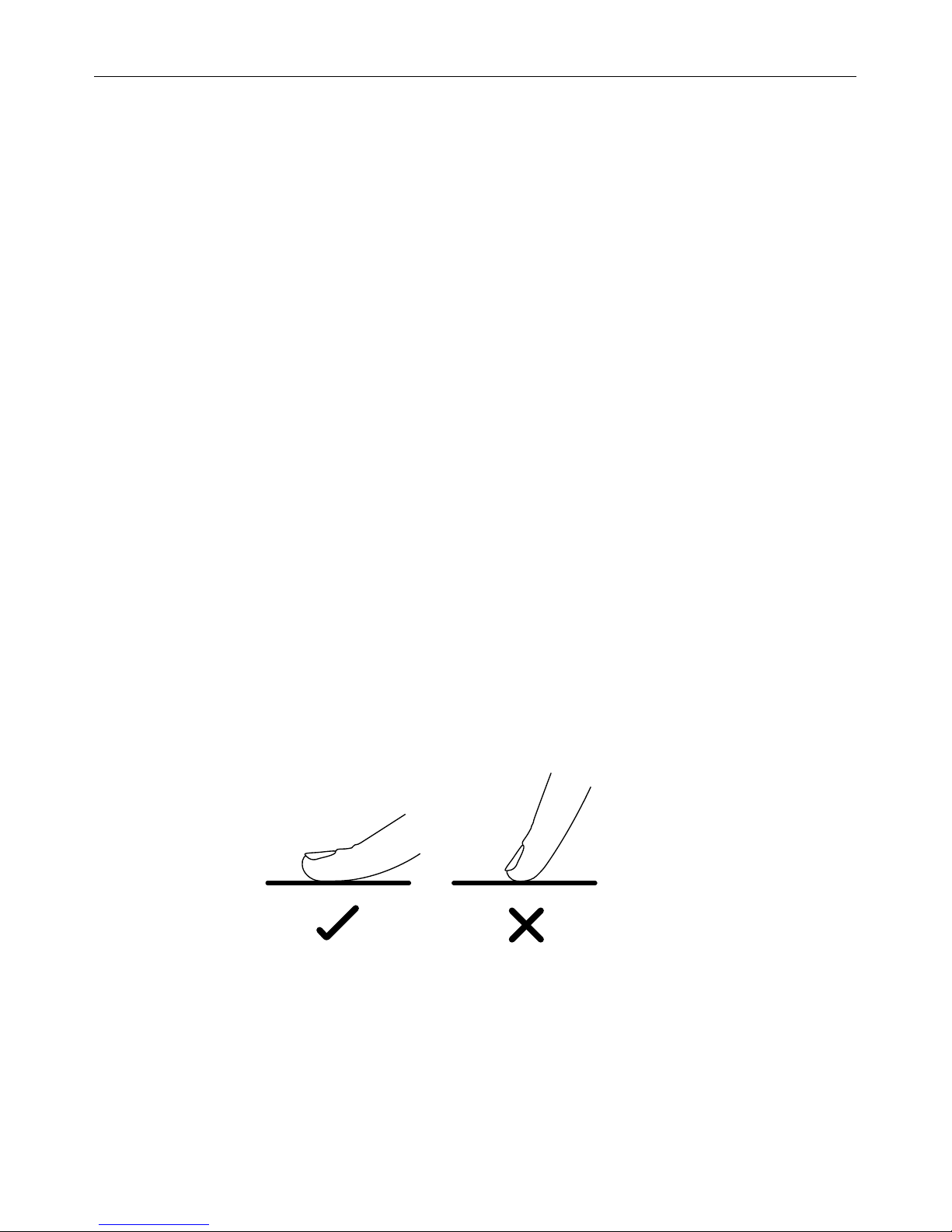

● The controls respond to touch, so you don’t need to apply any pressure.
● Use the ball of your finger, not its tip.
● Make sure the controls are always clean, dry, and there is no object (eg a utensil or
a cloth) covering them. Even a thin film of water may make the controls difficult to
operate.

6
CHOOSING THE RIGHT COOKWARE
To check if cookware is suitable
● Carry out a magnet test:
● Move a magnet across the base of the pan.
If the magnet is attracted then the pan is induction suitable.
● Note: Make sure attraction is consistent across the base of the pan.
If there are gaps, such as an indented manufacturer’s logo,
then the performance of the pan will be impaired.
● If you do not have a magnet:
1Put some water in the pan you want to check.
2Follow the steps under ‘To start cooking’.
3If does not flash in the display and the water is heating, the pan is suitable.
Quality of cookware
IMPORTANT!
● The quality of your cookware can affect cooking performance. Only use induction
compatible cookware that has been specifically designed for induction cooking.
Look for the induction symbol on the packaging or the bottom of the pan.
● Cookware that has a high content of ferromagnetic material that continues up from
the base into the sides of the pan will give the best cooking performance.
See below:
Quickest heating
Performance
High content of
ferromagnetic material.
Heating area is
consistent across the
base and continues up
the sides of pan.
Average heating
Performance
Reduced area of
ferromagnetic material.
Reduced zone of
heating, results in poor
cooking performance
and slower heating.
Slow heating
Performance
Very limited area of
ferromagnetic material.
Results in very slow
heating performance.
Note: This type of
pot is good for very
delicate tasks such as
melting chocolate, as
heating is very slow.

7
CHOOSING THE RIGHT COOKWARE
Cookware guidelines
● Cookware made from the following materials is suitable:
● stainless steel with a magnetic base or core
● aluminium and copper with a magnetic base or core
● cast iron
● steel or enamelled steel.
● Cookware made from the following materials is not suitable:
● pure stainless steel
● aluminium or copper without a magnetic base
● glass
● wood
● porcelain
● ceramic or earthenware.
Do not use cookware with jagged edges or a curved base.
Make sure that the base of your pan is smooth, sits flat against the glass, and is similar
in size as the cooking zone. A small pot on a large cooking zone may not be detected.
Always centre your pan on the cooking zone.
Always lift pans off the cooktop – do not slide, or they may scratch the glass.

8
USING YOUR INDUCTION COOKTOP
* Maximum output when set on PowerBoost.
** PowerBoost is not available when cooking zones are bridged.
See ‘Using your cooktop’s special features.’
CI122DTB model CI244DTB model
CI304DTB model CI365DTB model
COOKING
ZONE
ZONE
DIAMETER POWER POWERBOOST RECOMMENDED MINIMUM PAN SIZE
15 3/4” (145mm) 1400 W 2200 W * 4 3/4” (120mm)
2 7 1/8” (180mm) 1850 W 3000 W * 5 3/4” (145mm)
38 1/4” (210mm) 2300 W 3700 W * 5 3/4” (145mm)
47 1/8”/10 1/4”
(180/260mm)
1850/2600 W 3000/5500 W * 5” (125mm)
(inner zone)
9 7/8” (250mm)
(dual zone)
5 SmartZone 2100 W 3700 W ** 4 3/4” (120mm)
(un-bridged)
9 7/8” (250mm)
(bridged)
5
5
3
21
2
2
2
4
1
1
5
5
5
5

9
USING YOUR INDUCTION COOKTOP
GentleHeat
indicators
if top one is lit:
Medium
GentleHeat setting
is activated
If lower one is lit:
Low GentleHeat
setting is activated
COOKING
ZONE
ON/OFF
control
Touch to turn
cooking zone
on.
If lit: cooking
zone is on.
Heat
Setting
Display
Cooking
Zone
identifier
Bridging
Zone
indicator
Zone timer
indicator
if brightly lit:
timer is
selected and
ready to be set
if dimly lit:
timer is
counting down
Timer
Display
Timer Control
if on:
timer is active
if off:
timer is off
Control panel
Keylock
control:
Locks the
controls
(except
ON/OFF)
to prevent
unintended
use
if on:
controls
(except
ON/OFF)
are locked
and
unresponsive
if off:
controls are
responsive
if on:
cooktop is on
if off:
cooktop is off
Setting selector:
Touch this area or
slide your finger
along it to select
the heat setting.
The display lights
above the selector
correspond to the
setting levels (0-9)
COOKTOP
ON/OFF
control
Turns the
cooktop
on and off
To select a setting on the selector:
Touch at one point to “jump”
to a specific setting
OR slide your finger along the selector.

10
USING YOUR INDUCTION COOKTOP

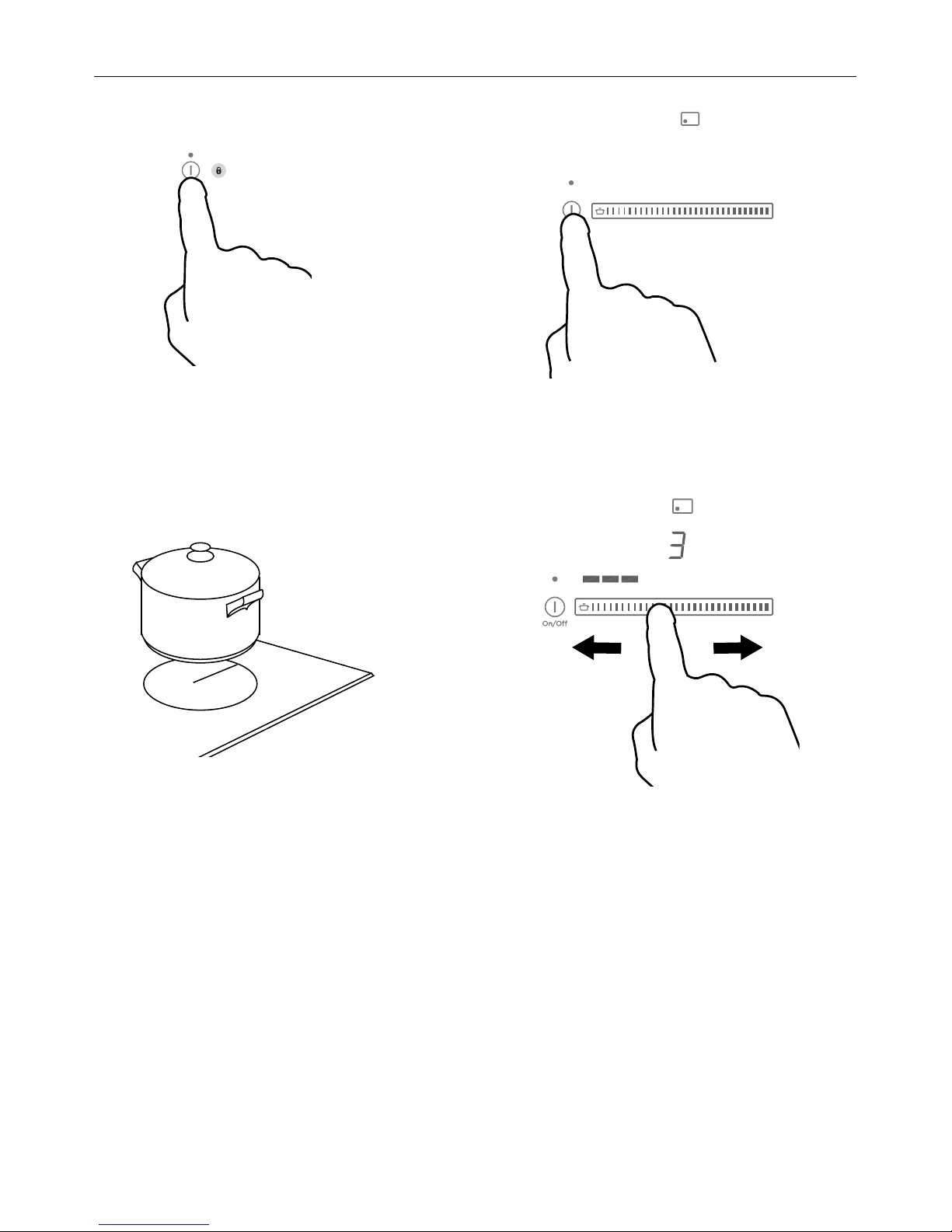

To start cooking
1 Touch and hold the COOKTOP
ON/OFF control for 2 seconds.
A white indicator light above the
control will glow.
3 Place a suitable pan on the
cooking zone.
● Make sure the bottom of the
pan and the surface of the
cooking zone are clean and dry.
IMPORTANT!
Always place small pans in the
centre of the cooking zone.
4 Select a heat setting by touching or
sliding the setting selector with your
finger.
● If you don’t choose a heat setting
within 20 seconds, the cooktop will
automatically turn off. Start with step 1
again.
● You can modify the heat setting at any
time during cooking.
2 Touch the COOKING ZONE ON/OFF
control of the cooking zone you wish to use.
A white indicator light above the control will
glow.

11
USING YOUR INDUCTION COOKTOP
If a display flashes alternately with the heat setting
This means that:
● you have not placed a pan on the correct cooking zone or
● the pan you’re using is not suitable for induction cooking or
● the pan is too small or not properly centred on the
cooking zone.
No heating takes place unless there is a suitable pan on the cooking zone.
The cooktop will automatically turn off after 10 minutes if no suitable pan is placed on it.
Dual zone cooking (CI365DTB models only)
When using a small pot on the dual cooking zone, be sure to centre it so that the inner
zone will detect the pan. If the pan covers the outer zone, then the outer zone will
automatically switch on.
SmartZones (CI122DTB & CI244DTB models only)
The SmartZones are large. You may place several small pots on the SmartZone and they
will be detected as if they were one large pot.
IMPORTANT!
The whole of the SmartZone is activated when a pot is detected. This means that
other magnetisable items (such as cutlery) sitting in the cooking zone will heat up.
Never leave cutlery or other magnestisable items on your cooktop.

12
USING YOUR INDUCTION COOKTOP
When you have finished cooking
1 Turn the cooking zone off by touching
the COOKING ZONE ON/OFF control.
2Turn the whole cooktop off by
touching the COOKTOP
ON/OFF control.
3Beware of hot surfaces
will flash in the window of any cooking zone that is too hot to touch. It will remain on
and steadily lit even when the cooktop is turned off. It will disappear when the surface
has cooled down to a safe temperature.

13
USING YOUR INDUCTION COOKTOP
Locking the controls
● You can lock the controls to prevent unintended use
(for example children accidentally turning cooking zones on).
● When the controls are locked, all controls except the COOKTOP
ON/OFF control are disabled.
To lock the controls
1 Make sure that the cooktop is turned on but no cooking zone is in use.
2 Touch and hold the keylock control for 5 seconds. The white indicator light above
the control comes on, indicating that the controls are locked.
● Note: the cooktop will automatically turn off after 20 seconds, but the controls will still
be locked when you turn the cooktop on again.
If any controls are accidentally touched while the cooktop is locked the white ‘lock’
indicator light will flash and the cooktop will remain locked.
To unlock the controls
1 Make sure the cooktop is turned on.
2 Touch and hold the keylock control for 3 seconds. The white indicator light above
the control goes out.
3 You can now start using your cooktop.

14
USING YOUR COOKTOP’S SPECIAL FEATURES
Using the PowerBoost feature
This feature enables you to sear meat or bring liquid to the boil very quickly. When
a cooking zone is set for PowerBoost, it uses more than 100% of the power of that
particular cooking zone, resulting in a boost of intense heat.
IMPORTANT!
PowerBoost heats food and liquids very quickly. Do not leave the cooktop unattended
when using this feature.
To set a cooking zone for PowerBoost
When PowerBoost is set
● The cooking zone will be on PowerBoost (more than 100%) for 10 minutes, will then
flash for a few seconds before the cooking zone automatically reduces the heat to
setting (100%).
To quit the PowerBoost setting
Either touch or slide the setting selector to a new setting or to to turn the cooking
zone off.

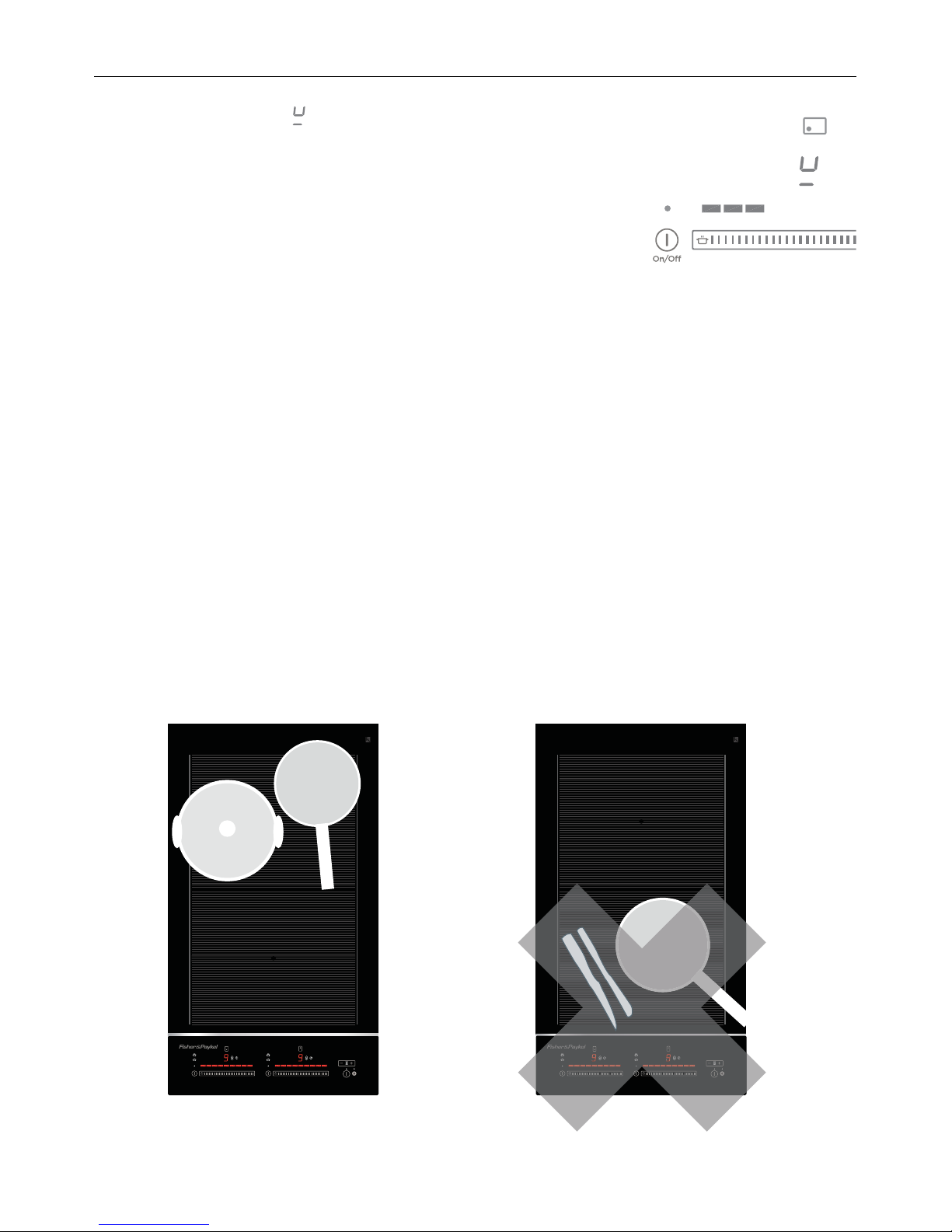

1With the cooking zone turned on, touch or slide the setting selector up to the last
setting on the right until is displayed.
10 mins

15
USING YOUR COOKTOP’S SPECIAL FEATURES
Note:
● You can set two (CI244DTB and CI304DTB) or three (CI365DTB) cooking zones for
PowerBoost, as long as one is not behind the other. For example:
● If one cooking zone is set to PowerBoost and you accidentally also set a second
cooking zone immediately in front or behind to PowerBoost, the first cooking zone will
warn you that the configuration is not possible, flash and then automatically reduce
its power level.
● When a cooking zone is set for PowerBoost, the cooking zone immediately in front of or
behind may automatically reduce its power level.
● PowerBoost is not available if cooking zones are bridged.
CI304DTB model shown as an example

16
USING YOUR COOKTOP’S SPECIAL FEATURES
Using the GentleHeat feature
There are two GentleHeat settings.
● The Medium setting is ideal for keeping cooked food warm and the gentle warming
of delicate foods.
● The Low setting is ideal for the most delicate cooking tasks (such as melting
chocolate), as the cooking zone will provide a very low continuous gentle heat.
To set a cooking zone for GentleHeat
To go from a higher heat setting to GentleHeat
1 Touch the COOKING ZONE ON/OFF to turn the cooking zone off.
2 Touch the COOKING ZONE ON/OFF again to turn the cooking zone back on.
3 Follow steps above to select the GentleHeat setting of your choice.
To quit the GentleHeat setting
Touch the COOKING ZONE ON/OFF button to turn the cooking zone off.
2 If you want the Low setting,
touch and hold the GentleHeat
setting on the setting selector.
● The Low setting indicator above
will glow and the Medium setting
indicator will go out.
1 With the cooking zone turned on,
touch the GentleHeat setting on the
setting selector.
● The Medium setting indicator above
will glow and will show in the
display.

17
USING YOUR COOKTOP’S SPECIAL FEATURES
Using the Auto Heat-reduce feature
Cooking zones set for this feature will:
● first quickly heat up food or liquid at the highest setting
● then automatically reduce the heat to a pre-selected lower setting to cook the food
through.
To set a cooking zone for Auto Heat-reduce
1 With the cooking zone turned on,
touch or slide the setting selector to
the level that you wish the cooking
zone to automatically reduce to.
Do not lift your finger.
2 Hold your finger on the control for 3
seconds until the letter starts to
flash, alternately with the temperature
you have selected.
● The control is now set and you can
move your finger away.

18
USING YOUR COOKTOP’S SPECIAL FEATURES
When Auto Heat-reduce is set
● If you would like a lower or higher heat setting than you originally selected, simply slide
to the new setting and hold until the starts flashing. Alternatively, wait until stops
flashing and then modify the heat setting.
To quit the Auto Heat-reduce setting while is flashing
Either touch or slide the setting selector to a new setting or touch the COOKING ZONE
ON/OFF control to turn the cooking zone off.
Note:
● The Auto Heat-reduce and PowerBoost features cannot be used together. If you turn
PowerBoost on when Auto Heat-reduce is already set, the Auto Heat-reduce will cancel
and PowerBoost will stay on.
Then, when the period of highest
setting is over, will stop flashing and
the cooking zone will automatically
reduce the heat to your pre-selected
lower setting.
PRE-SELECTED LOWER HEAT SETTING APPROXIMATE TIME AT HIGHEST SETTING
1 40 seconds
2 1 minute
3 2 minutes
4 3 minutes
5 4 minutes
6 7 minutes
7 2 minutes
8 3 minutes
Initially, while the cooking zone is
at the highest setting, will flash
alternately with your selected lower
setting. The length of time at the
highest setting depends on the
lower heat setting selected. See
chart below.
