Fisher & Paykel TITAN CG913 Series User manual

Gas cooktops
User guide
NZ AU GB IE
CG913 models

1
Contents
Introduction 2
Safety and warnings 3
Using your cooktop 4
Care and cleaning 8
Troubleshooting 11
Warranty and service 12
Gas rate summary 13
Important!
SAVE THESE INSTRUCTIONS
The models shown in this User Guide may not be available in all markets and are
subject to change at any time. For current details about model and specification
availability in your country, please go to our website www.fisherpaykel.com or
contact your local Fisher & Paykel dealer.

2Introduction
About your new cooktop
Thank you for buying a Fisher & Paykel gas cooktop. Now that it is installed and ready to use, you
will want to know everything about it to make sure you get excellent results right from the start.
This guide introduces you to all its special features. We recommend you read the whole guide
before using your new cooktop, for both safety and cooking success.
For more information, go to www.fisherpaykel.com
Before using your new cooktop
Before using your new cooktop, please:
Read this user guide, taking special note of the ‘Safety and warnings’ section following.
Plug the cooktop into the electricity supply and turn it on so the electronic ignition will work.
1
2
3
5
1 Semi-rapid burner
2 Rapid burner
3 Wok burner
4 Auxillary burner
5 Cooktop controls

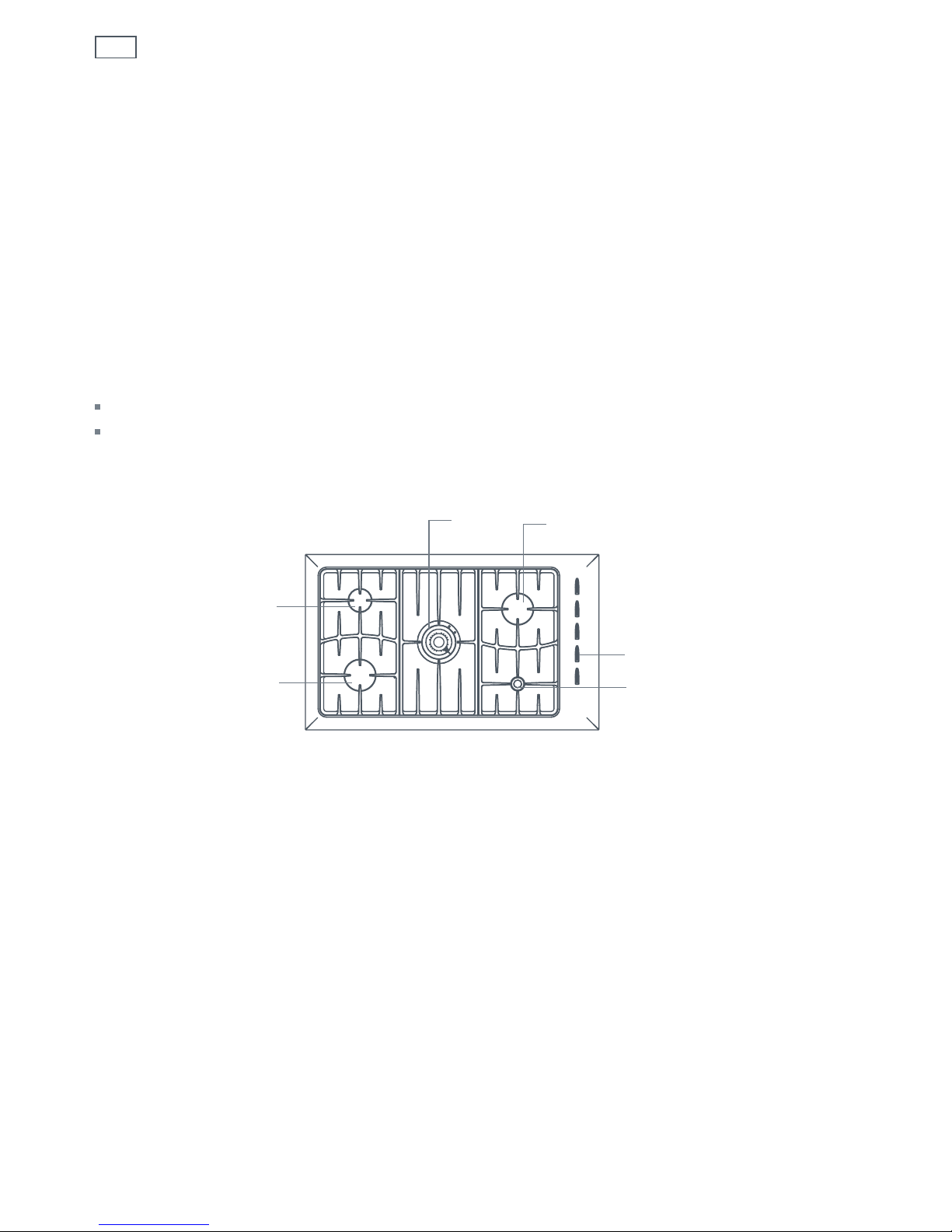

Fig.1 CG913 cooktop
2
4

3
Safety and warnings
WARNING!
Hot Surface Hazard
This appliance becomes hot during use.
Do not touch the cooktop components, burners, trivets/pan supports or the
stainless steel base when hot.
Before cleaning, turn the burners off and make sure the whole cooktop is cool.
Always turn the burner off before moving the SimmerMat and handle the hot
SimmerMat with tongs and/or pot holders
Failure to do so could result in burns and scalds.
WARNING!
Explosion Hazard
Do not store flammable materials such as gasoline near the cooktop.
Do not spray aerosols near the cooktop during use.
Failure to do so may result in death or electrical shock.
Important safety precautions
Household appliances are not intended to be played with by children.
Children, or persons with a disability which limits their ability to use the appliance, should have a
responsible person to instruct them in its use. The instructor should be satisfied that they can use
the appliance without danger to themselves or their surroundings.
This appliance should be connected to a circuit that incorporates an isolating switch providing
full disconnection from the electricity supply.
Do not stand or place heavy objects on this appliance.
Do not use an asbestos mat or decorative covers between the flame and the saucepan as this may
cause serious damage to your cooktop.
Do not place aluminium foil or plastic dishes on the cooktop burners.
Do not let large saucepans or frying pans overlap the bench as this can deflect heat onto your
benchtop and damage the surface.
Do not let large saucepans, frying pans or woks push any other pans aside. This could make them
unstable or deflect heat onto your benchtop and damage the surface.
Do not use a steam cleaner for cleaning this cooktop.
Saucepan handles may be hot to touch. Ensure saucepan handles do not overhang other gas
burners that are on. Keep handles out of reach of children.
If the electrical supply cord is damaged, it must only be replaced by an authorised person. Ensure
that the electrical connection plug is accessible after installation.
Where this gas cooktop is installed in marine craft or in a caravan, it shall not be used as a space
heater.
The use of a gas cooking appliance results in the production of heat and moisture in the room in
which it is installed. Ensure the kitchen is well ventilated. Keep natural ventilation holes open or
install a mechanical ventilation device (mechanical extractor hood).
Prolonged intensive use of the appliance may call for additional ventilation, for example opening of
a window, or more effective ventilation, for example increasing the level of mechanical ventilation
where present.

4Using your cooktop
Lighting the cooktop
1 Choose the control knob for the burner you want to use.
2 Press down gently and turn the knob anticlockwise to
the High position. You do not need to hold the knob
down. The electrodes on all the burners will spark.
Note: For the first burner selected there is a short delay
before the safety valve allows gas to flow to the cooktop.
3 Adjust the flame anywhere between the High and Low
positions. Do not adjust the flame between High and Off
O.
Note: If the burner does not light within 5 seconds, turn
the control knob off before trying again.
If the cooktop does not light
If the cooktop does not light, check that:
The cooktop is plugged in and the electricity is switched on.
The gas is turned on.
You have allowed at least five seconds for the safety valve to open when lighting the first burner.
The electrodes are sparking.
If the electrodes are not sparking, they may be dirty or wet. Clean them with a toothbrush and
methylated spirits, as shown in Fig. 3.
-0
-0 )*)*
0''
0''
High
Low
Off
Burner
ON
light
Fig.2 Burner knob
Fig.3 How to clean an electrode
Electrode

5
Using your cooktop

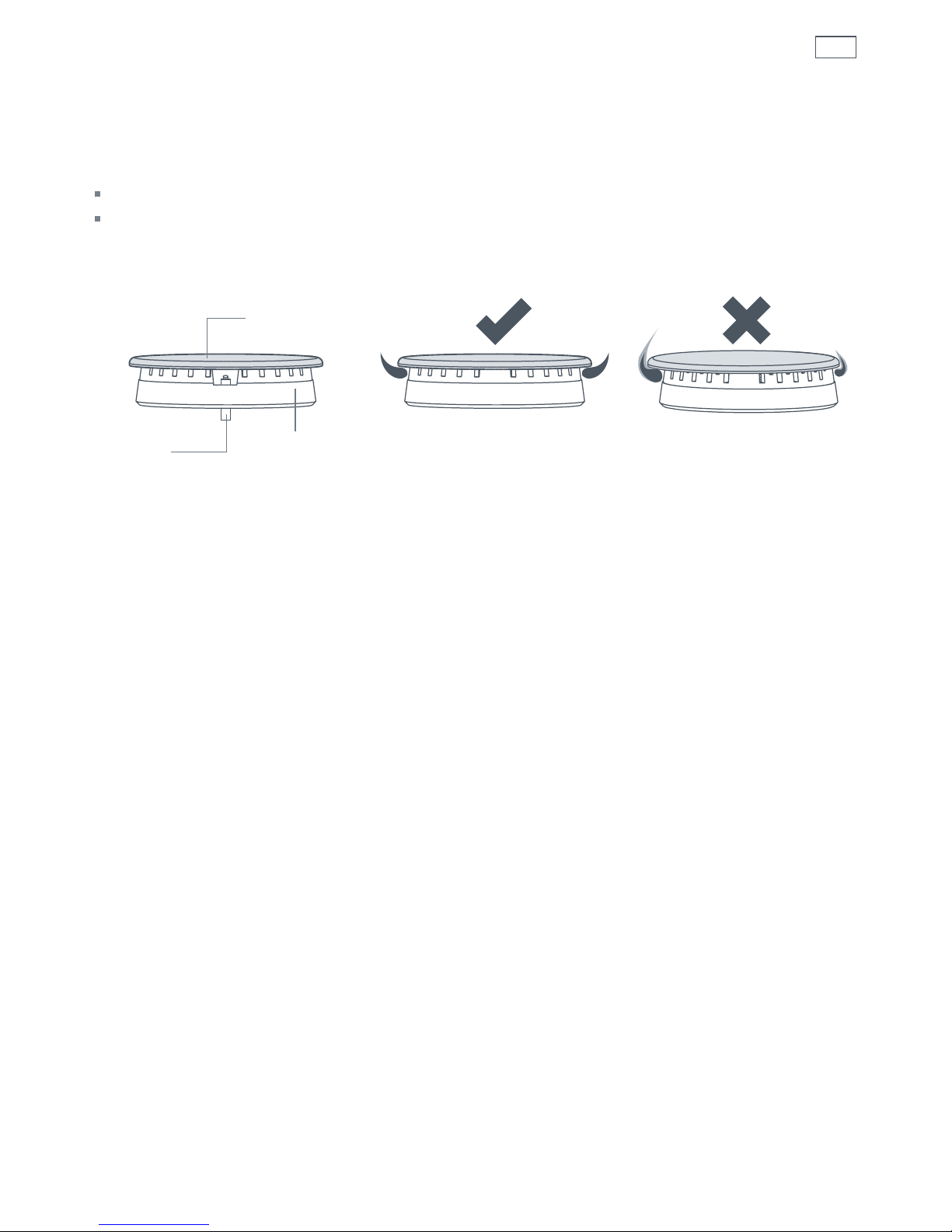

Electrode Burner ring
Burner cap
Fig.4 Burner parts Fig.5 Correct assembly
of burner parts
Fig.6 Incorrect assembly
of burner parts, showing
irregular flames
If the flame is irregular
If the flame is yellow or irregular, check that the burner parts, including the burner cap, are:
Clean and dry.
Positioned correctly as shown in Fig. 5.
See also ‘Troubleshooting’.
Electricity failure
In the event of an electricity failure, the gas supply will be cut off, even if a burner is in use. If
the burner control knob is still in the ON position when the electricity is restored, the burner ‘ON’
light will flash rapidly. Turn the burner OFF and restart to resume cooking.
Flame failure reignition system
In the event of the flame being accidentally blown out, the flame failure reignition system will
detect this, and the electrode will spark and relight the flame. If no flame is detected after about
five seconds, the gas supply to the appliance will be cut off and the burner ‘ON’ indicator light
will flash slowly. The burner must be turned OFF and restarted to resume cooking. See also
‘Troubleshooting’.

6Using your cooktop
General guidelines
To get the best out of your cooktop, follow these simple suggestions:
Use saucepans with thick flat bottoms. Food in a saucepan with an uneven bottom will take
longer to cook.
Do not let large saucepans or frying pans overlap the bench as this can deflect heat onto your
benchtop and damage the surface.
Always make sure saucepans are stable. Using very heavy saucepans may bend the trivet/pan
support or deflect the flame.
When you need to boil, simmer or fry food, first set the temperature to the High position.
Once the food is boiling, reduce the temperature to maintain a steady heat to cook your food
thoroughly. Doing this will reduce the cooking time.
For auxillary and semi-rapid burners, pans should be 12 cm (5 in.) or larger in diameter.
For rapid burners, pans should be 18-26 cm (7-10 in.) in diameter.
Using a wok
Use your wok only on the wok burner. The trivet/pan support is shaped to take a traditional wok
with a round base.
You can also use a wok stand. Make sure the stand fits securely on the four fingers of the trivet/
pan support, and is stable.
Do not use a wok larger than 45 cm (18 in.)
The wok burner is designed to be used with a wok but may be used with pans 18-26 cm
(7-10 in.) in diameter, with care.

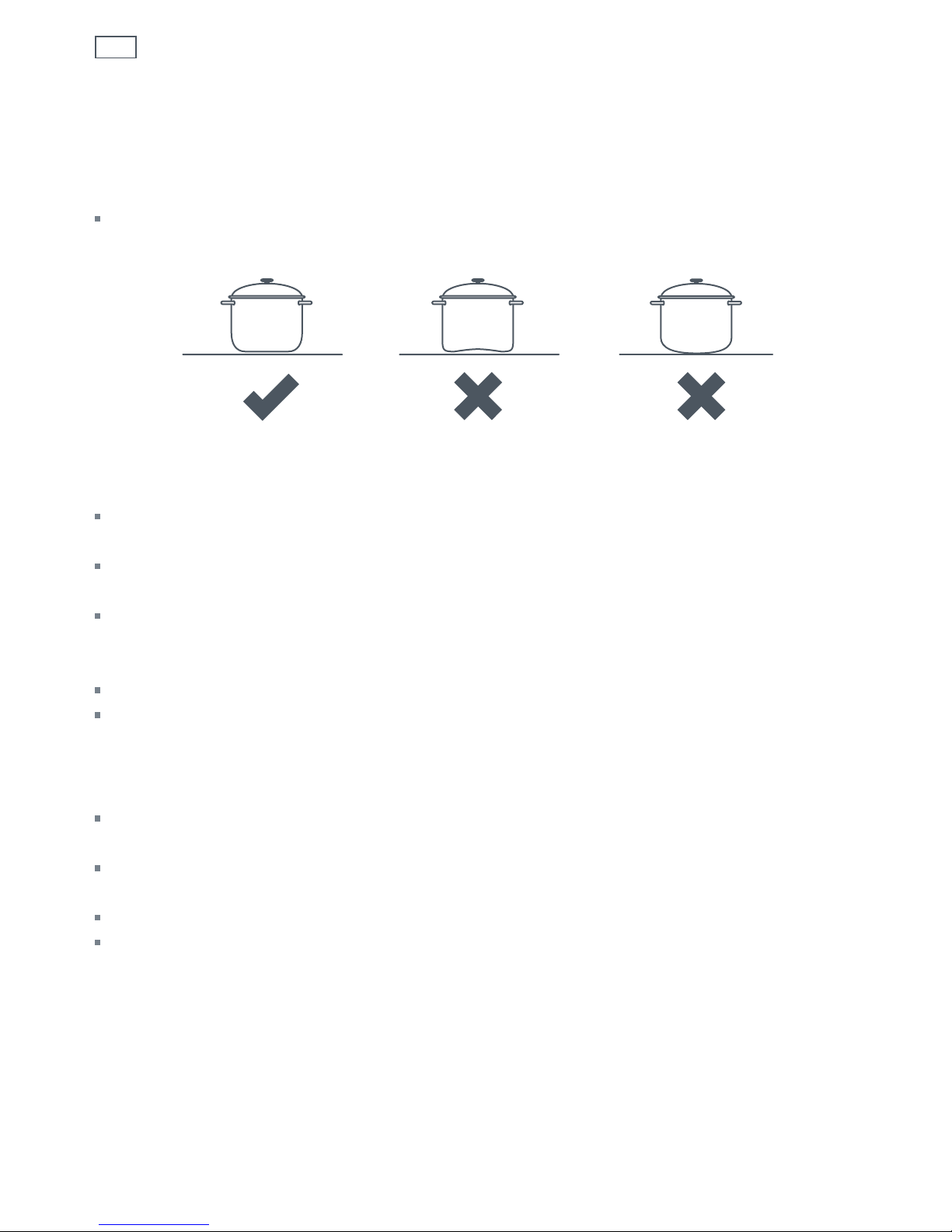

Fig.7 Efficient and inefficient saucepan bottoms

7
Using your cooktop
Using a SimmerMat (if supplied)
A SimmerMat helps control the temperature of the
cooking surface for gentle cooking or the long slow
simmering that is needed for some foods. Use at low
heat only.
To simmer
First bring the food to the boil over high heat.
Then turn the burner off and carefully place the
SimmerMat over the burner on the trivet/pan
support, with the points facing upward. Re-light the
burner, turn to Low and place your saucepan on top
of the SimmerMat.
Using a griddle (if supplied)
Cooking with a griddle
A griddle is ideal for cooking a variety of foods. The
surfaces of a cast-iron griddle will become more and
more non-stick as cooking oils become baked in. This
‘seasoning’ process can be started by coating both
surfaces of the griddle with cooking oil and baking in
the oven at 150
O
C (300
O
F) for about an hour.
Heat the griddle for a few minutes before using.
Brush the food, not the griddle, with oil, to reduce
splatter and smoking.
Cook steak and vegetables at high temperatures on the ribbed side of the griddle. Turn the steak
only once, about halfway through the cooking time. To test, press the surface of the steak. The
softer the meat is, the ‘rarer’ or less well done it will be.
Griddle scones, pancakes, pikelets, polenta and eggs are best cooked slowly at medium to low
temperatures on the flat side of the griddle.
Important!
Prolonged cooking with the griddle at high temperatures may damage the cooktop.
Cleaning a cast-iron griddle
Leave the griddle to cool before cleaning. Scrape away any food residue and wash in warm soapy
water.
Do not scour to the bare metal when cleaning the griddle or you will remove the non-stick
coating that has built up during cooking.
Dry the griddle thoroughly and wipe with a thin coating of cooking oil to prevent rust forming,
especially when the griddle is new.
Fig.9 Only use the griddle on the Wok burner
Fig.8 Only use the SimmerMat
on the Auxilliary burner

8Care and cleaning
General cleaning advice
Clean the cooktop regularly – do not let stains become burnt on.
Use soapy water and a soft sponge or cloth (use the mildest cleaner that will do the job). Do not
use abrasive cleaners, steel soap pads or sharp objects on stainless steel.
Soak stains under a soapy cloth.
Clean brushed stainless steel in the direction of the grain.
Rinse with clean water to ensure no cleaner residue is left (when heated this can stain the
cooktop).
Dry thoroughly to avoid leaving water marks. For extra shine on stainless steel, use a stainless
steel polish.
You can wash trivets/pan supports in the dishwasher.
Clean the burner parts in hot soapy water. Make sure you keep the holes and slots clear.
Thoroughly dry the burner parts. The flames will be irregular if the burner ring is not completely
dry.
Clean electrodes with a toothbrush and methylated spirits.
Do not clean cooktop parts in a self-cleaning oven.
Do not use a steam cleaner.
After cleaning, replace the parts correctly on the cooktop, as shown in Fig. 10, 11 and 12. When
replacing the burner rings, turn the rings until the positioning teeth are placed correctly.
For stubborn stains, see the ‘Cleaning chart’.
Replacing the trivet/pan supports
The wok support goes in the centre over the wok burner. The other two pan supports are
interchangeable but need to be rotated to match the rounded corners of the hob top.
Fig.10 Correct trivet/pan support orientation
Rounded corners

9

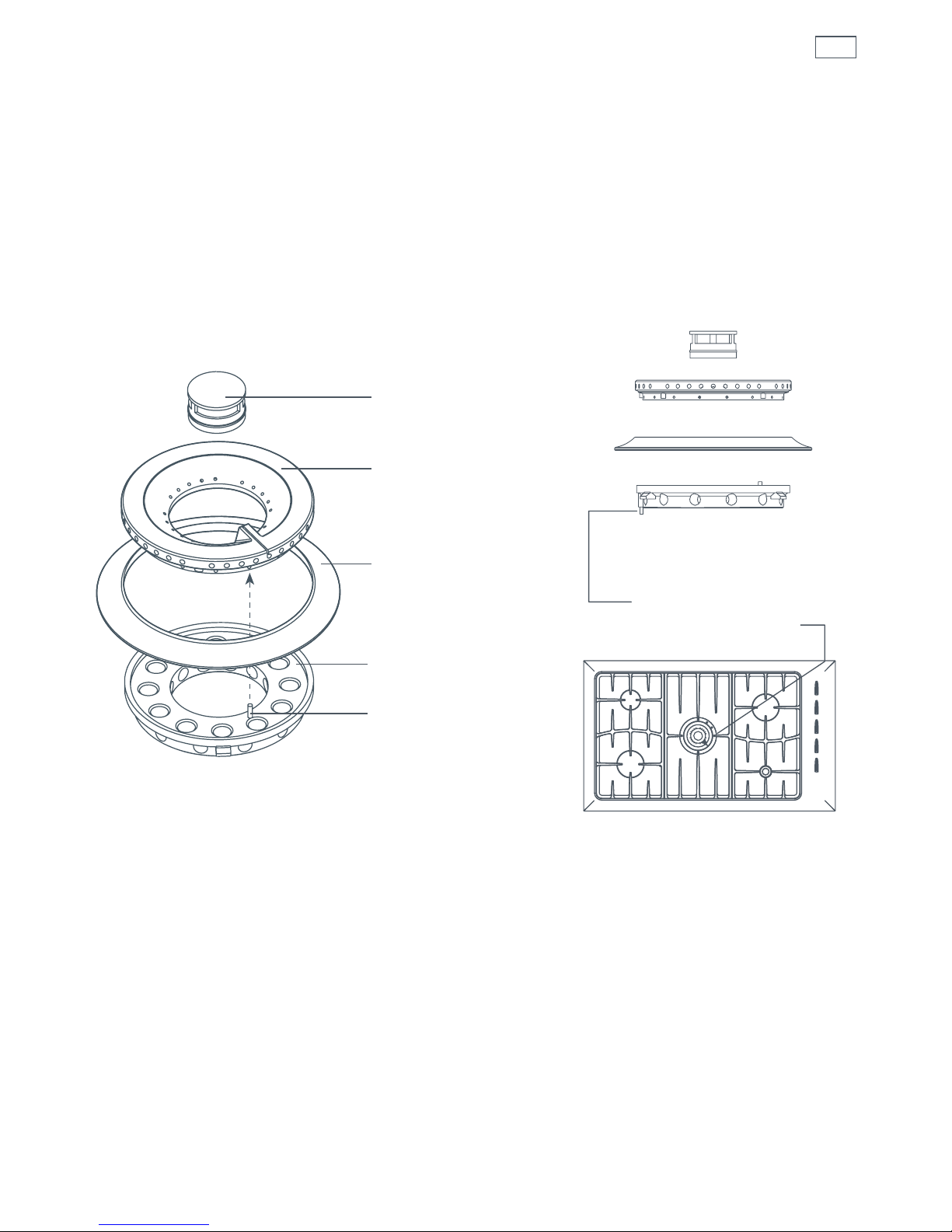

Re-assembling the brass wok burner (some models only)
Each part of the brass burner has locating pins to help you to assemble it correctly after cleaning.
Incorrect assembly can cause dangerous irregular flames and ignition problems. See Figs. 11
and 12 for the correct assembly. Note: The brass parts of your wok burner will change colour
with use. This will have no effect on the performance. You can clean these with a brass cleaner.
Care and cleaning
Rotate vent ring to align
locating pin with hole in
burner base.
Inner cap
Outer cap (small holes)
Trim ring
Vent ring with locating
pins (large holes)
Align and insert
pin
Side view
Fig.12 Aligning locating pin with burner baseFig.11Positioning of locating pins

10 Care and cleaning
Cleaning chart
Cooktop part Cleaning Important
Trivets/pan supports
and burner caps
Hot soapy water and nylon scourer.
Soaking in a solution of biological
clothes washing detergent.
Mild abrasive cream cleaners.
Fume-free or heavy-duty oven
cleaners
(follow manufacturer’s instructions).
Always allow cooktop parts to
cool completely before cleaning
them.
Always apply minimal pressure
with abrasive cleaners.
Remove spills as soon as the
cooktop is cool to avoid the soil
becoming burnt on.
Burner parts Hot soapy water.
To clear the holes use a stiff nylon
brush or wire eg straight-ended paper
clip.
Mild abrasive cream cleaners.
Clean the brass wok burner parts with
brass cleaner.
Reassemble the burner parts
correctly.
Control knobs Hot soapy water and a soft cloth.
Stainless steel
surfaces
Soak stains under a hot soapy cloth,
rinse and dry thoroughly.
Hard water spots can be removed
with household white vinegar.
Non-abrasive stainless steel cleaners.
Regular use of a stainless steel polish
will reduce fingerprints and other
marks.
Heavy soiling can be removed with
fume-free or heavy-duty oven cleaner
(follow manufacturer’s instructions).
Never use harsh/abrasive
cleaning agents as they will
damage the stainless steel
finish.
Chlorine or chlorine compounds
in some cleaners are corrosive to
stainless steel and may damage
the appearance of your cooktop.
Check the label on the cleaner
before using.
The graphics are etched onto the
steel by laser and will not rub off.
Electrodes Toothbrush and methylated spirits. A dirty or wet electrode will
prevent the burner lighting
efficiently.

11
Troubleshooting
Troubleshooting chart
Problem Possible solutions
My cooktop does not light Check the cooktop is plugged in and the electricity is switched on.
Check the gas supply valve is turned on and the supply to the
house is working. You should hear the gas when you turn a burner
on.
The electrodes may be dirty. Clean them with a toothbrush and
methylated spirits.
The burner parts may not be located properly. Check the assembly
and make sure the burner cap is sitting flat.
My burner flames are
yellow or hard to start
The burner parts may not be located properly. Check the assembly
and make sure the burner cap is sitting flat.
If you use bottled gas this may indicate you are getting near the
end of the bottle.
Check the burner parts are clean and dry.
The gas pressure may not be at the correct level. Check with your
service person or installer.
Your cooktop may not be set up for the gas you are using. Check
this with your service person or installer.
One of my burners has an
uneven flame
Check the burner parts are clean and dry. Check the assembly and
make sure the burner cap is sitting flat.
The flame goes out at low
settings
The gas supply pressure may be low. Check this with your service
person or installer.
The low setting may have been adjusted incorrectly. Check this
with your service person or installer.
My burners do not turn
down much (when running
on bottled gas or LPG)
Your cooktop may not have been adjusted correctly. Check this
with your service person or installer.
The flame tips are very
yellow
Call your service person to service the cooktop.
There are objectionable
odours
Call your service person to service the cooktop.
The flame appears to lift off
the burner
Call your service person to service the cooktop.
There is an electricity
failure
In the event of an electricity failure, the gas supply will be cut
off, even if a burner is in use. If the burner control knob is still in
the ON position when the electricity is restored, the burner ‘ON’
light will flash rapidly. Turn the burner OFF and restart to resume
cooking.
All my burner indicator ON
lights are flashing
Turn all the burner knobs to OFF and restart.

12
Before you call for service or assistance ...
Check the things you can do yourself. Refer to the installation instructions and your user guide
and check that:
1 Your product is correctly installed.
2 You are familiar with its normal operation.
If after checking these points you still need assistance, please refer to the Service & Warranty
book for warranty and after-sales service details or contact us through our website:
www.fisherpaykel.com
Product details
Fisher & Paykel Ltd
Model Serial no.
Date of purchase Purchaser
Dealer Suburb
Town Country
Warranty and service

13
Injector Orifice (mm)
Nominal Rating (MJ/h)
Injector Orifice (mm)
Nominal Rating (MJ/h)
Injector Orifice (mm)
Nominal Rating (MJ/h)
Injector Orifice (mm)
Nominal Rating (MJ/h)
Injector Orifice (mm)
Nominal Rating (MJ/h)
Injector Orifice (mm)
Nominal Rating (MJ/h)
Injector Orifice (mm)
Nominal Rating (MJ/h)
Injector Orifice (mm)
Nominal Rating (MJ/h)
ULPG (27.5)
NG (10)
AUXILIARY SEMIRAPID RAPID WOK
NG LPG NG LPG NG LPG NG LPG
CG913T 0.85 3.6 0.45 2.7 1.22 7.2 0.7 6.2 1.45 10.5 0.85 9.3 1.8 15.5 1.05 14.5 CG913TM 0.85 3.6 0.45 2.7 1.22 7.2 0.7 6.2 1.45 10.5 0.85 9.3 1.9 16.3 1.1 15.3
Gas rate summary
All products are factory set for Natural Gas. Refer to the Installation instructions for conversion to LP Gas.
Injector Marking
Nominal Rating (kW)
Injector Marking
Nominal Rating (kW)
Gas Rate (g/h)
Injector Marking
Nominal Rating (kW)
Injector Marking
Nominal Rating (kW)
Gas Rate (g/h)
Injector Marking
Nominal Rating (kW)
Injector Marking
Nominal Rating (kW)
Gas Rate (g/h)
Injector Marking
Nominal Rating (kW)
Injector Marking
Nominal Rating (kW)
Gas Rate (g/h)
CG913 AUXILIARY SEMIRAPID RAPID WOK
NG LPG NG LPG NG LPG NG LPG
II2H3+ 75 S 1.0 050 1.1 80 97 Z 1.9 058 M 1.7 124 100 Z 2.0 065 2.0 146 169 5.5 114 5.5 401 II2H3B/P(30) 75 S 1.0 050 1.1 80 97 Z 1.9 058 M 1.7 124 100 Z 2.0 065 2.0 146 169 5.5 114 5.5 401 II2E3+ 75 S 1.0 050 1.1 80 97 Z 1.9 058 M 1.7 124 100 Z 2.0 065 2.0 146 169 5.5 114 5.5 401 II2L3B/P(30) 75 S 1.0 050 1.1 80 97 Z 1.75 058 M 1.7 124 103 F2 2.0 065 2.0 146 169 5.0 114 5.5 401 II2E3B/P(50) 75 S 1.0 043 1.0 73 97 Z 1.9 058 M 2.0 146 100 Z 2.0 062 2.1 153 169 5.5 098 5.5 401
II2H3+ IE IT GB GR II2H3B/P(30) DK FI NO SE II2E3+ BE, FR, LU II2L3B/P(30) NL II2E3B/P(50) AT, CH, DE I2E DE ULPG (27,5) NG (10) NZ, AU

14

15

16

Copyright © Fisher & Paykel 2006. All rights reserved.
The product specifications in this booklet apply to
the specific products and models described at the
date of issue. Under our policy of continuous product
improvement, these specifications may change at any
time. You should therefore check with your Dealer to
ensure this booklet correctly describes the product
currently available.
www.fisherpaykel.com
NZ AU GB IE
Gas cooktops user guide
Published: 07/2006
Part No. 599297 B
