INSTALLATION GUIDE
US CA
COMBINATION STEAM OVEN
MINIMAL
OS24NMTDB1, OS24NMTDG1, OS24NMLB1 & OS24NMLG1
CONTEMPORARY
OS24NDTDX1, OS24NDLX1

2
!WARNING!
Electric Shock Hazard
Failure to follow this advice may result in
electric shock or death.
• Before carrying out any work on the
electrical section of the appliance, it must be
disconnected from the mains electricity supply.
• Connection to a good ground wiring system is
absolutely essential and mandatory.
• Alterations to the domestic wiring system must
only be made by a qualified electrician
!WARNING!
Fire Hazard
Failure to follow this advice may result in
overheating, burning, and injury.
• Do not use adapters, reducers, or branching
devices to connect this appliance to the mains
power supply.
!WARNING!
Cut Hazard
Failure to use caution could result in injury.
• Take care: some edges are sharp.
READ AND SAVE THIS GUIDE
WARNING!
To avoid hazard, follow these instructions carefully before installing or using this appliance.
zPlease make this information available to the person installing the appliance—doing so
could reduce your installation costs.
zSave these instructions for the local inspectors use.
zThis oven is to be installed and connected to the electricity supply only by an authorized
person.
zIf the installation requires alterations to the domestic electrical system, call a qualified
electrician. The electrician should also check that the socket cable section is suitable for
the electricity drawn by the oven.
zThe oven must be grounded.
zInstallation must comply with your local building and electricity regulations.
zThis appliance must be installed and connected to the mains power supply only by a
suitably qualified person according to these installation instructions and in compliance
with any applicable local building and electricity regulations. Failure to install the
appliance correctly could invalidate any warranty or liability claims.
zIf the power supply cable is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified person in order to avoid a hazard.
zA circuit breaker is recommended.
zDo not use adaptors, reducers or branching devices to connect the oven to the mains
electricity supply, as they can cause overheating and burning.
zThe appliance must not be installed behind a decorative door in order to avoid
overheating.
zThe manufacturer does not accept any responsibility for damage resulting from incorrect
installation.
Electrical requirements
zConnect oven with copper wire only.
zDo not cut the conduit.
zA U.L. listed conduit connector must be provided at the junction box.
zDo not ground to a gas pipe.
zDo not have a fuse in the grounding or neutral circuit.
zFuse both sides of the line.
zA time delay fuse or circuit breaker is recommended. If using a time delay fuse, then
fuse both sides of the line.
zFlexible armored cable from the appliance should be connected directly to the junction
box.
zConnect directly to the fused disconnect (or circuit breaker box) through flexible,
armored or non-metallic sheathed, copper cable (with grounding wire).
zIf codes permit and a separate grounding wire is used, it is recommended that a qualified
electrician determine that the grounding path and wire gauge are in accordance with
local codes.
SAFETY AND WARNINGS
IMPORTANT SAFETY INSTRUCTIONS

PRIOR TO INSTALLATION INSTALLATION MILESTONES
AFTER INSTALLATION
Ensure that:
zThe oven cavity is square and level based on the required dimensions
zThe installation will comply with all clearance requirements and applicable standards and
regulations
zThe isolating switch will be easily accessible to the customer with the oven installed
zThe electrician provides sufficient free length of power supply cable to reach from the
bottom rear of the cavity to at least 5ft (1.5m) in front of the bottom edge of the opening
zThe cable may enter the cavity from the side, top or bottom, but top entry must be at the
rear of the cavity
zThe oven connection socket is outside the cavity if the oven is flush to the rear wall
zThe oven will rest on a surface that can support its weight
zThe height from the floor suits the customer
zYou consult local building authorities and by-laws if in doubt regarding installationn
IMPORTANT!
Some environmental factors and cooking habits can cause condensation in and around the
oven during use. To protect surrounding cabinetry from possible damage caused by frequent
or excessive condensation, we recommend moisture-proofing the oven cavity.
These milestones represent areas throughout
that are pivotal to an optimal installation
outcome. These steps require additional
installer attention and should be quality
checked once completed.

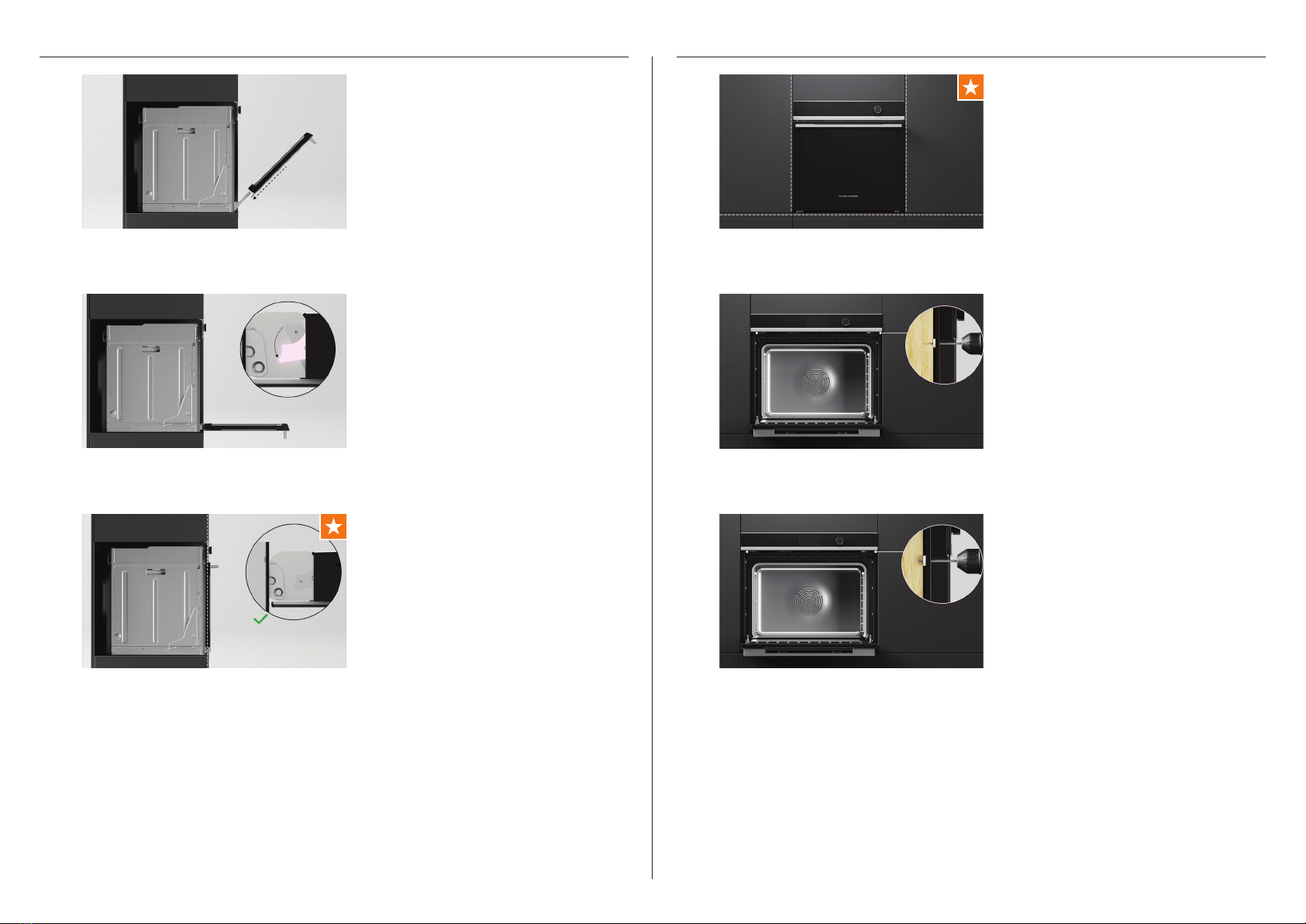

Ensure both hinges are fully locked before shutting the door.
Align oven with surrounding cabinetry and appliances.
Milestone indicator
MILESTONE LINKS
Ensure that:
zThe oven door can open fully without obstruction
zThe oven is not sealed into the cabinetry with silicone or glue. This makes future servicing
difficult. Fisher & Paykel will not cover the costs of removing the oven, or of damage caused
by this removal
zThe power supply cable does not touch any hot metal parts
zThe isolating switch is easily accessible to the customer with the oven installed
zYou complete the ‘Installer checklist’ at the end of the installation
zThere is enough clearance for opening and closing operation of the moving control panel.
If, after following the guidance given, correct performance cannot be achieved, please contact
your nearest Fisher & Paykel trained and supported service technician, Customer Care, or
contact us through our website fisherpaykel.com
3

4

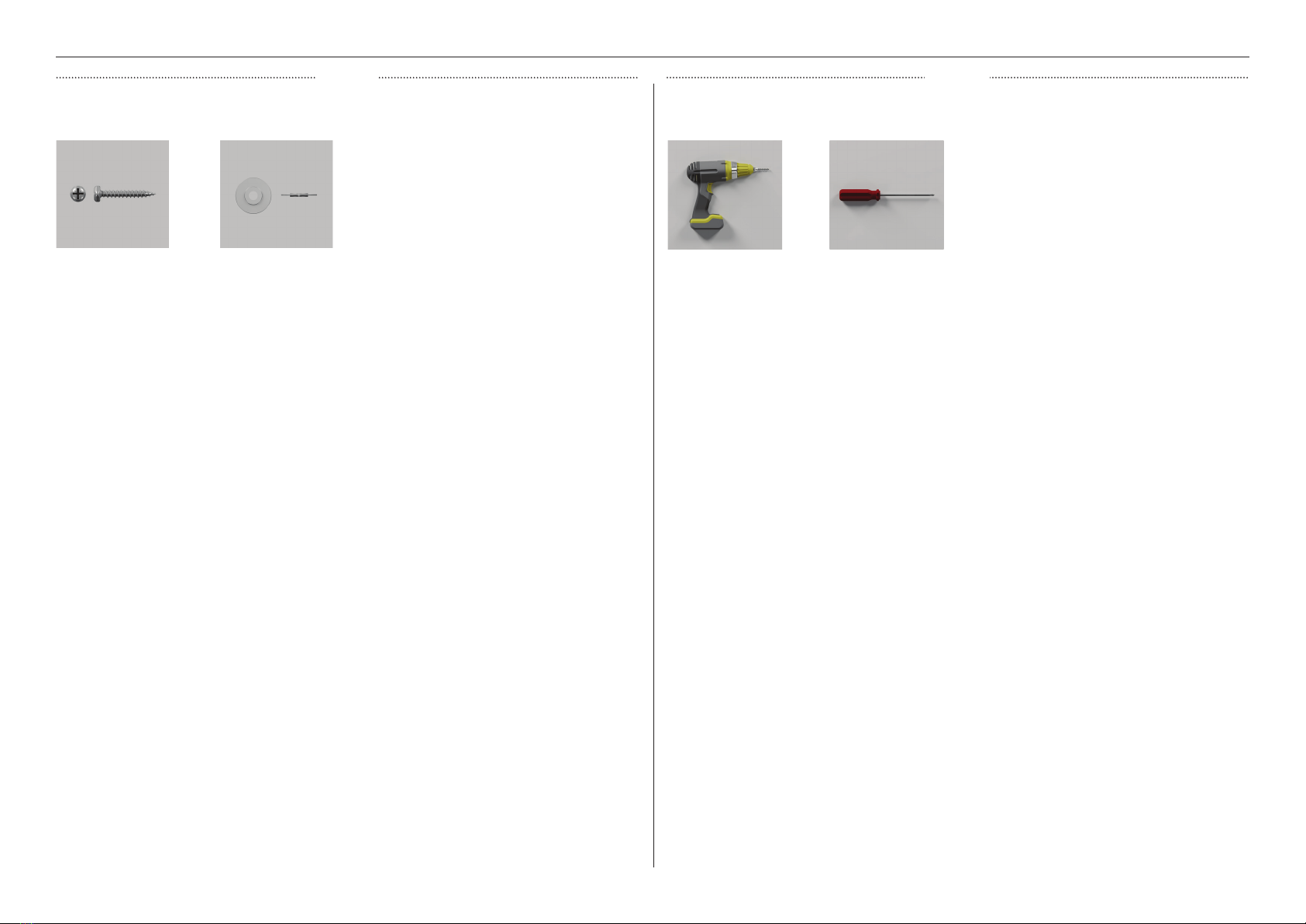

COMPONENTS
PARTS
Supplied
Screws (2) Metal side shelves
fixing nut (2)
TOOLS
Not supplied
Powered driver Cross-head
screwdriver

5
PRODUCT DIMENSIONS
Product Dimensions inch
mm
a Overall height of oven 18
458
B Overall width of oven 2 7/16
596
c Overall depth of oven (excludes handle and front metal trim) 22 1/4
565
dDepth of oven frame, control panel and door (excludes handle
and front trim)
1/16
20
E Depth of chassis (includes terminal block) 21 7/16
545
F Height of chassis 17 1/8
45
G Width of chassis 21 7/8
556
h Height from bottom datum to top of oven door 1 11/16
47
i Height of control panel  15/16
100
j Height of metal cap on control panel 1/16
20
k Height from bottom datum to centerline of handle 12 /4
24
l Width of handle 22 1/4
565
m Depth of handle (measured from front of door) 1 5/8
42
n Thickness of handle 5/8
16
o Distance from bottom datum to bottom of door glass 1/2
12
p Depth of door (open) (measured from front of door) 12 5/8
20
Minimum Clearances inch
mm
Minimum inside height of cavity 17 5/16
440
Minimum inside width of cavity 22 1/16
560
Minimum inside depth of cavity 21 5/8
550
Overall height of cabinetry (cavity around front frame) 18 1/8
460
Overall width of cabinetry (cavity around front frame) 2 5/8
600
Rear ventilation air vent depth*
2
50
Rear ventilation air vent width* 22 1/16
560
*A rear ventilation air vent totalling 44in2(280cm2) is required. The air vent must be
located at the rear of the cabinet, it can be positioned at the base, sides, back or top of
the cavity.
IMPORTANT NOTE: Throughout this guide, dimensions may vary by ±2mm (1/16”)
INDICATES PRODUCT DATUM -------------------------------------------
INDICATES CABINETRY CLEARANCES --------------------------------
PLAN VIEW
FRONT VIEW PROFILE VIEW
DATUM : FRONT OF CHASSIS
DATUM : FRONT OF CHASSIS
DATUM : BOTTOM OF CHASSIS
POWER OUTLET LOCATION
VENTILATION
21 7/16
18
2 7/16 E
M
F
N
O
P
A
J
K
H
I
B
P
L
D
G
C

6

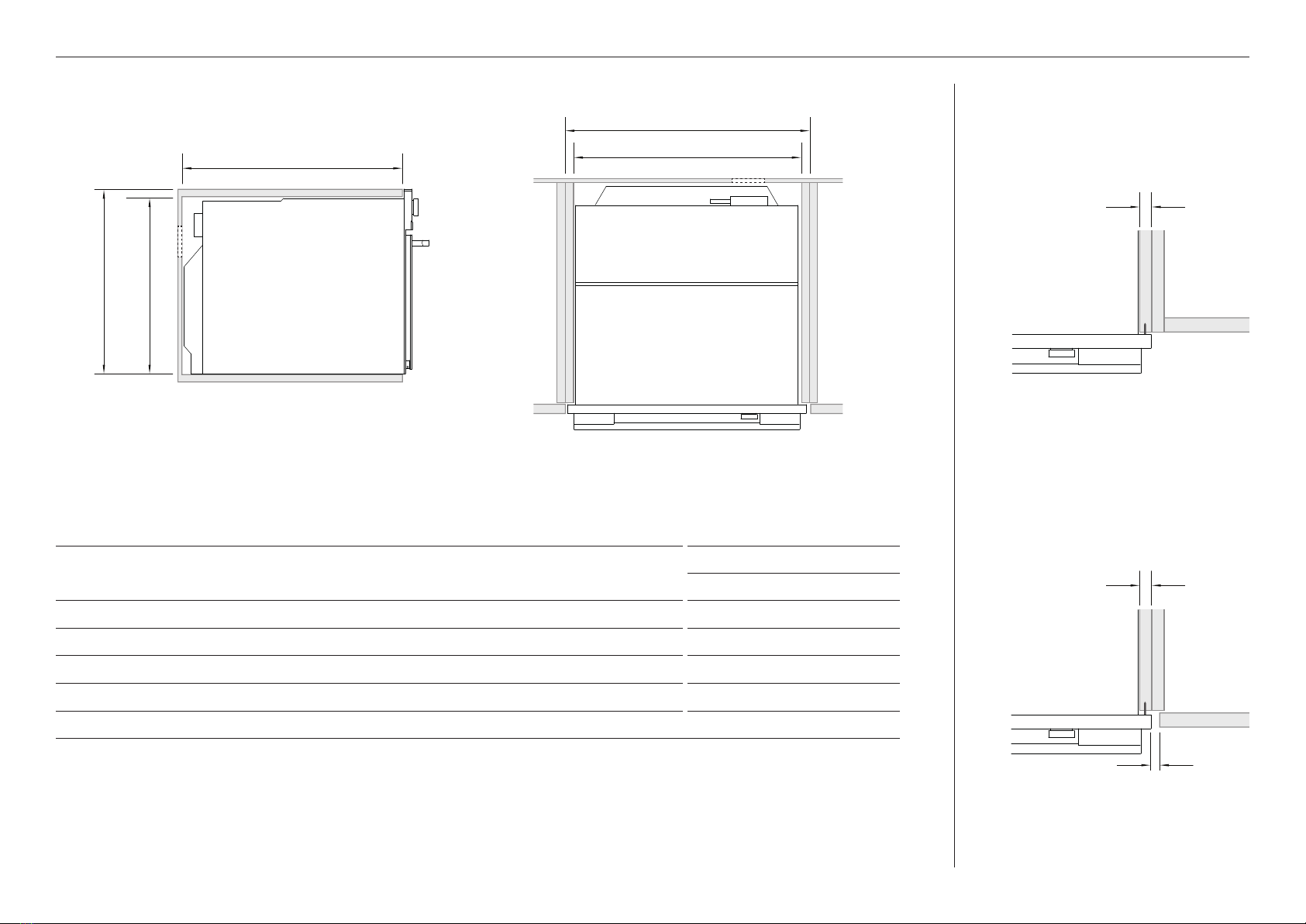

CABINETRY DIMENSIONS
CABINETRY DIMENSIONS
OS24N
INCHES MM
A Minimum inside height of cavity 17 5/16 440
B Minimum inside width of cavity 22 1/16 560
C Minimum inside depth of cavity 21 5/8 550
D Overall height of cabinetry (cavity around front frame) 18 1/8 460
E Overall width of cabinetry (cavity around front frame) 23 5/8 600
If installing a cooktop above the oven, ensure adequate clearance is provided as per the cooktop manufacturer’s instructions.
PROUD INSTALL
FLUSH INSTALL
5/8-13/16"
(16-20mm)
5/8-13/16"
(16-20mm)
1/16"
(2mm)
PROFILE PLAN
C
E
B
D A
Ensure a 3/16" (5mm) minimum clearance is maintained between the top of the oven chassis and the cabinetry. Ensure the oven is not
bearing any weight from cabinetry or products installed above.

CHECK CAVITY
For dark cabinetry, ensure clashing has
been considered and installed.
Measure cavity dimensions. Ensure all
minimum specifications have been met.
Refer to page 6.
Ensure service access complies with
local requirements. Refer to page 9 for
details.
1
2
3
4Ensure any cooktop ventilation
requirements have been considered.
UNPACK PRODUCT
Lift the carton sleeve and remove any
transit packaging.
Cut all straps and remove the carton top
cap.
Set aside any accessories.
1
2
3
zDo not lift or move the product using the handle.
zKeep all packing materials until the unit has been inspected.
zInspect the product to ensure there is no shipping damage. If any damage is
detected contact the dealer or retailer you brought the product from to report the
damage.
zFisher & Paykel is not responsible for shipping damage.
7

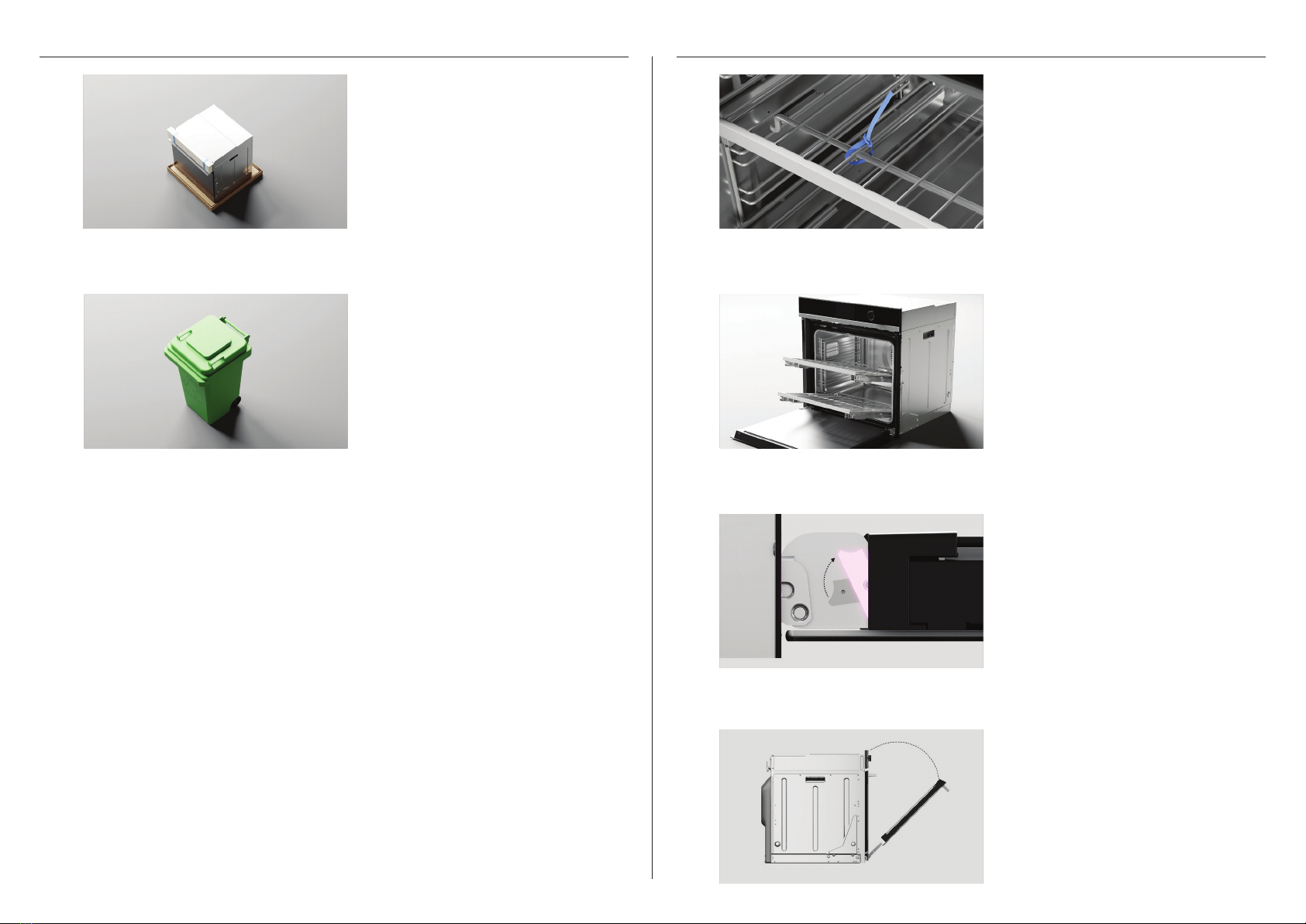

REMOVE DOOR
Grip the shelves at the front, making
sure to hold the wire shelf and frame
together. Lift upwards and pull out from
the oven.
Open the door and remove all cable ties
and packaging holding the oven shelves
in place.
Locate the hinge locks on either side
of the door. Push the locks upwards to
release.
1
2
3
4Holding the door on both sides, partially
close the door and carefully pull the
door away from the hinges.
UNPACK PRODUCT
5Dispose responsibly.
Remove all control panel packaging. The
control panel can be moved manually as
needed. Take care when handling.
4
8

CONNECT POWER
zThis oven must be connected to the mains power supply only by a suitably qualified
person.
zThis oven must be earthed.
Before connecting the oven to the mains power supply, check that:
the domestic wiring system is suitable for the power drawn by the oven (as specified on the
rating plate)
the voltage corresponds to the value given on the rating plate.
OS24N MODELS
VOLTAGE MAX. CURRENT DRAW MAX LOAD
208 V 16.5 A 3.4 kW
240 V 19 A 4.5 kW

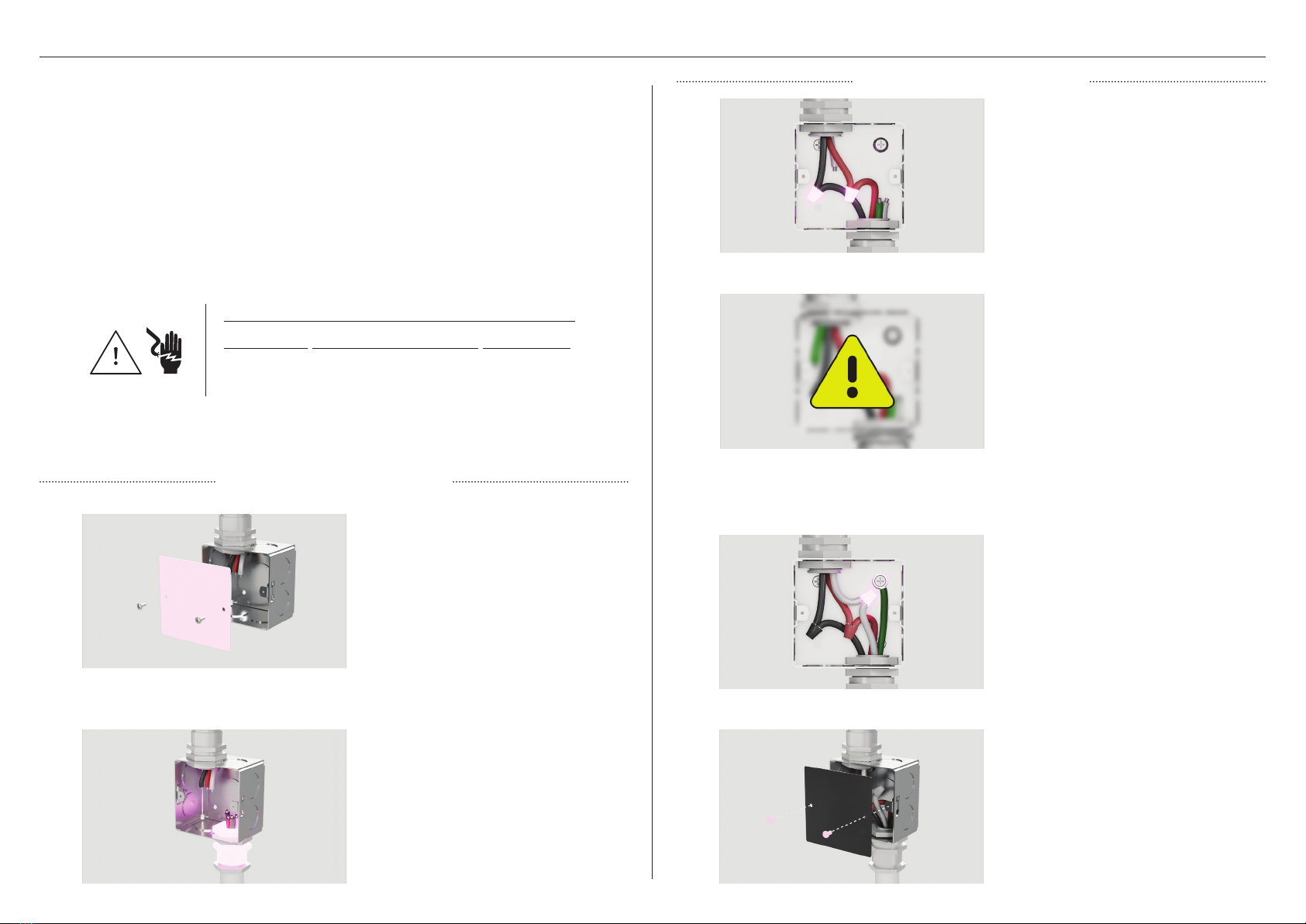

THREE WIRE CONNECTION
Disconnect the power supply and
remove the junction box cover.
1
2Connect the oven cable to the junction
box through the U.L-listed conduit
connector.
THREE WIRE CONNECTION
Connect the two black wires together
with twist-on connectors and the
two red wires together with twist-on
connectors.
Seperate the factory-taped green and
white oven cable wires. If junction box is
grounded, connect the green wire to the
metal junction box with a screw before
connecting the white oven cable wire to
the neutral (white) wire in juction box.
3
1
2Replace the junction box cover.
If local codes DO NOT PERMIT connecting the cabinet-grounding conductor to the neutral
(white) wire in junction box.
4Connect electrical connection according
to local codes and ordinances.
9

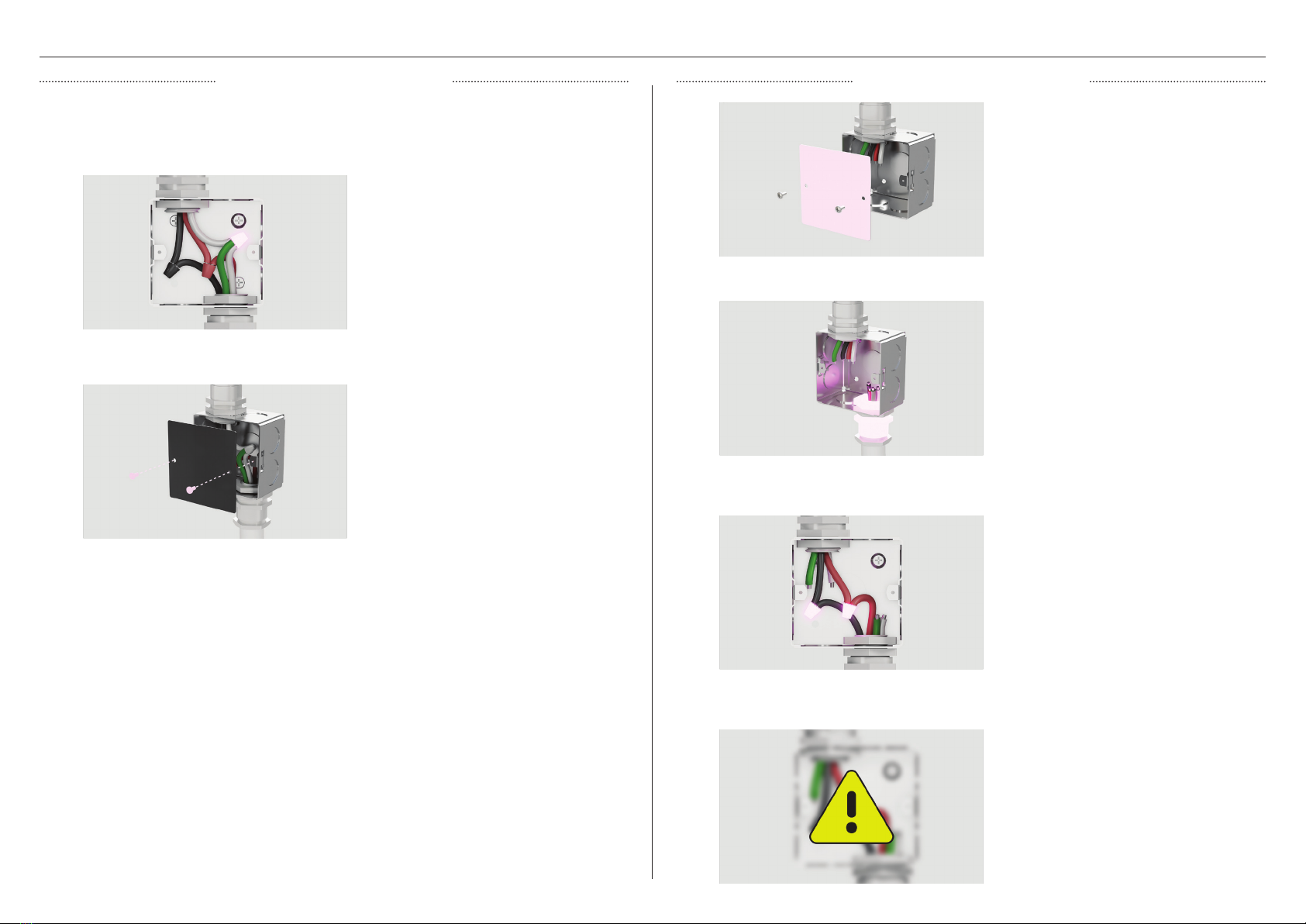

CONNECT POWER
If local codes permit connecting the cabinet-grounding conductor to the neutral (white) wire
in junction box.
Connect the factory-taped gree and
white oven wires to the neutral (white)
wire in the junction box.
1
2Replace the junction box cover.
THREE WIRE CONNECTION FOUR WIRE CONNECTION
10
Connect the oven cable to the junction
box through the U.L - listed confuit
connector.
Disconnect the power supply and
remove the junction box cover.
Connect the two black wires together
with twist-on connectors and the
two red wires togeher with twist-on
connectors.
1
2
3
4Connect electrical connection according
to local codes and ordinances.

FOUR WIRE CONNECTION
11
CONNECT POWER
Connect the green grounding oven
cable wire to the (green) grounding
wire in the junction box. Do not connect
the green grounding wire to the neutral
(white) wire in junction box.
Seperate the green and white oven cable
wires. Connect the white oven cable wire
to the neutral (white) wire in junction
box.
Replace the junction box cover.
5
6
7
POSITION OVEN INTO CAVITY
Ensure control panel is closed. Lift
product into cavity taking care not to
lift from the control panel.
Some models only*:
For dark cabinetry, the supplied trim can
be used to enhance clashing finish.
To install, remove the trim adhesive and
press to secure to cavity.
1
2
*To purchase cabinetry trim as an optional accessory, visit fisherpaykel.com

12
REFIT DOOR
Open the door fully and push each
locking lever down and lock into place.
Holding the door on both sides, carefully
lift door back onto the hinges.
Ensure both hinges are fully locked
before shutting the door.
1
2
3
ALIGN AND SECURE
Using the product as a guide, pre-drill 2
x 3mm pilot holes.
Align oven with surrounding cabinetry
and appliances.
Secure oven to cavity using the 2 x
#7x13 pan head screws provided.
1
2
3

13
REFIT SHELVES
Wire shelves
Slide shelves into the cavity.
Sliding shelves
Place shelves back into the oven at the desired
level.
Ensure shelves are level and correctly
positioned with the guard rail at the back.
Clip on sliding shelf supports
Ensure the slides are positioned the correct
way around, with the triangular tab at the
front.
Fit the top clips over the side rack. The front
clip should be fitted as close to the front of
the side rack as possible. Make sure the rear
clip has engaged.
Click the bottom clips into place.
TEST OVEN
Follow the guidance on screen to ensure
oven turns on and heats correctly.
Refer to your User Guide for more
information.

14
Complete and keep for safe reference:
Model
Serial No.
Purchase Date
Purchaser
Dealer Address
Installer’s Name
Installer’s Signature
Installation Company
Installation Date
INSTALLER CHECKLIST
TO BE COMPLETED BY THE INSTALLER
F Ensure the oven is level and securely fitted to the cabinetry.
F Open the oven door slowly until it is fully open and check there is adequate
clearance between the bottom of the door and the lower trim.
This is to ensure correct air circulation. Should the lower trim become damaged,
straighten the trim and ensure the oven door opens fully without obstruction.
F Ensure all internal packaging (including the circular yellow packing retainers
holding the accessory box in place) is removed.
F Ensure all oven vents and openings are clear and free of any obstruction or
damage.
Failure to make sure all oven vents are clear may result in poor product
performance.
F Ensure the isolating switch is accessible by the customer.
9000269A 09.2

9000269A 09.2
FISHERPAYKEL.COM
© Fisher & Paykel Appliances 2023. All rights reserved.
The models shown in this guide may not be available in all markets
and are subject to change at any time.
The product specifications in this guide apply to the specific products and
models described at the date of issue. Under our policy of continuous product
improvement, these specifications may change at any time.
For current details about model and specification availability in your country,
please go to our website or contact your local Fisher&Paykel dealer.
