Care and cleaning
Always turn off the oven at the wall first. Ensure the oven has cooled down completely before starting.
Manual cleaning
Always Never
• Before any manual cleaning or maintenance, first wait for the
oven to cool down to a safe temperature to touch, then turn its
power supply off at the wall.
• Read these cleaning instructions and the 'Safety and warnings'
section before you start cleaning your oven.
• To prevent soiling from becoming 'baked on' and stubborn, we
recommend removing any easy-to-reach spills, food or grease
stains from the oven cavity enamel after each use.
• Always clean the inner glass pane before starting a Self Clean
cycle (where available). Failure to do this will mean that residue
will bake on and be impossible to remove.
• Always remove oven shelves and side racks and nuts before
starting a Self Clean cycle (where available).
• Never use a steam cleaner.
• Never store flammable substances in
the oven.
• Never use abrasive or harsh cleaners,
cloths, scouring pads or steel wool.
Some nylon scourers may also scratch.
Check the label first.
• Never use oven cleaner on catalytic
panels or in a pyrolytic oven.
• Never leave alkaline (salty spills or
acidic substances (such as lemon juice
or vinegar) on the oven surfaces.
• Never use cleaning products with a
chlorine or acidic base.
What? How? IMPORTANT!
Glass
surfaces
(oven door
panes, control
panel)
Door comprises a total of 3 glass panes
• Don’t use oven cleaners or any
other harsh/ abrasive cleaners,
cloths, scouring pads, steel
wool or sharp metal scrapers to
clean the glass surfaces.
These scratch the glass and
may damage its special
coating, which in turn could
result in the glass cracking or
shattering.
https://producthelp.fisherpaykel.com/eu/Cook/Built-In_Ovens/Single/OB60SC9DEX1/User_Guide_OB60SC9DEX1/12_Care_…
Updated: Sat, 15 Feb 2020 09:47:27 GMT
Powered by
1
What? How? IMPORTANT!
• To clean glass pane B, you will first need to remove
the door and the inner pane. For instructions, see
section 'Removing and replacing the door glass
panes for cleaning'.
1. Clean with a solution of soap and hot water. We
recommend using a soap containing potassium
hydroxide. Wearing gloves, dampen the soap bar
and smear the soapy mixture on the door glass.
Leave for 15 minutes then rinse with clean water
and wipe dry.
2. Wipe with a glass cleaner and dry with a soft, lint-
free cloth.
• Even if you only clean the inner
pane (C), remove the door and
the pane first. Cleaning the
glass with the pane in the door
may result in cleaning liquid
running down the gaps and
drying onto internal
components.
• Take particular care when
cleaning the control panel
glass. Only use a damp cloth
with detergent.
Dials Clean with a solution of mild detergent and hot water,
then wipe dry.
Do not use stainless steel or oven
cleaner on the dials, as doing so
may damage their coating.
Stainless
steel strip/
handle on the
front of the
oven door
• Clean with a solution fo mild detergent and hot
water, then wipe dry with a microfibre cloth.
• If necessary use a suitable stainless steel cleaner
and polish.
• Always read the label to make
sure that your stainless steel
cleaner does not contain
chlorine compounds as these
are corrosive and may damage
the appearance of your oven.
• Always rub the stainless steel
in the direction of the grain.
Oven door
frame and
plastic
corner clips
Clean with a solution of mild detergent and hot water, then wipe dry.
https://producthelp.fisherpaykel.com/eu/Cook/Built-In_Ovens/Single/OB60SC9DEX1/User_Guide_OB60SC9DEX1/12_Care_…
Updated: Sat, 15 Feb 2020 09:47:27 GMT
Powered by
2
What? How? IMPORTANT!
Catalytic
panels
To clean light soiling off the surfaces:
1. Wipe with a damp cloth and a solution of hot water
and mild detergent or an ammonia-based cleaner.
2. Wipe dry with a soft cloth.
• To clean stubborn, 'baked on' soiling, run the oven
on Fan Grill at 200°C for 1.5 hours to enhance the
catalytic panel cleaning function.
• These panels are normally
'self-cleaning' because their
special enamel breaks down
greasy splatters when the oven
is used for 'non-greasy' baking,
especially at high
temperatures.
• Do not use oven cleaner on the
catalytic panels. If you wish to
use oven cleaner on any other
part of the enamelled cavity,
first remove the catalytic
panels.
• Do not immerse catalytic
panels in water.
• Never use scourers, brushes,
abrasives or cleaners with acid
or alkali content on the catalytic
panels.
Oven cavity
(models
without
'Selfclean'
function only)
• Remove everything from the oven: all shelves and
trays, the side racks (including fixing nuts) and
catalytic panels.
1. Remove the oven door (see instructions on the
following pages).
2. Wipe the inside of the oven using a household
detergents or an ammonia-based cleaner.
3. Wipe clean with a damp cloth and allow to dry
completely.
• To prevent soiling from
becoming ‘baked on’ and
stubborn, we recommend
removing any easy-toreach
spills, food or grease stains
from the enamelled surfaces
after each use.
• To make wiping out the oven
easier you may remove and the
oven door. See the following
pages for instructions.
• To make cleaning the oven
ceiling easier, the grill element
can be lowered. See following
pages for instructions.
Oven cavity
(models with
'Self Clean'
function only)
• To clean light soiling off the enamelled surfaces;
1. Wipe with a damp cloth and a solution of hot water
and mild detergent or an ammonia-based cleaner.
2. Wipe dry with a soft cloth.
• To prevent soiling from
becoming 'baked on' and
stubborn, we recommend
removing any easy-to-reach
spills, food or grease stains
from the enamelled surfaces
https://producthelp.fisherpaykel.com/eu/Cook/Built-In_Ovens/Single/OB60SC9DEX1/User_Guide_OB60SC9DEX1/12_Care_…
Updated: Sat, 15 Feb 2020 09:47:27 GMT
Powered by
3
What? How? IMPORTANT!
• To clean stubborn, 'baked on' soiling or the whole
oven cavity: use the Self Clean function. See 'Using
the Self Clean function' for instructions.
after each use. Doing so will
reduce the need fro using the
Self Clean function frequently.
• Always remove the side racks
and fixing nuts before a Self
Clean cycle
• To make wiping out the oven
easier you may remove the
oven door. See the following
pages for instructions.
Telescopic
sliding shelf
supports
Wipe with a damp cloth and mild detergent. Do not wipe
off or wash away the white lubricating grease (visible
when the slides are extended).
Do not wash these in
the dishwasher or immerse in soapy
water. Do not use oven cleaner on
them or leave in the oven during a
Self Clean cycle (where available)
as doing so will remove the white
lubricating grease and prevent the
slides from running smoothly.
Grill tray
Grill rack
Side racks
Oven shelves
Baking tray
• Clean with a solution of mild detergent and hot
water.
• Pre-soak stubborn burnt-on stains in a solution of
dishwasher powder and hot water.
• Except for the baking tray these parts are also
dishwasher safe.
Never leave any of these parts in
the oven during a Self Clean cycle.
They will become discoloured or
damaged.
Oven seal
(models
without
'Selfclean'
function only)
Clean with a solution of mild detergent and hot water.
Oven seal
(models
with 'Selfclean'
function only)
Do not clean this part.
https://producthelp.fisherpaykel.com/eu/Cook/Built-In_Ovens/Single/OB60SC9DEX1/User_Guide_OB60SC9DEX1/12_Care_…
Updated: Sat, 15 Feb 2020 09:47:27 GMT
Powered by
4
Removing the side racks and the catalytic panels (some models only)
Always turn off the oven at the wall first. Ensure the oven has cooled down completely
before starting.
Remove all shelves
1. Slide out all shelves and remove.
For easier access we recommend removing the
oven door. See 'Removing and refitting the oven
door'.
Remove both side racks (and catalytic panels if fitted):
1. Unscrew and remove the fixing nut at the front of the side rack. Use a coin to loosen the nut if necessary.
2. Pull the side rack toward the center of the oven until the front tab is clear of the fixing nut. If catalytic panels are
fitted remove them at the same time (pull the panel toward the centre of the oven along the side rack).
3. Slide the side rack (and catalytic panel if fitted) forward until the rear prongs are clear of the holes.
4. You may now slide the catalytic panel off the side rear prongs.
https://producthelp.fisherpaykel.com/eu/Cook/Built-In_Ovens/Single/OB60SC9DEX1/User_Guide_OB60SC9DEX1/12_Care_…
Updated: Sat, 15 Feb 2020 09:47:27 GMT
Powered by
5
Fit the catalytic panel to the side rack
1. Ensure the panels are placed the correct way
around:
in models with side lights: the cutout fits over the
light and the hole for the fixing screw goes to the
front of the oven.
in models with a ceiling light: the hole for
the fixing screw goes to the front of the oven.
Panels should sit flush
against the oven wall
2. Fit the rear prongs of the side rack through the
holes in the catalytic panel.
Replace the side racks
1. Slide the rear prongs of the side rack into the holes at the rear of the oven
2. Fit the side rack front tab (and catalytic panel if fitted) over the fixing screw.
3. Replace the fixing nut. You may use a coin to tighten the nut.
https://producthelp.fisherpaykel.com/eu/Cook/Built-In_Ovens/Single/OB60SC9DEX1/User_Guide_OB60SC9DEX1/12_Care_…
Updated: Sat, 15 Feb 2020 09:47:27 GMT
Powered by
7
Fitting and removing the sliding shelf supports
Compact ovens only: The sliding shelf supports cannot be used on shelf positions 3 and 4.
To fit

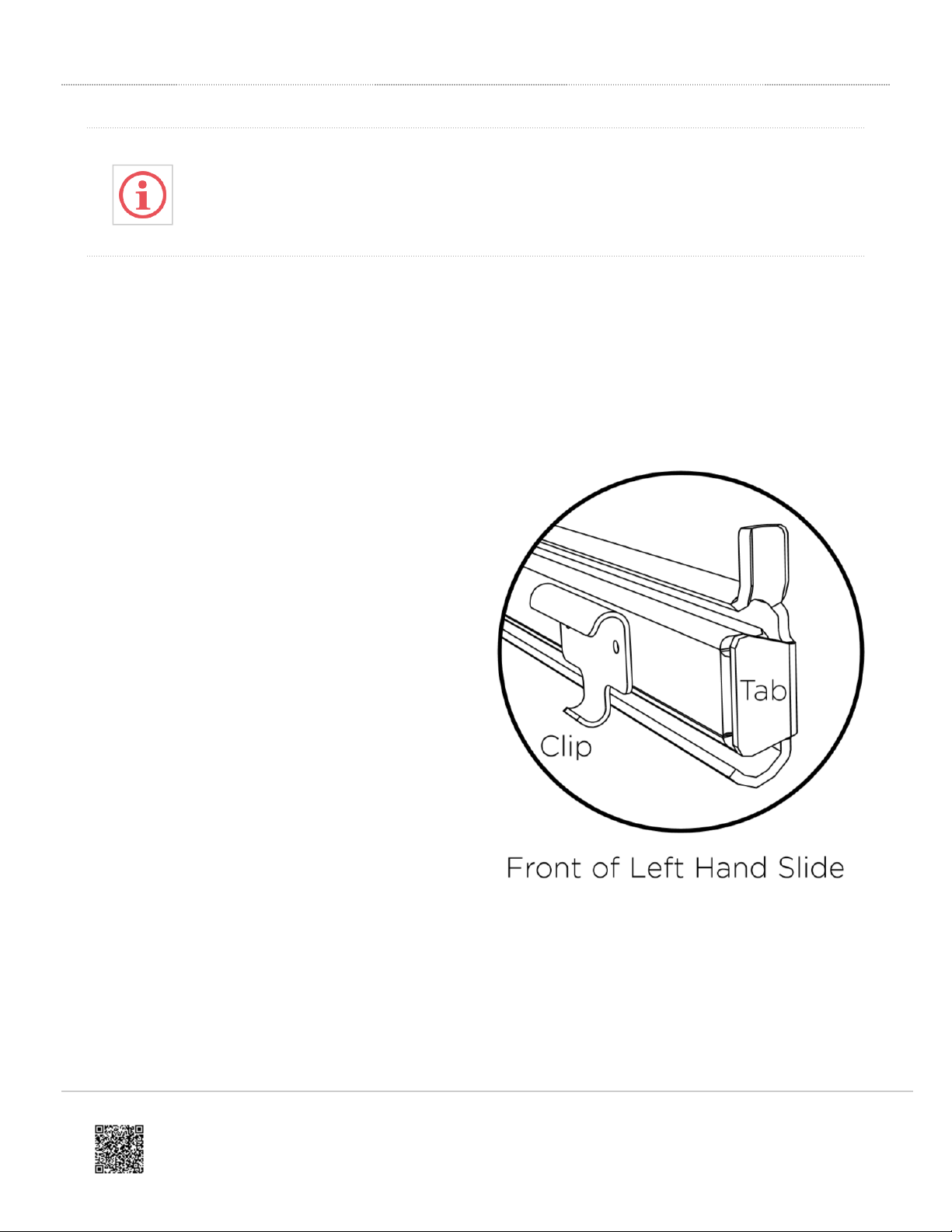

1. Ensure the slides are the correct way around (the front of the slide has the triangular shaped tab as shown).
2. Fit the top of the clips over the side rack, the front clip should be fitted as close to the front of the side rack as
possible. Make sure the rear clip has engaged.
3. Rotate the slide down and ‘click’ the bottom of the clips into place.
To fit
1. Ensure the slides are the correct way around (the
front of the slide has the triangular shaped tab as
shown).
2. Fit the top of the clips over the side rack, the front
clip should be fitted as close to the front of the
side rack as possible. Make sure the rear clip has
engaged.
3. Rotate the slide down and ‘click’ the bottom of the
clips into place.
https://producthelp.fisherpaykel.com/eu/Cook/Built-In_Ovens/Single/OB60SC9DEX1/User_Guide_OB60SC9DEX1/12_Care_…
Updated: Sat, 15 Feb 2020 09:47:27 GMT
Powered by
9
When refitting the sliding shelf supports, make sure that you fit:
• the side racks first
• the slides to the top wire of a shelf position (shelf positions 1 & 2 only in compact ovens)
• both sides of each pair of slides
Refit the oven shelves and grill pan

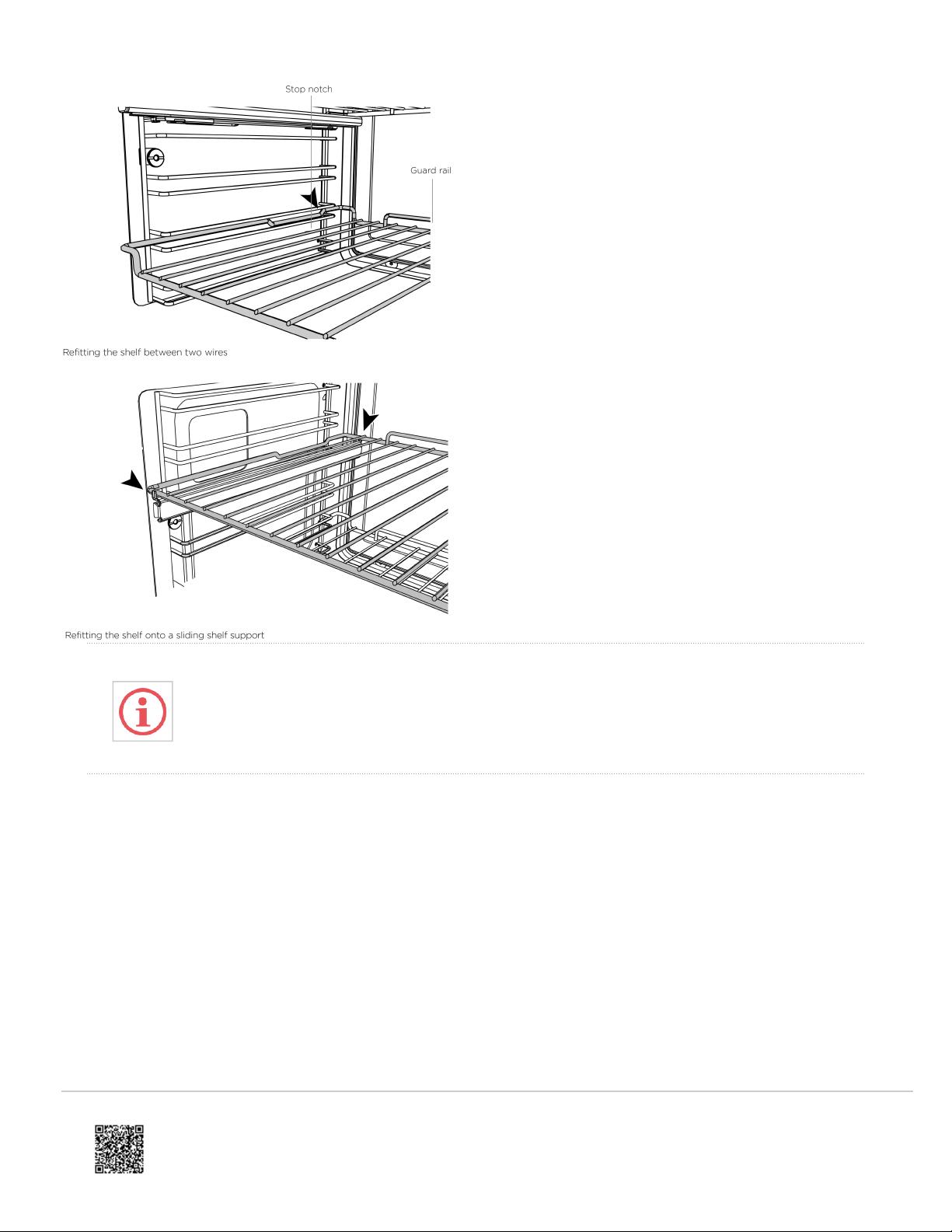

Slide in the shelves you need, making sure that:
• They slide between the two wires of a shelf position (unless a sliding shelf support is being use)
• The stop notches point down
• The guard rail is to the rear
https://producthelp.fisherpaykel.com/eu/Cook/Built-In_Ovens/Single/OB60SC9DEX1/User_Guide_OB60SC9DEX1/12_Care_…
Updated: Sat, 15 Feb 2020 09:47:27 GMT
Powered by
11

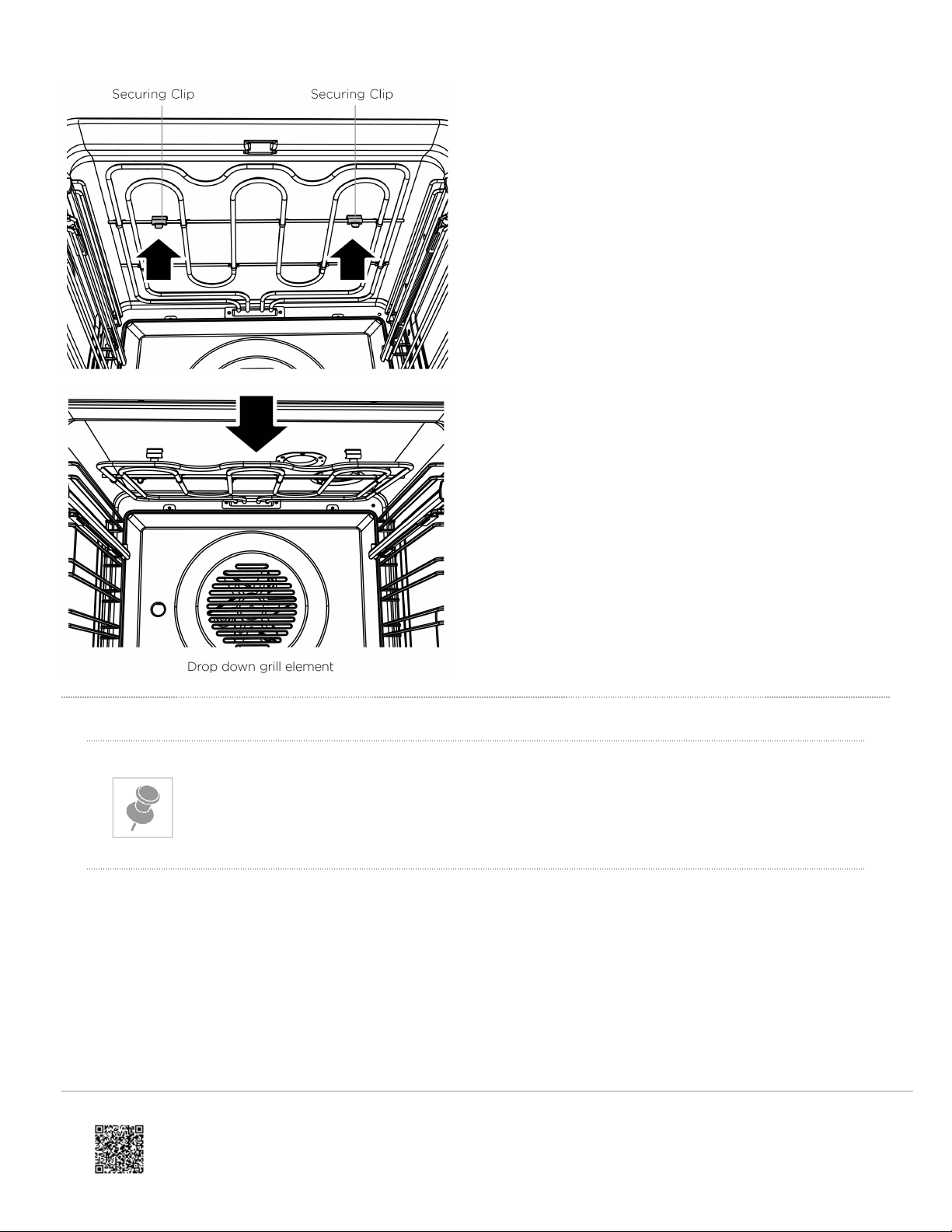

Always turn off the oven at the wall before lowering the upper element. Make sure the oven
has cooled down completely before starting.
• To lower the upper element: Pull both the securing clips forward to release the element. The element will now drop
down to enable cleaning.
• When you have finished cleaning the oven ceiling, pull the securing clips forward, raise the element and release the
clips. Make sure the element is securely held in place.
• The element itself is self-cleaning.
https://producthelp.fisherpaykel.com/eu/Cook/Built-In_Ovens/Single/OB60SC9DEX1/User_Guide_OB60SC9DEX1/12_Care_…
Updated: Sat, 15 Feb 2020 09:47:27 GMT
Powered by
12
Replacing the oven light bulbs
Oven bulb replacement is not covered by your warranty.
Your oven uses G9 halogen bulbs with the specifications 220-240V, 50Hz and 25W.
Always hold the replacement bulb in a soft cloth. Touching the bulb will reduce its lifespan.
The two oven lights are located behind the opaque glass panels on each side wall of your oven (one on each
side).
Changing the bulb
1. Let the oven cavity and grill element cool down before changing the bulb. Before switching off the oven, take
https://producthelp.fisherpaykel.com/eu/Cook/Built-In_Ovens/Single/OB60SC9DEX1/User_Guide_OB60SC9DEX1/12_Care_…
Updated: Sat, 15 Feb 2020 09:47:27 GMT
Powered by
13
note of which light(s) are not working.
After the steps described above are carried out, the pictures will be immediately deleted
without any additional confirmation queries.
2. Remove the oven shelves and side racks (see 'Care and cleaning').
If fitted, remove catalytic panels.
3. Pull the glass cover off (if you find this difficult, you can gently prise the cover off using the handle of a spoon or
similar in the notches between the glass panel and oven wall while holding the cover to ensure it does not fall).
4. Pull out the faulty bulb.
5. Holding the replacement bulb in a soft cloth or tissue (touching the bulb will reduce its life span) insert it into the
socket.
6. Replace the glass cover pushing it firmly into place.
7. Replace the catalytic panels (if fitted), side racks and oven shelves.
Removing and refitting the oven door.
Take care, the oven door is heavy.
https://producthelp.fisherpaykel.com/eu/Cook/Built-In_Ovens/Single/OB60SC9DEX1/User_Guide_OB60SC9DEX1/12_Care_…
Updated: Sat, 15 Feb 2020 09:47:27 GMT
Powered by
14

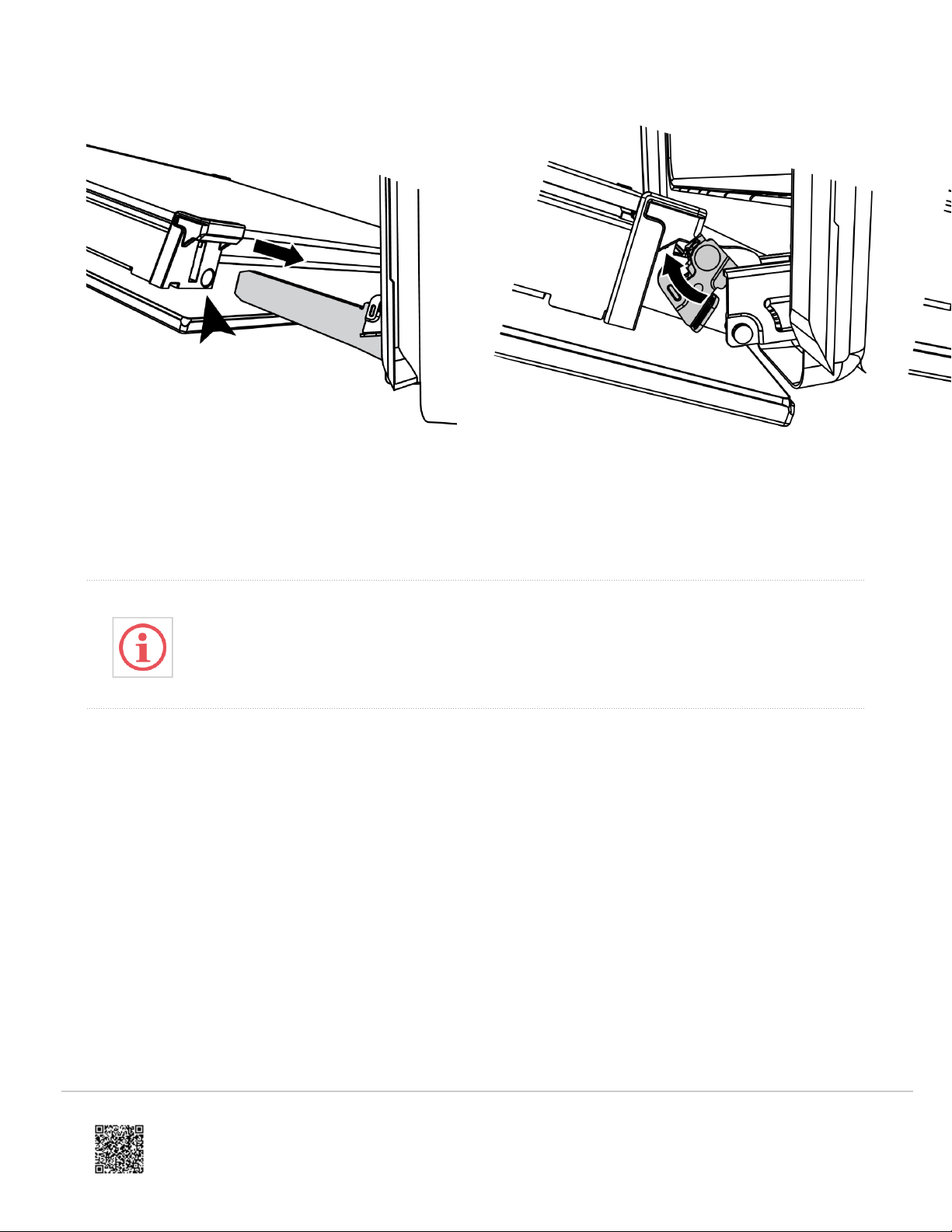

To remove the door
1. Open the door fully. Locate the two small metal
locking levers on both door hinges either side.
2. Push each locking lever down fully to release the
door from the hinge.
3. Holding the door on both sides, lift door back up to
45°
the hinges.
To refit the door
https://producthelp.fisherpaykel.com/eu/Cook/Built-In_Ovens/Single/OB60SC9DEX1/User_Guide_OB60SC9DEX1/12_Care_…
Updated: Sat, 15 Feb 2020 09:47:27 GMT
Powered by
15
4. Holding the door on both sides, line up the holes in
the base of the door with the hinges and slide the
door on.
5. Once the door is fully located on the hinges, push
each locking lever up fully to lock the door onto the
hinge.
Ensure the levers are both fully locked before trying to shut the door.
https://producthelp.fisherpaykel.com/eu/Cook/Built-In_Ovens/Single/OB60SC9DEX1/User_Guide_OB60SC9DEX1/12_Care_…
Updated: Sat, 15 Feb 2020 09:47:27 GMT
Powered by
16
Removing the door glass panes for cleaning
• Make sure you follow the precautions and instructions below very carefully. Replacing the glass
panes and the door incorrectly may result in damage to the oven and may void your warranty.
• Take care, the oven door is heavy. If you have any doubts, do not attempt to remove the door.
• Make sure the oven and all its parts have cooled down. Do not attempt to handle the parts of a
hot oven.
• Take extreme care when handling the glass panes. Avoid the corners and edges of the glass
bumping against any surface. This may result in the glass shattering.
• Don’t use oven cleaners or any other harsh/abrasive cleaners, cloths, scouring pads, steel wool
or sharp metal scrapers to clean the glass surfaces. These scratch the glass and may damage
its special coating, which in turn could result in the glass cracking or shattering.
• If you notice any sign of damage on any of the glass panes (such as chipping or cracks), do not
use the oven. Call your Authorised Repairer or Customer Care.
• Make sure you replace all the glass panes correctly. Do not use the oven without all glass panes
correctly in place.
• If the glass panes feel difficult to remove or replace, do not force them. Call your Authorised
Repairer or Customer Care for help.
Service visits providing assistance with using or maintaining the oven are not covered by
your warranty.
We recommend removing the door to make cleaning the glass easier. See ‘Removing and refitting the oven door’ for
instructions. Once the door is removed, lay it down on a soft, clean, flat surface.
Make sure you follow the precautions and instructions below very carefully. Replacing the glass panes and the door
incorrectly may result in damage to the oven and may void your warranty.
To remove the inner pane
1. Touch the glass retainer tabs in on both sides of the door.
2. Pull the glass retainer up until the tabs relocate in the topmost hole.
3. Holding the top of the inner pane, gently pull the pane toward the top of the door until the pane is clear of the notch
at the bottom of the door and lift it out. Do not angle the pane too much as you may damage the glass.
https://producthelp.fisherpaykel.com/eu/Cook/Built-In_Ovens/Single/OB60SC9DEX1/User_Guide_OB60SC9DEX1/12_Care_…
Updated: Sat, 15 Feb 2020 09:47:27 GMT
Powered by
17
To remove the middle pane
4. Touch the glass retainer tabs in on both sides of the door again. The glass retainer can then be pulled off
completely.
5. Gently pull the middle pane toward the top of the door until the pane is clear of the notch at the bottom of the door.
6. Lift the pane out. The rubber stoppers at the top of the pane remain attached to the glass pane.
After cleaning replace the door glass panes
https://producthelp.fisherpaykel.com/eu/Cook/Built-In_Ovens/Single/OB60SC9DEX1/User_Guide_OB60SC9DEX1/12_Care_…
Updated: Sat, 15 Feb 2020 09:47:27 GMT
Powered by
18
When replacing the glass panes make sure that
• you replace the inner pane correctly as shown. The pane must be in the position described below in order to fit into
the door and to ensure that the oven operates safely and correctly
• you take extra care not to bump the edges of the glass against any object or surface you do not force any of the
panes into place. If you are experiencing difficulties replacing the panes, remove them and start the process again
from the beginning. If this still does not help, call Customer Care.

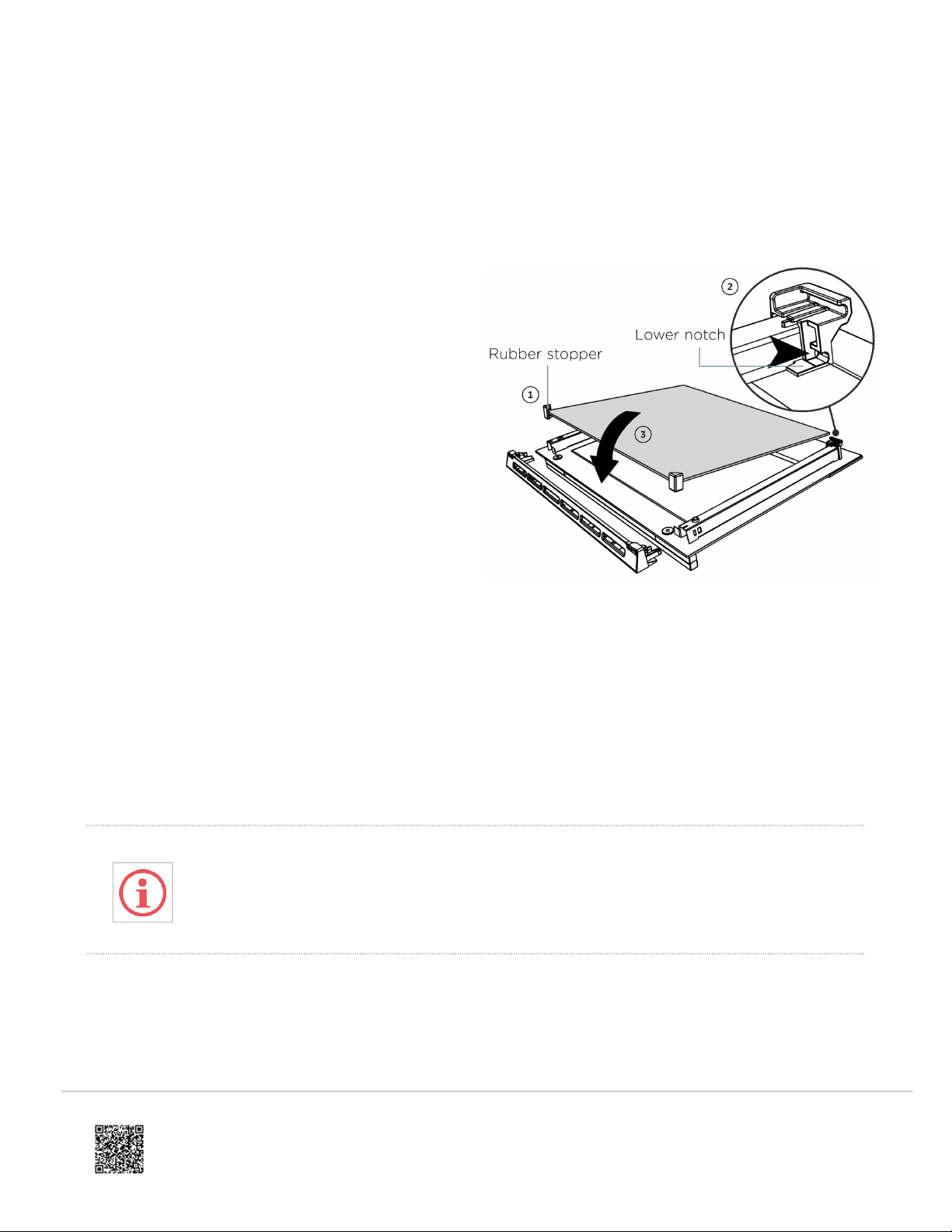

Replace the middle pane
Ensure the pane is the right way up (the black strip and
warning text at the bottom of the pane should be
readable back to front when the pane is fitted correctly).
1. Ensure the rubber stoppers are still attached at the
top to the pane.
2. Slot the bottom of the pane into the lower notch at
the bottom of the door.
3. Lower the pane into the door, the rubber stoppers
rest on the outer pane of glass.
Replace the inner pane
Ensure the pane is the right way up
(ie the logo should be readable at the bottom of the door)
4. Slide the pane into the notch at the bottom of the door.
5. Lower the pane onto the notch at the top of the door.
6. Slide the glass retainer back into place and ensure it is fully clipped securely in place.
Make sure the glass retainer is correctly and firmly in place and the glass pane is secure.
https://producthelp.fisherpaykel.com/eu/Cook/Built-In_Ovens/Single/OB60SC9DEX1/User_Guide_OB60SC9DEX1/12_Care_…
Updated: Sat, 15 Feb 2020 09:47:27 GMT
Powered by
19
Table of contents
Other Fisher & Paykel Oven manuals
Fisher & Paykel
Fisher & Paykel OB60 Series User manual
Fisher & Paykel
Fisher & Paykel BI453 User manual
Fisher & Paykel
Fisher & Paykel OR36SDPWGX User manual
Fisher & Paykel
Fisher & Paykel Aerotech OS302 User manual
Fisher & Paykel
Fisher & Paykel WODV230 User manual
Fisher & Paykel
Fisher & Paykel BI452 Series User manual
Fisher & Paykel
Fisher & Paykel OB90 Series User manual
Fisher & Paykel
Fisher & Paykel OB24SDPTX1 User manual
Fisher & Paykel
Fisher & Paykel OR90SCI6 User manual
Fisher & Paykel
Fisher & Paykel BI600ED User manual
Fisher & Paykel
Fisher & Paykel OS24NMLB1 User manual
Fisher & Paykel
Fisher & Paykel OB24SDPX4 User manual
Fisher & Paykel
Fisher & Paykel BI601 Series Service manual
Fisher & Paykel
Fisher & Paykel Aerotech OB30 Series User manual
Fisher & Paykel
Fisher & Paykel Aerotech OB30 S User manual
Fisher & Paykel
Fisher & Paykel OS60NDTDX1 User manual
Fisher & Paykel
Fisher & Paykel OB76SD User manual
Fisher & Paykel
Fisher & Paykel OS60NMLB1 User manual
Fisher & Paykel
Fisher & Paykel OS24SMTDB1 User manual
Fisher & Paykel
Fisher & Paykel OB60SL11DCPX1 User manual
