Fisher & Paykel OB76S User manual

BUILT-IN OVEN
OB76S & OB76D
touchscreen models
INSTALLATION GUIDE
NZ AU

1
SAFETY AND WARNINGS
WARNING!
To avoid hazard, follow these instructions carefully before installing or using this appliance.
zzPlease make this information available to the person installing the appliance
— doing so could reduce your installation costs.
zzThis appliance must be installed and connected to the mains power supply only
by asuitably qualified person according to these installation instructions and
incompliancewith any applicable local building and electricity regulations.
Failure to install the appliance correctly could invalidate any warranty or
liability claims.
zzIf the installation requires alterations to the domestic electrical system, call a
qualifiedelectrician. The electrician should also check that the socket cable section
issuitable forthe electricity drawn by the oven.
zzThe oven must be earthed.
zzIf the power supply cable is damaged, it must be replaced by the manufacturer,
itsservice agent or similarly qualified person in order to avoid a hazard.
zzIsolating switch: ensure this oven is connected to a circuit which incorporates
anisolating switch providing full disconnection from the power supply in accordance
with the wiring rules.
zzDo not use adaptors, reducers or branching devices to connect the oven to the mains
electricity supply, as they can cause overheating and burning.
zzEnsure the cavity is completely sealed with no gaps. This is to ensure the oven cooling
system functions correctly.
zzThe appliance must not be installed behind a decorative door in order to
avoidoverheating.
! WARNING!
Electric Shock Hazard
Failure to follow this advice may result in
electric shock or death.
• Before carrying out any work on the electrical
section of the appliance, it must be disconnected
from the mains electricity supply.
• Connection to a good earth wiring system is
absolutely essential and mandatory.
• Alterations to the domestic wiring system must
only be made by a qualified electrician.
! WARNING!
Fire Hazard
Failure to follow this advice may result in
overheating, burning, and injury.
• Do not use adapters, reducers, or branching
devices to connect this appliance to the mains
power supply.
! WARNING!
Cut Hazard
Failure to use caution could result in injury.
• Take care: some edges are sharp.
IMPORTANT!
SAVE THESE INSTRUCTIONS
The models shown in this installation guide may not be available in all markets and are subject to change at any time. For current details about model and specification availability in your country,
please go to our website www.fisherpaykel.com or contact your local Fisher&Paykel dealer.
! WARNING!
409lb
186kg
242lb
110kg
Very Heavy
Failure to follow this advice may result in
serious injury.
• Do not attempt to lift this product unassisted.

2
AFTER INSTALLATION
PARTS SUPPLIED
PRIOR TO INSTALLATION
zzthe benchtop and oven cavity are square and level, and are the required dimensions.
zzthe installation will comply with all clearance requirements and applicable standards and regulations.
zza suitable isolating switch providing full disconnection from the mains power supply is incorporated in the permanent wiring, mounted and positioned to comply with the local wiring rules
and regulations. The isolating switch must be of an approved type and provide a 3 mm air gap contact separation in all poles (or in all active [phase] conductors if the local wiring rules
allow for this variation of the requirements).
zzthe isolating switch will be easily accessible to the customer with the oven installed.
zzthe electrician provides sufficient free length of power supply cable to reach from the bottom rear of the cavity to at least 1.5 metres in front of the bottom edge of the opening.
zzthe cable may enter the cavity from the side, top or bottom, but top entry must be at the rear of the cavity.
zzthe oven connection socket (if fitted) is outside the cavity if the oven is flush to the rear wall.
zzthe oven will rest on a surface that can support its weight.
zzthe height from the floor suits the customer.
zzyou consult local building authorities and by-laws if in doubt regarding installation.
IMPORTANT!
Some environmental factors and cooking habits can cause condensation in and around the oven during use. To protect surrounding cabinetry from possible damage caused by frequent or
excessive condensation, we recommend moisture-proofing the oven cavity.
IMPORTANT!
Please take extra care not to damage the lower trim of the oven during installation. The trim is important for correct air circulation and allows the door to open and close without
obstruction. The manufacturer does not accept any responsibility for damage resulting from incorrect installation.
zzthe oven door(s) can open fully without obstruction.
zzdo not seal the oven into the cabinetry with silicone or glue. This makes future servicing difficult. Fisher&Paykel will not cover the costs of removing the oven, or of damage caused by
thisremoval.
zzthe power supply cable does not touch any hot metal parts.
zzthe isolating switch is easily accessible to the customer with the oven installed.
zzyou complete the ‘Final checklist’ at the end of the installation.
zzif, after following the instructions given, correct performance cannot be achieved, please contact your nearest Fisher&Paykel Authorized Service Center, Customer Care, or contact us
through our local website listed at the end of this document.
Screws
Single oven models (2)
Double oven models (4)
Spacers
Single oven models (2)
Double oven models (4)
Long Trim (1)
To be fitted in
a flush installation.

3
PRODUCT DIMENSIONS — SINGLE OVENS
PLAN
PROFILEFRONT
PRODUCT DIMENSIONS
OB76SD
MM
A Overall height of product 690
B Overall width of product 760
C Overall depth of product (excl. handle and dials) 610
D Depth of oven front and control panel (excl. handle and dials) 40
E Depth of chassis (does not include oven front) 569
F Height of chassis 675
G Depth of door (open) (measured from front of door) 550
H Overall width of chassis 720
Note: If flush installing, you need to replace the lower trim with the supplied long trim at the base of the
oven, and the depth of the control panel Gwith the fitted spacer is larger than conventional ovens. Ensure
you have created a 42mm recess incabinetry.
G
B
A
C
F
CD
H

4

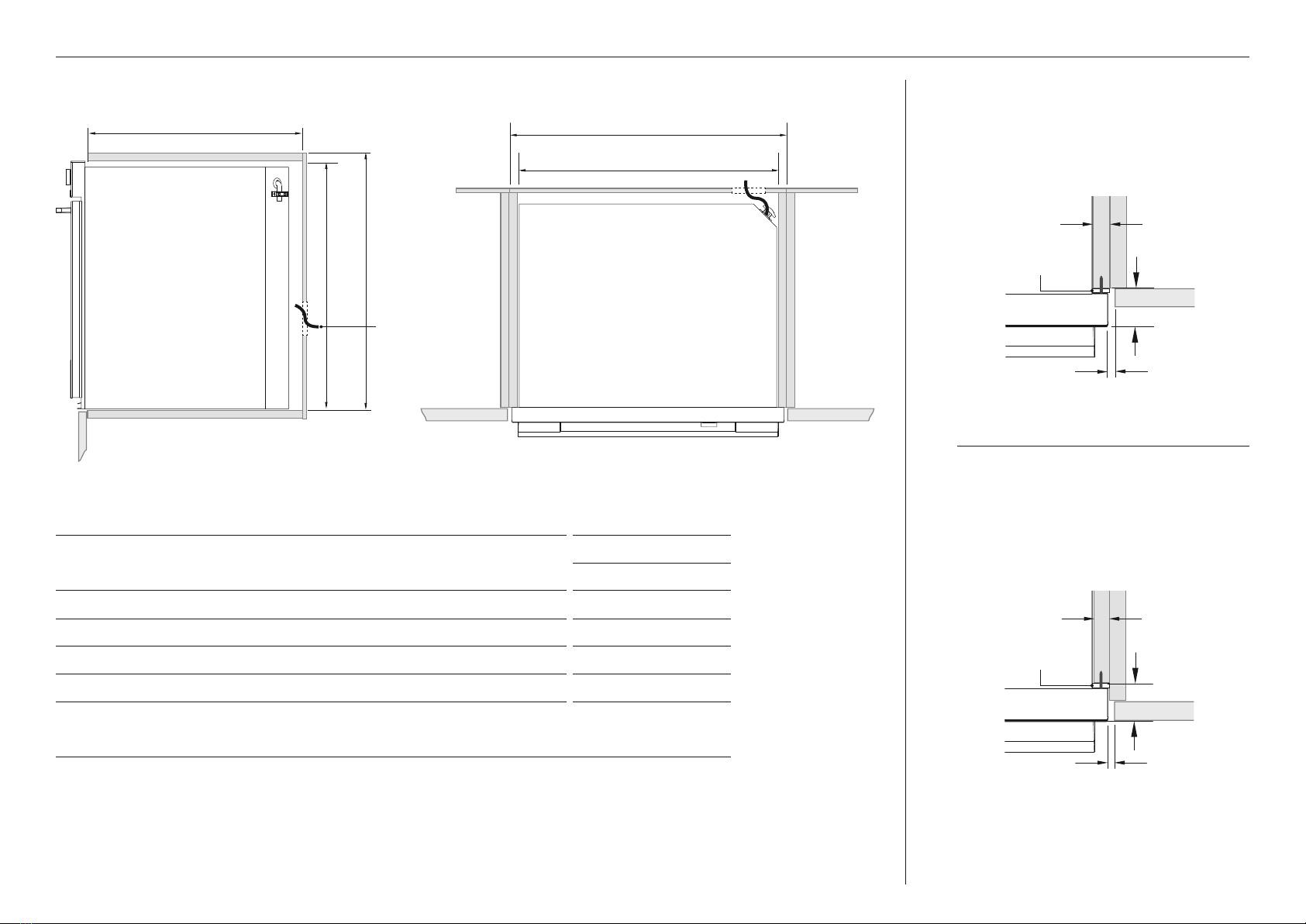

CABINETRY DIMENSIONS — SINGLE OVENS
PLANPROFILE
e b
a
c d
Electrical
Supply
PROUD INSTALL
FLUSH INSTALL
16-20mm
42mm
min 2mm
spacer
42mm
16-20mm
min 2mm
spacer
CABINETRY DIMENSIONS
OB76SD
MM
A Minimum inside width of cavity 724
B Overall width of cabinetry 764
C Minimum inside height of cavity 681
D Overall height of cabinetry 693
E Minimum inside depth of cavity
zProud install
zFlush install
575
614
Notes:
If installing a cooktop above the oven, ensure adequate clearance is provided for the cooktop as per the
cooktop manufacturer’sinstructions.
Ensure the cavity is completely sealed with no gaps. This is to ensure the oven cooling system functions
correctly.

5

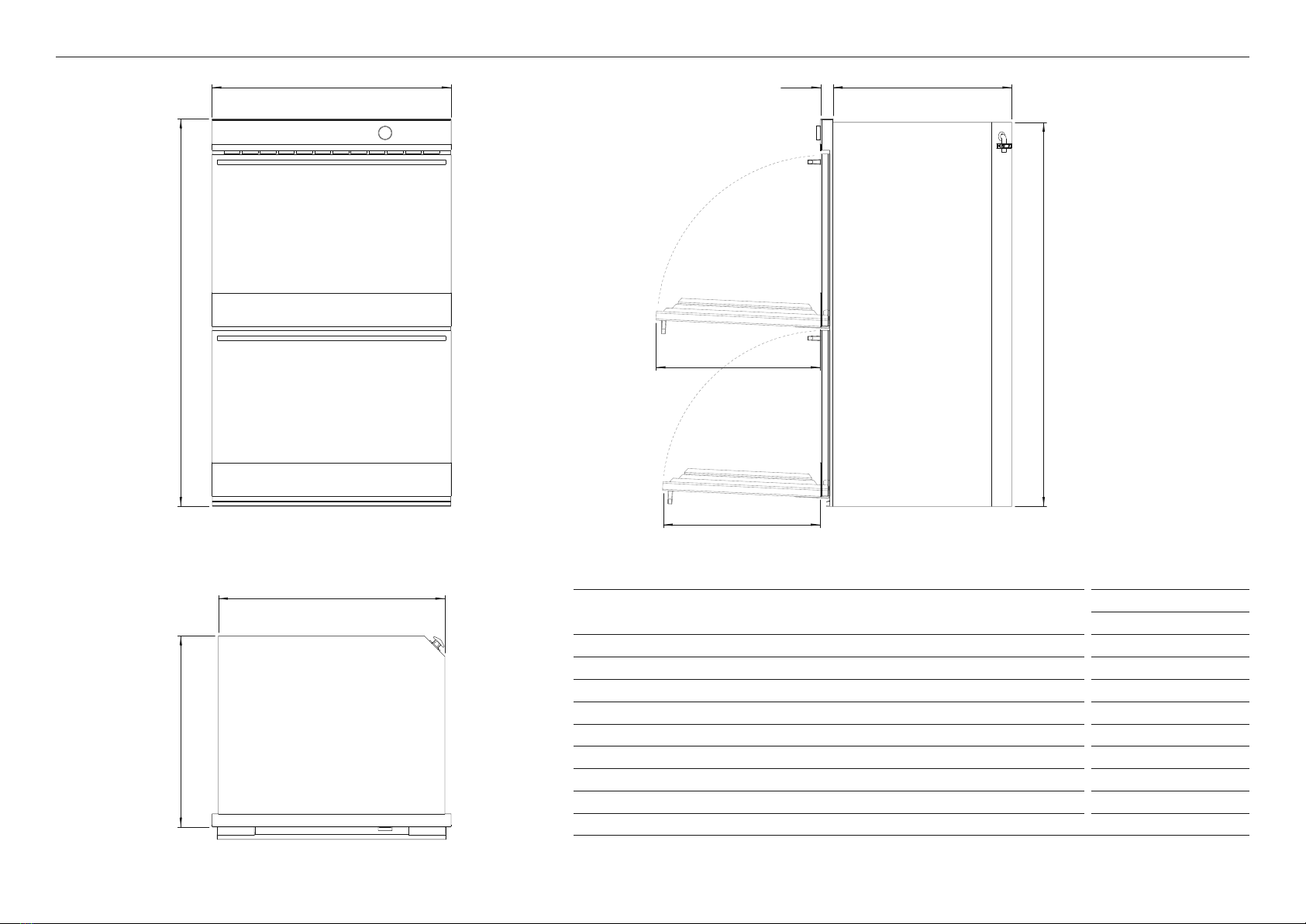

PRODUCT DIMENSIONS — DOUBLE OVENS
PRODUCT DIMENSIONS OB76DD
MM
A Overall height of product 1232
B Overall width of product 760
C Overall depth of product (excl. handle and dials) 610
D Depth of oven front and control panel (excl. handle and dials) 40
E Depth of chassis (does not include oven front) 569
F Height of chassis 1218
G Depth of upper door (open) (measured from front of door) 550
H Depth of lower door (open) (measured from front of door) 530
I Overall width of chassis 720
Note: If flush installing, you need to replace the lower trim with the supplied long trim at the base of the
oven, and the depth of the control panel Gwith the fitted spacer is larger than conventional ovens. Ensure
you have created a 42mm recess incabinetry.
PLAN
PROFILEFRONT
G
h
B
A
C
F
ED
i

6
CABINETRY DIMENSIONS OB76DD
MM
A Minimum inside width of cavity 724
B Overall width of cabinetry 764
C Minimum inside height of cavity 1224
D Overall height of cabinetry 1236
E Minimum inside depth of cavity
zProud install
zFlush install
575
614
Notes:
If installing a cooktop above the oven, ensure adequate clearance is provided for the cooktop as per the cooktop
manufacturer’sinstructions.
Ensure the cavity is completely sealed with no gaps. This is to ensure the oven cooling system functions correctly.
CABINETRY DIMENSIONS — DOUBLE OVENS
PROFILE PLAN
e
b
a
c d
Electrical
Supply
PROUD INSTALL
FLUSH INSTALL
16-20mm
42mm
min 2mm
spacer
42mm
16-20mm
min 2mm
spacer

7
UNPACKING THE OVEN
Remove the accessories box from
the top of the oven and set aside.
Recycle responsibly.
Single model shown for illustration purposes only
IMPORTANT!
zWhen you remove the oven from the carton
be careful not to damage the lower trim.
Thetrimisimportant for both ventilation and to
ensure the door opens fully without obstruction.
zEnsure you remove the Long Trim
from thepackaging.
Lower trim

8
REMOVING AND REFITTING THE DOOR(S)
IMPORTANT!
zTake care, the oven door is heavy.
zDo not lift the oven door by its handle. Doing so may damage the door.
zEnsure the oven and the door are cool before you begin to remove the door.
zBefore removing the door, ensure there is a large enough clear, protected surface in the kitchen to rest the door on.
To remove the door(s) To refit the door(s)
Holding the door at 45°, carefully
align the hinge tongues with the
hinge slots. Push the door in until
you feel the latches locate into
position on each side.
Open the door completely and
ensure both hinges are secured
by the correct notches.
Rotate the locks up into the
closed position ensuring they rest
inside the slots completely. Note:
Incorrect installation will prevent
door from correctly sealing.
1
2
3
Open the door completely.
Open the hinge locks fully
on both sides
Holding the door on both
sides, lift door back up to 45°
and carefully pull the door out
and away from the hinges.
1
2
3
Close the oven door ensuring that
when closed, the door is vertical and
parallel to any surrounding cabinetry
4

9

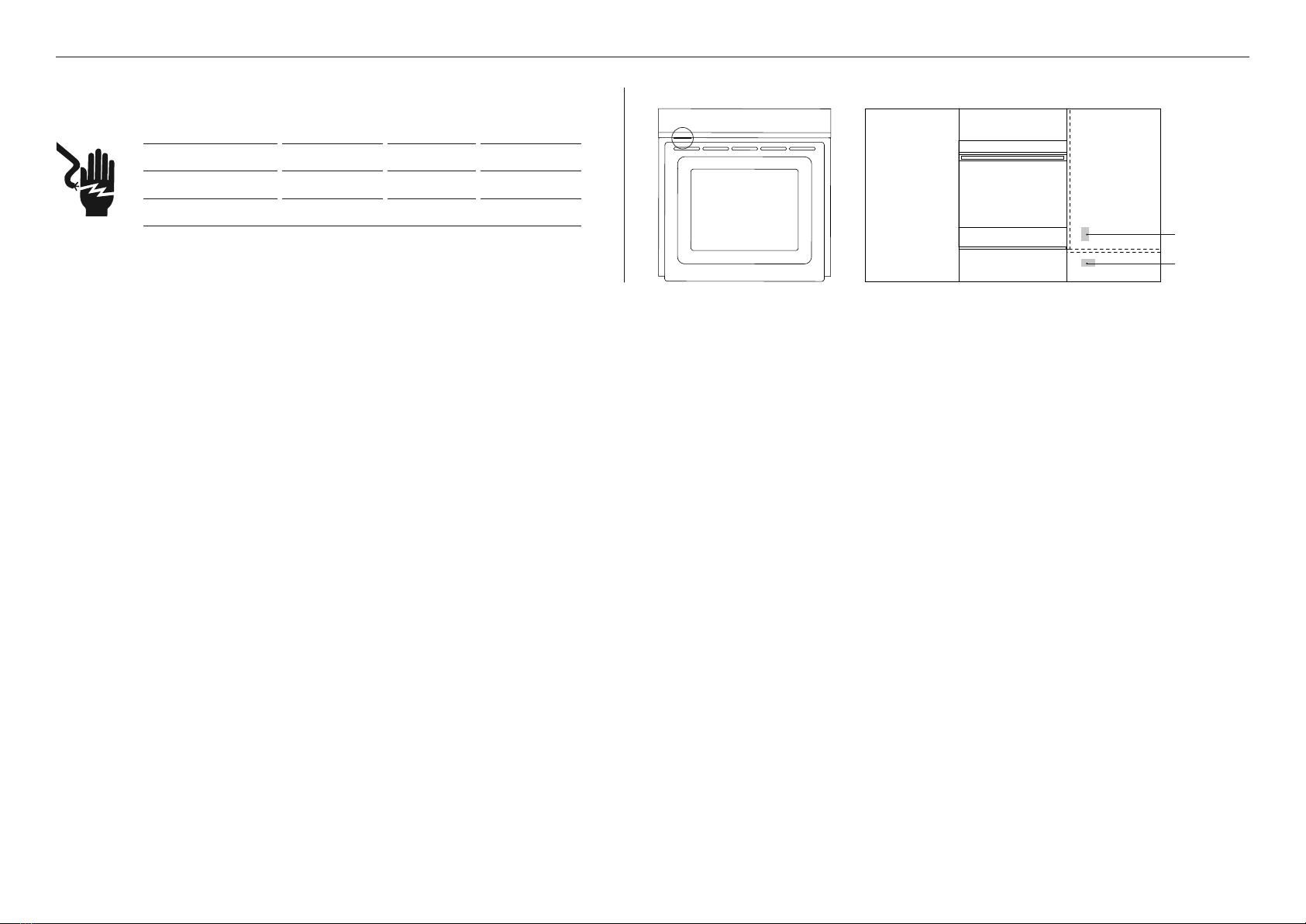

ELECTRICAL CONNECTION TO JUNCTION BOX
This oven must be earthed.
MODEL MAX POWER HZ VOLTAGE
OB76SD 4.25 kW 50 Hz 220 - 240 V~
OB76DD 8.50 kW 50 Hz 220 - 240 V~
IMPORTANT!
zzThis oven must be connected to the mains power supply
only by a suitably qualified person.
zzThis oven must be earthed.
We recommend that the power outlet is located in the right rear corner of the cabinet
cavity. Thisallows the power supply cable to sit inside the rear chamfered corner of the
oven and prevents it being jammed between the cabinet wall and rear of the oven.
Before connecting the oven to the mains power supply, check that:
zzthe domestic wiring system is suitable for the power drawn by the oven
(as specified on the rating plate)
zzthe voltage corresponds to the value given on the rating plate.
Note: For connection to the terminal block the maximum conductor size is 6mm2.
Junction box locations
junction box
location for
undercounter
installation
junction box
location for
wall installation
Nameplate location

10

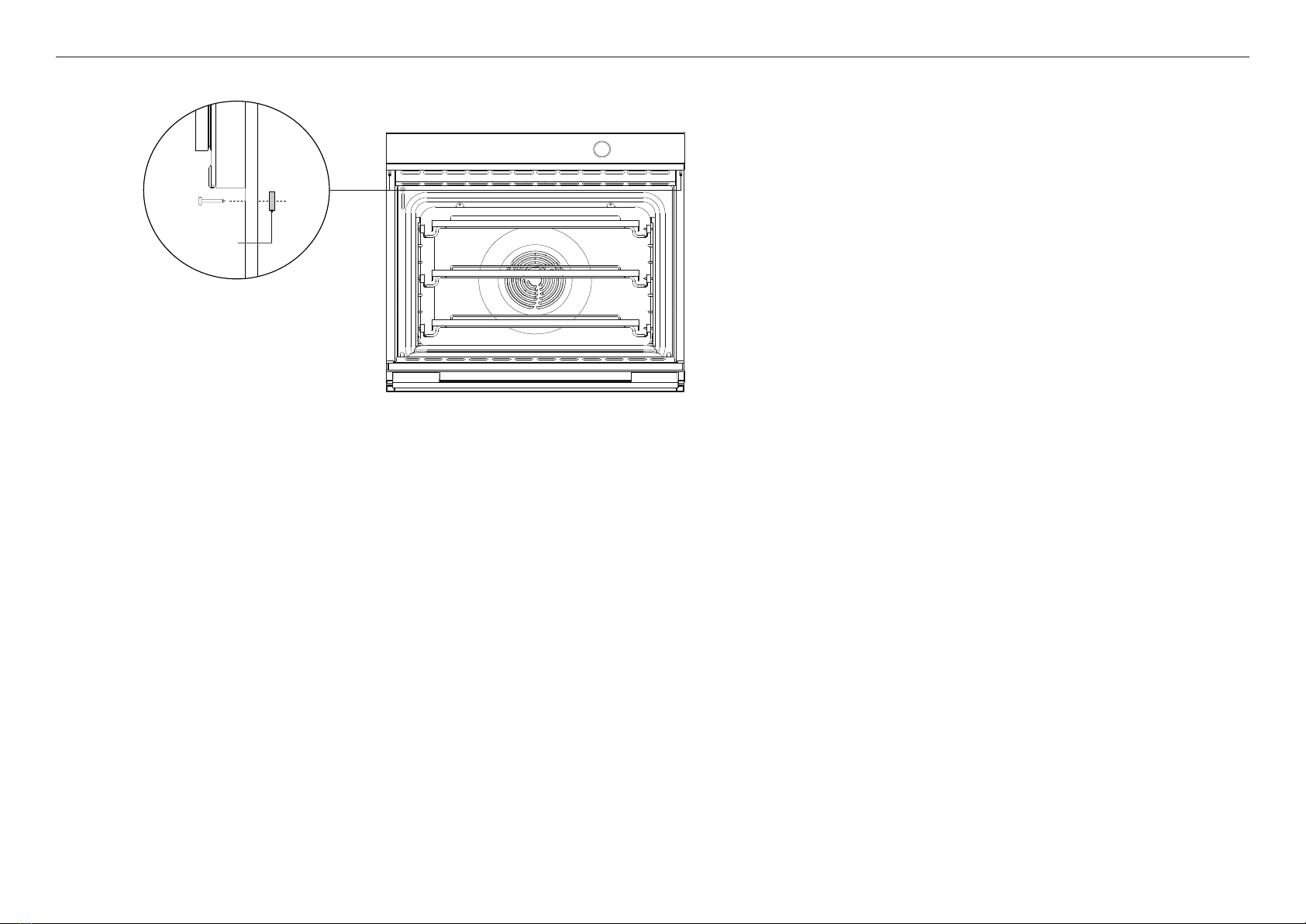

SECURE THE OVEN TO THE CABINETRY
IMPORTANT!
zDo not lift the oven by the door handle.
zDo not over-tighten the screws.
zDo not seal the oven into the cabinetry with silicone or glue.
This makes future servicing difficult. Fisher & Paykel will not
cover the costs of removing the oven, or of damage caused
by this removal.
1 Position the oven in the prepared cavity.
2 Open the oven door fully.
3 Mark and pre-drill the screw holes.
4 Use the supplied screws to secure the oven to the cabinetry.
Ensure supplied spacer is fitted between oven and cabinetry.
Double oven models only:
There are 4 screws and spacers provided (two per side).
Spacer

11

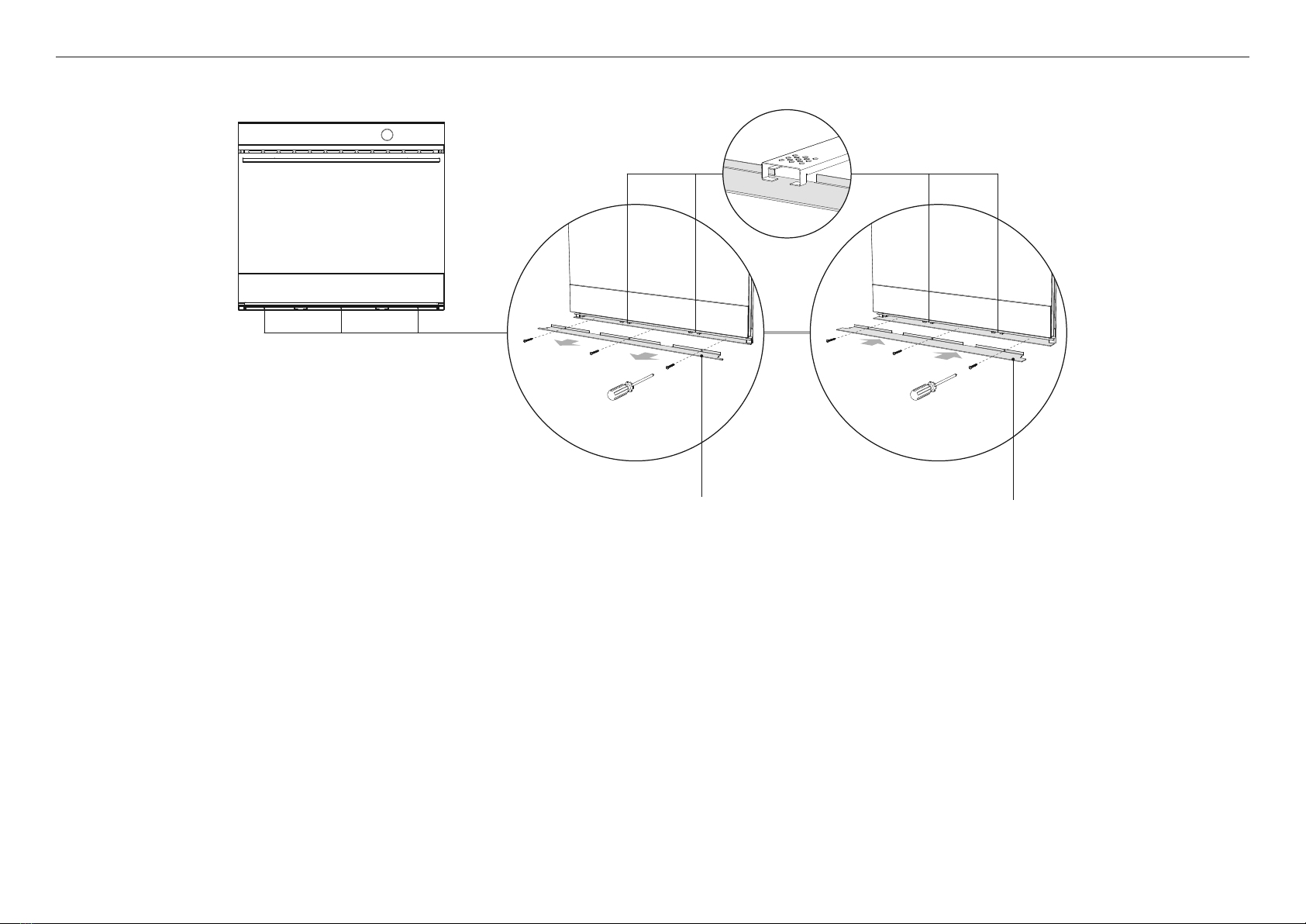

FLUSH INSTALLATION ONLY — REPLACE THE LOWER TRIM WITH THE SUPPLIED LONG TRIM
Unscrew and remove
the installed lower trim Replace with the
supplied long trim

12
FINAL CHECKLIST
TO BE COMPLETED BY THE INSTALLER
 Ensure the oven is level and securely fitted to the cabinetry.
 Check the lower trim is undamaged.
 Open the (lower) oven door slowly until it is fully open and check there is
adequate clearance between the bottom of the door and the lower trim.
Thisistoensurecorrectair circulation. Should the lower trim become damaged,
straighten the trim and ensure the oven door opens fully without obstruction.
 Ensure any cable ties and internal packaging has been removed from the ovencavity.
 Ensure all oven vents and openings are clear and free of any obstruction ordamage.
IMPORTANT!
Failure to ensure all oven vents are clear may result in poor product performance.
 Ensure the isolating switch is accessible by the customer.
TEST OPERATION:
 Turn the power to the oven on. The display should light up and show 24hr.
Settheclock following the instructions in the ‘Quickstart Guide’.
 Turn the oven function to ‘Bake’. Inside the oven cavity, the oven light should come on.
Air should blow out of the vent at the bottom of the oven.
 Have you demonstrated the basic operation to the customer?
 Turn the temperature to 50oC. The temperature indicator should come on.
Afterfiveminutes, open the oven door: the air inside should feel warm.
Turntheovenfunction dial back to OFF.
Complete and keep for safe reference:
Model
Serial No.
Purchase Date
Purchaser
Dealer Address
Installer’s Name
Installer’s Signature
Installation Company
Installation Date

NZ AU
591976B 09.19
FISHERPAYKEL.COM
© Fisher & Paykel Appliances 2019. All rights reserved.
The product specifications in this document apply to the specific products
and models described at the date of issue. Under our policy of continuous
product improvement, these specifications may change at any time. You should
therefore check with your Dealer to ensure this document correctly describes
the product currently available.
