Fisher & Paykel OB60DDEX2 Mounting instructions

Built-in oven
Installation instructions
and User guide
CN
OB60DDEX2 models

1
Contents
Safety and warnings 2
Installation instructions 4
Oven controls and setting the clock 10
First use 11
Using your oven 12
Oven functions 13
Baking charts 15
Using the timer 17
Automatic cooking 18
Care and cleaning 19
Warranty and service 29
Important!
SAVE THESE INSTRUCTIONS
The models shown in this user guide may not be available in all markets and are
subject to change at any time. For current details about model and specification
availability in your country, please visit our local website listed on the back cover
or contact your local Fisher & Paykel dealer.

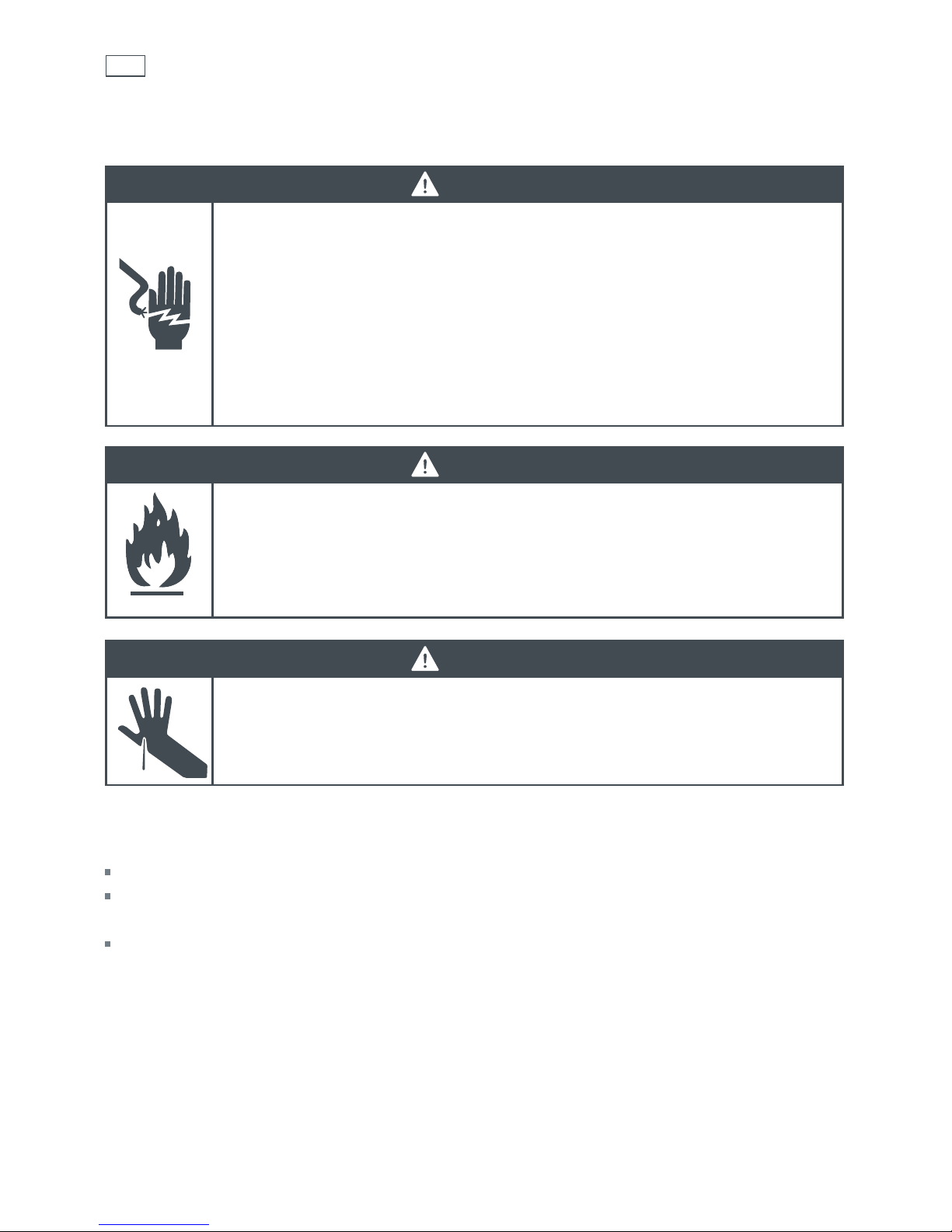

2Safety and warnings
WARNING!
Cut Hazard
Take care - panel edges are sharp.
Failure to use caution could result in injury or cuts.
WARNING!
Fire Hazard
Do not use adapters, reducers, or branching devices to connect this
appliance to the mains power supply.
Failure to follow this advice may result in overheating, burning, or fire.
WARNING!
Electrical Shock Hazard
Always disconnect the appliance from the mains power supply before
carrying out any maintenance or repairs.
Connection to a good earth wiring system is essential and mandatory.
Alterations to the domestic wiring system must only be made by a
qualified electrician.
Failure to follow this advice may result in death or electrical shock.
Important safety instructions
To avoid hazard, follow these instructions carefully before installing or using this appliance.
Please make this information available to the person installing the appliance - doing so could
reduce your installation costs.
This appliance must be installed and connected to the mains power supply only by a suitably
qualified person according to these installation instructions and in compliance with any
applicable local building and electricity regulations. Failure to install the appliance correctly
could invalidate any warranty or liability claims.
Installation

3
Safety and warnings
Operation and maintenance
Your built-in oven has been carefully designed to operate safely during normal cooking
procedures. Please keep the following guidelines in mind when you are using your oven:

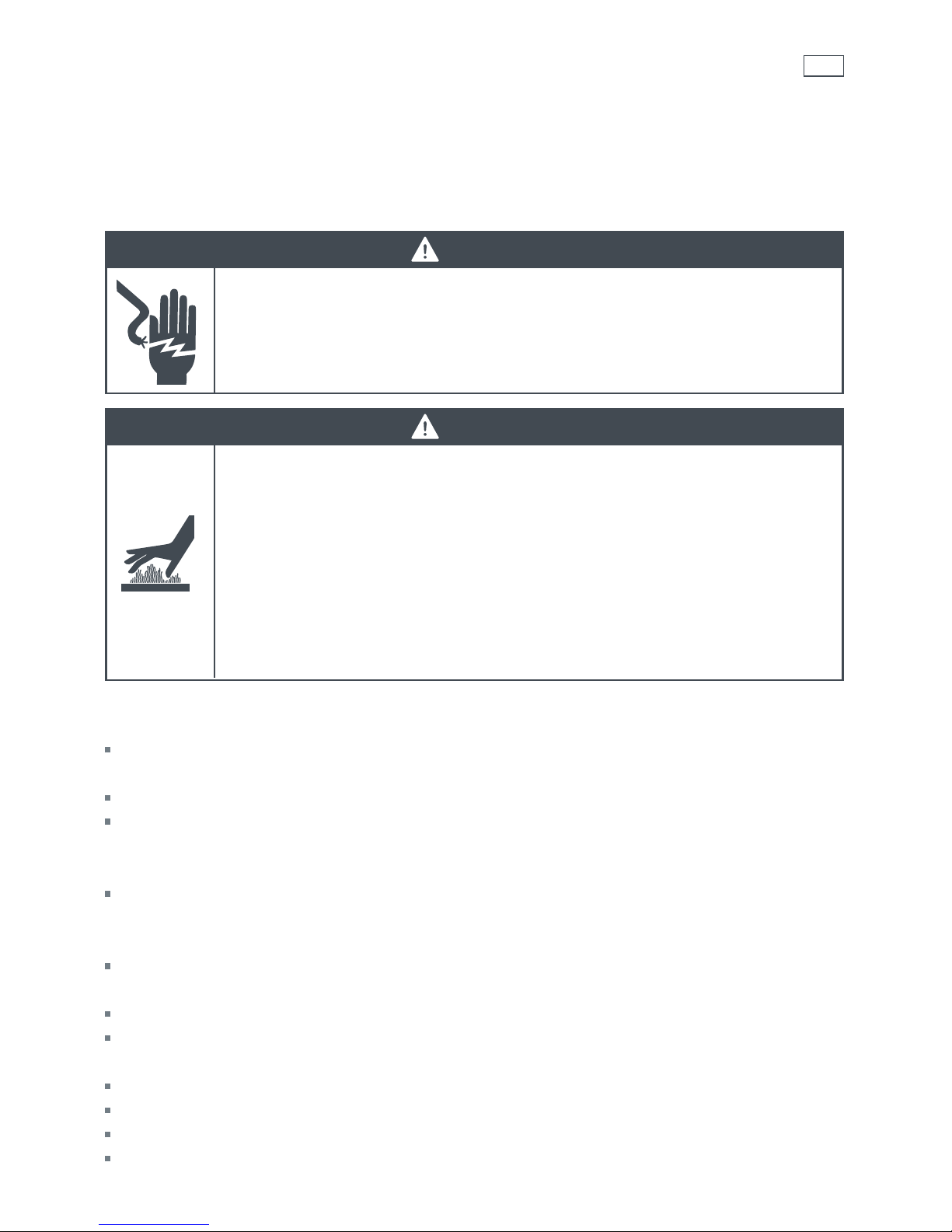

WARNING!
Hot Surface Hazard
Accessible parts may become hot when this oven is in use.
To avoid burns and scalds, keep children away.
Do not touch hot surfaces inside the oven.
Use oven mitts or other protection when handling hot surfaces such as oven
shelves or dishes.
Take care when opening the oven door.
Let hot air or steam escape before removing or replacing food.
Failure to follow this advice could result in burns and scalds.
WARNING!
Electrical Shock Hazard
Disconnect the oven from the power supply before any cleaning or
maintenance.
Failure to do so may result in death or electrical shock.
Important safety instructions
Isolating switch: make sure this oven is connected to a circuit which incorporates an isolating
switch providing full disconnection from the power supply.
Household appliances are not intended to be played with by children.
Children, or persons with a disability which limits their ability to use the appliance, should have a
responsible person to instruct them in its use. The instructor should be satisfied that they can use
the appliance without danger to themselves or their surroundings.
Safe food handling: leave food in the oven for as short a time as possible before and after
cooking. This is to avoid contamination by organisms which may cause food poisoning. Take
particular care during warmer weather.
Do not place aluminium foil, dishes, trays, water or ice on the oven floor during cooking as this
will irreversibly damage the enamel.
Do not stand on the door, or place heavy objects on it.
Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since
they scratch the surface, which may result in shattering of the glass.
Do not use a steam cleaner to clean any part of the oven.
Caution. Hot air can blow from under the control panel as part of the oven’s cooling system.
Do not keep flammable substances in the oven.
If the power supply cable is damaged, it must be replaced by the manufacturer, its service agent
or similarly qualified persons in order to avoid a hazard.

4Installation instructions
2.5 mm
16-20 mm
L
Product and cabinetry dimensions (mm)
OB60DDEX2
Aoverall height* of product 1077
Boverall width of product 595
Coverall depth of product (excluding handle and knobs) 567
Dheight of chassis 1057
Ewidth of chassis 556
Fdepth of chassis 545
Gdepth of oven frame and control panel
(=distance between front of chassis and front of oven door, excl. knobs) 22
Hdepth of upper oven door when fully open (measured from front of control panel) 435
HIdepth of lower oven door when fully open (measured from front of control panel) 450
Iminimum inside width of cavity 560
IIoverall width of cavity 600
Jinside height of cavity 1065
JIoverall height of cavity 1082
Kminimum inside depth of cavity 550
Lflush fitting cabinetry clearance 22
*All height measurements include mounted feet.
A
CE
D
F
G
H
HI
J
K
L
I
II
JI
B
OB60DDEX2
Fig. 1 OB60DDEX2 product and cabinetry dimensions

5
Installation instructions
Before you install the oven, make sure that
the cabinets and oven cavity are square and level, and are the required dimensions
the installation will comply with all clearance requirements and applicable standards and
regulations
a suitable isolating switch providing full disconnection from the mains power supply is
incorporated in the permanent wiring, mounted and positioned to comply with the local wiring
rules and regulations. The isolating switch must be of an approved type and provide a 3 mm air
gap contact separation in all poles (or in all active [phase] conductors if the local wiring rules
allow for this variation of the requirements)
the isolating switch will be easily accessible to the customer with the oven installed
there is at least 1.5 m (and not more than 2 m) free length of power supply cable within the
cavity for ease of installation and servicing
the oven connection socket (if fitted) is outside the cavity if the oven is flush to the rear wall
the oven will rest on a surface that can support its weight
the height from the floor suits the customer
you consult local building authorities and by-laws if in doubt regarding installation.
When you have installed the oven, make sure that
the oven doors can open fully without obstruction
the power supply cable does not touch any hot metal parts
the isolating switch is easily accessible by the customer
you complete the ‘Final checklist’ at the end of these installation instructions.
Unpacking the oven
Remove all packaging and dispose of it responsibly. Recycle items that you can.
When you remove the oven from the carton, place it onto wooden blocks or similar supports to
prevent damaging the lower trim.
Important!
Please take extra care not to damage the lower trim of the oven. It is important for correct air circulation
and allows the door to open and close without obstruction. The manufacturer does not accept any
responsibility for damage resulting from incorrect installation.
You may remove the feet but ensure that the oven does not sit on the lower trim.
Fig. 2 Correct and incorrect placement of lower trim
OVEN DOOR
LOWER TRIM
AIR FLOW
OVEN DOOR
LOWER TRIM
AIR FLOW
Feet

6
Connecting the oven to the mains power supply
Important!
This oven must be connected to the mains power supply only by a suitably qualified person.
This oven must be earthed.
Before connecting the oven to the mains power supply, check that
the domestic wiring system is suitable for the power drawn by the oven
(as specified on the rating plate)
the voltage corresponds to the value given on the rating plate.
the power supply cable used is type H05RR-F or H05RN-F and has a cross-sectional area of
3 x 4 mm
2
.
230-240 V~ 3095-3370W
230-240 V~ 2350-2550W
E
N
L1(L )2
E
N
L1(L )2
Installation instructions
Green & Yellow
(Earth)
Brown (Live)
Blue (Neutral)
N
L
D
1
2
Unscrew to
remove cover
plate
Unscrew to remove
cable clamp
Model code Power Voltage
OB60DDEX2 5600 W 220 V~

7
Wiring diagram
Installation instructions
Cod.0422341/CN
100
124
Componenti conformi a Direttiva Europea 2002/95/EC (RoHS) e successivi emendamenti.
Components in compliance with European Directive 2002/95/EC (RoHS) and further amendments.
0422341/CN
CODICE N° DISEGNO DATA
SCALA
DISEGNATO
CONTROLLATO
IN DATA SOSTITUISCE IL
DESCRIZIONE :
RAGGI NON QUOTATI (mm) SPESSORI NON QUOTATI (mm)
TOLLERANZE GENERALI
Z
XXX
Z
= QUOTE DA CONTROLLARE DURANTE LA PRODUZIONE
E PRIVE DI OGNI DIFETTO
SUPERFICI IN VISTA
N°
MODIFICHE
DATA
FIRMA
1
TELEFAX 0423/912360 TEL. [phone] - BORSO del GRAPPA (Italy)
..
.
Fisher & Paykel appliances si riserva,
a termini di legge, la proprietá del
presente disegno con divieto di, senza
autorizzazione, riprodurlo o comunicarlo.
Montagner M.
08/07/09 1/1
.
MATERIALE: vedi note / see notes
ADESIVO: vedi note / see notes
STAMPA COLORE: vedi note / see notes
ETICHETTA SCHEMA ELETTRICO (FORNO OB60DD - CINA) WIRING DIAGRAM LABEL (OVEN OB60DD - CHINA)
PR
N/7
1
1a
L/8
T
M
TL
S1
F1
C1
G1
S1
V1
CIR1
TM1
CF
LF1
TL
S2
F2
C2
G2
S2
V2
CIR2
TM2
LF3
TL
TL
LF2
LF4
LN
1
6
1a 6a
4
9
4a 9a
3
8
3a 8a
2
7
2a 7a
5
10
11
5a 10a 11a
1
6
1a 6a
4
9
4a 9a
3
8
3a 8a
2
7
2a 7a
5
10
11
5a 10a 11a
MTerminal block TM1 Oven thermostat CIR1 Circular element S2 Thermostat pilot lamp
TEarth connection PR Electronic programmer V1 Fan motor C2 Top element
CF Cooling fan motor LF1/2 Oven lamps G2 Grill element TL Thermal overload S1 Thermostat pilot lamp S2 Bottom element
BOTTOM OVEN
C1 Top element Circular element
Oven switch CIR2
F2
G1 Grill element
MAIN OVEN TM2 Oven thermostat V2 Fan motor
Bottom element
Oven switch S1
F1 LF3/4 Oven lamps
ELECTRIC DIAGRAM KEY
NOTE / NOTES
4MATERIALE / MATERIAL: POLIESTERE ARGENTO MATTATO / MATTE SILVER POLYESTER
4ADESIVO / ADHESIVE: PERMANENTE ACRILICO / PERMANENT ACRYLIC
4COLORE STAMPA / PRINTING COLOUR: NERO / BLACK
4SPECIFICHE DI STAMPA / PRINTING SPECIFICATIONS: LE MARCATURE DEVONO ESSERE
CHIARAMENTE LEGGIBILI E DURATURE (SECONDO I REQUISITI DELLA NORMA IEC 60335-1 §7.14) / THE MARKINGS SHALL BE CLEARLY LEGIBLE AND DURABLE (AS PER STANDARD IEC 60
335-1 §7.14)

8
Securing the oven to the cabinetry
1 Position the oven in the prepared cavity.
Important!
Do not lift the oven by the door handle.
2 Open the oven doors fully.
3 Use the supplied screws to secure the oven to the cabinetry.
Important!
Do not over-tighten the screws.
Do not seal the oven into the cabinetry with silicone or glue. This makes future servicing difficult.
Fisher & Paykel will not cover the costs of removing the oven, or of damage caused by this
removal.
2.5 mm
Fig. 3 Securing the oven to the cabinetry
Installation instructions
