OB60 single, double and tower multifunction models

1
Safety and warnings 2
Installation instructions 6
SEVEN-FUNCTION SINGLE OVEN MODELS
Using your oven for the first time
16
Clock and timer 17
Using your oven 18
Cooking functions 19
Automatic cooking 21
FOUR-FUNCTION SINGLE OVEN MODELS
(available in Australia only)
Using your oven for the first time 22
Clock, timer and automatic switch-off 23
Cooking functions 24
DOUBLE OVEN MODELS
Using the main lower oven for the first time
26
Clock and timer 27
Using the main lower oven 28
Lower oven cooking functions 29
Automatic cooking - lower oven 31
Using the upper oven for the first time 32
Upper oven cooking functions 33
TOWER OVEN MODELS
Using the ovens for the first time
34
Clock and timer 35
Using the ovens 36
Cooking functions 37
Automatic cooking - upper oven 39
Care and cleaning 40
Warranty and service 56
Important!
SAVE THESE INSTRUCTIONS
The models shown in this User Guide may not be available in all markets and are
subject to change at any time. For current details about model and specification
availability in your country, please go to our website www.fisherpaykel.com or
contact your local Fisher & Paykel dealer.
Contents

2Safety and warnings
WARNING!
Cut Hazard
Take care - panel edges are sharp.
Failure to use caution could result in injury or cuts.
WARNING!
Electrical Shock Hazard
Always disconnect the oven from the mains electricity supply before
carrying out any maintenance operations or repairs.
Failure to do so may result in death or electrical shock.
Important safety precautions
To avoid hazard, follow these instructions carefully before installing or using this product.
Please make this information available to the person installing the product as it could reduce
your installation costs.
This oven is to be installed and connected to the electricity supply only by an authorised person.
If the installation requires alterations to the domestic electrical system, call a qualified
electrician. The electrician should also check that the socket cable section is suitable for the
electricity drawn by the oven.
The oven must be earthed.
To connect the oven to the mains, do not use adapters, reducers or branching devices as they can
cause overheating and burning.
Installation must comply with your local building and electricity regulations.
Failure to install the oven correctly could invalidate any warranty or liability claims.
Before you install the oven, please make sure that
A suitable disconnection switch is incorporated in the permanent wiring, mounted and positioned
to comply with the local wiring rules and regulations. The switch must be of an approved
type installed in the fixed wiring and provide a 3 mm air gap contact separation in all poles in
accordance with the local wiring rules.
In Australia and New Zealand, a switch of the approved type with a 3 mm air gap must be
installed in the active (phase) conductor of the fixed wiring.
The location of the oven connection socket (if fitted) is outside the cavity if the product is flush to
the rear wall.
The electrician allows at least 1.5 m (and not more than 2 m) free length of connection cable
within the cavity for ease of installation and servicing of the product. The mains cable should not
touch any hot metal parts.
Installation

3
The oven will rest on a surface that can support its weight.
The benchtop and oven cavity are square and level, and are the required dimensions.
The height from the floor suits the user.
The oven door can open fully without obstruction.
If the supply cord is damaged, it is replaced by the manufacturer, its service agent, or a similarly
qualified person in order to avoid a hazard.
When you install the oven
Do not seal the oven into the cabinetry with silicone or glue. This makes future servicing difficult.
Fisher & Paykel will not cover the costs of removing the oven, or of damage caused by this
removal.
Use the supplied screws to secure the oven to the cabinetry. Do not over-tighten the screws. (See
Fig. 1)
Do not stand on the door, or place heavy objects on it.
Do not lift the oven by the door handle.
Safety and warnings
2.5 mm
Fig. 1 Securing the oven to the cabinetry

4
Operation
Your built-in oven has been carefully designed to operate safely during normal cooking
procedures. Please keep the following guidelines in mind when you are using your oven:
WARNING!
Hot Surface Hazard
Accessible parts may become hot when this oven is in use.
To avoid burns and scalds keep children away.
Do not touch hot surfaces inside the oven.
Use oven mitts or other protection when handling hot surfaces such as oven
shelves or dishes.
Take care when opening the oven door.
Let hot air or steam escape before removing or replacing food.
Failure to do so could result in burns and scalds.
WARNING!
Electrical Shock Hazard
Switch the oven off at the wall before replacing fuses or the oven lamp.
Failure to do so may result in death or electrical shock.
Safety and warnings

5
Important safety precautions
Isolating switch: make sure this oven is connected to a circuit which incorporates an isolating
switch providing full disconnection from the power supply.
Household appliances are not intended to be played with by children.
Children, or persons with a disability which limits their ability to use the appliance, should have a
responsible person to instruct them in its use. The instructor should be satisfied that they can use
the appliance without danger to themselves or their surroundings.
Safe food handling: leave food in the oven for as short a time as possible before and after
cooking. This is to avoid contamination by organisms which may cause food poisoning. Take
particular care during warmer weather.
Do not place aluminium foil, dishes, trays, water or ice on the oven floor during cooking as this
will irreversibly damage the enamel.
Do not stand on the door, or place heavy objects on it.
Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since
they scratch the surface, which may result in shattering of the glass.
Do not use a steam cleaner to clean any part of the oven.
Caution. Hot air can blow from under the control panel as part of the oven's cooling system.
Safety and warnings

6Installation instructions
Installation diagrams for illustration purposes only
2.5 mm
16-20 mm
L
Product and cabinetry dimensions (mm)
Aoverall height* of product 597
Boverall width of product 595
Coverall depth of product (excluding handle and knobs) 567
Dheight of chassis 582
Ewidth of chassis 556
Fdepth of chassis 545
Gdepth of oven frame and control panel
(=distance between front of chassis and front of oven door, excl. knobs) 22
Hdepth of oven door when fully open (measured from front of control panel) 435
Iminimum inside width of cavity 560
IIoverall width of cavity 600
Jinside height of cavity 585
JIoverall height of cavity 600
Kminimum inside depth of cavity 550
Lflush fitting cabinetry clearance 22
Note: If installing a cooktop above the oven, ensure adequate clearance is provided for the
cooktop as per the cooktop manufacturer’s instructions.
*All height measurements include mounted feet.
A
CE
D
F
G
H
J
K
L
I
II
JI
B
Single oven models
Fig. 2 Single product and cabinetry dimensions

7
Installation instructions
2.5 mm
16-20 mm
L
Product and cabinetry dimensions (mm)
Double
Tower
Aoverall height* of product 888 1077
Boverall width of product 595 595
Coverall depth of product (excluding handle and knobs) 567 567
Dheight of chassis 874 1057
Ewidth of chassis 556 556
Fdepth of chassis 545 545
Gdepth of oven frame and control panel
(=distance between front of chassis and front of oven door, excl. knobs) 22 22
Hdepth of oven door when fully open (measured from front of control panel) 261/435 435/450
Iminimum inside width of cavity 560 560
IIoverall width of cavity 600 600
Jinside height of cavity 877 1065
JIoverall height of cavity 893 1082
Kminimum inside depth of cavity 550 550
Lflush fitting cabinetry clearance 22 22
*All height measurements include mounted feet.
A
CE
D
F
G
H
J
K
L
I
II
JI
B
Double and Tower oven models
Fig. 3 Double and Tower product and cabinetry dimensions

8
Important:
Please take extra care not to damage the lower trim of the oven.
The space between the bottom of the door and the lower trim is important for the correct air
circulation into the oven.
Ensure the oven sits on wooden blocks or similar supports when it is removed from the carton as
shown in Fig. 4. This will prevent any damage to the lower trim.
After installation, check the lower trim is still undamaged. Open the oven door slowly to its fully
open position, ensuring there is adequate clearance between the bottom of the door and the
lower trim.
Should the lower trim become damaged, straighten the trim and ensure the oven door opens
fully without obstruction from the lower trim.
Note: you can remove the feet but ensure that the oven does not sit on the lower trim.
The manufacturer does not accept responsibility for any damage to the oven resulting from
incorrect installation.
OVEN DOOR
LOWER TRIM
AIR FLOW
Air circulation
Single oven models

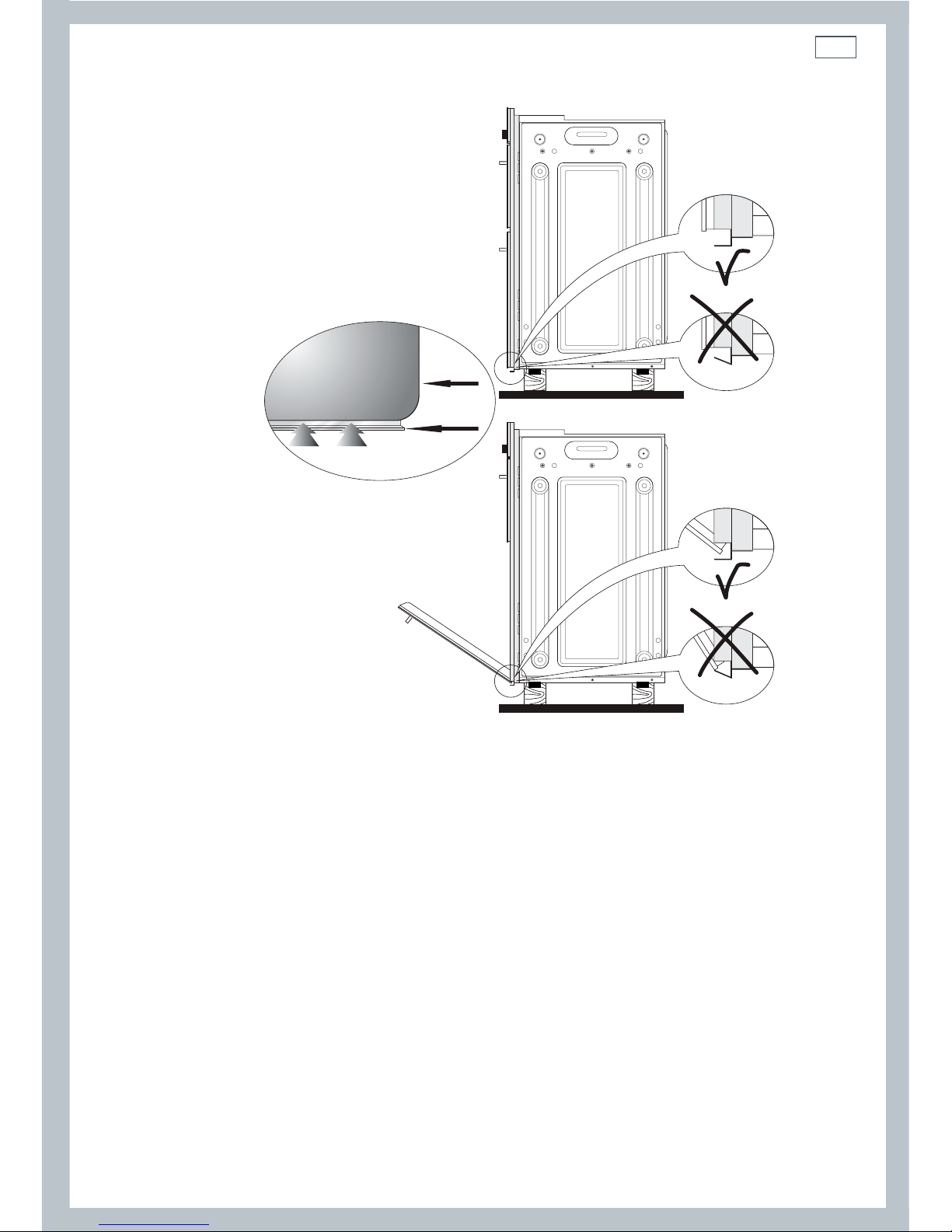

Fig. 4 Correct and incorrect placement of trim

9
Air circulation
Important:
Please take extra care not to damage the lower trim of the oven.
The space between the bottom of the door and the lower trim is important for the correct air
circulation into the oven.
Ensure the oven sits on wooden blocks or similar supports when it is removed from the carton as
shown in Fig. 5. This will prevent any damage to the lower trim.
After installation, check the lower trim is still undamaged. Open the oven door slowly to its fully
open position, ensuring there is adequate clearance between the bottom of the door and the
lower trim.
Should the lower trim become damaged, straighten the trim and ensure the oven door opens
fully without obstruction from the lower trim.
Note: you can remove the feet but ensure that the oven does not sit on the lower trim.
The manufacturer does not accept responsibility for any damage to the oven resulting from
incorrect installation.
OVEN DOOR
LOWER TRIM
AIR FLOW
Double and Tower oven models

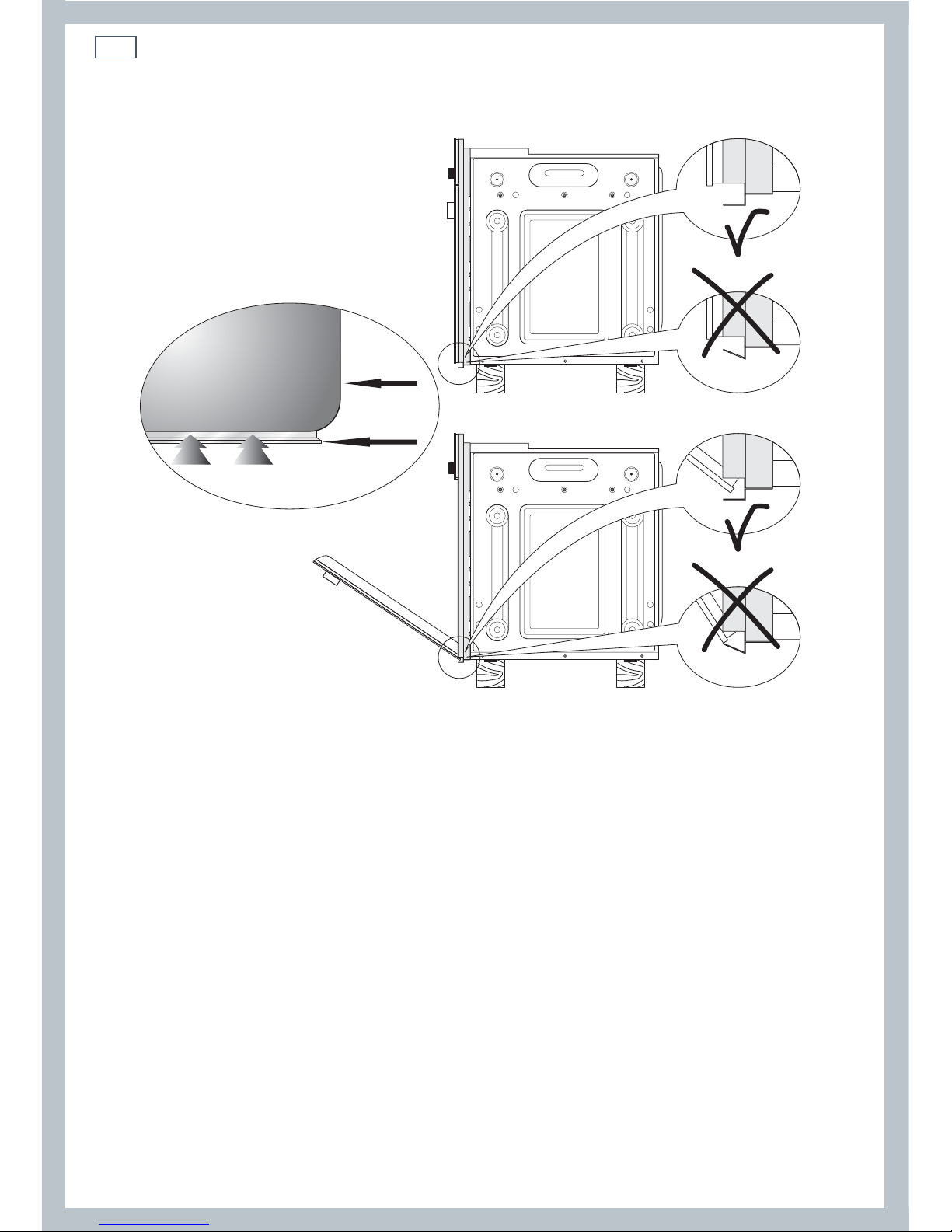

Fig. 5 Correct and incorrect placement of trim

10
230-240 V~ 3095-3370W
230-240 V~ 2350-2550W
E
N
L1(L )2
1 Unhook the terminal board cover by inserting a screwdriver into the two hooks “A” (Fig. 7).
2 Open the cable crimp by unscrewing screw “F” (Fig. 8), unscrew the terminal screws and remove
the cable.
3 Connect the new supply cable, of suitable type and section, to the terminal board following the
diagram in Fig. 6.

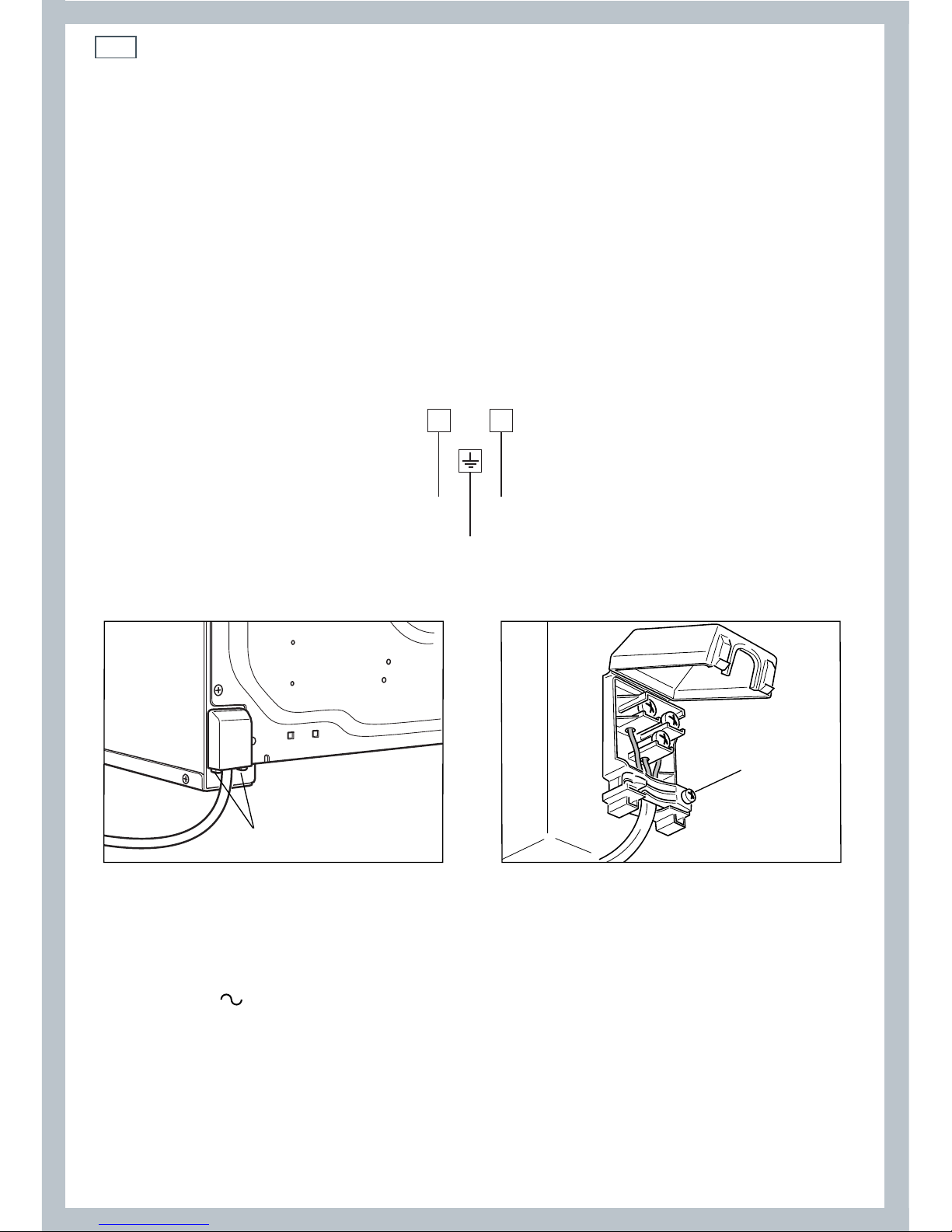

Replacing the power supply cable
230- 240 V 3 x 1.5 mm2
A
F
Fig. 7 Fig. 8
Feeder cable section type HO5RR-F
Fig. 6
Single oven models

11
Connecting the power supply cable
Double and Tower oven models
1 Unscrew the screw “A” securing the cover plate “B” behind the oven (Fig. 9).
2 Remove the cover plate “B”.
3 Remove the screws “C” from the cable clamp (Fig. 10).
4 Insert the mains cable into the cable protector “P”.
Type of cable to be used for double models: type V105 for AU and NZ, type H05RR-F for UK
and EU - 3 x 2.5 mm
2
section 230-240 V ~ 4400-4800 W.
Type of cable to be used for tower models: type V105 for AU and NZ, type H05RR-F for UK
and EU - 3 x 4 mm
2
section 230-240 V ~ 6120 W.
5 Connect the phase and earth cables to the mains terminal connection block “D”.
The wires of this appliance must be coloured in accordance with the following code:
GREEN AND YELLOW - EARTH
BLUE - NEUTRAL “N”
BROWN - LIVE “L”
The wire which is coloured GREEN AND YELLOW must be connected to the terminal which is
marked with the letter “E” or by the Earth symbol or coloured GREEN or GREEN AND YELLOW.
The wire which is coloured BLUE must be connected to the terminal which is marked with the
letter “N” or coloured BLACK.
The wire which is coloured BROWN must be connected to the terminal which is marked with the
letter “L” or coloured RED.
6
Refit the cable clamp so that it clamps the outer sleeving of the cable, and screw the screws “C”.
7
Refit the cover plate “B” and fix it with the screw “A”.
Important:
This appliance must be earthed.
Green & Yellow
(Earth)
Brown (Live)
Blue (Neutral)
N
L
A
C
P
D
B
Fig. 9 Fig. 10

12
Seven-function single oven NZ AU models

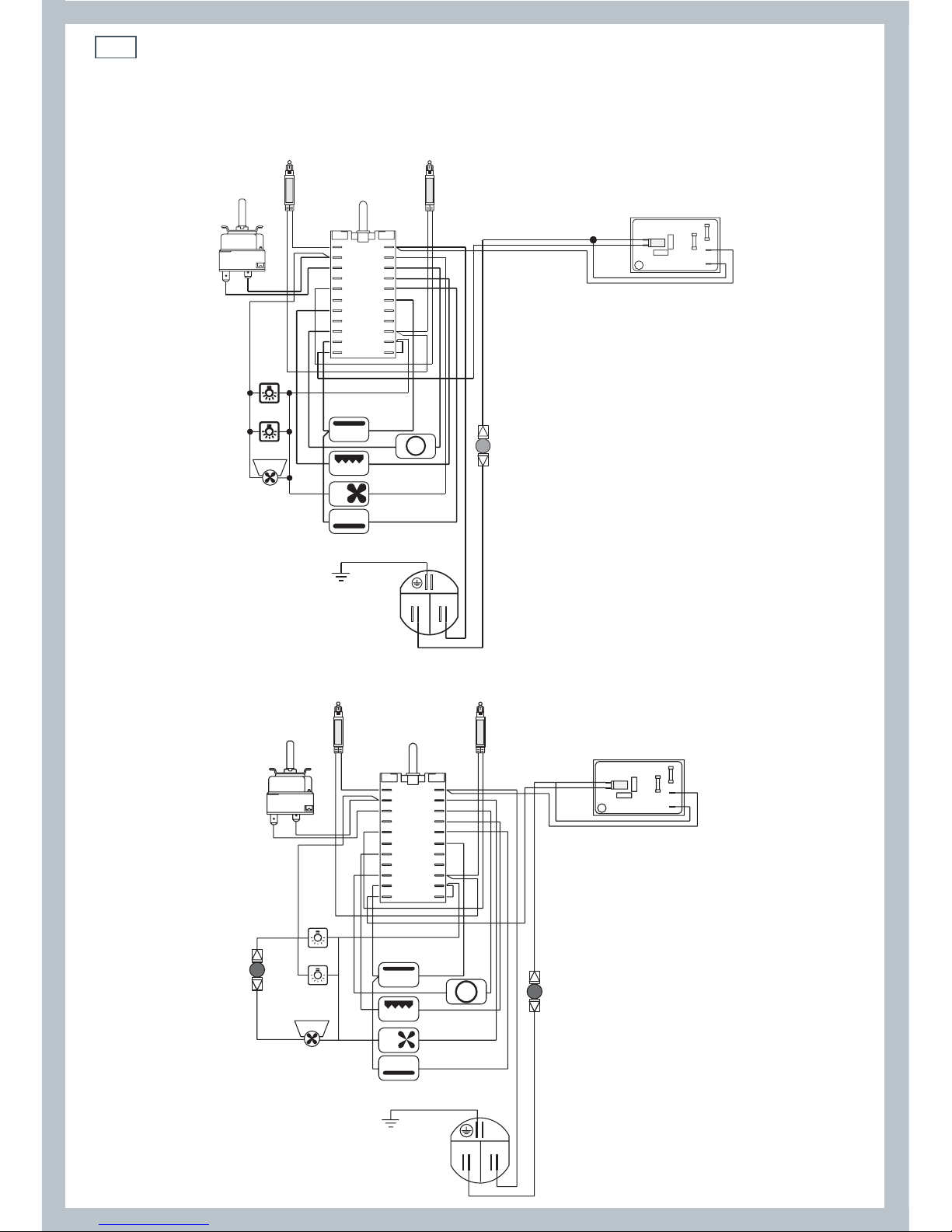

Wiring diagrams
Fig. 11a
S1 S2
F1
PR
1
6
1a
6a
4
9
4a
9a
3
8
3a
8a
2
7
2a
7a
5
10
11
5a
10a
11a
C
G
S
V
CIR
TM
CF
N/7
1
1a
L/8
LF1
TL
T
N
L
M
LF2
Seven-function single oven GB IE EU models
S2S1
F1 PR
1
6
1a
6a
4
9
4a
9a
3
8
3a
8a
2
7
2a
7a
5
10
11
5a
10a
11a
C
G
S
V
CIR
TM
CF
N/7
1
1a
L/8
LF
TL
T
NL
M
TL1
LF1
Fig. 11b

13
Wiring diagrams
Four-function single oven models (available in Australia only)
LF2
C
G
S
V
TL
TE
S1S2
F1
T
CF
N
L
M
PR
N/7
1
1a
L/8
1 4
3
2
5
P2P1P3
LF1
Fig. 12
6
6a
4
9
4a
9a
3
8
3a
8a 7
7a
5
10
11
5a
10a
11a
C
S
G
V
CIR
LF
T
C1
G1
S1
LF2
TL1
TL2
M
NL
TL3
1
4
3
P2
LF1
F1
11a 22a
N/7
1
1aL/8
F2 S2 E2
E1 PR
CF
2
5
P1
P3
S1
Fig. 13
Double oven models

14
Tower oven models
Wiring diagrams
Fig. 14

15

16 Using your oven for the rst time

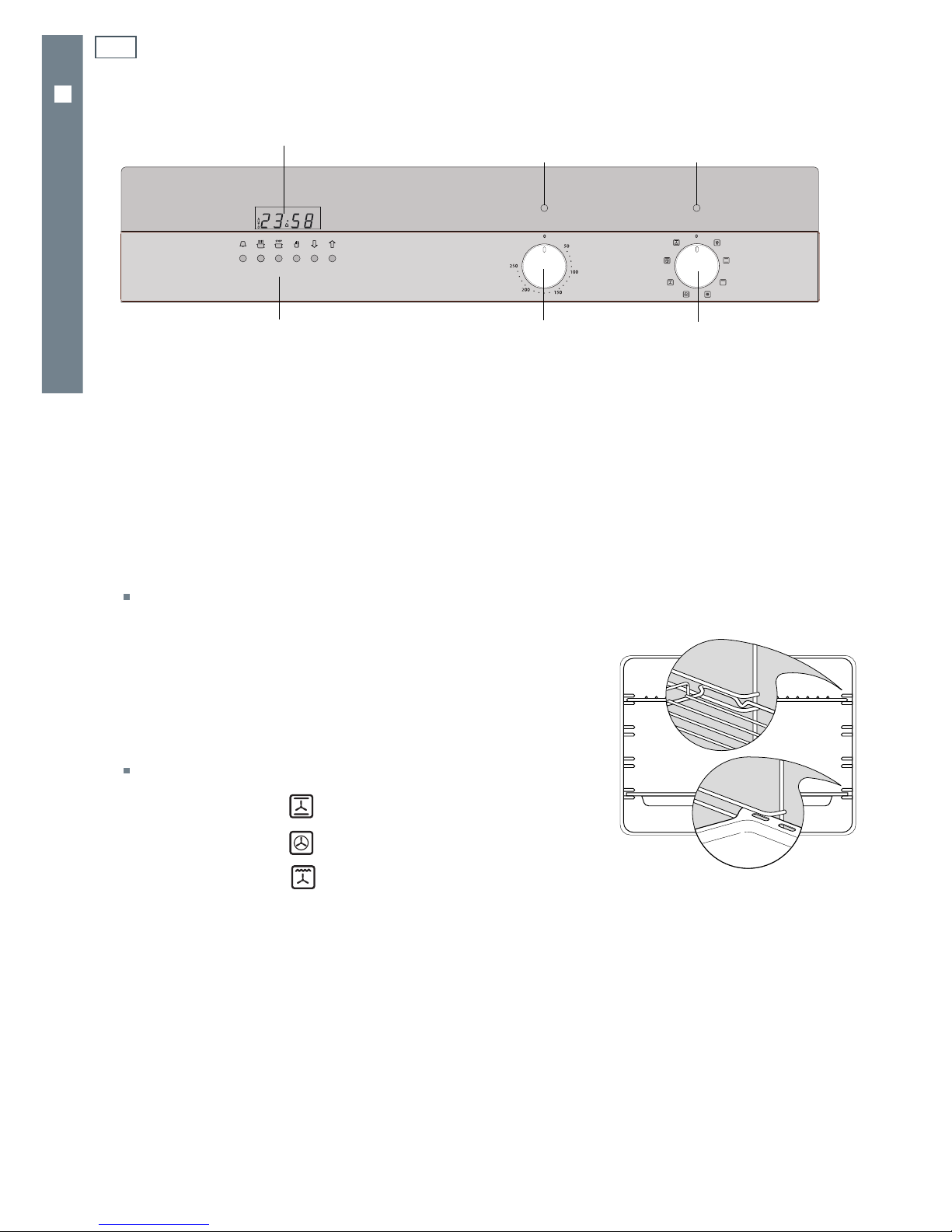

Fig. 15 Control panel
SEVEN-FUNCTION SINGLE MODELS
Temperature
knob
Control buttons Function
knob
Before using your new oven, please:
1 Read this user guide, taking special note of the ‘Safety and warnings’ section.
2 Remove all accessories and packaging.
3 Set the clock. The oven will not work until the clock has been set.
4 Condition the oven:
Put in the shelves and trays. If you are not using
the sliding shelf supports, then slide in the shelves
and grill pan as shown in Fig. 16. Fit them between
the metal runners, with the safety stop notch down
and at the back. (If the shelf supports and catalytic
panels are not already fitted, see ‘Care and cleaning’
for how to do this).
Heat the oven on maximum for:
60 minutes in the position
30 minutes in the position
15 minutes in the position
5 Wipe out the oven with a damp cloth and mild detergent,
and dry thoroughly.
Fig. 16 Correct position of shelves and pan
Clock display Temperature
indicator light
Function
indicator light

17
Clock and timer

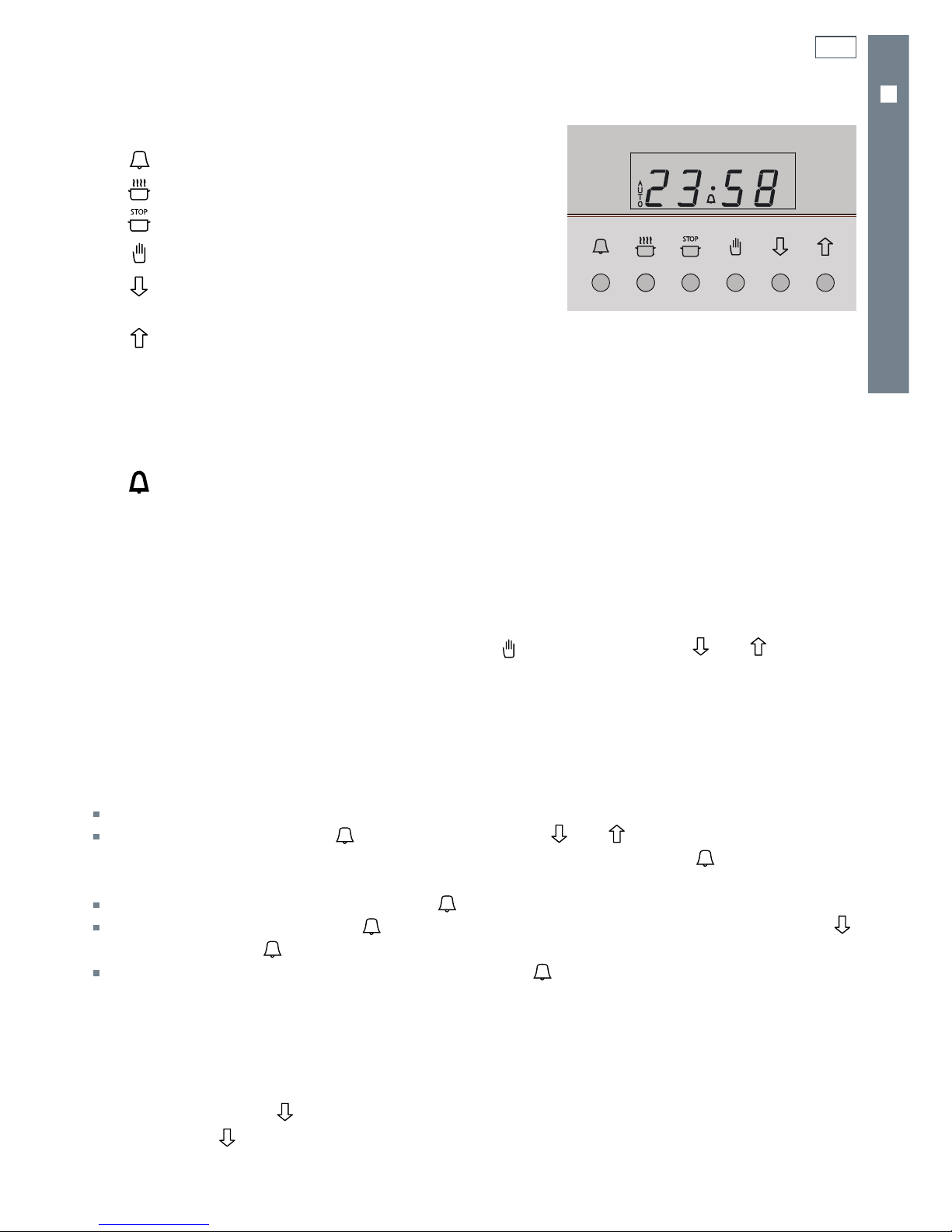

Fig. 17 Clock display and control buttons
SEVEN-FUNCTION SINGLE MODELS
Buttons
Timer
Cooking time
End of cooking time
Manual position; and cancels the set program
Decreases the number shown on the display
or changes the volume of the beeps
Increases the number shown on the display
Illuminated symbols
AUTO - flashing - oven in automatic position but not set
AUTO - steady illumination - oven set for automatic cooking
- timer in operation
AUTO - flashing and timer beeping when you have set automatic cooking time -
program error (The time of day lies between the calculated cooking start and end
time.)
Setting the clock
When first connected, or after a power failure longer than 15 seconds, ‘0.00’ and AUTO will
flash on the display. To set the clock, press the button and then the and buttons.
Note: changing the time will delete any automatic program.
Using the timer
You can use the timer at any time, even when the oven is not in use. The timer does not
turn the oven off.
You can set the timer for up to 23 hours and 59 minutes.
To set the timer, press the button briefly, then the and buttons to set the time you
want. After a few seconds, the clock will show the time of day with the symbol in the
display.
To check the remaining time, press the button.
To cancel the timer, press the button and then reset the time to ‘0.00’ by pressing the
button. Press the button to turn the timer off.
When the time is up, the timer will beep. Press the button to turn the timer off.
Setting the timer volume
You can choose between three levels of volume for the timer beeps. To adjust the volume:
1Check the clock is set and the timer is not running.
2Press and hold the button. The timer will beep.
3Release the button and re-press to hear the next level of volume. The last level selected
is stored.
Note: if the power to the oven is cut, then the beep volume will reset to the loudest level.

18 Using your oven
1 Select the function using the function knob. The oven lights will come on.
2 Select the temperature using the temperature control knob. The oven temperature indicator
light, above the temperature knob on the control panel, will glow until the oven has reached the
set temperature, and then it will go out.
3
When you have finished cooking, turn the function and temperature control knobs to the off O
position.
Note: press the button if
AUTO is flashing or steadily illuminated.
SEVEN-FUNCTION SINGLE MODELS
Fig. 18 Function knob Fig. 19 Temperature knob
