Care and cleaning
Manual cleaning
Always Never
• Before any manual cleaning or maintenance, first wait for
the oven to cool down to a safe temperature to touch, then
turn its power supply off at the wall.
• Read these cleaning instructions and the ‘Safety and
warnings’ section before you start cleaning your oven.
• To prevent soiling from becoming ‘baked on’ and stubborn,
we recommend removing any easy-to- reach spills, food or
grease stains from the oven cavity enamel after each use.
• Always clean the inner glass pane before starting a Self
Clean cycle (where available).
• Always remove oven shelves and side racks before starting
a Self Clean cycle (where available).
• Never use a steam cleaner.
• Never store flammable substances in the
oven.
• Never use abrasive or harsh cleaners,
cloths, scouring pads or steel wool. Some
nylon scourers may also scratch. Check the
label first.
• Never use oven cleaner on catalytic panels
or in a pyrolytic oven.
• Never leave alkaline (salty spills) or acidic
substances (such as lemon juice or vinegar)
on the oven surfaces.
• Never use cleaning products with a chlorine
or acidic base.
• Never spray detergent or liquid onto the
buttons on the control panel. Liquid may
seep behind the button and damage the
electronics.
What? How? Important!
Glass
surfaces
(oven door
panes,
control
panel)

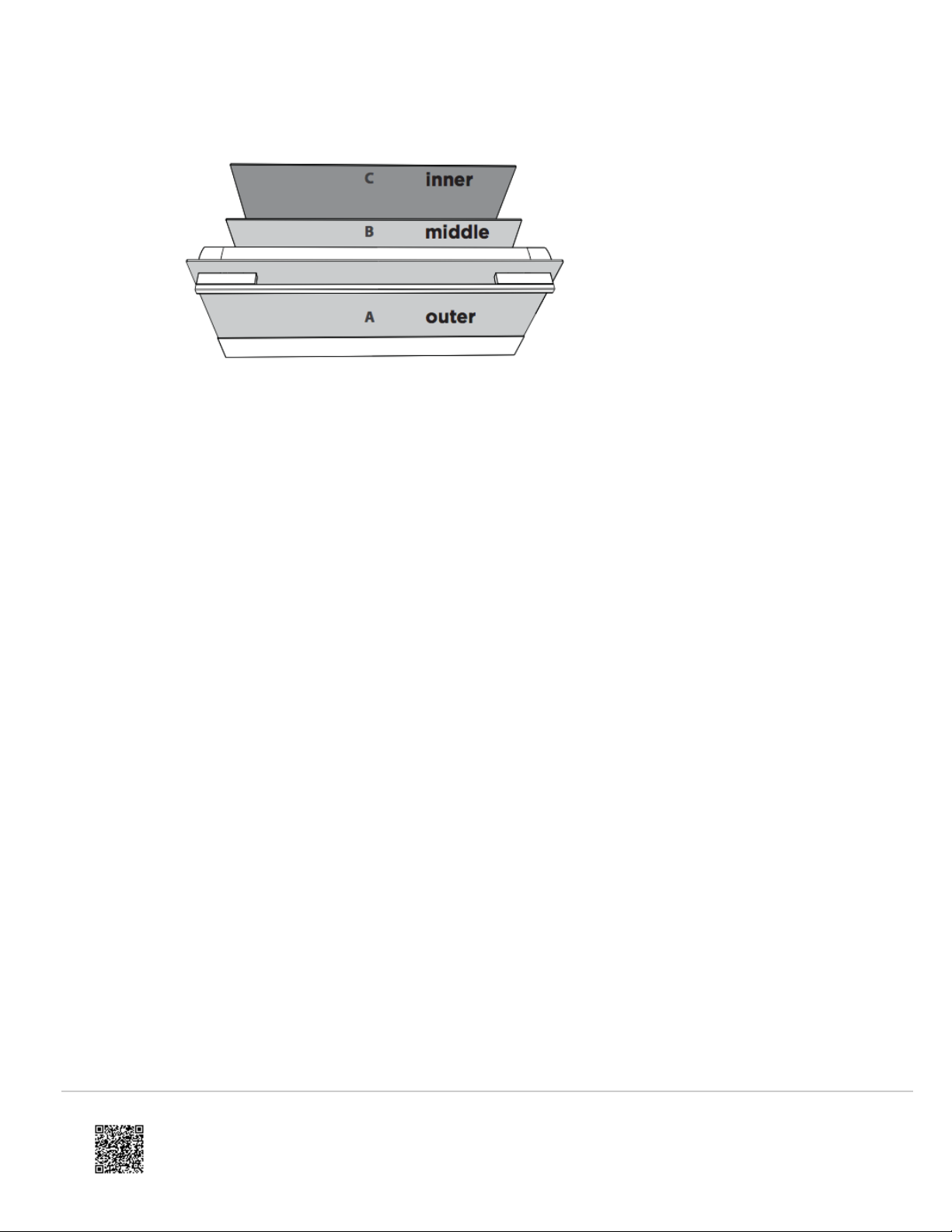

Door comprises a total of 3 glass panes

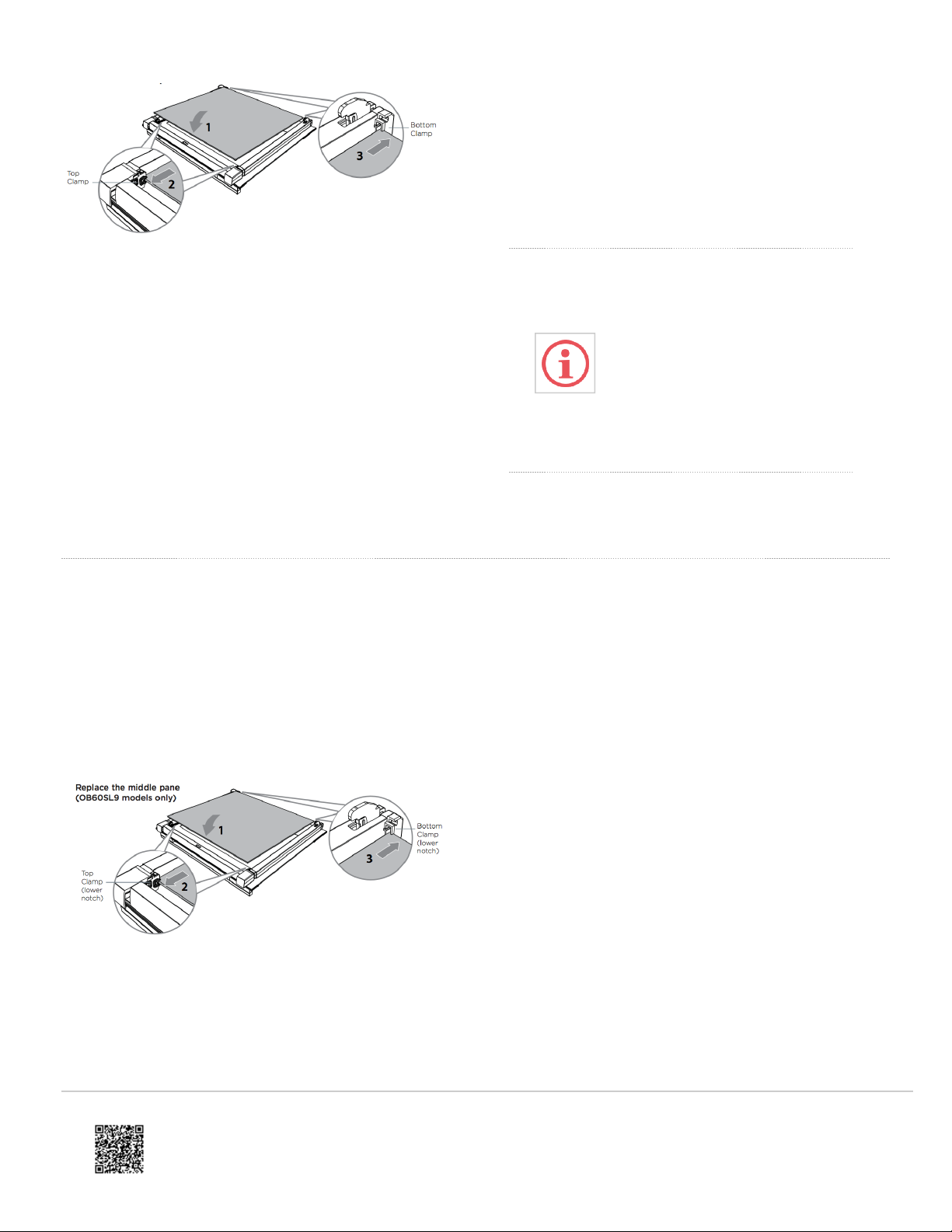

• To clean glass pane B, you will first need to remove
the door and the inner pane. For instructions, see
section ‘Removing and replacing the door glass
panes for cleaning’.
•Don’t use oven cleaners or any
other harsh/abrasive cleaners,
cloths, scouring pads, steel wool
or sharp metal scrapers to clean
the glass surfaces. These scratch
the glass and may damage its
special coating, which in turn
https://producthelp.fisherpaykel.com/nz/Cook/Built-In_Ovens/Single/OB60/OB60SL11DEPX1/User_Guide_OB60SL11DEPX1…
Updated: Thu, 07 Jul 2022 06:52:43 GMT
Powered by
1

What? How? Important!
1. Clean with a solution of mild detergent or baking
soda and hot water, then wipe dry.
2. Wipe with a glass cleaner and dry with a soft, lint-
free cloth.
could result in the glass cracking
or shattering.
•Even if you only clean the inner
pane (C), remove the door and the
pane first. Cleaning the glass with
the pane in the door may result in
cleaning liquid running down the
gaps and drying onto internal
components.
•Take particular care when
cleaning the control panel glass.
Only use a damp cloth with
detergent.
Dials Clean with a solution of mild detergent and hot water,
then wipe dry.
Do not use stainless steel or oven
cleaner on the dials, as doing so may
damage their coating.
Stainless
steel strip/
handle on
the front of
the oven
door
• Clean with a solution of mild detergent and hot
water, then wipe dry with a microfiber cloth.
• If necessary, use a suitable stainless steel cleaner
and polish.
•Always read the label to make
sure that your stainless steel
cleaner does not contain chlorine
compounds as these are corrosive
and may damage the appearance
of your oven.
•Always rub the stainless steel in
the direction of the grain.
Catalytic
panels
(OB60SL9
models
only)
To clean light soiling off the surfaces:
1. Wipe with a damp cloth and a solution of hot water
and mild detergent or an ammonia-based cleaner.
2. Wipe dry with a soft cloth.
• To clean stubborn, ‘baked on’ soiling run the oven
on Fan
Grill at 200°C for 1.5 hours to enhance the catalytic
panel cleaning function.
•These panels are normally ‘self-
cleaning’ because their special
enamel breaks down greasy
splatters when the oven is used
for ‘non-greasy’ baking, especially
at high temperatures.
•Do not use oven cleaner on the
catalytic panels.
•Do not immerse catalytic panels in
water.
https://producthelp.fisherpaykel.com/nz/Cook/Built-In_Ovens/Single/OB60/OB60SL11DEPX1/User_Guide_OB60SL11DEPX1…
Updated: Thu, 07 Jul 2022 06:52:43 GMT
Powered by
2

What? How? Important!
•Never use scourers, brushes,
abrasives or cleaners with acid or
alkali content on the catalytic
panels.
Oven
cavity
(OB60SL9
models
only)
• Remove everything from the oven: all shelves and
trays, the side racks, the catalytic panels.
1. Remove the oven door (see instructions on
following pages).
2. Wipe the inside of the oven using a household
detergents or an ammonia-based cleaner.
3. Wipe clean with a damp cloth and allow to dry
completely.
•To prevent soiling from becoming
‘baked on’ and stubborn, we
recommend removing any easy-
to-reach spills, food or grease
stains from the enamelled
surfaces after each use.
•To make wiping out the oven
easier you may remove and the
oven door. See the following
pages for instructions.
•To make cleaning the oven ceiling
easier, the grill element can be
lowered. See following pages for
instructions.
Oven
cavity
(OB60SL11
models
only)
• To clean light soiling off the enamelled surfaces:
1. Wipe with a damp cloth and a solution of hot water
and mild detergent or an ammonia-based cleaner.
2. Wipe dry with a soft cloth.
• To clean stubborn, ‘baked on’ soiling or the whole
oven cavity: use the Self Clean function. See ‘Using
the Self Clean function’ for instructions.
•To prevent soiling from becoming
‘baked on’ and stubborn, we
recommend removing any easy-
to-reach spills, food or grease
stains from the enamelled
surfaces after each use. Doing so
will reduce the need for using the
Self Clean function frequently.
•Always remove the side racks
before a Self Clean cycle
•To make wiping out the oven
easier you may remove and the
oven door. See the following
pages for instructions.
Telescopic
sliding
shelf
supports
Wipe with a damp cloth and mild detergent. Do not wipe
off or wash away the white lubricating grease (visible
when the slides are extended).
Do not wash these in the dishwasher,
immerse in soapy water, use oven
cleaner on them or leave in the oven
during a Self Clean cycle (where
available) as doing so will remove the
white lubricating grease and prevent
the slides from running smoothly.
https://producthelp.fisherpaykel.com/nz/Cook/Built-In_Ovens/Single/OB60/OB60SL11DEPX1/User_Guide_OB60SL11DEPX1…
Updated: Thu, 07 Jul 2022 06:52:43 GMT
Powered by
3

What? How? Important!
Meat probe
(some
models
only)
Clean with a solution of mild detergent and hot water,
then wipe dry with a microfiber cloth.
•Clean after every use to avoid
contamination.
•Do not wash in the dishwasher,
immerse in soapy water, use oven
cleaner or leave in the oven during
a Self Clean cycle (where
available).
Grill tray
Grill rack
Side racks
Oven
shelves
Rotisserie
parts
Baking
tray
• Clean with a solution of mild detergent and hot
water.
• Pre-soak stubborn burnt-on stains in a solution of
dishwasher powder and hot water..
• Except for the baking tray and rotisserie parts, these
parts are also dishwasher safe.
•You don’t need to remove the four
lock studs from the rotisserie tray.
They can be soaked and cleaned
while fixed to the tray.
•Never leave any of these parts in
the oven during a Self Clean cycle.
They will become discoloured or
damaged.
Oven seal
(models
without
‘Selfclean’
function
only)
Clean with a solution of mild detergent and hot water -
Oven seal
(OB60SL9
models
only)
Oven seal
(OB60SL11
models
only)
Clean with a solution of mild detergent and hot water
Do not clean this part.
-
Oven vent
louvres Wipe with a damp cloth. Take care not to let any liquid run down the louvres of the oven vent.
https://producthelp.fisherpaykel.com/nz/Cook/Built-In_Ovens/Single/OB60/OB60SL11DEPX1/User_Guide_OB60SL11DEPX1…
Updated: Thu, 07 Jul 2022 06:52:43 GMT
Powered by
4

Removing the side racks and catalytic panels (some models only)
Always turn off the oven at the wall first. Ensure the oven has cooled down completely
before starting.

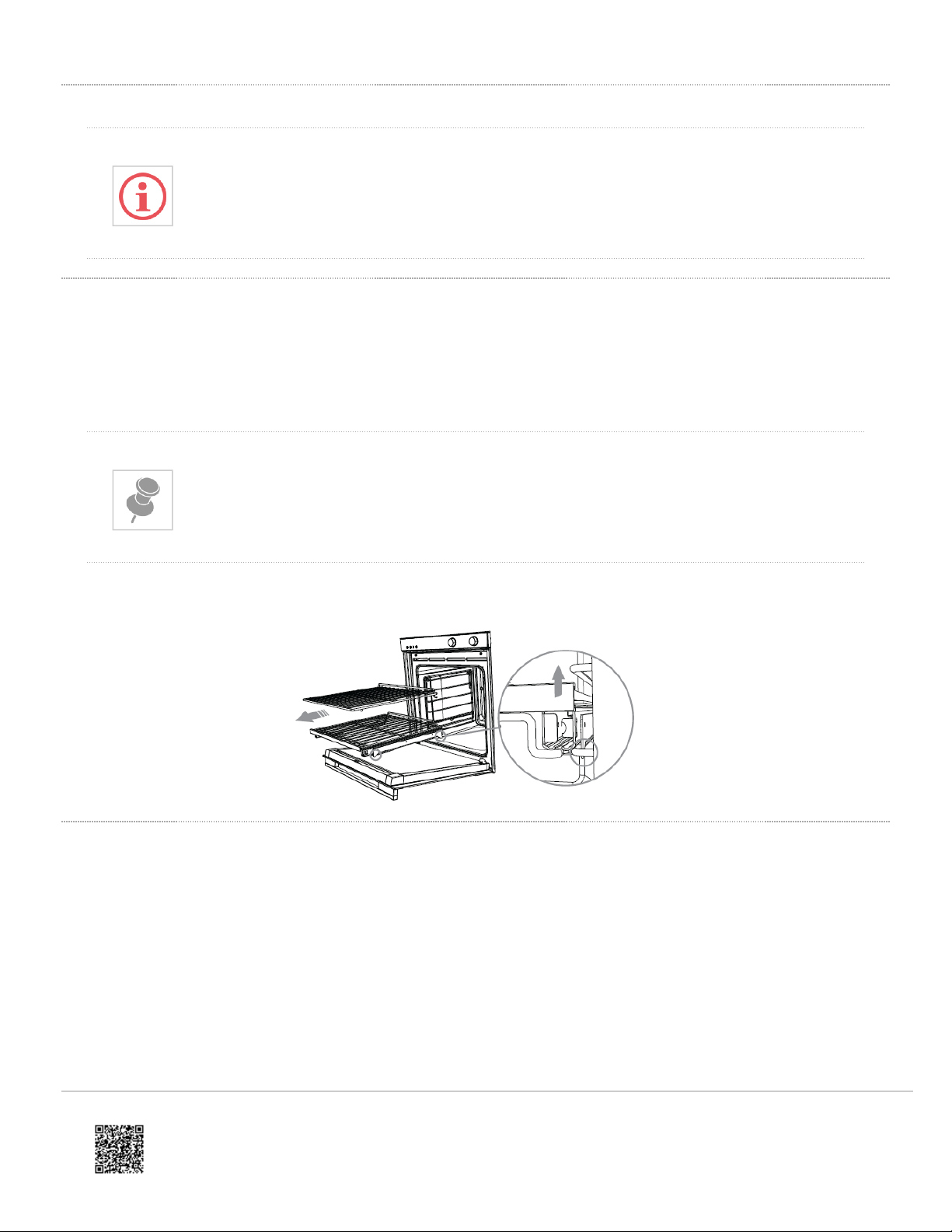

Remove all the shelves
1. Remove all the shelving, taking special care with the telescopic sliding shelves.
2. To remove a telescopic sliding shelf, grip it at the front (making sure you are gripping the wire shelf and the sliding
frame together), lift upwards and pull it out of the oven.
For your safety, the wire shelf and telescopic sliding frame are built together as one unit
and are not separable.
3. For easier access, we recommend removing the oven door. See ‘Removing and refitting the oven door.’
Remove both side racks
Remove both side racks by:
1. Pushing down on the retaining wire until it clears the lower lock stud and swing out wards to
2. clear the upper lock studs, then
3. lift out.
https://producthelp.fisherpaykel.com/nz/Cook/Built-In_Ovens/Single/OB60/OB60SL11DEPX1/User_Guide_OB60SL11DEPX1…
Updated: Thu, 07 Jul 2022 06:52:43 GMT
Powered by
5

Remove the catalytic panels
Once you have removed the side racks, pull the catalytic panel toward the centre of the oven, until it is clear of the lower
locating nut.
Refitting the side racks and catalytic panels
Once you have cleaned the side racks and catalytic panels, follow the instructions in the ‘Quick start guide’ under ‘First
use’ to refit the catalytic panels, side racks and shelving in that order.
Drop-down upper element (OB60S9 model only)
Always turn off the oven at the wall before lowering the grill element. Make sure the oven
has cooled down completely before starting.
• To lower the upper element: use a flat-head screwdriver or a small coin to loosen the element fixing screw. The
element will now drop down to enable cleaning.
• When you have finished cleaning the oven ceiling, raise the element and screw the element fixing screw back
onto the stud. Make sure that the fixing screw is tightened and the element is held securely in place.
• The element itself is self-cleaning
https://producthelp.fisherpaykel.com/nz/Cook/Built-In_Ovens/Single/OB60/OB60SL11DEPX1/User_Guide_OB60SL11DEPX1…
Updated: Thu, 07 Jul 2022 06:52:43 GMT
Powered by
6

Replacing the oven light bulbs
Oven bulb replacement is not covered by your warranty.
Your oven uses G9 halogen bulbs with the specifications 220-240V, 50Hz and 25W.
Always hold the replacement bulb in a soft cloth. Touching the bulb will reduce its life-span.
The four oven lights are located behind the opaque glass panels on both side walls of your oven (two on either side).
Changing the bulb
1. Let the oven cavity and grill element cool down before changing the bulb. Before switching off the oven, take note
of which light(s) are not working.
https://producthelp.fisherpaykel.com/nz/Cook/Built-In_Ovens/Single/OB60/OB60SL11DEPX1/User_Guide_OB60SL11DEPX1…
Updated: Thu, 07 Jul 2022 06:52:43 GMT
Powered by
7

Turn the oven off at the wall before continuing.
2. Remove the oven shelves and side racks (see ‘Care and cleaning’). OB60SL9 models
only - remove the catalytic panels also.
3. Pull the glass cover off (if you find this difficult, you can gently prise the cover off using
the handle of a spoon or similar in the notches between the glass panel and oven wall
while holding the cover to ensure it does not fall).
4. There are two halogen bulbs located in the recess. Pull out the faulty bulb.
5. Holding the replacement bulb in a soft cloth or tissue (touching the bulb will reduce its
life span) insert it into the socket.
6. Replace the glass cover pushing it firmly into place.
7. Replace the catalytic panels (OB60SL9 models only), side racks and oven shelves .
Removing and refitting the oven door
Take care, the oven door is heavy!
https://producthelp.fisherpaykel.com/nz/Cook/Built-In_Ovens/Single/OB60/OB60SL11DEPX1/User_Guide_OB60SL11DEPX1…
Updated: Thu, 07 Jul 2022 06:52:43 GMT
Powered by
8

To remove the door
1. Open the door fully. 2. Open the levers fully.
3. Hold the door. 4. Close the door until it connects with the top of both
levers
5. Disengage the hinges and remove the door.
To refit the door
Repeat the steps in reverse order:
1. Slide the hinges into the slots while lifting the door
slightly to engage the hinge.
https://producthelp.fisherpaykel.com/nz/Cook/Built-In_Ovens/Single/OB60/OB60SL11DEPX1/User_Guide_OB60SL11DEPX1…
Updated: Thu, 07 Jul 2022 06:52:43 GMT
Powered by
9

2. Open the door fully.
3. Close the levers fully. If the levers do not lie flat,
reposition the door by opening the levers fully
again and following steps 1-3.
Ensure the levers lie flat
against the hinge before
trying to shut the door.
https://producthelp.fisherpaykel.com/nz/Cook/Built-In_Ovens/Single/OB60/OB60SL11DEPX1/User_Guide_OB60SL11DEPX1…
Updated: Thu, 07 Jul 2022 06:52:43 GMT
Powered by
10

Removing the door glass panes for cleaning
•Make sure you follow the precautions and instructions below very carefully. Replacing
the glass panes and the door incorrectly may result in damage to the oven and may
void your warranty.
•Take care, the oven door is heavy (11 kg). If you have any doubts, do not attempt to
remove the door.
•Make sure the oven and all its parts have cooled down. Do not attempt to handle the
parts of a hot oven.
•Take extreme care when handling the glass panes. Avoid the corners and edges of the
glass bumping against any surface. This may result in the glass shattering.
•Don’t use oven cleaners or any other harsh/abrasive cleaners, cloths, scouring pads,
steel wool or sharp metal scrapers to clean the glass surfaces. These scratch the glass
and may damage its special coating, which in turn could result in the glass cracking or
shattering.
•If you notice any sign of damage on any of the glass panes (such as chipping or
cracks), do not use the oven. Call your Authorised Repairer or Customer Care.
•Make sure you replace all the glass panes correctly. Do not use the oven without all
glass panes correctly in place.
•If the glass panes feel difficult to remove or replace, do not force them. Call your
Authorised Repairer or Customer Care for help.
Service visits providing assistance with using or maintaining the oven are not covered by
your warranty.
We recommend removing the door to make cleaning the glass easier. See ‘Removing and refitting the oven door’ for
instructions. Once the door is removed, lay it down on a soft, clean, flat surface.
Make sure you follow the precautions and instructions below very carefully. Replacing the glass panes and the door
incorrectly may result in damage to the oven and may void your warranty.
https://producthelp.fisherpaykel.com/nz/Cook/Built-In_Ovens/Single/OB60/OB60SL11DEPX1/User_Guide_OB60SL11DEPX1…
Updated: Thu, 07 Jul 2022 06:52:43 GMT
Powered by
11

Remove the inner pane
1. Press in on both tabs to release the Glass
retainers.
2. Slide both Glass retainers away from the pane.
3. Lift the top of the pane slightly.
Only lift the pane slightly.
Angling the pane too much
may result in damage to
the glass.
4. Slide the pane toward the top of the door and lift out.
Remove the middle pane
https://producthelp.fisherpaykel.com/nz/Cook/Built-In_Ovens/Single/OB60/OB60SL11DEPX1/User_Guide_OB60SL11DEPX1…
Updated: Thu, 07 Jul 2022 06:52:43 GMT
Powered by
12

5. Brace the top of the door against your body. Grasp
both sides of the outer edges of the pane at the
bottom of the door.
6. Gently pull the pane toward the top of the door.
7. When the pane is clear of the clamp at the bottom
of the door, lift the pane slightly.
Do not twist or rotate the
pane as this may cause it to
break. Only lift the pane
slightly. Angling the pane
too far may cause it to
break.
8. Slide the pane out of the top clamp and lift out.
After cleaning, replace the door glass panes
When replacing the glass panes, make sure that:
• you replace all panes correctly, as shown. Each pane must be in the position described below in order to fit into the
door and to ensure that the overn operates safely and correctly
• you take extra care not to bump the edges of the glass against any object or surface
• you do not force any of the panes into place. If you are experiencing difficulties replacing the panes, remove them
and start the process again from the beginning. If this still does not help, call Customer Care.
1. Insert the pane into the lower notch on the top clamps at the top of the door.
2. Carefully pull the pane toward the top of the door.
3. Slot the pane into the lower notch on the bottom clamps at the bottom of the drawer.
https://producthelp.fisherpaykel.com/nz/Cook/Built-In_Ovens/Single/OB60/OB60SL11DEPX1/User_Guide_OB60SL11DEPX1…
Updated: Thu, 07 Jul 2022 06:52:43 GMT
Powered by
13

1. Ensure the pane is the right way up (ie the logo should be readable at the bottom of the door)
Insert the pane into the lower notch on the top clamps at the top of the door.
2. Carefully pull the pane toward the top of the door.
3. Slot the pane into the lower notch on the bottom clamps at the bottom of the drawer.
4. Ensure the pane is the right way up
(ie the logo should be readable at the bottom of the door)
Slide the pane into the upper notch 1on the bottom clamps at the bottom of the door.
5. Lower the pane onto the upper notch on the top clamps at the top of the door.
6. Slide the glass retainers back into position and ensure they have clipped securely in place.
Make sure the glass retainers are correctly and firmly in place and that the glass panes are
secure.
1. Ensure the pane is the right way up (ie the warning text should be readable at the bottom of the door).
Slide the pane into the upper notch 1on the bottom clamps at the bottom of the
https://producthelp.fisherpaykel.com/nz/Cook/Built-In_Ovens/Single/OB60/OB60SL11DEPX1/User_Guide_OB60SL11DEPX1…
Updated: Thu, 07 Jul 2022 06:52:43 GMT
Powered by
14

2. Lower the pane onto the upper notch on the top clamps at the top of the door.
3. Slide the glass retainers back into position and ensure they have clipped securely in place.
Make sure the glass retainers are correctly and firmly in place and that the glass panes are
secure.
https://producthelp.fisherpaykel.com/nz/Cook/Built-In_Ovens/Single/OB60/OB60SL11DEPX1/User_Guide_OB60SL11DEPX1…
Updated: Thu, 07 Jul 2022 06:52:43 GMT
Powered by
15
