Fisher & Paykel PROFESSIONAL OS76NPX1 User manual

USER GUIDE
NZ AU
STEAM OVEN
PROFESSIONAL
OS76NPX1 models

CONTENTS
Safety and warnings 5
Before you begin 9
Control panel 10
Accessories 11
First use 12
Using the oven light 16

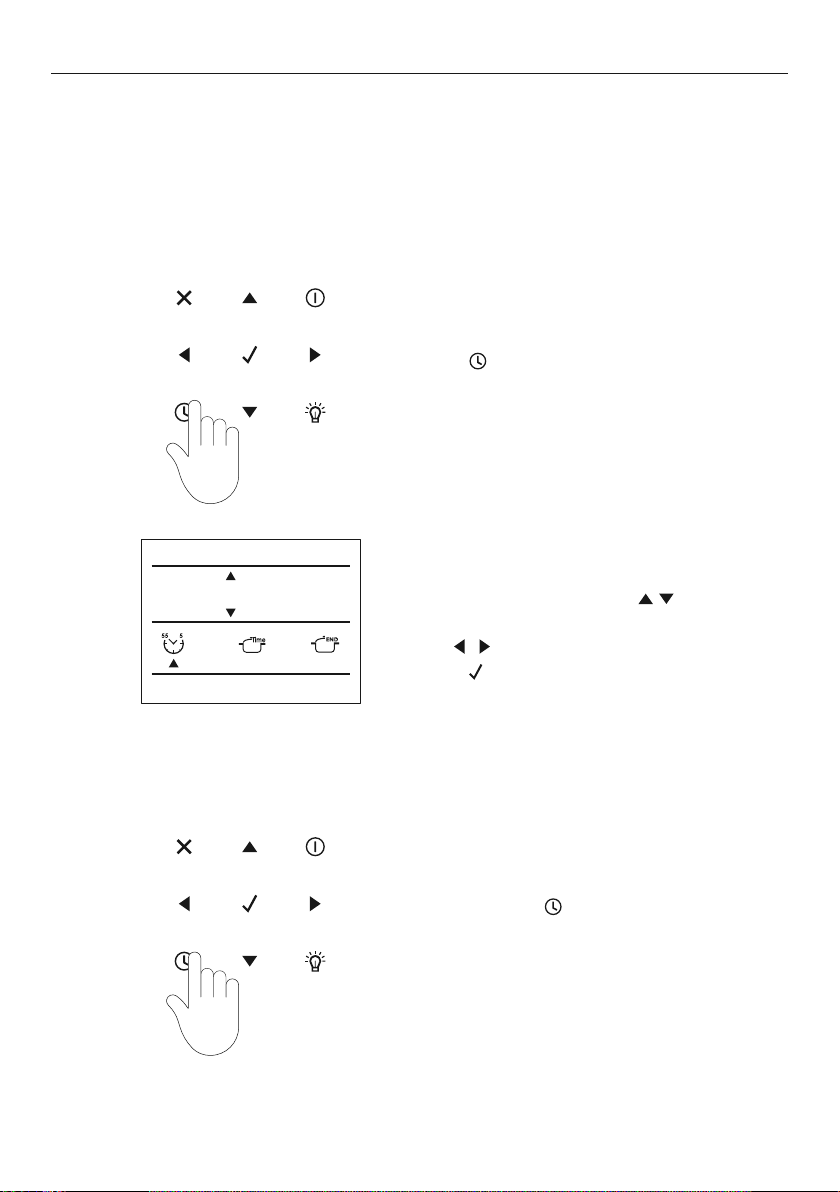

Using the timer 17
Automatic cooking 18
Cooking guide 20
Steam cooking 21
Using the food probe 24
Recipes 28
Event logs 32
Care and cleaning 33
Troubleshooting 36
Registration
To register your product visit our website: fisherpaykel.com/register
3

SAFETY AND WARNINGS
!WARNING!
Electrical Shock Hazard
Failure to follow this advice may result in
electrical shock or death.
• Before carrying out any work on the
electrical section of the appliance, it must be
disconnected from the mains electricity supply.
• Connection to a good ground wiring system is
absolutely essential and mandatory.
• Alterations to the domestic wiring system must
only be made by a qualified electrician.
• Turn the oven off at the wall before replacing
the oven lamp.
Operation
Your oven has been carefully designed to operate safely during normal cooking procedures.
Keep the following safety instructions in mind when you are using it:
!WARNING!
Fire Hazard
Failure to follow this advice may result in
overheating, burning, and injury.
• Do not place aluminium foil, dishes, trays, water
or ice on the oven floor during cooking, as doing
so will irreversibly damage the enamel; lining the
oven with aluminium foil may even cause fire.
• Do not use adapters, reducers, or branching
devices to connect this appliance to the mains
power supply.
• Never use your appliance for warming or
heating the room. Persons could be burned or
injured or a fire could start.
• Storage in or on appliance: flammable materials
should not be stored in an oven or near its surface.
5

SAFETY AND WARNINGS
!WARNING!
Cut Hazard
Failure to use caution could result in injury.
• Take care – some edges are sharp.
!WARNING!
Hot Surface Hazard
Failure to follow this advice could result in
burns and scalds.
• To avoid burns and scalds, keep children away
from this appliance.
• Surfaces of the appliance may become hot
enough to cause burns. Examples include the
oven vent, the surface near the oven vent, and
the oven door.
• Do not touch heating elements or interior
surfaces of the oven. Heating elements may be
hot, even when they are dark in colour.
• Use protection when handling hot surfaces,
such as oven shelves or dishes, or when using
steam functions.
• Be careful when opening the oven door as hot
air and steam can be emitted, especially when
using steam functions. Allow hot air and steam
to dissipate before removing or replacing food.
• During and after use, do not touch or let
clothing or other flammable materials contact
heating elements or interior surfaces of the oven
until they have had sufficient time to cool.
6

SAFETY AND WARNINGS
READ AND SAVE THIS GUIDE
WARNING!
To reduce the risk of fire, electrical shock, injury to persons or damage when using the
oven, follow the important safety instructions listed below. Read all the instructions
before using the oven. Use the oven only for its intended purpose as described in
these instructions.
Installation
• Ensure your appliance is properly installed and earthed by a qualified technician.
• Ensure this oven is connected to a circuit which incorporates an isolating switch
providing full disconnection from the power supply.
• Do not install or operate the appliance if it is damaged or not working properly. If you
receive a damaged product, contact your dealer or installer immediately.
Servicing
• Do not repair or replace any part of the appliance unless specifically recommended in
the user guide. All other servicing should be undertaken be a Fisher & Paykel trained
and supported service technician or qualified person.
Fire Hazard
• Do not use water on grease fires. Smother the fire or flame or use a dry chemical or
foam type extinguisher.
• Use only dry oven mitts or potholders. Moist or damp potholders on hot surfaces could
result in burns from steam. Do not let potholders touch hot areas or heating elements.
Do not use a towel or a bulky cloth for a potholder. It could catch fire.
• Do not heat unopened food containers. They can build up pressure that may cause the
container to burst and result in injury.
Food Safety
• Leave food in the oven for as short a time as possible before and after cooking. This is
to avoid contamination by organisms which may cause food poisoning. Take particular
care during warm weather.
General Use
• This product has been designed for use in a domestic (residential) environment. This
product is not designed for any commercial use. Any commercial use by the customer
will affect this product’s manufacturer’s warranty.
• Household appliances are not intended to be played with by children.
• Children should not be left alone or unattended in the area where the appliance is in
use. They should never be allowed to sit or stand on any part of the appliance.
• Children of less than 8 years old must be kept away from the appliance unless
continuously supervised.
• Cleaning and user maintenance shall not be carried out by children without supervision.
• Do not store things children might want above the oven. Children could be burned or
injured while climbing on the oven to retrieve items.
• Do not place heavy objects on the oven door.
• Always keep oven vents unobstructed. Do not wear loose fitting or hanging garments
when using the appliance. They could ignite or melt if they touch an element or hot
surface and you could be burned.
7

SAFETY AND WARNINGS
• Do not change or modify the wireless communication device in any way. Changes or
modifications not expressly approved by Fisher & Paykel could void the user’s authority
to operate the equipment.
• Caution: Hot air can blow from the vent at the top of the oven as part of the oven’s
cooling system.
• Always position shelves in the desired location while the oven is cool (before
preheating). If a shelf must be removed while the oven is hot, do not let the oven mitts
or potholder contact hot heating elements in the oven or the base of the oven.
• Use only bakeware approved for oven. Follow the bakeware manufacturer’s guidance.
• Always place oven racks in desired location while oven is cool. If rack must be moved
while oven is hot, do not let potholder contact hot heating element.
• Do not touch heating elements or interior surfaces of your oven. Heating elements and
interior surfaces may be hot even though they are dark in color and could cause burns.
The oven door, vent openings and surfaces near these openings may also become hot.
• This appliance is configurable to allow remote operation at any time. Do not store
flammable materials or temperature sensitive items inside, on top or near the appliance.
• Neither the food probe or aluminium foil must come in contact with the oven elements.
• Only use the temperature probe recommended for this oven.
• The appliance must not be installed behind a decorative door in order to avoid
overheating.
• WARNING: Accessible parts may become hot during use. Young children should be
kept away.
Cleaning
• Do not clean the oven seal or use any oven-cleaning products on it. It is essential for a
good seal, which ensures that the oven operates efficiently. Care should be taken not to
rub, damage,move or remove the oven seal.
• Do not use oven cleaners, harsh/abrasive cleaning agents, waxes, or polishes. No
commercial oven cleaner, oven liner, or protective coating of any kind should be used in
or around any part of the oven.
• Do not use harsh/abrasive cleaners, scourers or sharp metal scrapers to clean the oven
door glass since they scratch the surface, which may result in the glass shattering.
• Clean only the parts listed in this manual.
• Do not use a steam cleaner to clean any part of the oven.
• The door gasket is essential for a good seal. Care should be taken not to rub, damage
or move the gasket.
8

• Make sure the installer has completed the ‘Final checklist’ in the Installation Guide.
• Read this guide, taking special note of the ‘Safety and warnings’ section.
• Remove all internal and external packaging and dispose of it responsibly.
Recycle items that you can.
• The oven should be thoroughly cleaned with soap and water and carefully rinsed.
• It is important that you condition the oven before using it for cooking and baking.
Conditioning will burn off any manufacturing residue and ensure you get the best results
from the start. There will be a distinctive smell and a small amount of smoke during
conditioning. This is normal, but make sure the kitchen is well ventilated.
• Heat the oven for 30 minutes at the maximum temperature. Use the Fan Heat function
without accessories in the oven.
• Before using the accessories for the first time, clean them carefully with hot water,
dishwashing liquid and a soft cloth.
BEFORE YOU BEGIN
2
1
4
4
Not illustrated: oven door, handle, oven light and oven seal
Oven features and accessories
1 Control panel
2 Oven vent louvres
3 Water tank
4 Wire shelf and baking pan
5 Perforated tray with lid
6 Food probe
5
6
3
9

CONTROL PANEL
Control panel features
1 Display
2 Keypad
3 Cancel
4 Navigation arrow
5 Power
6 Confirm
7 Timer/Automatic cooking
8 Cavity light

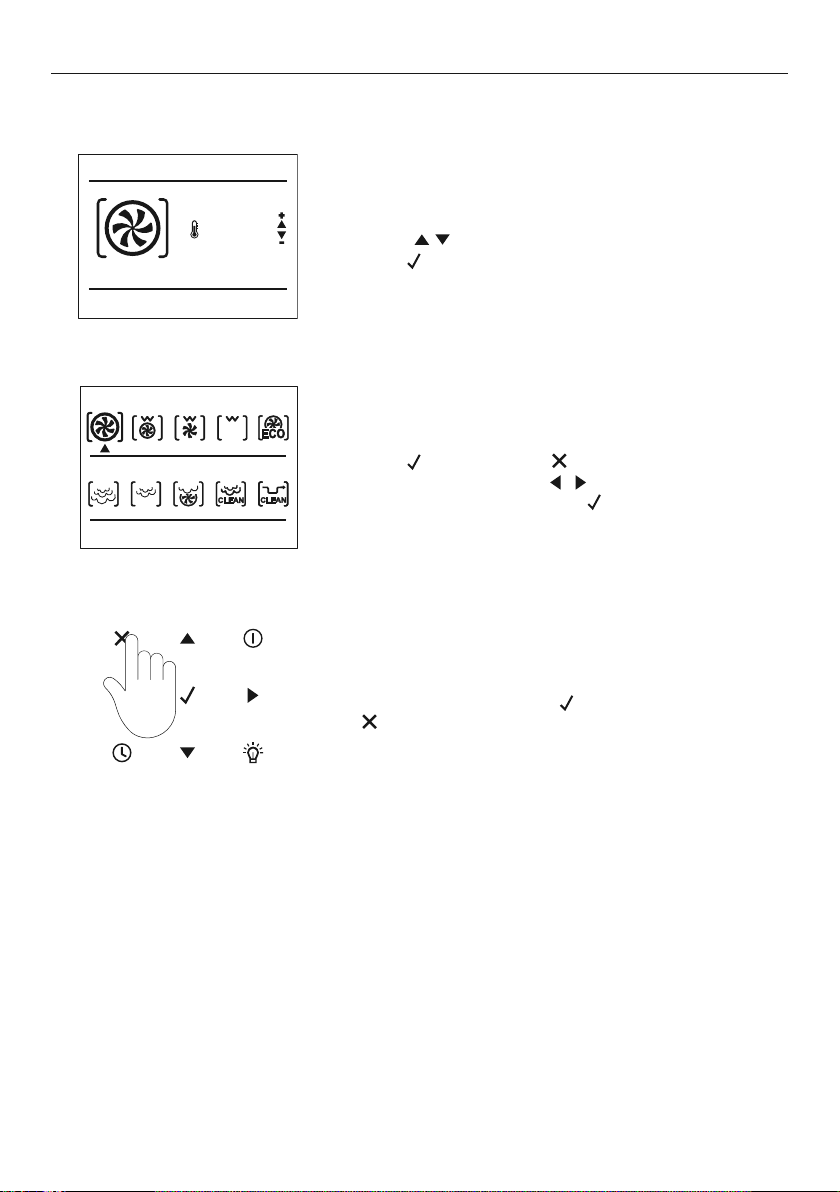

Using the touch controls
Your oven is operated using a touch
keypad and display. To use the keypad to
navigate between functions and settings,
use the ball of your finger, not its tip. The
controls respond to touch, so pressure is
not needed.
10:45
COOK BY
FUNCTION
COOK BY
FOOD TYPE
COOK BY
RECIPE
11:00 am
COOKING
1 2
3
4
7
4
6
4
5
4
8
10

5 Power
6 Confirm
7 Timer/Automatic cooking
8 Cavity light
ACCESSORIES
Wire shelf and baking pan
To remove, pull towards you and then lift.
To insert, slide the shelf at a 45° angle until
it locks. Then lower and push the shelf all
the way to the end of the broil track.
The baking pan can be positioned below
the wire to use as a drip tray.
To remove the shelf when the baking pan is
fitted, lift it slightly and slide it towards you.
Perforated tray with lid
Use for steam cooking.
Place the tray in its support and position it
on the wire shelf.
We recommend using it in combination
with the baking pan to catch any drips
during cooking.
Food probe
Use the food probe to accurately judge
when food is prefectly cooked.
See ‘Using the food probe’ for full
instructions on how to use.
11

FIRST USE
When using your oven for the first time, you will be prompted to:
• set the clock format (12 hours or 24 hours)
• set the time
• set the date
• select the language of the display
• select units for temperature and weight
These settings can be modified at any time in the settings menu.

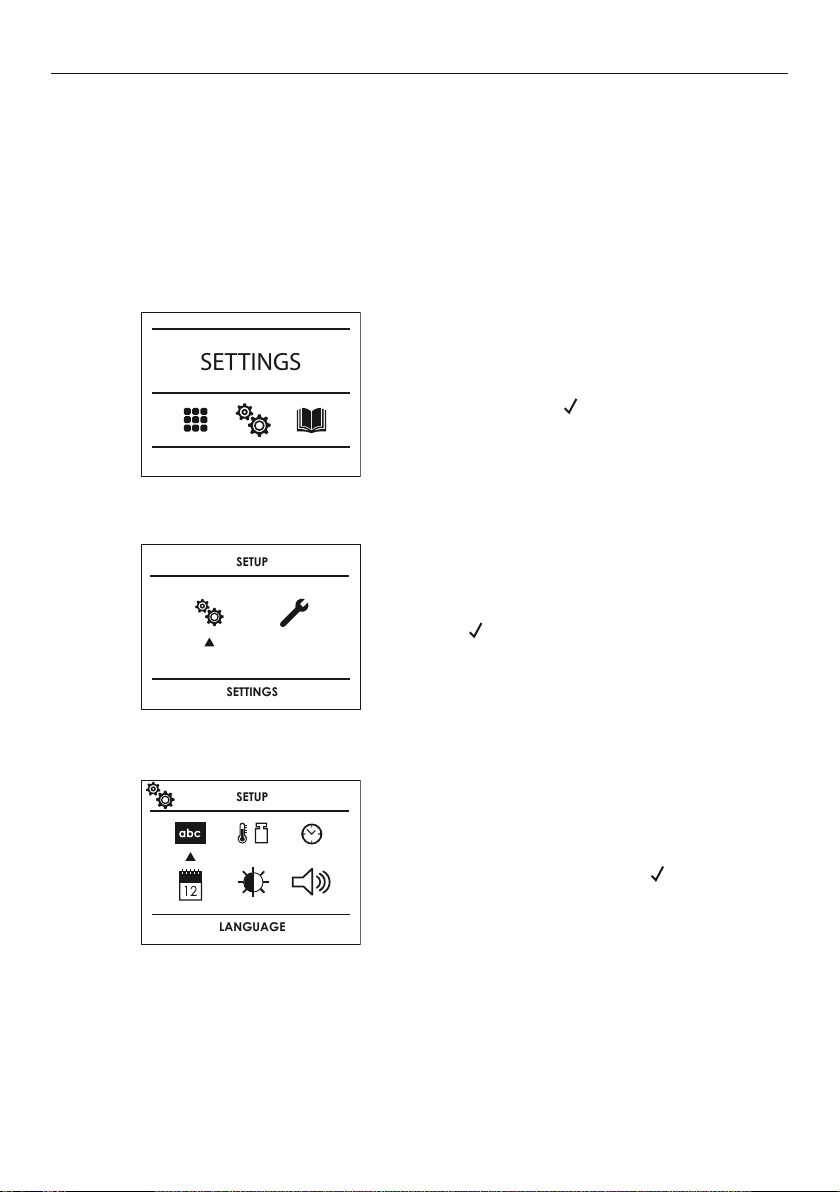

Locate the SETTINGS menu using the
arrow keys. Press
PM
FRIDAY 20/11/2018
04:26
to confirm.
1
11:00 am
SETTINGS
Press
PM
FRIDAY 20/11/2018
04:26
to enter the sub-menu.
2
SETUP
SETTINGS
Select the setting you want to change,
adjust as needed then press
PM
FRIDAY 20/11/2018
04:26
to confirm.
3
SETUP
LANGUAGE
12

After conditioning
There will be a distinctive smell and a small amount of smoke during the conditioning
process as manufacturing residue is burnt off. This is normal. Once cooled, wipe out the
oven with a damp cloth and mild detergent, and dry thoroughly.
FIRST USE
Conditioning the oven
It is important that you condition the oven before using it for cooking. Conditioning will
burn off any manufacturing residue and ensure you get the best results from the start.
Ensure the kitchen is well ventilated before beginning.

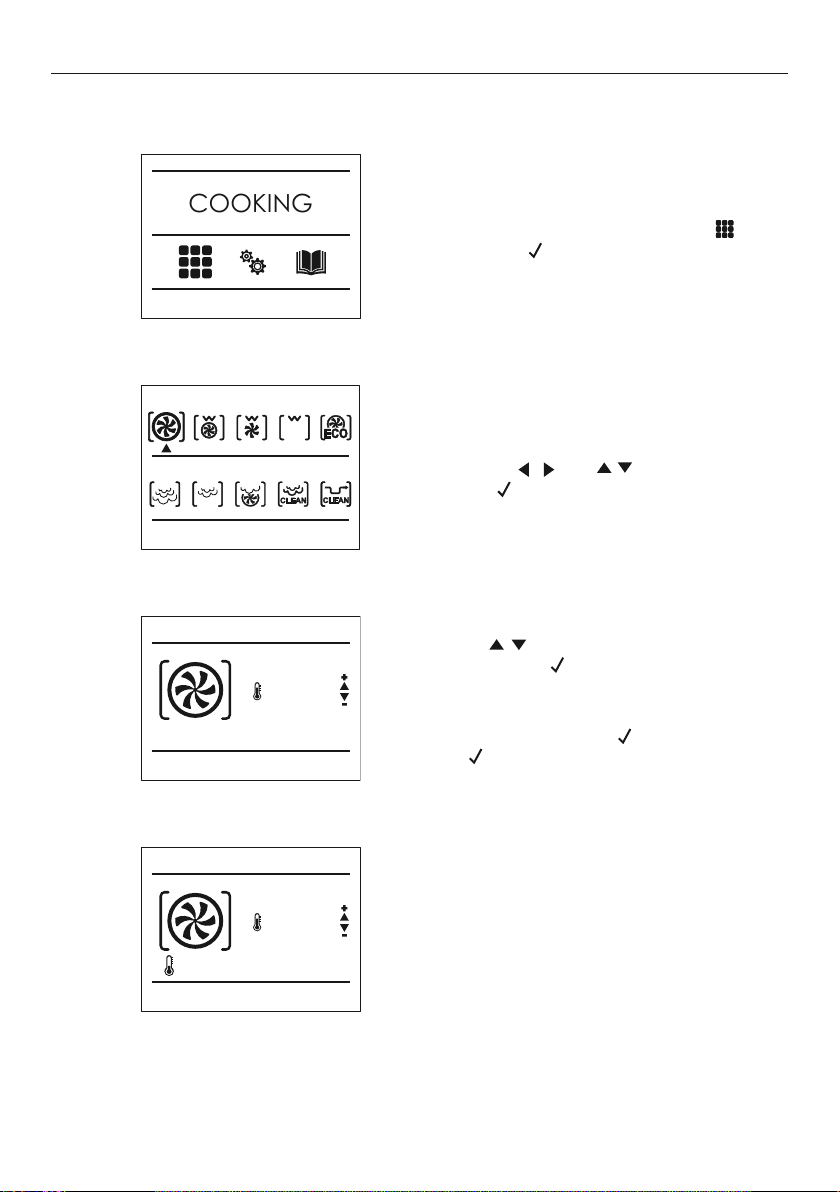

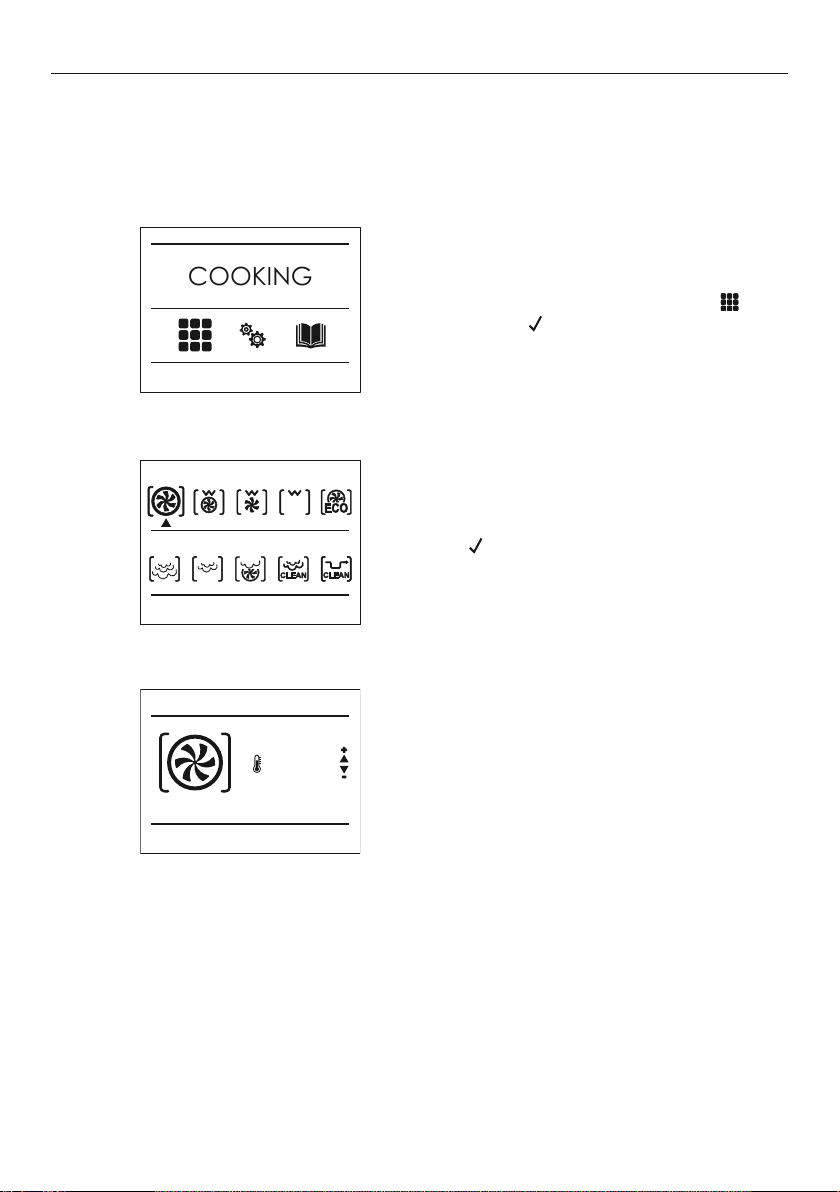

Enter the COOKING menu by locating
and pressing
PM
FRIDAY 11/20/2015
04:26
to select.
1
11:00 am
COOKING
Press
PM
FRIDAY 11/20/2015
04:26
to select FAN HEAT.
Set the temperature to 230°C for 30 minutes.
2
3
TRADITIONAL COOKING
STEAM COOKING
11:00 am
130
FAN HEAT
230°C
11:00 am
13

FIRST USE
Selecting and using a function
Enter the function menu by locating
and pressing
PM
FRIDAY 20/11/2018
04:26
to select.
1
11:00 am
COOKING
Select the appropriate cooking mode
by pressing
PM
FRIDAY 11/20/2015
04:26
PM
FRIDAY 11/20/2015
04:26
and
PM
FRIDAY 11/20/2015
04:26
PM
FRIDAY 11/20/2015
04:26
confirm by
pressing
PM
FRIDAY 11/20/2015
04:26
.
2
Use the
PM
FRIDAY 20/11/2018
04:26
PM
FRIDAY 20/11/2018
04:26
to adjust the temperature
before pressing
PM
FRIDAY 20/11/2018
04:26
to begin cooking.
If no temperature is selected after 10 seconds,
the default temperature will be used.
To pause cooking, press
PM
FRIDAY 20/11/2018
04:26
at any point.
Press
PM
FRIDAY 20/11/2018
04:26
to resume.
3
FAN HEAT
160°C
11:00 am
TRADITIONAL COOKING
STEAM COOKING
11:00 am
130
When preheating, the current temperature
will be shown in the display alongside the
preheat icon. When the set temperature
is reached a tone will sound and the
temperature value disappears from
the display.
4
FAN HEAT
160°C
11:00 am
135°C
14

FIRST USE
Editing or cancelling cooking
Changing the temperature
Press
PM
FRIDAY 20/11/2018
04:26
PM
FRIDAY 20/11/2018
04:26
to adjust the temperature then
press
PM
FRIDAY 20/11/2018
04:26
to confirm.
Cancelling cooking
To cancel cooking, press
PM
FRIDAY 20/11/2018
04:26
to pause, then
PM
FRIDAY 20/11/2018
04:26
to exit at any time.
Changing the function
Press
PM
FRIDAY 20/11/2018
04:26
to pause, then
PM
FRIDAY 20/11/2018
04:26
to return to
the function menu. Use
PM
FRIDAY 20/11/2018
04:26
PM
FRIDAY 20/11/2018
04:26
to navigate
to a new function and press
PM
FRIDAY 20/11/2018
04:26
to confirm.
11:00 am
COOKING
TRADITIONAL COOKING
STEAM COOKING
11:00 am
130
FAN HEAT
160°C
11:00 am
15

The oven lights will turn on automatically when the door is opened or a cooking mode has
started. During cooking, the lights will automatically dim after 3 minutes.
USING THE OVEN LIGHT
Turning the oven light ON or OFF
1
11:00 am
COOKING
Press
PM
FRIDAY 20/11/2018
04:26
at any time, or open the door.
16

USING THE TIMER
Editing or cancelling the timer
Press
PM
FRIDAY 20/11/2018
04:26
to enter the timer menu.
Ensure MINUTE MINDER is selected.
Set the desired time using
PM
FRIDAY 20/11/2018
04:26
PM
FRIDAY 20/11/2018
04:26
.
To switch between hours and minutes
use
PM
FRIDAY 20/11/2018
04:26
PM
FRIDAY 20/11/2018
04:26
.
Press
PM
FRIDAY 20/11/2018
04:26
to confirm.
Press and hold
PM
FRIDAY 20/11/2018
04:26
.
1
1
2
The timer does not turn the appliance on or off. If you want to turn the oven off
automatically, refer to the ‘Automatic cooking’ section.
The timer can be set for up to 12 hours and 59 minutes and is shown in the status bar
as HR:MIN, before switching to MIN:SEC for the last minute.
When the time is complete, 00:00 will show in the status bar and a tone will sound.
11:00 am
MINUTE MINDER
00 : 00
11:00 am
COOKING
11:00 am
COOKING
17

AUTOMATIC COOKING
To use automatic cooking modes ensure the clock is displaying the correct time. Refer to
‘First use’ for setting the time. Use the automatic cooking function to set the oven to turn
off after a set length of time.
Setting automatic cooking
Select the cooking mode and temperature
you wish to use and press
PM
FRIDAY 20/11/2018
04:26
, then select
by pressing
PM
FRIDAY 20/11/2018
04:26
.
Set the desired cook time by using
PM
FRIDAY 20/11/2018
04:26
PM
FRIDAY 20/11/2018
04:26
.
Press
PM
FRIDAY 20/11/2018
04:26
to confirm.
The maximum cooking time is 12 hours.
1
2
3
4
11:00 am
STOP TIME
11 : 50
FAN HEAT
135°C
11:00 am
END
TIME
11:50 am
00:50
160°C
a
B
C
D
E
Select and set the desired stop time by
using
PM
FRIDAY 20/11/2018
04:26
PM
FRIDAY 20/11/2018
04:26
. Press
PM
FRIDAY 20/11/2018
04:26
to confirm.
During cooking, the following will
be displayed:
A function
B current
temperature
C target temperature
D end time
E time elapsed
When the end time is reached
The oven will automatically turn off and
a tone will sound.
FAN HEAT
160°C
11:00 am
11:00 am
00 : 50
COOK TIME
18

AUTOMATIC COOKING
Editing or cancelling automatic cooking
Changing the cook time
Press
PM
FRIDAY 20/11/2018
04:26
and change the desired cook time
using
PM
FRIDAY 20/11/2018
04:26
PM
FRIDAY 20/11/2018
04:26
. Press
PM
FRIDAY 20/11/2018
04:26
to confirm.
Changing the end time
Press
PM
FRIDAY 20/11/2018
04:26
, then select and change
the desired cook time using
PM
FRIDAY 20/11/2018
04:26
PM
FRIDAY 20/11/2018
04:26
.
Press
PM
FRIDAY 20/11/2018
04:26
to confirm.
11:00 am
STOP TIME
11 : 50
11:00 am
00 : 50
COOK TIME
19

COOKING GUIDE
All oven functions default to the recommended temperature, these can be altered at
any time.
CONVECTION FUNCTIONS
DEFAULT TEMPERATURE TEMPERATURE RANGE
°C °C
FAN HEAT 165 50 – 230
FAN HEAT + GRILL 210 50 – 230
TURBO GRILL + BASE HEAT 165 50 – 230
ECO GRILL 230 50 – 230
ECO BAKING 165 50 – 230
STEAM FUNCTIONS
DEFAULT TEMPERATURE TEMPERATURE RANGE
°C °C
STEAM 100 100 40 – 100
130 STEAM 130 130 70 – 130
STEAM + FAN HEAT 165 50 – 230
CLEAN FUNCTIONS
DEFAULT TEMPERATURE TEMPERATURE RANGE
°C °C
CLEAN STEAM OVEN 100 -
CLEAN STEAM CIRCUIT - -
20
