Fisher & Paykel WOSV230 User manual

all Oven
OSV230, ODV230 models
S CA
ERVICE MANUAL

1
US CA
Fisher & Paykel Appliances Inc.
695 Town Center Drive
Suite 180
Costa Mesa
CA 92626
toll free: 1.888.9.FNP.USA (1.888.936.7872)
fax: [phone]
email: [e-mail]
FEAT RED PROD CT & CONTACT ADDRESSES
BRAND MODEL DESCRIPTION CA MARKET
DCS by Fisher &
Paykel
OSV230 11 oven function, single cavity,
pyrolytic self clean, brushed
stainless steel
71165 US, CA
DCS by Fisher &
Paykel
ODV230 11 oven function, double cavity,
pyrolytic self clean, brushed
stainless steel
71164 US, CA
WOSV230
WODV230

2
CONTENTS
1 HEALTH AND SAFETY 5
2 SPECIFICATIONS 6
2.1 Oven eights & Cavity Dimensions 6
2.2 Electrical Specifications 6
2.3 Product and Cabinetry Dimensions 6
3 MODEL/SERIAL NUMBER LOCATION & IDENTIFICATION 10
3.1 Data Label and Location 10
4 TECHNICAL OVERVIE 12
4.1 Oven Cavity Fan 12
4.2 Cooling Fan 12
4.3 Active Vent Fan 13
4.4 Outer Broil Element 13
4.5 Inner Broil Element 13
4.6 Bake Element 13
4.7 Fan Element 14
4.8 Temperature Sensor 14
4.9 Halogen Bulbs 15
4.10 Door Lock Motor 15
4.11 Display Module 15
4.12 Function and Temperature Encoders 16
4.13 User Interface Harnesses 16
4.14 Power Board 16
4.15 Power Transformer 17
4.16 Thermal Limiters 17
4.17 Meat Probe and Socket 18
4.18 Cooling Fan Resistor 19
4.19 Isolation Relay 19
4.20 Micro Switches 19
4.21 Door Handle 19

3
CONTENTS
4.22 Pyrolytic Self Clean 20
4.23 Oven Mode Elements and Fan Profiles 21
5 OPERATION 22
5.1 Control Panels 22
5.2 Clock 22
5.3 Setting the Clock 23
5.4 To Change the Time 24
5.5 Oven Functions 25
5.6 User Preference Settings 30
5.7 Sabbath Mode 32
6 DIAGNOSTICS 34
6.1 Entering the Technician Mode 34
6.2 Technician Mode Navigation 34
7 FAULT DIAGNOSTICS 37
7.1 User Alert Codes 38
7.2 Failure Alerts 39
7.3 Symptom: Oven under cooking 41
7.4 Symptom: Baking burns on the top 42
7.5 Symptom: Baking burns on the bottom 42
7.6 Symptom: Oven seems to be operating normally but no heat 43
7.7 Symptom: Oven heats slowly or fails to reach preset temp 43
7.8 Symptom: Oven works but no display 43
7.9 Tracing cooling fan faults 44
7.10 Tracing cavity fan faults 44
7.11 Tracing light faults 44
7.12 Tracing element faults 45
7.13 Tracing oven temperature faults 45
7.14 Tracing limiter faults 46
7.15 Tracing door switch & lock faults 48

4
CONTENTS
8 SERVICING THE COMPONENTS 49
8.1 Removal from the Joinery 49
8.2 Removal of the Door 49
8.3 Disassembly of the Door 49
8.4 Removal of the Control Panel 51
8.5 Disassembly of the Control Panel 52
8.6 Removal of the Power Board 54
8.7 Removal of the Power Transformer 55
8.8 Removal of a Thermal Limiter 55
8.9 Removal of the Fan Shroud 56
8.10 Removal of the Temperature Sensor 56
8.11 Removal of the Fan Element 57
8.12 Removal of the Oven Lamp Cover & Bulb 57
8.13 Removing the Lamp Assembly 58
8.14 Removal of the Broil Element 59
8.15 Removal of the Bake Element 59
8.16 Removal of the Cooling Fan 60
8.17 Removal of the Vent Fan 60
8.18 Removal of the Oven Cavity Fan 61
8.19 Removal of the Meat Probe 61
8.20 Removal of the Door Lock Assembly 62
9 SCHEMATIC DIAGRAM 63
10 IRING DIAGRAM - DOUBLE 65
11 IRING DIAGRAM - SINGLE 70
12 ARRANTY 73
13 NOTES 75

5
1 HEALTH & SAFETY
IMPORTANT !
PLEASE RETAIN THIS MAN AL FOR F T RE REFERENCE.
Note: hen servicing the wall oven, Health and Safety issues must be considered at all times. Specific
safety issues are listed below with their appropriate icon. These are illustrated throughout the service
information to remind service people of the Health and Safety issues.
1.1.1 Electrical Safety
Ensure the mains power has been disconnected before servicing the wall oven. If the mains
supply is required to be on to service the wall oven, make sure it is turned off when
removing any electrical component or connection to avoid electric shock.
1.1.2 Electrostatic Discharge
An anti-static strap is to be used as electrical static discharge (ESD) protection when
servicing electronic components.
1.1.3 Good Working Practices
Ensure the work area is in a tidy and orderly condition at all times so as not to cause a
hazard while service work is being completed. Always clean and tidy the wall oven and
work area after service is completed.
1.1.3 Insulation Test
Megger test to check insulation.
arning: Short together the phase and neutral pins on the plug so as not to damage any
electronic circuitry.
1.1.4 Sheet Metal Edges
hen working around cut sheet metal edges use appropriate gloves or protection to
eliminate the chance of receiving a laceration.
1.1.5 Diagnostics
hile in diagnostics some safety devices are bypassed. Ensure you do not run
components unattended.
1.2 Specialised Tools
For servicing this product, specialised tools are required.
1.2.1 Static Strap
To be used as ESD (electrostatic discharge) protection when replacing or handling electronic
components.
D

6
2 SPECIFICATIONS
2.1 Oven Weights
OSV230 weight: 190 lb (86kg)
ODV230 weight: 340 lb (154kg)
2.2 Electrical Specifications
MODEL VOLTAGE AMP MAX POWER
OSV230 240V 19.4 4.6 k
OSV230 208V 16.6 3.5 k
ODV230 240V 38.3 9.2 k
ODV230 208V 33.2 7.0 k
2.3 Product and Cabinetry Dimensions
H
B
C
A
PLAN
F ONT
D
G
F
E
P OFILE

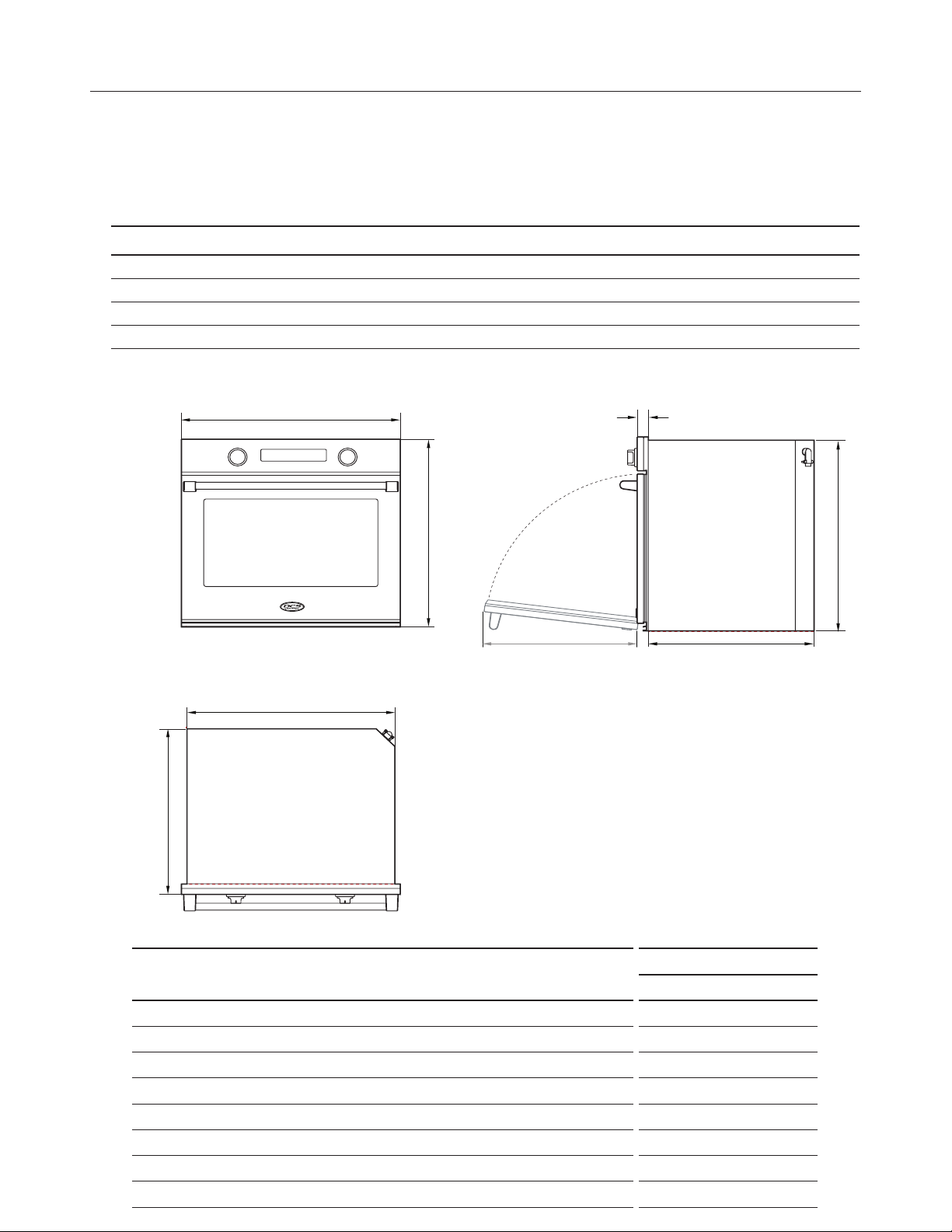

PRODUCT DIMENSIONS
WOSV230
INCHES (MM)
Overall height of product 27 1/8” (689)
BOverall width of product 29 3/4” (757)
COverall depth of product (
excludes handle and dials) 23 15/16” (608)
DDepth of oven front and control panel (
excludes handle and dials) 1 9/16” (39)
EDepth of chassis
(does not include oven front) 22 3/8” (569)
FHeight of chassis 26 9/16” (675)
GDepth of door
(open) (measured from front of door) 20 7/8” (530)
HOverall width of chassis 28 5/16” (720)

7
2 SPECIFICATIONS
J
E ectrica supp y
(16-20 mm)
5/8 - 13/16"
1-9/16"
1-9/16"
1/16"
(2 mm)
min.
min.
(39 mm)
(16-20 mm)
5/8 - 13/16"
1/16"
(2 mm)
(39 mm)
PLAN
WOSV230
INCHES (MM)
28 1/2” (724)
30” (762)
26 13/16” (681)
27 3/8” (693)
22 5/8” (575)
24 1/8” (613)
Note: If installing a cooktop above the oven, ensure adequate clearance is provided for the cooktop as
IMPO TANT!
FLUSH INSTALLATION
The depth of the control panel (D)
is larger than conventional ovens.
Ensure you have created a
1 1/2” (39 mm) recess in cabinetry.
If flush installing, you need to
replace the lower trim with the
supplied long trim at the base
of the oven. Refer to Step 11 for
instructions.
IMPO TANT!
Make sure the cavity is completely
sealed with no gaps.
This is to ensure the oven cooling
system functions correctly.
P OUD INSTALL
FLUSH INSTALL
B
A A
P OFILE
CABINETRY DIMENSIONS
WOSV230
INCHES (MM)
IMinimum inside width of cavity 28 1/2” (724)
JOverall width of cabinetry 30” (762)
KMinimum inside height of cavity 26 13/16” (681)
LOverall height of cabinetry 27 3/8” (693)
MMinimum inside depth of cavity
Proud install
Flush install
22 5/8” (575)
24 1/8” (613)
Note: If installing a cooktop above the oven, ensure adequate clearance is provided for the cooktop as
per the cooktop manufacturer’s instructions.
M
KL

8
2 SPECIFICATIONS

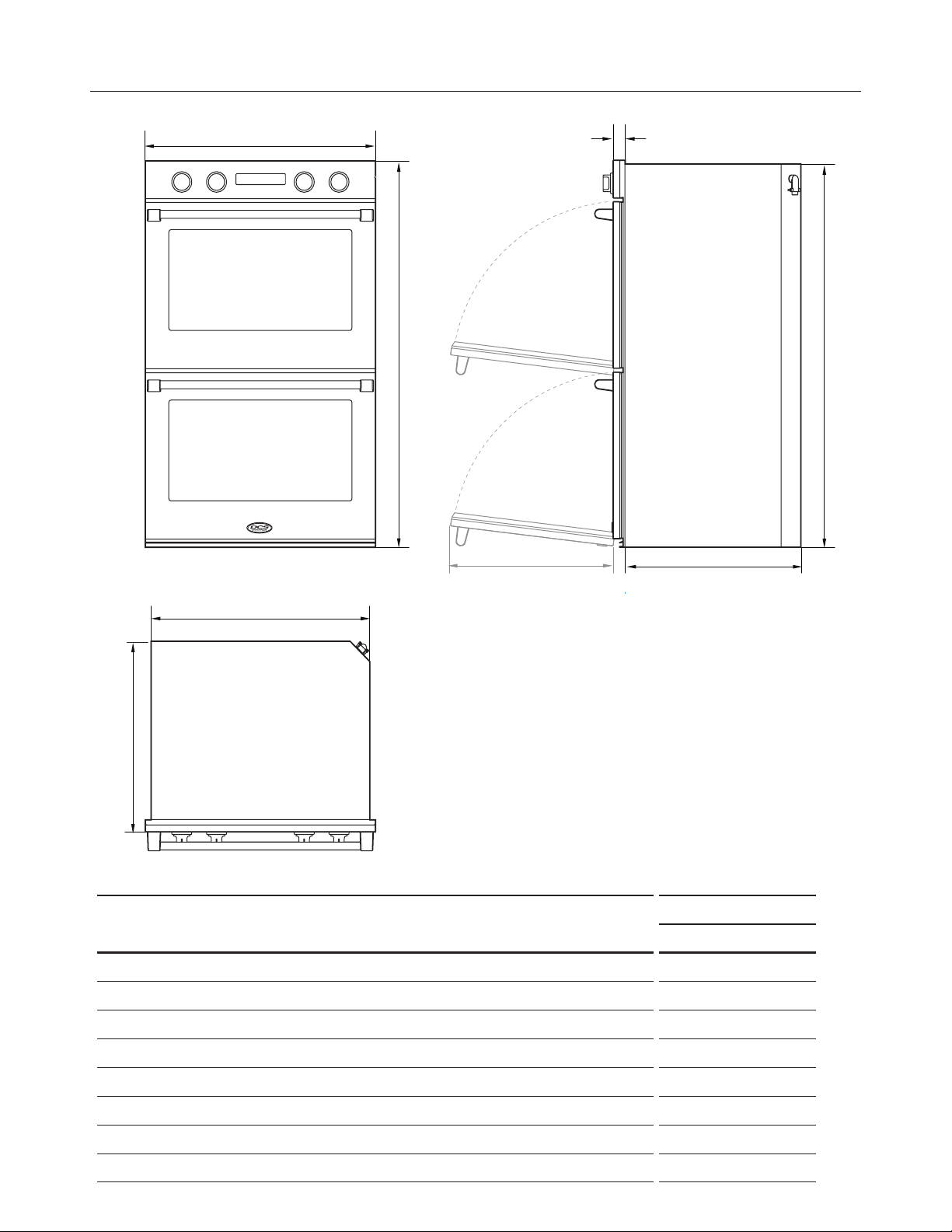

PRODUCT DIMENSIONS
WODV203
INCHES (MM)
O erall height of product 48 1/2” (1232)
BO erall width of product 29 3/4” (757)
CO erall depth of product (excludes handle and dials) 23 15/16” (608)
DDepth of o en front and control panel (excludes handle and dials) 1 9/16” (39)
EDepth of chassis (does not include o en front) 22 3/8” (569)
FHeight of chassis 47 15/16” (1218)
GDepth of door (open) (measured from front of door) 20 7/8” (530)
HO erall width of chassis 28 5/16” (720)
H
B
A
C
FRONT
PLAN
D
E
F
G
P OFILE

9
2 SPECIFICATIONS
CABINETRY DIMENSIONS
WODV203
INCHES (MM)
M n mum ns de w dth of cav ty 28 1/2” (724)
J
Overall w dth of cab netry 30” (762)
K
M n mum ns de he ght of cav ty 48 3/16” (1224)
L
Overall he ght of cab netry 48 11/16” (1236)
M
M n mum ns de depth of cav ty
Proud nstall
Flush nstall
22 5/8” (575)
24 1/8” (613)
L
M
P OFILE
(16-20 mm)
5/8 - 13/16"
1-9/16"
1-9/16"
1/16"
(2 mm)
min.
min.
(39 mm)
(16-20 mm)
5/8 - 13/16"
1/16"
(2 mm)
(39 mm)
IMPO TANT!
FLUSH INSTALLATION
The depth of the control panel (D) is larger
than conventional ovens. Ensure you have
created a
1 1/2” (39 mm) recess in cabinetry.
If flush installing, you need to replace the
lower trim with the supplied long trim at
the base of the oven. Refer to Step 11 for
instructions.
IMPO TANT!
Make sure the cavity is completely
sealed with no gaps.
This is to ensure the oven cooling
system functions correctly.
FL SH INSTALL
PRO D INSTALL
J
E ectrica supp y
PLAN

10
3 MODEL / SERIAL N MBER LOCATION & IDENTIFICATION
The product data label is located on the left hand side behind the grill, between the control panel and
the oven door (top oven on double models).
The data label contains information specific to that model, like product code number, model number,
and serial number.
The product code is a dedicated number used to identify the model variants, e.g. color, markets,
features.
E.g. 71164-A = a DCS-branded double stainless steel model built for the North American market.
The letter shown after the product code signifies the service version of the product. The service
version changes when new parts are introduced to the model which are not backwards compatible.
hen ordering parts, it is very important to use the correct product code and service version. Each
product code / service version variation has a dedicated parts manual. For example, 71164-A will
comprise different parts to 71164-B.

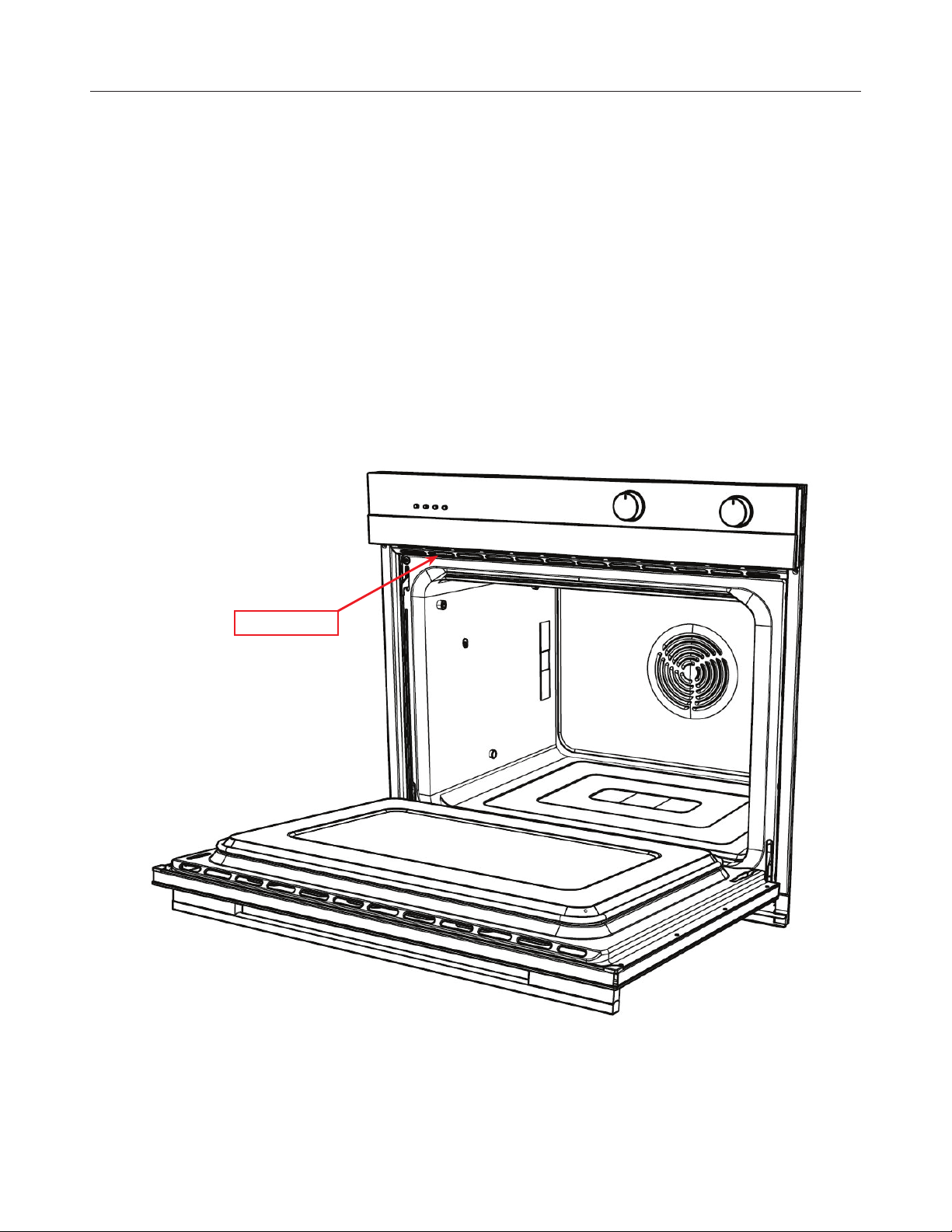

3.1 Data Label and Location
Data label

11
The serial number consists of three letters and six digits and contains the information shown in the
following example:
B H T 123456
Cumberland code
Letter C U M B E R L A N D
Year 1 2 3 4 5 6 7 8 9 0
Fisherpaykul code
Letter F I S H E R P A Y K U L
Month 1 2 3 4 5 6 7 8 9 10 11 12
Manufacturing Plant Codes
Between January 1st 2011 and December 2020
Code Factory Country
Refrigeration B New Zealand
Laundry S USA
Manufacturing T Thailand
Manufacturing P Mexico
In the example above, the appliance was manufactured in the fourth month (April) 2014 in the
Thailand factory
Sequential serial number
Manufacturing plant code
FISHERPAYKUL code indicating month of manufacture
CUMBERLAND code indicating year of manufacture
The model number on the data label shows the following information relating to that product:
E.g. ODV230
Type O = all Oven
Cavity D = Double cavity
S = Single cavity
Family V2 = EVO2
idth 30 = inch

12
4 TECHNICAL OVERVIEW
The oven cavity fan will turn on eight seconds after the mode is selected.
The fan should always operate when the fan element is on.
Operational Modes: True Conv
Conv Bake
Conv Broil
Roast (first 20 minutes only)
Bake (pre-heat assistance only)
Conv Pastry
Pastry Bake (pre-heat assistance only)
Voltage: 240 VAC
attage: 35 watts
Frequency: 60 HZ
4.2 Cooling Fan
4.1 Oven Cavity Fan
The cooling fan will turn on as soon as the oven mode dial is moved from the ‘OFF ‘ position. It will
turn off after eight seconds if a temperature isn’t selected.
The cooling fan will only turn off if the oven cavity has cooled below 302°F (150°C) after use. If the
oven cavity temperature is above 554°F (290°C), the cooling fan will run at high speed.
During the Self-Clean Cycle, the cooling fan in the cavity being cleaned will run at high speed. The
other cavity will run on low speed (in a double oven).
Voltage: 220/240 vac
attage: 60 watt
Frequency: 50/60 HZ
OVEN MODE COOLING FAN SPEED*
Bake Low Low
Conv Bake Low Low
arm Low Low
True Conv Low Low
Maxi Broil Hi Low
Broil Hi Low
Conv Broil Hi Low
Conv Pastry Low Low
Pastry Bake Low Low
Roast (fan grill first 20 min) Hi Low
Roast (bake for remainder) Low Low
Self Clean Hi Low
*The first speed refers to single ovens or the cavity being used in a double oven.

13
4.3 Active Vent Fan
The vent fan will operate for the first thirteen minutes of all oven modes except Bake (does not
operate) and in Self-Clean Cycle, Broil modes (runs continuously).
Voltage: 220/240 VAC
attage: 18 watt
Frequency: 50/60 HZ
4.4 Outer Broil Element
The outer broil element will turn on eight seconds after a mode is selected.
Operational Modes: Bake, Conv Bake, arm
Maxi Broil
Conv Broil
Roast
Self-Clean
Voltage: 220/240 VAC
attage: 1500 watt
The inner broil element will turn on eight seconds after the mode is selected.
Operational Modes: Broil
Maxi Broil
Conv Broil
Roast (first 20 minutes only)
Self-Clean
Voltage: 220/240 VAC
attage: 2900 watt
4.5 Inner Broil Element
The bake element is concealed under the cavity base and will turn on eight seconds after the mode
is selected.
Operational Modes: Bake
Conv Bake
Pastry Bake
Conv Pastry
True Conv (pre-heat assistance only)
arm
Roast
Self-Clean
Voltage: 220/240 VAC
attage: 1500 watt
4.6 Bake Element

14
The fan element and oven fan will turn on eight seconds after the mode is selected.
Operational Modes: True Conv
Bake (pre-heat assistance only)
Conv Bake
Conv Pastry (pre-heat assistance only)
Voltage: 220/240 VAC
attage: 2500 watt
4.7 Fan Element

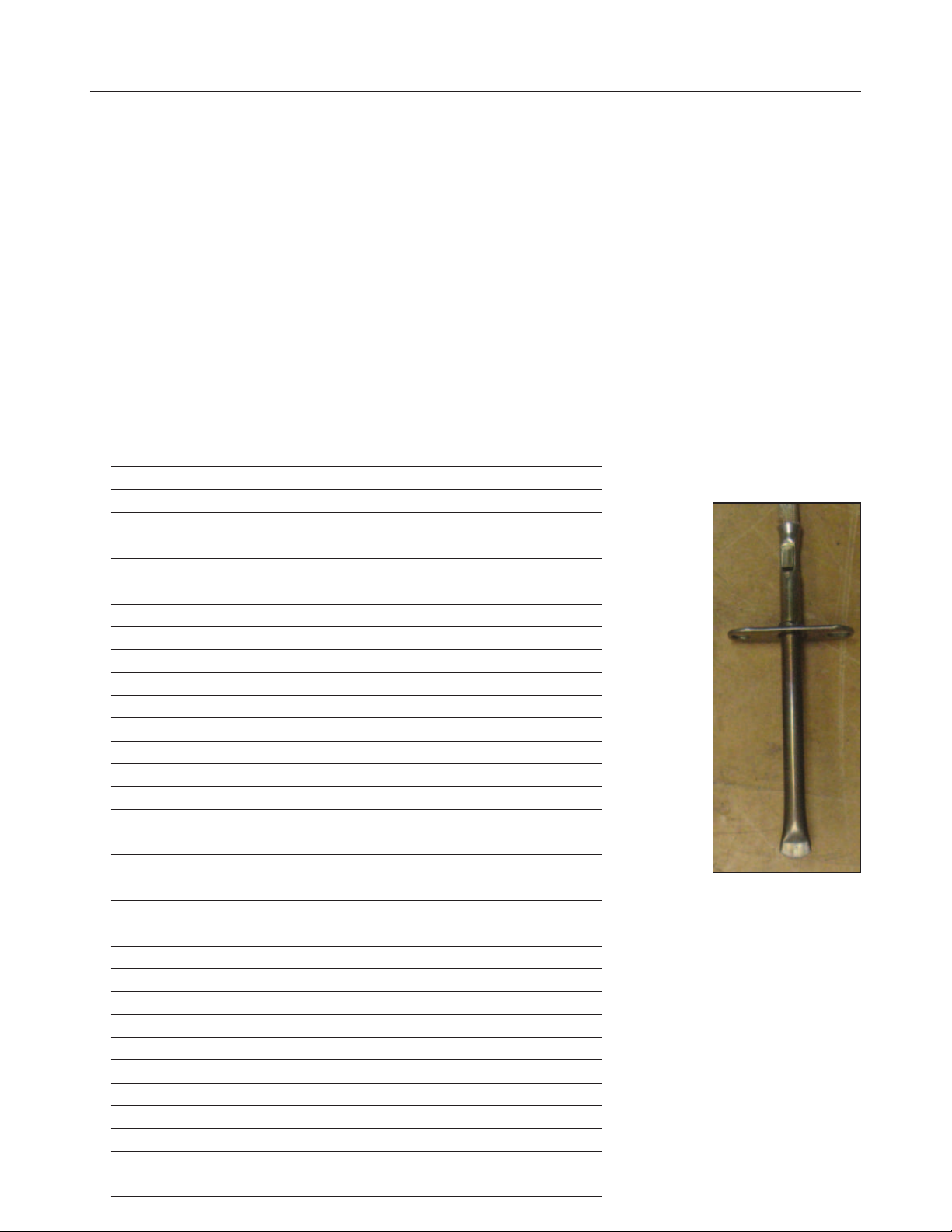

Voltage: 5 VDC
Max current: 2 mA
Max ambient temp: 1004°F (540°C)
Resistance: 1080 ohms +/– 5 ohms at 70°F (21 °C)
4.8 Temperature Sensor
DEGREES ºF DEGREES ºC RESISTANCE
32 0 1000
33.8 1 1004
35.6 2 1008
37.4 3 1011
39.2 4 1015
41 5 1019
42.8 6 1023
44.8 7 1027
46.4 8 1030
48.2 9 1034
50 10 1038
51.8 11 1042
53.6 12 1046
55.4 13 1049
57.2 14 1053
59 15 1057
60.8 16 1061
62.6 17 1065
64.4 18 1068
66.2 19 1072
68 20 1076
69.8 21 1080
71.6 22 1084
73.4 23 1087
75.2 24 1091
77 25 1095
78.8 26 1099
80.6 27 1102
82.4 28 1106
84.2 29 1110
86 30 1114

15
4.9 Halogen Bulbs
The oven cavity lights will come on when the door is opened or when an oven mode is selected.
The lights will turn off when the door is closed (if no oven mode is selected) or if the programmed
oven cook time has finished.
There are three soft start halogen bulbs in each oven cavity.
Voltage: 12 VAC
attage: 20 watt

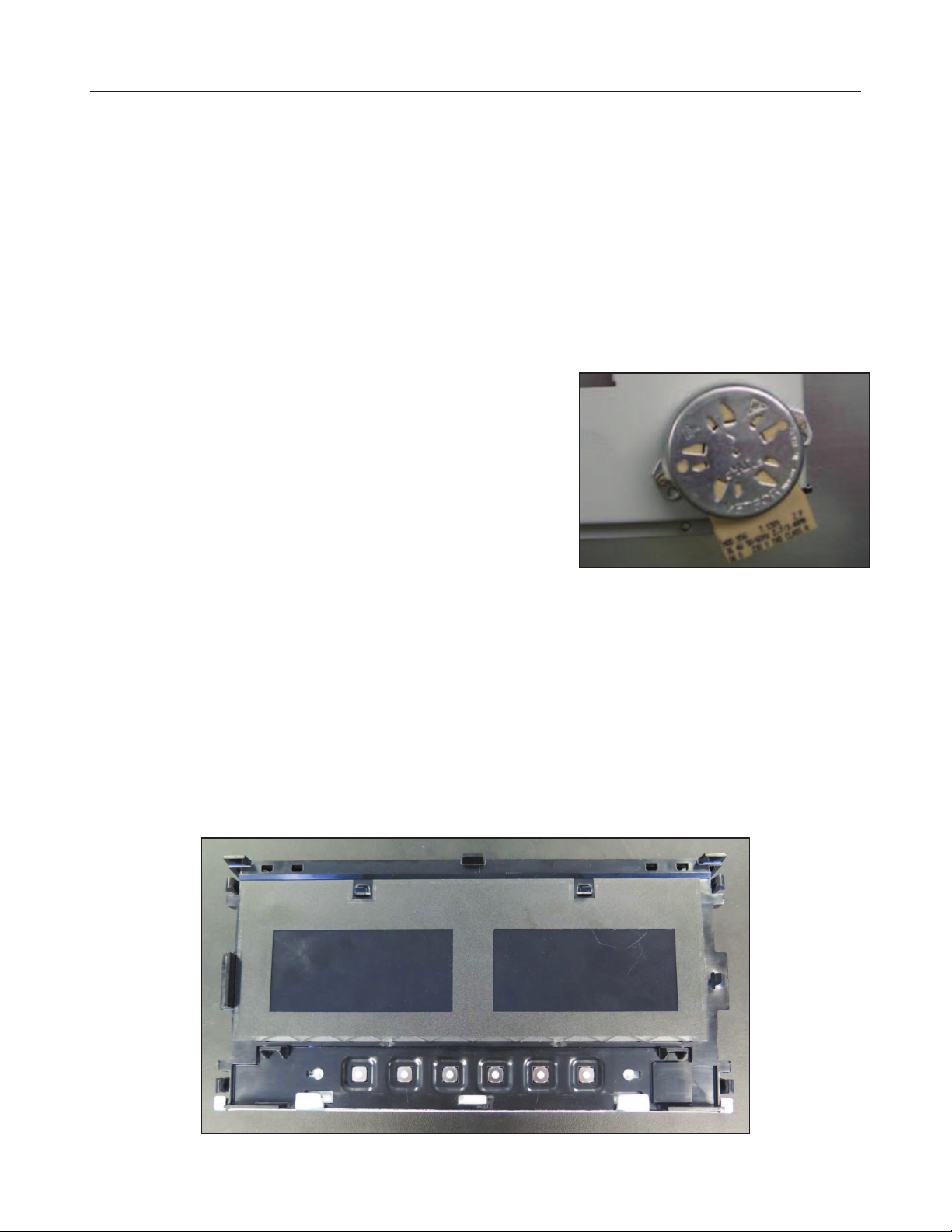

The door lock will only operate during the Self-Clean cycle
and is designed to stop the oven door from being opened
when very high temperatures and potentially dangerous
fumes are produced in the oven cavity.
Voltage: 208 – 240 VAC
attage: 40 watt
4.10 Door Lock Motor
The O models use a display module as a customer interface to show oven mode and cooking
temperature. It also displays time of day when set, and is utilized for the auto setting and timer setting.
Temperature and time settings are illuminated and shown on the control panel.
The display module also incorporates push buttons which allow the user to input and cancel time and
menu settings, probe settings, and user preference settings.
The module uses wiring harnesses to communicate with the function and temperature encoders, and
the power board.
4.11 Display Module

16
The O models use encoders as a customer interface for setting oven mode and temperature. One
function and one temperature encoder are provided for each oven. The function encoder is an
absolute encoder, meaning the dial can rotate a full 360 degrees. The temperature encoder is a
jog encoder, rotating 30 degrees left or right and returning to the center position when the knob is
released.
The encoders have an illuminated white halo around the control knob.
4.12 Function and Temperature Encoders
4.13 ser Interface Harnesses
The temperature and function encoders are linked to the display module via the user interface
harnesses.
The power board is located in the top panel area,
and is held in place by plastic standoff clips. The
power board is connected to the display module via a
harness and controls the following components:
Elements
Door switch
Temperature sensor
Door lock
Lights
Cavity fan
Cooling fan
Vent fan
The power board is a GOEP type board. If being
changed for any reason, the model ID must be
selected for the product it is being fitted to. Refer to
Section 6, Diagnostics, on pg. 34.
4.14 Power Board

17
4.15 Power Transformer
Input Voltage: 120 VAC 60hz
Output Voltage: 12 VAC
4.16 Thermal Limiter
These products have manually resettable thermal
limiters.
Single ovens have one thermal limiter below the cooling
fan. Limiter is mounted on a bracket with spacers
underneath.
Double ovens have three thermal limiters, one for the
upper cavity and two for the lower cavity in series. On
the lower cavity, one limiter is mounted on a bracket
with spacers below the cooling fan; the other limiter is
mounted on the vent channel.
A thermal limiter will cut off power to the elements/
product, if it senses any malfunction in the cooling
system (see table below). hen a limiter is tripped
“open”, the reset button (orange tab) on the body will
be sticking out and there will be no continuity across its
contacts. The reset button needs to be pushed back to
reset the limiter.
If a limiter is found to be open, the root cause of the
tripping needs to be diagnosed and repaired. Refer to
Section 7.14, Tracing Limiter Faults (pg. 46).
All limiters used on these models are identical.
Capacity Rating: 16 Amps at 250 VAC
Trip Temperature: 284°F (140°C)
Product Tripped Limiter Outcome
Single cavity
products
Only one limiter Takes out power
to the elements
only
Double cavity
products
Top cavity limiter Takes out power
for the full
product
Lower cavity
limiter
Takes out power
to the lower
cavity elements
Middle limiter
connected to
lower cavity limiter
in series
Reset
Button

18

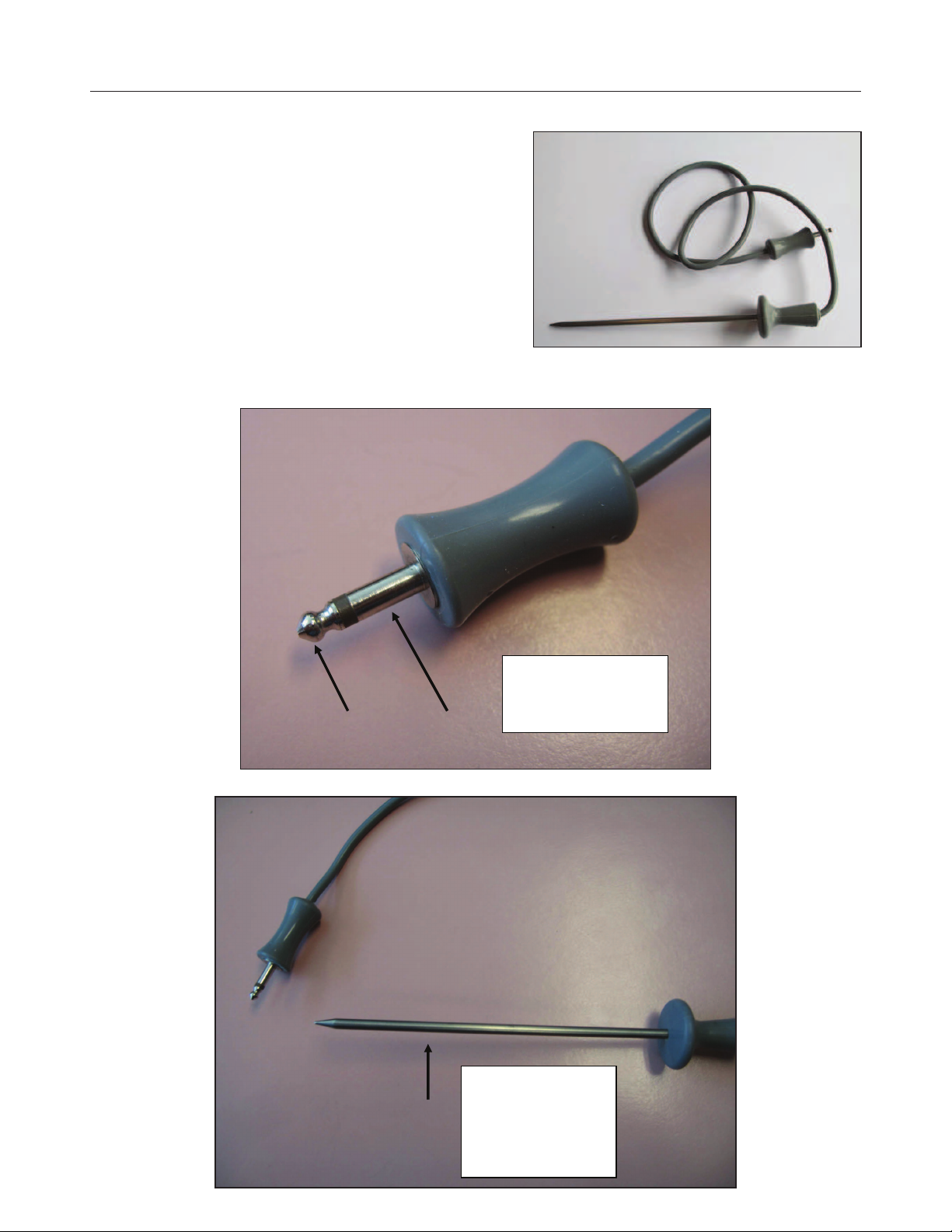

4.17 Meat Probe and Socket
Voltage: 5 VDC
To test the meat probe:
Using a multimeter,
check between these 2
points, should read 60K
ohms when cold
While checking the
resistance, heat the
end of the meat probe,
the resistance will
decrease as the
temperature goes up.

19

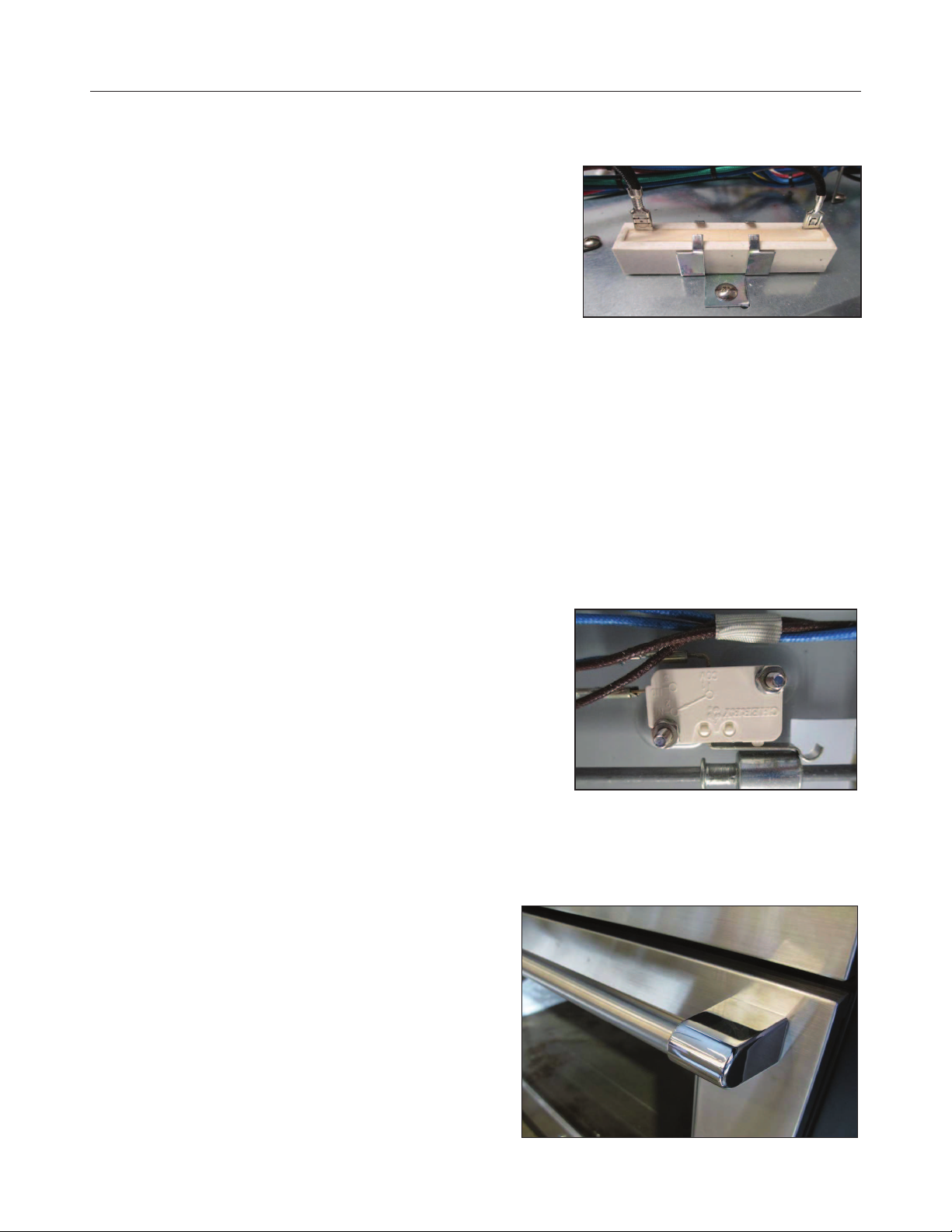

Power Rating: 50 watt
Resistance: 100 Ohms
Max Ambient Temp: 185 ºF (85 ºC)
4.18 Cooling Fan Resistor
The isolation relay is now part of the main power
board.
4.19 Isolation Relay
There are three micro switches in the door lock
assembly.
Voltage: 28 VDC
4.20 Micro Switches
The door handle is a 1” (25.4mm) OD brushed
stainless steel tube with EVO-style end caps.
The handle width is approx. 27.75’’ (705mm).
The depth of the handle from the front outer
panel is 2.37’’(60mm).
4.21 Door Handle
