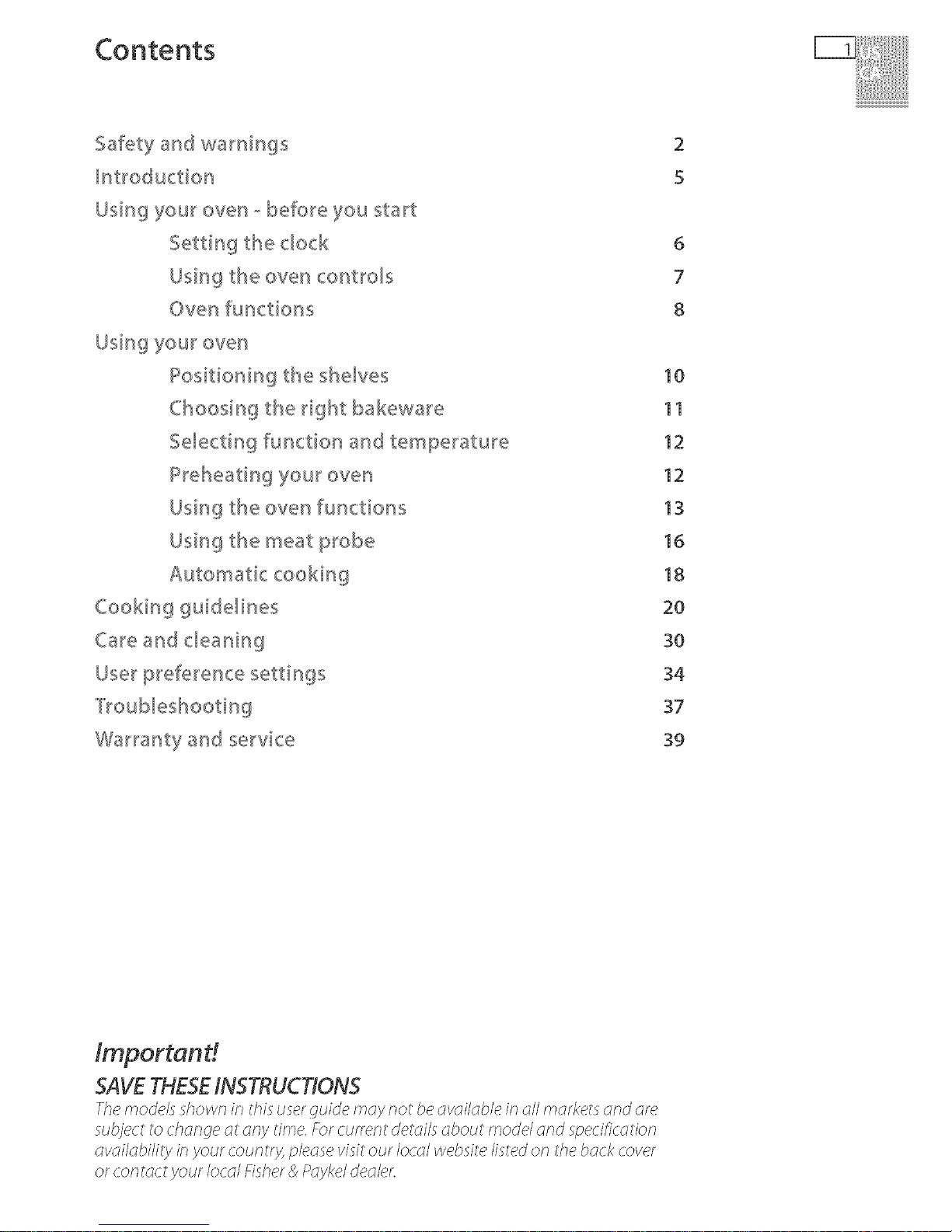

Contents
Safety and warnings
Introduction
Using your oven obefore you start
Setting the clock
Using the oven controls
Oven functions
Using your oven
Positioning the shelves
Choosing the right bakeware
Selecting function and temperature
Preheating your oven
Using the oven functions
Using the meat probe
Automatic cooking
Cooking guidelines
Care and cleaning
User preference settings
Warranty and service
2
5
6
7
8
10
11
12
12
lS
16
18
20
SO
S4
S7
S9
Importand
SAVE THESEINSTRUCTIONS
7-hemodds_hownir_thi_userr/uidemayr_ot_eav_i/a_/eina//market_aridare
su_}ject tochangeatanytime.Forcurrentdetai/saboutmodeland_pecifi_ation
avai/abi/ity inyour_ountry, p/ease visitourlocalweb,ireIi£edon thebackcover
orcontactyourlocal£_her&P_ykddealer.

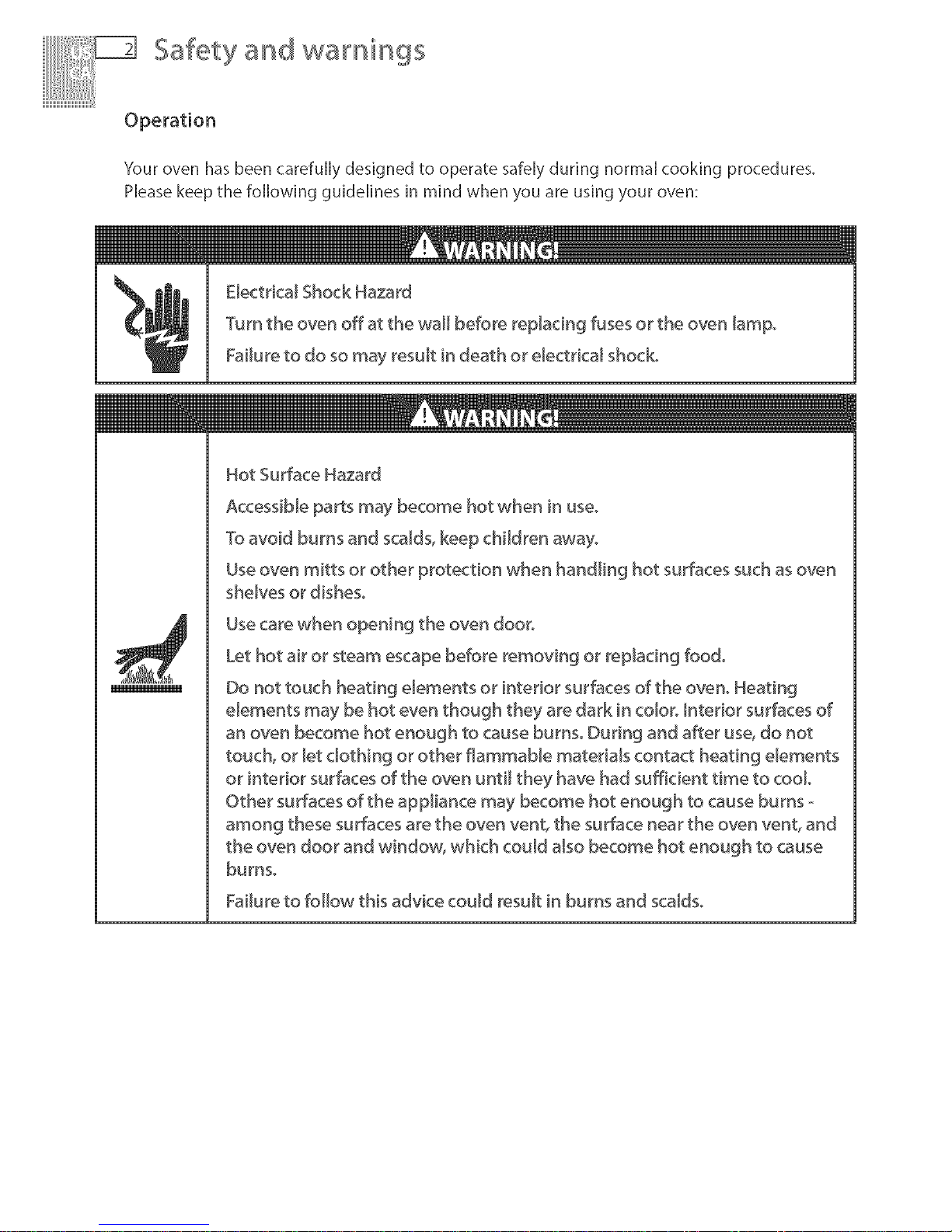

Safety and warnings
Operation
Your oven hasbeen carefully designed to operate safelyduring normal cooking procedures.
Pleasekeep the following guidelines in mind when you are using your oven:
Electrica_ Shock Hazard
Turn the oven off at the wall before replacing fuses or the oven _ampo
Failure to do so may res@t indeath or e_ectdca_shock°
Hot Surface Hazard
Accessible parts may become hot when in use.
Toavoid burns and scalds, keep children away.
Use oven mitts or other protection when handling hot surfaces such as oven
shelves or dishes°
Use care when opening the oven door.
Let hot air or steam escape before removing or replacing food.
Do not touch heating e_ements or interior surfaces of the oven. Heating
elements may be hot even though they are dark in co,or, htedor surfaces of
an oven become hot enough to cause burns. During and after use, do not
touch, or _etclothing or other flammable materials contact heating e_ements
or interior surfaces of the oven until they have had sufficient time to cool
Other surfaces of the appliance may become hot enough to cause burns
among these surfaces are the oven vent, the surface near the oven vent, and
the oven door and window, which could a_sobecome hot enough to cause
burns.
Failure to follow this advice co@d res@t inburns and sca_dso

Safety and warnings
Important safety instructions
Fl!!!!!!!i!!!!! iHi!!ii!ii!iHi!!iHHii
To reduce the risk of fire, electrical shock, injury to persons, or damage when using the oven,
follow the important safety precautions listed below:
Read all the instructions before using the oven. Use the oven only for its intended purpose as
described in these instructions.
Proper installation: be sure your appliance is properly installed and grounded by aquafified
technician.
oIsolating switch: make sure this oven is connected to acircuit which incorporates an isolating
switch providing full disconnection from the power supply.
Never use your appliance for warming or heating the room. Persons could be burned or injured or
afire could start.
oHousehold appliances are not intended to be played with by children.
Do not leave children alone. Children should not be left alone or unattended in the area where
the appliance is in use. They should never be allowed to sit or stand on any part of the appliance.
Children or persons with adisability which limits the# ability to use the appliance, should have a
responsible person to instruct them in its use. The instructor should be satisfied that they can use
the appliance without danger to themselves or their surroundings.
Do not place heavy objects on the oven door.
Wear proper apparel Do not wear loose fitting or hanging garments when using the appliance.
They could ignite or melt if they touch an element or hot surface and you could be burned.
User servicing: do not repair or replace any part of the appliance unless specifically
recommended in the manual All other servicing should be referred to aqualified technician.
Storage in or on appliance: flammable materials should not be stored in an oven or near its
surface.
Do not use water on grease fires. Smother the fire or flame or use a dry chemical or foam type
extinguisher.
Use only dry oven mitts or potholders. Moist or damp potholders on hot surfaces could result in
burns from steam. Do not let potholders touch hot areas or heating elements. Do not use atowel
or abulky cloth for apotholder. It could catch fire.
Do not heat unopened food containers. They can build up pressure that may cause the container
to burst and result in injury.
Safe food handling: leave food in the oven for as short atime as possible before and after
cooking. This is to avoid contamination by organisms which may cause food poisoning. Take
particular care during warm weather.
Always keep oven vents unobstructed.
Caution. Hot air can blow from the vent at the base of the oven as part of the oven's cooling
system.
Do not place aluminum foil, dishes, trays, water or ice on the oven foot during cooking, as this
will irreversibly damage the porcelain enamel

Safety and warnings
Placement of oven racks (shelves): always position racks (shelves) in the desired location while
the oven is cool (before preheating). If arack (shelf) must be removed while the oven is hot, do
not let the oven mitts or pothoMer contact hot heating elements in the oven or the base of the
oven.
Do not clean the door seal or cavity seals (gaskets) or use any oven=cleaning products on them.
They are essential for agood seal, which ensures that the oven operates efficiently. Care should
be taken not to rub, damage or move them.
Do not use oven cleaners, harsh/abrasive cleaning agents, waxes, or polishes. No commercial
oven cleaner, oven liner, or protective coating of any kind should be used in or around any part of
the oven. Do not use harsh/abrasive cleaners, scourers or sharp metal scrapers to clean the oven
door glass since they scratch the surface, which may result in the glass shattering.
Clean only the parts listed in this manual.
Do not use a steam cleaner to clean any part of the oven.
Before starting a self-clean cycle, remove oven shelves/racks, side racks/shelf supports, broiler
pan and aft other cookware/utensils, and wipe up large food spills or grease deposits.
During aself-clean cycle, the oven reaches higher temperatures than it does for cooking. Under
such conditions, the surfaces may get hotter than usual and children should be kept away.
Do not store things children might want above the oven. Children could be burned or injured
while climbing on the oven to retrieve items.
Do not install or operate the appliance if it is damaged or not working properly. If you receive a
damaged product, contact your dealer or installer immediately.
Use only bakeware approved for oven use. Follow the bakeware manufacturer's instructions.
The CMifornia Safe Drinking Water and Toxic Enforcement Act requires businesses to warn
customers of potential exposure to substances which are known by the State of California to
cause cancer or reproductive harm. Smafl amounts of harmful chemicals are given off in the
oven's self-cleaning cycle from insulation and food decomposition. Significant exposure to these
substances can cause cancer and reproductive harm. Venting with ahood or open window, and
wiping out excess food spills prior to self-cleaning the oven reduces exposure.

About your new oven
ntroduction F l!!!!!!!i@Hi!!iHHii
Thank you for buying a Fisher and Paykel builtqn multifunctional oven. Now that it is installed
and ready to use, you will want to know everything about it to make sure you get excellent
results right from the start, This guide introduces you to all its features, as well as giving you a set
of cooking guidelines. We recommend you read the entire guide before using your new oven, for
both safety and for cooking success.
2--
3 ..............................
4 ..............
2--
w--16
1 Control panel 9Cavity seal (gasket)
2 Door handle 10 Broil element
s Oven window '1'I Oven lights
4 Upper oven '12 Meat probe socket
5 Lower oven (double models only) 'Is Convection fan & concealed element
6 Model & serial number '14 Lower concealed element
7 Selfldean latch 15 Door hinge
8 Door seal (gasket) 16 Oven vent

Using your oven - before you start

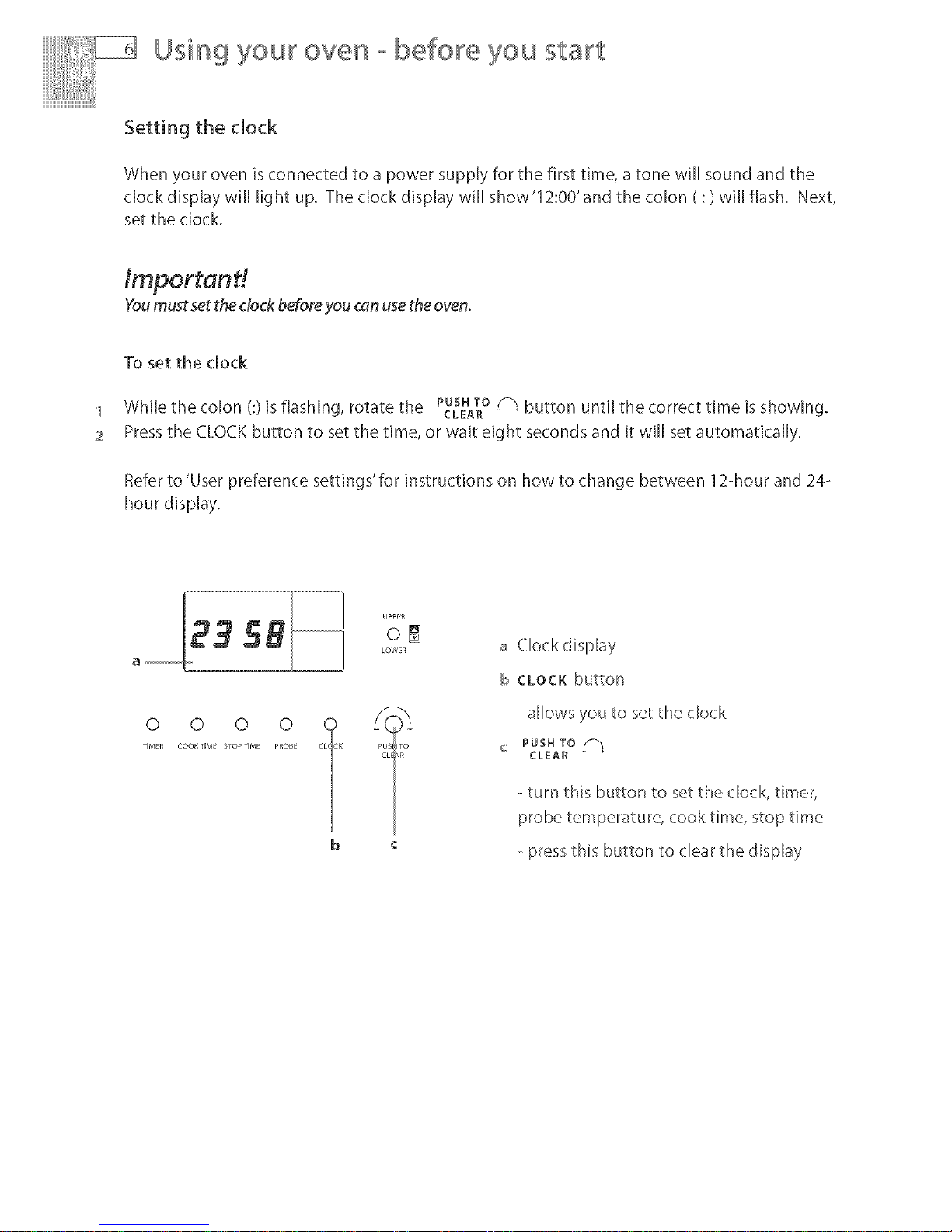

Setting the clock
When your oven is connected to a power supply for the first time, a tone will sound and the
clock display will lig ht up. The clock display will show'12:00' and the colon ( : ) will flash. Next,
set the clock.
Importand
You must set the clock before you can use the oven.
To set the dock
1 While the colon (:) is flashing, rotate the PUSHTo f-_ button until the correct time is showing.
CLEAR -
2 Press the CLOCK button to set the time, or wait eight seconds and it will set automatically.
Referto'User preference settings'for instructions on how to change between 12-hour and 24-
hour display.
0 0 0 0
TIMEI_ coo_ _EM StOP lIME Pt_O_E
UPPER
o_
LOWER Clock disphy
b CLOCK button
--allows you to set the clock
_c PUSH TO f-_
CLEAR -
--turn this button to set the dock, timer,
probe temperature, cook time, stop time
--press this button to clear the display

Using your oven - before you start

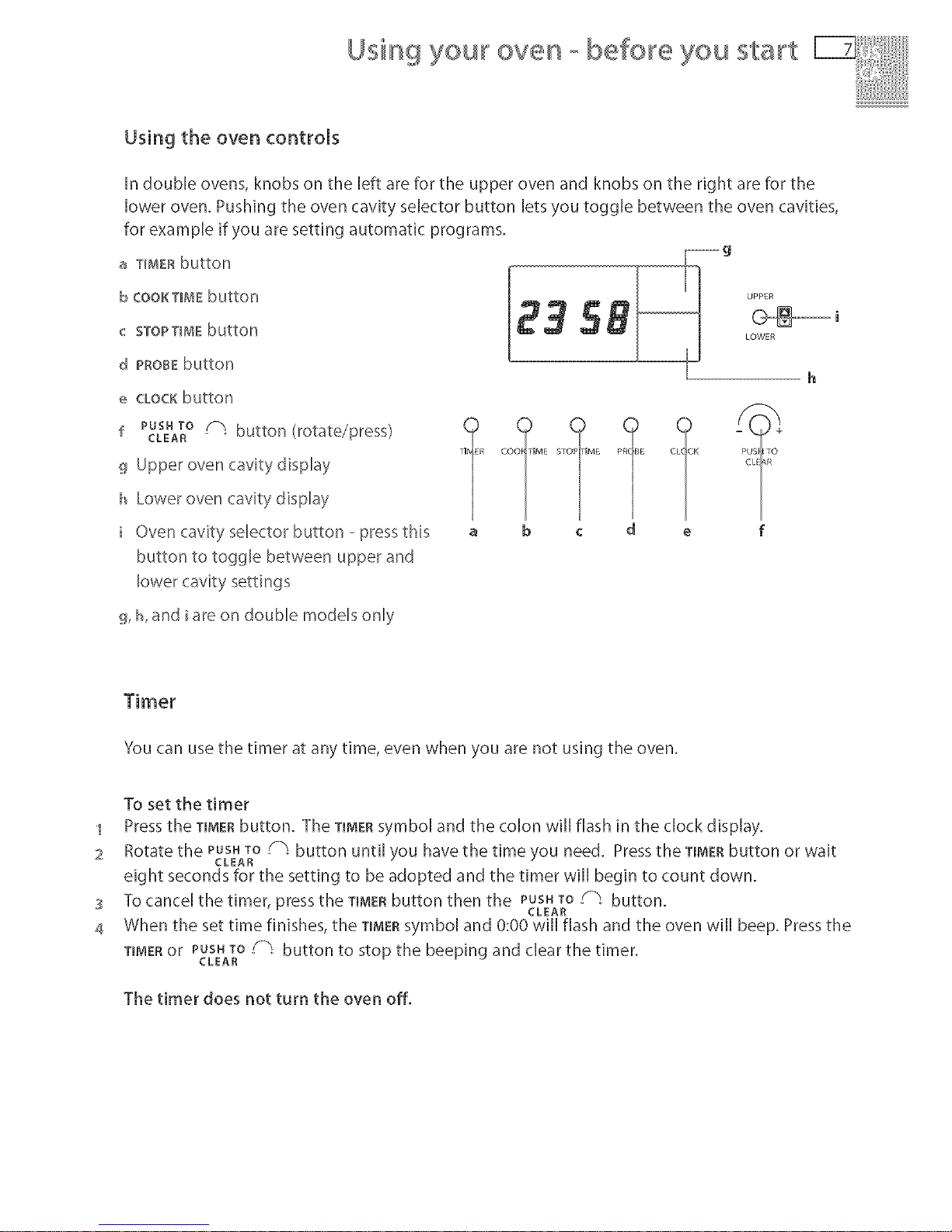

Using the oven controls
_÷STOPTmMEbutton
d PROBEbutton
eCLOCKbutton
In double ovens, knobs on the left are for the upper oven and knobs on the right are for the
lower oven. Pushing the oven cavity selector button lets you toggle between the oven cav]ties,
for example if you are setting automatic programs.
oT,ME0button
bCOOKTmNEbutton u,pE_
235 -'
LOWER
h
f PUSHTO Fh button (rotate/press)
CLEAR -
g Upper oven cavity display
hLower oven cavity display
i Oven cavity selector button - press this
button to toggle between upper and
lower cavity settings
9,h,and iare on double models only
F-ql!!!!!!!i@ii!!iHHii
Timer
You can use the timer at any time, even when you are not using the oven.
To set the timer
1 Press the TIMERbutton. The TIMERsymbol and the colon wi[[ flash [n the clock display.
2 Rotate the Push TO_f_,_button until you have the time you need. Press the TIMERbutton or wait
CLEAR
eight seconds for the setting to be adopted and the timer will begin to count down.
s To cancel the timer, press the TIMERbutton then the PushTO_ button.
CLEAR
4 When the set time finishes, the TmMERsymbol and 0:00 will flash and the oven w[[[ beep. Press the
TIMERor Push TO_f-', button to stop the beeping and dear the t[mer.
CLEAR
The timer does not turn the oven off.

Using your oven - before you start
Oven Functions
BAKING
TRUE AERO: fan plus fan element
A concealed heating element surrounding the fan in the rear of the oven heats air,
which is then blown into the cavity.The consistent temperature ensures baking is
well risen and evenly colored. Cookies are crisp on the outside and chewy in the
middle, meat and poultry are deliciously browned and sizzling while remaining
juicy and tender. Casseroles are cooked to perfection and reheating is quick and
efficient. TRUE AERO is the function to choose for multi-shelf cooking and complete
oven meals. TRUE AERO is excellent for baking angel food cake.
AERO BAKE: fan plus upper and lower elements
The oven fan circulates hot air from the top outer and the lower concealed
elements and distributes it around the oven cavity. Food cooked using the AERO
BAKEfunction tends to brown more quickly than foods cooked on the traditional
BAKEfunction. Use AERO BAKE at a low temperature -125 °F (50°C) - for drying fruit,
vegetables and herbs.
BAKE: upper and lower elements
Heat comes from the top outer and lower concealed elements. BAKE is the
traditional baking function, ideal for cakes, if baking on two shelves, arrange dishes
so no item is directly over another. BAKE is ideal for foods that require baking for a
long time or at low temperatures, like meringues and rich fruitcakes.
AERO PASTRY: fan plus lower element
The fan circulates heat from the lower concealed element throughout the oven.
Excellent for sweet and savory pastry foods, for moist breads and brownies and
cookies that you want extra chewy.
PASTRY BAKE: lower element
Heat comes from the lower element only. This is a traditional baking function,
suitable for recipes that were developed in older ovens. For best results, bake on
only one shelf at a time. [t is perfect for foods that require delicate baking and have
a pastry base, [[ke custard tarts, pies, quiches and cheesecake or anything that does
not require direct heat and browning on the top.
ROASTING
ROAST
This is a two-step program. The oven does not require preheating. An initial 20-
minute searing stage crisps and browns the roast and caramelizes the juices on the
outside of the meat, then the temperature drops to the level you have preset for
the remainder of the cooking period, producing a tender and juicy roast that Jsfuji
of flavor. This function is also great for cooking vegetables. Little browning takes
place after the initial searing.

L__]
L__]
Using your oven - before you start
BROILING
BROIL: upper inner element
BROIL delivers intense heat from the inner region of the top element. Great when
you need to quickly broil one to two portions of your usual favorites, like crispy
chicken breasts or a steak.
MAXI BROIL: upper inner and outer elements
MAXI BROIL delivers intense heat from the entire top element. It is the most
suitable function for'finishing off' many meals, for example browning the top of
potato gratin and frittata. Use MAXI BROIL to toast bread or to broil your favorite
chicken, fish and steak.
AERO BROIL: fan plus upper inner and outer elements
AERO BROIL produces food with a finish that is similar to a rotisserie. Meat, poultry
and vegetables cook beautifully; food is crisp and brown on the outside while
the inside remains moist and tender. Try using this function for whole chicken or
tenderloin of beef.
WARM
WARM is a constant low heat of 165°F (75°C). Use it to keep cooked food hot, orto
warm plates and serving dishes.To reheat food from cold, useTRUE AERO and
change to WARM only when the food is piping hot, as this function will not bring
cold food up to a temperature high enough to kill any harmful bacteria.
SELF CLEAN
This oven features a pyrolytic self-cleaning cycle that takes care of the mess and
grime that is traditionally associated with oven cleaning. During self-cleaning, the
oven reaches very high temperatures. This burns off and breaks down soil and
grease deposits. A smoke eliminator and active venting system eradicates odor. For
instructions on how to use SELF CLEAN, see the 'Care and cleaning' section.
Cooling fan
A cooling fan will come on automatically and blow air out below the oven door during the use
of most oven functions. It may continue to run after the oven is turned off to keep the door and
control panel cool.
