Fisher & Paykel OB60 Series User manual

OB60 models
BUILT IN OVEN
INSTALLATION GUIDE
NZ AU GB IE
591785A / 1105822-ß002.19

1
1SAFETY AND WARNINGS
IMPORTANT!
SAVE THESE INSTRUCTIONS
The models shown in this installation guide may not be available in all markets and are subject to change at any time. For current details about model and specification availability in your country,
go to our website fisherpaykel.com or contact your local Fisher & Paykel dealer.
IMPORTANT SAFETY INSTRUCTIONS
To avoid hazard, follow these instructions carefully
before installing or using this appliance:
Make this information available to the person
installing the appliance–doing so could reduce your
installation costs.
This appliance must be installed and connected to
the mains power supply only by a suitably qualified
person according to these installation instructions
and in compliance with any applicable local building
and electricity regulations. Failure to install the
appliance correctly could invalidate any warranty or
liability claims.
If the power supply cable is damaged, it must be
replaced by the manufacturer, its service agent or
similarly qualified person in order to avoid a hazard.
The appliance must not be installed behind a
decorative door in order to avoid overheating.
WARNING!
Electrical shock hazard
Always disconnect the appliance from the
mains power supply before carrying out any
maintenance or repairs.
Connection to a good earth wiring system
isessential and mandatory.
Alterations to the domestic wiring system
must only be made by a qualified electrician.
Failure to follow this advice may result in
electrical shock or death.
WARNING!
Cut Hazard
Take care—panel edges are sharp.
Failure to use caution could result in
injuryor cuts.
WARNING!
Fire hazard
Do not use adapters, reducers, or branching
devices to connect this appliance to the
mains power supply.
Failure to follow this advice may result in
overheating, burning, or fire.

2
2PRIOR TO INSTALLATION
3DURING INSTALLATION
IMPORTANT!
Some environmental factors and cooking habits can cause condensation in and around the oven during use.
To protect surrounding cabinetry from possible damage caused by frequent or excessive condensation,
we recommend moisture-proofing the oven cavity.
Before you install the oven, make sure:
the benchtop and oven cavity are square and level, and are the required dimensions.
the installation will comply with all clearance requirements and applicable standards and regulations.
a suitable isolating switch providing full disconnection from the mains power supply (under overvoltage category III conditions) is incorporated in the permanent wiring,
mounted and positioned to comply with the local wiring rules and regulations. The isolating switch must be of an approved type and provide a 3 mm air gap contact
separation in all poles (or in all active [phase] conductors if the local wiring rules allow for this variation of the requirements).
the isolating switch will be easily accessible to the customer with the oven installed.
there is at least 1.5 m (and not more than 2 m) free length of power supply cable within the cavity for ease of installation and servicing.
the oven connection socket (if fitted) is outside the cavity if the oven is flush to the rear wall.
the oven will rest on a surface that can support its weight
the height from the floor suits the customer.
you consult local building authorities and by-laws if in doubt regarding installation.
IMPORTANT!
Take extra care not to damage the lower trim of the oven during installation.
The trim is important for correct air circulation and allows the door to open and close without obstruction.
Themanufacturer does not accept any responsibility for damage resulting from incorrect installation.
Do not seal the oven into the cabinetry with silicone or glue. This makes future servicing difficult. Fisher & Paykel will not cover the costs of removing the oven, or
of damage caused by this removal.
Use the supplied screws to secure the oven to the cabinetry. Do not over-tighten the screws.
Make sure that the power supply cable will not touch any hot metal parts.
Make sure that the isolating switch will be easily accessible by the customer.
Do not stand on the door, or place heavy objects on it.
Do not lift the oven by the door handle.
When handling the oven, take care not to damage the door sensor lever (near the top right corner of the oven seal).
Use easy-to-clean finishes for the wall surfaces surrounding the oven, so that cooking fume staining resulting from using the oven is easy to remove.

3
4PRODUCT DIMENSIONS (OB60S, OB60N MODELS)
OB60S MODELS OB60N MODELS
PRODUCT DIMENSIONS (MM) (MM)
aOverall height* of product 597 450**
bOverall width of product 595 595
cOverall depth of product (excluding handle and knobs) 565 554
dHeight of chassis 582 436
eWidth of chassis 556 536
fDepth of chassis 545 534
GDepth of oven frame and control panel (distance between front of chassis and front of oven door, excluding knobs) 20 20
HDepth of oven door when fully open (measured from front of control panel) 435 289
Note: If installing a cooktop above the oven, ensure adequate clearance is provided for the cooktop as per the cooktop manufacturer’s instructions.
*All height measurements include mounted feet.
** If fitting the lower trim extension kit, the overall height of product (A) increases by 25 mm (to 475 mm).
ACF
BE
G
H
D
FRONT TOP SIDE

4

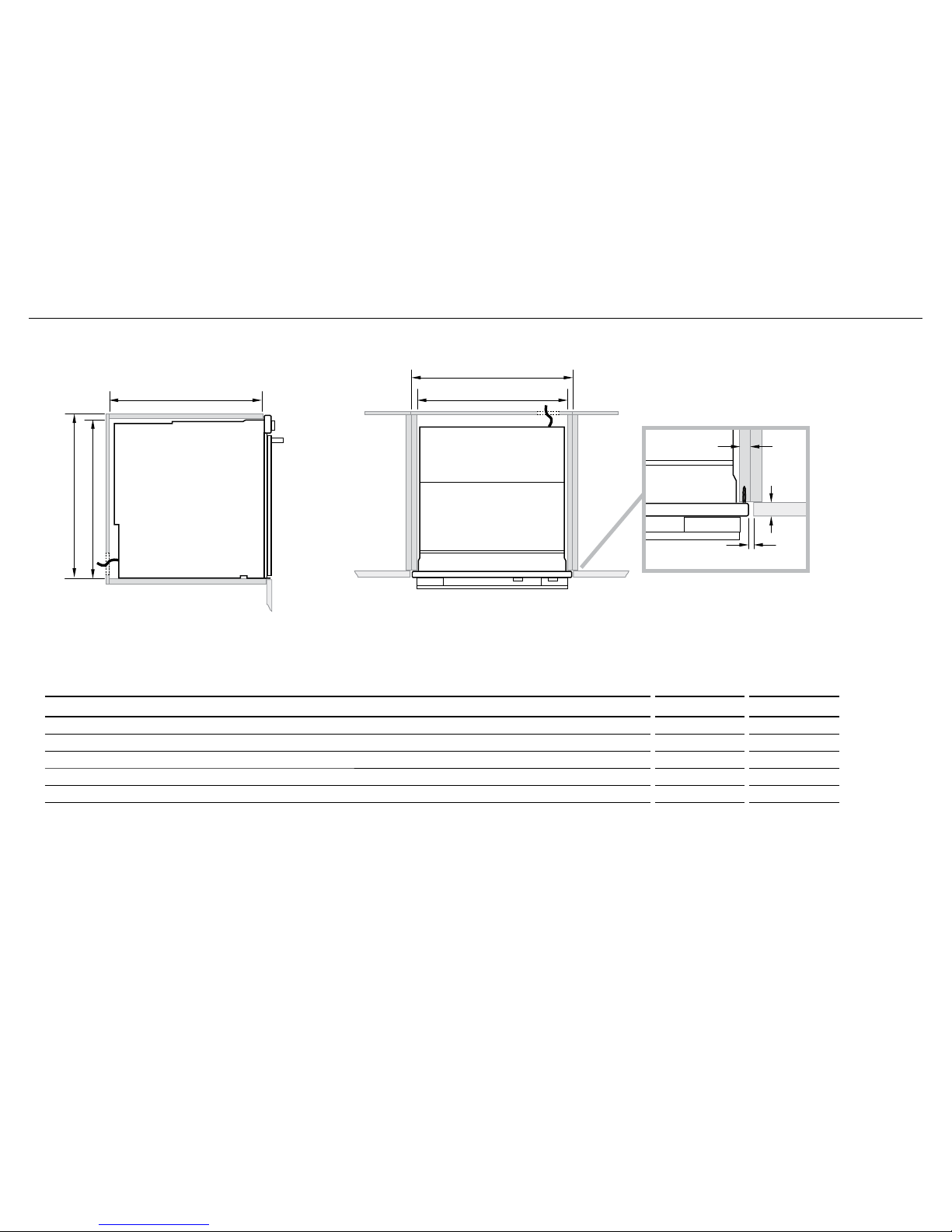

5CABINETRY DIMENSIONS (OB60S, OB60N MODELS)
OB60S MODELS OB60N MODELS
CABINETRY DIMENSIONS (MM) (MM)
IMinimum inside width of cavity 560 560
jOverall width of cavity 600 600
kInside height of cavity 585 440*
LOverall height of cavity 600 455*
mMinimum inside depth of cavity 550 550
Note: If installing a cooktop above the oven, ensure adequate clearance is provided for the cooktop as per the cooktop manufacturer’s instructions.
* If fitting the lower trim extension kit, the overall height of product (A) increases by 25 mm (to 475 mm).
The height of the cavity (L and K) therefore needs to be increased by 25 mm also (to 465 mm and 480 mm respectively).
J
i
K
L
M
16–20 mm
20 mm
Electrical supply
min. 1.5 mm
SIDE TOP

5
A
CF
B
E
G
H
D
i
6PRODUCT DIMENSIONS (OB60B, OB60D MODELS)
OB60B MODELS OB60D MODELS
PRODUCT DIMENSIONS (MM) (MM)
aOverall height* of product 888 1077
bOverall width of product 595 595
cOverall depth of product (excluding handle and knobs) 565 565
dHeight of chassis 874 1057
eWidth of chassis 556 556
fDepth of chassis 545 545
GDepth of oven frame and control panel (distance between front of chassis and front of oven door, excluding knobs) 20 20
HDepth of upper oven door when fully open (measured from front of control panel) 261 435
iDepth of lower oven door when fully open (measured from front of control panel) 435 450
*All height measurements include mounted feet.
FRONT TOP SIDE

6
J
K
L
M
N
16–20 mm
Electrical supply
min. 1.5 mm
7CABINETRY DIMENSIONS (OB60B, OB60D MODELS)
OB60B MODELS OB60D MODELS
CABINETRY DIMENSIONS (MM) (MM)
JMinimum inside width of cavity 560 560
KOverall width of cavity 600 600
LInside height of cavity 877 1065
MOverall height of cavity 893 1082
nMinimum inside depth of cavity 550 550
Flush fitting cabinetry clearance 20 20
SIDE TOP

7

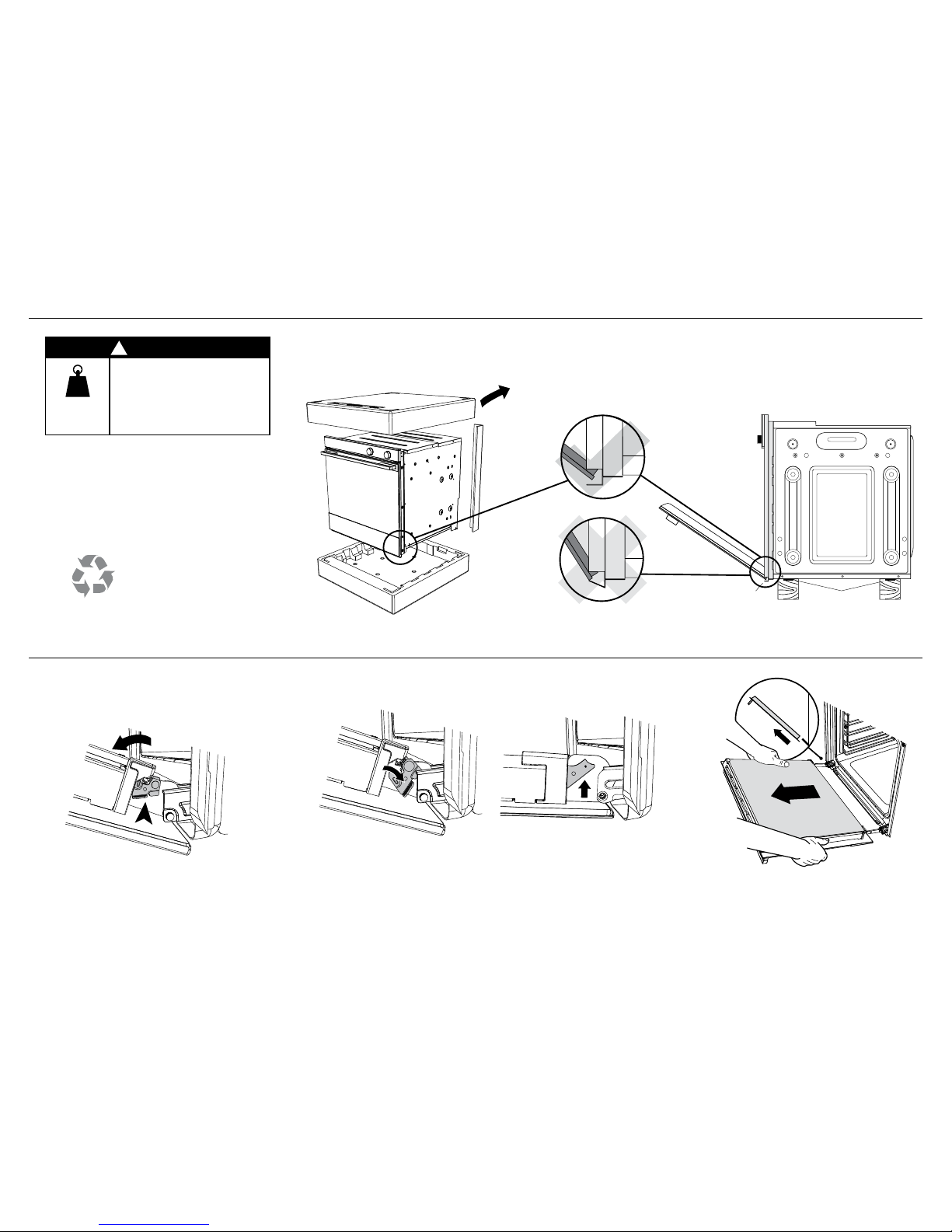

8DISCARD PACKAGING RESPONSIBLY
9REMOVE THE DOOR
IMPORTANT!
When you remove the oven from the carton be careful not to damage the lower trim.
The trim is important for both ventilation and to ensure the door opens fully without obstruction.
!WARNING!
124 lb
56 kg
Very Heavy
Do not attempt to lift this
product unassisted.
Lifting unassisted may cause
serious injury.
Remove all packaging and dispose of it
responsibly. Recycle items that you can.
Place the unpacked oven onto wooden blocks or
similar supports to prevent damaging the lower
trim. You may remove the feet, but ensure the
oven does not sit on the lower trim.
Oven may vary.
lower trim feet
Recycle responsibly
IMPORTANT!
Take care, the oven door is heavy.
1 Open the door fully. Locate the two small metal
locking levers on both door hinges either side
(hinges may vary).
2 To release the door from the hinges. Push each locking lever:
OB60 models – down fully.
OB60SD models – up fully.
3 Holding the door on both sides, lift door back
up to 45oand carefully pull the door out and
away from the hinges.
OB60 models OB60SD models

8
1
Unscrew to remove cover plate (A).
!0CONNECT THE OVEN TO THE MAINS SUPPLY
IMPORTANT!
This oven must be connected to the mains power supply only by a suitably qualified person.
This oven must be earthed.
Before connecting the oven to the mains power supply, check that the:
domestic wiring system is suitable for the power drawn by the oven (as specified ontherating plate)
voltage corresponds to the value given on the rating plate.
We recommend that the outlet for the power supply cable is located in the right rear corner of the cabinet cavity.
This allows the power supply cable to sit inside the right rear of the oven and prevents it being jammed between
the cabinet wall and the rear of the oven.
D
Brown (Live)
Blue (Neutral)
N
L
Green and
yellow (Earth)
OB60S and OB60N MODELS
MODELS POWER (W) VOLTAGE (V~)
OB60SLC 2350–2550 230–240
OB60SLM, OB60SCE, OB60SCM 3070 220–240
OB60SCT, OB60SDT [phone]
OB60S9D 3400 220–240
OB60SV 3070 220–240
OB60NL 2050 220–240
OB60NC, OB60ND 2800 220–240
OB60B and OB60D MODELS
MODELS POWER (W) VOLTAGE (V~)
OB60BC, OB60BD, 5800 220–240
OB60B77C, OB60B77D 5850 220–240
OB60DD 6120 220–240
1 Unhook to open cover (A).
E
N(L2)
L1E
N(L2)
L1
A
B
A
B
2 Unscrew to open cable clamp (B). 2 Unscrew to remove cable clamp (B).

9
!1SECURE THE OVEN TO THE CABINETRY
!2REFIT THE DOOR
IMPORTANT!
Do not lift the oven by the door handle.
Do not over-tighten the screws.
Do not seal the oven into the cabinetry with silicone or glue. This makes future
servicing difficult. Fisher & Paykel will not cover the cost of removing the oven, or
damage caused by this removal.
1 Position the oven in the prepared cavity.
2 Open the oven door fully.
3 Secure oven to cabinetry using supplied screws.
2.5 mm
1 Holding the door on both sides, line up
the holes in the base of the door with
the hinges and slide the door on.
2 Locking the door onto the hinges (hinges may vary):
OB60 models – Once the door is placed on the hinges, push each
locking lever up fully to lock the door onto the hinge.
OB60SD models – Ensure the door is firmly in place on the hinges.
Open the door completely again and push each locking lever down
fully to lock the door onto the hinge.
3 IMPORTANT!
Ensure the levers are both fully locked before trying
to shut the door.
OB60 models OB60SD models OB60 models OB60SD models

10
!3 TROUBLESHOOTING
IF THE APPLIANCE IS NOT FUNCTIONING CORRECTLY AFTER INSTALLATION CHECK THE FOLLOWING:
 That the circuit breaker has not tripped or the fuse blown.
 Make sure that the electrical connections have been correctly made.
 Make sure that power is being supplied to the oven.
 Make sure the voltage is correct across all phases.
 If a problem occurs, consult the Troubleshooting section of the User Guide.
 If after checking these points you still need assistance or parts, please refer to the Service & Warranty book for warranty details and your nearest Authorised Repairer, or
contact us through our local website fisherpaykel.com

11
!4 FINAL CHECKLIST
Complete and keep for safe reference:
Model ____________________________________________________________
Serial No. ____________________________________________________________
Purchase Date ____________________________________________________________
Purchaser ____________________________________________________________
Dealer Address ____________________________________________________________
Installer’s Name ____________________________________________________________
Installer’s Signature ____________________________________________________________
Installation Company ____________________________________________________________
Installation Date ____________________________________________________________
TO BE COMPLETED BY THE INSTALLER:
 Make sure the oven is level and securely fitted to the cabinetry and the oven door opens and closes freely.
 Make sure all the internal packaging has been removed from the oven cavity.
 Make sure all oven vents and openings are clear and are free of any obstruction/damage.
 Check the lower trim is still undamaged — open the oven door slowly to its fully open position and check if there is adequate clearance between the bottom of the door and the lower trim.
This is to ensure correct air circulation. Should the lower trim become damaged, straighten the trim and ensure the oven door opens fully without obstruction.
 Check that the power supply cable does not touch any metal parts that can become hot during use.
IMPORTANT!
Failure to make sure all oven vents are clear may result in poor product performance.
 Make sure that the isolating switch is easily accessible by the customer.
TEST OPERATION:
 Turn the power to the oven on. On some models, the display should light up and show :.
 Advise the customer to follow the instructions in their user guide in section ‘First use’.
FISHERPAYKEL.COM
© Fisher & Paykel Appliances 2019. All rights reserved.
The product specifications in this booklet apply to the specific products
and models described at the date of issue. Under our policy of continuous
product improvement, these specifications may change at any time. You
should therefore check with your Dealer to ensure this booklet correctly
describes the product currently available.
