Care and cleaning
Always turn off the oven at the wall first. Ensure the oven has cooled down completely before starting.
Manual cleaning
Always Never
• Before any manual cleaning or maintenance, first wait
for the oven to cool down to a safe temperature to
touch, then turn its power supply off at the wall.
• Read these cleaning instructions and the ‘Safety and
warnings’ section before you start cleaning your oven.
• To prevent soiling from becoming ‘baked on’ and
stubborn, we recommend removing any easy-to- reach
spills, food or grease stains from the oven cavity enamel
after each use.
• Never use a steam cleaner.
• Never store flammable substances in the
oven.
• Never use abrasive or harsh cleaners,
cloths, scouring pads or steel wool.
Some nylon scourers may also scratch.
Check the label first.
• Never use oven cleaner on catalytic
panels or in a pyrolytic oven.
• Never leave alkaline (salty spills) or
acidic substances (such as lemon juice
or vinegar) on the oven surfaces.
• Never use cleaning products with a
chlorine or acidic base.
What? How? Important!
Glass
surfaces
(oven door
panes,
control
panel)
Door comprises a total of 3 glass panes
•Don’t use oven cleaners or any
other harsh/abrasive cleaners,
cloths, scouring pads, steel
wool or sharp metal scrapers to
clean the glass surfaces. These
scratch the glass and may
damage its special coating,
which in turn could result in the
glass cracking or shattering.
•Even if you only clean the inner
https://producthelp.fisherpaykel.com/au/Cook/Built-In_Ovens/Single/OB60SL7DEX1/User_Guide_OB60SL7DEX1/10_Care_a…
Updated: Mon, 03 Aug 2020 05:53:04 GMT
Powered by
1

What? How? Important!
• To clean glass pane B, you
will first need to remove the door and the inner
pane.
For instructions, see section ‘Removing and
replacing the door glass panes for cleaning’.
1. Clean with a solution of mild detergent or baking
soda and hot water, then wipe dry.
2. Wipe with a glass cleaner and dry with a soft, lint-
free cloth.
pane (C), remove the door and
the pane first. Cleaning the
glass with the pane in the door
may result in cleaning liquid
running down the gaps and
drying onto internal
components.
•Take particular care when
cleaning the control panel
glass. Only use a damp cloth
with detergent.
Dials • Clean with a solution of mild detergent and hot
water, then wipe dry.
•Do not use stainless steel or
oven cleaner on the dials, as
doing so may damage their
coating.
Stainless
steel strip/
handle on
the front of
the oven
door
• Clean with a solution of mild detergent and hot
water, then wipe dry with a microfibre cloth.
• If necessary, use a suitable stainless steel cleaner
and polish.
•Always read the label to make
sure that your stainless steel
cleaner does not contain
chlorine compounds as these
are corrosive and may damage
the appearance of your oven.
•Always rub the stainless steel in
the direction of the grain.
Aluminium
framing of
• Clean with a solution of mild detergent and hot water, then wipe dry.
https://producthelp.fisherpaykel.com/au/Cook/Built-In_Ovens/Single/OB60SL7DEX1/User_Guide_OB60SL7DEX1/10_Care_a…
Updated: Mon, 03 Aug 2020 05:53:04 GMT
Powered by
2

What? How? Important!
oven door
and plastic
corner
clips
Catalytic
panels
(purchased
separately)
• To clean light soiling off the surfaces:
1. Wipe with a damp cloth and a solution of hot
water and mild detergent or an ammonia-based
cleaner.
2. Wipe dry with a soft cloth.
• To clean stubborn, ‘baked on’ soiling run the oven
on Fan Grill at 200°C for 1.5 hours to enhance the
catalytic panel cleaning function.
•These panels are normally ‘self-
cleaning’ because their special
enamel breaks down greasy
splatters when the oven is used
for ‘non-greasy’ baking,
especially at high temperatures.
•Do not use oven cleaner on the
catalytic panels. If you wish to
use oven cleaner on any other
part of the enamelled cavity,
first remove the catalytic
panels.
•Do not immerse catalytic panels
in water.
•Never use scourers, brushes,
abrasives or cleaners with acid
or alkali content on the catalytic
panels.
Oven
cavity
• Remove everything from the oven: all shelves and
trays, the side racks, the catalytic panels.
1. Remove the oven door (see instructions on
following pages).
2. Wipe the inside of the oven using a household
detergents or an ammonia-based cleaner.
3. Wipe clean with a damp cloth and allow to dry
completely.
•To prevent soiling from
becoming ‘baked on’ and
stubborn, we recommend
removing any easy-to- reach
spills, food or grease stains
from the enamelled surfaces
after each use.
•To make wiping out the oven
easier you may remove and the
oven door. See the following
pages for instructions.
•To make cleaning the oven
ceiling easier, the grill element
can be lowered. See following
pages for instructions.
https://producthelp.fisherpaykel.com/au/Cook/Built-In_Ovens/Single/OB60SL7DEX1/User_Guide_OB60SL7DEX1/10_Care_a…
Updated: Mon, 03 Aug 2020 05:53:04 GMT
Powered by
3

What? How? Important!
Telescopic
sliding
shelf
supports
(purchased
separately)
• Wipe with a damp cloth and mild detergent. Do not
wipe off or wash away the white lubricating grease
(visible when the slides are extended).
•Do not wash these in the
dishwasher, immerse in soapy
water, use oven cleaner on
them or leave in the oven during
a Self Clean cycle (where
available) as doing so will
remove the white lubricating
grease and prevent the slides
from running smoothly.
Grill tray
Grill rack
Side racks
Oven
shelves
Baking
tray
• Clean with a solution of mild detergent and hot water.
• Pre-soak stubborn burnt-on stains in a solution of dishwasher powder and hot water..
• Except for the baking tray, these parts are also dishwasher safe. (Washing the baking tray in
the dishwasher may degrade its surface)
Oven seal • Do not clean this part.
Oven vent
louvres • Wipe with a damp cloth.
•Take care not to let any liquid
run down the louvres of the
oven vent.
Removing and replacing the side racks to clean behind or fit catalytic panels* (purchased separately)
Always turn off the oven at the wall first. Ensure the oven has cooled down completely
before starting.
Remove all the shelves
1. Remove all the shelving, taking special care with the telescopic sliding shelves.
2. To remove a telescopic sliding shelf*, grip it at the front (making sure you are gripping the wire shelf and the
sliding frame together), lift upwards and pull it out of the oven. For your safety, the wire shelf and telescopic
https://producthelp.fisherpaykel.com/au/Cook/Built-In_Ovens/Single/OB60SL7DEX1/User_Guide_OB60SL7DEX1/10_Care_a…
Updated: Mon, 03 Aug 2020 05:53:04 GMT
Powered by
4

sliding frame are built together as one unit and are not separable.
3. For easier access, we recommend removing the oven door. See ‘Removing and refitting the oven door.’
*Purchased separately. Contact your authorised dealer, customer care or see our local
website listed at the back of this document for details.

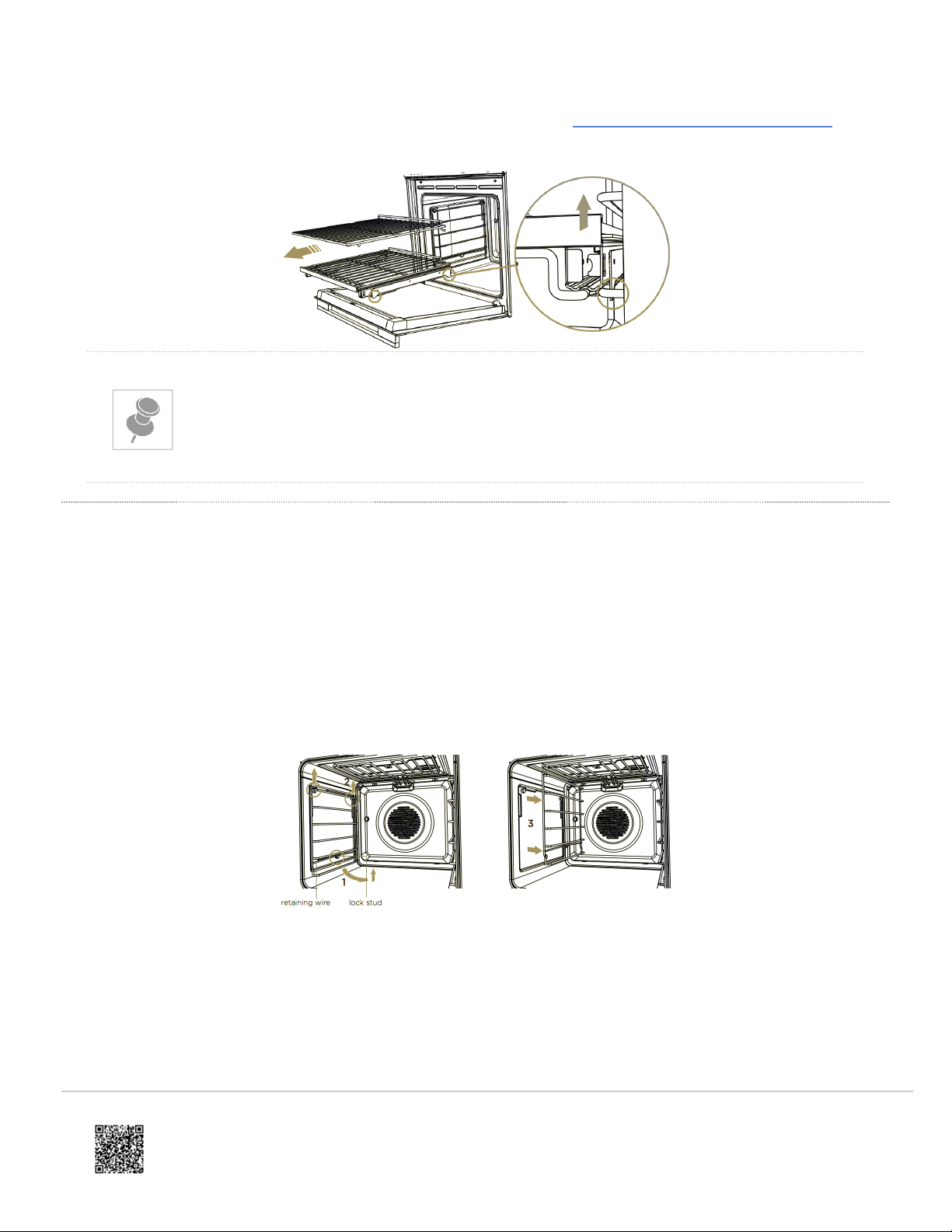

Remove both side racks
Remove both side racks by:
1) pushing down on the retaining wire until it clears the lower lock stud and swing out wards to
2) clear the upper lock studs, then
3) lift out.
https://producthelp.fisherpaykel.com/au/Cook/Built-In_Ovens/Single/OB60SL7DEX1/User_Guide_OB60SL7DEX1/10_Care_a…
Updated: Mon, 03 Aug 2020 05:53:04 GMT
Powered by
5

Fit both catalytic panels.
Place each catalytic panel flush against the side wall,
noting the position of the cutouts for the lamp and lock
nuts.
Replace both side racks.
To replace the side racks, locate the top of the side rack
into the two upper lock studs and gently push the
retaining wire back under the lower lock stud.
Replacing a wire shelf
Replace shelving.
To replace a wire shelf, check the guard rail (as shown) to make sure the shelf is the right way up. Slide it
horizontally back along the side racks ensuring it is level and the stop notch is facing down.
https://producthelp.fisherpaykel.com/au/Cook/Built-In_Ovens/Single/OB60SL7DEX1/User_Guide_OB60SL7DEX1/10_Care_a…
Updated: Mon, 03 Aug 2020 05:53:04 GMT
Powered by
6

Removing the catalytic panels (purchased separately)
Remove the side racks as previously described, then pull the catalytic panel toward the centre of the oven, until
clear of the lower locating nut.
Drop-down upper element
Always turn off the oven at the wall before lowering the upper element. Make sure the oven
has cooled down completely before starting.
• To lower the upper element: use a flat-head screwdriver or a small coin to loosen the element fixing screw. The
element will now drop down to enable cleaning.
• When you have finished cleaning the oven ceiling, raise the element and screw the element fixing screw back
onto the stud. Make sure that the fixing screw is tightened and the element is held securely in place.
• The element itself is self-cleaning.
https://producthelp.fisherpaykel.com/au/Cook/Built-In_Ovens/Single/OB60SL7DEX1/User_Guide_OB60SL7DEX1/10_Care_a…
Updated: Mon, 03 Aug 2020 05:53:04 GMT
Powered by
7

Replacing the oven light bulb
Oven bulb replacement is not covered by your warranty.
Your oven uses a screw-in incandescent OVEN bulb - it must be capable of withstanding high temperatures
(300°C) and with the specifications: 230-240V, 50Hz and 25W.
The light is located in the ceiling of the oven, center front.
Changing the bulb
1. Let the oven cavity and grill element cool down before changing the bulb.
https://producthelp.fisherpaykel.com/au/Cook/Built-In_Ovens/Single/OB60SL7DEX1/User_Guide_OB60SL7DEX1/10_Care_a…
Updated: Mon, 03 Aug 2020 05:53:04 GMT
Powered by
8

Turn the oven off at the wall before continuing.

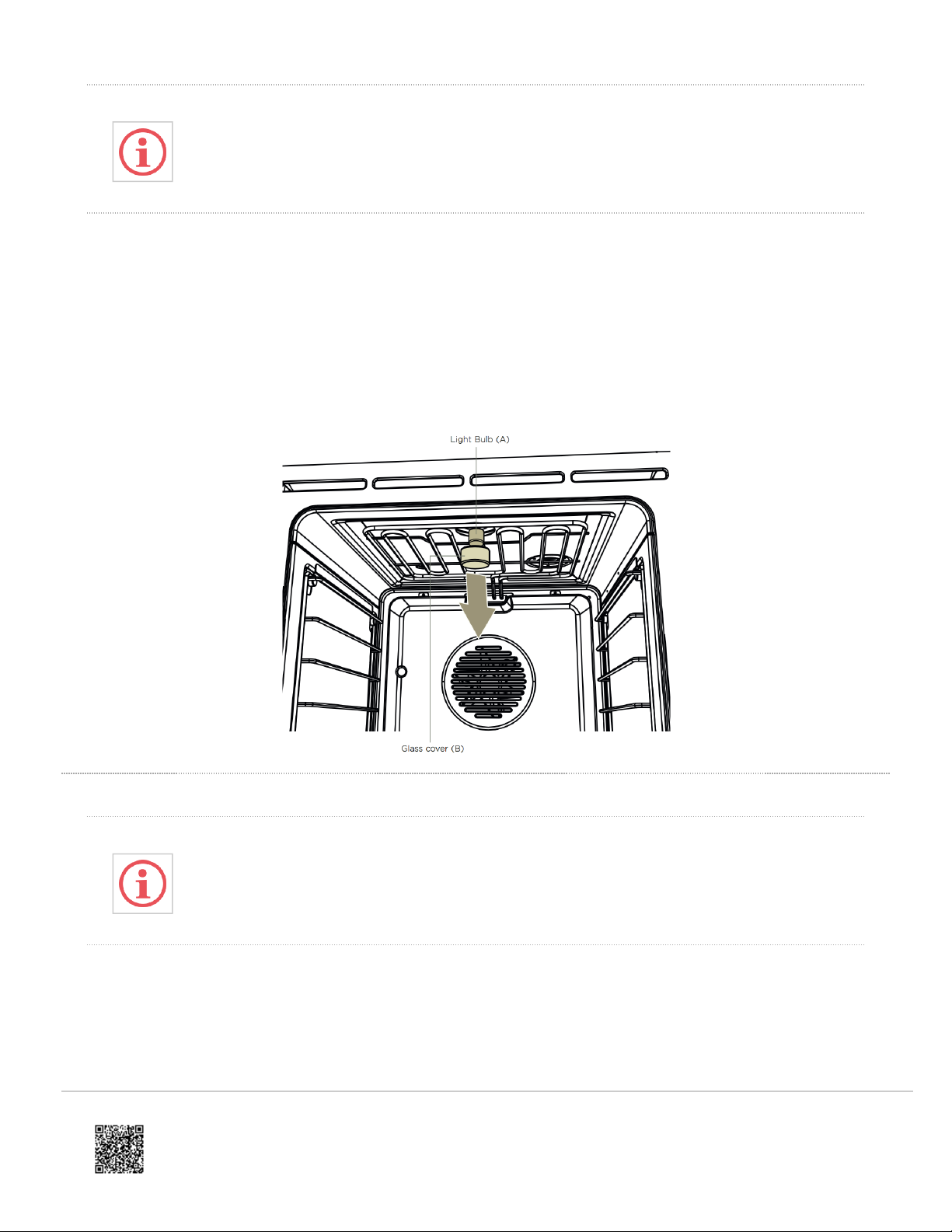

2. Turning anti-clockwise unscrew the glass cover (B).
3. Carefully unscrew the faulty light bulb (A).
4. Replace the light bulb (A)
5. Replace the glass cover (B).
6. Turn the oven back on and set the clock (see ‘First use’ for instructions).
Removing and refitting the oven door
Take care, the oven door is heavy!
To remove the door
1. Open the door fully 2. Open the levers.
https://producthelp.fisherpaykel.com/au/Cook/Built-In_Ovens/Single/OB60SL7DEX1/User_Guide_OB60SL7DEX1/10_Care_a…
Updated: Mon, 03 Aug 2020 05:53:04 GMT
Powered by
9

3. Hold the door.
4. Close the door until it connects with the top of
both levers
5. Disengage the hinges and remove the door.
To refit the door
Repeat the steps in reverse order:
1. Slide the hinges into the slots while lifting the
door slightly to engage the hinge.
2. Open the door fully.
3. Close the levers fully. If the levers do not lie flat,
https://producthelp.fisherpaykel.com/au/Cook/Built-In_Ovens/Single/OB60SL7DEX1/User_Guide_OB60SL7DEX1/10_Care_a…
Updated: Mon, 03 Aug 2020 05:53:04 GMT
Powered by
10

reposition the door by opening the levers fully
again and following steps 1-3.
Ensure the levers
lie flat against the
hinge before trying
to shut the door.

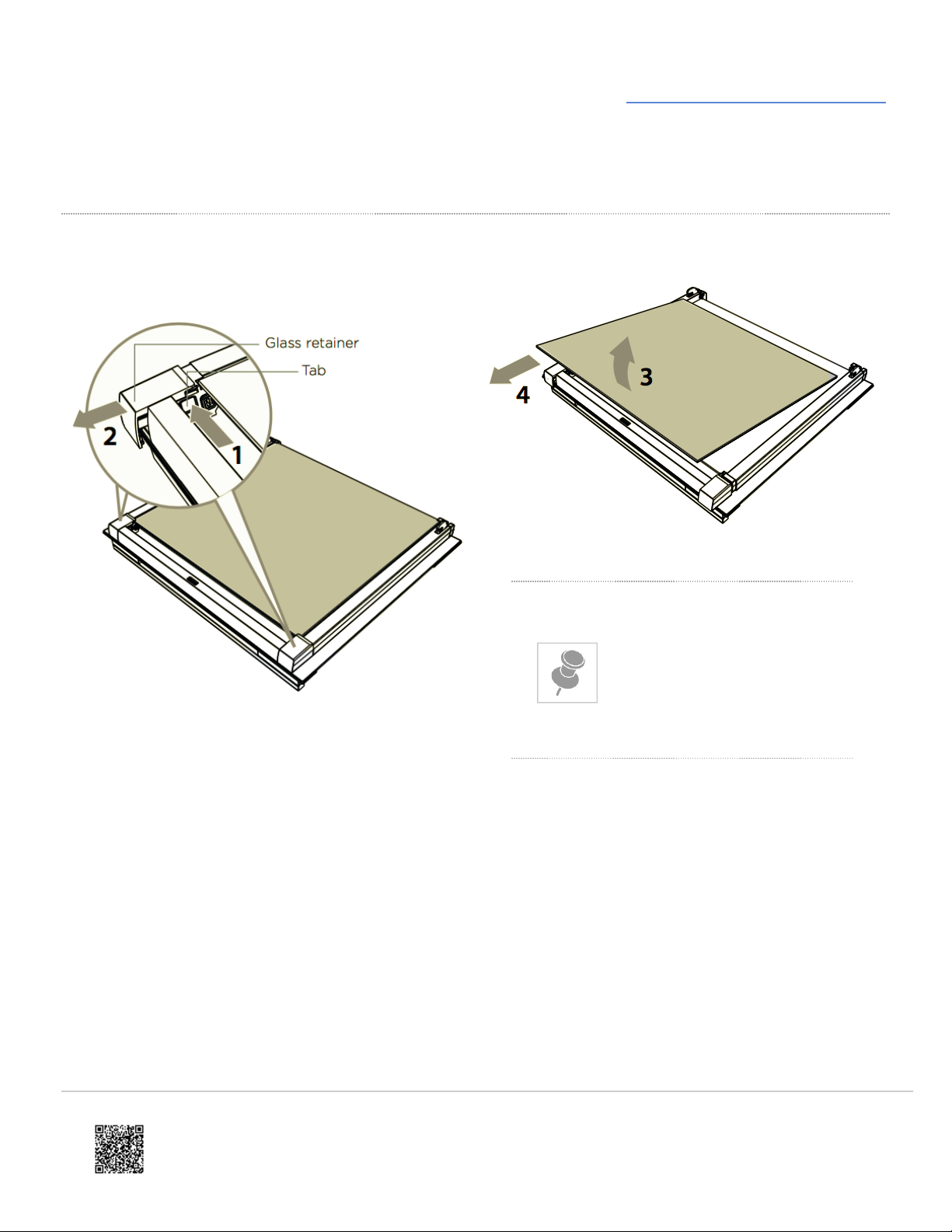

Removing the door glass panes for cleaning
• Make sure you follow the precautions and instructions below very carefully. Replacing the glass
panes and the door incorrectly may result in damage to the oven and may void your warranty.
• Take care, the oven door is heavy (11 kg). If you have any doubts, do not attempt to remove the
door.
• Make sure the oven and all its parts have cooled down. Do not attempt to handle the parts of a
hot oven.
• Take extreme care when handling the glass panes. Avoid the corners and edges of the glass
bumping against any surface. This may result in the glass shattering.
• Don’t use oven cleaners or any other harsh/abrasive cleaners, cloths, scouring pads, steel wool
or sharp metal scrapers to clean the glass surfaces. These scratch the glass and may damage
its special coating, which in turn could result in the glass cracking or shattering.
• If you notice any sign of damage on any of the glass panes (such as chipping or cracks), do not
use the oven. Call your Authorised Repairer or Customer Care.
• Make sure you replace all the glass panes correctly. Do not use the oven without all glass panes
correctly in place.
• If the glass panes feel difficult to remove or replace, do not force them. Call your Authorised
Repairer or Customer Care for help.
Service visits providing assistance with using or maintaining the oven are not covered by
your warranty.
https://producthelp.fisherpaykel.com/au/Cook/Built-In_Ovens/Single/OB60SL7DEX1/User_Guide_OB60SL7DEX1/10_Care_a…
Updated: Mon, 03 Aug 2020 05:53:04 GMT
Powered by
11

We recommend removing the door to make cleaning the glass easier. See ‘Removing and refitting the oven door.’
for instructions. Once the door is removed, lay it down on a soft, clean, flat surface.
Make sure you follow the precautions and instructions below very carefully. Replacing the glass panes and the
door incorrectly may result in damage to the oven and may void your warranty.
Remove the inner pane
1. Press in on both tabs to release the Glass
retainers.
2. Slide both Glass retainers away from the pane
3. Lift the top of the pane slightly
Only lift the pane slightly.
Angling the pane too much
may result in damage to
the glass.
4. Slide the pane toward the top of the door and
lift out
https://producthelp.fisherpaykel.com/au/Cook/Built-In_Ovens/Single/OB60SL7DEX1/User_Guide_OB60SL7DEX1/10_Care_a…
Updated: Mon, 03 Aug 2020 05:53:04 GMT
Powered by
12

Remove the middle pane
5. Brace the top of the door against your body.
Grasp both sides of the outer edges of the pane
at the bottom of the door.
6. Gently pull the pane toward the top of the door.
7. When the pane is clear of the clamp at the
bottom of the door, lift the pane slightly.
Do not twist or rotate the
pane as this may cause it
to break. Only lift the pane
slightly. Angling the pane
too far may cause it to
break.
8. Slide the pane out of the top clamp and lift out.
After cleaning, replace the door glass panes
When replacing the glass panes, make sure that:
• you replace all panes correctly, as shown. Each pane must be in the position described below in order to fit into
the door and to ensure that the oven operates safely and correctly
• you take extra care not to bump the edges of the glass against any object or surface
• you do not force any of the panes into place. If you are experiencing difficulties replacing the panes, remove
them and start the process again from the beginning. If this still does not help, call Customer Care.
https://producthelp.fisherpaykel.com/au/Cook/Built-In_Ovens/Single/OB60SL7DEX1/User_Guide_OB60SL7DEX1/10_Care_a…
Updated: Mon, 03 Aug 2020 05:53:04 GMT
Powered by
13

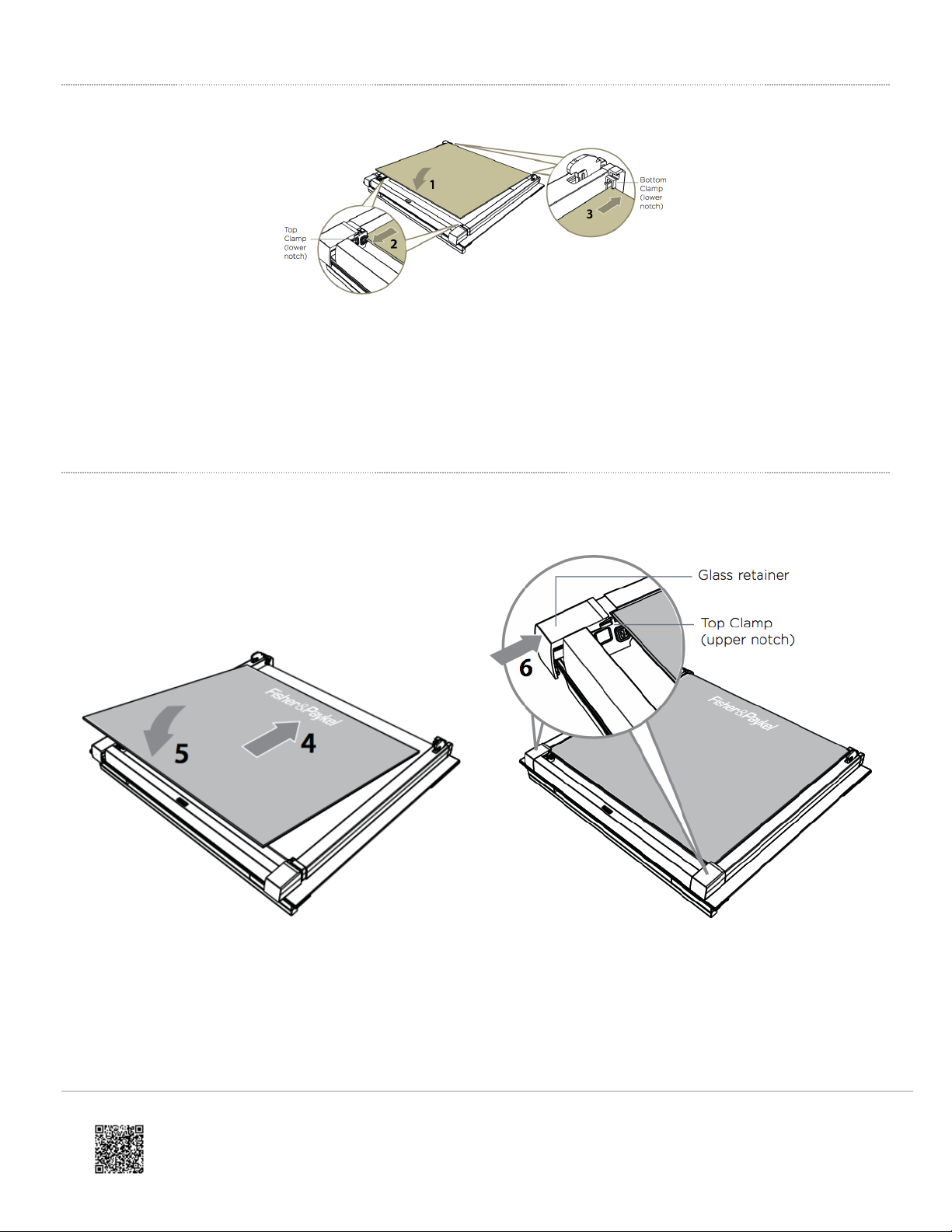

Replace the middle pane
1. Insert the pane into the lower notch on the
top clamps at the top of the door.
2. Carefully pull the pane toward the top of the
door.
3. Slot the pane into the lower notch on the bottom
clamps at the bottom of the drawer.
Replace the inner pane
4. Ensure the pane is the right way up 1 (ie the
logo should be readable at the bottom of the
door)
5. Lower the pane onto the upper notch on the top
clamps at the top of the door.
6. Slide the glass retainers back into position and
https://producthelp.fisherpaykel.com/au/Cook/Built-In_Ovens/Single/OB60SL7DEX1/User_Guide_OB60SL7DEX1/10_Care_a…
Updated: Mon, 03 Aug 2020 05:53:04 GMT
Powered by
14

Slide the pane into the upper notch on the
bottom clamps at the bottom of the door. ensure they have clipped securely in place.
Make sure the glass retainers are correctly and firmly in place and that the glass panes are
secure.
https://producthelp.fisherpaykel.com/au/Cook/Built-In_Ovens/Single/OB60SL7DEX1/User_Guide_OB60SL7DEX1/10_Care_a…
Updated: Mon, 03 Aug 2020 05:53:04 GMT
Powered by
15
