Fisher & Paykel Soft Touch electronic User manual

Built-in oven
User guide
supplement
NZ AU
Soft Touch electronic models

1
Contents
Introduction 2
Clock and timer 3
Operating the oven 4
Cooking functions 5
One Touch Cooking (OTC) 7
Automatic cooking 8
Soft Touch meat probe 10
Important!
SAVE THESE INSTRUCTIONS

2Introduction
About your new oven
Thank you for buying a Fisher & Paykel Soft Touch electronic built-in oven.
This model has some special features, which are explained in this supplementary user guide.
Before using your new oven, please read the main user guide first, which gives you important safety
and other information for all built-in oven models.

3
Clock and timer
Setting the clock
To set the clock, press the CLOCK button, and then press the HOURS and MINUTES buttons until the
clock shows the correct time.
You can choose between 12 or 24 hour clock displays. To do this, press and hold down the CLOCK
button and CLEAR button at the same time. Each time these buttons are pressed together the clock
alternates between 12 and 24 hour displays.
Using the timer
You can use the timer at any time, even when the oven is not in use. The timer does not turn the
oven off.
To set the timer, press the MINUTE TIMER button, then the HOURS and MINUTES buttons to set the
time you want. The display will show the remaining time, counting down in minutes and seconds.
To see the time of day while the timer is running, press CLOCK. The display will briefly show the time
of day, then return to showing the countdown of time remaining.
When the time is up, the timer will beep and TIMER will flash in the display. To turn it off, press any
clock button.
To cancel the timer at any time, press CLEAR.
Limiting the number of ‘beeps’
You can limit the number of times your oven beeps to five beeps. To do this, press the CLOCK and
FUNCTION buttons together. Do the same again to return to a longer beep time of approximately
five minutes.
Fig.1 Electronic Soft Touch control panel and clock

4
1 Turn the oven on with the ON/OFF button.
Your oven has been pre-set to FAN BAKE 160 °C.
2 Scroll to the required function with the
FUNCTION and buttons.
Scrolling down, the order of functions is:
FAN BAKE  FAN  BAKE  WARM  DEFROST  GRILL H9  GRILL E9  FAN GRILL
3 Adjust the temperature in 5 °C steps with the TEMP and buttons. Each cooking function has a
pre-set temperature which can be adjusted, except for WARM. The temperature display will alternate
between the set and actual temperature, and the red oven indicator light will glow until the oven
has reached the set temperature. The oven beeps twice when it reaches the set temperature.
4 When you have finished cooking, turn the oven off by pressing the ON/OFF button.
Note: the oven cooling fan comes on automatically at different stages of the cooking cycle. It blows
out warm air above the door. When the oven is turned off, the cooling fan may stay on until the
oven cools down.
Locking the control panel
For extra safety, you can lock the control panel to guard against accidental bumps, for example when
you are cleaning the oven, or to stop children using the oven when they should not.
To lock or unlock the control panel, press and hold the KEY LOCK button for two seconds.
Note: for safety reasons, you can still turn your oven off when KEY LOCK is on.
Operating your oven
Fig.2 Electronic Soft Touch control panel, display and clock

5
Cooking functions
FAN BAKE Fan plus top and bottom
elements
FAN BAKE circulates hot air from the
top and bottom elements. Food cooks
faster than in BAKE, so you may need to
lower the oven temperature by 5-10 °C.
FAN BAKE is good for crisping food, eg
pastry products, and it is also the best
method for heating your pizza stone.
1
Press the ON/OFF button.
2
The default temperature is 160 °C. Adjust this using the
TEMP and buttons.
3
Preheat the oven before use.
FAN (FAN FORCED) Fan plus fan
element
Heat from the element around the fan
is forced throughout the oven. FAN
is perfect for multi-shelf cooking and
batch baking, casseroles and baked
potatoes.
1
Press the ON/OFF button.
2
Press the FUNCTION button once.
3
The default temperature is 180 °C. Adjust this using the
TEMP and buttons
4
Preheat the oven before use.
BAKE Top and bottom elements
BAKE is the traditional method of
cooking. It is best to cook on only one
shelf at a time in this function. Use
BAKE for delicate food and foods that
require long cooking, eg fruit cakes,
bread and roasts.
1
Press the ON/OFF button.
2
Press the FUNCTION button twice.
3
The default temperature is 180 °C. Adjust this using the
TEMP and buttons.
4
Preheat the oven before use.
WARM Top and bottom elements
WARM is a constant low heat, useful
for keeping hot food warm or warming
plates. It should not be used to reheat
food as the food will not reach a
temperature high enough to kill any
harmful bacteria.
1
Press the ON/OFF button.
2
Press the FUNCTION button three times.
3
The default temperature is 75 °C. This cannot be
adjusted.

6
DEFROST Fan only
The fan circulates air around the oven,
speeding up the defrosting process by
approximately 30%.
1
Press the ON/OFF button.
2
Press the FUNCTION button four times.
3
The default temperature is 50 °C. You can adjust this
between 50 °C and 30 °C, using the TEMP and
buttons.
4
Preheat the oven before use.
GRILL-HI Inner and outer top
elements
GRILL-HI uses both of the top elements
and is ideal for grilling a large area of
food. For best results leave the door
open at the first stop position. Grilled
vegetables are quick to cook and full
of flavour.
1
Press the ON/OFF button.
2
Press the FUNCTION button five times.
3
The default temperature is H9, the hottest. Adjust this
using the TEMP and buttons.
4
Preheat the grill before use.
GRILL-ECO Top inner element
GRILL-ECO uses the inner area of the
top element and is useful when you
need to grill single servings or small
pieces of food. For best results leave
the door open at the first stop position.
1
Press the ON/OFF button.
2
Press the FUNCTION button six times.
3
The default temperature is E9, the hottest. Adjust this
using the TEMP and buttons.
4
Preheat the grill before use.
FAN GRILL Fan plus top elements
FAN GRILL circulates hot air from the
top elements and is excellent for food
that would normally be fried. Large
cuts of meat can be cooked using this
function with results similar to using
a rotisserie. Use FAN GRILL for dishes
such as lasagne and moussaka. Fan-
grilled whole chicken is excellent.
Fan grill with the oven door closed.
1
Press the ON/OFF button.
2
Press the FUNCTION button seven times.
3
The default temperature is 180 °C. Adjust this using the
TEMP and buttons.
Cooking functions

7
One Touch Cooking (OTC)
About OTC
OTC allows you to save a cooking function and temperature in the oven’s memory.
To save OTC
1 Turn the oven on and set the function and temperature.
2 Press the OTC button. OTC will light up in the display indicating that the settings are saved.
3 Turn the oven off if OTC is not required immediately. OTC will remain lit in the display.
To recall OTC
Press the OTC button. The oven will display your saved settings and start automatically.
To clear OTC
Press the OTC button twice quickly. The OTC light will go out, showing the memory is cleared.
Notes:
OTC can be saved as an automatic cooking function. See the ‘Automatic cooking’ section.
You can change the oven function and temperature while the oven is cooking, and this will not
change your saved OTC settings.
If the power is turned off at the wall, you will lose your saved OTC settings.

8
Use automatic cooking to turn the oven on, cook and then turn the oven off.
1 Check the clock shows the correct time.
2 Turn the oven on and select the function and
temperature. The red oven indicator light will glow
and the oven will come on.
3 Decide how long the food will take to cook,
allowing time for preheating if necessary.
4 Press the button. 0.00 will show. Using the
HOURS and MINUTES buttons, set the cooking time,
eg 1 hour. COOK TIME will flash and AUTO will show
in the clock display.
5 Select the time you would like the oven to turn off
by pressing the button. STOP TIME will flash in
the display. Enter the time you would like the food
to finish cooking using the HOURS and MINUTES
buttons eg 7.45 pm.
If you are already at home to turn the oven on and only want the oven to turn off automatically, start
cooking as normal, then follow step 5 to set a time for when you want the oven to turn off.
If there is time to wait before automatic cooking starts, the current
time of day and AUTO will show in the clock display. The red oven
indicator light will go out, and the oven will switch off, but the oven
lights will remain on. The oven is now set for automatic cooking.
Note: the cooling fan may remain on.
When automatic cooking starts, AUTO and the remaining cook time will be displayed and the oven
will turn on.
To see the stop time, press the STOP
TIME button.
To cancel automatic cooking at any time, press the CLEAR button, and then the ON/OFF button to
turn the oven off.
When the stop time is reached, the oven will turn off, the timer will beep and AUTO will flash in the
display. Press any button to stop the beeping and return the oven to manual mode.
Automatic cooking

9
Automatic cooking
Using One Touch Cooking (OTC) with automatic cooking
You can also use OTC with automatic cooking. You can save automatic cooking times, temperatures
and functions, and then recall them with one press of the OTC button.
To save your automatic cooking settings:
1 Check the clock shows the correct time.
2 Select the function and temperature.
3 Set the cook time (see step 4 in ‘Automatic cooking’)
4 Set the stop time (see step 5 in ‘Automatic cooking’)
5 Press the OTC button while STOP TIME or COOK TIME is still flashing. OTC will light up in the display,
showing that your settings are saved.
If you do not need OTC immediately, turn the oven off. OTC will remain lit in the display.
To recall OTC, press the OTC button. The oven will display your saved settings, and start automatically.
To clear OTC, press the OTC button twice quickly. The OTC light will go out.
Notes:
You can change the oven function and temperature while the oven is cooking, and this will not
change your saved OTC settings.
If the power is turned off at the wall, you will lose your saved OTC settings.

10 Soft Touch meat probe
Using the Soft Touch meat probe
1 Place the meat on the three-piece grill/roast system.
2 Insert the probe so that the tip of the probe is in the centre of the meat.
3 Place the meat in the oven.
4 Turn the oven on and select the function and temperature. There is no need to preheat the oven
when using the meat probe.
5 Using an oven mitt or tongs, carefully lift the socket cover (in the top right-hand front corner of
the oven) and plug the probe into the socket. Do not touch the top element. The last-used probe
temperature and PROBE will show in the display. If the meat is frozen or near frozen PROBE may not
light immediately.
6 To change the probe temperature, press the TEMP and buttons. The temperature changes in
1 °C steps.
Checking the oven temperature when using the meat probe
To check the oven temperature, press the PROBE button. The display will automatically go back
to the set probe temperature after eight seconds and then alternate between the actual meat
temperature and the set probe temperature.
When the internal temperature is reached
When the set internal temperature is reached, the oven beeps and AUTO flashes in the display. The
oven will automatically turn off.
Press any button to stop the beeping and clear AUTO.
See the ‘Roasting chart’ for suggested internal meat temperatures.
Important!
Use only the meat probe supplied with this oven.
Roasting chart
Food Shelf Temp oC Mins/500 g Internal temp oC
Meat
Beef - rare 7 160-170 30-35 50-60
Beef - medium 7 160-170 35-45 65-70
Beef - well done 7 160-170 45-60 75-80
Mutton - well done 7 160-170 45-60 75-80
Hogget - medium 7 160-170 30-40 65-70
Hogget - well done 7 160-170 45-60 75-80
Pork - well done 7 180-185 40-45 75-80
Chicken - well done 7 160-180 25-30 82-85
Venison* - rare 7 220 3.5 per cm thickness 50-60
*
Brown prior to roasting in an oiled frypan on high heat.

11

12

Copyright © Fisher & Paykel 2005. All rights reserved.
The product specifications in this booklet apply to
the specific products and models described at the
date of issue. Under our policy of continuous product
improvement, these specifications may change at any
time. You should therefore check with your Dealer to
ensure this booklet correctly describes the product
currently available.
www.fisherpaykel.com
NZ AU

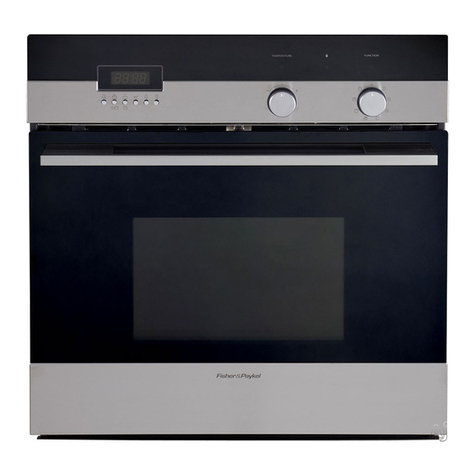

Built-in oven user guide supplement
Published: 08/2005
Part No. 542640 A
