Fisher & Paykel BI600ED User manual

Built In Walloven
Double & Combination
Series
Models
BI600ED BI600ED+
BI600QASE2
BI600QASE1.5
BI600XC
599072

MANUAL 599072 February 2000 Reprinted 7 December, 2001
Fisher & Paykel Appliances Ltd
Appliance Spare Parts
PO Box 14-148, Panmure.
80 Springs Rd, East Tamaki
New Zealand
Tel: [phone]
Fax: [phone]
Email: [e-mail]
COPYRIGHT FISHER & PAYKEL LTD 2001 3
PRODUCTS
Brand Fisher & Paykel, Shacklock
Voltage 220-240V 50Hz
Model Code
BI600ED+ 87540 87541 87542 87594
BI600QASE 2 87629 87661
BI600QASE1.5 87628 87660
BI600XC 84565 87589 87651

MANUAL 599072
4

MANUAL 599072
GUIDE TO USING THIS MANUAL
The model(s) and/or series covered by this manual are listed on the front cover.
The information detailed in this manual is subject to change without notice, the latest version is
indicated by the reprint date and replaces any earlier editions.
The front cover picture shows the type of product and may not necessarily be an exact image of the
models covered by the manual.
Part References
Where a Model is shown, the part is exclusive to the Model(s) stated. Common parts relating to a part
reference are applicable to all other Model(s) which use the particular item.
Kit Parts
The components shown in italics are those parts in the kit which are available also as separate items. In
addition, some parts may be supplied with this kit which are not available as separate items and are
therefore not listed in this manual.
All details relating to Technical Bulletins or Notes are shown on a dedicated page. The Technical
Bulletin Number shown relates to the bulletin version which is produced for New Zealand Service
Centres.
Parts List Key
NOT USED As a part, indicates the diagram part reference is not used in this manual.
# Beside the part number, indicates the part is no longer available.
italics Kit components shown in italics are also available separately.
* Indicates a technical bulletin or note exists for the part or part reference.
NI As a part reference, indicates the part is not illustrated on the diagram.
5
CONTENTS
BUILT IN DOUBLE CONTROL PANELS...............................................................................................................................6
BUILT IN DOUBLE CONTROLS.............................................................................................................................................8
BUILT IN DOUBLE ELEMENT & ACCESSORIES .............................................................................................................10
BUILT IN DOUBLE CHASSIS ASSEMBLY.........................................................................................................................16
BUILT IN DOUBLE MAIN DOOR ASSY..............................................................................................................................22
BUILT IN DOUBLE LOWER DOOR ASSEMBLY...............................................................................................................24
PANEL & TRIM COMPONENTS XC MODEL.....................................................................................................................26
MICROWAVE PANASONIC NN-T687SA............................................................................................................................28
DOOR ASSEMBLY - NN-T687SA .........................................................................................................................................32
NOTES......................................................................................................................................................................................35

MANUAL 599072
6

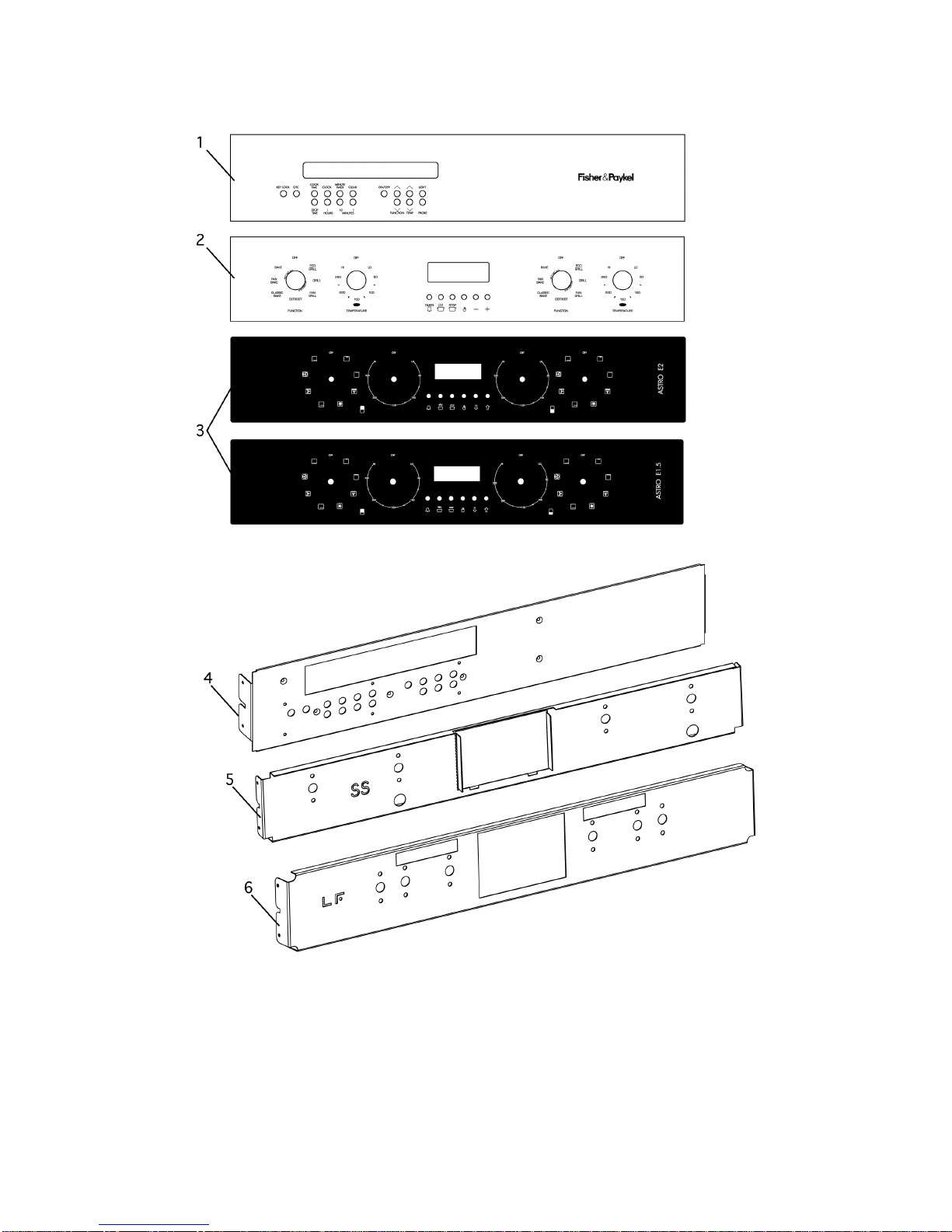

BUILT IN DOUBLE CONTROL PANELS

MANUAL 599072
7
BUILT IN DOUBLE CONTROL PANELS
REF PART DESCRIPTION MODEL
1 447608 PANEL CONTROL ASSY WO600XSS SH BI600XC
447609 PANEL CONTROL ASSY WO600XSS FP BI600XC
2 540188 PANEL CONTROL GLASS BI600ED WH BI600ED
540221 PANEL CONTROL ASSY SS BI600ED BI600ED
540277 PANEL CONTROL ASSY BK BI600ED BI600ED
3 540436 CONTROL CAP ASSY ASTRO E2 BI600QASE 2
540435 CONTROL CAP ASSY ASTRO E1.5 BI600QASE1.5
4 447504 PANEL CONTROL MOUNTING BI600X BI600XC
5 540111 PANEL CONTROL MOUNTING 600D SS BI600ED
6 540387 PANEL CONTROL MOUNTING BI600QASE 2
540387 PANEL CONTROL MOUNTING BI600QASE1.5

MANUAL 599072
8
BUILT IN DOUBLE CONTROLS

MANUAL 599072
9
BUILT IN DOUBLE CONTROLS
REF PART DESCRIPTION MODEL
1 447785 SWITCH FUNCT EGO 42.09000.006 BI600ED
447785 SWITCH FUNCT EGO 42.09000.006 BI600QASE 2
447785 SWITCH FUNCT EGO 42.09000.006 BI600QASE1.5
2 556020 SCREW MC M4X5 PAN PH MS NP
3 540056 KNOB ASSY WEDGE SS BI600ED
572427 KNOB ASSY WH/SC D 90 BI600ED
260160 COMPRESSION RING SPIRE SCB1730
572429 KNOB ASSY BK/SC D 90 BI600ED
260160 COMPRESSION RING SPIRE SCB1730
4 540301 KNOB AERON/ASTRO BI600QASE 2
540301 KNOB AERON/ASTRO BI600QASE1.5
5 447651 NEON 240MM TYPE 60XXXH230 BI600ED
6 447652 BEZEL NEON ROUND RED TYPE 601R BI600ED
540317 BEZEL NEON AERON BI600ED
7 572919 NEON 190MM (ACTIVE) BI600ED
8 540431 NEON BLUE ASTRO BI600QASE 2
540431 NEON BLUE ASTRO BI600QASE1.5
9 571071 THERMOSTAT EGO 55.18064.040
10 572642 CLOCK ELECT ORBIASIC6 13156003 BI600ED
572642 CLOCK ELECT ORBIASIC6 13156003 BI600QASE 2
572642 CLOCK ELECT ORBIASIC6 13156003 BI600QASE1.5
11 447649 BUTTON DIEHL 13126.438 BLACK BI600ED
573124 BUTTON DEIHL 13126-925 WHITE BI600ED
540395 SPACER DOOR ASTRO BI600QASE 2
540394 BUTTON CLOCK ASTRO BI600QASE1.5
12 447438 LENSE ADAPTOR DIEHL CLOCK BI600ED
13 447824P CONSOLE FAN FORCED SERVICE BI600XC
14 572341 LENSE INSERT CONSOLE ONE OVEN BI600XC
15 447560 BUTTON MOULDING SS BI600 BI600XC
16 540385 BUTTON CONTROL ASTRO X
17 540386 GASKET BUTTON CONTROL ASTRO X
18 572699 TERMINAL BLOCK SNT-8
19 540464 BRACKET NEON MOUNTING

MANUAL 599072
10

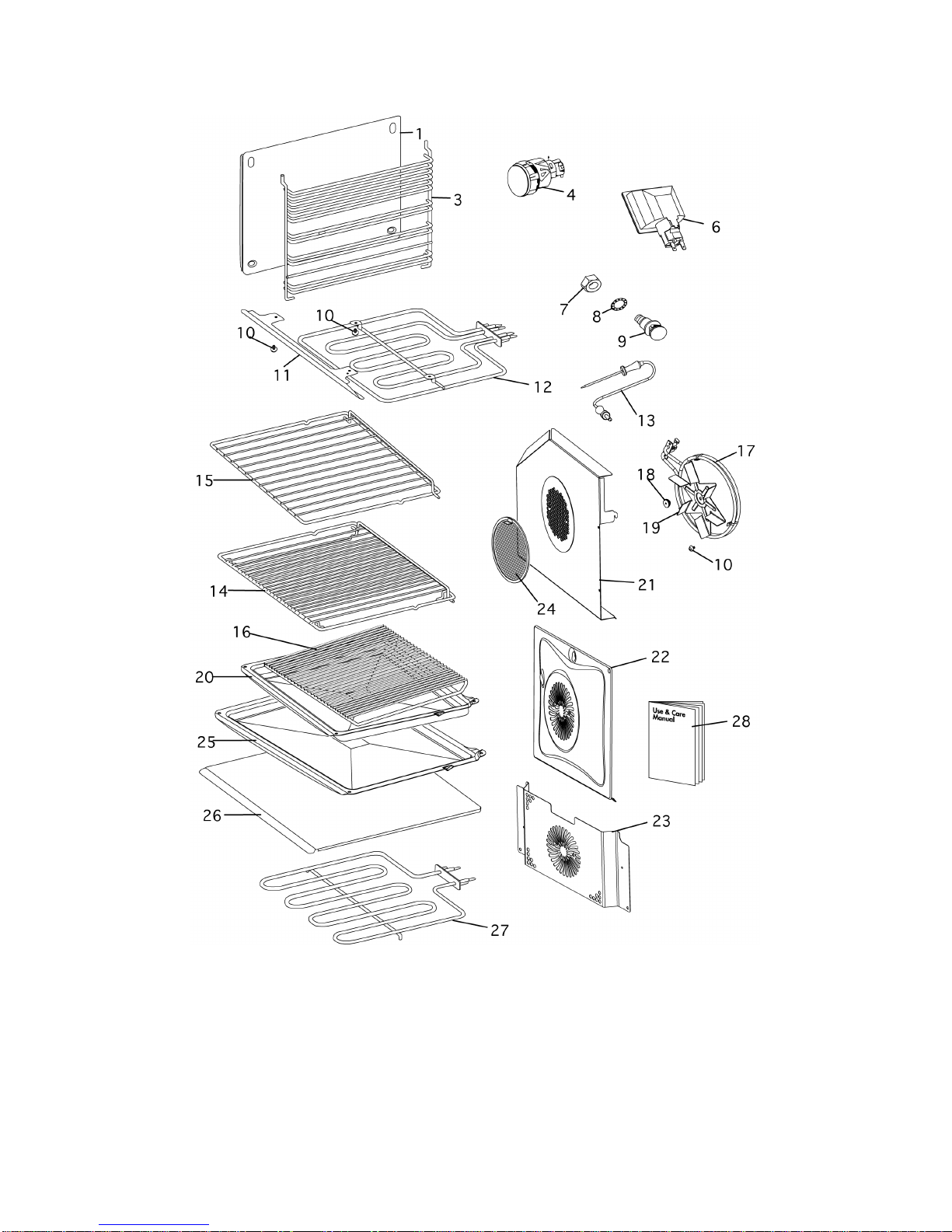

BUILT IN DOUBLE ELEMENT & ACCESSORIES

MANUAL 599072
11
BUILT IN DOUBLE ELEMENT & ACCESSORIES
REF PART DESCRIPTION MODEL
1 447746 PANEL SIDE ENAM CAT BK BI600ED
540094 PANEL SIDE LWROVEN ENAM CAT BK BI600ED
447746 PANEL SIDE ENAM CAT BK BI600QASE 2
447746 PANEL SIDE ENAM CAT BK BI600QASE1.5
540094 PANEL SIDE LWROVEN ENAM CAT BK BI600QASE1.5
2 NOT USED
3 447701 RUNNERS WIRE ASSY PLATED BI600ED
540173 RUNNERS WIRE ASSY LWR PLATED BI600ED
447334 RUNNERS WIRE ASSY PLSATIN CR BI600QASE 2
447334 RUNNERS WIRE ASSY PLSATIN CR BI600QASE1.5
540493 RUNNERS WIRE ASSY LWR SATIN CR BI600QASE1.5
447701 RUNNERS WIRE ASSY PLATED BI600XC
4 571909 LAMP ASY OVEN 708102-51-40-240 BI600ED
404000 LAMP OVEN SES LUSTRE 230V 40W
761001 COVER GLASS
571909 LAMP ASY OVEN 708102-51-40-240 BI600XC
404000 LAMP OVEN SES LUSTRE 230V 40W
761001 COVER GLASS
5 NOT USED
6 573112 LAMP ASSY SIDE BJB 77.705 BI600ED
573235 LAMP FLOODLIGHT 230V 25W SES BI600ED
573236 COVER GLASS FLOODLIGHT BI600ED
573112 LAMP ASSY SIDE BJB 77.705 BI600QASE 2
573235 LAMP FLOODLIGHT 230V 25W SES BI600QASE 2
573236 COVER GLASS FLOODLIGHT BI600QASE 2
573112 LAMP ASSY SIDE BJB 77.705 BI600QASE1.5
573235 LAMP FLOODLIGHT 230V 25W SES BI600QASE1.5
573236 COVER GLASS FLOODLIGHT BI600QASE1.5
573112 LAMP ASSY SIDE BJB 77.705 BI600XC
573235 LAMP FLOODLIGHT 230V 25W SES BI600XC
573236 COVER GLASS FLOODLIGHT BI600XC
7 556107 NUT M6 HEX 10AF FS MS ZNPL
8 556510 WASHER LOCK 6MM INT SERR ST BU
9 447716 STUD MOUNTING
10 556095 SCREW ST 8X3/8 TAB MSH TX20 NP
11 540005 GUARD TOP ELEMENT ENAM BU MOT BI600ED
447330 GUARD TOP ELEMENT PL SATIN CR BI600QASE 2

MANUAL 599072
12
BUILT IN DOUBLE ELEMENT & ACCESSORIES

MANUAL 599072
13
BUILT IN DOUBLE ELEMENT & ACCESSORIES
REF PART DESCRIPTION MODEL
11 540702 GUARD TOP ELEMENT ENAM FLINT BI600QASE 2
447330 GUARD TOP ELEMENT PL SATIN CR BI600QASE1.5
540702 GUARD TOP ELEMENT ENAM FLINT BI600QASE1.5
540005 GUARD TOP ELEMENT ENAM BU MOT BI600XC
12 540510 ELEMENT ASSY TOP
13 571644 PROBE MEAT DIEHL713904023 BI600XC
14 447735 RACK GRILL PLATED BI600ED
447337 RACK GRILL PLATED SATIN CR BI600QASE 2
447337 RACK GRILL PLATED SATIN CR BI600QASE1.5
447735 RACK GRILL PLATED BI600XC
15 447364 RACK BAKE 600 PLATED BI600ED
447366 RACK BAKE 600 PLATED SATIN CR BI600QASE 2
447366 RACK BAKE 600 PLATED SATIN CR BI600QASE1.5
447364 RACK BAKE 600 PLATED BI600XC
16 540547 RACK GRILL INSERT PLATED BI600ED
540642 RACK GRILL INSERT SATIN PLATED BI600QASE 2
540642 RACK GRILL INSERT SATIN PLATED BI600QASE1.5
540547 RACK GRILL INSERT PLATED BI600XC
17 447752 ELEMENT ASSY FAN 20.29477.020
18 573067 FAN LOCK NUT EBM
19 572973 FAN BLADE (FASCO MOTOR)
20 540003 TRAY BAKING 600 ENAM BU MOT BI600ED
540452 TRAY BAKING 600 ENAM FLINT BI600QASE 2
540452 TRAY BAKING 600 ENAM FLINT BI600QASE1.5
540003 TRAY BAKING 600 ENAM BU MOT BI600XC
21 447756 SHROUD FAN ELEMENT ENAM CAT BK BI600ED
447756 SHROUD FAN ELEMENT ENAM CAT BK BI600XC
22 573161 SHROUD FAN ELEMENT ENAM CAT BK BI600ED
573161 SHROUD FAN ELEMENT ENAM CAT BK BI600QASE 2
573161 SHROUD FAN ELEMENT ENAM CAT BK BI600QASE1.5
573161 SHROUD FAN ELEMENT ENAM CAT BK BI600XC
23 540113 SHROUD FAN ELEMENT ENAM CAT BK BI600ED
540419 SHROUD FAN BI45 AERO EN CAT BK BI600ED
540113 SHROUD FAN ELEMENT ENAM CAT BK BI600QASE1.5
540419 SHROUD FAN BI45 AERO EN CAT BK BI600QASE1.5
24 447828 FILTER FAT
25 540004 TRAY ROASTING 600 ENAM BU MOT BI600ED+

MANUAL 599072
14
BUILT IN DOUBLE ELEMENT & ACCESSORIES

MANUAL 599072
15
BUILT IN DOUBLE ELEMENT & ACCESSORIES
REF PART DESCRIPTION MODEL
25 540453 TRAY ROASTING 600 ENAM FLINT BI600QASE 2
540453 TRAY ROASTING 600 ENAM FLINT BI600QASE1.5
540004 TRAY ROASTING 600 ENAM BU MOT BI600XC
26 540451 COVER LWR ELEMENT ENAM FLINT BI600ED
540451 COVER LWR ELEMENT ENAM FLINT BI600QASE 2
540451 COVER LWR ELEMENT ENAM FLINT BI600QASE1.5
540007 COVER LWR ELEMENT ENAM BU MOT BI600XC
27 447751 ELEMENT ASSY LOWER
28 540197 BOOK USE & CARE BI600 FAN OVEN BI600ED+
540454 BOOK USER GUIDE ASTRO E BI600QASE 2
540454 BOOK USER GUIDE ASTRO E BI600QASE1.5
540197 BOOK USE & CARE BI600 FAN OVEN BI600XC
NI 89017 ACPROD PIZZA STONE
447813 PIZZA PADDLE
447820 CARD INSTRUCTION PIZZA STONE
NI 571972 CARD WARRANTY (NEW ZEALAND)
NI 473664 CARD WARRANTY F&P AU
NI 599056 CARD INSTAL INSTR BI600/450
NI 872959 SMART CARE LEAFLET&ENVELOPE AU
NI 479151 LEAFLET SMART CARE NZ

MANUAL 599072
16

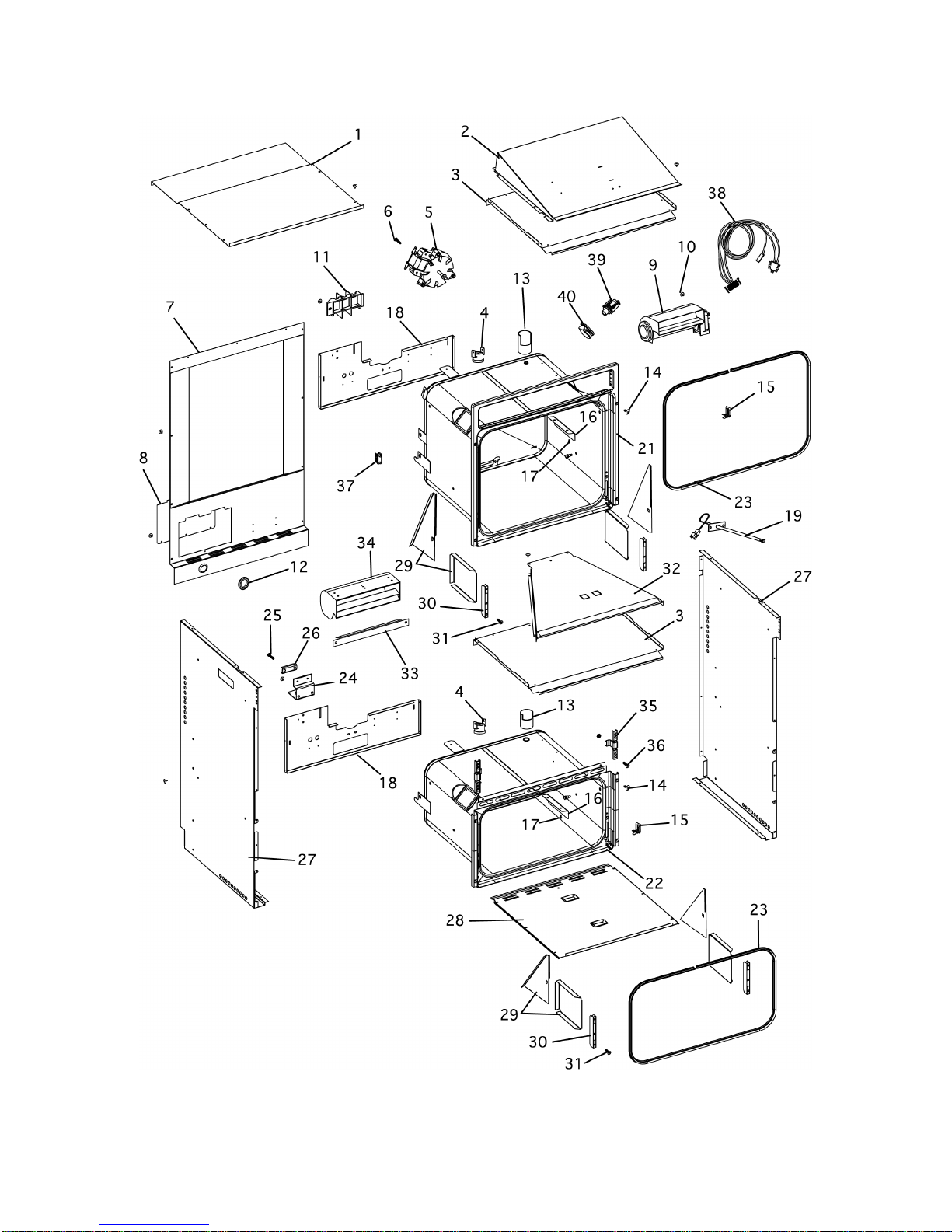

BUILT IN DOUBLE CHASSIS ASSEMBLY

MANUAL 599072
17
BUILT IN DOUBLE CHASSIS ASSEMBLY
REF PART DESCRIPTION MODEL
1 447507 COVER WIRING TOP
2 447505 PANEL MOUNTING FAN DUCT
540649 PANEL MOUNTING FAN DUCT
3 447506 PANEL INSULATION FAN DUCT
4 540039 LIMITER 140C CAMPINI TY60 NC
540128 CLIP THERMAL LIMITER CAMPINI
573220 LIMITER 155C CAMPINI TY60 NC
5 572923 FAN KITSET J06OV10A 3/4 STACK
6 556037# SCREW ST 8X5/8 TAB PAN PH HS NIPL
7 540074 COVER WIRING BACK SM DBL BI600ED
540233 COVER WIRING REAR 100/100 BI600QASE 2
540713 COVER WIRING BACK 2DBL BI600QASE 2
540074 COVER WIRING BACK SM DBL BI600QASE1.5
540712 COVER WIRING BACK 1.5DBL BI600QASE1.5
540209 COVER WIRING BACK BI600XC
540688 COVER WIRING BACK BI600XC BI600XC
8 571878 COVER INSPECTION
9 573028 FAN CONSORT HR180006-A200
10 556047 SCREW ST 4X3/8 TAB PAN PH NP
11 572640 TERMINAL BLOCK MAINS
12 447612 GROMMET MAINS CABLE (IM6160)
13 447520 VENT TUBE WO600
540120 VENT TUBE LOWER OVEN
14 556078 SCREW ST 8X12MM TAB MTS PH BK
15 471651 CLIP THERMST TUBE 3MM FT47220
16 540011 GUARD THERMOSTAT ENAM BU MOT BI600ED
540430 GUARD THERMOSTAT ENAM FLINT BI600QASE 2
540430 GUARD THERMOSTAT ENAM FLINT BI600QASE1.5
540011 GUARD THERMOSTAT ENAM BU MOT BI600XC
17 556082 SCREW ST M4X12 XTITE HXWPH NWX
18 447512 BRACKET SUPPORT OVEN
540650 BRACKET SUPPORT OVEN
19 571630 PROBE TEMP. SENSOR HY CAL
20 540095 BRACKET SUPPORT LOWER OVEN BI600QASE1.5
21 540012 OVEN&FRAME ENAM BI600E BU MOT BI600ED
540134 OVEN&FRAME ENAM BI600E BU MOT BI600ED
540730 OVEN&FRAME BI600E ENAM BU MOT BI600ED

MANUAL 599072
18
BUILT IN DOUBLE CHASSIS ASSEMBLY

MANUAL 599072
19
BUILT IN DOUBLE CHASSIS ASSEMBLY
REF PART DESCRIPTION MODEL
21 540428 OVEN&FRAME ENAM BI6QASE FLINT BI600QASE 2
540738 OVEN&FRAME BI6QASE ENAM FLINT BI600QASE 2
540428 OVEN&FRAME ENAM BI6QASE FLINT BI600QASE1.5
540738 OVEN&FRAME BI6QASE ENAM FLINT BI600QASE1.5
540009 OVEN&FRAME BI600X ENAM BU MOT BI600XC
540136 OVEN&FRAME ENAM BI600X BU MOT BI600XC
540734 OVEN&FRAME BI600X ENAM BU MOT BI600XC
22 540157 OVEN&FRAME ENAM 600D BU MOT BI600ED
540749 OVEN&FRAME LWR BI6 ENAM BU MOT BI600ED
540472 OVEN & FRAME LOWER FLINT BI600QASE 2
540550 OVEN & FRAMEL LOWER FLINT BI600QASE 2
540753 OVEN&FRAME LWR BI62 ENAM FLINT BI600QASE 2
540751 OVEN&FRAME QASE1.5 ENAM FLINT BI600QASE1.5
23 447551 GASKET OVEN WO600 C/L 1775MM
540146 GASKET OVEN LOWER 1484MM BI600QASE1.5
24 75017 PLATE CABLE ENTRY
25 556084 SCREW TAPTITE M4X25 HEXPH BZWX
26 74152 CLAMP CABLE ENTRY
27 540073 PANEL LEFT SIDE BI600ED
540117 PANEL RIGHT SIDE BI600ED
540655 PANEL SIDE LEFT 600D BI600ED
540656 PANEL SIDE RIGHT 600D BI600ED
540231 PANEL SIDE LEFT 100/100 BI600QASE 2
540232 PANEL SIDE RIGHT 100/100 BI600QASE 2
540658 PANEL SIDE LEFT 100-100 BI600QASE 2
540659 PANEL SIDE RIGHT 100-100 BI600QASE 2
540073 PANEL LEFT SIDE BI600QASE1.5
540117 PANEL RIGHT SIDE BI600QASE1.5
540655 PANEL SIDE LEFT 600D BI600QASE1.5
540656 PANEL SIDE RIGHT 600D BI600QASE1.5
28 540190 PANEL INSULATION BASE BI600
540651 PANEL INSULATION BASE BI600
29 447580 GUARD HINGE
540652 DUCT HINGE RIGHT LARGE BI600ED
540653 DUCT HINGE LEFT LARGE BI600ED
540666 DUCT HINGE RIGHT SMALL BI600ED
540667 GUARD HINGE LEFT SMALL (VENTED FRAME) BI600ED

MANUAL 599072
20
BUILT IN DOUBLE CHASSIS ASSEMBLY
