Fisher & Paykel ActiveSmart E402B Mounting instructions

E402B, E442B, E522B
Ice & Water refrigerator
Installation instructions
and user guide (EN)
Ice & Water køleskab
Installationsanvisninger
og brugsanvisning (DA)
Ice & Water-kylskåp
Installationsinstruktioner
och användarmanual (SV)
Ice & Water -jääkaappi
Asennusohjeet
ja käyttöopas (FI)
Ice & Water-kjøleskap
Installasjonsanvisninger
og brukerhåndbok (NO)
Koelkast met waterdispenser en ijsblokjesmaker
Installatievoorschriften
en gebruiksaanwijzing (NL)
Réfrigérateur Ice & Water
Conseils d’installation
et guide d’utilisation (FR)
Frigorifero Ice & Water
Istruzioni per l’installazione
e guida per l’utente (IT)
Ψυγείο Ice & Water
Οδηγίες εγκατάστασης
και οδηγίες χρήσης (EL)

EN English Page 1 – 24
DA Dansk Side 25 – 46
SV Svenska Sidan 47 – 68
FI Suomi Sivu 69 – 90
NO Norsk Side 91 – 112
NL Nederlands Pagina 113 – 134
FR Français Page 135 – 156
IT Italiano Pagina 157 – 178
EL Ελληνικά Σελίδα 179 – 200

1
Contents
Installation instructions 2
All about the display 6
Using your water dispenser 8
Using your ice maker 9
Fridge options 11
Water filter 16
Measured Fill Calibration 18
Trouble shooting 19
Cleaning and caring for your refrigerator 21
On vacation/holiday 21
Manufacturers warranty 22
Filter performance data sheet 23
Important!
Please use this booklet in conjunction with the Refrigerator & Freezer User Guide supplied with your
refrigerator.
The models shown in this user guide may not be available in all markets and are subject to change
at any time. For current details about model and specification availability in your country, please go
to our website www.fisherpaykel.com or contact your local Fisher & Paykel dealer.
EN

2Installation instructions

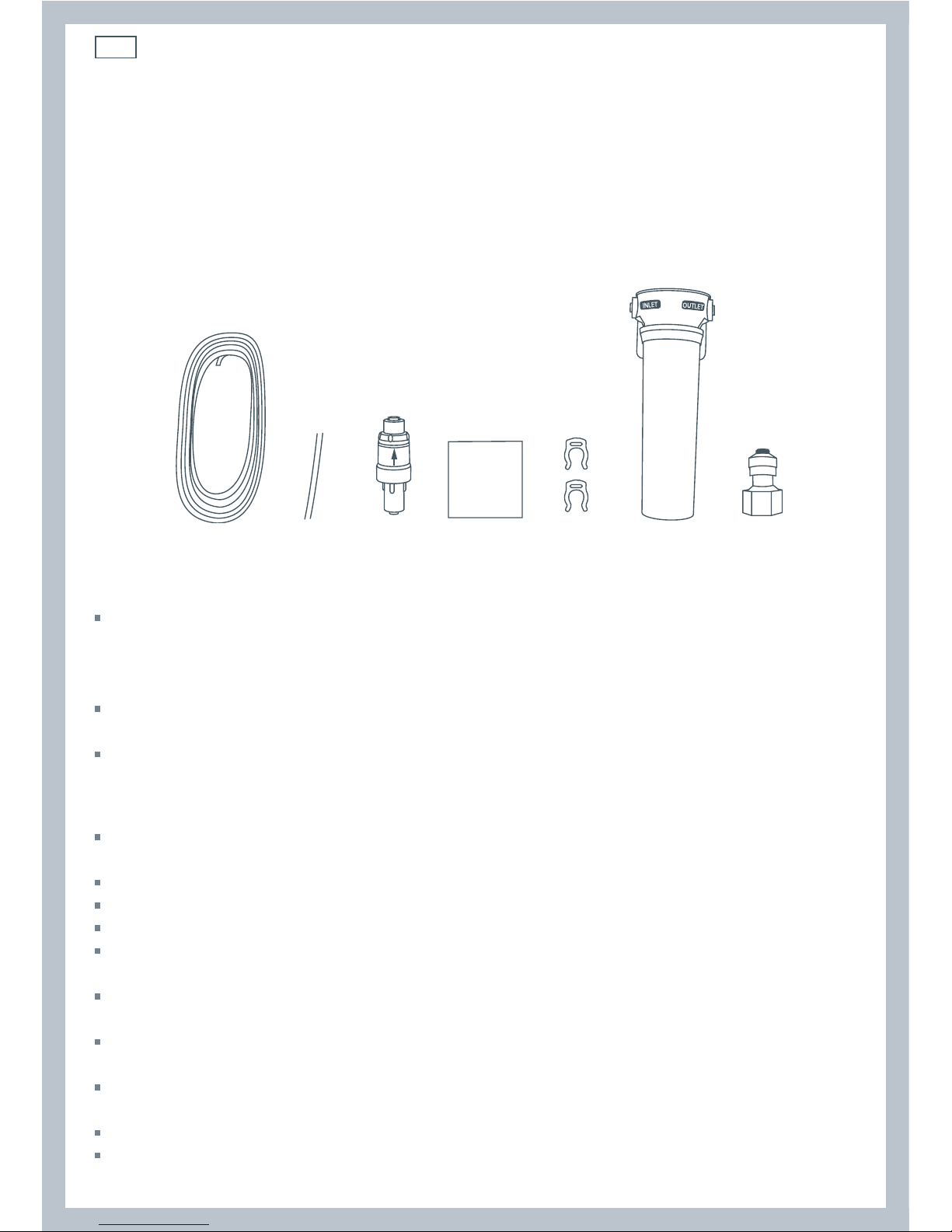

Contents of filter kit
1
4 m (13 ft) white 6 mm (¼”) tubing
2
1 x 200 mm (8”) blue tubing
3
1 x pressure reducing valve (PRV)
4
1 x double sided foam
5
2 x locking keys
6
1 x water filter cartridge and head
7
1 x tap connection – 15 mm (½”) BSP
1234567
Important!
It is imperative the pressure reducing valve (PRV) is fitted prior to the filter. This valve ensures
the water will not flow back into the mains from the refrigerator water system. If the PRV is not
fitted to the connection line your Ice & Water refrigerator features may not function in some
circumstances.
It is recommended that an authorised plumber in your state or town is used to install the water
connection.
The new tubings supplied with the machine are to be used, old tubings should not be used.
Installation precautions/warning
DO NOT use with water that is microbiologically unsafe or of unknown quality without
adequate disinfection before or after the system.
WARNING – connect to potable water supply only.
DO NOT install on line pressure above 900 kPa (130 psi) or below 150 kPa (22 psi).
DO NOT use on hot water supply (38°C [100°F max.]).
DO NOT install near electrical wires or water pipes that will be in the path of drilling when
selecting the location of filter system.
DO NOT mount filter in such a position so that it will be struck by other items, such as
wastebaskets, etc.
DO NOT install the filter in direct sunlight as prolonged exposure to light can weaken plastic
components.
DO NOT install in a location that is susceptible to freezing temperatures as damage to the
housing could occur.
DO NOT screw filter to fridge.
AVOID contamination of pipes during installation.

3
Installation instructions
Installation instructions:
1
Ensure that refrigerator is not plugged into a power supply.
2
Locate isolation tap for water connection – cold water feed
only (dishwasher or sink mixer taps) – if you can’t find the
connection tap, contact an authorised plumber in your state
or town to fit your water connection.
3
Connect the 200 mm (8”) blue tubing to the outlet of the
PRV (blue collet) and the inlet connection of the water filter
cartridge as shown in Diagram 1. Gently pull on both ends
to ensure it is locked.
4
Connect the white 6 mm (¼”) tubing to the outlet of the
water filter cartridge as shown in Diagram 2. Gently pull to
ensure it is locked.
5
Measure the required length of tubing to run from the PRV
to the water connection point.
6
Cut the tubing making sure the ends are square and clean.
7
Connect the tubing to the tap connection and the base
of the PRV (white collet) and then to the tap as shown in
Diagram 3. Please note that the tap connection supplied
should fit most installation situations. If your tap requires a
different fitting, please contact an authorised plumber
in your state or town to purchase the correct fitting.
8
Connect one locking key to each side of the water
filter cartridge in between the cartridge and the
locking collet as shown in Diagram 4.
9
To flush the water filter and check for leaks, aim the
end of the tubing into a bucket, turn isolating tap on
and run at least 3 litres (3 qt) of water through. Once
complete, turn isolating tap off.
10
Locate desired position for water filter noting carefully the
following points:
It is recommended to fit the filter in a vertical
orientation with the water filter head at the top. This will
minimise water leakage when replacing cartridge.
Ensure the filter is in a convenient location to access
every 6 months for replacement. We suggest that
this location is beside the water filter supply tap in the
cupboard beside the refrigerator.
A minimum clearance of 64 mm (2 ½”) from the
bottom of the filter cartridge is required to perform
cartridge removal.
Do not screw filter to fridge.
Diagram 1
Diagram 2
Diagram 3
INLET
Diagram 4
EN

4Installation instructions
11
Attach double sided foam to the back of the water filter head as shown
in Diagram 5. Write the date to be replaced on the filter (date installed +
6 months). Remove double sided foam backing and attach filter to the
desired position as located in step 10 (refer to previous page).
12
Run the 6 mm (¼”) tubing to back of the fridge ensuring there is enough
tubing to pull out the refrigerator for service.
13

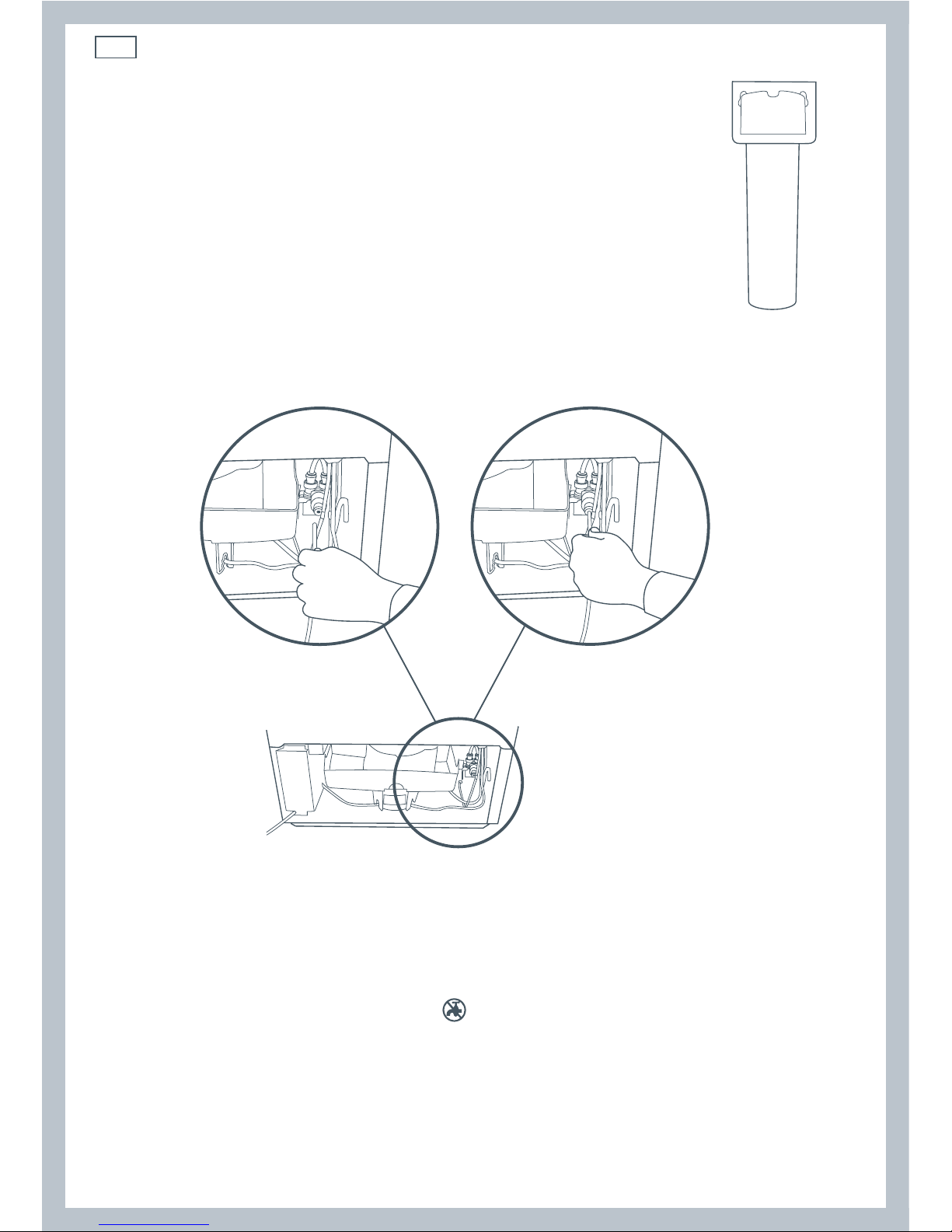

Connect tubing into the water (solenoid) valve located on the right hand
side of the unit (compressor) compartment as shown in Diagram 7. Beware
of hot pipes.
14
Pull gently on tubing to ensure it is locked in as shown in Diagram 8.
15
The completed installation should look like Diagram 9 on page 5.
Diagram 7
Diagram 6
Diagram 8
16
Turn isolating tap on and check that all connections are dry and free of drips.
17
Coil water line tubing behind the fridge. Push your refrigerator into place being careful not to
kink or squash the water line running into the water (solenoid) valve.
18
The first time you require water out of the dispenser, there will be a delay while the water
reservoir fills up. As this is happening, the symbol will flash. Once the reservoir is full, this
symbol will stop flashing.
19
Run a further 3 litres (3 qt) through the system to ensure the reservoir is flushed out.
20
You are now ready to enjoy chilled water and ice dispensing from your Active Smart™ refrigerator.
Diagram 5

5
Installation instructions
Important!
All connections must be checked for leaks.
If unsure of connection process and/or leaks then contact your local plumber to install and check
the system for you.
Ensure white 6 mm (¼”) tubing is routed away from sharp objects, sharp corners (beware of
kinking tube as this will stop water flow), clear of the refrigerator unit compartment and not in a
location where it can be squashed.
Ensure all push-fit connections are firmly pushed into place. The tube should push in 20 mm (¾”)
before reaching the stop.
If tubing is removed at any point, re-cut the end and re-insert. Tubing must be fully inserted to
avoid leaks.
To remove tube from connection points, turn off the isolating tap, push in the collet and gently
pull tubing at the same time.
Diagram 9
System tested and certified by NSF International against NSF/ANSI Standard 53 for the reduction
of Asbestos, Atrazine, Benzene, Cyst, Carbofuran, Lead, Lindane, Mercury, P-Dichlorobenzene,
Toxaphene & Turbidity; against Standard NSF/ANSI 42 for the reduction of Chlorine Taste and
Odour and Nominal Particulate Class I to a capacity of 2,838 Litres (750 gallons).
EN

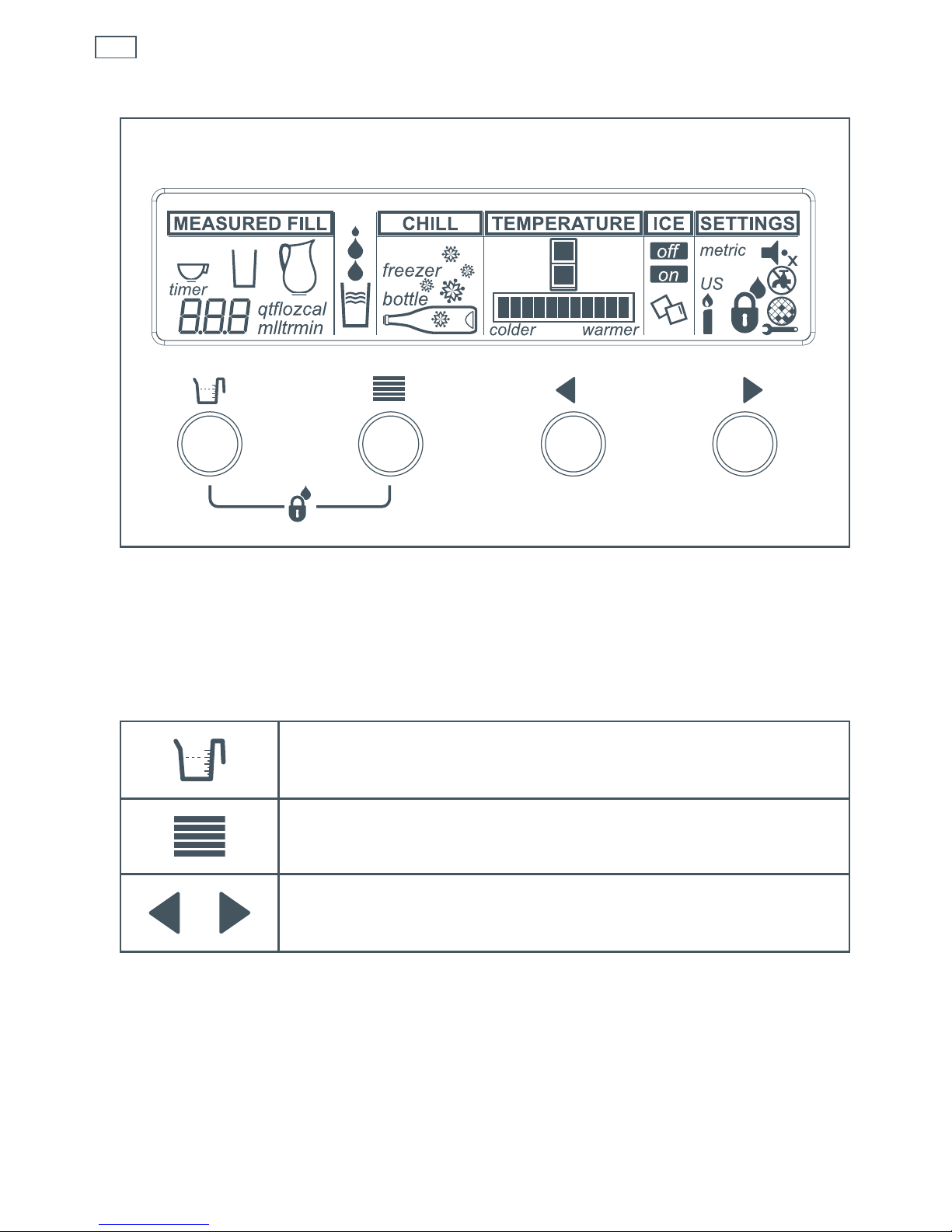

6All about the display
456 789
132
Keys
1. Measured Fill (page 11)
2. Main menu
3. Arrow keys

7
All about the display
Display features
4. Measured Fill (page 11)
5. Dispensing water (page 8)
6. Chill (pages 12 – 13)
Freezer Chill
Bottle Chill
7. Temperature (page 13)
8. Ice (page 9)

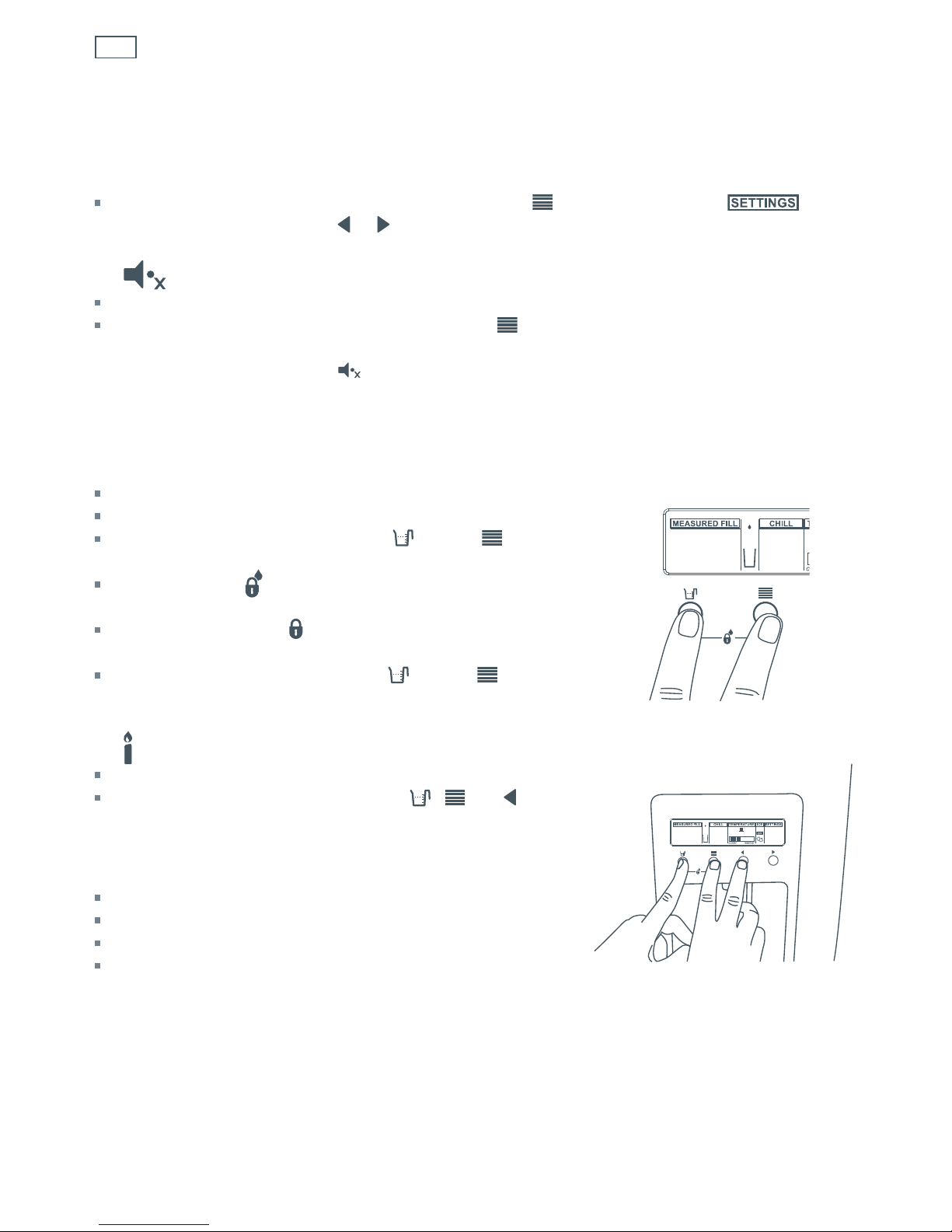

9. Settings/User alerts (page 14)
Water conversion
Key Silent Mode
Key and dispenser lock
Sabbath Mode (page 14)
EN

8Using your water dispenser
First use
After installation, allow approximately one minute delay
from when the dispensing pad is pushed until water is
dispensed. This will allow the tank to fill completely.
After you fill the tank, dispense and discard 3 L or 3 qt to
flush the tank out.
Important!
Do not put hands, fingers or objects up the dispenser
opening.

9

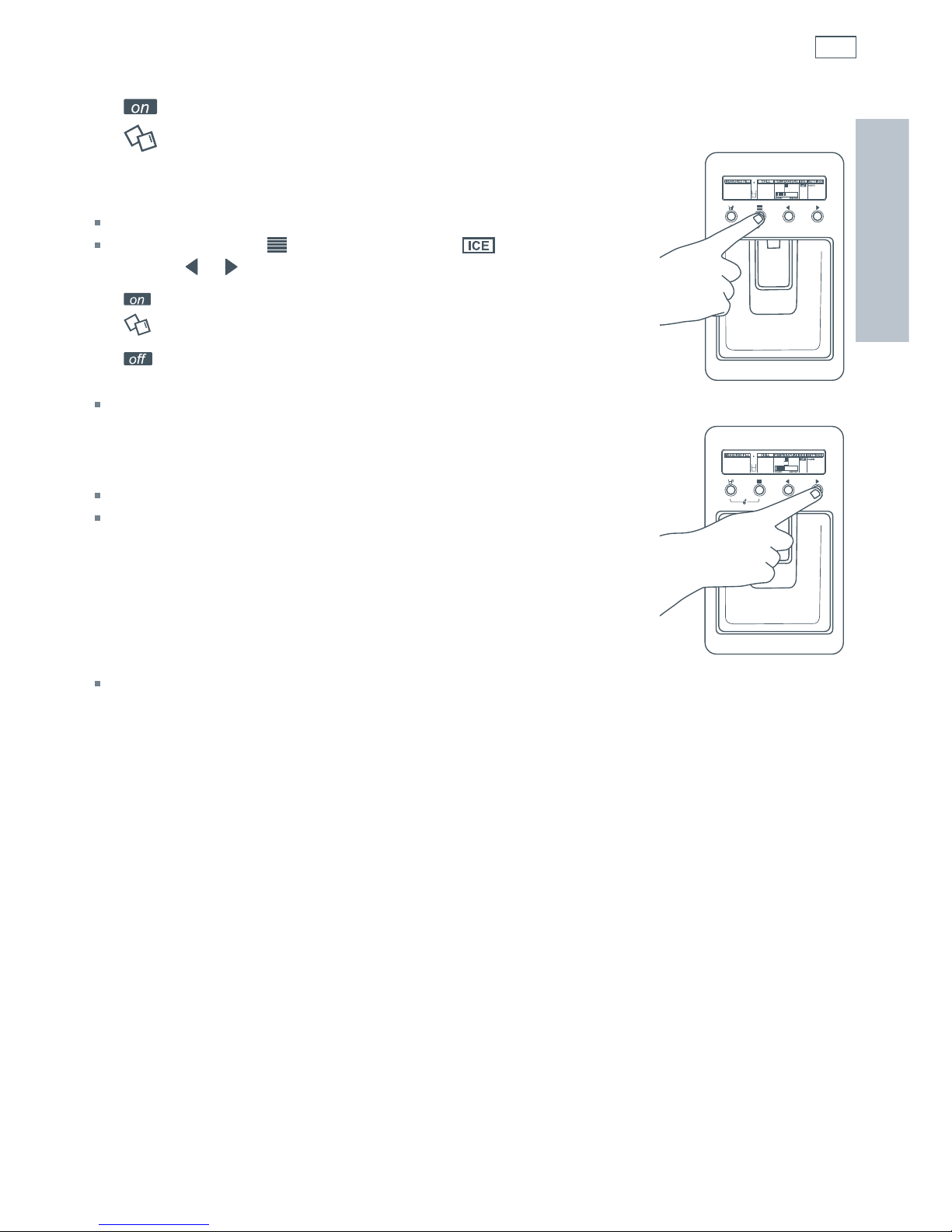

Using your ice maker
Ice maker
First use
When you first turn your refrigerator on, the ice maker will be off.
To turn on use the button to scroll to the screen.
Use the
or buttons to turn the ice maker on or off.
Ice maker is on.
Ice maker is off.
If the bin is full, or inserted incorrectly the ice maker will not
operate. When inserted correctly the scoop will be on the right
hand side (refer to Fig.1 on page 10). If the bin is removed the ice
maker will not operate.
Discard the first bin of ice cubes.
We recommend that you turn the ice maker off if:
– The water supply is off for several hours,
– The ice storage bin is to be removed for a period of time,
– You are going on holiday/vacation.
Noises
The following sounds are normal:
– Motor operation (low humming).
– Running water.
– Water valve opening and closing (hissing sound).
– Ice being loosened from tray (cracking).
– Ice dropping into bin (clunking).
EN

10 Using your ice maker

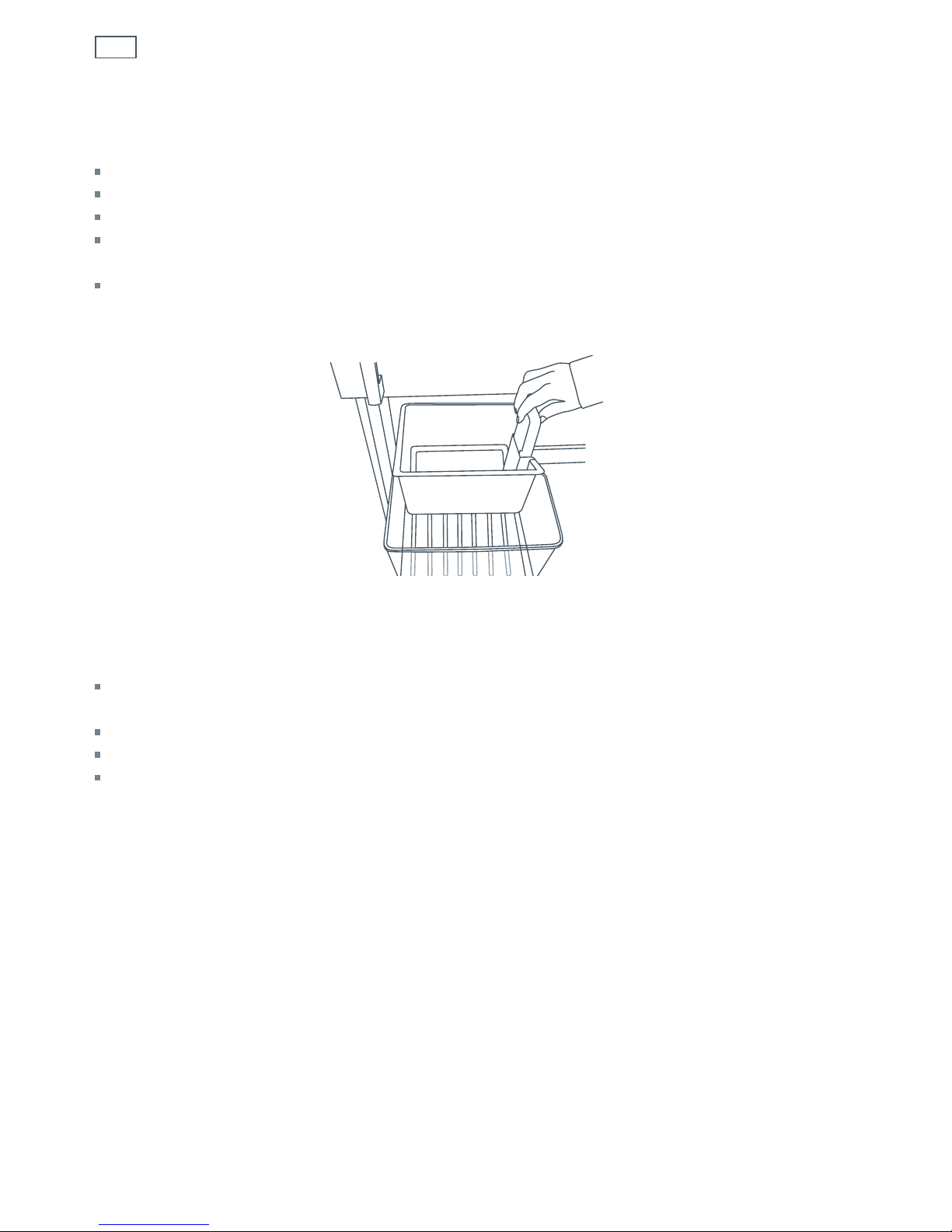

Information about your ice maker
The ice cube tray will fill with water after the freezer has reached the correct temperature.
Ice making will continue until the storage bin is full.
Ice making will resume when the ice is used.
Your Ice & Water product comes with a smaller ice bin inside the larger freezer bin. Attached to
this is a scoop.
If a large amount of ice is required, remove the smaller storage bin and allow ice to fall into the
larger bin.
Fig.1
Important!
Avoid contact with the moving parts of the ejector mechanism, and do not place your fingers on
the automatic ice making mechanism while the refrigerator is plugged in.
Do not consume coloured ice cubes – contact local authorized service centre.
Ensure the ice maker is connected to the filter and to a drinkable water supply only.
Installation of the water connection to the ice maker must be completed by a qualified service
technician (see installation instructions).

11
Fridge options
Measured Fill
Press the button to highlight the screen and again to cycle through the
preset quantities.
Push the dispensing pad to receive the pre-selected quantity.
If you stop dispensing part way through the dispenser will remember the remaining quantity to
be dispensed for a short time.
The and buttons can be used to change the pre-set measurements in 25 ml (1 oz)
increments, to a maximum of 1 L (1 qt).
Note: to change the Measured Fill units, refer to page 14.
EN

12 Fridge options
Freezer Chill
This feature drops the freezer to it’s coldest temperature for 12 hours and then returns to normal.
To activate, use the button to scroll to the screen. Then use the button until
is displayed.
To deactivate manually, use the button to scroll to the screen. Then use the
and buttons until there is no icon in the screen.
Bottle Chill
Bottle Chill cools drinks more rapidly, it will remind you to remove your bottle by sounding an
alarm. The user alarm will continue to sound until any key on the panel is pressed.
Recommended times:
20 minutes 25 minutes 30 minutes
To activate, use the button to scroll to the screen. Then use the button until
is displayed.
Then use the button to select 10, 15, 20, 25 or 30 minutes as displayed on the left hand side of
the screen in the screen. Place bottle(s) in freezer.
To deactivate manually, use the button to scroll to the screen, then use the
and buttons until there is no icon in the screen.
Important!
Do not leave the bottle inside the freezer longer than the time needed for chilling.
Note: The freezer chill and bottle chill option cannot be used at the same time.

13
Fridge options
The temperature of your refrigerator and freezer
When the refrigerator is first turned on it will take approximately 2 to 3 hours to cool.
To adjust the temperature of a compartment, use the button to scroll to the
screen, use the button to select the compartment to change.
Adjust using the button to make the compartment warmer or the button to make the
compartment colder.
The temperature setting will be indicated on the icon below.
EN

14
Settings
Water unit conversion
To change the units between US and metric press the button to scroll to the screen
option and press one of the or buttons until the desired units are displayed.
Key Silent Mode
Silences all key presses.
It can be activated or deactivated by holding the button for four seconds.
When Key Silent Mode is on will appear.
Note: Faults, Bottle Chill timer and the door alarm will still sound in this mode.
Key and dispenser lock
The dispenser lock disables the buttons and dispenser pad.
Key lock disables the buttons.
Activate by holding down both the and the buttons
together.
After 2 seconds icon will appear indicating dispenser
lock is activated.
After 2 more seconds icon will appear indicating key lock
is activated.
To deactivate, hold down both the and the buttons
together for 2 seconds.
Sabbath Mode
This changes the refrigerator to a constant cooling mode.
To activate/deactivate hold down the , and
buttons for 4 seconds.
Once in Sabbath Mode:
The interior light will not turn on.
Door alarm will not operate.
Display will not be illuminated.
Control panel will not work.
Note: If power is turned off the refrigerator will automatically continue in Sabbath Mode once
power is restored. Sabbath Mode will automatically deactivate after 80 hours.
Fridge options

15
Fridge options
User warnings
No water
The no water icon will appear when the water supply to the refrigerator is interrupted. Refer
to the Trouble shooting checklist (pages 19 – 20).
Filter reset
The filter reset icon will appear when the water filter needs changing. This will flash when
dispensing water. To change the filter and reset the filter icon refer to pages 16 – 17.
Fault
In the unlikely event a fault occurs the icon appears on the front of the display and a fault
code will be displayed on the left in the screen.
When the door is open the fault alarm will sound. To silence this press any button.
Take note of the fault code and contact our Customer Care Centre. Details of phone numbers
can be found in the back of this book.
EN

16
This will need changing approximately every 6 months or up to 2800 L (740 gallons).
The icon will appear when the filter needs replacing.
Replacement cartridges are available from your authorised Fisher and Paykel Dealer.
Changing the water filter cartridge
1
Grasp and firmly twist the cartridge anticlockwise (Diagram 1).
2
Pull the cartridge away from the filter head (Diagram 2).
3
Discard old filter.
4
Filter installation:
– Remove protective cap on spigot on head.
– Push the cartridge up towards filter head while rotating clockwise (Diagram 3).
5
Dispense water for 3 – 5 minutes to flush the cartridge, removing trapped air and harmless
carbon fines.
6
Reset filter indicator icon on the display. Refer to page 17.
Diagram 2Diagram 1 Diagram 3
Water filter

17
To reset filter indicator
Important!
We recommend the water filter is used from installation.
Do not reset monitor before filter is changed or filter monitoring will be inaccurate.
Press and hold and buttons for 4 seconds.
If present the icon in the screen will disappear.
To disable filter indicator
When no filter is to be fitted, you can disable the filter indicator.
Press and hold , and buttons for 4 seconds to turn this off/on.
When activated or deactivated the icon will flash and on or off will be displayed in the
screen.
We recommend that you do not disable the filter indicator if you have a filter fitted to the
connection.
Important!
To avoid serious illness or death, do not use the water filter where water is unsafe or of unknown
quality without adequate disinfection before or after use of filter.
The water filter cartridge needs to be changed when the filter indicator icon flashes on the
interface panel.
We recommend the water filter cartridge is replaced when the icon flashes. This will happen
every 6 months or 2800 L (740 gallons).
If the water filtration system has been allowed to freeze, replace filter cartridge.
If system has not been used for several months and water has an unpleasant taste or odour,
flush system by dispensing 3 L (3 qt) of water. If unpleasant taste or odour persists, change filter
cartridge.
Water filter
EN

18 Measured Fill Calibration
Measured Fill Calibration
This allows you to fine-tune the amount of water dispensed from the preselected volumes.
The calibration mode is worked out as a percentage.
Assessing whether Measured Fill is accurate:
Press the button until 1 L (1 qt) is displayed.
Dispense into a jug.
Estimate the amount of water dispensed.
To calculate the Calibration factor:
Transfer the difference into a percentage.
eg. 1000/975 = 1.03 = 103% or 32/31 = 1.03 = 103%
Enter the Calibration mode by pressing and holding the and buttons together for 4
seconds.
The number displayed is a percentage. Adjust this accordingly using the and buttons.
eg. 100CAL = 103CAL
Press the button to confirm your selection.
Please note:
The Measured Fill function has an accuracy of +/-5% at the time of calibration.
