Fisher & Paykel ActiveSmart E522B Mounting instructions

Ice & Water refrigerator
Installation instructions
and user guide US CA (EN)
E522B
Réfrigérateur Ice & Water
Instructions d’installation
et guide de l’utilisateur US CA (FR)
Refrigerador Ice & Water
Instructivo de instalación
y guía de usuario US CA (ES)

Thank you for buying a Fisher & Paykel Active Smart™ refrigerator with automatic ice dispensing
and chilled water through the door.
At Fisher & Paykel we are very proud of this refrigerator. We feel we have achieved water
dispensing through the door without compromising the storage space or access in the fridge.
During our testing we have enjoyed the health benefits of having cool filtered water so
accessible, while minimising the number of door openings.
Thousands of hours of food care research and 70 years of refrigeration experience has been
programmed into your refrigerator to give you the best possible performance.
We hope you enjoy your new refrigerator.
Before you start using your Ice & Water refrigerator
Check refrigerator is switched on and has cooled for at least 2 hours (refer to page 15 – The
temperature of your refrigerator and freezer) before use.
Check that the water filter has been connected and turned on.
Turn on ice maker.
At first use allow approximately 1 minute from when the dispensing pad is pushed until water
is dispensed. This will allow the tank to fill.
Run through and discard the first 3 qt or 3 L of water from the dispenser (refer to page 10
– First use).
Discard the first bin of ice (refer to page 11 – First use).
You are now ready to enjoy ice and water from your Active Smart™ refrigerator.
Introduction
English Page 1 – 25
Español Pág 26 – 49
Français Page 50 – 73

1
Contents
Safety and warnings 2
Installation instructions 4
All about the display 8
Using your water dispenser 10
Using your ice maker 11
Fridge options 13
Measured Fill 13
Freezer Chill and Bottle Chill 14
The temperature of your refrigerator and freezer 15
Settings/User warnings 16
Water filter 18
Measured Fill Calibration 20
Trouble shooting 21
Cleaning and caring for your refrigerator 23
On vacation/holiday 23
Filter performance data sheet 24
Important!
This Ice & Water refrigerator booklet contains specific information about the ice and water
function on your refrigerator.
Please use this booklet in conjunction with the Refrigerator & Freezer User Guide supplied with
your refrigerator.
SAVE THESE INSTRUCTIONS
The models shown in this user guide may not be available in all markets and are subject to
change at any time. For current details about model and specification availability in your country,
please go to our website www.fisherpaykel.com or contact your local Fisher & Paykel dealer.
EN

2
To reduce the risk of fire, electric shock, or injury to persons read the IMPORTANT SAFETY
PRECAUTIONS before operating this appliance.
Use this appliance only for its intended purpose as described in this User Guide.
Important safety precautions
Warning
When using this appliance always exercise basic safety precautions including the following:
Danger
This appliance is not intended for use by young children or infirm persons without supervision.
Young children should be supervised to ensure they do not play with the appliance.
Risk of child entrapment. Before you throw away your old refrigerator or freezer:
– Take off the doors
– Leave the shelves in place so that children may not easily climb inside.
Disposal
Extreme care must be taken when disposing of your old appliance to avoid hazards. The
refrigerant gas must be safely removed and for the safety of young children, remove doors.
Your Fisher & Paykel Appliances Authorised Service Center will be able to give advice on
environmentally friendly methods of disposing of your old refrigerator or freezer.
Electrical
This appliance must be properly installed in accordance with the installation instructions before
it is used.
Never unplug your refrigerator or freezer by pulling on the power cord.
Always grip the plug firmly and pull straight out from the outlet.
Do not plug in any other appliance at the same power point as your refrigerator or freezer or use
extension cords or double adapters.
Repair or replace immediately all electric service cords that have become frayed or otherwise
damaged. Do not use a cord that shows cracks or abrasion along its length or at either the plug
or appliance end.
If the power supply cord is damaged, it must only be replaced by your Fisher & Paykel Appliances
Authorised Service Center because special purpose tools are required.
When moving your appliance away from the wall, be careful not to roll over or damage the power
cord.
Unplug your refrigerator or freezer before cleaning or replacing the lightbulb.
Safety and warnings

3
Safety and warnings
Storing food and drinks
Never store volatile or flammable materials in your refrigerator or freezer as they may explode.
Never freeze liquids in glass containers. Liquid expands during freezing, which may cause the
container to explode.
Never freeze carbonated drinks. They may explode.
Do not consume food if it is too cold. Food removed from the freezer compartment may be cold
enough to cause damage when brought into contact with bare skin e.g. frozen ice cubes.
Power failure – food safety
Do not refreeze frozen foods that have thawed completely. Follow the recommendations below if
you discover food in your freezer has thawed:
1) Ice crystals still visible – food may be refrozen but should be stored for a shorter period than
recommended.
2) Thawed but refrigerator cold – refreezing generally not recommended. Fruits and some
cooked food can be refrozen but use as soon as possible. Meat, fish, poultry – use immediately or
cook then refreeze. Vegetables – discard as they usually go limp and soggy.
3) Thawed but warmer than 38˚F (4˚C). Red meat can be cooked immediately and refrozen but
use as soon as possible. Discard all other frozen foods.
Do not refreeze frozen foods that have thawed completely. The food may be dangerous to eat.
Cleaning
Many commercially available cleaning products contain solvents which may attack plastic
components of your refrigerator or freezer and cause them to crack. Please refer to the cleaning
care section of this booklet for further advice.
SAVE THESE INSTRUCTIONS
EN

4Installation instructions
Contents of kit
1
13 ft (4 m) white ¼” (6 mm) tubing
2
1 x 8” (200 mm) blue tubing
3
1 x pressure reducing valve (PRV)
4
1 x double sided foam
5
2 x locking keys
6
1 x water filter cartridge and head
7
1 x faucet connection – USA market – ⁄” UNS
– All other markets – ½” (15 mm) BSP
Fig.1 Water connection kit
1234567
Important!
It is imperative the pressure reducing valve (PRV) is fitted prior to the filter. This valve ensures
the water will not flow back into the mains from the refrigerator water system. If the PRV is not
fitted to the connection line your Ice & Water refrigerator features may not function in some
circumstances.
It is recommended that an authorised plumber in your state or town is used to install the water
connection.
The new tubings supplied with the machine are to be used, old tubings should not be used.
Installation precautions/warning
DO NOT use with water that is microbiologically unsafe or of unknown quality without
adequate disinfection before or after the system.
WARNING – connect to potable water supply only.
DO NOT install on line pressure above 900 kPa (130 psi) or below 150 kPa (22 psi).
DO NOT use on hot water supply (100°F [38°C max.]).
DO NOT install near electrical wires or water pipes that will be in the path of drilling when
selecting the location of filter system.
DO NOT mount filter in such a position so that it will be struck by other items, such as
wastebaskets, etc.
DO NOT install the filter in direct sunlight as prolonged exposure to light can weaken plastic
components.
DO NOT install in a location that is susceptible to freezing temperatures as damage to the
housing could occur.
DO NOT screw filter to fridge.
AVOID contamination of pipes during installation.

5
Installation instructions
Installation instructions:
1
Ensure that refrigerator is not plugged into a power supply.
2
Remove compartment cover from the rear if present.
3
Locate isolation faucet for water connection – cold water
feed only (dishwasher or sink mixer faucets) – if you can’t
find the connection faucet, contact an authorised plumber
in your state or town to fit your water connection.
4
Connect the 8” (200 mm) blue tubing to the outlet of the
PRV (blue collet) and the inlet connection of the water filter
cartridge as shown in Diagram 1. Gently pull on both ends
to ensure it is locked.
5
Connect the white ¼” (6 mm) tubing to the outlet of the
water filter cartridge as shown in Diagram 2. Gently pull to
ensure it is locked.
6
Measure the required length of tubing to run from the PRV
to the water connection point.
7
Cut the tubing making sure the ends are square and clean.
8
Connect the tubing to the faucet connection and the base
of the PRV (white collet) and then to the faucet as shown
in Diagram 3. Please note that the faucet connection
supplied should fit most installation situations. If your
faucet requires a different fitting, please contact an
authorised plumber in your state or town to purchase
the correct fitting.
9
Connect one locking key to each side of the water
filter cartridge in between the cartridge and the
locking collet as shown in Diagram 4.
10
To flush the water filter and check for leaks, aim the
end of the tubing into a bucket, turn isolating faucet
on and run at least 3 qt (3 liters) of water through. Once
complete, turn isolating faucet off.
11
Locate desired position for water filter noting carefully the
following points:
It is recommended to fit the filter in a vertical
orientation with the water filter head at the top. This will
minimize water leakage when replacing cartridge.
Ensure the filter is in a convenient location to access
every 6 months for replacement. We suggest that
this location is beside the water filter supply faucet in
the cupboard beside the refrigerator.
A minimum clearance of 2 ½” (64 mm) from the
bottom of the filter cartridge is required to perform
cartridge removal.
Do not screw filter to fridge.
Diagram 3
Fig.4 Faucet connection
Fig.2 PRV connection
Diagram 1
INLET
Diagram 4
Fig.5 Locking key
Diagram 2
Fig.3 Waterline connection
EN

6Installation instructions
12
Attach double sided foam to the back of the water filter head as shown
in Diagram 5. Write the date to be replaced on the filter (date installed +
6 months). Remove double sided foam backing and attach filter to the
desired position as located in step 11 (refer to previous page).
13
Run the ¼” (6 mm) tubing to back of the fridge ensuring there is enough
tubing to pull out the refrigerator for service.
14
Connect tubing into the water (solenoid) valve located on the right hand
side of the unit (compressor) compartment as shown in Diagram 7. Beware
of hot pipes.
15
Pull gently on tubing to ensure it is locked in as shown in Diagram 8.
Replace compressor cover if present.
16
The completed installation should look like Diagram 9 on page 7.
Fig.7 Waterline connection
to refrigerator
Diagram 7
Diagram 6
Diagram 8
17
Turn isolating faucet on and check that all connections are dry and free of drips.
18
Coil water line tubing behind the fridge. Push your refrigerator into place being careful not to
kink or squash the water line running into the water (solenoid) valve.
19
Turn on refrigerator.
20
The first time you require water out of the dispenser, there will be a delay while the water
reservoir fills up. As this is happening, the symbol will flash. Once the reservoir is full, this
symbol will stop flashing.
21
Run a further 3 qt (3 liters) through the system to ensure the reservoir is flushed out.
22
You are now ready to enjoy chilled water and ice dispensing from your Active Smart™ refrigerator.
Diagram 5
Fig.6 Double sided
foam attachment

7
Installation instructions
Important!
All connections must be checked for leaks.
If unsure of connection process and/or leaks then contact your local plumber to install and check
the system for you.
Ensure white ¼” (6 mm) tubing is routed away from sharp objects, sharp corners (beware of
kinking tube as this will stop water flow), clear of the refrigerator unit compartment and not in a
location where it can be squashed.
Ensure all push-fit connections are firmly pushed into place. The tube should push in ¾” (20 mm)
before reaching the stop.
If tubing is removed at any point, re-cut the end and re-insert. Tubing must be fully inserted to
avoid leaks.
To remove tube from connection points, turn off the isolating faucet, push in the collet and
gently pull tubing at the same time.
Diagram 9
Fig.8 Connection to water supply
System tested and certified by NSF International against NSF/ANSI Standard 53 for the reduction
of Asbestos, Atrazine, Benzene, Cyst, Carbofuran, Lead, Lindane, Mercury, P-Dichlorobenzene,
Toxaphene & Turbidity; against Standard NSF/ANSI 42 for the reduction of Chlorine Taste and
Odor and Nominal Particulate Class I to a capacity of 750 gallons (2,838 Liters).
EN

8All about the display
The display screen enables you to view and modify all the features and options on your fridge.
For example, you can change the temperature in your fridge or freezer, and select the Freezer
Chill function when you want to quickly freeze meat. You may want a measured amount of
chilled water when you are cooking, or want to quickly chill a bottle of wine when friends
arrive unexpectedly.
456 789
132

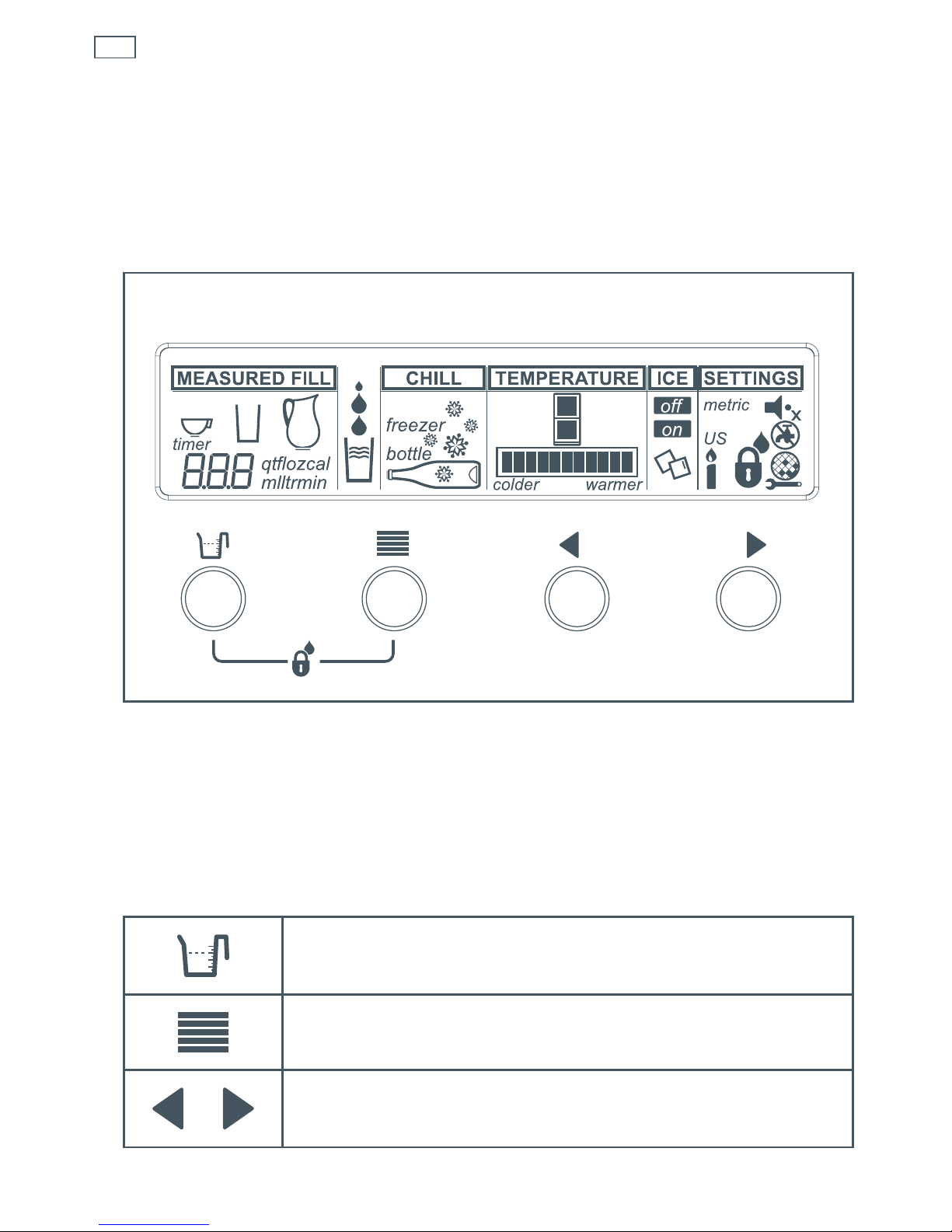

Fig.9 Electronic control panel
Keys
For more detailed information on these functions please refer to pages 10 – 17.
1. Measured Fill (see page 13)
Enables you to select the amount of water to be dispensed.
2. Main menu
Scrolls through the main menu. (Chill, Temperature, Ice and Settings).
3. Arrow keys
Scrolls through the settings of each function.

9
All about the display
Display features
4. Measured Fill (see page 13)
A pre-measured volume of water can be selected and dispensed
automatically.
5. Dispensing water (see page 10)
Animation shows you water is being dispensed.
6. Chill (see pages 14 – 15)
Freezer Chill
When activated this feature boosts cooling in your freezer,
optimising the rate at which your foods are frozen.
Bottle Chill
Your drinks can be chilled more rapidly using this function. An alarm
will alert you when they are ready.
7. Temperature (see page 15)
The temperature setting can be individually adjusted for each
compartment.
8. Ice (see page 11)
The ice making function can be turned on or off.
9. Settings/User alerts (see page 16)
Water conversion
Your volume can be displayed as either US or metric units.
Key Silent Mode
All key presses can be silenced.
Key and dispenser lock
Dispenser lock – disables the buttons and prevents water from being
dispensed.
Key lock – disables the buttons.
Sabbath Mode
Can be activated if necessary (refer to page 16).
EN

10 Using your water dispenser
Dispensing pad
Your water dispenser has been designed for one handed operation. Simply push your glass
up against the dispenser pad found at the back of the dispenser area. This pad requires only a
gentle press to activate.
Please remember that pressing very hard against the dispensing pad will not make the dispenser
operate faster or produce greater quantities of water.
First use
After installation, on the first use, allow approximately a one minute delay from when the
dispensing pad is pushed until water is dispensed. This will allow the tank to fill completely.
The symbol will flash while the water reservoir fills up. Once the reservoir is full, the symbol
will stop flashing.
After you fill the tank for the first time, dispense and discard approximately 3 qt or 3 L to flush
the tank out.
Dispensing
Unless Measured Fill is selected, water will be dispensed in
free-flow mode. (For more information on Measured Fill refer
to page 13).

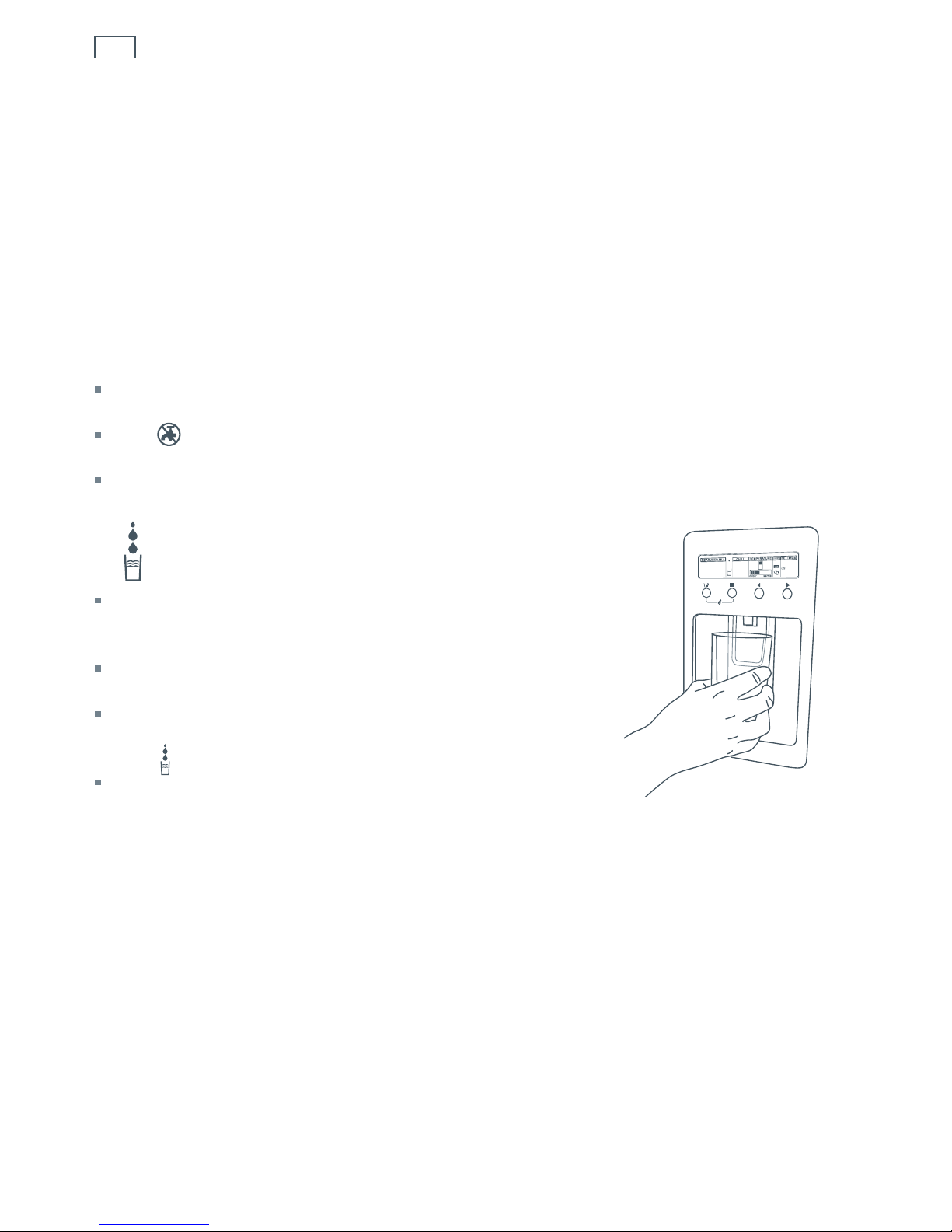

To dispense water push the dispensing pad gently, using a
glass or container.
When you dispense water, a light will appear above the
dispensing area, and on the display screen. The water fill
icon will also appear.
To stop the flow of water, simply pull your glass away from
the dispensing pad.
Important!
To avoid damage to property or personal injury do not put hands, fingers or objects up the
dispenser opening.
Fig.10 Water dispenser

11
Using your ice maker
Ice maker
Your ice maker is designed to automatically dispense ice until
it senses that the bin is fill. So the more ice you use, the more it
makes. It is even clever enough to sense when there is nothing
there to catch the ice.
First use
When you first turn your refrigerator on, the ice maker will be off.
To turn your ice maker on use the button to scroll to the
screen.
Use the
or button to turn the ice maker on or off.
Shows the ice maker is on.
Shows the ice maker is off.
If the bin is full, or inserted incorrectly the ice maker will not
operate. When the bin is inserted correctly the scoop will be on
the right hand side of the bin (refer to Fig.12 on page 12). If the bin
is removed the ice maker will not operate.
Once your ice maker is in operation, discard the first bin of ice
cubes. This will flush away any impurities in the water line and
ensure that you get the best quality ice. We recommend that you
also do this after vacations or extended periods of not using ice.
We recommend that you turn the ice maker off if:
– The water supply is to be off for several hours or
– The ice storage bin is to be removed for a period of time or
– You are going on holiday/vacation.
Noises
If this is your first ice maker, you will hear occasional sounds that may be unfamiliar. They are
normal ice making sounds and are not cause for concern.
The following sounds are normal with the operation of an ice maker:
– Motor operation (low humming).
– Running water.
– Water valve opening and closing (hissing sound).
– Ice being loosened from tray (cracking).
– Ice dropping into bin (clunking).
Fig.11 Turning ice maker on
EN

12 Using your ice maker
Information about your ice maker
The ice cube tray will fill with water after the freezer has reached the correct temperature. First
cubes will normally freeze after several hours.
When cubes are frozen, they will be ejected from the mould into the ice storage bin.
Ice making will continue until the storage bin is full.
Ice making will resume when the ice is used.
For maximum ice storage, level the stored cubes with the ice scoop.
Your Ice & Water product comes with a smaller ice bin inside the larger freezer bin. Attached to
this is a scoop for the ice.
If a large amount of ice is required, remove the smaller storage bin and allow ice to fall into the
larger bin.
If ice is not used often, old cubes will become cloudy and taste stale and will shrink. Empty the
ice storage bin periodically and wash in lukewarm water. Dry thoroughly and place back.

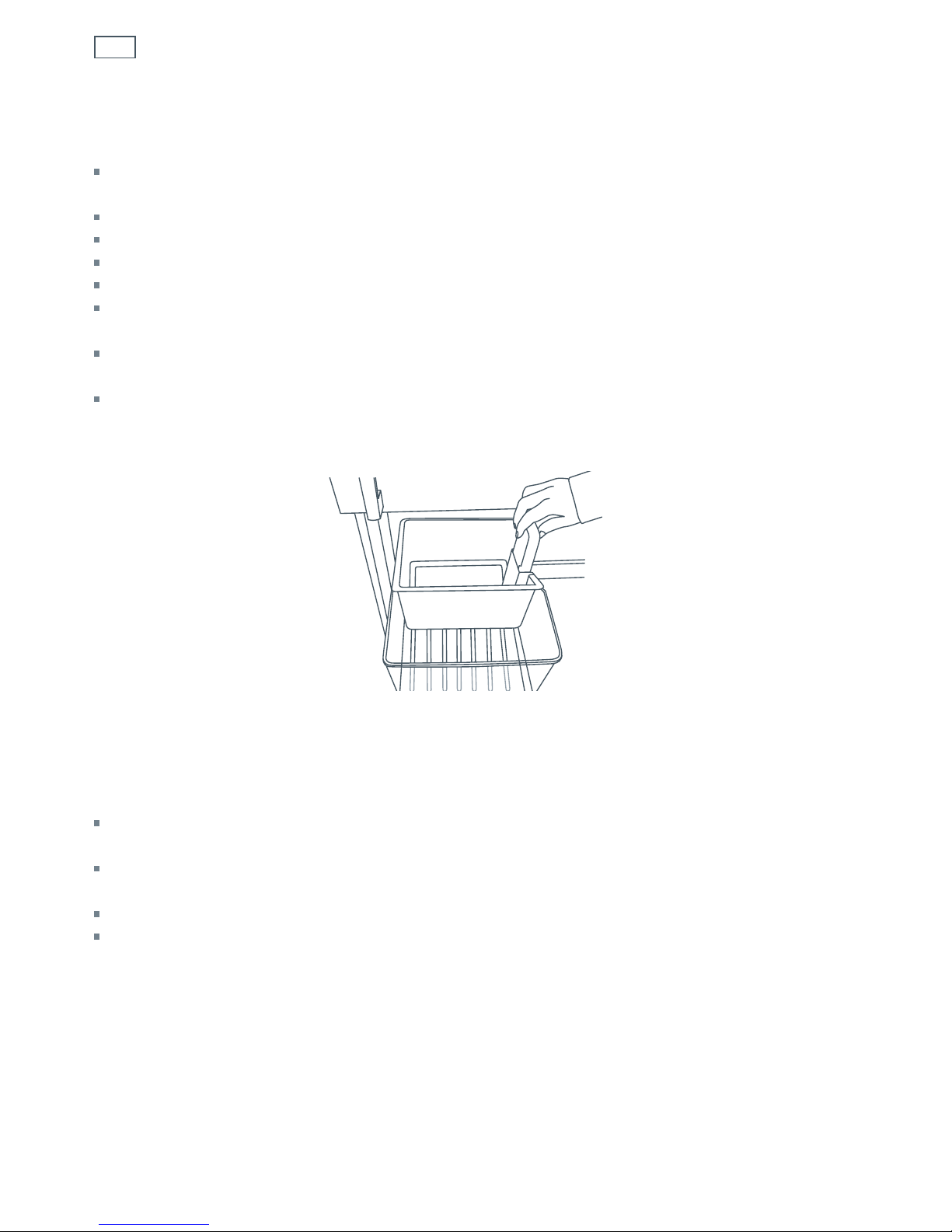

Fig.12 Ice storage bin and scoop
in correct position
Important!
Avoid contact with the moving parts of the ejector mechanism, and do not place your fingers on
the automatic ice making mechanism while the refrigerator is plugged in.
Do not use ice cubes that may have become discolored, usually with a green-blue color. If such
dis-coloration is noted, discard the ice cubes and contact your local authorized service center.
Ensure the ice maker is connected to the filter and to a drinkable water supply only.
Installation of the water connection to the ice maker must be completed by a qualified service
technician (see installation instructions).

13
Fridge options
Measured Fill
One useful feature of your water dispenser is it’s ability to dispense a pre-measured amount of
water. This comes in handy when cooking or preparing drinks.

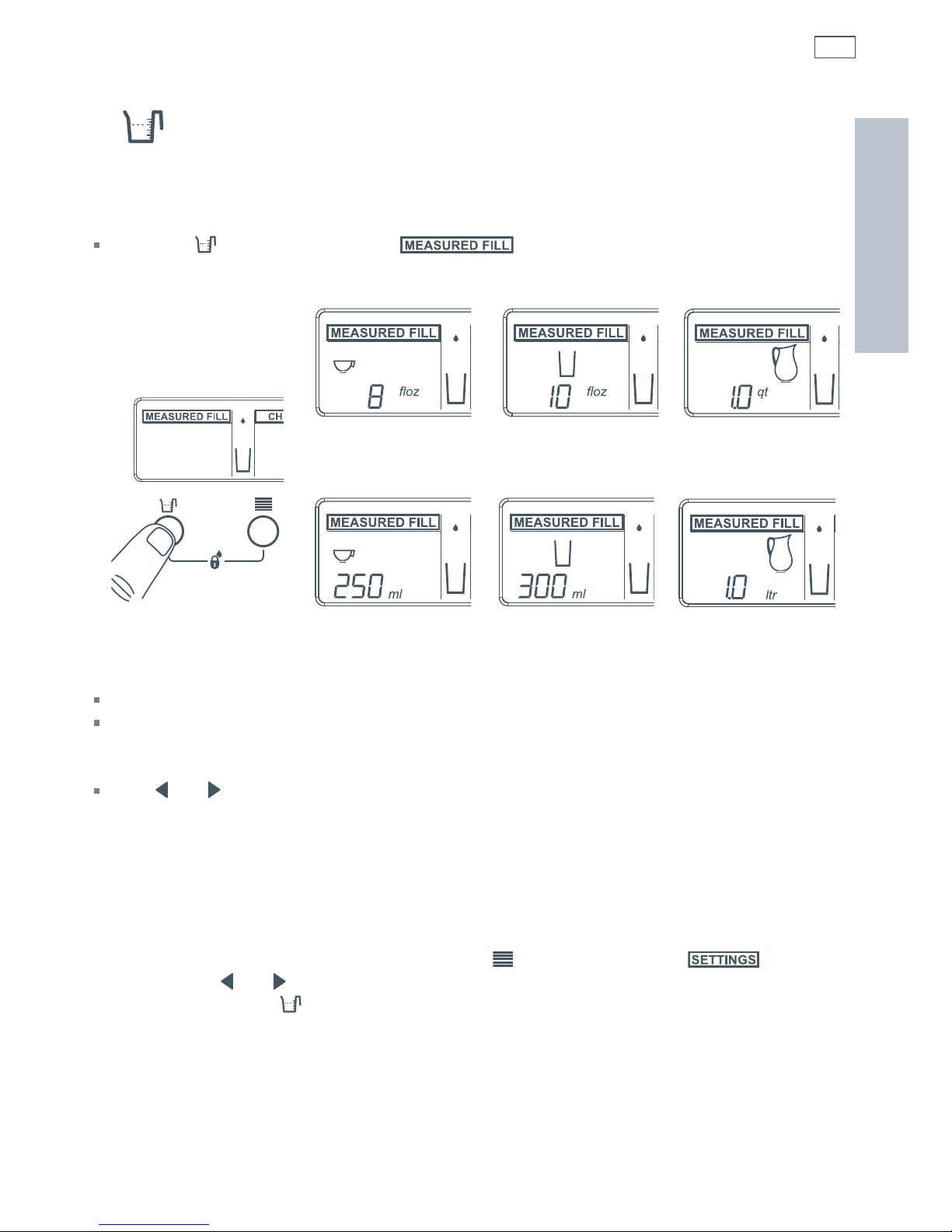

Press the button to highlight the screen and again to cycle through the
preset quantities.
Push the dispensing pad to receive the pre-selected quantity of chilled water.
If you stop dispensing part way through your pre-selected quantity the dispenser will
remember the remaining quantity to be dispensed for a short time. Simply continue by pressing
the pad.
The and buttons can be used to increase or decrease the pre-set measurements in 1 oz, or
25 ml increments, to a maximum of 1 qt, or 1 L .
Changing the Measured Fill units
The pre-set measurements can be displayed in US imperial or metric units.
The unit setting can be changed by pressing the button to scroll to the screen and
pressing the and buttons until the desired units are displayed. To return to the Measured
Fill option, press the button.
Fig.14 Metric display
Fig.13 US display
EN

14 Fridge options
Freezer Chill
We know that the faster food is frozen, the better the overall quality of the food, so we have
created the Freezer Chill feature.
The Freezer Chill feature drops the freezer to it’s coldest temperature for a 12 hour period and
then returns to its normal mode. You may wish to use this when freezing a quantity of meat or
when you are making frozen desserts.
To activate, use the button to scroll to the screen. Then use the button until
is displayed.
To deactivate manually, use the button to scroll to the screen. Then use the
and buttons until there is no icon in the screen.
For best results, we recommend that you activate the function approximately 2 hours before it is
required. Alternatively, activate it when placing food into the freezer.
Bottle Chill
This function allows you to chill your beverages in the freezer without the worry of forgetting
about them.
When activated Bottle Chill will remind you to remove your bottle by sounding an alarm. The
user alarm will continue to sound until any key on the panel is pressed.
The time taken to chill depends on the size of your bottle. Bottle Chill allows you to customise
this chill time.
Recommended times:
20 minutes – can or small bottle.
25 minutes – wine bottle or similar size beverage.
30 minutes – larger bottle.
If you remove your beverage from the freezer and it is not chilled to your liking, reset the timer
to 10 minutes and place the beverage back into the freezer.
To activate, use the button to scroll to the screen. Then use the button until
is displayed.
Then use the button to select 10, 15, 20, 25 or 30 minutes as displayed on the left hand side of
the screen in the screen.
An alarm will sound after the amount of time selected has elapsed.

15
Fridge options
Bottle Chill contd...
Important!
Do not leave the bottle inside the freezer longer than the time needed for chilling.
To deactivate manually, use the button to scroll to the screen, then use the
and buttons until there is no icon in the screen.
Note: The freezer chill and bottle chill option cannot be used at the same time.
The temperature of your refrigerator and freezer
When the refrigerator is first turned on it will take approximately 2 to 3 hours to cool,
depending on the humidity and temperature of the environment.
To adjust the temperature of a compartment, use the button to scroll to the
screen, use the button to select the compartment to change.
The temperature can then be adjusted using the button to make the compartment warmer
or the button to make the compartment colder.
The temperature setting will be indicated on the icon below.
It is important to have your refrigerator set to the correct temperature. Setting it too cold may
cause some items in the refrigerator to freeze, and setting it too warm will decrease the storage
life of your food.
For further information on food storage temperatures refer to the food care section in the
general Refrigeration & Freezer User Guide.
EN

16
Settings
Water unit conversion
You can change the units your refrigerator uses between US and metric units. To change the
units press the button to scroll to the screen option and press one of the or
buttons until the desired units are displayed.
Key Silent Mode
The Key Silent Mode allows you to silence all key presses.
It can be activated or deactivated by holding the button for four seconds.
When Key Silent Mode is on will appear.
When this function is off no symbol will appear.
Note: Faults, Bottle Chill timer and the door alarm will still sound when the refrigerator is set on
Key Silent Mode.
Key and dispenser lock
The dispenser lock disables the buttons and prevents
water from being dispensed.
Key lock disables the buttons.
Activate by holding down both the button and the
button together.
After 2 seconds icon will appear indicating dispenser
lock is activated.
After 2 more seconds icon will appear indicating key
lock is activated.
To de-activate, hold down both the button and the
button together for 2 seconds.
Sabbath Mode
In Sabbath Mode alarms, lights and displays are
deactivated.
Sabbath Mode can be activated or deactivated by
holding down the , and button for 4 seconds.
Fridge options
Fig.15 Key and dispenser lock
Fig.16 Sabbath Mode

17
Fridge options
Settings
Once in Sabbath Mode:
The interior light will not turn on when the refrigerator is opened.
The door alarm will not operate.
The display will not be illuminated.
Electronic control panel will not work.
Note: If power is turned off the refrigerator will automatically continue in Sabbath Mode once
power is restored. Sabbath Mode will automatically de-activate after 80 hours.
User warnings
Your refrigerator is clever enough to diagnose it’s own problems. It will alert you when there is
a fault.
No water
The no water icon will appear when the water supply to the refrigerator is interrupted.
Please refer to the Trouble shooting checklist (refer to pages 21 – 22).
Filter reset
The filter reset icon will appear when the water filter needs changing. This will flash when
dispensing water. To change the filter and reset the filter icon refer to pages 18 – 19.
Fault
In the unlikely event a fault occurs the icon appears on the front of the display and a fault
code will be displayed on the left in the screen.
When the door is open the refrigerator fault alarm will sound. To silence this press any button
on the display.
Please take note of the fault code and contact our Customer Care Center. Details of Customer
Care phone numbers can be found in the back of the general Refrigeration & Freezer User Guide.
Fig.17 Fault code display
EN

18
All the water to your fridge is filtered to remove impurities through a cartridge located in a
position of your choice outside the refrigerator. Of course, this will need changing approximately
every 6 months or up to 740 gallons (2800 L) depending on the quality of the incoming water
and how much you use the dispenser.
There is a replacement indicator icon on the control panel which will appear when the filter
needs replacing. It will flash, when dispensing water, as a reminder.
Replacement cartridges are available from your authorised Fisher & Paykel Dealer. The details of
the replacement cartridge are on the label on the cartridge.
Changing the water filter cartridge
1
Grasp and firmly twist the cartridge in an anticlockwise direction (to the left when installed in
the recommended orientation) as shown in Diagram 1.
2
Pull the cartridge away from the filter head (down when installed in the recommended
orientation) as shown in Diagram 2.
– It is not unusual for a few drops of water to be present when filter is removed.
3
Discard old filter.
4
Filter installation:
– Remove protective cap on spigot on head.
– Push the cartridge up towards filter head while rotating it in a clockwise direction (to the right
when installed in the recommended orientation) as shown in Diagram 3.
5
Reset filter indicator icon on the display (this will set to remind you when the filter is due to be
replaced again). Refer to page 19.
6
Dispense 5 qt / 5 L to flush the cartridge, removing trapped air and harmless carbon fines.
7
A few drips may appear out of the dispenser over the next few days as the remaining trapped air
is cleared.
Diagram 2Diagram 1 Diagram 3
Fig.18 Changing the water filter cartridge
Water filter
