Fisher & Paykel HD30 User manual

Installation Instructions
Downdraft Unit Contents of Packaging
Downdraft unit (1)
Installation instructions
User guide manual
(1)
10” (254 mm) remote blower
connection plate (1)
End cap (2)
https://producthelp.fisherpaykel.com/us/Cook/Ventilation/Downdraft/HD36/User_Guide_HD36/05_installation_instructions
Updated: Fri, 28 Jun 2019 03:30:59 GMT
Powered by
1

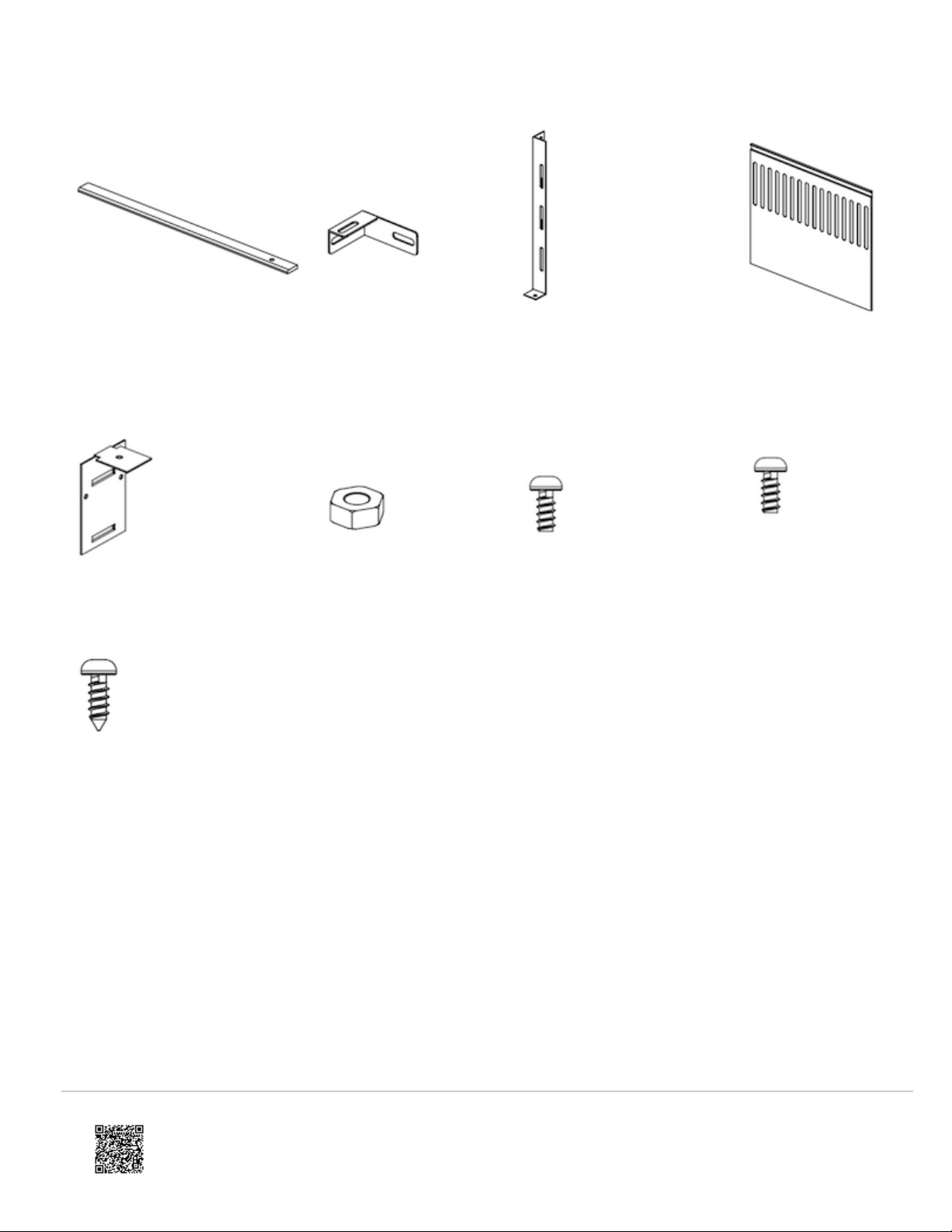

Top trim (1)
Under counter
mounting bracket (2)
Support leg mounting
bracket (2)
Grease filter (2)
Over counter monting bracket
(2)
9/32" (7 mm) nut (2) 3/16" (5 mm) screw (2)
5/16" (8 mm)
screw (6)
19/32” (15 mm) Self tapping screw (6)
Top
trim
(1)Top
trim
(1)Top
trim
(1)
Top
trim
(1)
Support
leg
mounting
bracket
(2)
9/
32”
(7
mm)
nut
(2)9
https://producthelp.fisherpaykel.com/us/Cook/Ventilation/Downdraft/HD36/User_Guide_HD36/05_installation_instructions
Updated: Fri, 28 Jun 2019 03:30:59 GMT
Powered by
2

Internal Blower (HBD600I) Contents of Packaging
Internal blower box (1) 6” (152 mm) diameter back draft damper (1)
Remote Blower (HBD1200E) Contents of Packaging
Remote blower (1) Duct collar plate (1)
https://producthelp.fisherpaykel.com/us/Cook/Ventilation/Downdraft/HD36/User_Guide_HD36/05_installation_instructions
Updated: Fri, 28 Jun 2019 03:30:59 GMT
Powered by
3

Product Dimensions
Remote blower (HBD1200E)
Downdraft unit and internal blower box (HBD600I) which can
also be mounted on the back of the appliance
Remote blower connection plate (can also be
mounted on the back of appliance)
Product Dimensions HD30
inches (mm)
HD36
inches (mm)
A. Top trim width 30” (762) 36” (914)
B. Width of product 27” (686) 33” (838)
C. Minimum distance to rear of the cabinet or wall 1” (25) 1” (25)
https://producthelp.fisherpaykel.com/us/Cook/Ventilation/Downdraft/HD36/User_Guide_HD36/05_installation_instructions
Updated: Fri, 28 Jun 2019 03:30:59 GMT
Powered by
4

Product Dimensions HD30
inches (mm)
HD36
inches (mm)
Length of power cord N/A N/A
• Actual product dimensions may vary by ± 3/32” (2 mm).
• Please read the entire instructions before installing the downdraft vent system.
Cabinet Cutout Dimensions
CUTOUT LOCATION
A. Internal blower left/right 6” (152 mm) ducting
https://producthelp.fisherpaykel.com/us/Cook/Ventilation/Downdraft/HD36/User_Guide_HD36/05_installation_instructions
Updated: Fri, 28 Jun 2019 03:30:59 GMT
Powered by
5

CUTOUT LOCATION
B. Internal blower down 6” (152 mm) ducting
C. Internal blower rear 6” (152 mm) ducting
D. Remote blower power cord cutout down or to the rear
E. Remote blower rear 10” (254 mm) ducting
F. Cooktop overhang
Installation Dimensions HD30
inches (mm)
HD36
inches (mm)
G. Minimum width of cooktop 28” (711) 34” (864)
H. Downdraft cutout width 27 1/2 ” (699) 33 1/2” (851)
I. Remote blower power cord cutout width from center 9” (230) 12” (306)
• To reduce the risk of fire, use only metal ductwork. Do not use flexible plastic ducting.
• To reduce risk of fire and to properly exhaust air, be sure to duct air outside – Do not vent
exhaust air into spaces within walls or ceilings or into attics, crawl spaces, or garages.
Compatible Blowers with the Downdraft Vent System
• Internal blower model HBD600I.
• Remote blower model HBD1200E or Remote Blower Models max 2.8 A.
• This downdraft unit may only be used in connection with the above DCS internal or remote blowers.
Compatible Cooktops with the Downdraft Vent System
The Downdraft Vent System is meant to be installed with residential use cooktops, cooktops/oven combinations,
freestanding ranges WITH UT backguards and range tops. This product is not recommended for use with ranges which
https://producthelp.fisherpaykel.com/us/Cook/Ventilation/Downdraft/HD36/User_Guide_HD36/05_installation_instructions
Updated: Fri, 28 Jun 2019 03:30:59 GMT
Powered by
6

may require additional space behind the range for oven venting R with freestanding ranges WITH backguards. Always
consult all product installation instructions for correct dimensions and clearances.
Make certain any cooktop installed is appropriate for use with a downdraft vent system.
Venting Requirements
Attention should be given to ensure that any applicable regulations concerning the discharge of exhaust air are fulfilled.
For optimal efficiency use the shortest and straightest duct route possible and use rigid or semi-rigid ducting for reduced
noise and increased airflow. For best results, internal blowers should use 6” (152 mm) round ducting and remote
blowers should use 10” (254 mm) round ducting. Flexible metal ducting should only be used as a last resort (ie in difficult
installations) and if used ensure that it is straight and smooth and extended as much as possible.
Make sure there is proper clearance within the wall or floor for exhaust duct before making cutouts. Do not cut a joist or
stud unless absolutely necessary. If a joist or stud must be cut, then a supporting frame must be constructed.
To reduce the risk of fire and electric shock, install this
appliance only with remote blower models rated maximum 2.8
A, and are suitable for use with solid state speed controls.
Plan the Ductwork
The internal blower can be mounted to the front or back of the downdraft unit and be ducted in multiple directions: left,
right, down, forward or backwards. The remote blower can be ducted downwards from the front or back of the downdraft
unit.
In the event of installations where the blower is located on the back of the downdraft unit, it is advised to leave an
access door or opening to reach the bottom of the downdraft unit, as well as where the wiring box and blower is located
should service be needed.
Calculate the Duct Run Length
The ductwork length should not exceed 55 equivalent feet (16.7 m) for 6” (152 mm) round duct, or 75 equivalent feet
(22.9 m) for 10” (254 mm) round duct. Calculate the length of the ductwork by adding the equivalent feet listed in the
table below for each piece of duct in the complete system. If flexible metal ductwork is used, each foot (312 mm) of
https://producthelp.fisherpaykel.com/us/Cook/Ventilation/Downdraft/HD36/User_Guide_HD36/05_installation_instructions
Updated: Fri, 28 Jun 2019 03:30:59 GMT
Powered by
7

flexible metal ductwork is equivalent to two feet (617 mm) of straight metal ductwork when calculating the duct run
length.
For best results the size of the ductwork should be uniform and use no more than three 90° elbows. Make sure that
there is a minimum of 24” (607 mm) of straight duct between elbows if more than one is used. Round duct is
recommended instead of rectangular duct especially if elbows are needed. Rectangular duct should be transitioned to
minimum 6” (152 mm) round for internal blowers and 10” (254 mm) round for remote blowers as soon as possible.
EQUIVALENT LENGTH EXAMPLE CALCULATION
45° elbow 5 feet (1.5 m) 9 feet straight duct 9 feet (2.8 m)
90° elbow 7 feet (2.1 m) 2 x 90° elbows 14 feet (4.3 m)
90° flat elbow 12 feet (3.7 m) Wall cap 0 feet (0.0 m)
Wall cap 0 feet (0.0 m) Complete system 23 feet (7.0 m)
• This appliance is heavy and requires two persons for unpacking and installation.
• Installation work and electrical wiring must be done by qualified person(s) in accordance with all
applicable codes and standards.
• Wear gloves to protect against sharp edges.
• When planning the cutout for the downdraft unit:
◦ Draw both the cooktop and downdraft unit cutouts on the countertop before making any
cuts.
◦ Check that there is enough room in the cabinet for both the cooktop and the downdraft unit.
Failure to follow these warnings could result in damage to the countertop.
• To avoid damage to motor bearings and impellers, keep drywall spray, construction dust, etc.
away from the blower.
The manufacturer is not liable for any damage caused by not following these instructions.
1. Preparing for Installation
Before installing your downdraft vent system:
https://producthelp.fisherpaykel.com/us/Cook/Ventilation/Downdraft/HD36/User_Guide_HD36/05_installation_instructions
Updated: Fri, 28 Jun 2019 03:30:59 GMT
Powered by
8

• Please read the instructions carefully.
• Unpack the downdraft unit and place on a flat protected surface.
• Ensure the voltage (V) and the frequency (Hz) indicated on the serial plate match
• the voltage and frequency of the installation site.
• Check that the area around the installation area is clear of any electrical cables and pipes etc.
• Be aware of kitchen cabinets and splash backs in the area of the downdraft vent system and the cooktop.
Ensure that the area where the downdraft unit rises is free of obstacles. Also be aware performance may be
reduced by strong drafts from windows or doors etc.
• The downdraft unit surfaces can be damaged during installation if grazed or knocked by tools. Please take care
to protect the surfaces during installation.
• Temporarily mark the center of the cooktop according to the information given in the ‘Installation instructions –
Cabinet cutout dimensions’ section.
• The downdraft unit is installed directly behind the cooktop. For easiest installation, install the downdraft vent
system first, then the cooktop.
• Remove any cardboard packaging from within the blower impeller.

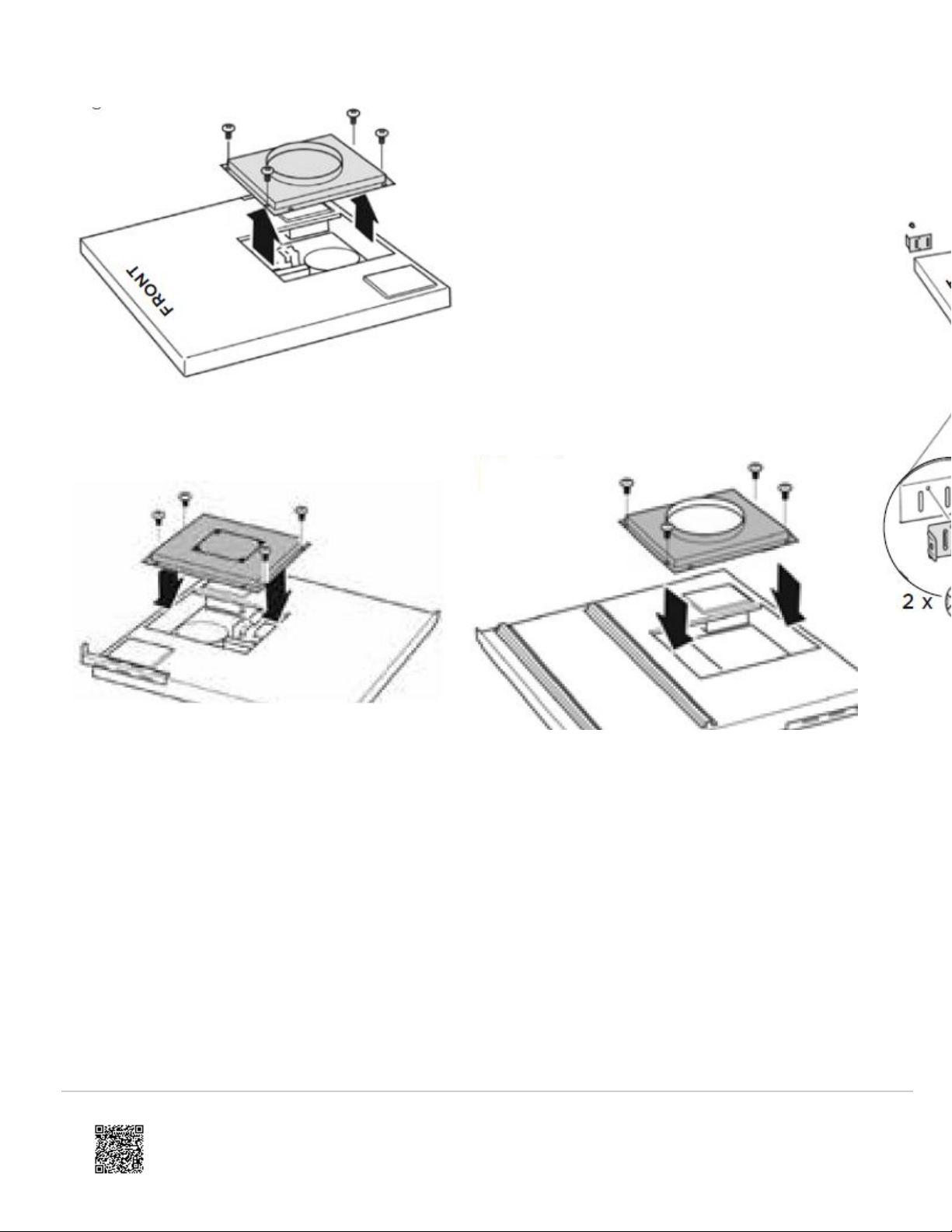

2. Prepare the Downdraft Unit for the Intended Blower
Internal Blower
• Remove the 10” (254 mm) blower connection plate from the front of the downdraft unit Fig.1.
• Attach the over counter mounting brackets in place with the two 3/16” (5 mm) screws provided Fig.2.
• Screw the support leg mounting brackets to the side of the downdraft unit using two 5/16” (8 mm) screws
each, do not fully tighten the screws. The brackets are different for the right and the left side. Attach them
with mounting clip (A) pointing up.
Remote Blower
• The downdraft unit comes ready for installation with the 10” (254 mm) remote blower connection plate
installed on the front of downdraft unit and the cover plate installed onto the back.
• To connect the remote blower to the back of the downdraft unit swap the plates over (see Fig. 3 and 4)
• Attach the over counter mounting brackets in place with the two 3/16” (5 mm) screws provided Fig.2.
• Screw the support leg mounting brackets to the side of the downdraft unit using two 5/16” (8 mm) screws
each, do not fully tighten the screws. The brackets are different for the right and the left side. Attach them
with mounting clip (A) pointing up.
https://producthelp.fisherpaykel.com/us/Cook/Ventilation/Downdraft/HD36/User_Guide_HD36/05_installation_instructions
Updated: Fri, 28 Jun 2019 03:30:59 GMT
Powered by
9

Fig.1
Fig.3
Fig.4
Fig.2
3. Temporarily Insert the Downdraft into the Cabinet
• With the assistance of another person, lift the downdraft unit into the prepared cutout in the cabinet. The over
counter mounting brackets should rest on the countertop.
• Secure the downdraft unit to the countertop with two 19/32” (15 mm) screws.
• Install the under counter mounting brackets underneath the countertop for additional support. First, loosely
screw the brackets into the sliding nuts in the downdraft unit using 3/16” (5 mm) screws and push them up under
the countertop. Pre-drill the mounting holes into the countertop from underneath. Check that the mounting
screws are the proper length and will not extend through the countertop surface when tightened Fig.5.
https://producthelp.fisherpaykel.com/us/Cook/Ventilation/Downdraft/HD36/User_Guide_HD36/05_installation_instructions
Updated: Fri, 28 Jun 2019 03:30:59 GMT
Powered by
10

Failure to follow these instructions could result in damage to the countertop surface.
• Level and align the downdraft unit in the cabinet. Push the support leg mounting bracket on each side down
against the cabinet floor. Mark the top edge of the mounting bracket on the downdraft unit and the mounting
holes on the cabinet floor Fig.6.
Fig.5
Fig.6
4. Remove the Downdraft from the Cabinet
• Remove the screws from the countertop and lift the downdraft unit back out of the cabinet.
• Pre-drill the marked mounting holes in the cabinet floor.
• Tighten the support leg mounting brackets on the unit at the pre-marked positions.
• Place the downdraft unit on a flat protected surface to prevent damage in order to install the blower.
https://producthelp.fisherpaykel.com/us/Cook/Ventilation/Downdraft/HD36/User_Guide_HD36/05_installation_instructions
Updated: Fri, 28 Jun 2019 03:30:59 GMT
Powered by
11

5. Install the Internal or Remote Blower
• For internal blower installation.
• For remote blower installation.
This downdraft unit may only be used in connection with DCS internal or remote blowers.
Internal Blower Installation in One of the Following Two Options:
Option 1: Internal blower, front installation for venting left, right or down
• Disconnect the cable from inside the downdraft unit. Plug in that same cable from the downdraft
unit into the internal blower Fig.7.
• Turn the venting collar on the internal blower box to the desired direction – left, right or down.
• Mount the internal blower box to the housing using four screws Fig.8.
• Continue to the ‘Prepare for electrical connection’ section.
Fig.7 Fig.8

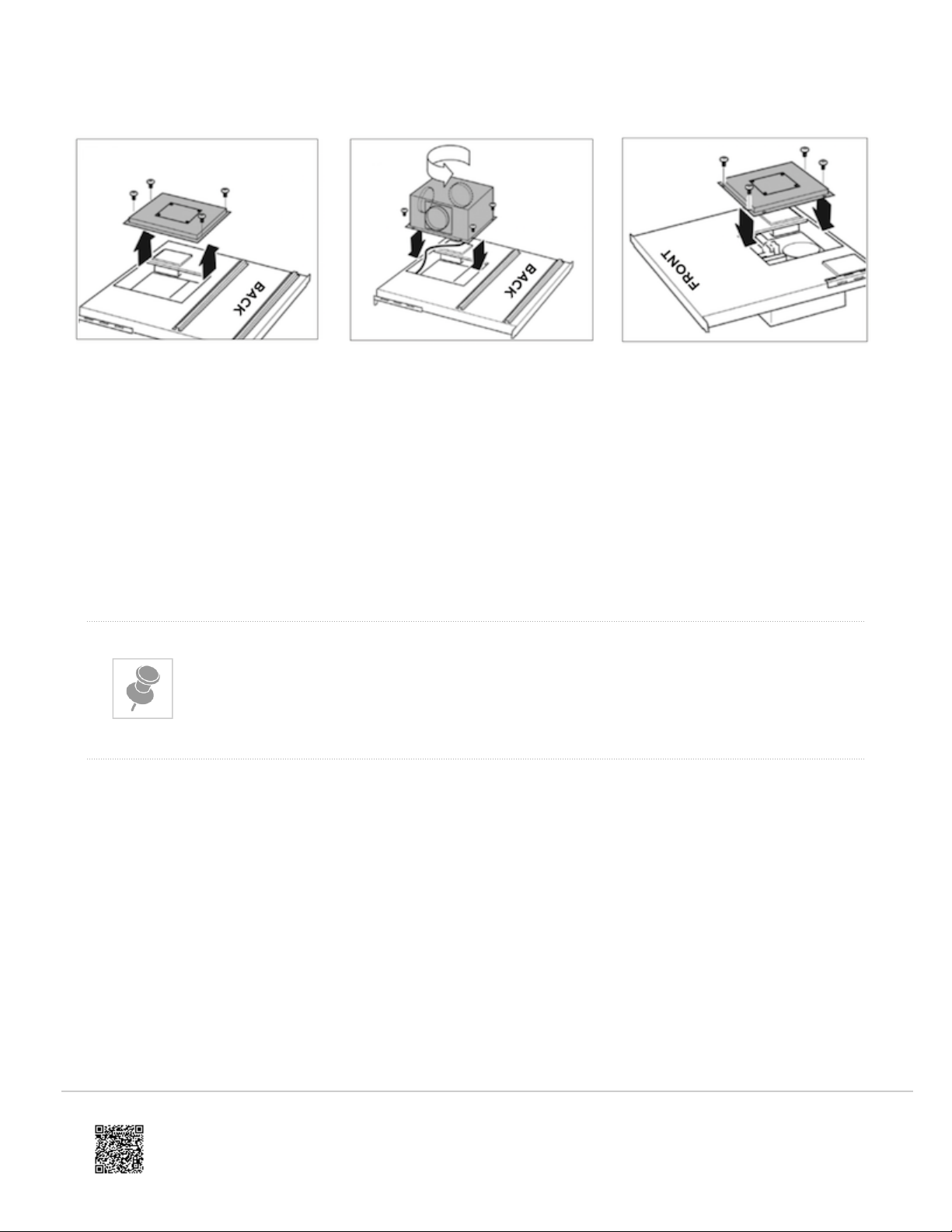

Option 2: Internal blower, back installation for venting left, right or down
• The internal blower box can also be installed on the back of the downdraft unit to accommodate
the installation of a cooking range, range top or wall oven / cooktop in front of the downdraft unit.
• Remove the large cover on the back of the downdraft unit Fig.9.
• Turn the venting collar on the blower box to the desired direction - left, right or down. Disconnect
the cable from inside the downdraft unit. Plug in that same cable from the downdraft unit into the
internal blower and mount the blower box to the housing using four screws Fig.10.
• When finished, mount the previously removed cover onto the front of the downdraft unit Fig.11.
https://producthelp.fisherpaykel.com/us/Cook/Ventilation/Downdraft/HD36/User_Guide_HD36/05_installation_instructions
Updated: Fri, 28 Jun 2019 03:30:59 GMT
Powered by
12

• Continue to the ‘Prepare for electrical connection’ section.
Fig.9 Fig.10 Fig.11
Remote Blower Installation in One of the Following Three Options:
• Make sure that the discharge end of the remote blower faces away from the direction of the prevailing
winds.
• Remove any cardboard packaging from within the blower impeller.
• Remove the cover from the remote blower, then remove the wiring box cover and screws.
• Attach an appropriate UL Listed strain relief in the knockout.
For most installations, it is recommended that the strain relief be installed so that it can be tightened
from inside the remote blower housing.
• Reattach the wiring box cover loosely, it will be removed again later.
Option 1: Wall installation
• Choose a location on an outside wall where no wall studs, wires, pipes, etc. run through the
opening area. A minimum distance of 24” (610 mm) from the remote blower to the ground may be
required depending on local code. Make sure to leave room for anticipated snowfall in your region.
• Drill the guide hole in the center of the 11” (279 mm) diameter opening area.
• Mark a 27 1/2” x 34” (699 x 864 mm) rectangle on wall as indicated in Fig.12.
• Cut a rectangular hole in the siding only. Do not cut sheathing. Nail down all siding ends.
• Mark an 11” (279 mm) diameter circle around guide hole as indicated in Fig.12.
• Mark the center of the 1 1/4” (32 mm) diameter hole for electrical wiring as indicated in Fig.12.
• Cut an 11” (279 mm) diameter hole in the sheathing.
• Drill the 1 1/4” (32 mm) diameter electrical wiring hole.
https://producthelp.fisherpaykel.com/us/Cook/Ventilation/Downdraft/HD36/User_Guide_HD36/05_installation_instructions
Updated: Fri, 28 Jun 2019 03:30:59 GMT
Powered by
13

• Run a large bead of caulk on the back side of the housing along the outer edge.
• Center the remote blower ring in the 11” (279 mm) diameter hole, making sure that the 1 1/4” (32
mm) diameter electrical wiring hole lines up with the hole in the wiring box.
• Attach the remote blower to the wall using screws appropriate for your installation. All four holes in
the back panel must be filled to prevent moisture that may get inside the remote blower housing
from leaking into the home.
• Seal all around the mounting screw heads with caulk.
• Continue to the ‘Prepare for electrical connection’ section.

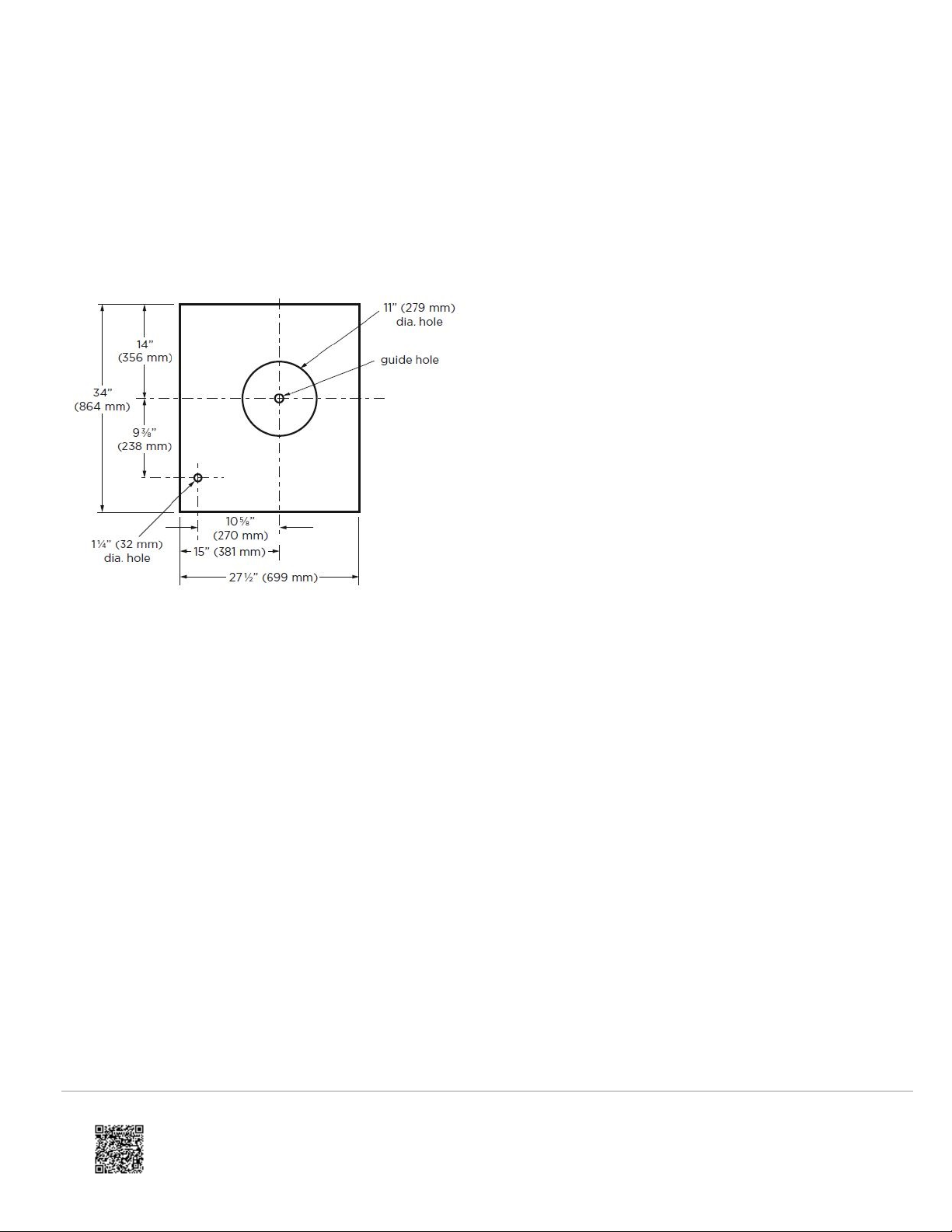

Fig.12
Option 2: Sloped roof installation
(For flat roof installations see ption 3)
• Choose location on the rear slope of the roof that minimizes vent run. Avoid obstacles such as TV
leads, electric lines, etc. If the remote blower top is level with the roof peak, it will not be seen from
the street. Remember this location as you work from the inside of the roof space.
• Mark a point half way between the rafters and drill a guide hole at this point.
• From the outside, using the guide hole as a starting point, mark the rectangular cut-out as
indicated in Fig.12. Remove NLY the roof shingles in THIS AREA.
• Mark an 11” (279 mm) diameter circle around guide hole as indicated in Fig.12.
• Mark the center of the 1 1/4” (32 mm) diameter hole for electrical wiring as indicated in Fig.12.
• Cut out the roof boards along the 11” (279 mm) diameter circle.
• Drill the 1 1/4” (32 mm) diameter electrical wiring hole.
• Remove the roofing nails from the upper two-thirds of the shingles to allow the back flashing sheet
on the remote blower housing to fit under them.
• Center the remote blower ring in the 11” (279 mm) diameter hole, making sure that the 1 1/4” (32
mm) diameter electrical wiring hole lines up with the hole in the wiring box.
https://producthelp.fisherpaykel.com/us/Cook/Ventilation/Downdraft/HD36/User_Guide_HD36/05_installation_instructions
Updated: Fri, 28 Jun 2019 03:30:59 GMT
Powered by
14

• Attach the remote blower to roof or frame using screws appropriate for your installation. All four
holes in the back panel must be filled to prevent moisture that may get inside the remote blower
housing from leaking into the home.
• Seal all the shingles around the remote blower housing, flashing sheet, and mounting screw heads
or frame with roofing cement. The top and side flanges of the back plate may be covered with trim.
It is recommended that electrical connection be made and checked first. Do not block the vent grill
opening at the bottom of the trim. Doing so will decrease blower performance.
• Continue to the ‘Prepare for electrical connection’ section.
Option 3: Flat roof installation
• Locate the 11” (279 mm) diameter hole between rafters.
• Build a sloping base that will mount the remote blower at a minimum pitch of 2 1/2” (64 mm) see
Fig.13 for an example showing 5” (127 mm) pitch.
• Weatherproof the base as required.
• Locate the base so that the remote blower’s vent aligns with the 11” (279 mm) diameter hole and
the blower sits evenly on the base with no gaps.
Make sure that the discharge end of the remote blower faces away from the direction of prevailing
winds.
• Use dimensions from Fig.12 to locate the 1 1/4” (32 mm) diameter wiring hole.
• Continue from point 8 from the previous ‘sloped roof installation’ section.
Fig.13
https://producthelp.fisherpaykel.com/us/Cook/Ventilation/Downdraft/HD36/User_Guide_HD36/05_installation_instructions
Updated: Fri, 28 Jun 2019 03:30:59 GMT
Powered by
15

6. Prepare for Electrical Connection
Downdraft Unit
• Remove the cover of the terminal box from the downdraft unit Fig.14.
• Decide whether the power source should enter the downdraft unit from below or from the back and
remove the respective knock out. Install a UL listed strain relief or conduit fitting (not included) in the
knock out Fig.15.
• If the downdraft unit is being installed with a remote blower, remove the knock out for the control cable.
• With the assistance of another person, lift the downdraft unit into the prepared cutout in the cabinet. The
over counter mounting brackets should rest on the countertop.
• Secure the downdraft unit to the floor and countertop with screws into the previously drilled holes Fig.16.
Fig.14
Fig.15
Fig.16
• Push the end caps into place on the downdraft unit on top of the counter and lock them in place Fig.17.
https://producthelp.fisherpaykel.com/us/Cook/Ventilation/Downdraft/HD36/User_Guide_HD36/05_installation_instructions
Updated: Fri, 28 Jun 2019 03:30:59 GMT
Powered by
16

Fig.17
7. Electrical Connection
◦ Electrical wiring must be done by qualified person(s) in accordance with all applicable
codes and standards and the unit must be grounded.
◦ This downdraft unit may only be used in connection with DCS internal or remote blowers.
◦ Unplug or disconnect the appliance from the power supply before servicing or cleaning.
Electrical Requirements
A 120 volt, 60 Hz AC-only electrical supply is required on a separate 15 amp circuit, fused on both sides of the
line. A time-delay fuse or circuit breaker is recommended. The fuse must be sized per local codes in accordance
with the electrical rating of this downdraft unit as specified on the serial/rating plate located inside the downdraft
unit near the field wiring compartment.
This downdraft unit must be connected with copper wire only.
Wire sizes must conform to the requirements of the National Electrical Code, ANSI/NFPA 70 -latest edition, and
all local codes and ordinances. Wire size and connections must conform with the rating of the appliance. Copies
of the standard listed above can be obtained from:
National Fire Protection Association
Battery March Park
Quincy, Massachusetts 02269
https://producthelp.fisherpaykel.com/us/Cook/Ventilation/Downdraft/HD36/User_Guide_HD36/05_installation_instructions
Updated: Fri, 28 Jun 2019 03:30:59 GMT
Powered by
17

This appliance should be connected directly to the fuse disconnect (or circuit breaker) through flexible, armored
or non-metallic sheathed copper cable. Allow some slack
in the cable so the appliance can be moved if servicing is ever necessary. A UL Listed strain relief or 1/2” (12.7
mm) conduit connector must be provided at each end of the power supply cable (at the appliance and at the
junction box).
When making the electrical connection, cut a 1 1/4” (32 mm) hole in the wall. A hole cut through wood must be
sanded until smooth. A hole through metal must have a grommet.
Suitable for use with solid state speed controls.
Downdraft Unit Internal Blower Electrical Connection
• Connect (L1/live) wire from the power supply cable into the right terminal Fig.19.
• Connect the green (ground) wire from the power supply cable into the middle terminal Fig.19.
• Connect the (neutral) wire from the power supply cable into the left terminal Fig.19.
• Ensure that the terminal screws are tightly holding all wires in place.
• Replace the cover of the terminal box Fig.18.
Fig.18
https://producthelp.fisherpaykel.com/us/Cook/Ventilation/Downdraft/HD36/User_Guide_HD36/05_installation_instructions
Updated: Fri, 28 Jun 2019 03:30:59 GMT
Powered by
18

Fig.19 Fig.20
Downdraft Unit Remote Blower Electrical Connection
• Connect the power supply cable into the box as described in the ‘Downdraft unit internal blower
electrical connection’ section (above).
• To use a remote blower, install a control cable between the downdraft unit and the remote blower. See
the ‘Remote blower electrical connection’ on next page.
• Additional knock outs should be used for the remote blower wiring.
• Install a suitable UL listed strain relief or conduit fitting (not included) into the knock out.
• Connect the remote blower wiring into the downdraft unit: N (neutral) into the right terminal, L1 (live)
into the left terminal and the green (ground) wire goes into the ground terminal Fig.20.
• Ensure that the terminal screws are tightly holding all wires in place.
• The remote blower will be connected to the additional control cable
• Replace the cover of the terminal box Fig.18.
https://producthelp.fisherpaykel.com/us/Cook/Ventilation/Downdraft/HD36/User_Guide_HD36/05_installation_instructions
Updated: Fri, 28 Jun 2019 03:30:59 GMT
Powered by
19

Remote Blower Electrical Connection
• Remove the cover from the remote blower, then remove the wiring box cover.
• Pull the electrical wiring through the hole in the blower base and secure it according to local codes using
a suitable UL listed strain relief or conduit fitting (not included).
• Connect the N (neutral) wire to the white wire in the wiring box with twist-on connector Fig.21.
• Connect the L1 (live) wire to the black wire in the wiring box with twist-on connector Fig.21.
• Connect the green power supply ground wire to the green ground screw.
Verify that the main filter, flap and wiring box cover are positioned correctly with wiring clearance.
• Replace the wiring box cover and screws taking care not to pinch the wiring under the wiring box cover.
• Reinstall the remote blower cover.
Fig.21
https://producthelp.fisherpaykel.com/us/Cook/Ventilation/Downdraft/HD36/User_Guide_HD36/05_installation_instructions
Updated: Fri, 28 Jun 2019 03:30:59 GMT
Powered by
20
