Fisher & Paykel HP60IDCHX3 User manual

BUILT-IN INTEGRATED
RANGEHOOD
HP60IDCHX & HP90IDCHX models
INSTALLATION GUIDE/USER GUIDE
NZ AU

1
IMPORTANT!
SAVE THESE INSTRUCTIONS
The models shown in this user guide
may not be available in all markets
and are subject to change at any time.
For current details about model and
specification availability in your country,
go to our website fisherpaykel.com or
contact your local Fisher & Paykel dealer.
Registration
Register your product with us so we can
provide you with the best service possible.
To register your product visit our website:
fisherpaykel.com
Introduction 3
Safety and warnings 4
Installation instructions 7
Operating instructions 15
Cleaning and maintenance 17
Parts and accessories 19
Service and warranty 20
CONTENTS

3

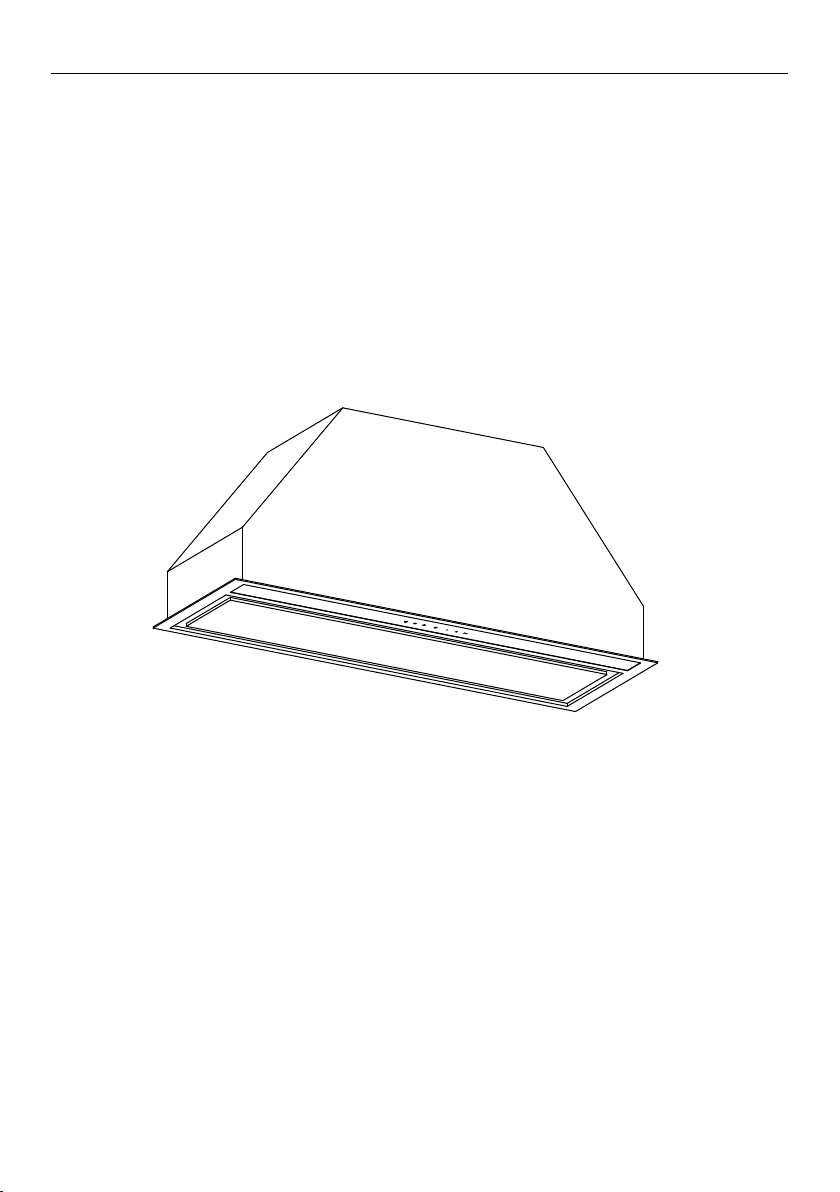

Welcome to the family of Fisher & Paykel appliances. Our team has spent thousands
ofhours designing, engineering and testing this Integrated Rangehood to ensure
youget the perfect product for your home. For more information on your product
please visit fisherpaykel.com or contact our Customer Care team.
INTRODUCTION

4
SAFETY AND WARNINGS
!WARNING!
8.2 kg
(HP60)
11.5 kg
(HP90)
Weight Hazard
The appliance is heavy. Please ensure adequate care is taken when
installing the appliance to prevent personal injury.
The appliance must be installed onto a solid wall, stud, beam or
truss. Weight of the product is 8.2 kg (HP60)/ 11.5 kg (HP90).
!WARNING!
Electric Shock Hazard
Always disconnect the appliance from the mains power supply before
carrying out any maintenance or repairs.
Installation work and electrical wiring must be done by qualified
person(s) in accordance with all applicable codes and standards,
including fire-rated construction.
Failure to do so can result in death, electric shock, fire or
injury to persons.

5
SAFETY AND WARNINGS
IMPORTANT SAFETY INFORMATION
READ THE ENTIRE SET OF INSTRUCTIONS BEFORE INSTALLING OR USING THIS
APPLIANCE. A copy of the user guide and installation guide for this product can also
be found at fisherpaykel.com.
WARNING!
When using this appliance always exercise basic safety precautions including
the following:
zRead the entire set of instructions before installing or using this appliance.
zPlease make this information available to the person installing the
appliance—doingso could reduce your installation costs.
zAlways switch the power off prior to installation, servicing or cleaning of
the rangehood.
zThis appliance must be installed and connected to the mains power supply only
by asuitably qualified person according to these installation instructions and
in compliance with any applicable local building and electricity regulations.
Failuretoinstall the appliance correctly could invalidate any warranty or
liability claims.
zTo comply with electrical safety regulations, the rangehood must be plugged into
a socket near the appliance. The socket must be accessible, or have an accessible
isolating switch, to enable the end user to isolate the rangehood from the power
forthe purpose of internal cleaning or maintenance.
zA power outlet should be within 750mm of the motor assembly and can either be
onthe wall, behind the chimney or in the ceiling.
zIf the supply cord of this equipment is damaged, it must only be replaced by the
manufacturer, its service agent or similarly qualified person in order to avoid a hazard.
zDucting accessories are not supplied. All ducting must comply with local requirements
and building codes.
zAttention should be given to ensure that any applicable regulations concerning
thedischarge of exhaust air are fulfilled.
zBefore connecting any pipes, consult municipal ordinances to ensure that any
applicable regulations concerning the discharge of exhaust air are adhered to
andrequest permission from the person in charge of the building.
zExhaust air must not be discharged into an existing flue that is used for exhausting
fumes from appliances burning gas or other fuels.
zThere shall be adequate ventilation of the room when the rangehood is used at
thesame time as appliances burning gas or other fuels.
zThe minimum distance between the supporting surface for cooking vessels on
thecooktop and the lowest part of the rangehood shall be 600mm or 650mm
ifinstalled over a gas cooktop.
zStainless steel is very easily damaged during installation if abraded or knocked
bytools. It is recommended to protect the top of the rangehood with cardboard or
polystyrene during the installation to minimise the risk of damage occurring.
zTo reduce the risk of damage occurring to the cooktop, it is recommended that
the surface of the cooktop is protected with cardboard or a similar object during
installation of the rangehood.

6
zThis appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge,
unlessthey have been given supervision or instruction concerning the use of the
appliance by a person responsible for their safety.
zChildren should be supervised to ensure they do not play with the appliance.
Cleaningand user maintenance shall not be made by children without supervision.
zYou must read the details concerning the method and frequency of cleaning.
zThere is a fire risk if cleaning is not carried out in accordance with the instructions.
zNever leave frying food unattended since grease can overheat and catch fire.
Theriskof fire is even greater in the case of used oil.
zDo not flambé under the rangehood.
zNever use the rangehood without the filters in place.
zDuring an electrostatic discharge (ESD) it is possible that the device will stop
working. By switching the device off and on the device will again work as intended.
zCAUTION: accessible parts may become hot when used with cooking appliances.
zRemove all packaging, including protective wrappings, before use.
SAFETY AND WARNINGS

7
INSTALLATION INSTRUCTIONS
Contents of packaging
13mm screw
(2)
Installation instructions
User guide manual
(1)
125mm ducting
adapter (1)
Rangehood
(1)
BUILT-IN INTEGRATED
RANGEHOOD
HP60IDCHX2, HP90IDCHX2,
HP60IDCHX3 & HP90IDCHX3 models
INSTALLATION GUIDE / USER GUIDE
NZ AU ROW
150mm ducting adapter
with non return flap
(1)

8
INSTALLATION INSTRUCTIONS
J
K
H
I
G
E
B
F
C
A
Dm
(A)
Power cord location
Ducting adapter
ØL

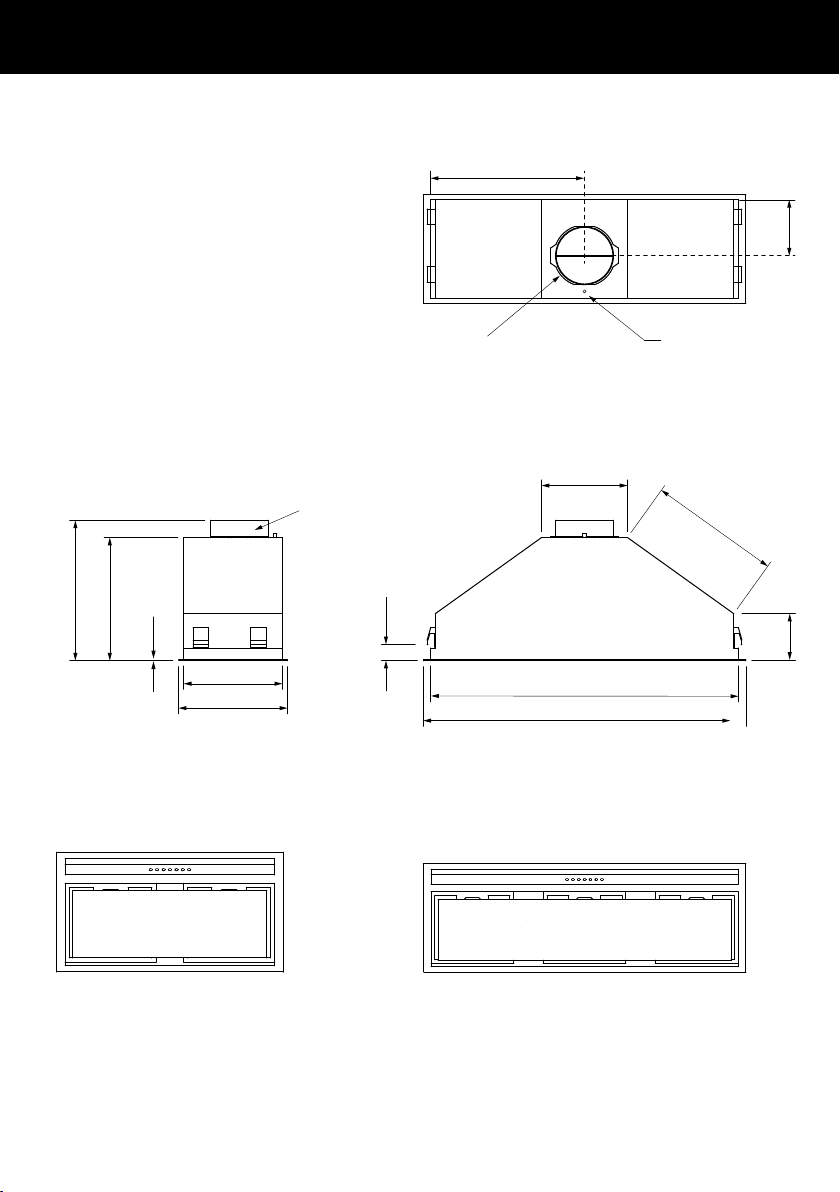

Product and cabinetry cutout dimensions
HP60 HP90

9
INSTALLATION INSTRUCTIONS
HP60 HP90
PRODUCT DIMENSIONS mm mm
AOverall height of product
(with ducting adapter)
316
(361)
316
(361)
BOverall width of product 530 830
COverall depth of product 280 280
DThickness of flange 2 2
EWidth of chassis 492 792
FDepth of chassis 255 255
GHeight of side of chassis 120 120
HWidth of top surface of chassis 220 220
ILength of angled surface of chassis 260 335
JDistance from centre of ducting outlet
toback of chassis
145 145
KDistance from centre of ducting outlet
toside of chassis
245 395
LDiameter of ducting outlet 150 150
Length of power cord 950 950
CABINETRY CUTOUT DIMENSIONS
Overall width of cutout 500 800
Overall depth of cutout 260 260
MBase of brackets/clips to bottom of chassis min. 15 – max. 40 min. 15 – max. 40
IMPORTANT!
Actual product dimensions may vary by ±2mm.
Please read the entire instructions before installing the rangehood.

10
INSTALLATION INSTRUCTIONS

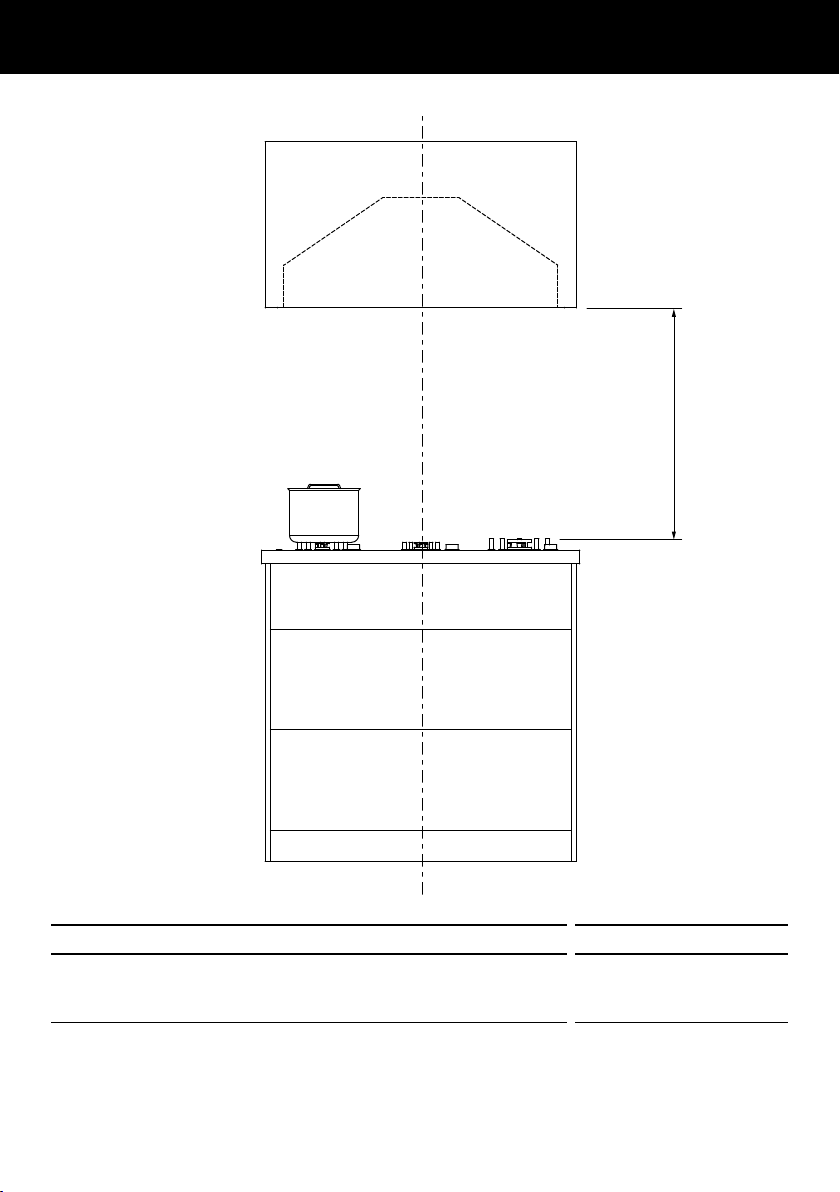

Height of rangehood
MINIMUM CLEARANCES mm
PHeight top of cooktop to base of product
Electric cooktop
Gas cooktop
min. 600 – max. 750
min. 650 – max. 750
Rangehood installation height above the cooktop is the user’s preference.
Lowerinstallation heights will improve the efficiency of capturing cooking odours,
grease, and smoke. This rangehood must be installed between the minimum and
maximum dimensions indicated in the table above.
P

11
INSTALLATION INSTRUCTIONS
Venting requirements
IMPORTANT!
To reduce risk of fire and to properly exhaust air, be sure to duct air outside.
Donotvent exhaust air into spaces within walls or ceilings or into attics,
crawl spaces, or garages.
The range hood can be installed to operate with the exhaust air ducted externally
fromthekitchen or with the exhaust air recirculating within the kitchen.
External venting
For best results:
zUse the shortest and straightest duct
route possible. Elbowsandtransitions
increase noise and reduce air
flowefficiency.
zUse rigid or semi-rigid ducting 150mm
diameter with a 160mm (minimum)
round hole inthe wall or ceiling.
Note: In difficult installations where
flexible ducting is required ensure that
itis pulledtight.
Recirculating
This range hood can be installed to recirculate within
thekitchenwhere ducting externally is not practical.
Thecarbonfilters fit on the blowers within the cavity of
the range hood and absorb odours as they pass over the
filters. Theexhaust air then passes through the blower unit
andthediverter before recirculating back into the kitchen
fromthesidevents at the top ofthechimney.
Note: A ducting hole is not required in the wall or ceiling
wheninstalling a range hood to berecirculated.
To operate this range hood with the air recirculating the
followingis required:
zCarbon filters (refer to ‘Parts and accessories’).
z150mm ducting. The ducting diameter must match
thediameterorthe blower outlet.
z150mm louvered vent.
Recirculate with carbon filters
Vent through roof Vent through exterior wall

12
INSTALLATION INSTRUCTIONS
Installation
WARNING!
zThis product is heavy and requires two persons for installation.
zFailure to install the screws or fixing device in accordance with these instructions
mayresult in electrical hazards.
The manufacturer is not liable for any damage caused by not following these instructions.
Prepare for installation
1
Before installing your cooker hood:
zRead the instructions carefully.
zUnpack the cooker hood and check that all functions are working.
zEnsure that the voltage (V) and the frequency (Hz) indicated on the serial plate
match the voltage and frequency at the installation site.
zThe stainless steel and glass surfaces of the cooker hood are very easily damaged
during installation if grazed or knocked by tools. Take care to protect the surfaces.
zProtect the hob surface below with cardboard, or the like, to prevent damage
occurring whilst the cooker hood is being installed above.
2
Fit the 150mm ducting adapter with non return flap tothecooker hood using the
screwssupplied.
3
Provide an opening on the underside of the cupboard (refer to‘Product and cabinetry
cutout dimensions’).
4

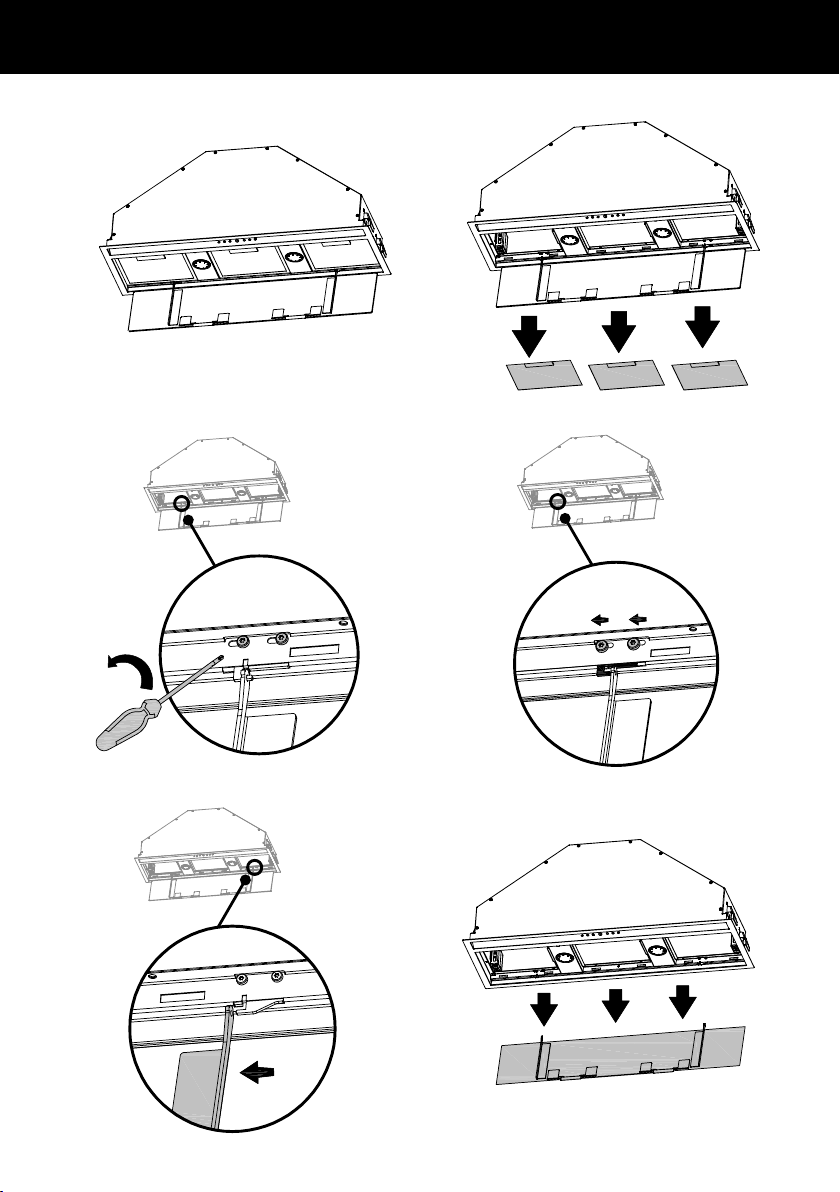

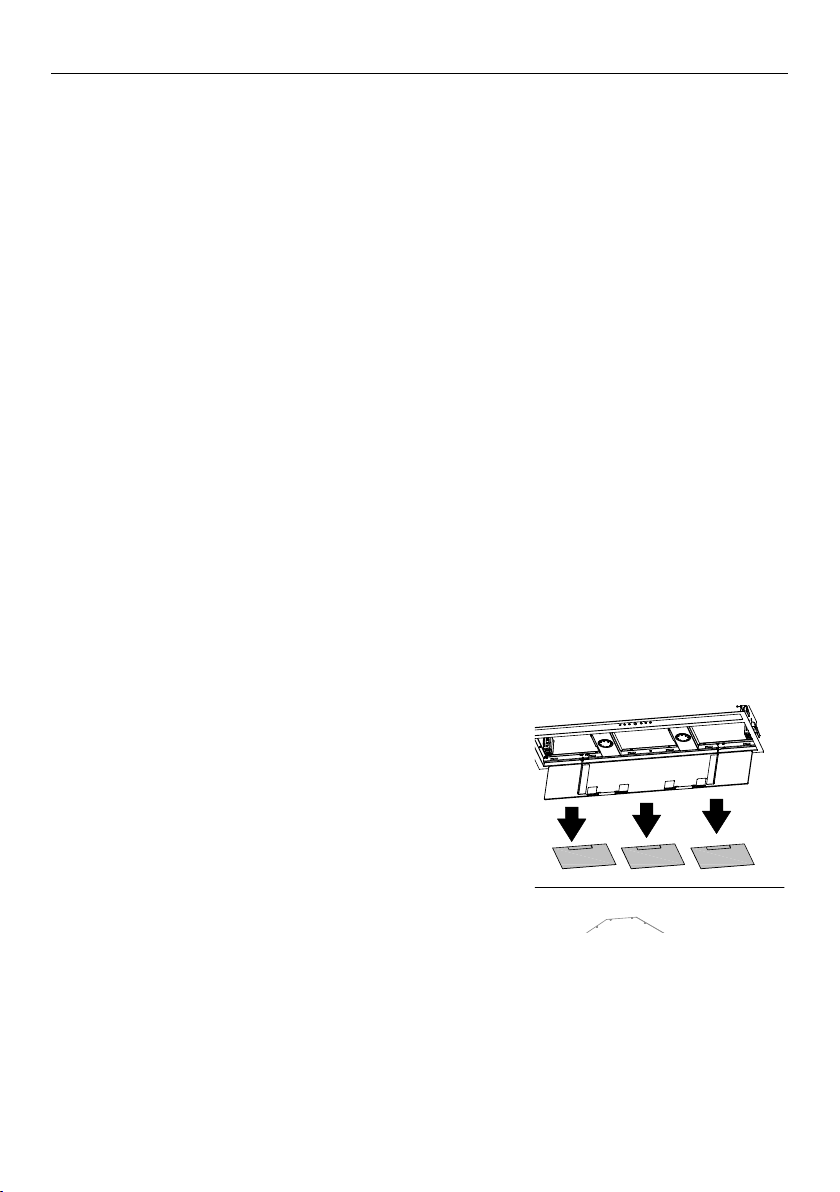

Remove the filters and face plate of the cooker hood.
IMPORTANT!
Venting directly into the cabinet with no ducting and louvered vent is not permitted.
To recirculate your perimeter insert range hood:
1
Determine the desired location of the 150mm louvered vent on your cabinetry.
Thelouvered vent can be placed on the side or front of your cabinet provided there
issufficient clearance from the surrounding cabinetry to enable ventilated air to
recirculate back into your kitchen.
Note: Placement of the louvered vent on the top of your cabinetry is not recommended.
This should only be done if objects can be prevented from falling through the louvers
into the blower.
2
Create a cutout in your cabinet to fit the 150mm louvered vent. Place the louvered vent
on the hole created and secure (A).
3
Connect the blower outlet to the louvered vent with a length of 150mm rigid ducting,
and secure the joints with aluminum tape. Ensure there is no slack in the ducting.
Recirculation venting options
A
Side To p Front

13
INSTALLATION INSTRUCTIONS
360˚
1
360˚
2
360˚
360˚
360˚
360˚
3 4
5
6

14
INSTALLATION INSTRUCTIONS
width
depth
2.3
2.2
2.1
x4
5
Lift the rangehood and fit through the opening of the cupboard till the
springloadedbrackets / clips hold the product in place.
width
depth
2.3
2.2
2.1
x4
6
Secure rangehood while tightening the 4 brackets / clips.
width
depth
2.3
2.2
2.1
x4
7
Connect duct and plug rangehood in.

15
OPERATING INSTRUCTIONS
This rangehood should be turned on for a few minutes before cooking in order to
establish air currents upward through the rangehood. This will also enable hot air
removal from your kitchen and keep the rangehood surface cool. When heat, smoke,
moisture, grease and cooking odours are produced, they will be carried outside instead
of drifting into other rooms.
Use the low fan speeds for normal use and the higher fan speeds for high heat,
strong odours or fumes.
Rangehood width
zThe rangehood width is recommended to be no less than the width of the cooktop.
zA wider rangehood can be used to increase the capture area if space is not restricted.
zThe rangehood should ideally be centred above the cooktop for proper performance.
Induction cooking considerations
Induction cooktops use energy efficient technology that only heats the contents of a
cooking pot. Unlike gas or traditional electric cooktops, the surrounding air does not get
heated when using an induction cooktop. As a result, rangehood filters, splashbacks and
surrounding cabinetry do not get warmed up, increasing the likelihood of condensation
on these cooler surfaces. Other factors like ambient temperature, humidity, natural
ventilation of the room, size of the cookware and how the induction cooktop is being
used also influence condensation. For example, rapid boiling on high cooktop heat
settings like PowerBoost increases the rate at which water is evaporated, increasing the
likelihood of condensation. It is important to understand that neither the rangehood nor
the induction cooktop are faulty as a result of this phenoenon.
Condensation can be minimised by:
zInstalling the rangehood at the maximum height above the cooktop.
zUsing the rangehood on a lower speed setting when boiling.
zUsing the induction cooktop on a lower heat setting when boiling.
zSwitching the rangehood on 5 minutes before cooking and letting it run for at least
5minutes after cooking.
Gas cooking considerations
Using a powerful gas cooktop or multiple gas burners operating at the same time can
cause the rangehood surfaces to become hot. This effect can be reduced by:
zUsing the maximum speed setting to enable hot air to be extracted quickly.
zInstalling the rangehood at the maximum recommended height.
zConsult the cooktop installation and user guide for details on the installation height of
the rangehood.

16
Touch control panel
CONTROL PANEL FEATURES
Filter cleaning alert Activated regularly to alert of the need to clean
filters. It can be deactivated with a singlepress.
Timer
Turn the timer on. The fan operates for 5minutes
at the current speed and each descending speed
before turning off.
Lights
Turn the lights on or off. The lights are dimmable.
Press and hold to progressively adjust the
brightness level.
Power on/off Turn the rangehood on or off. The fan
automatically turns on to operate at level 1.
Fan speed 1–3
Adjust the fan speed levels from 1 – 3 with 1 being
the lowest level and 3 being the highest.
The fan speed level icon illuminates red
when selected.
Boost
Turn the fan onto boost speed. The icon flashes
red when it is on. The rangehood will operate on
boost speed for 5minutes and will then revert
to speed 3.
OPERATING INSTRUCTIONS

17
CLEANING AND MAINTENANCE
WARNING!
zBefore servicing or cleaning your rangehood, switch the power off at the control panel
and disconnect the power to prevent power from being switched on accidentally.
zAllow the appliance to cool after the power has been turned off before servicing.
zThere is a risk of fire if cleaning is not carried out in accordance with these instructions.
IMPORTANT!
zNever use abrasive or oil based cleaners.
zWear gloves to protect against sharp edges.
Clean your rangehood regularly to avoid the
build-up of grease. Grease deposits are corrosive
andmay damage the rangehood. Use warm water
withamild liquid detergent and a clean soft cloth
towipe down all surfaces of the rangehood.
Do NOT use the following to clean your rangehood,
theywill damage and/or discolour the surfaces:
zCorrosive chemicals.
zAbrasive cleaning products.
zCitrus-based cleaning products.
zHard brushes and steel wool.
Note: in areas of high humidity or coastal environments, cleaning should be carried
outmore frequently.
Filter cleaning
Aluminium filters
zThe clean filter light reminder will illuminate to remind
you to clean the filters.
zDepending on use, and at least once a month, the
aluminium grease filters should be removed and cleaned
with hot soapy water or in a dishwasher.
zIf washed in a dishwasher, the filters should be placed in
an upright position to prevent food from falling on them.
zAfter rinsing and drying, replace the filters
Note: some discolouration of the frames may occur.
360˚

18
Removing the aluminium filters:
1
Open the glass panel.
2
Pull the relative filter catch, tilting it downwards until it disengages from the supports.
3
Reverse these instructions when refitting the filters.
Note: Do NOT operate the rangehood without the filters in place. The filters help prevent
damage to the inside of the rangehood.
Carbon filters—for use in recirculation mode
Active carbon filters are disposable items designed to remove grease and odours from
cooking vapours before the air is channelled back into the kitchen. The active carbon
filters must be replaced periodically to work properly, at least once every three months,
depending on the frequency with which the rangehood is used.
Note: fully saturated carbon filters can become a barrier to air movement therefore
limiting rangehood performance. In the event of fire, grease laden filters could be
flammable and therefore regular replacement is recommended.
Lighting
Slimline LED strip lighting illuminates the cooking space, allows greater dimming control,
and means no lightbulb changes.
Replacing LED lights
To replace the LED lights please contact your Fisher & Paykel trained and supported
service technician. Refer to fisherpaykel.com or your seperate service and warranty
book provided with your rangehood for contact details.
CLEANING AND MAINTENANCE
