Fisher & Paykel HC24PHTX1 User manual

Installation Instructions

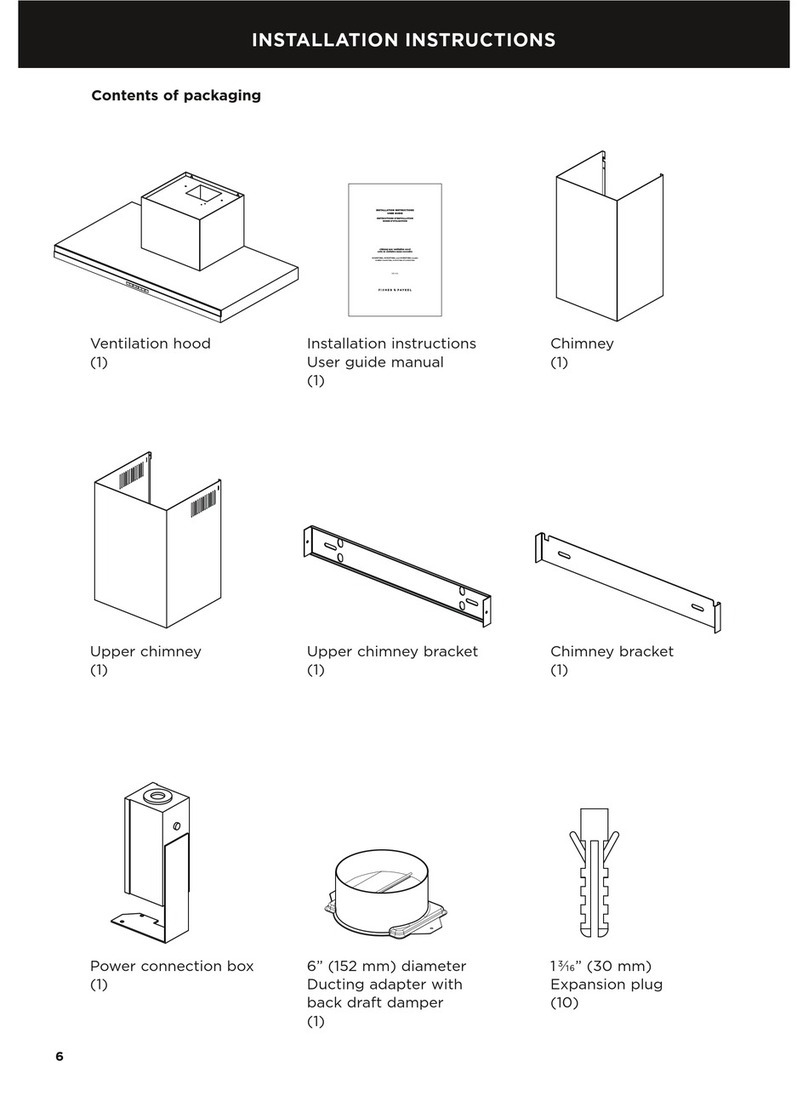

Contents of Packaging
Ventilation hood (1)
Installation instructions User guide
manual (1) Chimney (1) Upper chimney (1)
https://producthelp.fisherpaykel.com/us/Cook/Ventilation/Pyramid/HC36PHTX1/User_Guide_HC36PHTX1/03_installation_instructions
Updated: Sun, 04 Nov 2018 05:00:28 GMT
Powered by
1

Upper chimney bracket (1) Chimney bracket (1)
Power connection
box (1)
6” (152 mm) diameter
Ducting adapter with
back draft damper (1)
1 3/16” (30 mm) Expansion plug (10)
1 3/16” (30 mm)
Self tapping screw (10)
13/32” (10 mm)
Self tapping
screw (4) 13/32” (10 mm) Screw (2)
1 23/32” (44 mm) Drywall expansion plug (8)
https://producthelp.fisherpaykel.com/us/Cook/Ventilation/Pyramid/HC36PHTX1/User_Guide_HC36PHTX1/03_installation_instructions
Updated: Sun, 04 Nov 2018 05:00:28 GMT
Powered by
2

Product Dimensions
https://producthelp.fisherpaykel.com/us/Cook/Ventilation/Pyramid/HC36PHTX1/User_Guide_HC36PHTX1/03_installation_instructions
Updated: Sun, 04 Nov 2018 05:00:28 GMT
Powered by
3

PRODUCT DIMENSIONS HC24PHTX1
inches (mm)
HC30PHTX1
inches (mm)
HC36PHTX1
inches (mm)
A. Min overall height of product 25 25/32” (655) 25 25/32” (655) 25 25/32” (655)
A. Max overall height of product 43 1/16” (1094) 43 1/16” (1094) 43 1/16” (1094)
B. Overall width of product 23 17/32” (598) 29 23/32” (755) 35 11/32” (898)
C. Overall depth of product 19 11/16” (500) 19 11/16” (500) 19 11/16” (500)
D. Height of product 4 1/2” (114) 4 1/2” (114) 4 1/2” (114)
E. Width of chimney 12 19/32” (320) 12 19/32” (320) 12 19/32” (320)
F. Depth of chimney 11 13/32” (290) 11 13/32” (290) 11 13/32” (290)
G. Distance from center of ducting outlet to back of product 3 3/4” (95) 3 3/4” (95) 3 3/4” (95)
H. Distance from center of ducting outlet to side of chimney 6 5/16” (160) 6 5/16” (160) 6 5/16” (160)
I. Diameter of ducting outlet 5 29/32” (150) 5 29/32” (150) 5 29/32” (150)
J. Distance between center of lights 16 1/4” (413) 16 1/4” (413) 16 1/4” (413)
K. Distance between center of lights and back of product 1 21/32” (42) 1 21/32” (42) 1 21/32” (42)
Actual product dimensions may vary by ± 3/32” (2 mm).
https://producthelp.fisherpaykel.com/us/Cook/Ventilation/Pyramid/HC36PHTX1/User_Guide_HC36PHTX1/03_installation_instructions
Updated: Sun, 04 Nov 2018 05:00:28 GMT
Powered by
4

Height of Ventilation Hood
https://producthelp.fisherpaykel.com/us/Cook/Ventilation/Pyramid/HC36PHTX1/User_Guide_HC36PHTX1/03_installation_instructions
Updated: Sun, 04 Nov 2018 05:00:28 GMT
Powered by
5

Installation Dimensions inches (mm)
L. Installation height
Ducted
Recirculation
min. 26 25/32” – max. 43 1/16” (min. 680 – max. 1094)
min. 29 ” – max. 43 1/16” (min. 740 – max. 1094)
M. Height top of cooktop to base of product min. 26 ” – max. 30 1/16” (min. 660 – max. 762)
Ventilation hood installation height above the cooktop is the user’s preference. Lower installation heights will improve the
efficiency of capturing cooking odors, grease, and smoke. This ventilation hood must be installed between the minimum
and maximum dimensions indicated in the table above.
To reduce the risk of fire, use only metal ductwork. Do not use flexible plastic ducting
To reduce risk of fire and to properly exhaust air, be sure to duct air outside – do not vent
exhaust air into spaces within walls or ceilings or into attics, crawl spaces, or garages.
Venting Options
Attention should be given to ensure that any applicable regulations concerning the discharge of exhaust air are fulfilled.
The ventilation hood can be installed to operate with the exhaust air ducted externally from the kitchen, or installed to
operate with the exhaust air recirculating within the kitchen.
Ducted
For ducted installation it is recommended that 6” (152 mm) diameter, rigid or semi-rigid ducting is used. This will require
a 6 5/16” (160 mm) (min) round hole in the ceiling or wall. Care should be taken to position the hole correctly.
For optimal efficiency use the shortest and straightest duct route possible and use rigid or semi-rigid ducting for reduced
noise and increased airflow. Flexible metal ducting should only be used as a last resort (ie in difficult installations) and if
used ensure that it is straight and smooth and extended as much as possible.
min.
26”
–
max.
30”
(min.
660
–
max.
762)min.
26”
–
max.
30”
(min.
660
–
max.
762)
https://producthelp.fisherpaykel.com/us/Cook/Ventilation/Pyramid/HC36PHTX1/User_Guide_HC36PHTX1/03_installation_instructions
Updated: Sun, 04 Nov 2018 05:00:28 GMT
Powered by
6

Recirculating
To enable the product to operate with the air recirculating, please purchase a recirculation diverter and carbon filters
(refer to the ‘Parts and accessories’ section). This recirculation diverter is required to channel the air out the side vents
at the top of the chimney and the carbon filters are required to remove odors.
A ducting hole is not required in the wall or ceiling if the ventilation hood is installed to
operate with exhaust air recirculating.
•This product is heavy and requires two persons for installation.
•Installation work and electrical wiring must be done by qualified person(s) in
accordance with all applicable codes and standards.
Wear gloves to protect against sharp edges.
The manufacturer is not liable for any damage caused by not following these instructions.
Installation
1. Preparing for installation:
Before installing your ventilation hood:
• Please read the instructions carefully.
• Unpack the ventilation hood.
• Ensure the voltage (V) and the frequency (Hz) indicated on the serial plate match the voltage and
frequency of the installation site.
• Check that the area behind the installation surface to be drilled is clear of any electrical cables or pipes
etc
• The ventilation hood surfaces can be damaged during installation if grazed or knocked by tools. Please
take care to protect the surfaces during installation.
• Protect the cooktop surface with cardboard, or the like, to prevent damage occurring whilst the ventilation
hood is being installed above.
https://producthelp.fisherpaykel.com/us/Cook/Ventilation/Pyramid/HC36PHTX1/User_Guide_HC36PHTX1/03_installation_instructions
Updated: Sun, 04 Nov 2018 05:00:28 GMT
Powered by
7

• Temporarily mark the height of the bottom of the ventilation hood and the center of the cooktop on the
wall according to the information given in the ‘Installation instructions – Height of ventilation hood’ section.
• The wall used for mounting the ventilation hood should have sufficient strength and a flat surface.
2. Attach chimney brackets and ventilation hood mounting screws to the wall:
• Attach the chimney bracket and upper
chimney bracket (if using the upper chimney)
in the locations shown in Fig.2 and Fig.3. Use
the 1 3/16” (30 mm) screws (and expansion
plugs if attaching to masonry).
• Attach the upper ventilation hood mounting
screws in the locations shown in Fig.2 and
Fig.3. Using the 1 3/16” (30 mm) screws (and
expansion plugs if attaching to masonry).
Ensure that there is a 3/32” (2 mm) gap
between the screw head and the wall (Fig.1).
Fig.1
Fig.2
Product Dimensions inches (mm)
N. Lower ventilation hood attachment point width 20” (508)
https://producthelp.fisherpaykel.com/us/Cook/Ventilation/Pyramid/HC36PHTX1/User_Guide_HC36PHTX1/03_installation_instructions
Updated: Sun, 04 Nov 2018 05:00:28 GMT
Powered by
8

Product Dimensions inches (mm)
O. Lower ventilation hood attachment point height 1 13/16” (46)
P. Upper ventilation hood attachment point width 9 7/8” (250)
Q. Upper ventilation hood attachment point height 11 3/8” (288)
R. Chimney bracket attachment point width 9 1/4” (235)
S. Chimney bracket attachment point height 24 1/4” (616)
T. Upper chimney bracket attachment point width 9 7/8” (250)
U. Upper chimney bracket attachment point height 1” (25)
https://producthelp.fisherpaykel.com/us/Cook/Ventilation/Pyramid/HC36PHTX1/User_Guide_HC36PHTX1/03_installation_instructions
Updated: Sun, 04 Nov 2018 05:00:28 GMT
Powered by
9

Fig.3
3. Attach ducting adapter and power connection box to the ventilation hood:
• Place the ducting adapter onto the ventilation hood and screw it in
place using 13/32” (10 mm) screws.
• Place the power connection box onto the ventilation hood and screw
it in place using 13/32” (10 mm) screws.
• Follow wiring instructions described in the ‘Electrical connection’
section.
4. Wall mounting:
• Remove the filters – pull the relative catch and
tilt the filter downwards until it disengages from
the supports.
https://producthelp.fisherpaykel.com/us/Cook/Ventilation/Pyramid/HC36PHTX1/User_Guide_HC36PHTX1/03_installation_instructions
Updated: Sun, 04 Nov 2018 05:00:28 GMT
Powered by
10

• Hang the ventilation hood off the upper
ventilation hood mounting screws with 3/32” (2
mm) gap. Hang off the keyhole attachment
points on the back of the ventilation hood then
tighten the screws.
• Attach the lower ventilation hood mounting
screws to fix the ventilation hood to the wall.
• Refit the filters.
Electrical wiring must be done by qualified person(s) in accordance with all applicable
codes and standards and the unit must be grounded.
5. Electrical connection:
• Run three wires, two for the power supply and one for the ground wire, from the power connection box on the
ventilation hood to a power connection point near the installation.
• Open the power connection box on the ventilation hood and secure the power conductor with a strain relief (not
included).
• Connect the power conductors to the conductors for the ventilation hood, black to black and white to white.
• Connect the grounding wire (green or bare) to the ground conductor (green) of the ventilation hood power
connection box.
• Secure all the connections with wire nuts.
• Replace the power connection box cover.
https://producthelp.fisherpaykel.com/us/Cook/Ventilation/Pyramid/HC36PHTX1/User_Guide_HC36PHTX1/03_installation_instructions
Updated: Sun, 04 Nov 2018 05:00:28 GMT
Powered by
11

6. Attach the ducting:
• Attach ducting to the ducting adapter using aluminum duct tape and vent outside.
7. Attach chimney:
• Bend the tabs on the chimney (A).
• Place chimney around the ventilation hood chassis and hang off the chimney bracket (B).
• Extend the upper chimney and attach to the upper chimney bracket with 13/32” (10 mm) screws (C).
https://producthelp.fisherpaykel.com/us/Cook/Ventilation/Pyramid/HC36PHTX1/User_Guide_HC36PHTX1/03_installation_instructions
Updated: Sun, 04 Nov 2018 05:00:28 GMT
Powered by
12

ABC
8. Remove packaging:
• Remove all packaging and protective wrappings.
