Fisher & Paykel HCB36-6 User manual

INSTALLATION GUIDE / USER GUIDE
GUIDE D’INSTALLATION / GUIDE D’UTILISATION
US CA
PROFESSIONAL RANGE HOOD
HCB0-6, HCB6-6, HCB6-12, HCB48-12
HC6 (Shell) & HC48 (Shell) models
HOTTE PROFESSIONNELLE
Modèles HCB0-6, HCB6-6, HCB6-12, HCB48-12
HC6 (Coque) et HC48 (Coque)

English Page 1 – 29
Français Page 31 – 59

1
CONTENTS
IMPORTANT!
SAVE THESE INSTRUCTIONS
The models shown in this user guide may
not be available in all markets and are
subject to change at any time. For current
details about model and specification
availability in your country, please go to
our website fisherpaykel.com or contact
your local Fisher & Paykel dealer.
Registration
Register your product with us so we can
provide you with the best service possible.
To register your product visit our website:
fisherpaykel.com
EN
Introduction 3
Safety and warnings 4
Product information 6
Installation preparation 8
Installation instructions 16
Operating instructions 24
Cleaning and maintenance 25
Parts and accessories 28
Service and warranty 29

3
INTRODUCTION
Welcome to the family of Fisher & Paykel appliances. Our team has spent thousands of
hours designing, engineering and testing it to make sure you get the perfect product for
your home. For more information visit our website or for further support, contact our
customer care team.
EN

4
SAFETY AND WARNINGS
!WARNING!
Weight Hazard
The appliance is heavy. Please ensure adequate care is taken when
installing the appliance to prevent personal injury. Weight of the
products are:
HCB30 = 66lb (30kg)
HCB36 = 75lb (34kg)
HCB48 = 99lb (45kg)
HC36 = 68lb (31kg)
HC48 = 84lb (38kg)
!WARNING!
Electric Shock Hazard
Always disconnect the appliance from the mains power supply
beforecarrying out any maintenance or repairs.
Installation work and electrical wiring must be done by qualified
person(s) in accordance with all applicable codes and standards,
including fire-rated construction.
Failure to do so can result in death, electric shock, fire or injury
topersons.
IMPORTANT SAFETY INSTRUCTIONS
READ THE ENTIRE SET OF INSTRUCTIONS BEFORE INSTALLING OR USING THIS
APPLIANCE.
CAUTION: For general ventilating use only. Do not use to exhaust hazardous
or explosive materials and vapors.
WARNING: To reduce the risk of fire, electric shock, or injury to persons, observe
thefollowing:
– Use this unit only in the manner intended by the manufacturer. If you have
questions, contact the manufacturer. For residential use only.
– Before servicing or cleaning unit, switch power off at service panel and lock
the service disconnecting means to prevent power from being switched on
accidentally. When the service disconnecting means cannot be locked, securely
fasten a prominent warning device, such as a tag, to the service panel.
– Installation work and electrical wiring must be done by qualified person(s)
in accordance with all applicable codes and standards, including fire-rated
construction.
– Sufficient air is needed for proper combustion and exhausting of gases through
the flue (chimney) of fuel burning equipment to prevent back drafting. Follow
the heating equipment manufacturer’s guideline and safety standards such as
those published by the National Fire Protection Association (NFPA), and the
American Society for Heating, Refrigeration and Air Conditioning Engineers
(ASHRAE), and the local code authorities.

5
SAFETY AND WARNINGS
– When cutting or drilling into wall or ceiling, do not damage electrical wiring and
other hidden utilities.
– Ducted fans must always be vented to the outdoors.
– This unit must be grounded.
CAUTION: To reduce the risk of fire and to properly exhaust air, be sure to duct air
outside. Do not vent exhaust air into spaces within walls or ceilings or into attics,
crawl spaces, or garages.
WARNING: To reduce the risk of fire, use only metal ductwork.
WARNING: To reduce the risk of fire or electric shock, do not use this fan with
any solid-state speed control device.
WARNING: To reduce the risk of a range top grease fire:
– Never leave surface units unattended at high settings. Boilovers cause smoking
and greasy spillovers that may ignite.
– Heat oils slowly on low or medium settings.
– Always turn hood ON when cooking at high heat or when flambéing food
(ieCrepes Suzette, Cherries Jubilee, Peppercorn Beef Flambé)
– Clean ventilating fans frequently. Grease should not be allowed to accumulate
on fan or filter.
– Use proper pan size. Always use cookware appropriate for the size of the
surfaceelement.
WARNING: To reduce the risk of injury to persons in the event of a range top grease
fire, observe the following*:
– Smother flames with a close-fitting lid, cookie sheet, or metal tray, then turn off
the burner. Be careful to prevent burns. If the flames do not go out immediately,
evacuate and call the fire department.
– Never pick up a flaming pan — you may be burned.
– Do not use water, including wet dishcloths or towels — a violent steam explosion
will result.
– Use an extinguisher only if:
– You know you have a Class ABC extinguisher, and you already know how
to operate it.
– The fire is small and contained in the area where it started.
– The fire department is being called.
– You can fight the fire with your back to an exit.
WARNING: All wall and floor openings where the range hood is installed must be sealed.
READ AND SAVE THESE INSTRUCTIONS
*Based on “Kitchen Firesafety Tips” published by NFPA.
EN

6
PRODUCT INFORMATION
General information
Please read this manual carefully, and keep it after installation as it will help answer
questions that may arise as you use your new Fisher & Paykel range hood.
Keep all packing material (box, pallet, straps) until the unit has been inspected.
Inspect the product to check there is no shipping damage. If any damage is detected
contact the dealer or retailer you bought the product from to report the damage.
Fisher&Paykel is not responsible for shipping damage.
WARNING!
For residential use only.
Parts included with your range hood:
User guide (1)
INSTALLATION GUIDE / USER GUIDE
GUIDE D’INSTALLATION / GUIDE D’UTILISATION
US CA
PROFESSIONAL RANGE HOOD
HCB30-6, HCB36-6, HCB36-12, HCB48-12
HC36 (Shell) & HC48 (Shell) models
HOTTE PROFESSIONNELLE
Modèles HCB30-6, HCB36-6, HCB36-12, HCB48-12
HC36 (Coque) et HC48 (Coque)
Internal blower, including
3/4” (19mm) screws (4)
 HCB30-6 (1)
 HCB36-6 (1)
 HCB36-12 (2)
 HCB48-12 (2)
 HC36/48 (0)
Filters
 HCB30 (2)
 HCB36/HC36 (2)
 HCB48/HC48 (3)
Grease trays
 HCB30 (2)
 HCB36/HC36 (2)
 HCB48/HC48 (3)
Range hood with light
bulbs and 8” (203mm)
duct connection rings
installed (1)
Wall plug (2)
¾” OD x 3/16” ID
Flat Washer
#10-32
Pan Head
Pozi Drive
Wall Plug
#8 x 3/4”
Truss Head
Philips Drive
Self Tapping Screw
¼-20 x ½”
Pan Head
Philips Drive
Machine Screw
M4 x8
Pan Head
Torx Drive
Machine Screw
#10x 3”
Countersunk
Pozidrive
Self tapping Screw
FP Pro Hood Fasteners
¾” OD x 3/16” ID
Flat Washer
#10-32
Pan Head
Pozi Drive
Wall Plug
#8 x 3/4”
Truss Head
Philips Drive
Self Tapping Screw
¼-20 x ½”
Pan Head
Philips Drive
Machine Screw
M4 x8
Pan Head
Torx Drive
Machine Screw
#10x 3”
Countersunk
Pozidrive
Self tapping Screw
FP Pro Hood Fasteners

7
PRODUCT INFORMATION

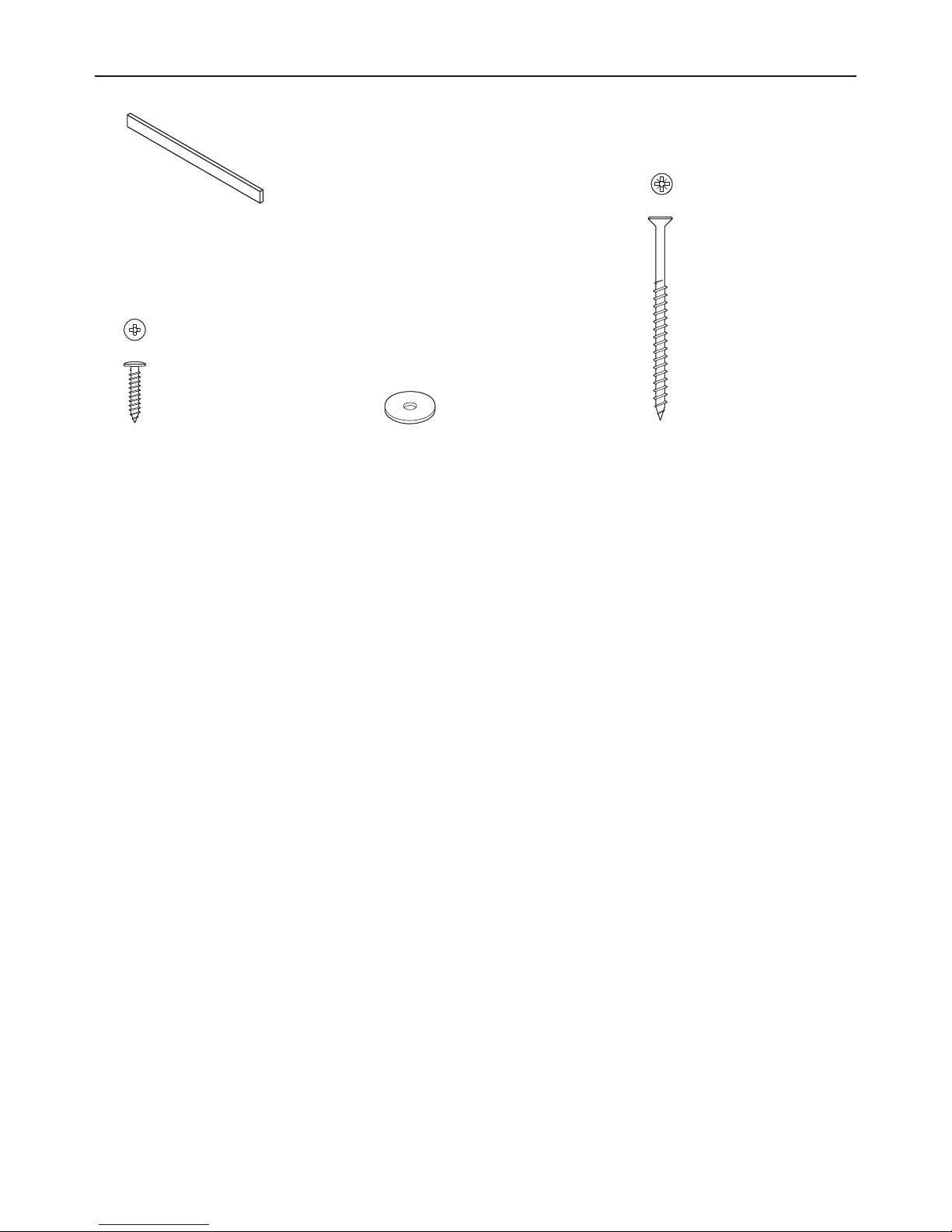

Wooden bracket (length depending on model) found
mounted to the back of the range hood. Used as
part of the installation DO NOT THROW AWAY
3/4” (19mm)
Flat washer (2)
Other required materials and tools:
 Metal ducting.
 Aluminum tape (DO NOT use duct tape).
 3/4” (19mm) cULus approved wiring conduit and connectors.
 3/4” (19mm) cULus approved strain relief.
 cULus listed wire nuts.
 Back draft damper(s) if desired.
3” (76mm)
Self-tapping screw (4)
¾” OD x 3/16” ID
Flat Washer
#10-32
Pan Head
Pozi Drive
Wall Plug
#8 x 3/4”
Truss Head
Philips Drive
Self Tapping Screw
¼-20 x ½”
Pan Head
Philips Drive
Machine Screw
M4 x8
Pan Head
Torx Drive
Machine Screw
#10x 3”
Countersunk
Pozidrive
Self tapping Screw
FP Pro Hood Fasteners
3/4” (19mm)
Self-tapping screw (8)
¾” OD x 3/16” ID
Flat Washer
#10-32
Pan Head
Pozi Drive
Wall Plug
#8 x 3/4”
Truss Head
Philips Drive
Self Tapping Screw
¼-20 x ½”
Pan Head
Philips Drive
Machine Screw
M4 x8
Pan Head
Torx Drive
Machine Screw
#10x 3”
Countersunk
Pozidrive
Self tapping Screw
FP Pro Hood Fasteners
¾” OD x 3/16” ID
Flat Washer
#10-32
Pan Head
Pozi Drive
Wall Plug
#8 x 3/4”
Truss Head
Philips Drive
Self Tapping Screw
¼-20 x ½”
Pan Head
Philips Drive
Machine Screw
M4 x8
Pan Head
Torx Drive
Machine Screw
#10x 3”
Countersunk
Pozidrive
Self tapping Screw
FP Pro Hood Fasteners
EN

8
INSTALLATION PREPARATION
Product dimensions
P
O
Q
A
B
I
C
D
S
RK
T
E
FM
N
G
L
J
H

9
INSTALLATION PREPARATION
HCB30-6 HCB36-6 HCB36-12
HC36
HCB48-12
HC48
PRODUCT DIMENSIONS inches (mm) inches (mm) inches (mm) inches (mm)
AOverall height of product 18” (457) 18” (457) 18” (457) 18” (457)
BOverall width of product 297/8” (759) 357/8” (911) 357/8” (911) 477/8” (1216)
COverall depth of product 251/16” (636) 251/16” (636) 251/16” (636) 251/16” (636)
DDepth of top face of product 12” (305) 12” (305) 12” (305) 12” (305)
EHeight of front face 45/16” (110) 45/16” (110) 45/16” (110) 45/16” (110)
FDistance from center of ducting
outlet to back of product 5 7/8” (150) 5 7/8” (150) 5 7/8” (150) 5 7/8” (150)
GDiameter of ducting outlet 83/16” (208) 83/16” (208) 83/16” (208) 83/16” (208)
HDistance between center
ofblowers N/A N/A 101/16” (255) 101/16” (255)
IDistance between center
oflights 12” (305) 133/4” (350) 133/4” (350) 12” (305)
JDistance between center of
blower to side of range hood 1415/16” (380) 1715/16” (456) 1215/16” (328) 187/8” (480)
KDistance between wall
mounting slots 175/8” (448) 175/8” (448) 175/8” (448) 175/8” (448)
LDistance between under
cabinet mounting slots 287/8” (734) 347/8” (886) 347/8” (886) 467/8” (1191)
MDistance from wall to rear
under cabinet mounting slots 25/8” (66) 25/8” (66) 25/8” (66) 25/8” (66)
NDistance from wall to front
under cabinet mounting slots 911/16” (246) 911/16” (246) 911/16” (246) 911/16” (246)
ODimension from side of
range hood to junction box
knockout
3 7/8” (98) 35/16” (84) 35/16” (84) 61/16” (154)
PDimension from back to rear
junction box knockout 57/16” (138) 57/16” (138) 57/16” (138) 57/16” (138)
QDimension from back to front
junction box knockout 7” (178) 7” (178) 7” (178) 7” (178)
RHeight from top of range
hood to recess on back 2 1/2” (63) 2 1/2” (63) 2 1/2” (63) 2 1/2” (63)
SHeight from bottom of range
hood to top of recess on back 15 1/2” (394) 15 1/2” (394) 15 1/2” (394) 15 1/2” (394)
TDistance between wall plug
mounting holes. 175/8” (448) 175/8” (448) 175/8” (448) 175/8” (448)
IMPORTANT!
 Actual product dimensions may vary by ± 1/16”(2mm).
 Please read the entire instructions before installing the range hood.
EN

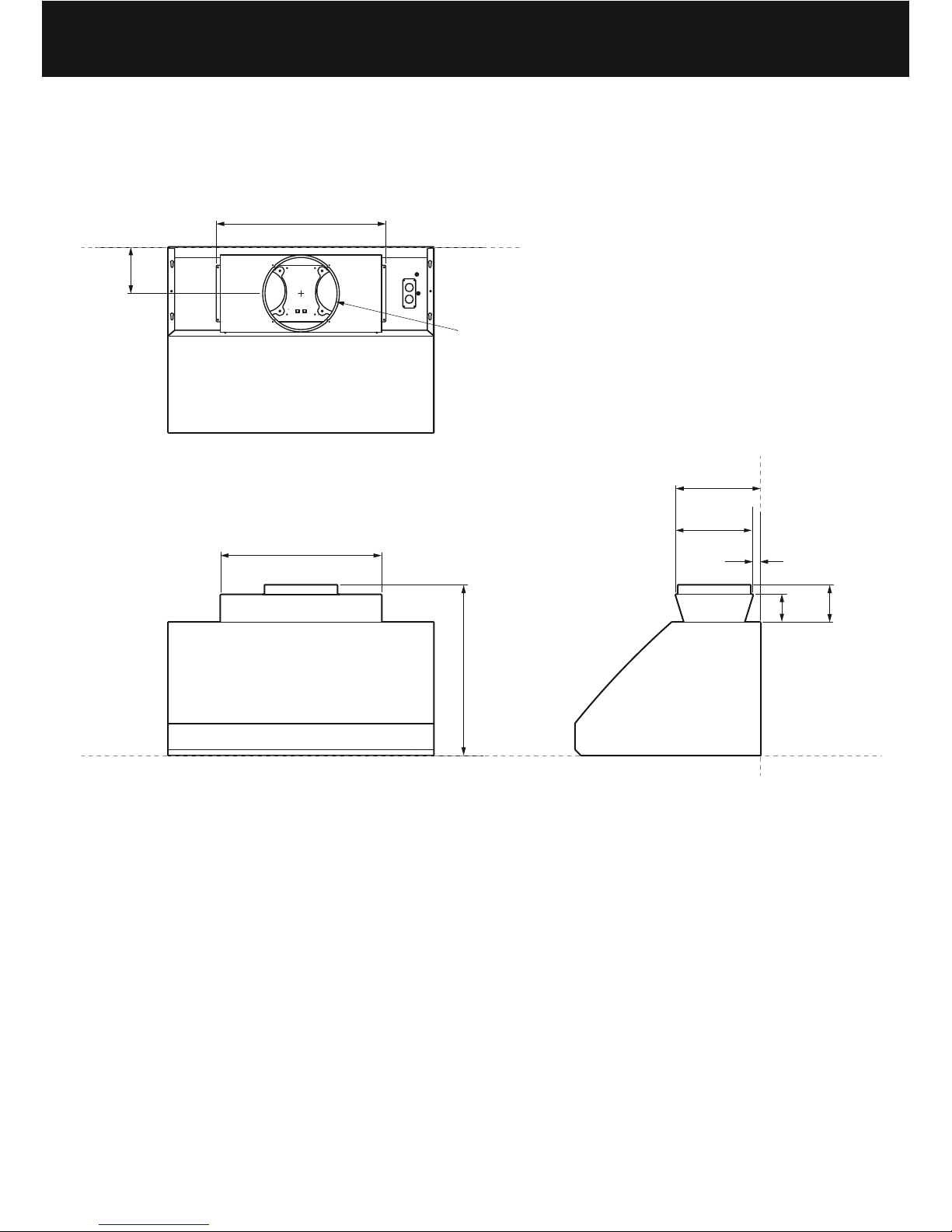

10
INSTALLATION PREPARATION
Product dimensions

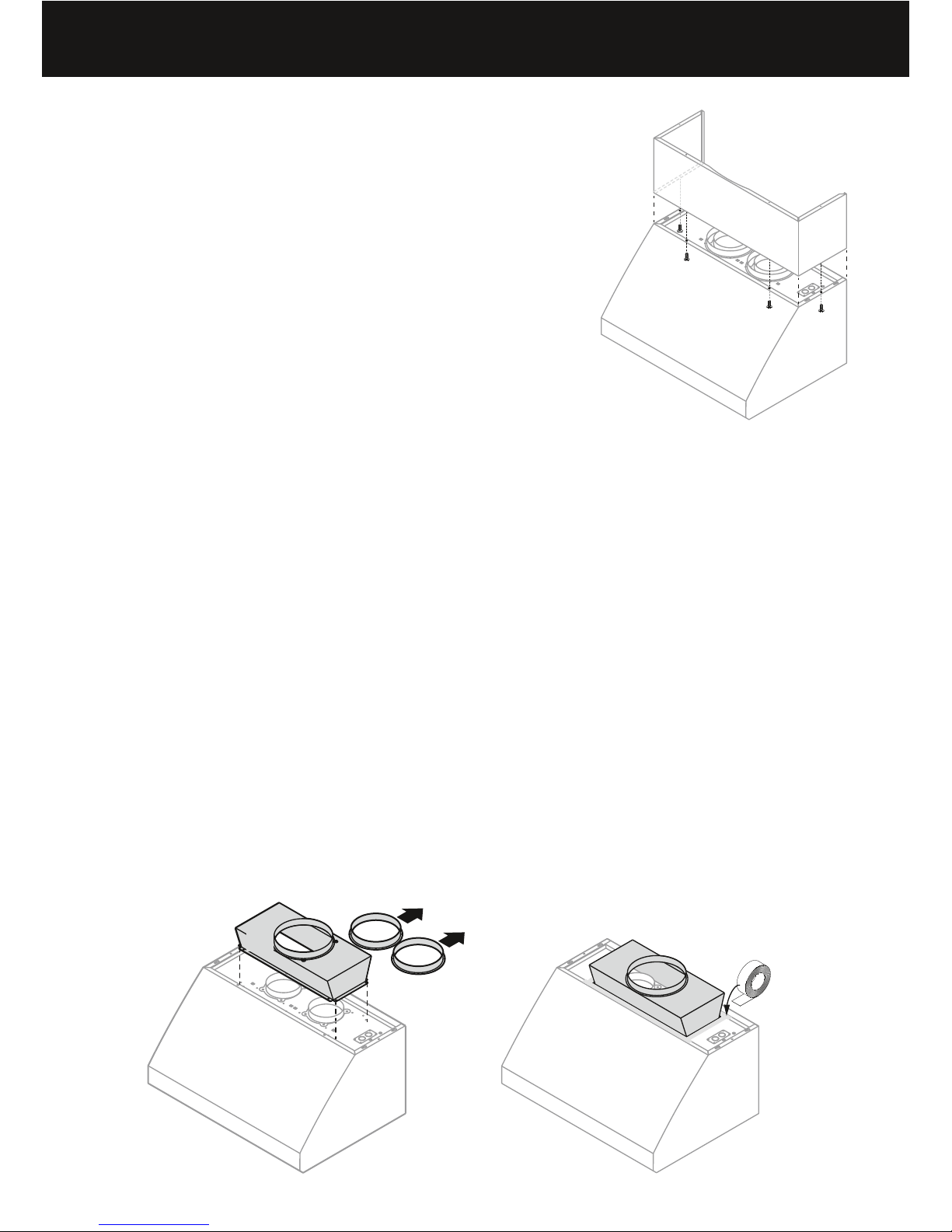

Differences if 10” duct transition is added to HCB36-12, HCB48-12, HC36, HC48
350.00
448.56
393.90
63.10
A
B
G
D
J
C
H
E
F
I

11
INSTALLATION PREPARATION
PRODUCT DIMENSIONS inches (mm)
AOverall height of product with ducting transition added 23” (585)
BOverall width of ducting transition 22 15/16” (580)
COverall depth of ducting transition to wall 11 7/16” (280)
DOutlet diameter 10” (254)
EHeight of transition outlet pipe above range hood 5” (128)
FHeight of transition body above range hood 3 3/4” (95)
GWidth of transition body 21 3/4” (552)
HDepth of transition body 10 7/16” (256)
IDistance from back edge of cooktop to transition body 1 1/16” (26)
JDistance from centre of outlet to wall 6 1/4” (159)
IMPORTANT!
 Actual product dimensions may vary by ± 1/16”(2mm).
 Please read the entire instructions before installing the range hood.
EN

12
INSTALLATION PREPARATION
Range hood width
 The range hood width is recommended to be no less than the width of the cooktop.
 A wider range hood can be used to increase the capture area if space is not restricted.
 The range hood should ideally be centered above the cooktop for proper performance.
Determine installation location
WARNING!
 To reduce the risk of fire, use only metal ductwork.
 Do not use flexible ducting.

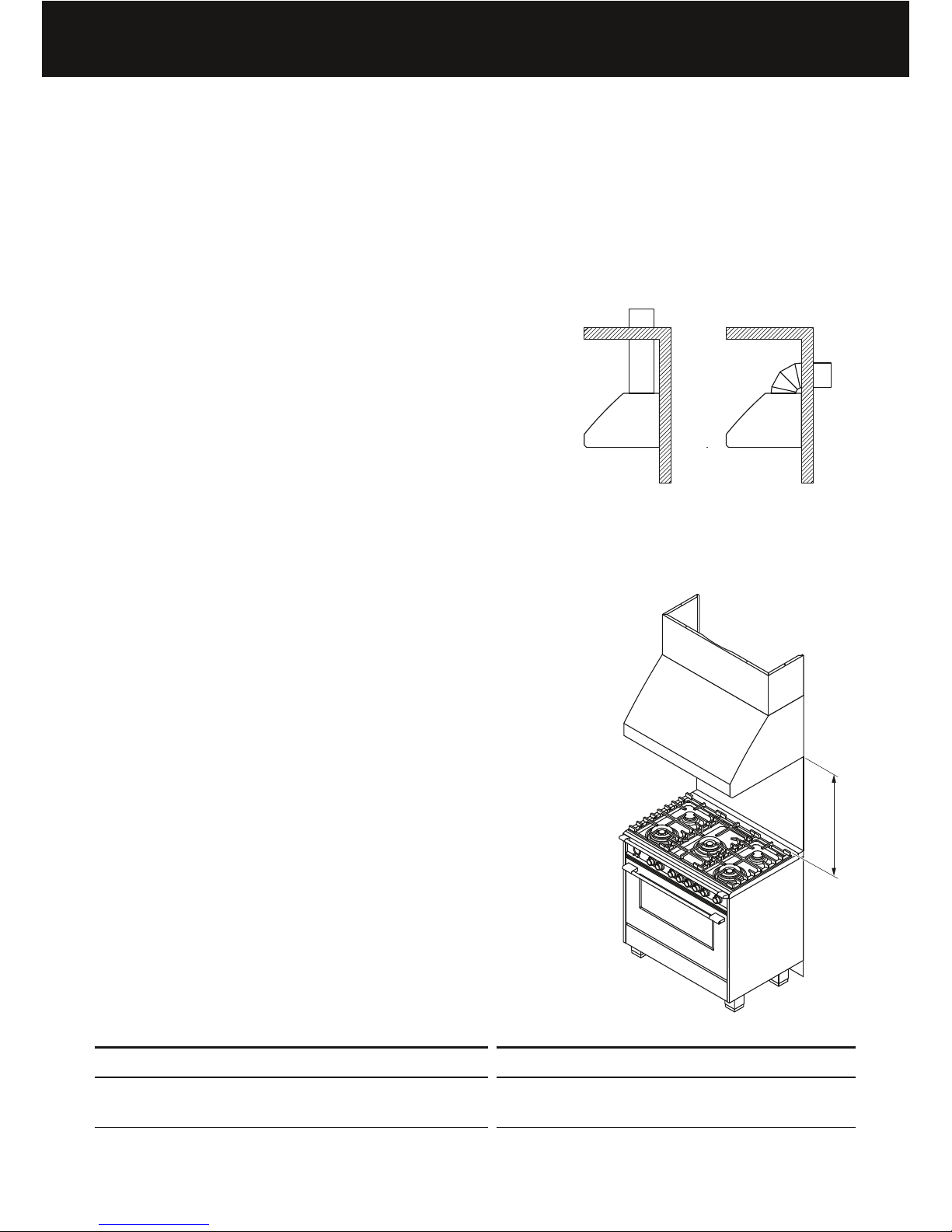

This range hood can be installed using a wall
mounting system or be suspended under cabinetry.
Ducting can be configured for both vertical and
horizontal discharge. The ducting can terminate
either through the roof or wall. To vent through the
wall a 90° elbow is needed.
Height of the range hood
The installation height ranges from a minimum height of 30” (762mm) to a maximum
recommended height of 42” (1067mm). Consult the cooktop installation and user guide
for details of the required installation height of the range hood.
This range hood must be installed no lower than the
minimum height indicated in the table below. Minimum
installation height may be greater if required by the
cooktop manufacturer. Installation at the minimum
height will improve the efficiency of capturing cooking
odors, grease and smoke. Installation at the maximum
recommended height improves user ergonomics by
offering increased head room.
IMPORTANT!
 Always switch your range hood on when you are cooking.
 Using a powerful gas cooktop or multiple gas burners
operating at the same time can cause the range hood
surfaces to become hot, this effect can be reduced by:
– Using the maximum speed setting to enable hot
air to be extracted quickly.
– Installing the range hood at the maximum
recommended height. Consult the cooktop
installation and user guide for details on the
installation height of the range hood.
159
single 10” discharge
- with 10” transition
dual 8 3/16” discharge
INSTALLATION DIMENSIONS inches (mm)
ATop of cooking surface to base of the
range hood
Minimum 30” (762mm)
Maximum recommended 42” (1067mm)
A

13
INSTALLATION PREPARATION

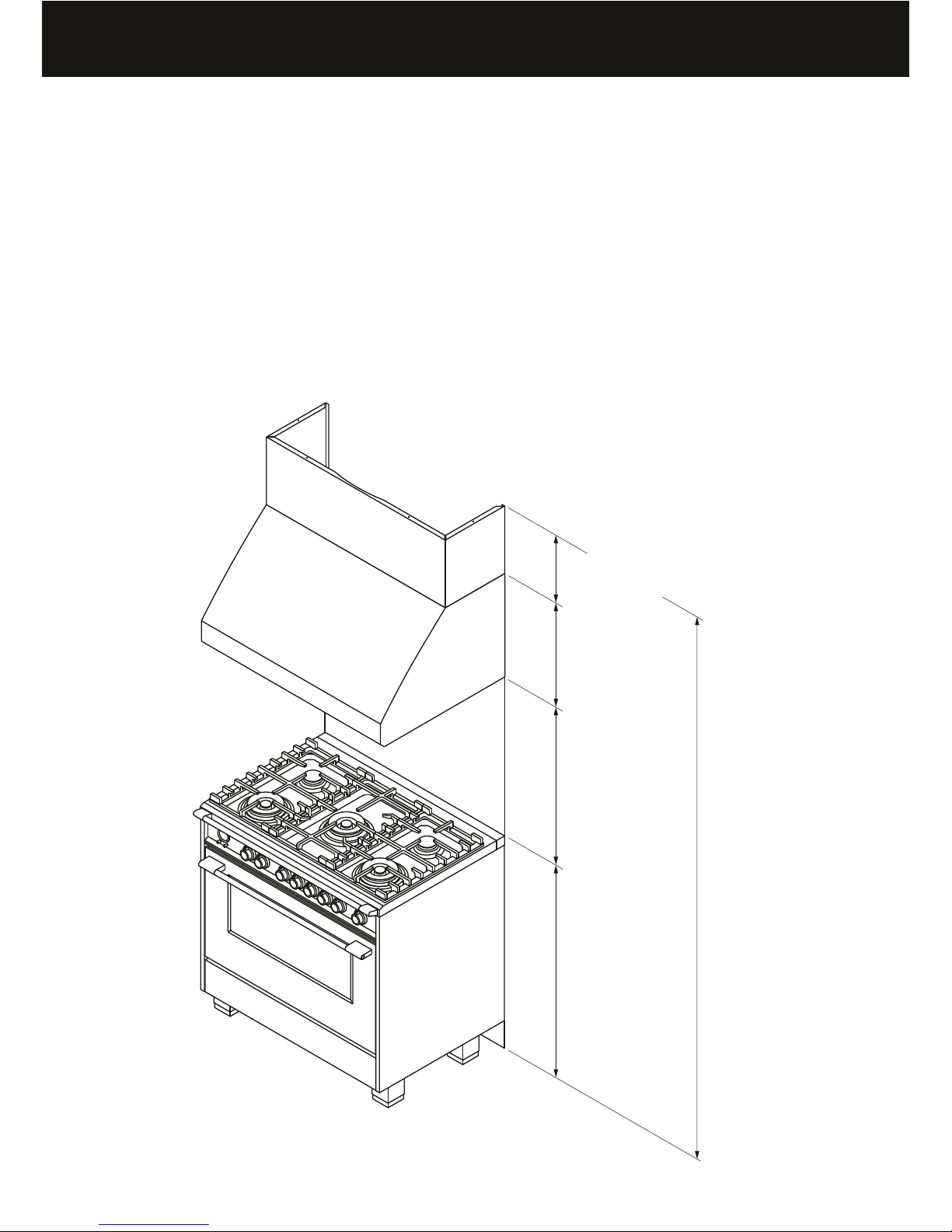

Calculating the installation height
Installation height for a standard 96” (2438mm) high kitchen ceiling is shown below.
Use the following formula to calculate installation height:
A = W – (X + Y+Z)
Where:
A = Installation height
W= Ceiling height
X = Cooktop surface height
Y = Range hood height
Z = Duct cover height (if desired)
Example: (A) Installation height = 96” – (36”+ 18” + 12”) = 30”
Example: (A) Installation height = 2438mm – (914mm + 457mm + 305mm) = 762mm
Hood height
18”(457mm)
Installation height
30” to 42”
(762 to 1067mm)
recommended
Cooking surface
height
36” (914mm)
Ceiling height
8ft (96”)
(2438mm)
Duct cover height
6” or 12”
(152 or 305mm)
EN

14
INSTALLATION INSTRUCTIONS
Optional extras
Duct covers
Duct covers may be used to fill the space between the
range hood and the ceiling in wall mount installations.
These covers are available in 6” (152mm) and 12”
(305mm) sizes and may be ordered separately,
see ‘Parts and accessories’. Refer to ‘Installation
instructions’ for calculation of installation height to
determine which duct cover(s) may be required.
Duct cover installation
1Place the duct cover on the range hood.
2
From inside of range hood, insert the 5/16” (8mm) T20
(TORX) head machine screws through the 4 holes in
the duct cover (refer to A).
Note: Multiple duct covers can be used if additional height is required. Duct covers
are available in 6” (152mm) and 12” (305mm) heights. Screw the duct covers together
before placing them onto the range hood and completing step 2.
Duct transition
 The range hood is supplied with individual duct connection rings that connect to 8”
(208mm) ducting, (refer to B).
 An optional transition may be ordered separately, please refer to ‘Parts and accessories’
for details. This can be mounted to the top of the range hood to provide a single 10”
(254mm) outlet.
 For wall mounting installation the transition should be installed before the range hood is
mounted.
 For cabinet mounting installation the transition should be mounted after installing the
range hood.
Duct transition assembly
1Remove the individual 8” (203mm) duct connection rings (refer to B).
2Place the transition piece over the range hood exhaust, secure from the inside of the
range hood with 5/16” (8mm) T20 (TORX) head machine screw provided with the
transition (refer to C).
3Seal the connection between the transition and range hood with aluminum tape (refer
to D).
INSTALLATION PREPARATION
D
B
C
A

15
INSTALLATION INSTRUCTIONS
INSTALLATION PREPARATION
Infra-red heat lamp and panel kit
If an optional infra-red heat lamp kit was purchased for installation with the range hood,
assemble the kit to the range hood prior to installation. See instructions supplied with
the kit for assembly to your range hood.
WARNING!
To avoid any electrical shock the installation of the infra-red heat lamp and panel kit
should be done by a qualified electrician and before starting the installation of the
range hood.
EN

16
INSTALLATION INSTRUCTIONS
Electrical requirements
WARNING!
 Installation and electrical wiring must be done by qualified person(s) in accordance
with all applicable codes and standards.
 This unit must be grounded/earthed.
 This range hood must be connected with copper wire only.
 A 120 volt, 60Hz AC-only electrical supply is required on a dedicated 20A branch circuit.
A time-delay fuse or circuit breaker is recommended.
 Wire sizes must conform to the requirements of the National Electrical Code, ANSI/
NFPA 70-latest edition, and all local codes and ordinances.
 Wire size and connections must conform to the rating of this appliance.
 This appliance should be connected directly to the fuse disconnect (or circuit breaker)
through flexible, armored or non-metallic sheathed copper cable. Allow some slack in
the cable so the appliance can be moved if servicing is required.
 A cULus listed strain relief or 3/4” (19mm) conduit connector must be provided at each
end of the power supply cable (at the appliance and at the junction box).
WARNING!
To reduce the risk of fire or electric shock, do not use this fan with any solid-state
speed control device.
Venting requirements
CAUTION!
To reduce risk of fire and to properly exhaust air, be sure to duct air outside — Do not vent
exhaust air into spaces within walls or ceilings or into attics, crawl spaces, or garages.
 The range hood can be installed to operate with the exhaust air ducted externally from
the kitchen.
 Use the shortest and straightest duct route possible, for optimal efficiency. Elbows and
transitions increase noise and reduce air flow efficiency.
 For best results:
– In ducted installations with internal blowers use 8” (203mm) round ducting.
– For inline blowers use 10” (254mm) round ducting.
Note: This range hood cannot be used in conjunction with a recirculation unit.
Make-up air (not included)
Attention should be given to ensure that any applicable regulations concerning the
discharge of exhaust air are fulfilled.
 Local building codes may require the use of make-up air systems when using ducted
ventilation systems greater than specified cubic feet per minute (CFM) of air movement.
The specified CFM varies from locale to locale.
 It is the responsibility of the owner and the installer to determine if additional
requirements and/or standards apply to specific installations.

17
INSTALLATION INSTRUCTIONS
Compatible blowers
This range hood may only be used in connection with these internal or inline blowers:
 Internal blowers come with the range hood (for HCB30/36/48 range hood models).
 Inline blowers can be purchased separately (for HC36/48 range hood models). This
range hood may only be used with a Fisher & Paykel approved inline blower.
To minimize noise in the kitchen, these blowers are mounted along the duct line
anywhere between the kitchen and the exterior wall.
CAUTION!
To reduce the risk of fire and electric shock, install this range hood only with remote
blower models rated maximum 7.6A or integral blowers supplied with the range hood.
WARNING!
 This appliance is heavy and requires two persons for unpacking and installation.
 Installation work and electrical wiring must be done by qualified person(s) in
accordance with all applicable codes and standards.
 Failure to install the screws or fixing device in accordance with these instructions may
result in electrical hazards.
 When cutting or drilling into wall or ceiling, do not damage electrical wiring and other
hidden utilities.
IMPORTANT!
 Wear gloves to protect against sharp edges.
 The manufacturer is not liable for any damage
caused by not following these instructions.
Before you start installation
 Ensure you have read the ‘Installation
preparation’ section of this guide.
 Read the install instructions carefully.
 Unpack the range hood.
 Ensure the voltage (V) and the frequency (Hz)
indicated on the serial plate match the voltage
andfrequency of the installation site.
 Check that the area above and behind the
installation surface is clear of any electrical
cablesor pipes and there is proper clearance
forthe ducting.
 The range hood surfaces can be damaged
during installation if grazed or knocked by tools.
 Protect the cooktop to prevent damage
occurring whilst the range hood is being
installed above.
 Remove protective wrappings that will not be
accessible after installation.
 The wall or cabinet used for mounting the
range hood should have sufficient strength and
a flat surface.
EN

18
INSTALLATION INSTRUCTIONS
175/8” (448mm)
D
E

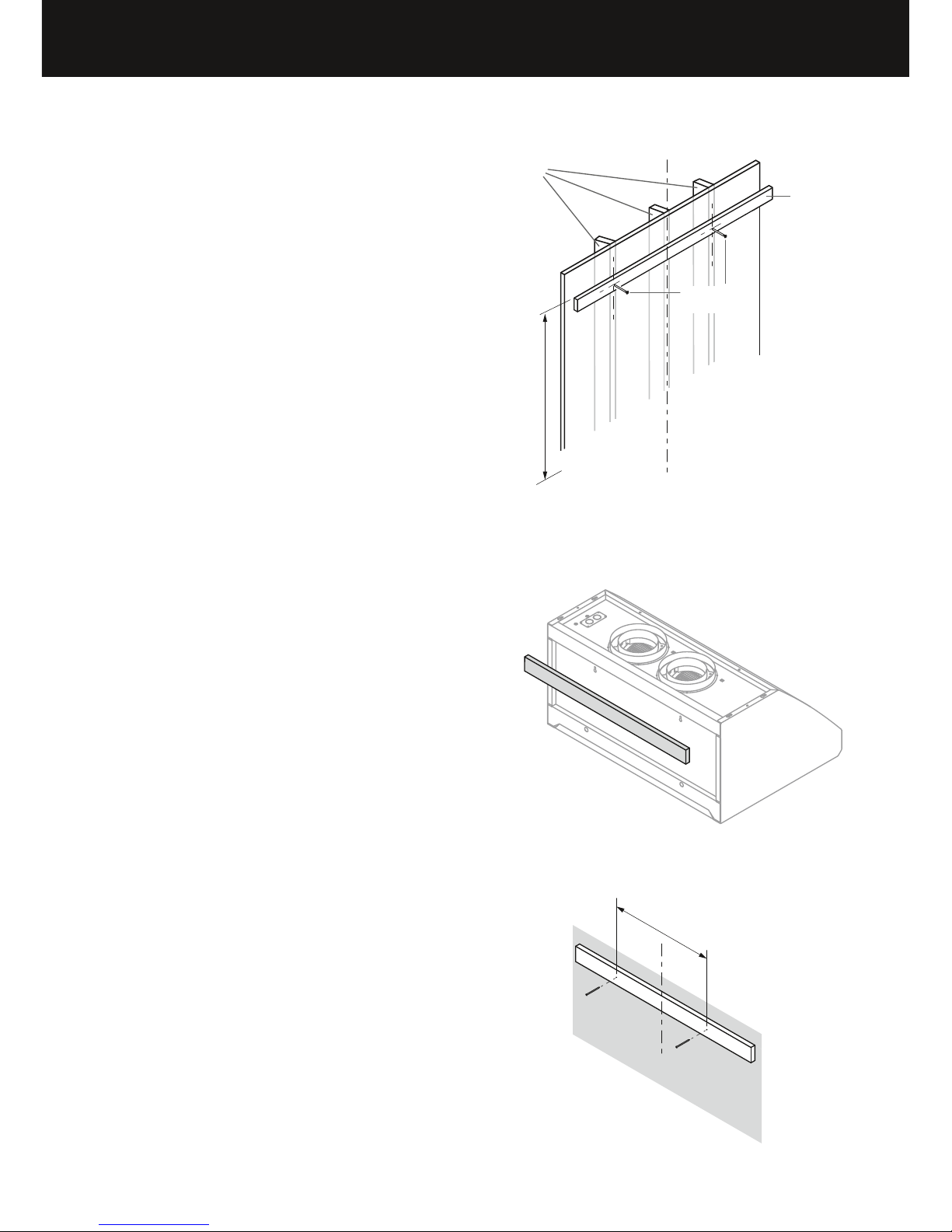

Wall mounting installation
After the range hood installation
height has been determined:
1Draw a horizontal line at a distance
above the cooktop equal to the
desired range hood installation height
plus 151/2” (394mm) (refer to A).
– This line is the mounting location
of the top of the wooden bracket
supplied with the rangehood.
2Find the centerline of the cooktop.
Draw a vertical line along this
centerline up to the horizontal line
drawn in step 1(refer to B).
3The range hood is mounted to the wall
using a wooden bracket supplied with
the range hood (refer to D). Remove
the wooden bracket from the rear of
the range hood. Mark the centerline of
the bracket.
4Find studs behind the drywall by using
a stud finder. Locate one stud on either
side of the cooktop centerline to use
formounting the wooden bracket (refer
to C).
5Align the top of the wood bracket along
the horizontal line drawn in step 1.
Align the centerlines of the bracket and
cooktop (refer to A).
6Drill a 3” (76mm) deep 1/8” (3mm) hole
through the wooden bracket, drywall and
into the stud.
7Use the 3” (76mm) screws to attach
the bracket to the wall (refer to A). For
support of longer range hoods, use three
or four studs and screws as available.
Countersink the heads to prevent
interference with the range hood.
8On the wood bracket, mark the distance
between wall mounting slots (Kin the
‘Product dimensions’ section) to hang the
range hood (refer to E).
9Drill two 1/8” (3mm) holes through the
wooden bracket and drywall (these do
not need to go into the studs) (refer toE).
!0 Screw two 3/4” (19mm) screws into the
wood bracket, leaving 1/4” (6mm) of the
screw exposed for hanging the range
hood (refer to E).
A
Cooktop
centerline
Cooking surface
Distance
to cooking
surface
plus 151/2”
(394mm)
Drywall
3” (76mm)
screws
Wood
bracket
(included)
B
Wall studs C
