Installation instructions
and User guide
Wall canopy
HC60PCHTX1 & HC90PCHTX1 models

1
Safety and warnings 2
Installation instructions 3
Getting started quickly 8
Cleaning and maintenance 9
Manufacturer’s warranty 11
Customer care 12
Contents
Important!
SAVE THESE INSTRUCTIONS
The models shown in this User Guide may not be available in all markets and are
subject to change at any time. For current details about model and specification
availability in your country, please visit our local website listed on the back cover
or contact your local Fisher & Paykel dealer.

2
Safety and warnings
Important!
Please read the entire set of instructions before installing the wall canopy.
This wall canopy is not intended for use by young children or infirm persons without supervision.
Young children should be supervised to ensure that they do not play with the wall canopy.
There must be adequate ventilation of the room when the wall canopy is used at the same time
as appliances burning gas or other fuels. (A partial vacuum in the room could result in too high a
concentration of gas in the air).
You must read the details concerning the method and frequency of cleaning.
There is a fire risk if cleaning is not carried out in accordance with the instructions.
Do not flambé under the wall canopy.
Exhaust air must not be discharged into an existing flue that is used for exhausting fumes from
appliances burning gas or other fuels.
The minimum distance between the cooktop surface and the filters of the wall canopy shall be
600 mm, or 650 mm if installed over a gas cooktop.
Attention should be given to ensure that any applicable regulations concerning the discharge of
exhaust air is fulfilled.
If the supply cord of this equipment is damaged it must only be replaced by the manufacturer, its
service agent or similarly qualified person in order to avoid a hazard.
Always switch the power off prior to installation, servicing or cleaning the wall canopy.
Never use the wall canopy without the filters in place.
A power outlet should be within 750 mm of the motor assembly and can be either on the wall,
behind the chimney or in the ceiling.
To comply with electrical safety regulations, this canopy must be plugged into a socket near the
appliance. The socket must be accessible, or have an accessible isolating switch, to enable the end
user to isolate the canopy from the power for the purpose of internal cleaning or maintenance.
Ducting accessories are not supplied. All ducting must comply with local requirements and
building codes.
WARNING!
Electrical Shock Hazard
All electrical work must be done in accordance with local and/or national
electrical codes as applicable. For safety, this product must be earthed. If
you are unfamiliar with methods of installing electrical wiring, employ the
services of a qualified electrician. Turn off power at service entrance before
installing wiring or servicing this product.
WARNING!
Weight Hazard
The wall canopy is heavy. Please ensure adequate care is taken when installing
the wall canopy to prevent personal injury. The wall canopy must be installed
onto a solid wall, stud, beam or truss. Weight of the product is 8.8 kg/10.7 kg.
(HC60)
(HC90)

3
Fig.1 Wall canopy
Installation instructions
Contents of packaging
1 x wall canopy
2 x chimney flues with bracket
1 x installation instructions
2 x aluminium mesh filters (HC60PCHTX1)
3 x aluminium mesh filters (HC90PCHTX1)
2 x butterfly flaps
4 x small screws, to secure chimney flue
5 x 8 x 1½” wood screws
1 x washer (5 mm inner diameter)
Typical equipment required:
Electric drill
Screwdriver
Duct tape
Jig saw
Ladder
Ducting
Tape measure
Drill bits
Spirit level
Accessories
Accessory Part Number
Chimney ext (740 mm) SS 790698
Light bulb 12V Halogen/Max 20W
Charcoal filter (HC60) 790681
Replacement aluminium filter (HC60) 790682
Charcoal filter (HC90) 790683
Replacement aluminium filter (HC90) 790684

4
Installation instructions
Height of wall canopy
Where an electric cooktop is installed beneath the wall canopy, the distance between the top
of the cooktop and the underside of the range hood must be a minimum of 600 mm and a
maximum of 700 mm.
Where a gas fuelled cooktop is installed beneath the wall canopy, the distance between the
top of the pot rests and the underside of the rangehood must be a minimum of 650 mm and a
maximum of 750 mm.
Note: your relevant gas or local building authority may specify different height requirements.
Care should be taken to comply with any applicable regulations concerning the discharge of
exhaust air.
Ducting options
Note: if you wish to have the flue run all the way to the ceiling, please ensure that you work your
measurements out fully before attempting the installation. In some instances, extra lengths of
flue or a customised flue maybe required. A 740 mm flue extension is available as an accessory
part for use where ceiling height is above 2440 mm. (Part no. 790698)
Recirculation
For recirculation, please purchase charcoal filters, which are fitted in place of the aluminium
filters supplied with the hood. The charcoal filters purify the air before allowing the air to return
back to the kitchen through the air vents in the sides of the chimney flue.
Note: a ducting hole is not required in the wall or ceiling if the canopy is fitted with
charcoal filters.
Ducting
For ducted installation, it is recommended that you use 150 mm diameter, rigid or semi-rigid
ducting. To accommodate the 150 mm ducting, a ceiling hole should be carefully measured and
cut out, 160 mm (min) in diameter, with a centre line 100 mm from the edge of the wall.
Efficiencies in the performance of your canopy are enhanced by the use of smooth, straight and
short ducting options.
We recommend using solid, galvanised or plastic, smooth-walled ducting which helps to reduce
noise and increase airflow.
The use of flexible ducting is not recommended. If there is no other option available, the flexible
ducting must be pulled as tight as possible.
All ducting must comply with local requirements and building codes.
Note: we recommend an Easy Fit by Fisher & Paykel or a UNIDUCT ducting system, products that
have been designed to expel air efficiently.

5
Installation instructions
Preparing the wall canopy for installation
Before installing the wall canopy, please carefully read through the installation instructions
in full.
Prior to drilling any holes, check that the area behind the surface to be drilled is clear of any
electrical cables or pipes etc.
Take care when installing the wall canopy as stainless steel is easily damaged during installation
if scratched or knocked by tools.
Protect the cooktop below, using cardboard or a similar protective cover, to prevent damage
on installation.

6
Installation instructions
1
Establish the desired height of the
rangehood above the benchtop according
to the ‘Installation height requirements’
above. Measure this distance from the top of
the benchtop and, using a spirit level, draw
a light horizontal line on the wall. Make sure
that the line can easily be erased or will be
hidden after installation. This is where the
bottom of the rangehood will sit (Fig.2).
2
Mark the position of the rangehood on
the wall. Using a spirit level, also mark a
vertical line intersecting the horizontal
line, (ensuring that the line can easily be
erased or will be hidden after installation)
showing the position where the centre of
the rangehood will be. This is normally over
the centre of the cooktop (Fig.3).
3
Remove the grease filters (this is to make
installation easier). Press inward on the
catch, found on the handle, and pull the
filter downward (Fig.4).
4
Determine location of the fixing “keyholes”
on the wall. The hood is secured to the wall
by two “keyholes” located above the motor
behind the air exit opening. From the point
where the horizontal and vertical lines
drawn earlier intercept, use a spirit level
and pencil and draw another horizontal
line 290mm above the first horizontal line
(ensuring that the line can easily be erased
or the line will be hidden after installation)
as shown in Fig.5. This now indicates where
the top of the “fixing keyholes” are.
Where the vertical line meets the top
horizontal line (just drawn), measure and
mark both sides of the vertical line, showing
where to drill.
Fig.2 Establishing height of rangehood
60 – 75 cm
Fig.3 Marking the position of the rangehood on the wall
Rangehood centre
Benchtop
Bottom of rangehood
Fig.4 Removing the grease filters

7
Installation instructions
5
Drill holes and secure the rangehood to the
wall. Depending on the wall type (concrete,
drywall etc) drill/screw appropriate fittings in
the two locations just marked. The rangehood
should now be able to be hung on these bolts/
screws through the two keyholes in the hood.
6
Create additional means of attachment.
Keyholes alone are insufficient means of
attachment. Drill two extra holes in the back
panel, put screws in with an anchor (if required)
to ensure proper attachment and fix the
rangehood by these screws as well, as shown in
Fig.6. Ensure all fixings are secure.
7
If ducting externally, assemble and fit ducting
as per manufacturer’s instruction.
Optional: If desired, the one-way butterfly valve
can now be fitted to the exit opening of the
rangehood by simply snapping the two pieces
into place.
8
Test the operation of the rangehood. Plug the
rangehood in and test its operation on all speed
levels. This will ensure that any imperfections
in the installation, such as unwanted sounds or
lack of suction can be addressed before the flue
is in place. Over 95% of service calls are a result
of faulty installation. Please be aware that in the
event of a service call for a faulty installation,
you will be charged as this is not covered under
the manufacturer’s warranty. Fig.6 Creating additional means of attachment
Keyholes
Extra
fitting
holes
290 mm
Fig.5 Determining location of the two fixing “keyholes”
9
Position and secure the flue. Secure the top mounting bracket at the highest possible point on
the ceiling using a single screw through the supplied bracket.
Ensure all ducting is fitted and electrical connections are secured correctly and switched on.
Place the bottom part of the flue onto the rangehood and slide the upper flue piece inside the
lower piece so the tabs “hug” the folded edge of the flue.
Raise the upper part of the flue to the required height and, using the four screws supplied, secure
the upper flue to the bracket on the wall.
Installation is now complete.

8
Getting started quickly
Control panel
A= ALL OFF
B= Low speed motor ON/OFF
C= Medium speed switch ON/OFF
D= High speed switch ON/OFF
E= Lights ON/OFF

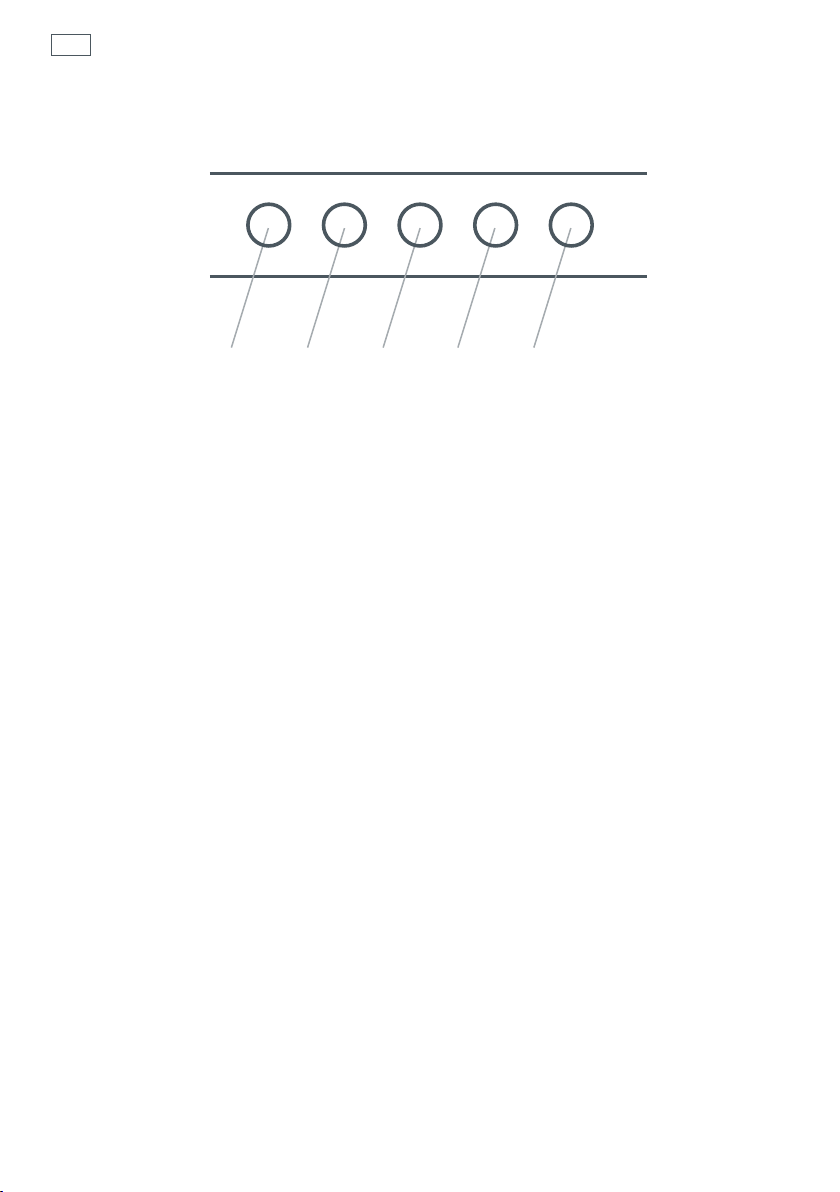

Fig.7 Control buttons
A B C D E

9
Cleaning and maintenance
Caution!
Never use abrasive or oil based liquid cleaners.
General maintenance
The manufacturer is not liable for any damage caused by not following these instructions.
The wall canopy should be cleaned regularly using warm water with soap or mild liquid
detergents. This ensures that no build-up of grease occurs as these deposits are corrosive.
Do not use abrasives or harsh detergents/cleaning fluids.
Note: in areas of high humidity and coastal environments, cleaning should be carried out frequently.
Grease deposit container
Your wall canopy is fitted with a clear container located underneath the motor housing, that is
only visible when the grease filters are removed.
Over time, oil, fat and grease, that is normally deposited inside the motor casing, is directed into
this container for easy cleaning.
This unique design will help ensure your wall canopy remains in peak condition by minimising
the amount of fat or grease collected in the motor.
Note:
This container should be cleaned as necessary, usually on an annual basis.
Always ensure the container is in place prior to using the wall canopy.
Do not attempt to block the hole in the motor casing.
Aluminium filters
The grease filters must be periodically cleaned (at least every two months).
Remove the grease filters and wash them either by hand using hot soapy water or place them in
the dishwasher using mild detergent. Badly smoked filters may be cleaned with “cookware cleaners”.
Note: some discolouration of the frame may occur.
Charcoal filters
Charcoal filters are designed to remove grease and odours from cooking vapours, prior to the
cleansed air re-entering the kitchen (when the wall canopy is in recirculating mode). Charcoal
filters are disposable items and it is recommended that these should be replaced every three to
six months depending on use.
Note:
Fully saturated charcoal filters can become a barrier to air movement, impeding the wall
canopy’s performance.
In the event of fire, fully grease laden filters could be flammable and therefore regular
replacement is recommended.
In ducted installations, conventional aluminium filters are recommended.
For replacement charcoal filters, ducting accessories, spare parts and service, please contact your
local supplier or Fisher & Paykel Customer Care Centre.

10
Cleaning and maintenance
Light bulb replacement
(Halogen bulb 12 Volts/20 Watt)
1 Switch off the power to the canopy hood.
2 Use a small bladed screwdriver to prise off the light cover, taking care not to damage the
surrounding material.
3 Remove the defective bulb from the canopy hood.
4 Replace with a new bulb using a cloth. Do not touch the bulb with fingers as this will shorten the
life of the bulb.
5 Snap the cover back into place.
Note: replacement bulbs are not covered by warranty.

11
Manufacturer’s warranty
You automatically receive a 2 year Manufacturer’s Warranty with the purchase of this
Product covering parts and labour for servicing within the country of purchase.
Fisher & Paykel undertakes to:
Repair or, at its option, replace without cost to the owner either for material or labour any
part of the Product, the serial number of which appears on the Product, which is found to
be defective within TWO YEARS of the date of purchase.
This Warranty DOES NOT cover
A
Service calls which are not related to any defect in the Product. The cost of a service call will be
charged if the problem is not found to be a Product fault. For example:
1. Correcting the installation of the Product.
2. Instructing you how to use the Product.
3. Replacing house fuses or correcting house wiring or plumbing.
4. Correcting fault(s) caused by the user.
5. Noise or vibration that is considered normal, eg drain/fan sounds, refrigeration noises
or user warning beeps.
6. Correcting damage caused by pests, eg rats, cockroaches, etc.
7. Replacement light bulbs.
B Defects caused by factors other than:
1. Normal domestic use or
2. Use in accordance with the Product’s User Guide.
C Defects to the Product caused by accident, neglect, misuse or Act of God.
D The cost of repairs carried out by non-authorised repairers or the cost of correcting such
unauthorised repairs.
E Normal recommended maintenance as set out in the Product’s User Guide.
F Repairs when the appliance has been dismantled, repaired or serviced by other than a
Fisher & Paykel Authorised Repairer or the selling dealer.
G Pick-up and delivery.
H Transportation or travelling costs involved in the repair when the Product is installed outside the
Fisher & Paykel Authorised Repairer’s normal service area.
This Product has been designed for use in a normal domestic (residential) environment. This
Product is not designed for commercial use (whatsoever). Any commercial use by a Customer will
affect this Product’s Warranty.
Service under this Manufacturer’s Warranty must be provided by a Fisher & Paykel Authorised
Repairer (refer to the ‘Customer care’ section at the back of this book). Such service shall be provided
during normal business hours. This Warranty certificate should be shown when making any claim.
Note
This Warranty is an extra benefit and does not affect your legal rights.
Please keep this User Guide in a safe place.

12
Customer care
Before you call for service or assistance…
Check the things you can do yourself.
Refer to your User Guide and check:
1
Your appliance is correctly installed.
2
You are familiar with its normal operation.
If after checking these points you still need assistance, please refer to your nearest Fisher & Paykel
Authorised Repairer, or contact us through our local website listed on the back cover.
In New Zealand if you need assistance...*
Call your Fisher & Paykel retailer who is trained to provide information on your appliance, or if we
can be of any further help, please contact our Customer Care Centre,
Toll Free: 0800 FP CARE or 0800 37 2273 Fax: [phone]
Email: customer[email protected]o.nz Postal address: PO Box 58732, Botany, Manukau 2163
If you need service...*
Fisher & Paykel has a network of independent Fisher & Paykel Authorised Repairers whose fully
trained technicians can carry out any service necessary on your appliance. Your dealer or our
Customer Care Centre can recommend a Fisher & Paykel Authorised Repairer in your area.
In Australia if you need assistance...*
Call the Fisher & Paykel Customer Care Centre and talk to one of our Customer Care Consultants.
Toll Free: 1 300 650 590 Fax: [phone]
Email: customer[email protected]om.au Postal Address: PO Box 798, Cleveland QLD 4163
If you need service...*
Fisher & Paykel has a network of qualified Fisher & Paykel Authorised Repairers responsible for
servicing only Fisher & Paykel branded appliances. Our Customer Care Centre can recommend a
qualified Fisher & Paykel Authorised Repairer in your area.
*If you call, write or contact our website please provide: your name and address, model number,
serial number, date of purchase and a complete description of the problem. This information is
needed in order to better respond to your request for assistance.
Product details
Fisher & Paykel Appliances, Ltd
Model/Serial No.
Date of Purchase Purchaser
Dealer Suburb
Town Country

NZ AU 03.2011F&P PN - 791632 B
www.fisherpaykel.co.nz
www.fisherpaykel.com.au
Copyright © Fisher & Paykel 2011. All rights reserved.
The product specifications in this booklet apply to the specific products
and models described at the date of issue. Under our policy of continuous
product improvement, these specifications may change at any time. You
should therefore check with your Dealer to ensure this booklet correctly
describes the product currently available.
