Fisher & Paykel HC60PHTX1 Mounting instructions

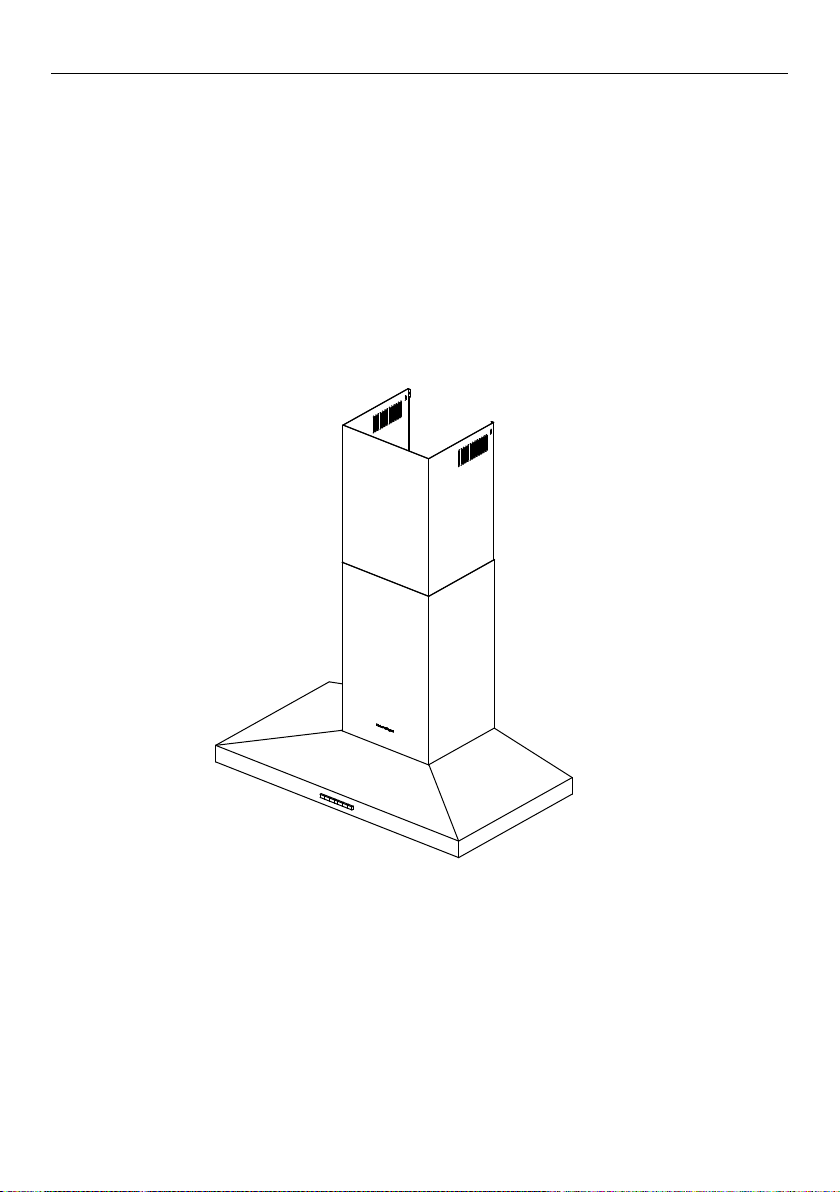

Chimney Pyramid Rangehood
HC60PHTX1, HC90PHTX1 and
HC120PHTX1 models
NZ AU IN ROW
INSTALLATION INSTRUCTIONS
USER GUIDE

1
CONTENTS
Introduction 3
Safety and warnings 4
Installation instructions 6
Operating instructions 15
Cleaning and maintenance 16
Parts and accessories 17
Manufacturer’s Warranty 18
Customer Care 20
IMPORTANT!
SAVE THESE INSTRUCTIONS
The models shown in this user guide may
not be available in all markets and are
subject to change at any time. For current
details about model and specification
availability in your country, please go to
our website www.fisherpaykel.com or
contact your local Fisher & Paykel dealer.
Registration
Register your product with us so we can
provide you with the best service possible.
To register your product visit our website:
www.fisherpaykel.com

3
INTRODUCTION
Thank you for purchasing a Fisher & Paykel product.
Thousands of hours go into the design, engineering, testing and perfecting of each
Fisher & Paykel appliance. The care and attention given to creating these beautiful
products doesn’t stop once it has found its home with you.
This use and care manual will answer most of your questions about the set-up, use and
on-going maintenance of your Fisher & Paykel product; however if you require further
information about your product and its use please consult our website for solutions and
further contact information to discuss with a service representative.
To ensure you receive all relevant product updates and the best service possible, please
register your Fisher & Paykel products through our website.

4
SAFETY AND WARNINGS
!WARNING!
14 kg
(HC60)
16 kg
(HC90)
19 kg
(HC120)
Weight Hazard
The appliance is heavy. Please ensure adequate care is taken when
installing the appliance to prevent personal injury. The appliance
must be installed onto a solid wall, stud, beam or truss. Weight of the
products are 14 kg (HC60) / 16 kg (HC90) / 19 kg (HC120).
!WARNING!
Electric Shock Hazard
Always disconnect the appliance from the mains power supply before
carrying out any maintenance or repairs. Alterations to the domestic
wiring system must be made by a qualified electrician.
Failure to follow this advice may result in electric shock or death.
IMPORTANT SAFETY INSTRUCTIONS
WARNING! When using this appliance always exercise basic safety precautions
includingthe following:
 Please read the entire set of instructions before installing or using this appliance.
 Please make this information available to the person installing the appliance – doing
so could reduce your installation costs.
 Always switch the power off prior to installation, servicing or cleaning of the appliance.
 This appliance must be installed and connected to the mains power supply only
by a suitably qualified person according to these installation instructions and in
compliance with any applicable local building and electricity regulations. Failure to
install the appliance correctly could invalidate any warranty or liability claims.
 To comply with electrical safety regulations, the appliance must be plugged into
a socket near the appliance. The socket must be accessible, or have an accessible
isolating switch, to enable the end user to isolate the appliance from the power for
the purpose of internal cleaning or maintenance.
 A power outlet should be within 750mm of the motor assembly and can either be on
the wall, behind the chimney or in the ceiling.
 If the supply cord of this equipment is damaged, it must only be replaced by the
manufacturer, its service agent or similarly qualified person in order to avoid a hazard.
 Ducting accessories are not supplied. All ducting must comply with local requirements
and building codes.
 Attention should be given to ensure that any applicable regulations concerning the
discharge of exhaust air are fulfilled.
 Before connecting any pipes, consult municipal ordinances to ensure that any
applicable regulations concerning the discharge of exhaust air are adhered to and
request permission from the person in charge of the building.

5
SAFETY AND WARNINGS
 Exhaust air must not be discharged into an existing flue that is used for exhausting
fumes from appliances burning gas or other fuels.
 There shall be adequate ventilation of the room when the rangehood is used at the
same time as appliances burning gas or other fuels.
 The minimum distance between the supporting surface for cooking vessels on the
cooktop and the lowest part of the appliance shall be 600mm or 650mm if installed
over a gas cooktop.
 Stainless steel or powdercoat is very easily damaged during installation if abraded
or knocked by tools. It is recommended to protect the top of the appliance with
cardboard or polystyrene during the installation to minimise the risk of damage
occurring.
 To reduce the risk of damage occurring to the cooktop, it is recommended that
the surface of the cooktop is protected with cardboard or a similar object during
installation of the rangehood.
 This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning the use of the appliance
by a person responsible for their safety.
 Children should be supervised to ensure they do not play with the appliance. Cleaning
and user maintenance shall not be made by children without supervision.
 You must read the details concerning the method and frequency of cleaning.
 There is a fire risk if cleaning is not carried out in accordance with the instructions.
 Never leave frying food unattended since grease can overheat and catch fire. The risk
of fire is even greater in the case of used oil.
 Do not flambé under the rangehood.
 Never use the rangehood without the filters in place.
 During an electrostatic discharge (ESD) it is possible that the device will stop
working. By switching the device off and on the device will again work as intended.
 CAUTION: accessible parts may become hot when used with cooking appliances.
 Remove all packaging, including protective wrappings, before use.

6
INSTALLATION INSTRUCTIONS
Contents of packaging
Installation instructions
User guide manual
(1)
Rangehood hood
(1)
Chimney Pyramid Rangehood
HC60PHTX1, HC90PHTX1 and
HC120PHTX1 models
NZ AU IN ROW
INSTALLATION INSTRUCTIONS
USER GUIDE
Chimney
(1)
Upper chimney
(1)
Upper chimney bracket
(1)
Chimney bracket
(1)
150mm diameter
ducting adapter
(1)
Expansion plug
(10)
30mm self-tapping screw
(10)
10mm self-tapping screw
(4)

7
INSTALLATION INSTRUCTIONS
Product dimensions
HC60PHTX1 HC90PHTX1 HC120PHTX1
PRODUCT DIMENSIONS mm
AOverall height of product 655 – 1094 655 – 1094 655 – 1094
BOverall width of product 598 898 1198
COverall depth of product 500 500 500
DHeight of product 113 113 113
EWidth of chimney 320 320 320
FDepth of chimney 290 290 290
GDistance from centre of ducting
outlet to back of product 95 95 95
HDistance from centre of ducting
outlet to side of chimney 160 160 160
IDiameter of ducting outlet 150 150 150
JDistance between centre
oflights
1 light in centre
N/A
2 lights on sides
820
3 lights (2 on sides,
one in centre) 558
KDistance between lights toback
of product
50 – 430 50 – 430 50 – 430
Length of power cord 800 800 800
IMPORTANT!
Actual product dimensions may vary by ± 2mm.
Please read the entire instructions before installing the rangehood.
Power cord location
F E
A
max
A
min
BD
G
C
H
ØI
J
380 mm
J J
K
max
K
min

8
INSTALLATION INSTRUCTIONS
L
M
Height of rangehood
INSTALLATION DIMENSIONS mm
LInstallation height
Ducted
Recirculation
min. 680 – max. 1094
min. 720 – max. 1094
MHeight top of cooktop to base of product min. 660 – max. 750
Rangehood installation height above the cooktop is the user’s preference.
Lower installation heights will improve the efficiency of capturing cooking odours,
grease, and smoke. This rangehood must be installed between the minimum and
maximum dimensions indicated in the table above.

9
INSTALLATION INSTRUCTIONS
Venting options
Attention should be given to ensure that any applicable regulations concerning the
discharge of exhaust air are fulfilled.
The rangehood can be installed to operate with the exhaust air ducted externally from
the kitchen, or installed to operate with the exhaust air recirculating within the kitchen.
Ducted
For ducted installation it is recommended that 150mm diameter, rigid or semi-rigid
ducting is used. This will require a 160mm (min) round hole in the ceiling or wall. Care
should be taken to position the hole correctly.
For optimal efficiency use the shortest and straightest duct route possible and use rigid
or semi-rigid ducting for reduced noise and increased airflow. Flexible metal ducting
should only be used as a last resort (ie in difficult installations) and if used ensure that it
is straight and smooth and extended as much as possible.
Recirculating
To enable the product to operate with the air recirculating, please purchase a
recirculation diverter and carbon filters (refer to the ‘Parts and accessories’ section).
This recirculation diverter is installed after a short length of ducting and is required to
channel the air out the side vents at the top of the chimney and the carbon filters are
required to remove odours.
Note: a ducting hole is not required in the wall or ceiling if the rangehood is installed to
operate with exhaust air recirculating.

10
INSTALLATION INSTRUCTIONS
Installation
WARNING!
 This appliance is heavy and requires two persons for unpacking and installation
 Installation work and electrical wiring must be done by qualified person(s) in
accordance with all applicable codes and standards.
 Failure to install the screws or fixing device in accordance with these instructions
mayresult in electrical hazards.
IMPORTANT!
Wear gloves to protect against sharp edges.
The manufacturer is not liable for any damage caused by not following these instructions.
1Preparing for installation:
Before installing your rangehood:
 Please read the instructions carefully.
 Unpack the rangehood.
 Ensure the voltage (V) and the frequency (Hz) indicated on the serial plate match
thevoltage and frequency of the installation site.
 Check all functions are working.
 Check that the area behind the installation surface to be drilled is clear of any
electrical cables or pipes etc.
 The rangehood surfaces can be damaged during installation if grazed or knocked
bytools. Please take care to protect the surfaces during installation.
 Protect the cooktop surface with cardboard, or the like, to prevent damage
occurringwhilst the rangehood is being installed above.
 Temporarily mark the height of the bottom of the rangehood and the centre of
the cooktop on the wall according to the information given in the ‘Installation
instructions– Height of rangehood’ section.
 The wall used for mounting the rangehood should have sufficient strength and a
flatsurface.
2Attach chimney brackets and rangehood
mounting screws to the wall
 Attach the chimney bracket and upper
chimney bracket (if using the upper
chimney) in the locations shown in
Fig. 2 and 3. Use the 30mm screws (and
expansion plugs if attaching to masonry).
 Attach the upper rangehood mounting
screws in the locations shown in Fig. 2
and3. Using the 30mm screws (and
expansion plugs if attaching to masonry).
Ensure that there is a 2mm gap between
the screw head and the wall (see Fig 1). Fig.1
2 mm
2 mm

11
INSTALLATION INSTRUCTIONS
N
O
Q
S
UT
R
P
Fig.2
PRODUCT DIMENSIONS mm
NLower rangehood attachment point width 508
OLower rangehood attachment point height 44
PUpper rangehood attachment point width 250
QUpper rangehood attachment point height 291
RChimney bracket attachment point width 235
SChimney bracket attachment point height 615
TUpper chimney bracket attachment point width 250
UUpper chimney bracket attachment point height 25
Upper chimney bracket
attachment point
Chimney bracket
attachment point
Upper rangehood
attachment point
Lower rangehood
attachment point

12
INSTALLATION INSTRUCTIONS
Fig.3
3Attach the ducting adapter to the rangehood
 Place the ducting adapter onto the
rangehood and screw it in place using
10mm screws.

13
INSTALLATION INSTRUCTIONS
4Wall mounting

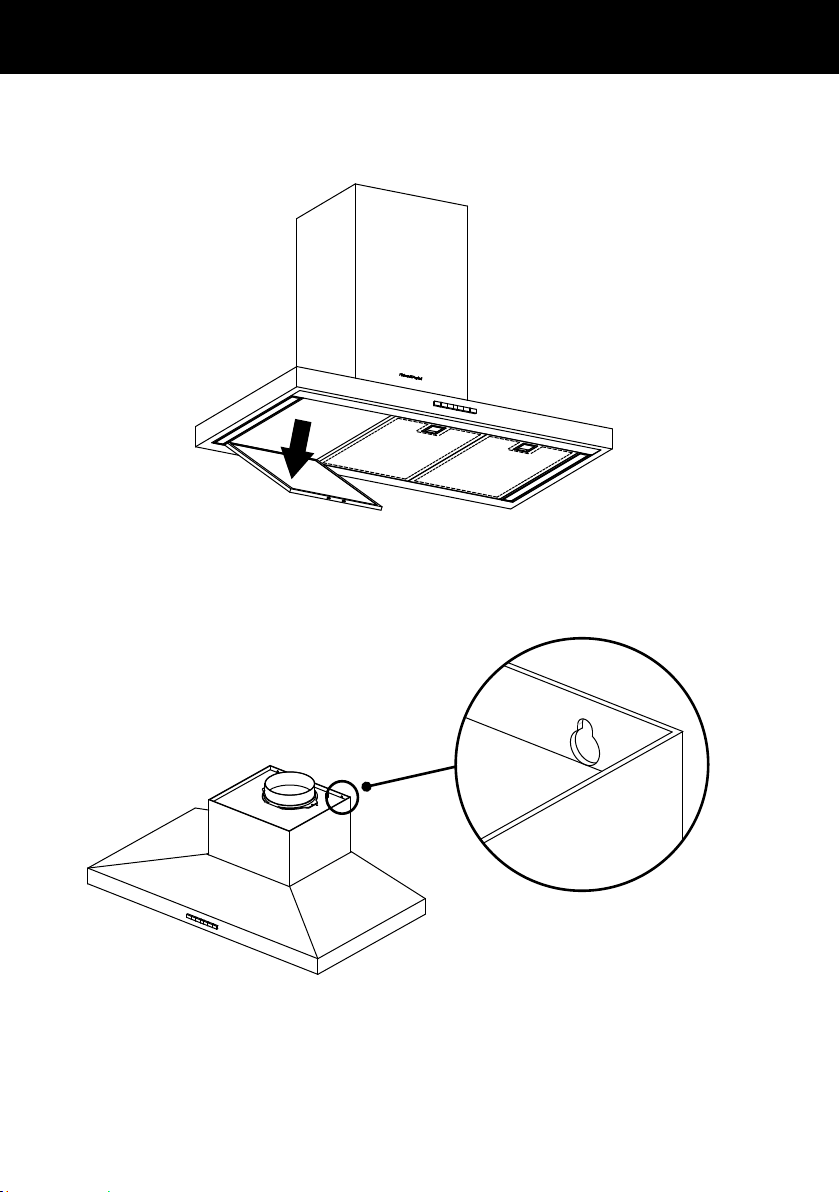

 Remove the filters – pull the relative catch and tilt the filter downwards until it
disengages from the supports.
 Hang the rangehood off the upper rangehood mounting screws with 2mm gap.
Hangoff the keyhole attachment points on the back of the rangehood then tighten
thescrews.
 Attach the lower rangehood mounting screws to fix the rangehood to the wall.
 Refit the filters.

14
INSTALLATION INSTRUCTIONS
5Attach the ducting
 Attach ducting to the ducting adapter using aluminium duct tape and vent outside.
6Attach chimney
 Bend the tabs on the chimney (A).
 Place chimney around the rangehood chassis and hang off the chimney bracket (B).
 Extend the upper chimney and attach to the upper chimney bracket with 10mm
screws (C).
7Remove packaging
 Remove all packaging and protective wrappings.
A B C

15
OPERATING INSTRUCTIONS
CONTROL PANEL FEATURES
Light Turns the light on and off.
Power ON/OFF Turn the rangehood on or off. The fan automatically
turns on to operate at level1.
Reduce fan speed Adjust the fan speed levels from 1–3 with 1being
the lowest.
Fan speed indicator The fan speed level icon illuminates red with the
current fan speed
Increase fan speed Adjust the fan speed levels from 1–3 with 3being
the highest.
Max Turn the fan directly onto the maximum fan speed.
Timer Turn the timer on. The fan speed light blinks and
the fan will operate for 5minutes at the current
speed and each decreasing speed before turning
off (the fan will stop and the light will go out).
To cancel the timer press the timer button once.
Note: for optimal performance it is recommended that the rangehood is turned on
before cooking is started.
IMPORTANT!
The rangehood may stop working during an electrostatic discharge (eg lightning).
Switch off the electricity supply to the rangehood and reconnect after one minute.
Control panel

16
CLEANING AND MAINTENANCE
WARNING!
Unplug or disconnect the appliance from the power supply before servicing or cleaning.
IMPORTANT!
 Never use abrasive or oil based cleaners.
 Wear gloves to protect against sharp edges.
Maintenance
The rangehood should be cleaned regularly using a mild, liquid detergent and a clean
soft cloth to avoid a build-up of grease occurring. Avoid the use of corrosive chemicals,
abrasive cleaning products, hard brushes and steel wool pads. Grease deposits are
corrosive which can cause damage to your rangehood.
Note: in areas of high humidity or coastal environments, cleaning should be carried out
more frequently.
Aluminium filters
 Depending on use, and at least once a month, the
aluminium grease filters should be removed and
cleaned with hot soapy water or in a dishwasher.
 If washed in a dishwasher, the filter should be
placedin an upright position to prevent food from
falling on them.
 After rinsing and drying, refit the filters.
Note: some discolouration of the frames may occur.
Removing the aluminium filters:
1Pull the relative catch, tilting the filterdownwards
until it disengages from thesupports.
2Reverse these instructions when refitting the
filters.
Carbon filters – for use in recirculation mode
Active carbon filters are disposable items designed to remove grease and odours from
cooking vapours before the air is channelled back into the kitchen. The active carbon
filters must be replaced periodically to work properly, at least once every three months,
depending on the frequency with which the rangehood is used.
Note: fully saturated carbon filters can become a barrier to air movement therefore
limiting rangehood performance. In the event of fire, grease laden filters could be
flammable and therefore regular replacement is recommended.
Replacing the LED lights
Note: to replace the LED lights please refer to your nearest Fisher & Paykel trained and
supported service technician, Customer Care, or contact us through our website
www.fisherpaykel.com.

17
PARTS AND ACCESSORIES
ITEM REFERENCE NUMBER
Aluminium filter 792564
Recirculation carbon filter x2 792481
Recirculation diverter 792560
Ducting kit 150 mm (eaves) PD-RHK150E
Ducting kit 150 mm (wall) PD-RHK150W

18
MANUFACTURER’S WARRANTY
You automatically receive a 2 year Manufacturer’s Warranty with the purchase of this
rangehood covering parts and labour for servicing within the country of purchase.
Fisher & Paykel undertakes to:
Repair or, at its option, replace without cost to the owner either for material or labour
any part of the product, the serial number of which appears on the product, which is
found to be defective within TWO YEARS of the date of purchase.
Note: this Manufacturer’s Warranty is an extra benefit and does not affect your
legal rights.
This Manufacturer’s Warranty DOES NOT cover
AService calls which are not related to any defect in the product. The cost of a service
call will be charged if the problem is not found to be a product fault. For example:
1Correcting the installation of the product.
2Instructing you how to use the product.
3Replacing house fuses or correcting house wiring or plumbing.
4Correcting fault(s) caused by the user.
5Noise or vibration that is considered normal, eg drain/fan sounds, refrigeration
noises oruserwarning beeps.
6Correcting damage caused by pests, eg rats, cockroaches, etc.
BDefects caused by factors other than:
1Normal domestic use; or
2Use in accordance with the product’s user guide.
CDefects to the product caused by accident, neglect, misuse or ‘act of God’.
DThe cost of repairs carried out by non-trained and supported service technicians or the
cost of correcting such repairs.
ENormal recommended maintenance as set out in the product’s user guide.
FRepairs when the appliance has been dismantled, repaired or serviced by other than a
Fisher&Paykel trained and supported service technician or the selling dealer.
GPick-up and delivery.
HTransportation or travelling costs involved in the repair when the product is installed
outside the Fisher&Paykel trained and supported service technician’s normal service area.
Nothing in this Manufacturer’s Warranty is intended to, or does, limit any rights you may
have under law to recover the costs of inspecting or returning the goods to us.
This product has been designed for use in a normal domestic (residential) environment.
This product is not designed for any commercial use (whatsoever). Any commercial use
by a customer will affect this product’s Manufacturer’s Warranty.
Service under this Manufacturer’s Warranty must be provided by a Fisher & Paykel
trained and supported service technician (refer to the ‘Customer Care’ section at the
back of this book). Such service shall be provided during normal business hours. This
Manufacturer’s Warranty certificate should be shown when making any claim.
