Fisher & Paykel HC90CGX1 Mounting instructions

NZ AU
Designer wall glass canopy
HC90CGX1 & HC60CGX1 models
Installation instructions
and User guide

1

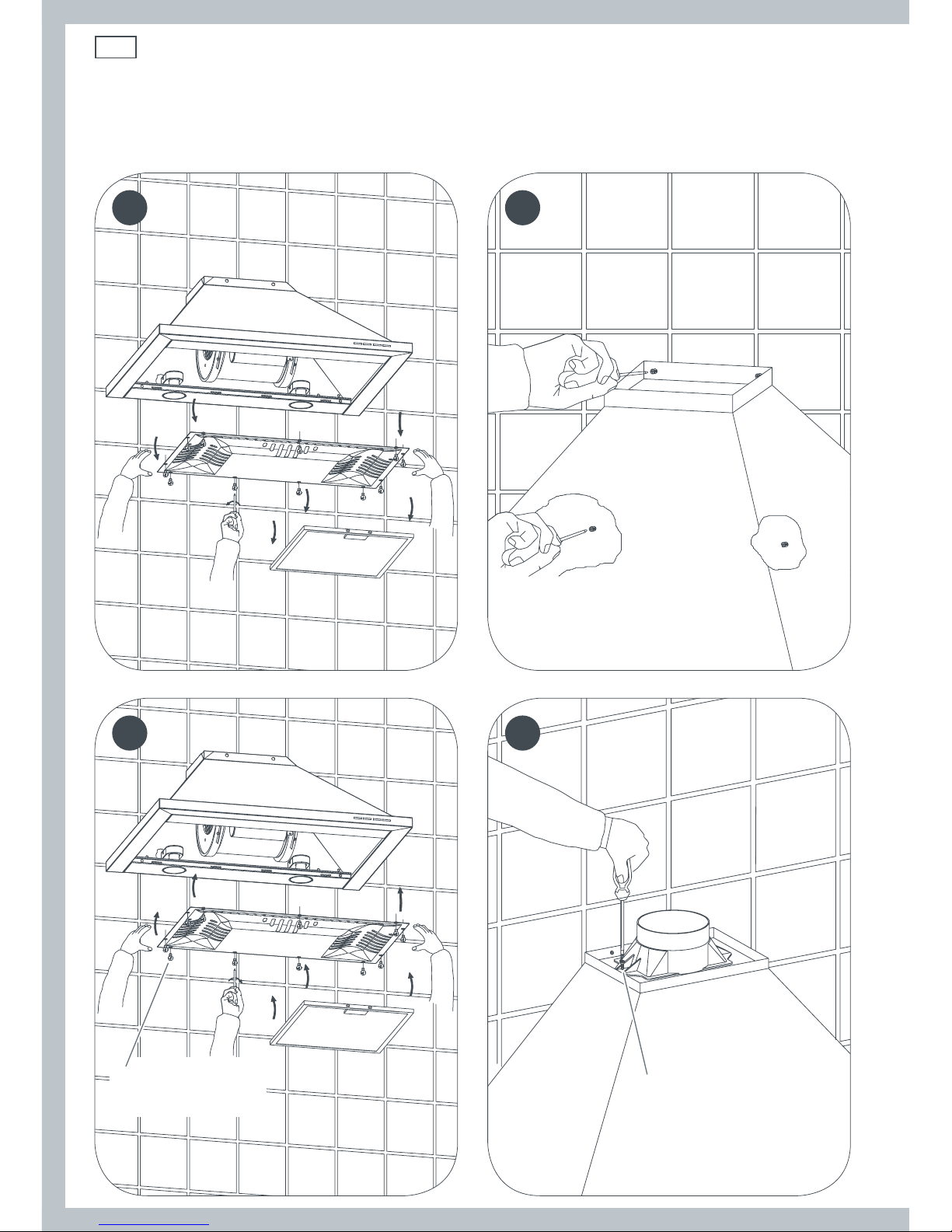

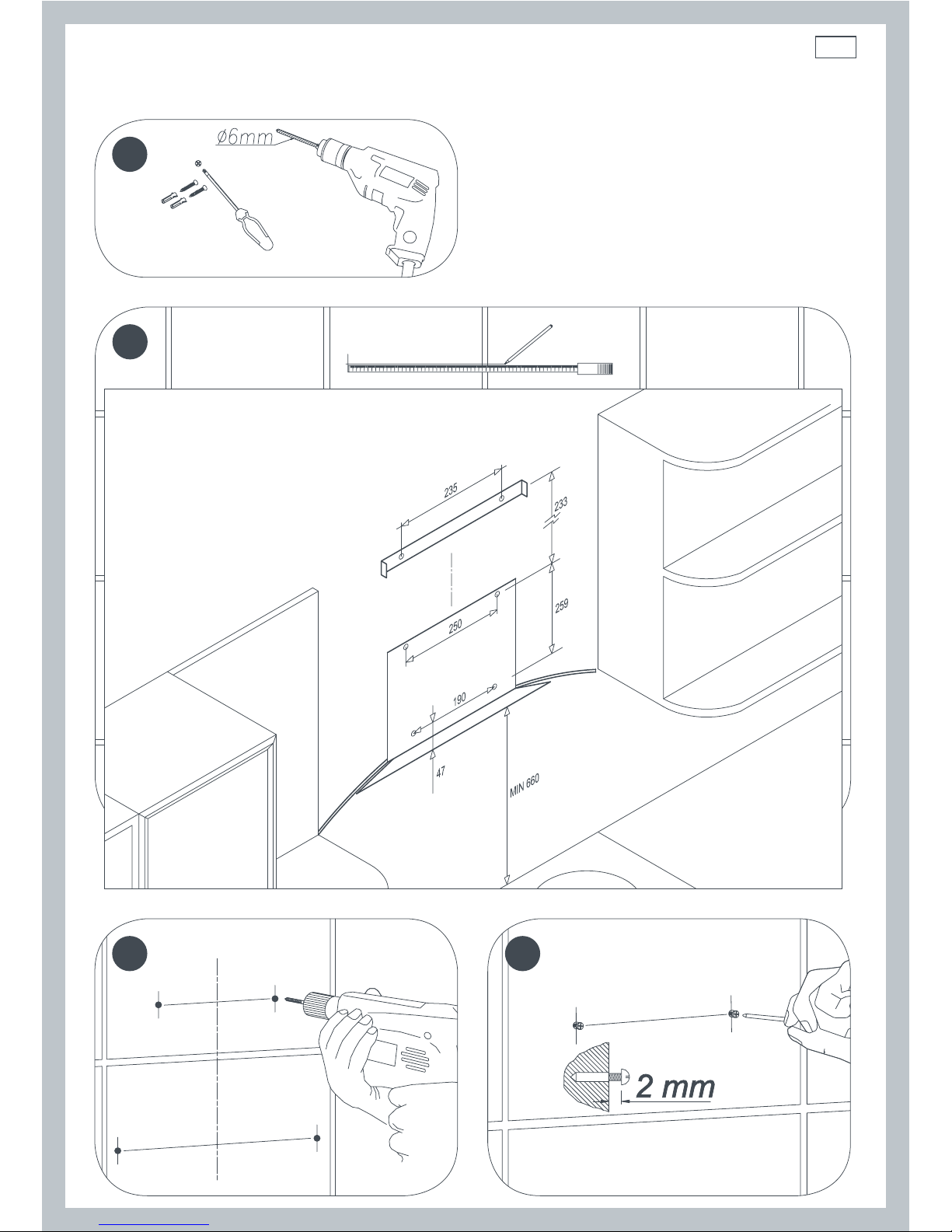

Installation instructions
3 4
1
2

2
Installation instructions
5 6
7
Warning!
Failure to install the screws or fixing device in accordance with these instructions may result in
electrical hazards.
8
4 x 12 mm screws
(2pcs)
3 x 10 mm screws
(6pcs)

3
Installation instructions
11 12
910

4Contents
Important!
SAVE THESE INSTRUCTIONS
The models shown in this User Guide may not be
available in all markets and are subject to change
at any time. For current details about model and
specification availability in your country, please go to
our website www.fisherpaykel.com or contact your
local Fisher & Paykel dealer.
Safety and warnings 5
Preparing to install 7
Operating your wall canopy 8
Cleaning and maintenance 9
Manufacturer’s Warranty 10
Customer Care 12
Registration
Register your product with us so we can provide
you with the best service possible.
To register your product visit our website:
www.fisherpaykel.com

5
Safety and warnings
WARNING!
Electrical Shock Hazard
All electrical work must be done in accordance with local and/or national
electrical codes as applicable. For safety, this product must be earthed.
Alterations to the domestic wiring system must only be made by a qualified
electrician. In Australia all fixed wiring appliances must be installed by a
qualified electrician. Failure to follow this advice may result in electrical
shock or death. Turn off power at service entrance before installing wiring or
servicing this product.
WARNING!
14.8 kg
(HC60)
17.2 kg
(HC90)
14.8 kg
17.2 kg
Weight Hazard
The wall canopy is heavy. Please ensure adequate care is taken when
installing the wall canopy to prevent personal injury. The wall canopy must
be installed onto a solid wall, stud, beam or truss. Weight of the product is
14.8 kg (HC60) / 17.2 kg (HC90).
Important safety precautions
Please read the entire set of instructions before installing the wall canopy.
Ducting accessories are not supplied. All ducting must comply with local requirements and
building codes.
Before connecting any pipes, consult municipal ordinances to ensure that any applicable
regulations concerning the discharge of exhaust air are adhered to and request permission from
the person in charge of the building.
Exhaust air must not be discharged into an existing flue that is used for exhausting fumes from
appliances burning gas or other fuels.
There must be adequate ventilation of the room when the wall canopy is used at the same time
as appliances burning gas or other fuels. (A partial vacuum in the room could result in too high a
concentration of gas in the air).
When the canopy is turned on at the same time as other appliances powered by energy other
than electricity, the air outlet must not be greater than 4 Pa (4x10-5 bar).
The minimum distance between the cooktop surface and the filters of the wall canopy shall be
600 mm, or 650 mm if installed over a gas cooktop (except for wall canopy availed to Australia
market, 600mm).
Stainless steel is very easily damaged during installation if abraded or knocked by tools. It
is recommended to protect the top of the canopy with cardboard or polystyrene during the
installation to minimise the risk of damage occurring.
To comply with electrical safety regulations, this canopy must be plugged into a socket near the
appliance. The socket must be accessible, or have an accessible isolating switch, to enable the end
user to isolate the canopy from the power for the purpose of internal cleaning or maintenance.

6Safety and warnings
A power outlet should be within 750 mm of the motor assembly and can be either on the wall,
behind the chimney or in the ceiling.
Always switch the power off prior to installation, servicing or cleaning the wall canopy.
If the supply cord of this equipment is damaged it must only be replaced by the manufacturer,
itsservice agent or similarly qualified person in order to avoid a hazard.
Children must be supervised to ensure that they do not play with the hood.
This canopy is not designed to be used by people (including children) with reduced physical,
sensorial or mental capacity, or who lack experience or knowledge about it, unless they have had
supervision or instructions on how to use the hood by someone who is responsible for their safety.
You must read the details concerning the method and frequency of cleaning.
There is a fire risk if cleaning is not carried out in accordance with the instructions.
Never leave frying food unattended since grease can overheat and catch fire. The risk of fire is
even greater in the case of used oil.
Do not flambé under the wall canopy.
Never use the wall canopy without the filters in place.
During climatic conditions causing electrical interference, it is possible that the device may stop
working. By switching the device OFF and ON the device will resume normal operation safety.
During an electrostatic discharge (ESD) it is possible that the device will stop working. By
switching the device OFF and ON the device will again work as intended. There will be no risk
hazard presenting in the product.
CAUTION: Accessible parts may become hot when used with cooking appliances.

7
Preparing to install
Please read this instruction manual carefully in order to obtain the best results from the use of
the wall canopy.
If you need any technical help or would like more information about our products, please do
not hesitate to contact your local Fisher & Paykel retailer.
Preparing the wall canopy for installation
Before installing your wall canopy:
Please read the instructions carefully.
Unpack the canopy and check that all functions are working.
Ensure that the voltage (V) and the frequency (Hz) indicated on the serial plate match the
voltage and frequency at the installation site.
Check that the area behind the installation surface to be drilled is clear of any electrical cables
or pipes, etc.
The stainless steel and glass surfaces of the canopy are very easily damaged during installation if
grazed or knocked by tools. Please take care to protect the surfaces during installation.
Protect the cooktop surface below with cardboard, or the like, to prevent damage occurring
whilst the wall canopy is being installed above.
The manufacturer shall not be liable for failure to observe all safety regulations in force for the
correct and normal operation of electrical parts.
Ducting options
Recirculation
To recirculate your wall canopy, please purchase a recirculation kit (part no. 791820). The
recirculation kit is required to channel the air out through the side-vents at the top of the flue.
Note: a ducting hole is not required in the wall or ceiling if a recirculation kit is fitted.
Ducting
For ducted installation, it is recommended that you use 150 mm diameter, rigid or semi-rigid
ducting. This will require a 160 mm (min) round hole in the ceiling, which the decorative
chimney will cover. Care should be taken to align the canopy with the decorative chimney
allowing sufficient clearance to accommodate the ducting.
For optimal efficiency, use smooth-wall, solid galvanized or plastic ducting for reduced noise
and increased airflow. Flexible ducting should only be used as a last resort (ie in difficult
installations) and if used, ensure that it is pulled tight.
The smoother, straighter and shorter the ducting the quieter and more efficient the wall canopy
will perform.
All ducting must comply with local requirements and building codes.

8Operating your wall canopy

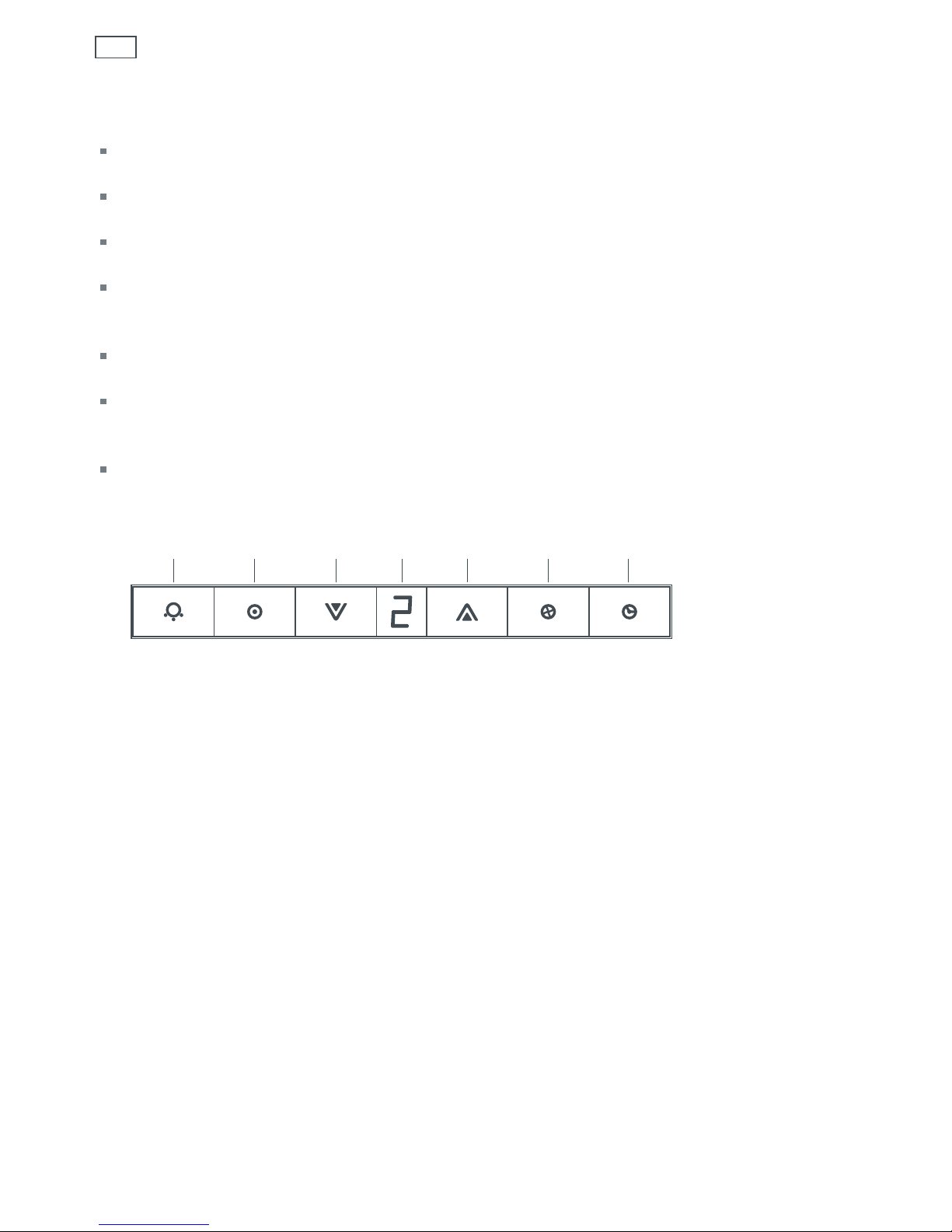

Soft touch button control panel
Light button On/Off (ref. A).
Power button On/ Off (ref. B).
Fan speed decrease button (ref. C).
Display screen (ref. D).
Indicates the fan speed setting.
Fan speed increase button (ref. E).
Max fan speed button (ref. F).
The fan will automatically increase to highest fan speed setting.
Timer button (ref. G).
The fan will operate for 5 minutes at the current speed and 5 minutes at each of the lower
speeds before automatically switching off.
Fig.1 Touch control panel
A B C D E F G

9
Cleaning and maintenance
Important!
Never use abrasive or oil based cleaners
Maintenance
Before performing any cleaning or maintenance on your wall canopy, ensure that the power
supply is switched OFF to the hood.
The wall canopy should be cleaned regularly using a mild, liquid detergent to avoid a build up
of grease occurring. Grease deposits are corrosive which can damage to your wall canopy.
Note: in areas of high humidity or coastal environments, cleaning should be carried out frequently.
Aluminium filters
Depending on use, and at least once a month, the aluminium grease filters should be removed
and cleaned in a dishwasher or with hot soapy water.
If washed in a dishwasher, the filters should be placed in an upright position to prevent food
from falling on them.
After rinsing and drying, replace the filters by reversing the following instruction for removal.
Note: some discolouration of the frames may occur.
Removing the aluminium filters:
1
Pull the relative catch, tilting it downwards until it disengages from the supports.
2
Reverse these instructions when refitting the filters.
Carbon filters
Active carbon filters are disposable items designed to remove grease and odours from cooking
vapours before the air is channelled back into the kitchen. The active carbon filters must be
replaced periodically to work properly, at least once every three months, depending on the
frequency with which the wall canopy is used.
Accessory Part number
Recirculation kit 791820
Replacement carbon filter 791772
Replacement aluminium filter 791773
Replacement light bulb 791822
Replacing the light bulb
1
Before changing the light bulb, ensure the wall canopy is disconnected from the power supply.
2
Remove the aluminium grease filters.
3
Unscrew and remove the easy clean interior panel.
4
Replace light bulbs with maximum 50 Watts.
5
Refit the easy clean interior panel and the aluminium filters.
Note: replacement bulbs are not covered by Manufacturer’s Warranty.

10 Manufacturer’s Warranty
You automatically receive a 2 year Manufacturer’s Warranty with the purchase of this
Rangehoodcovering parts and labour for servicing within the country of purchase.
Fisher & Paykel undertakes to:
Repair or, at its option, replace without cost to the owner either for material or labour any
partofthe product, the serial number of which appears on the product, which is found to
bedefective within TWO YEARS of the date of purchase.
Note: this Manufacturer’s Warranty is an extra benefit and does not affect your legal rights.
This Manufacturer’s Warranty DOES NOT cover
A
Service calls which are not related to any defect in the product. The cost of a service call will be
charged if the problem is not found to be a product fault. For example:
1. Correcting the installation of the product.
2. Instructing you how to use the product.
3. Replacing house fuses or correcting house wiring or plumbing.
4. Correcting fault(s) caused by the user.
5. Noise or vibration that is considered normal, eg drain/fan sounds, refrigeration noises
oruserwarning beeps.
6. Correcting damage caused by pests, eg rats, cockroaches, etc.
7. Replacement light bulbs.
B Defects caused by factors other than:
1. Normal domestic use; or
2. Use in accordance with the product’s User Guide.
C Defects to the product caused by accident, neglect, misuse or ‘act of God’.
D The cost of repairs carried out by non-trained and supported service technicians or the cost of
correcting such repairs.
E Normal recommended maintenance as set out in the product’s User Guide.
F Repairs when the appliance has been dismantled, repaired or serviced by other than a
Fisher&Paykel trained and supported service technician or the selling dealer.
G Pick-up and delivery.
H Transportation or travelling costs involved in the repair when the product is installed outside the
Fisher & Paykel trained and supported service technician’s normal service area.
Nothing in this Manufacturer’s Warranty is intended to, or does, limit any rights you may have
under law to recover the costs of inspecting or returning the goods to us.
This product has been designed for use in a normal domestic (residential) environment. This
product is not designed for any commercial use (whatsoever). Any commercial use by a customer
will affect this product’s Manufacturer’s Warranty.

11
Manufacturer’s Warranty
Service under this Manufacturer’s Warranty must be provided by a Fisher & Paykel trained and
supported service technician (refer to the ‘Customer Care’ section at the back of this book).
Such service shall be provided during normal business hours. This Manufacturer’s Warranty
certificate should be shown when making any claim.
For Australian Customers
This Manufacturer’s Warranty is an extra benefit and does not affect your legal rights. Our
goods come with guarantees that cannot be excluded under the Australian Consumer Law.
You are entitled to a replacement or refund for a major failure and compensation for any other
reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or
replaced if the goods fail to be of acceptable quality and the failure does not amount to a
major failure.
Please keep this User Guide in a safe place.

12 Customer Care
Before you call for service or assistance…
Check the things you can do yourself. Refer to your User Guide and check that:
1
Your appliance is correctly installed.
2
You are familiar with its normal operation.
If after checking these points you still need assistance or parts, please refer to your nearest
Fisher&Paykel trained and supported service technician, Customer Care, or contact us through
our website www.fisherpaykel.com.
In New Zealand if you need assistance...*
Call your Fisher & Paykel retailer who is trained to provide information on your appliance, or if we
can be of any further help, please contact our Customer Care Centre.
Toll free: 0800 FP CARE or 0800 372 273
Fax: [phone]
Website: www.fisherpaykel.com
Postal address: Fisher & Paykel Appliances Ltd, PO Box 58550, Botany, Auckland 2163
If you need service...*
Fisher & Paykel has a network of Fisher & Paykel trained and supported service technicians
that can carry out any service necessary on your appliance. Our Customer Care Centre can
recommend a Fisher & Paykel trained and supported service technician in your area.
In Australia if you need assistance...*
Call the Fisher & Paykel Customer Care Centre and talk to one of our Customer Care Consultants.
Toll free: 1300 650 590
Fax: [phone]
Website: www.fisherpaykel.com
Postal address: Fisher & Paykel Appliances Australia Pty Ltd, PO Box 798, Cleveland QLD 4163
If you need service...*
Fisher & Paykel has a network of Fisher & Paykel trained and supported service technicians
that can carry out any service necessary on your appliance. Our Customer Care Centre can
recommend a Fisher & Paykel trained and supported service technician in your area.
*If you call, write or contact us via our website please provide: your name and address, model
number, serial number, date of purchase and a complete description of the problem. This
information is needed in order to better respond to your request for assistance.
Registration
Register your product with us so we can provide you with the best service possible. To register
your product visit our website: www.fisherpaykel.com

13
Customer Care
Product details
Fisher & Paykel Appliances, Ltd
Model/Serial No.
Date of Purchase Purchaser
Dealer Suburb
Town Country

NZ AU 01.2016F&P PN - 791775 D
www.fisherpaykel.com
© Fisher & Paykel Appliances 2016. All rights reserved.
The product specifications in this booklet apply to the specific products
and models described at the date of issue. Under our policy of continuous
product improvement, these specifications may change at any time. You
should therefore check with your Dealer to ensure this booklet correctly
describes the product currently available.
