Box Wall Rangehood
HC60DCXB1, HC90DCXB1, HC120DCXB1,
HC60DCXB2, HC90DCXB2 and HC120DCXB2 models
NZ AU ROW
INSTALLATION INSTRUCTIONS
USER GUIDE

1
CONTENTS
Introduction 3
Safety and warnings 4
Installation instructions 7
Operating instructions 17
Cleaning and maintenance 18
Parts and accessories 20
Manufacturer’s Warranty 21
Customer Care 23
IMPORTANT!
SAVE THESE INSTRUCTIONS
The models shown in this user guide may
not be available in all markets and are
subject to change at any time. For current
details about model and specification
availability in your country, please go to
our website www.fisherpaykel.com or
contact your local Fisher & Paykel dealer.
Registration
Register your product with us so we can
provide you with the best service possible.
To register your product visit our website:
www.fisherpaykel.com

3
INTRODUCTION
Thank you for purchasing a Fisher & Paykel product.
Thousands of hours go into the design, engineering, testing and perfecting of each
Fisher & Paykel appliance. The care and attention given to creating these beautiful
products doesn’t stop once it has found its home with you.
This use and care manual will answer most of your questions about the set-up, use and
on-going maintenance of your Fisher & Paykel product; however if you require further
information about your product and its use please consult our website for solutions
and further contact information to discuss with a service representative.
To ensure you receive all relevant product updates and the best service possible,
please register your Fisher & Paykel products through our website.

4
SAFETY AND WARNINGS
!WARNING!
13.2 kg
(HC60)
17.6 kg
(HC90)
24 kg
(HC120)
Weight Hazard
The appliance is heavy. Please ensure adequate care is taken when
installing the appliance to prevent personal injury. The appliance must be
installed onto a solid wall, stud, beam or truss. Weight of the product is
13.2 kg (HC60)/ 17.6 kg (HC90)/ 24 kg (HC120).
!WARNING!
Electric Shock Hazard
Always disconnect the appliance from the mains power supply before
carrying out any maintenance or repairs. Alterations to the domestic wiring
system must only be made by a qualified electrician.
Failure to follow this advice may result in electrical shock or death.

5
SAFETY AND WARNINGS
IMPORTANT SAFETY INSTRUCTIONS
WARNING!
When using this appliance always exercise basic safety precautions including
thefollowing:
 Please read the entire set of instructions before installing or using this appliance.
 Please make this information available to the person installing the appliance –
doing so could reduce your installation costs.
 Always switch the power off prior to installation, servicing or cleaning of
theappliance.
 This appliance must be installed and connected to the mains power supply only
by a suitably qualified person according to these installation instructions and in
compliance with any applicable local building and electricity regulations. Failure
toinstall the appliance correctly could invalidate any warranty or liability claims.
 To comply with electrical safety regulations, the appliance must be plugged into
a socket near the appliance. The socket must be accessible, or have an accessible
isolating switch, to enable the end user to isolate the appliance from the power for
the purpose of internal cleaning or maintenance.
 A power outlet should be within 750 mm of the motor assembly and can either be
onthe wall, behind the chimney or in the ceiling.
 If the supply cord of this equipment is damaged, it must only be replaced by the
manufacturer, its service agent or similarly qualified person in order to avoid a
hazard.
 Ducting accessories are not supplied. All ducting must comply with local
requirements and building codes.
 Attention should be given to ensure that any applicable regulations concerning the
discharge of exhaust air are fulfilled.
 Before connecting any pipes, consult municipal ordinances to ensure that any
applicable regulations concerning the discharge of exhaust air are adhered to and
request permission from the person in charge of the building.
 Exhaust air must not be discharged into an existing flue that is used for exhausting
fumes from appliances burning gas or other fuels.
 There shall be adequate ventilation of the room when the rangehood is used at the
same time as appliances burning gas or other fuels.
 The minimum distance between the supporting surface for cooking vessels on
the cooktop and the lowest part of the rangehood shall be 600 mm or 650 mm
ifinstalled over a gas cooktop.
 Stainless steel is very easily damaged during installation if abraded or knocked by
tools. It is recommended to protect the top of the rangehood with cardboard or
polystyrene during the installation to minimise the risk of damage occurring.
 To reduce the risk of damage occurring to the cooktop, it is recommended that
the surface of the cooktop is protected with cardboard or a similar object during
installation of the rangehood.
 This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction concerning the use of the
appliance by a person responsible for their safety.
 Children should be supervised to ensure they do not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.

6
 You must read the details concerning the method and frequency of cleaning.
 There is a fire risk if cleaning is not carried out in accordance with the instructions.
 Never leave frying food unattended since grease can overheat and catch fire. The risk
of fire is even greater in the case of used oil.
 Do not flambé under the rangehood.
 Never use the rangehood without the filters in place.
 During an electrostatic discharge (ESD) it is possible that the device will stop
working. By switching the device off and on the device will again work as intended.
 CAUTION: accessible parts may become hot when used with cooking appliances.
 Remove all packaging, including protective wrappings, before use.
SAFETY AND WARNINGS

7
INSTALLATION INSTRUCTIONS

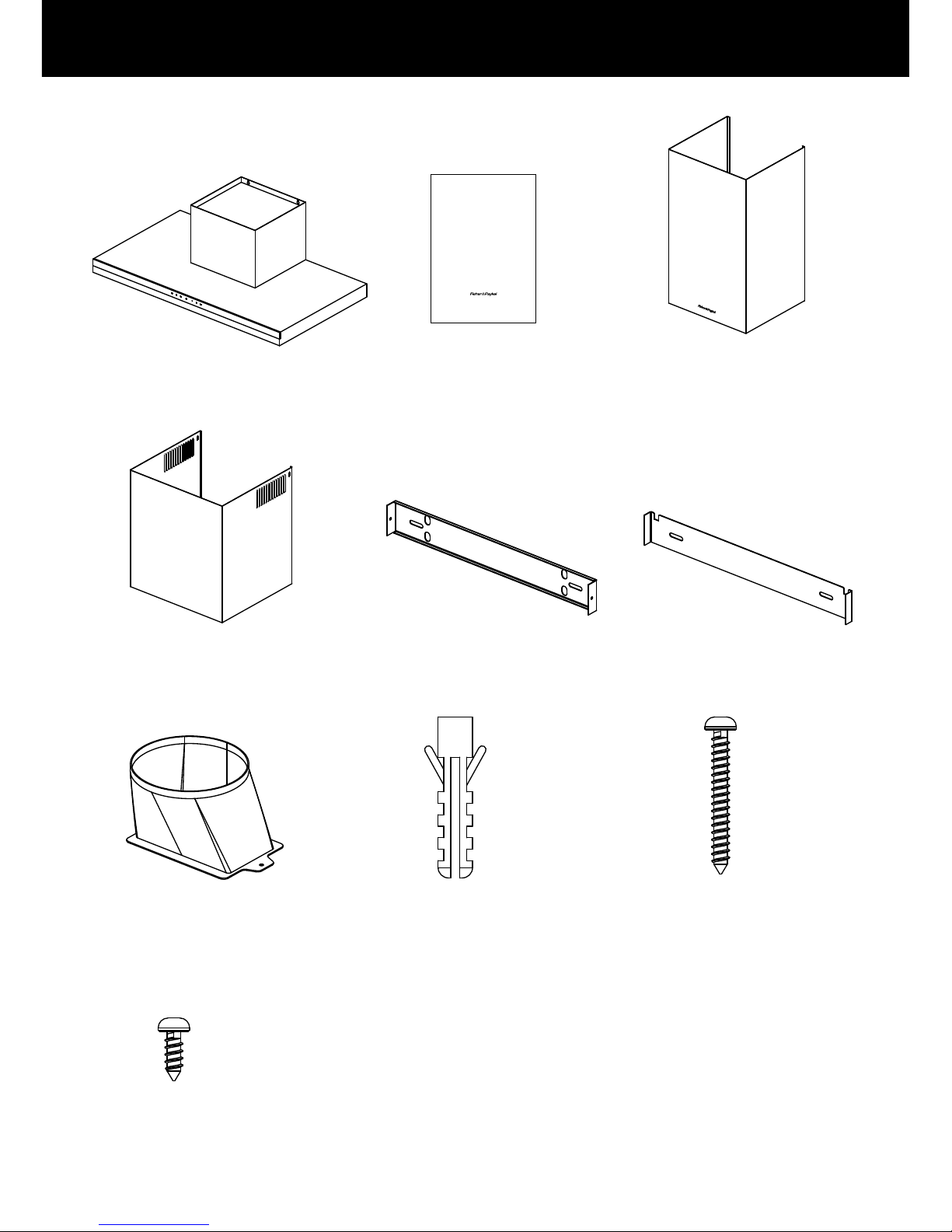

Contents of packaging
Upper chimney bracket
(1)
Installation instructions
User guide manual
(1)
Chimney
(1)
Expansion plug
(8)
30mm self
tapping screw
(8)
Upper chimney
(1)
Rangehood
(1)
Ducting adapter
(150mm Ø)
(1)
Chimney bracket
(1)
Box Wall Rangehood
HC60DCXB1, HC90DCXB1, HC120DCXB1,
HC60BCXB2, HC90BCXB2 and HC120BCXB2 models
NZ AU ROW
INSTALLATION INSTRUCTIONS
USER GUIDE
10mm self
tapping screw
(4)

8
INSTALLATION INSTRUCTIONS
Product dimensions
GF
B
A
max
A
min
E D
K
L
C
I
H
Power cord location
ØJ

9
INSTALLATION INSTRUCTIONS
HC60 HC90 HC120
PRODUCT DIMENSIONS mm
AOverall height of product 595 – 1035 595 – 1035 595 – 1035
BOverall width of product 598 898 1198
COverall depth of product 500 500 500
DHeight of hood 55 55 55
EHeight of stainless strip 27 27 27
FWidth of chimney 320 320 320
GDepth of chimney 290 290 290
HDistance from centre of ducting
outlet to back of product 105 105 105
IDistance from centre of ducting
outlet to side of chimney 160 160 160
JDiameter of ducting outlet 150 150 150
KDistance between centre of lights 230 230 230
LDistance from centre of lights to
back of product 45 45 45
Length of power cord 1500 1500 1500
IMPORTANT!
Actual product dimensions may vary by ± 2mm.
Please read the entire instructions before installing the rangehood.

10
INSTALLATION INSTRUCTIONS
Height of rangehood
N
M
INSTALLATION DIMENSIONS mm
MInstallation height
Ducted
Recirculation
min. 635 – max. 1035
min. 675 – max. 1035
NHeight top of cooktop to base of product
Electric cooktop
Gas cooktop
min. 600 – max. 750
min. 650 – max. 750
Rangehood installation height above the cooktop is the user’s preference. Lower
installation heights will improve the efficiency of capturing cooking odours, grease,
and smoke. This rangehood must be installed between the minimum and maximum
dimensions indicated in the table above.

11
INSTALLATION INSTRUCTIONS
Venting options
Attention should be given to ensure that any applicable regulations concerning the
discharge of exhaust air are fulfilled.
The rangehood can be installed to operate with the exhaust air ducted externally from
the kitchen, or installed to operate with the exhaust air recirculating within the kitchen.
Ducted
For ducted installation it is recommended that 150mm diameter, rigid or semi-rigid
ducting is used. This will require a 160mm (min) round hole in the ceiling or wall.
Careshould be taken to position the hole correctly.
For optimal efficiency use the shortest and straightest duct route possible and use rigid
or semi-rigid ducting for reduced noise and increased airflow. Flexible metal ducting
should only be used as a last resort (ie in difficult installations) and if used ensure that it
is straight and smooth and extended as much as possible.
Recirculating
To enable the product to operate with the air recirculating, please purchase a
recirculation diverter and carbon filters (refer to the ‘Parts and accessories’ section).
Therecirculation diverter is installed after a short length of ducting and is required to
channel the air out the side vents at the top ofthe chimney and the carbon filters are
required to remove odours.
Note: a ducting hole is not required in the wall or ceiling if the rangehood is
installed to operate with exhaust air recirculating.

12
INSTALLATION INSTRUCTIONS
WARNING!
 This appliance is heavy and requires two persons for unpacking and installation
 Installation work and electrical wiring must be done by qualified person(s) in
accordance with all applicable codes and standards.
 Failure to install the screws or fixing device in accordance with these instructions
mayresult in electrical hazards
IMPORTANT!
Wear gloves to protect against sharp edges.
The manufacturer is not liable for any damage caused by not following these instructions.
Installation
1Preparing for installation:
Before installing your rangehood:
 Please read the instructions carefully.
 Unpack the rangehood and check that all functions are working.
 Ensure that the voltage (V) and the frequency (Hz) indicated on the serial plate
match the voltage and frequency at the installation site.
 Check that the area behind the installation surface to be drilled is clear of any
electrical cables or pipes, etc.
 The stainless steel and glass surfaces of the rangehood are very easily damaged
during installation if grazed or knocked by tools. Please take care to protect the
surfaces during installation.
 Protect the cooktop surface below with cardboard, or the like, to prevent damage
occurring whilst the rangehood is being installed above.
 Temporarily mark the height of the bottom of the rangehood and the centre of the
cooktop on the wall according to the information given in the ‘Installation instructions
– Height of rangehood’ section.
 The wall used for mounting the rangehood should have sufficient strength and a
flatsurface.
2Attach chimney brackets and hood mounting screws
 Attach the chimney bracket and upper
chimney bracket (if using the upper chimney)
in the locations shown in Fig.2 and 3. Use
the 30mm screws and expansion plugs if
attaching to masonry.
 Attach the upper hood mounting
screws in the locations shown in
Fig.2 and 3. Use the 30mm screws
and expansion plugs if attaching to
masonry. Ensure that there is a 2mm
gap between the screw head and the
wall – see Fig.1.
2 mm
2 mm
Fig.1

13
INSTALLATION INSTRUCTIONS
Fig.2
250 mm
20 mm
A
B
250 mm
235 mm
C
D
Upper chimney extension
bracket attachment points
Chimney bracket
attachment points
Upper hood
attachment points
Lower hood
attachment points
HC60 HC90 HC120
PRODUCT DIMENSIONS mm
A
Lower rangehood attachment point width 420 580 900
BChimney bracket attachment point height 559 559 556
CUpper rangehood attachment point height 286 286 288
DLower rangehood attachment point height 36 36 42.5

INSTALLATION INSTRUCTIONS
14
Fig.3
3Attach ducting adapter
 Place the ducting adapter
onto the hood and screw it in
place using the 10mm screws.

15
INSTALLATION INSTRUCTIONS
4Attach hood to wall
 Remove filters and easy clean plate from hood as shown in Fig.4.
Fig.4

INSTALLATION INSTRUCTIONS

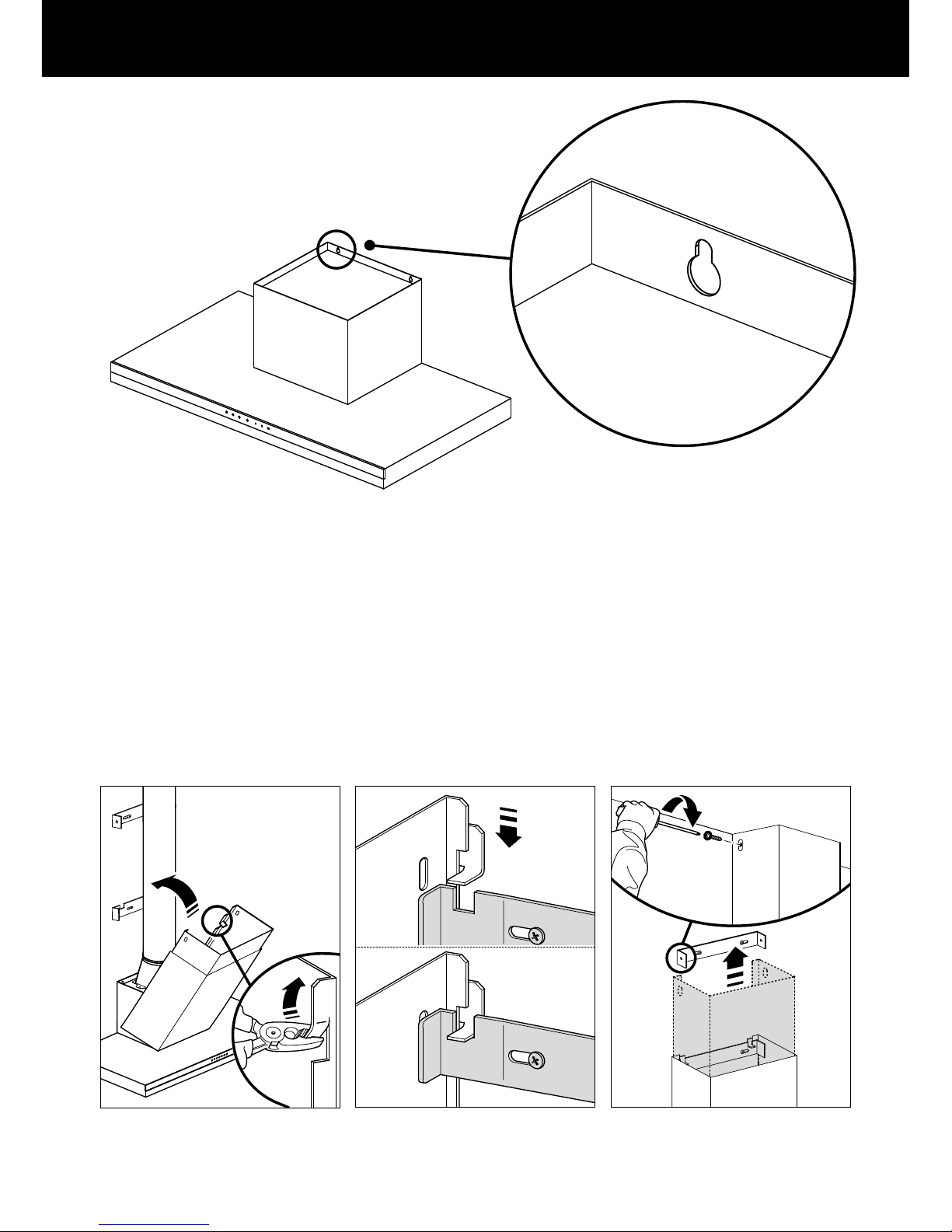

Fig.5
 Hang hood off upper hood mounting screws with 2mm gap. Hang off the keyhole
attachment points on the back of the hood (see Fig.5). Tighten screws.
 Attach lower hood mounting screws to fix hood to wall.
 Reattach easy clean plate and filters.
5Attach ducting
 Attach ducting to ducting adapter using aluminium duct tape and vent outside.
6Attach chimney
 Bend the tabs on the chimney (A).
 Place chimney around the hood chassis and hang off the bracket (B).
 Extend the upper chimney and attach to the chimney bracket with 10 mm screws (C).
A B C
16

17
OPERATING INSTRUCTIONS
Touch control panel
CONTROL PANEL FEATURES
Filter
cleaning alert
Activated regularly to alert of the need to
clean filters. It can be deactivated with a
singlepress.
Timer Turn the timer on. The fan operates for
5minutes at the current speed and each
descending speed before turning off.
Lights Turn the lights on or off. The lights turn on
tothe last level selected.
Press and hold to adjust the level of light.
Power on/off Turn the rangehood on or off. The fan
automatically turns on to operate at level 1.
Fan speed 1 – 3 Adjust the fan speed levels from 1 – 3 with 1
being the lowest level and 3 being the highest.
The fan speed level icon illuminates red
whenselected.

18
CLEANING AND MAINTENANCE
WARNING!
Unplug or disconnect the appliance from the power supply before servicing or cleaning.
IMPORTANT!
 Never use abrasive or oil based cleaners
 Wear gloves to protect against sharp edges
Maintenance
The rangehood should be cleaned regularly using a mild, liquid detergent and a clean
soft cloth to avoid a build-up of grease occurring. Avoid the use of corrosive chemicals,
abrasive cleaning products, hard brushes and steel wool pads. Grease deposits are
corrosive which can cause damage to your rangehood.
Note: in areas of high humidity or coastal environments, cleaning should be carried out
more frequently.
Aluminium filters
 Depending on use, and at least once a month, the aluminium grease filters should be
removed and cleaned with hot soapy water or in a dishwasher.
 If washed in a dishwasher, the filters should be placed in an upright position to prevent
food from falling on them.
 After rinsing and drying, replace the filters.
Note: some discolouration of the frames may occur.

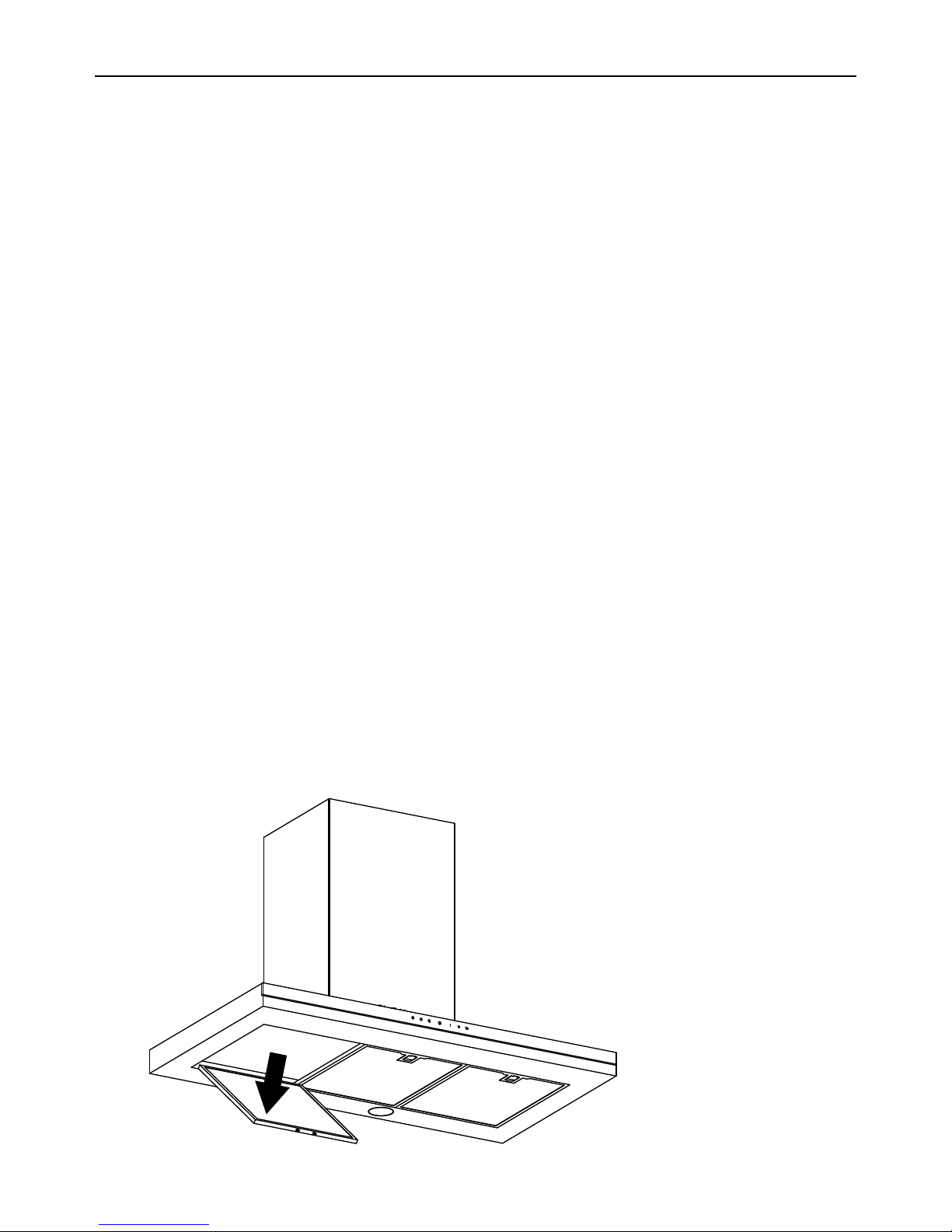

Removing the aluminium filters:
1Pull the relative catch, tilting it downwards until it disengages from the supports.
2Reverse these instructions when refitting the filters.
