INTEGRATED COLUMN
WINE CABINET
RS2484VL2K1, RS2484VR2K1,
RS6121VL2K1, RS6121VR2K1
models

1
CONTENTS
IMPORTANT!
SAVE THESE INSTRUCTIONS
The models shown in this User guide
may not be available in all markets
and are subject to change at any time.
For current details about model and
specification availability in your country,
go to our website fisherpaykel.com or
contact your local Fisher & Paykel dealer.
Registration
Register your product with us so we can
provide you with the best service possible.
To register your product visit our website:
fisherpaykel.com
Introduction 3
Safety and warnings 4
Storage features 7
Integrated Column — Wine Cabinet 7
Control panel 8
SmartTouch™ 8
ActiveSmart™ special features 9
Variable temperature zones 9
Wine care 10
Operating instructions 12
Cleaning care — exterior 15
User warnings and sounds 17
Troubleshooting 18
Service & Warranty 20
EN

3
INTRODUCTION EN
Welcome to the family of Fisher & Paykel appliances. We hope you enjoy using this
Integrated Column — Wine Cabinet as much as we’ve enjoyed creating it. Our team has
spent thousands of hours designing, engineering and testing this product to ensure you get
the perfect appliance for your home.
The slick design fits seamlessly into your home. Our integrated products can fit flush with
cabinetry to minimize gaps and support a cohesive, considered aesthetic. The Integrated
Column — Wine Cabinet’s stainless steel interior and black anodised aluminium racks
contrast beautifully with its solid white oak slats.
The tinted and UV glass door is designed to both showcase and protect your wine, while
LED lighting provides full illumination whenever it’s needed.
ActiveSmartTM technology maintains optimum humidity with dual evaporator capability for
ultimate temperature control.
Please take a moment to register your product online. It will help us give you the best
service possible, and we’ll also let you know when we have special offers or promotions
running. Go to fisherpaykel.com/register now.

4
SAFETY AND WARNINGS
!WARNING!
Electric Shock Hazard
Read and follow the safety and warnings outlined in this user guide
before operating this appliance.
Failure to do so can result in death, electric shock, fire or injury to persons.
!WARNING!
This appliance contains flammable refrigerant isobutane (R600a).
R600a
Use this appliance only for the intended purpose as described in the user guide.

5
SAFETY AND WARNINGS
IMPORTANT SAFETY INSTRUCTIONS
WARNING!
Read entire manual. Failure to follow all guides and rules could cause personal
injury or property damage. When using this appliance always exercise basic safety
precautions including thefollowing:
 Children should be supervised to ensure that they do not play with the appliance.
 Cleaning and user maintenance shall not be undertaken by children without
supervision.
 This appliance can be used by children aged from 8years and above and persons
withreduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
 The manufacturer’s installation instructions for product and cabinetry ventilation
mustbe followed when installing the appliance.
 To avoid hazard due to instability of the appliance, it must be fixed in accordance
withinstallation instructions.
 Keep ventilation openings, in the appliance enclosure or the built-in structure, clear
ofobstruction.
 Do not use mechanical devices or other means to accelerate the defrosting process,
other than those recommended by the manufacturer.
 Do not damage the refrigerant circuit.
 In case of damage to the refrigerant circuit, ventilate the area by opening all windows.
– Do not operate electrical equipment or any other equipment that may produce
arcs, sparks or flames in the area. Contact your Fisher & Paykel trained
and supported service technician immediately to arrange for the appliance
toberepaired.
 It is hazardous for anyone other than a Fisher & Paykel trained and supported service
person to service thisappliance.
Electrical
 This appliance must be installed in accordance with the installation instructions
beforeuse.
 To allow disconnection of the appliance from the supply after installation,
incorporatea switch in the fixed wiring in accordance with the local wiring rules.
 If the power supply cord is damaged, it must only be replaced by your Fisher&Paykel
trained and supported service technician.
 WARNING: Do not use electrical appliances inside the food storage compartments
of the appliance, unless they are of the type recommended by the manufacturer.
IMPORTANT!
 Your appliance is designed to operate for many years without the need for service
checks. However, if your appliance is malfunctioning, have it attended to by your
Fisher&Paykel trained and supported service technician as soon as possible.
 If you suspect that the product is not getting cold—items such as ice cream are
melting—remove all perishable food and store in another appliance or cooler to
prevent spoilage. Immediately call for a service technician.
EN

6
SAFETY AND WARNINGS
Cleaning
 Use only soap based cleaning products.
 Use a clean microfiber cloth for cleaning the wooden racks. Do not use liquid/water
on oak racks. Ensure the racks are not too wet.
 Avoid using anti-bacterial cleaning products on either the interior or exterior
of the cabinet as they may cause rusting of metal components and cracking of
plasticcomponents.
Disposal
 Extreme care must be taken when disposing of your old appliance to avoid hazards:
– The flammable refrigerant gas must be safely removed by a qualified
servicetechnician.
– The thermal insulation foam in this appliance may contain flammable
insulationblowing gases, any exposed foam may be highly flammable
andmustbe carefully treated during disposal.
– DANGER: The doors and panels should be removed and the racks left inplaceso
that children may not easily climb inside.
 Consult your local energy authority or local codes as to the best way to dispose
ofyour old appliance.
Storing wine
 Do not store explosive substances such as aerosol cans with a flammable propellant
inthis appliance.
 Never store volatile or flammable materials in your appliance as they may explode.
Power failure
 In the event of a power interruption, the Wine Cabinet will automatically save the
current temperature settings. When power is recovered, the Wine Cabinet will revert
to the current temperature settings only.
 Most power failures are corrected within a short period of time. 1 – 2 hours loss of
power will not affect the Wine Cabinet’s temperatures.
 To avoid sudden change of temperature while the power is off, you should avoid
opening the door. For longer periods of power failure, do take steps to protect your
wine.

7

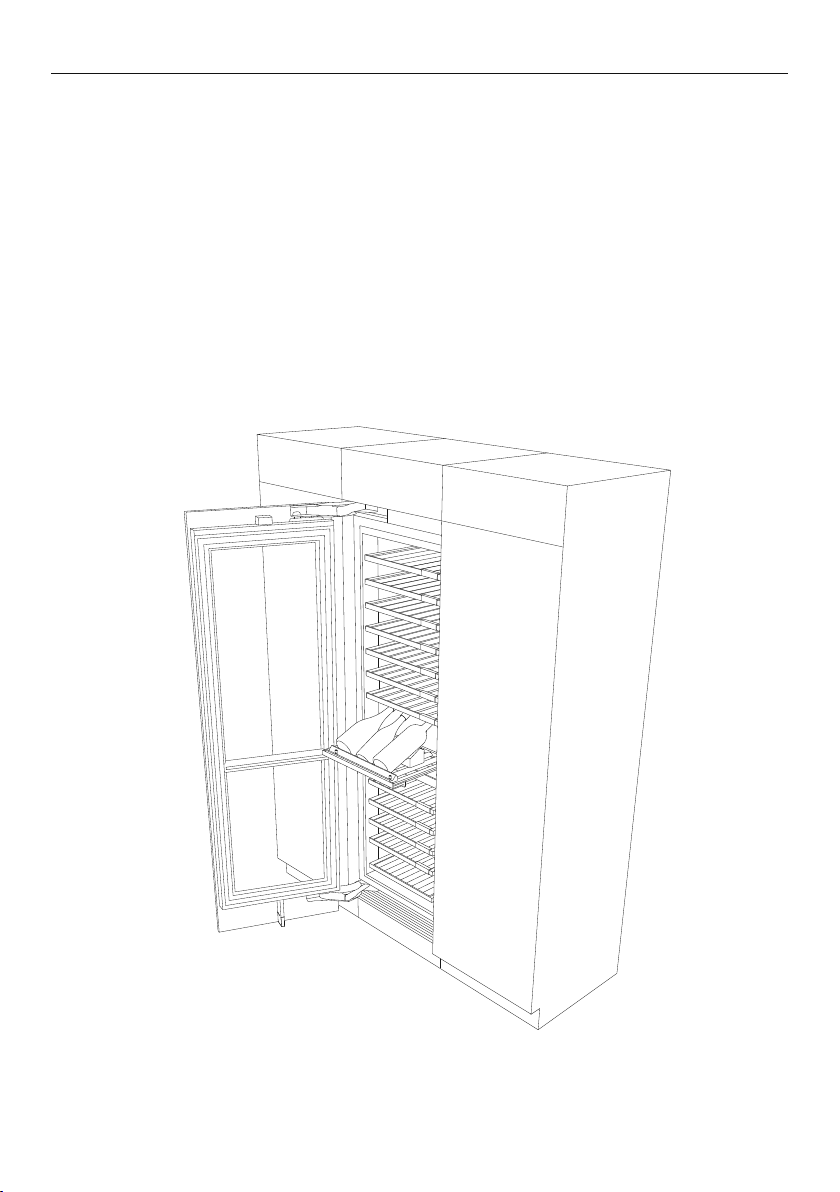

STORAGE FEATURES EN
Integrated Column — Wine Cabinet
Easy-clean design with evenly distributed lighting and aluminum trims.
WINE CABINET COMPONENTS
Bottle racks Removable bottle racks (white oak)*
Accessories Wine display kit
Wine label kit
* Racks have different sizes. Ensure you have the correct dimensions when replacing racks,
Interchangeable
Upper bottle racks
Display rack
Display handle
UV tempered
glass door
Wine bottle labels
Bulk storage rack
Display cradles
Interchangeable
Lower bottle racks

8
CONTROL PANEL
SmartTouch™
SmartTouch™ CONTROL PANEL FEATURES
Compartment Allows you to unlock the control panel and enable
compartment selection. Press for 4seconds to activate your
appliance for the first time.
The control panel will automatically lock when inactive for
more than 10seconds or when the door is closed. To unlock,
press for 2seconds.
Wine mode Allows you to select the wine mode for the
selected compartment.
Key lock Illuminates to indicate that the keys on the control
panel are locked. When the door is closed the display is
automatically locked.
Sabbath mode IIluminates to indicate that Sabbath mode is activated.
WiFi Illuminates to show wireless remote mode is enabled.
Visitfisherpaykel.com/connect for further details on using
thisfeature.
Filter indicator Illuminates to indicate that carbon filter replacement is
required.
70°
160° Digital display Displays the set temperature of the compartments.
To change between Celsius and Fahrenheit on the display:
 Press and together for 4seconds.
Colder Reduces the temperature of compartments.
Warmer Increases the temperature of compartments.
Light mode Allows you to select the light mode for the
selected compartment.
Alarm mute Deactivates the door alarm for 20minutes.
70°
160°

9
ACTIVESMART™ SPECIAL FEATURES
Variable temperature zones
The serving temperature of your wine is crucial for your taste and enjoyment, therefore
‘Wine Modes’ have been carefully designed to both care for your wine and provide the
ideal serving temperature for all wine varieties.
The separate modes allow you to adjust the temperature in both compartments
independently.
Not all wines will improve over time. Check with your wine merchant for more
information regarding the best storage conditions for your wine.
WINE MODES TYPES OF WINE TO STORE
Red
(16°C/61°F)
‘Red Mode’ is suitable for short
term storage of light, fruity and full-
bodied reds at serving temperature.
Pinot Noir, Merlot, Malbec,
Shiraz/Syrah, Chianti,
Cabernet Sauvignon,
Vintage Port.
Cellar
(12°C/54°F)
For longer term storage of all wine
varieties, ‘Cellar Mode’ provides
conditions suitable for aging wines.
All varieties.
White
(8°C/46°F)
‘White Mode’ is suitable for
short term storage of aromatic
white wines and Rose at serving
temperature.
Sauvignon Blanc,
Chardonnay, Riesling, Pinot
Gris, Viognier, Chablis,
Gewürztraminer, Rosé.
Sparkling
(7°C/45°F)
‘Sparkling Mode’ is suitable for short
term storage of all sparkling wines at
serving temperature.
Sparkling wines (eg Méthode
Champenoise, Metodo
Classico) Champagne,
Cava, Prosecco.
Light modes
Four Light Modes are available to choose from. Select a Light Mode that suits the
desired illumination of bottles as well as the surrounding environment.
1 Off
Select “Off” to turn off all compartment lights.
2 Low
‘Low Mode’ is the dimmest setting available; softly illuminating the interior of
your Integrated Column — Wine Cabinet while allowing it to blend into the
surrounding environment.
3 Display
‘Display Mode’ brightly illuminates bottles on the display rack while all other racks
remain dimly lit, bringing emphasis to those extra special bottles.
4 High
‘High Mode’ turns all compartment lights to full brightness; the perfect mode for
showcasing your wine collection.

10
EN
WINE CARE
Having purchased our dual-zone Integrated Column — Wine Cabinet, you can rest
assured that your wines are well cared for. Your Integrated Column — Wine Cabinet
model has been designed to carefully consider both the maturation and ideal drinking
temperature of all wine varieties. Our Wine Modes have been created to offer guidance
for the perfect storage conditions for your wine, whilst allowing you adjustability to suit
your personal needs.
Temperature
Temperature control is critical for the maturation of wines, as significant daily or weekly
temperature fluctuations can denature wines. If storage temperatures are excessively
high this can reduce the wines aromatic potential and can speed up maturation. This
can cause some wines to take on a ‘spoiled fruit’ flavouring. If storage temperatures are
excessively low, this can have the opposite effect and stunt a wine’s natural maturation
process. This can prevent a wine’s flavours from developing to their full potential.
Humidity
Optimum humidity levels are also important for the storage of cork enclosed wines,
especially for long term storage. Dry environments can lead to dried out corks
encouraging wine evaporation as well as oxygen permeation leading to oxidised wine.
As for extremely humid conditions, there is potential for mould growth on bottles and
labels.
UV-Tempered Glass Door
Light is known to be damaging to wines, particularly UV light. Light can react with wine,
creating hydrogen sulphide compounds affecting the tannins and colour. Your Integrated
Column — Wine Cabinet has been designed to eliminate this threat by incorporating a
double UV-tempered glass door, dark interiors and dimmed LED lighting.
Vibration
Your Integrated Column — Wine Cabinet model has been designed to have minimal
vibrations, important for optimal wine care.
Ventilation
Wine should be stored in an odour-free environment. You Integrated Column — Wine
Cabinet model comes with an activated carbon air filter to assist with removing taint
and odour inside each compartment.
Helpful tips:
 Follow our pre-set Wine Modes as a guideline for optimal storage and the perfect
drinking temperature.
 For entertaining, choose from one of our four Light Modes. Light Modes will default to
Low after a certain duration to ensure the best wine care.
 If storing wine for long durations we recommend turning the Light Mode to Off.
 Store bottles lying flat on their sides to keep the liquid up against the cork which should
keep the corks from drying out.
 Allow red wine to breathe. We suggest opening the bottle at least 1 hour before serving.
Alternatively, decant red wine into a decanter.

11
OPERATING INSTRUCTIONS
Alarm mute
 To activate, press once.
 The light above will illuminate to indicate the appliance is muted.
 If the doors are left open for 5minutes or more, the compartment light turns off
andnormal door alarms are suspended.
 ‘Alarm Mute’ will deactivate after 20minutes.
 To deactivate manually, press again.
 Closing the door also deactivates the ‘Alarm Mute’.
Sabbath mode
When activated — the display, all alarms and lights are deactivated for 80 hours.
 To activate Sabbath mode, press , and together for 4 seconds.
 The icon on the control panel will illuminate.
 To deactivate manually, press , and together for 4seconds.
Note: If you turn off your appliance while in Sabbath mode, it will resume
automaticallyonce the appliance is switched on again.
Key mute
Key mute allows you to silence all button presses.
 To activate key mute, press for 2seconds, a single confirmation beep will be heard.
 Once key mute is activated, all key sounds are silenced.
 Door alarms are still operational.
 To deactivate, press for 2seconds, a single confirmation beep will beheard.
Key Lock
‘Key Lock’ allows you to disable the buttons on the control panel. This is useful when
cleaning your appliance.
 To activate ‘Key Lock’, press for 2seconds.
 The icon on the control panel will illuminate.
 To deactivate, press for 2seconds.
 The icon will not illuminate.
Activated carbon filters
Air quality is critical for preserving wine. Your product is fitted with two activated
carbon filters that help remove stale, unwanted odours and replenishes with fresh air.
The filters are located internally at the bottom rear of each compartment.
A replacement indicator icon on the control panel illuminates when the carbon filters
needs to be replaced.
To reset the filter indicator:
 Press and together for 4 seconds.
 The on the control panel will turn off when reset.
IMPORTANT!
 Replacement filters can be purchased online from fisherpaykel.com or by calling
Fisher & Paykel Customer Care.
 Refer to Wine column installation guide for instructions on replacing the filters.
EN

12
OPERATING INSTRUCTIONS
Door alarms
 If the door is left open, the alarm will beep after 60 seconds.
 If the door remains open, subsequent beeps will sound every 30 seconds for 5 minutes.
 If the door remains open for 5 minutes or longer, an alarm will sound continuously and
the interior compartment light(s) will turn off.
Selecting the Wine Mode
 Select the desired compartment.
 Press to scroll through the available modes. The light next to the name ofthe
‘Wine Mode’ will illuminate as you scroll to indicate which mode is selected.
Adjusting the temperature
Each ‘Wine Mode’ will automatically default to the recommended temperature setting.
Once you have selected the compartment and required ‘Wine Mode’, the temperature
can be adjusted as desired.
 To increase the temperature of your selected ‘Wine Mode’, press .
 To decrease the temperature of your selected ‘Wine Mode’, press .
Selecting the Light Mode
Pressing will scroll through the available ‘Light Mode’ choices for the compartment
and modeyou have selected. A blinking light indicates the current position when
scrolling through the list.
To activate/deactivate a Light Mode:
 Select the ‘Light Mode’ from the list, by scrolling through and stopping at .
 Press for 2seconds.
When opening the door of your product, all internal lights will illuminate to full
brightness. Upon closing the door, your appliance will remember the previously selected
‘Light Mode’.
Note: ‘Display’ and ‘High’ modes will default to ‘Low Mode’ after a set duration.
For longer term storage, we recommend turning your lights to ‘Off’.

13
Activated carbon filters
Air quality is critical for preserving wine. Your product is
fitted with two activated carbon filters that help remove
stale, unwanted odours. The filters are located internally at
the bottom rear of each compartment.
We recommend replacing the activated carbon filter every
6 months. A replacement indicator icon on the control
panel illuminates when the carbon filters
needs to be replaced.
To reset the filter indicator:
 Press and together for 4 seconds.
 The on the control panel will turn off when reset.
EN

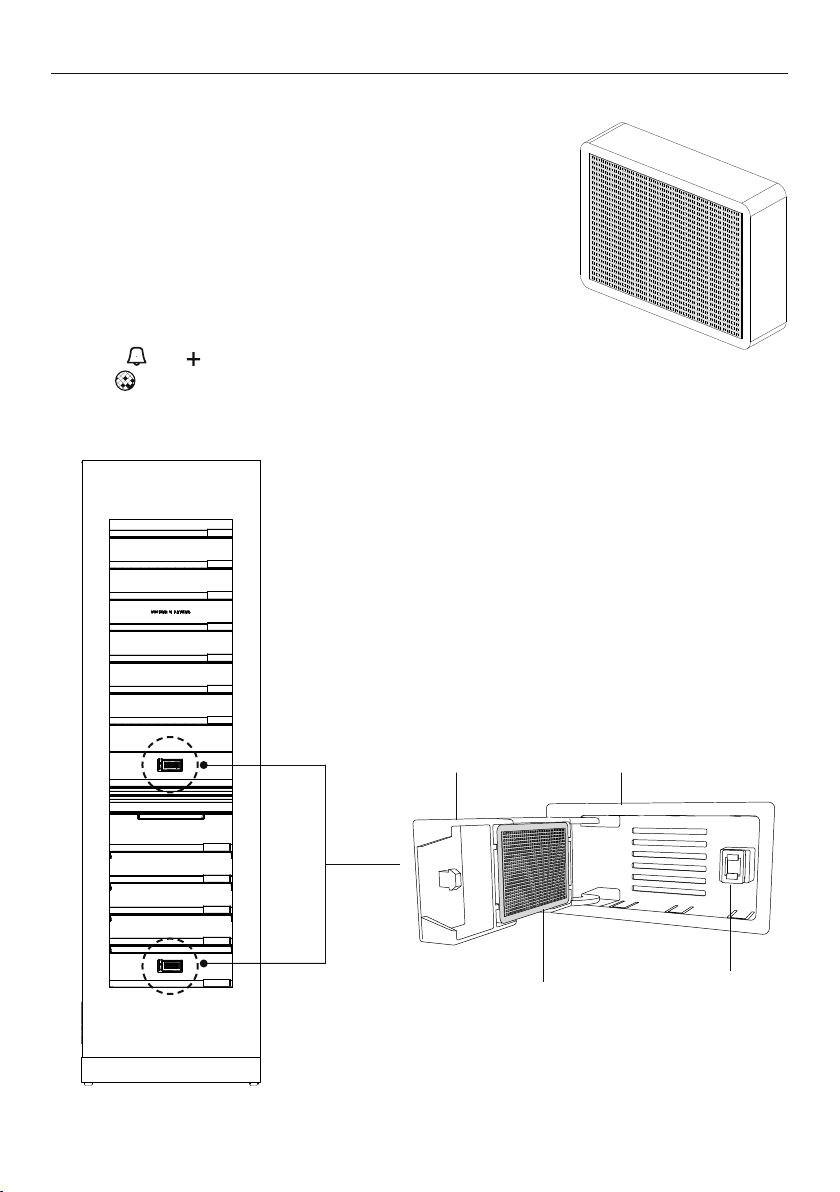

Carbon filter
OPERATING INSTRUCTIONS
Carbon filter Push-open latch
Hatch Housing
IMPORTANT!
 Replacement filters can be purchased online from
fisherpaykel.com or by calling Fisher & Paykel
Customer Care.
 Refer to Integrated Column — Wine Cabinet
installation guide for instructions on replacing
the filters.

14

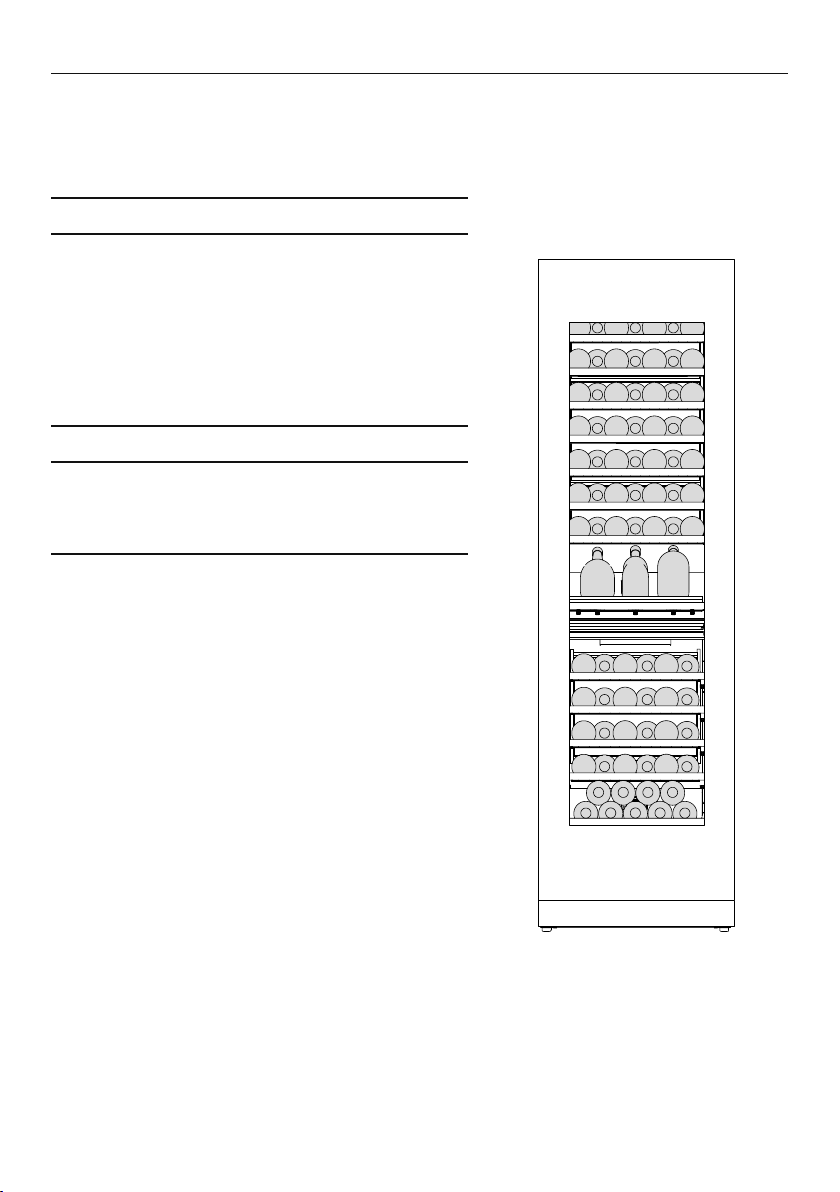

The Integrated Column — Wine Cabinet has a recommended maximum storage
capacity of 91 standard 750ml bottles. The loading arrangement outlined is
recommended when using the wine cabinet at full capacity. Racks may be removed to
store larger sized bottles.
DOs
 Before loading wine into the cabinet confirm
that all racks are secured and stable.
 Stack wine bottles of same sizes to enable
easy access if required.
 Only interlock wine bottles of the same size.
This ensures the first tier is stable to allow
stacking.
 Follow the recommended loading arrangement
outlined for each rack.
DON’Ts
 Do not load more than the recommended
number of wine bottles on each rack.
 Do not interlock wine bottles of different sizes
that do not fit well together on a rack.
LOADING YOUR WINE BOTTLES
IMPORTANT!
 When stacking bottles, take extra care to
avoid breakages.
 A net or vented mat can be used between
bottles in a stack to minimise risk of
breakage. Alternatively, net sleeves can be
used to protect individual bottles.
 Ensure the protector sleeve or mat you use
allows sufficient air flow and is odour free.

15
EN
CLEANING CARE — EXTERIOR
Glass door
Use only mild liquid detergent dissolved in warm water and a soft cloth. Rinse with
clean water and dry with a clean, lint-free cloth.
Stainless steel door panel
Use only mild liquid detergent dissolved in warm water and a soft cloth. Rinse with
clean water and dry with a clean, lint-free cloth.
Toe kick grilles and filter
Your Integrated Column — Wine Cabinet is fitted with a toe kick grille to protect the
internal working components. We recommend cleaning the grille.
 The condenser coils of your Integrated Column — Wine Cabinet require periodic
cleaning by a Fisher&Paykel trained service technician.
 To maximize operating efficiency, keep ventilation openings clear of obstructions by
regularly vacuuming the flooring in front of your appliance.
 More frequent cleaning may be necessary for dusty homes or those with pets sheddinghair.
Other exterior surfaces
 We recommend to clean the magnetic door gasket every three months with a brush (eg
old toothbrush) and liquid dishwashing agent dissolved in warm water.
IMPORTANT!
 Many commercially available cleaning products contain solvents which may attack
plastic components of your Integrated Column — Wine Cabinet and cause them
to crack.
 Avoid using anti-bacterial cleaning products on the interior or exterior of the Wine
Cabinet, as they may cause rusting of metal components and cracking of plastic
components.

16
CLEANING CARE - INTERIOR

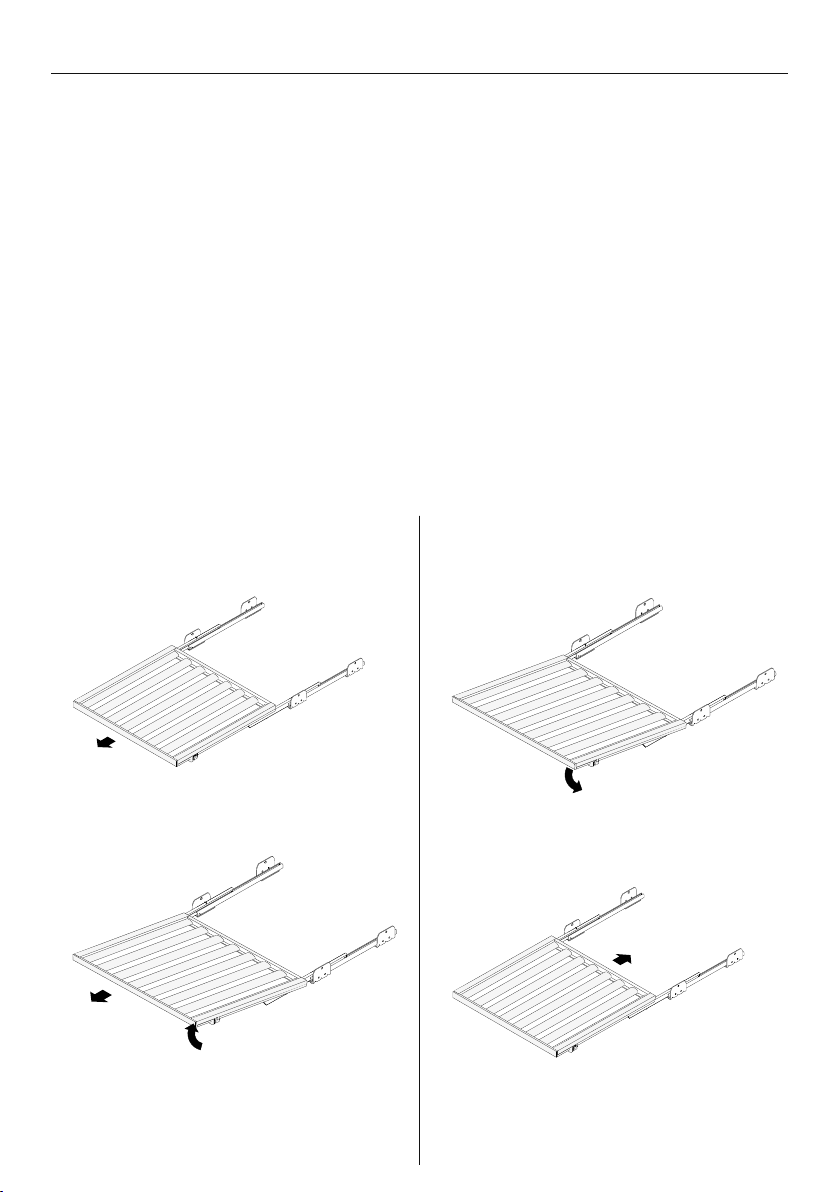

2Extend the rack outward from the
slides. (A)
Removing the racks
1Remove the wine bottles from the racks.
Repositioning the racks
1Align the back edge of the rack onto
the desired support slides. (D)
3Lift the front end of the rack. (B)
4Pull the rack towards you to remove. (C)
2Push the rack into the wine cabinet all
the way to the back of supportslides
until it locks in place. (E)
A
B
C
D
3Ensure the rack is secure before use.
E
IMPORTANT!
Remove all wooden racks prior to cleaning.
 Do not use harsh chemicals, abrasives, ammonia, chlorine, bleach, concentrated
detergents, solvents or abrasive scouring pads on any part of your appliance.
Some of these chemicals may damage your appliance.
 Wipe interior surfaces with a mild liquid detergent dissolved in warm water and a soft
cloth. Rinse with clean water and dry with a clean, lint-free cloth.
Wooden racks
Do not use water or cleaners for general (day-to-day) cleaning as they will damage
the wood. Wine spills should be immediately wiped up to avoid rack staining. If a wine
stain has appeared, it may be spot cleaned using mild liquid detergent dissolved in
warm water and a soft cloth. Only just dampen the cloth and dab the stain to keep the
wood as dry as possible. Follow up using a damp (water only), soft cloth and then dry
thoroughly with a clean, dry cloth. If racks are heavily stained, the color may darken
over time.
Replacement racks can be purchased through Fisher & Paykel Customer Care Center, or
online at finsherpaykel.com (this service is available to selected markets only)

17
USER WARNINGS AND SOUNDS
Faults
 In the unlikely event a fault occurs, 4rapid beeps will be heard and the fault
will be displayed on the control panel.
– Record the fault code displayed on the control panel and contact a
Fisher&Paykeltrained and supported service technician in order to
repair thefault. You can do this by going online to fisherpaykel.com or
bycontactingourCustomer Care Center.
Normal appliance sounds
This wine column has been designed to have excellent energy ratings and cooling
performance. As a result, it can produce sounds somewhat different to your
oldappliance.
Normal operational sounds include:
 Low frequency ticking sound. This is the valve that controls cooling to each
compartment. This noise will only last for a few seconds at a time.
 Fan air flow sound. Integrated Columns has fans which change speed depending on
demand. During cooling periods, such as after frequent door openings, fans circulate
thecoldair in the appliance producing some air flow sound. This is quite normal.
 Cracking or popping sounds. This may occur when the automatic defrost function
isoperating.
 Running water sound. This is the liquid refrigerant in the system and can be heard
asaboiling or gurgling noise.
 Humming sounds. This is the compressor running and is quite normal.
 Other sounds may be heard for the following reasons:
– Floor uneven or weak.

18
EN
TROUBLESHOOTING
If there is a problem with your appliance, please check the following points before
contacting your local Fisher & Paykel trained and supported service technician or
theCustomer Care Center.
Product parts and accessories can be purchased through the Fisher & Paykel
CustomerCare Center, or online at fisherpaykel.com (this service is available to
selectedmarkets only).
PROBLEM POSSIBLE CAUSES WHAT TO DO
Appliance does
not operate
No electricity at
poweroutlet.
Check that the plug is correctly
connected and power switched on.
Check another appliance at the
sameoutlet.
Check house fuse.
Light not
working
Light not functioning. The lighting cannot be serviced by
the user. Contact your Fisher & Paykel
dealer or trained and supported
servicetechnician.
Appliance not working. Check appliance is turned on at the wall
or at the isolating switch.
Light and
display not
working
Product in Sabbath mode. Press , and together for
4seconds.
Storage
compartments
too warm
Temperature setting
notcorrect.
See ‘ActiveSmart™ special features’
section of this User guide.
Frequent door openings. Minimize door openings to allow
temperature to stabilize.
Large amount of wine
has been recentlyadded.
Keep recommended bottle capacity.
Unfamiliar
noises
Cabinet not stable
orlevel.
See Installation guide supplied with
thisappliance.
