Fisher-Price Power Wheels Lil's Quad V3710 Datasheet

Please read this manual and save it with your original sales receipt.
Tools needed for assembly: Assembly tool (included)
and Phillips Screwdriver (not included). Tool needed to access battery compartment:
Slotted screwdriver (not included)
Use only with a Power Wheels®6 Volt (4.0 Amp/Hr.) Rechargeable
Battery with Built-in Thermal Fuse and a Power Wheels®6 Volt
(4.0 Amp/Hr.) Charger (both included).
Owner's Manual
with Assembly Instructions
For Model V3710
Product features may vary from the picture above.

2
V3710pr-0920
ELECTRICAL HAZARD
• Battery can fall out and injure a child if vehicle tips over. Always use battery retainer.
• PREVENT FIRE
- Never modify the electrical system. Alterations could cause a re resulting in
serious injury and could also ruin the electrical system.
- Use of the wrong type battery or charger could cause a re or explosion resulting
in serious injury.
- Use of Power Wheels®components in products other than Power Wheels®
vehicles could cause overheating, re or explosion.
• The battery must be handled by adults only. The battery is heavy and contains
sulfuric acid (electrolyte). Dropping the battery could result in serious injury.
• Never allow children to charge the battery. Battery charging must be done by
adults only.
A child could be injured by the electricity involved in charging the battery.
• Never lift or carry the battery by the wires or connector. This can damage the
battery and possibly cause a re resulting in serious injury. Lift and carry the
battery by the case only.
• Read the safety instructions on the battery.
• Examine the battery, charger and their connectors for excessive wear or damage each
time you charge the battery. If damage or excessive wear is detected, do not use
the charger or the battery until you have replaced the worn or damaged part.
• HOT motors. Handle carefully.
• To prevent electric shock, do not immerse in water; wipe clean with a damp cloth.
DANGER
WARNING
IMPORTANT INFORMATION
• Prevent Injuries and Deaths
• Direct Adult Supervision Required.
• Never Ride at Night.
• Keep Children Within Safe Riding Areas.
These areas must be:
- away from swimming pools and other bodies of water to prevent drownings
- generally level to prevent tipovers
- away from steps, steep inclines, cars, roads and alleys.
• Riding Rules
Make sure children know and follow these rules for safe driving and riding.
- Always sit on the seat.
- Always wear shoes.
- Only 1 (one) rider at a time.
RIDING HAZARD
WARNING

V3710pr-0920
3
• Read this manual carefully for important safety
information and operating instructions before using
your vehicle. Keep this manual for future reference,
as it contains important information.
• The vehicle is designed for use on grass, asphalt, and
other hard surfaces; on generally level terrain; and by
children 12-36 months of age and older. Do not exceed
the maximum weight capacity of 40 lbs (18 kg).
• Your new vehicle requires adult assembly. Please set
aside at least 20 minutes for assembly.
• Use this vehicle ONLY outdoors. Most interior
flooring can be damaged by riding this vehicle indoors.
Fisher-Price®will not be responsible for damage to the
floor if the vehicle is used indoors.
• You must charge your battery for 18-30 hours before
you use your vehicle for the first time. We recommend
charging your battery before beginning assembly.
Please see the Battery Charging section for
detailed instructions.
• The battery charger is not a toy.
• Do not short circuit the battery.
• Adults Note: Regularly examine the charger for damage
to the cord, plug, housing or other parts that may
result in the risk of fire, electric shock or injury. In the
event of any damage, do not use the
charger until the damage has been properly repaired.
• Your Power Wheels®6 volt battery is equipped with
a built-in thermal fuse. The thermal fuse is a self-
resetting safety device which automatically “trips” and
shuts down operation of the vehicle if the vehicle is
overloaded or the driving conditions too severe. Once
a fuse has “tripped”, remove your foot from the pedal
and wait approximately 25 seconds before operating
the vehicle again. To avoid repeated automatic
shut-downs, avoid severe driving conditions.
• If a thermal fuse in a battery continually trips under
normal driving conditions, please contact your local
Power Wheels®Authorized Service Center.
• To prevent damaging the motors and gears, teach your
child to stop the vehicle before switching direction.
• If you have any questions about your Power Wheels®
vehicle, please call our toll-free service lines at
1-800-348-0751. Trained customer service
representatives are available to take your call in
English or French. Habla Español? Si usted tiene
alguna pregunta ó necesita asistencia llame gratis
1-800-348-0755 para los Estados Unidos. Tenemos
representantes que hablan español para atender
su llamada.
• For your convenience, Power Wheels®maintains
an independently owned and operated Authorized
Service Center Network with more than 300 authorized
service centers nationwide. Our authorized service
centers will repair or replace parts under warranty at
no extra charge, and can perform non-warranty repairs
for a minimal charge. To find the authorized service
center nearest you, please visit us on-line at
www.powerwheels.com or call 1-800-348-0751.
• Please visit us online to register your vehicle.
IMPORTANT INFORMATION

4
V3710pr-0920
Vehicle (with Seat)
• If you experience a problem with this product, or are missing a part, please call us at 1-800-348-0751,
rather than return this product to the store.
• Please identify all parts before assembly and save all packaging material until assembly is complete to ensure that
no parts are discarded.
• Some parts were placed under the seat for shipment. Turn the lock fastener 1/4 turn and lift to remove the seat.
• Metal parts have been coated with a lubricant to protect them during shipment. Wipe all metal parts with
a paper towel to remove any excess lubricant.
6 Volt (4.0 Amp/Hr.) Battery
Handlebar Assembly
Note: A protective cap has been placed on the end of
the steering column to prevent damage during shipping.
Please remove and throw the cap away before assembly.
Front Wheel Assembly
Fastener Shown Actual Size
Part Not Shown: Label Sheet
Assembly Tool
6 Volt (4.0 Amp/Hr.) Charger
PARTS
Steering Wheel Cap
3/8" - 16 Lock Nut – 1

V3710pr-0920
5

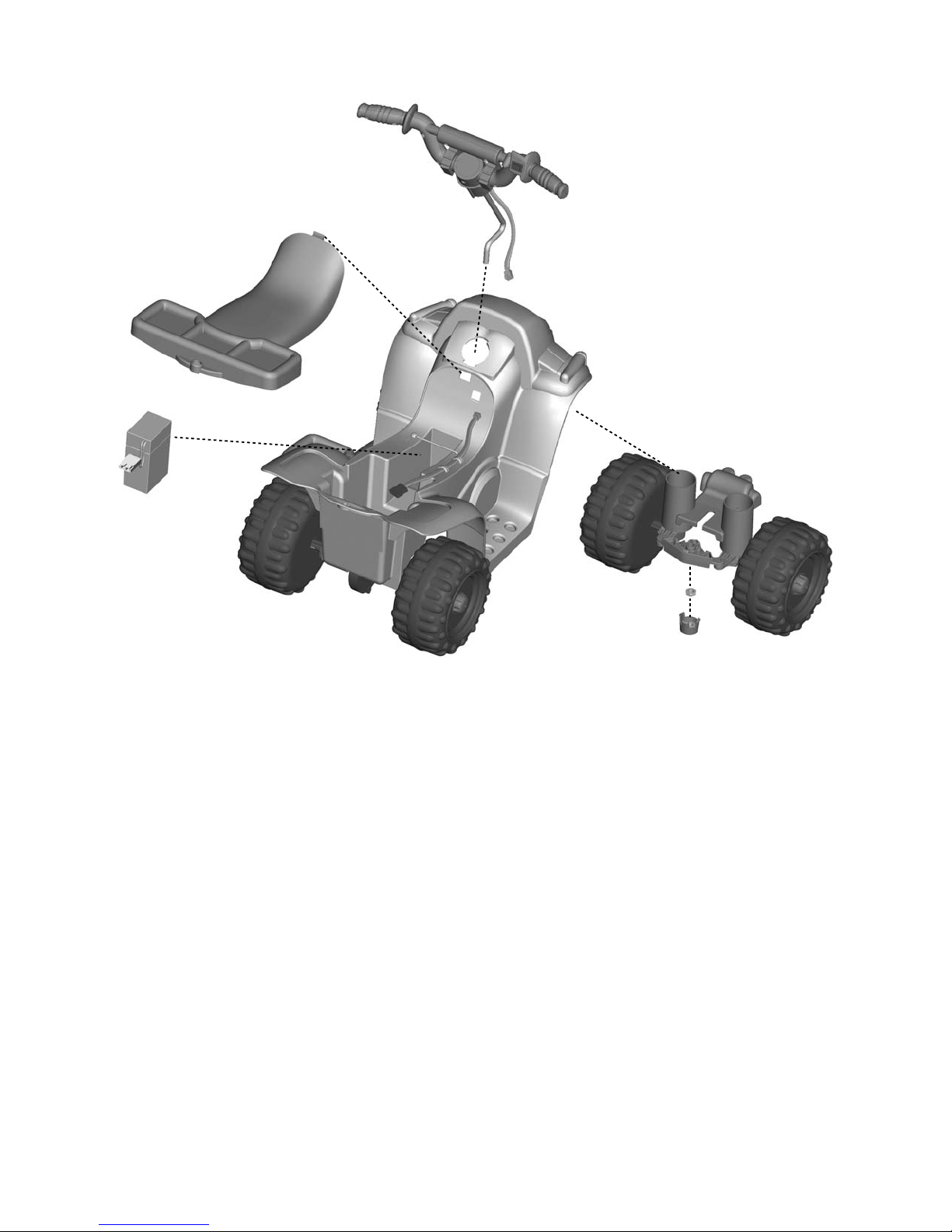

PARTS PICTURE

6
V3710pr-0920
• Battery can fall out and injure a child
if vehicle tips over. Always use
battery retainer.
• PREVENT FIRE
- Never modify the electrical system.
Alterations could cause a re
resulting in serious injury and could
also ruin the electrical system.
- Use of the wrong type battery
or charger could cause a re or
explosion resulting in serious injury.
- Use of Power Wheels®components
in products other than Power Wheels®
vehicles could cause overheating,
re or explosion.
• The battery must be handled by
adults only. The battery is heavy and
contains sulfuric acid (electrolyte).
Dropping the battery could result in
serious injury.
• Never allow children to charge the
battery. Battery charging must be
done by adults only. A child could be
injured by the elec-tricity involved in
charging the battery.
• Never lift or carry the battery by the
wires or connector. This can damage
the battery and possibly cause a re
resulting in serious injury. Lift and
carry the battery by the case only.
• Read the safety instructions on
the battery.
• Examine the battery, charger and
their connectors for excessive wear
or damage
each time you charge the
battery. If damage
or excessive wear
is detected,
do not use the charger or
the battery until you have replaced the
worn or damaged part.
Use the charger in dry locations only.
ELECTRICAL HAZARD
ELECTRICAL HAZARD
BATTERY CHARGING
Make sure you charge the battery for at least 18 hours•
using the enclosed Power Wheels®6 volt charger
before operating your vehicle for the first time. Charge
the battery for at least 14 hours after each use of the
vehicle. Never charge the battery longer than 30 hours.
Failure to follow these instructions may damage your
battery and will void your warranty.
Use only a Power Wheels• ®6 volt charger with “6V”
connector (input 120 VAC, 60Hz, with an output of
6 VDC) to charge your Power Wheels®6 volt battery.
You do not need to remove the battery from your•
vehicle to recharge it.
Before charging the battery, examine the battery case•
for cracks and other damage which may cause sulfuric
acid (electrolyte) to leak during the charging process.
If damage is detected, do not charge the battery or use
it in your vehicle. Battery acid is very corrosive and can
cause severe damage to surfaces it contacts.
Do not place the battery on a surface (such as kitchen•
counter tops) which could be damaged by the acid
contained inside the battery. Take precautions to
protect the surface on which you place your battery.
Charge the battery in a well ventilated area.•
WARNING
CAUTION

V3710pr-0920
7
• Loosen the screw in the battery retainer and remove it.
• Lift the battery retainer and remove the battery from
the battery compartment.
Battery
Battery
Retainer
2
IMPORTANT! The battery must be removed from
your vehicle for the initial charge in order to complete
assembly. After assembly is complete, you do not need
to remove the battery from your vehicle to recharge it.
• Locate the lock fastener in the back end of the seat.
• Using a slotted screwdriver, turn the lock fastener 1/4
turn to the unlocked position .
• Lift the seat from the vehicle.
Lock
Fastener
Unlocked Seat
Battery
Connector
Battery must be upright
while charging
Charger
Connector
BATTERY CHARGING
Plug the battery connector into the charger connector.•
Plug the charger into a standard wall outlet.•
Notes:
- If power flow to the wall outlet is controlled by
a switch, make sure the switch is “ON”.
- Use the charger only in a wall outlet. Do not plug the
charger into a ceiling outlet.
Once the battery is charged, disconnect the battery•
connector from the charger connector. Unplug the
charger from the wall outlet. Refer to the Battery
Installation section for instructions on installing
your battery. If your battery is already installed in
your vehicle, simply re-connect the motor harness
connector to the battery.
13

8
V3710pr-0920
REAR VIEW
1
Children can be harmed by small
parts, sharp edges and sharp points
in the vehicle's unassembled state,
or by electrical items. Care should be
taken in unpacking and assembly of
the vehicle. Children should not handle
parts, including the battery, or help in
assembly of the vehicle.
• Fit the steering column and the handlebar connector on
the handlebar assembly down through the large hole in
the vehicle.
• Fit the handlebar connector back through the square
slot in the vehicle.
Large Hole
Square
Slot
Steering Column
Handlebar
Connector
Steering
Column
Grille
Hole
in Axle
Front
Wheel
Assembly
Frame
Posts
ASSEMBLY
WARNING
FRONT BOTTOM VIEW
2
• Turn the vehicle over so that it rests on the handlebar.
• Position the front wheel assembly so that the grille is
toward the front end of the vehicle. Fit the front wheel
assembly onto the frame posts.
• Fit the end of the steering column through the hole in
the front axle.

V3710pr-0920
9
• Fit the lock nut (rounded side up) on to the end of the
steering column.
• Tighten the lock nut firmly using the closed end of the
assembly tool.
Steering Column
Lock Nut
Steering
Column
Cap
• Turn the vehicle upright.
• Pull the handlebar up to be sure the steering column
is secure.
• If you can remove the steering column, you have not
assembled the steering column correctly. Please refer
back to Assembly steps 2-4.
• Plug the handlebar connector into the motor connector.
• Replace the seat (refer to step 6 on page 13).
Motor
Connector
Handlebar
Connector
Assembly Tool
Rounded Side Up
ASSEMBLY
SIDE VIEW
REAR VIEW
3
Pull Up
5
6
• “Snap” the steering column cap to the front wheel
assembly.
4

10
V3710pr-0920
DECORATION
Wipe the vehicle with a clean, dry cloth to remove any oils before applying labels.•
Apply labels exactly as shown in the illustrations. For best results, avoid repositioning the label after it has been applied.•
Starting at the center of a label rub firmly with a dry cloth, and smooth towards the outer edges to remove air bubbles.•
1
10
9
7
8
234
5 6
11
TOP VIEW
FRONT VIEW BACK VIEW

V3710pr-0920
11
DECORATION
12
12 14
13
12 1216 15
RIGHT VIEW
LEFT VIEW

12
V3710pr-0920
Battery
Retainer
Battery
• Place the battery retainer over the battery.
• Replace the screw through the end of the battery
retainer and into the vehicle.
• Tighten the screw with a Phillips screwdriver. Do not
over-tighten.
4
IMPORTANT! Use only a Power Wheels®6 volt
(4.0 Amp/Hr) rechargeable battery. Use of any other
battery will damage your vehicle.
• Loosen the screw in the battery retainer and remove it.
• Locate the lock fastener in the back end of the seat.
• Using a slotted screwdriver, turn the lock fastener 1/4
turn to the unlocked position .
• Lift the seat from the vehicle.
Battery
Retainer
Lock
Fastener
Seat
Unlocked
6 Volt
Battery
Battery
Compartment
• Fit the Power Wheels®6 volt (4.0 Amp/Hr) battery
inside the battery compartment with the wires facing
towards the rear of the vehicle.
BATTERY INSTALLATION
1
3
2

V3710pr-0920
13
Motor
Connector
Battery
Connector
• Plug the battery connector into the motor connector.
Hint: If the battery connector will not plug into the
motor connector, turn it over and try again! Do not force
the battery connector into the motor connector.
Lock Fastener
• Using a slotted screwdriver, turn the lock fastener 1/4
turn to the locked position .
IMPORTANT! Always remember to keep the lock
fastener locked at all times to prevent children from
accessing the battery.
Slot
Seat
Seat Tab
• Insert the front tab on the seat into the slot in
the vehicle.
Locked
BATTERY INSTALLATION
5
7
6

14
V3710pr-0920
• Your Power Wheels®battery is a non-spillable sealed
lead-acid battery. It must be recycled or disposed of in
an environmentally sound manner.
• Do not dispose of a lead-acid battery in a fire. The
battery may explode or leak.
• Do not dispose of a lead-acid battery in your regular,
household trash. The incineration, landfilling or mixing
of sealed lead-acid batteries with household trash is
prohibited by law in most areas.
• Protect the environment by not disposing of this
product with household waste (2002/96/EC). Check
your local authority for recycling advice and facilities
(Europe only).
• Return an exhausted battery to a federal or state approved
lead-acid battery recycler, such as a Power Wheels®
authorized service center or a local seller of
automotive batteries. For the authorized service
center location nearest to you, please visit us on-line
at www.powerwheels.com or call 1-800-348-0751.
Contact your local waste management officials for
other information regarding the environmentally sound
collection, recycling and disposal of lead-acid
batteries. If you live in the State of Florida or the State
of Minnesota, it is prohibited by law for anyone to
throw away lead-acid batteries in the municipal
waste stream.
BATTERY DISPOSAL
BATTERY CARE VEHICLE CARE
Check all screws and their protective coverings•
regularly and tighten as required. Check plastic parts
on a regular basis for cracks or broken pieces.
During snowy or rainy weather, the vehicle should be•
stored inside or under a protective cover.
Avoid operating the vehicle in wet or snowy conditions,•
and do not spray the vehicle with a hose. Water or
moisture in the motors or electrical switches can cause
them to corrode, and could cause switch or
motor failure.
Avoid operating the vehicle on sand, loose dirt or•
gravel. Sand, loose dirt or gravel in the motors or
electrical switches can cause them to jam, and could
cause switch or motor failure.
The vehicle can be wiped down with a soft, dry cloth.•
For a shiny fi nish, you can wipe plastic parts with
a non-wax furniture polish applied to a soft cloth.
Do not use automotive wax. Do not use soap and water
or spray the vehicle with a hose.
To ensure your vehicle stays in good operating order,•
we recommend you periodically have your vehicle
checked by a Power Wheels®authorized service center.
If a battery leak develops, avoid contact with the
leaking acid and place the damaged battery in a plastic
bag. See next section for proper disposal.
If acid comes in contact with skin or eyes, flush with
cool water for at least 15 minutes and call a physician.
If acid is internally ingested, give water, milk of
magnesia or egg whites immediately. Never give emetics
or induce vomiting. Call a physician.
Do not allow the battery to run down completely•
before charging.
Charge the battery before storing the vehicle, and at•
least once per month, even if the vehicle has not
been used.
Charge the battery after each use, regardless of how•
long the vehicle was used.
Leaving the battery in a discharged condition will•
ruin it.
Always remove an exhausted battery from the vehicle.•
Battery leakage and corrosion can damage the vehicle.
Do not store the battery in temperatures above 75° F or•
below -10° F.

V3710pr-0920
15
RIDING HAZARD
• Prevent Injuries and Deaths
• Direct Adult Supervision Required
• Never Ride at Night.
• Keep Children Within Safe
Riding Areas.
These areas must be:
- away from swimming pools and
other bodies of water to prevent
drownings
- generally level to prevent tipovers
- away from steps, cars, steep
inclines, roads and alleys.
• Riding Rules
Make sure children know and
follow these rules for safe driving
and riding.
- Always sit on the seat.
- Always wear shoes.
- Only 1 (one) rider at a time.
SAFE DRIVING RULES
Before children use this vehicle, an adult should carefully
evaluate the driving area as well as the child’s skill level
and ability to drive the vehicle safely. Teach appropriate
safety rules to your child before allowing operation of
this vehicle. These rules should also be reviewed with
other playmates who want to drive the vehicle.
A child who is not sitting on the seat could fall off,•
cause a tip over or block the driver’s view.
Only operate the vehicle in the daytime in a well-lit area.•
Driving near steep inclines can cause:•
- The vehicle to gain unsafe speed, even if the pedal is
released to stop.
- The vehicle to tilt and tip over
- The wheels to lose traction, causing the vehicle to slip.
- The vehicle could roll backwards at an unsafe speed.
Never put anything near any moving parts. Rotating•
parts, such as motors, gear boxes and wheels,
can snag fingers, hair, etc., causing serious injury.
Do not allow operation of the vehicle when it is on its•
side or in an upside-down position.
Do not operate the vehicle near flammable vapors•
(gasoline, paint thinner, acetone, liquid wax, etc.).
The vehicle’s electrical switches, like most electrical
switches, emit an internal spark when first turned on or
turned off, which could cause an explosion or fire.
To prevent unsupervised use of the vehicle, disconnect•
the motor harness from the battery when the vehicle is
not in use.
WARNING
Use vehicle on generally level ground ONLY!

16
V3710pr-0920
• Press and hold the button on the handlebar. The
vehicle drives forward at a maximum of 2 mph.
• Help your child practice steering to learn how far and
how quickly to turn the handlebar when driving.
• Release the button to stop!
Press
VEHICLE OPERATION
• Help your child practice steering to learn how far and
how quickly to turn the steering wheel when driving,
and automatically knows how to stop.
Bumper-to-Bumper* Limited Warranty
*One year limited warranty from the date
of purchase on the Power Wheels®vehicle.
Six month limited warranty on the
6 volt battery.
For the original purchaser, this one year limited warranty
covers the Power Wheels®ride-on vehicle (purchased
from Power Wheels®) against defects in materials and
workmanship. The six month limited warranty applies
only to the 6 volt battery included by Power Wheels®
with the original purchase of the vehicle. This warranty
covers normal use and does not cover the
Power Wheels®vehicle or battery if damaged by
unreasonable use, neglect, accident, abuse, misuse,
improper service or other causes not arising out of
defects in materials or workmanship. Evidence of any
attempt at consumer repair will void this warranty.
THIS WARRANTY DOES NOT COVER, AND IS
INTENDED TO EXCLUDE, ANY LIABILITY ON THE
PART OF POWER WHEELS®, WHETHER UNDER THIS
WARRANTY OR IMPLIED BY LAW FOR ANY INDIRECT
OR CONSEQUENTIAL DAMAGES FOR BREACH OF
WARRANTY. SOME STATES DO NOT ALLOW THE
EXCLUSION OR LIMITATION SO THIS LIMITATION MAY
NOT APPLY TO YOU.
Should you need service or assistance with your vehicle
during the warranty period, do not return the vehicle to
the store. Power Wheels®has provided a nationwide
network of authorized service centers. If there is not an
authorized service center in your area, please visit us
on-line at www.powerwheels.com or call Consumer
Relations for information, 1-800-348-0751.
This warranty gives you specific legal rights, and you
may also have other rights which may vary from state
to state.
PLEASE SAVE YOUR ORIGINAL SALES RECEIPT.
LIMITED WARRANTY

V3710pr-0920
17
IMPORTANT! If you experience a problem with your vehicle, first check the Problems and Solutions Guide below.
If you still experience a problem, please contact Power Wheels®Consumer Relations, toll-free at 1-800-348-0751.
Or, contact your local Power Wheels®authorized service center. For the location nearest you, please visit us
on-line at www.powerwheels.com, or call 1-800-348-0751.
PROBLEMS AND SOLUTIONS GUIDE
PROBLEM POSSIBLE CAUSE SOLUTION
Vehicle does not run Undercharged battery Charge the battery. A new battery should have been
charged for at least 18 hours before using the vehicle for
the rst time. After rst-time use, recharge the battery for
at least 14 hours after each use. Never charge the battery
longer than 30 hours.
Check all connectors. Make sure the battery connector is
tightly plugged into the charger connector, and that the
charger is plugged into the wall.
Make sure power ow to the wall outlet is “ON”.
Charger is not working There is no sure way to tell if your charger is working
unless you have a volt meter. If you suspect there
is a problem with your charger, contact your local
Power Wheels®authorized service center. They can
test your charger for you.
Tripped thermal fuse The built-in thermal fuse may "trip" and shut down
operation of the vehicle if the vehicle is overloaded or the
driving conditions too severe. Once a fuse has "tripped",
release the button on the handlebar and wait 25 seconds
before operating the vehicle again. To avoid repeated
automatic shutdowns, do not overload the vehicle by
exceeding the 40 lb maximum weight capacity or by
towing anything behind the vehicle. Do not drive up hills or
run into xed objects, which can cause the wheels to stop
spinning while power is still being supplied to the motors.
If a thermal fuse continually trips, contact your local
Power Wheels®authorized service center.
Loose wires or loose connectors Check all wires and connectors. Make sure the battery
connector is tightly plugged into the motor connector and
that there are no loose wires around the motors.
Dead battery If your battery is old or if you have not followed Battery
Care instructions, your battery may be dead. If you are
unsure whether or not the battery is dead, you can
have it tested at your local Power Wheels®authorized
service center.
Electrical switch damage The electrical switches can become corroded due to
exposure to water or moisture, or can jam due to loose
dirt, sand or gravel. Contact your local Power Wheels®
authorized service center for diagnosis and repair.
Motor damage Contact your local Power Wheels®authorized service
center for diagnosis and repair.

18
V3710pr-0920
PROBLEMS AND SOLUTIONS GUIDE
PROBLEM POSSIBLE CAUSE SOLUTION
Vehicle was running but
suddenly stopped
Loose wires or loose connectors Check all wires and connectors. Make sure the battery
connector is tightly plugged into the motor connector,
and that there are no loose wires around the motors.
Tripped thermal fuse The built-in thermal fuse may "trip" and shut down
operation of the vehicle if the vehicle is overloaded or the
driving conditions too severe. Once a fuse has "tripped",
release the button on the handle and wait 25 seconds
before operating the vehicle again. To avoid repeated
automatic shutdowns, do not overload the vehicle by
exceeding the 40 lb maximum weight capacity or by
towing anything behind the vehicle. Do not drive up hills or
run into xed objects, which can cause the wheels to stop
spinning while power is still being supplied to the motors.
If a thermal fuse continually trips, contact your local
Power Wheels®authorized service center.
Short run time (Less than
1 - 3 hours per charge)
Undercharged battery Charge the battery. A new battery should have been
charged for at least 18 hours before using the vehicle for
the rst time. After rst-time use, recharge the battery for
at least 14 hours after each use. Never charge the
battery longer than 30 hours.
Check all wires and connectors. Make sure the battery
connector is tightly plugged into the charger connector,
and that the charger is plugged into the wall.
Make sure power ow to the wall outlet is “ON”.
Overcharged battery Do not charge the battery longer than 30 hours. If
you suspect that your battery is damaged as a result
of overcharging, contact your local Power Wheels®
authorized service center. They can test the battery
for you.
Battery is old and will not
accept full charge
Even with proper care, a rechargeable battery does not
last forever. Average battery life is 1 to 3 years depending
on vehicle use and use conditions. Replace only with
a Power Wheels®6 Volt (4.0 Amp/Hr.) battery with built-in
thermal fuse. Do not substitute parts.
Tripped thermal fuse The built-in thermal fuse may "trip" and shut down
operation of the vehicle if the vehicle is overloaded or the
driving conditions too severe. Once a fuse has "tripped",
release the button on the handle and wait 25 seconds
before operating the vehicle again. To avoid repeated
automatic shutdowns, do not overload the vehicle by
exceeding the 40 lb maximum weight capacity or by
towing anything behind the vehicle. Do not drive up hills or
run into xed objects, which can cause the wheels to stop
spinning while power is still being supplied to the motors.
If a thermal fuse continually trips, contact your local
Power Wheels®authorized service center.

V3710pr-0920
19
If, after reviewing the Problems and Solutions Guide, the vehicle still fails to operate, please contact your nearest
authorized service center.
PROBLEMS AND SOLUTIONS GUIDE
PROBLEM POSSIBLE CAUSE SOLUTION
Vehicle runs sluggishly Undercharged battery Charge the battery. A new battery should have been
charged for at least 18 hours before using the vehicle for
the rst time. After rst-time use, recharge the battery for
at least 14 hours after each use. Never charge the battery
longer than 30 hours.
Check all connectors. Make sure the battery connector is
tightly plugged into the charger connector, and that the
charger is plugged into the wall.
Make sure power ow to the wall outlet is “ON”.
Battery needs charging Be sure to charge the battery after each use.
Battery is old and will not accept
full charge
Even with proper care, a rechargeable battery does not
last forever. Average battery life is 1 to 3 years depending
on vehicle use and use conditions. Replace only with
a Power Wheels®6 Volt (4.0 Amp/Hr.) battery with built-in
thermal fuse. Do not substitute parts.
Vehicle is overloaded Make sure you do not overload the vehicle by allowing
more than one rider at one time, exceeding the 40 lb.
maximum weight capacity, or by towing objects behind
the vehicle. If the vehicle is overloaded, the built-in
thermal fuse in the battery may "trip", and automatically
shut down operation of the vehicle for approximately 25
seconds. Adjust the driving conditions to prevent repeated
automatic shutdowns.
Driving conditions are too stressful Use only on generally level ground.
Sometimes the vehicle
doesn’t run, but other times
it does
Loose wire or connector Check all wires around the motors and all connectors to
make sure they are tight.
Motor or electrical switch damage Contact your local Power Wheels®authorized service
center for diagnosis and repair.
When the button is
pressed, the vehicle won’t
run without a push
Loose wire or connector Check all wires around the motors and all connectors to
make sure they are tight.
“Dead Spot” on motor Contact your local Power Wheels®authorized service
center for diagnosis and repair.
Battery’s thermal fuse
constantly "trips", but the
vehicle is not overloaded
nor the driving conditions
too severe
Damaged battery Contact your local Power Wheels®authorized service
center for diagnosis and repair.
Loud clacking or grinding
noise from a motor-gearbox
Broken gears Contact your local Power Wheels®authorized service
center for diagnosis and repair.
Charger gets warm
during use
It is normal for some chargers to get
warm during use and is not reason for
concern. Some chargers do not get
warm during use.
No action required.
If your charger does not get warm during use, it does not
mean that it is not working properly.
Battery makes a sizzling
or gurgling noise
when charging
It is normal for some batteries to make
noise and swell slightly while charging
and is not reason for concern.
No action required.
If your battery does not make noise or swell slightly
during charging, it does not mean that it is not accepting
the charge.

Or contact your local independently owned and operated
Power Wheels®Authorized Service Center.
For the location nearest you, visit us on-line at www.powerwheels.com.
©2010 Viacom International Inc. All Rights Reserved. Nickelodeon, Nick Jr., Dora the Explorer and all related titles,
logos and characters are trademarks of Viacom International Inc.
Fisher-Price, Inc., a subsidiary of Mattel, Inc., East Aurora, New York 14052 U.S.A.
©2010 Mattel, Inc. All Rights Reserved. ®and ™ designate U.S. trademarks of Mattel, Inc. unless otherwise indicated.
PRINTED IN MEXICO V3710pr-0920
Before first-time use,
you must charge the battery
18 hours!
Charge the battery immediately after each use.
Charge the battery once a month, even if the vehicle is not used or stored.
Do not return
your vehicle to the store!
We're a toll-free phone call away, and we can help.
If you are missing parts or need assistance, please call:
1-800-348-0751
