Town & Country Fireplaces TCWS54D2 User manual

WARNING: If the information in these
instructions is not followed exactly, a fire
or explosion may result causing property
damage, personal injury or death.
FOR YOUR SAFETY
Installation and service must be performed by
a qualified installer, service agency or the gas
supplier.
What To Do If You Smell Gas
• Do not try to light any appliance.
• Do not touch any electrical switch.
• Do not use any phone in your building.
• Immediately call your gas supplier
from a neighbour’s phone. Follow the
gas supplier’s instructions.
• If you cannot reach your gas supplier
call the fire department.
Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
This appliance may be installed in an aftermarket
permanently located, manufactured home (USA only)
or mobile home, where not prohibited by local codes.
This appliance is only for use with the type of gas
indicated on the rating plate. This appliance is not
convertible for use with other gases, unless a
certified kit is used.
This appliance is suitable for installation in a
bedroom or bed sitting room. MODEL: TCWS54
SERIES D2
MODULAR DIRECT VENT
FIREPLACE
TCWS54D2
INSTALLATION
MANUAL
091418-40 TCWS54D2 100001021-50
Visit www.townandcountryfireplaces.com for the most recent version of this manual
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.

100001021-50
Table of Contents
Caution ...................................................................................... 3
Safety ........................................................................................ 3
Important Note for the Commonwealth of Massachusetts ....... 4

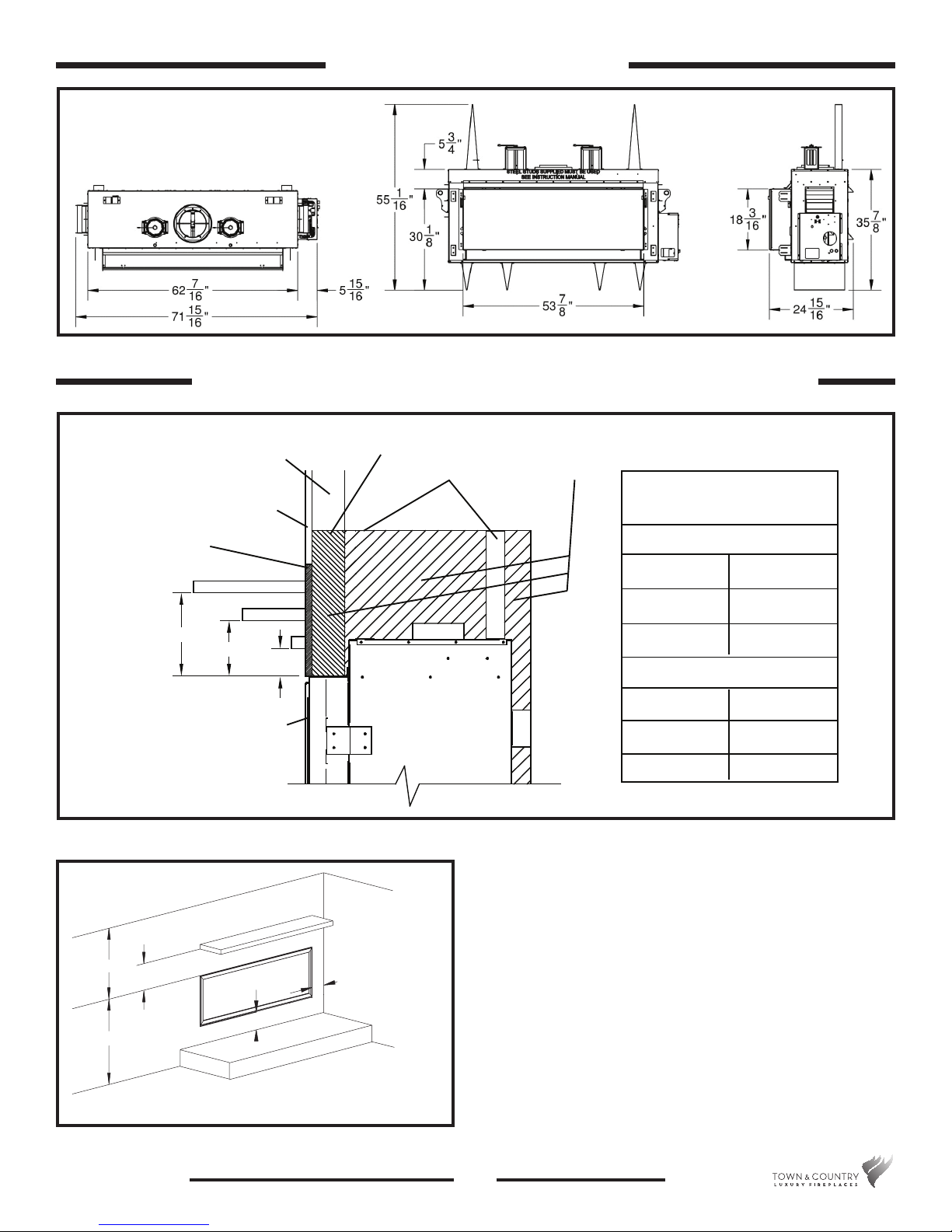

Fireplace Dimensions ................................................................ 5
Minimum Clearances to Combustible Material ......................... 5
Installation Requirements .......................................................... 6
Manufactured (Mobile) Home .................................................... 6
Window Frame Removal ........................................................... 6

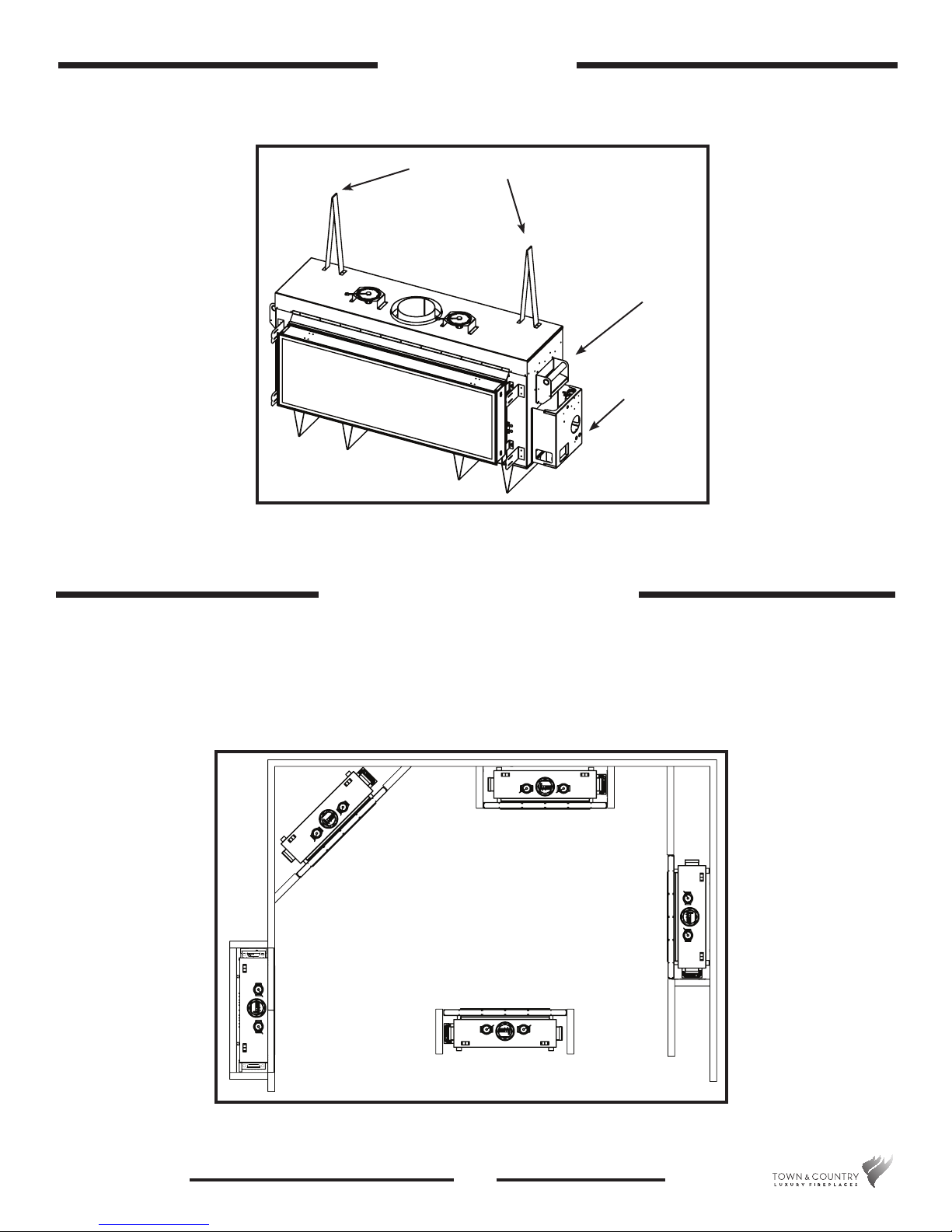

Top Standoffs ............................................................................ 7
Locating The Fireplace .............................................................. 7
Framing and Finishing ............................................................... 8

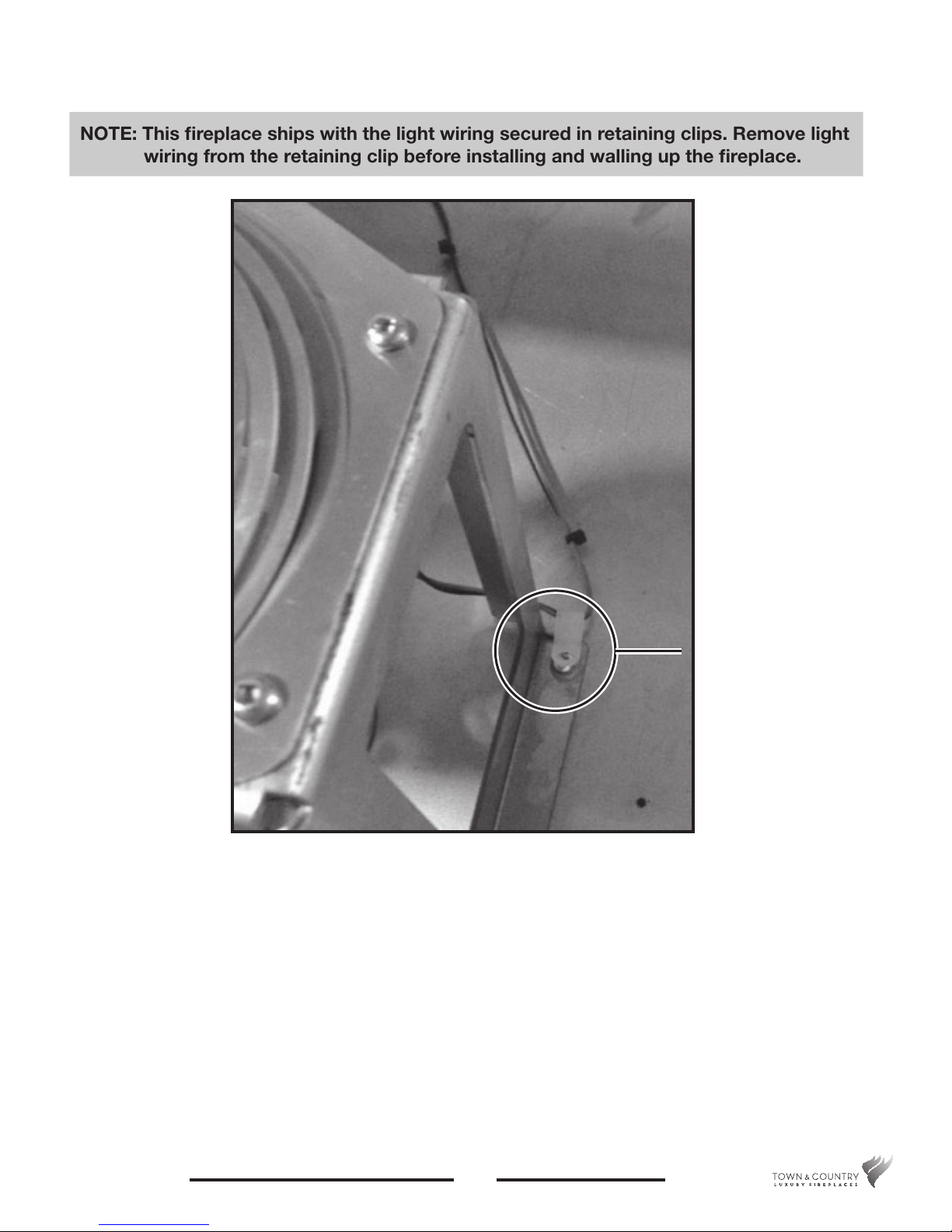

Removing LED light wire retaining clip .............................. 9
TCWS54D Minimum Combustible Framing Dimensions ........ 10
Non - combustible board area ......................................... 10
Steel Stud Framing Kit ............................................................ 11
Frame Assembly .............................................................. 12
Fixed Lintel .............................................................................. 13
Framing Kit Adjustment.................................................... 13
Fireplace Facing Allowance ........................................... 14

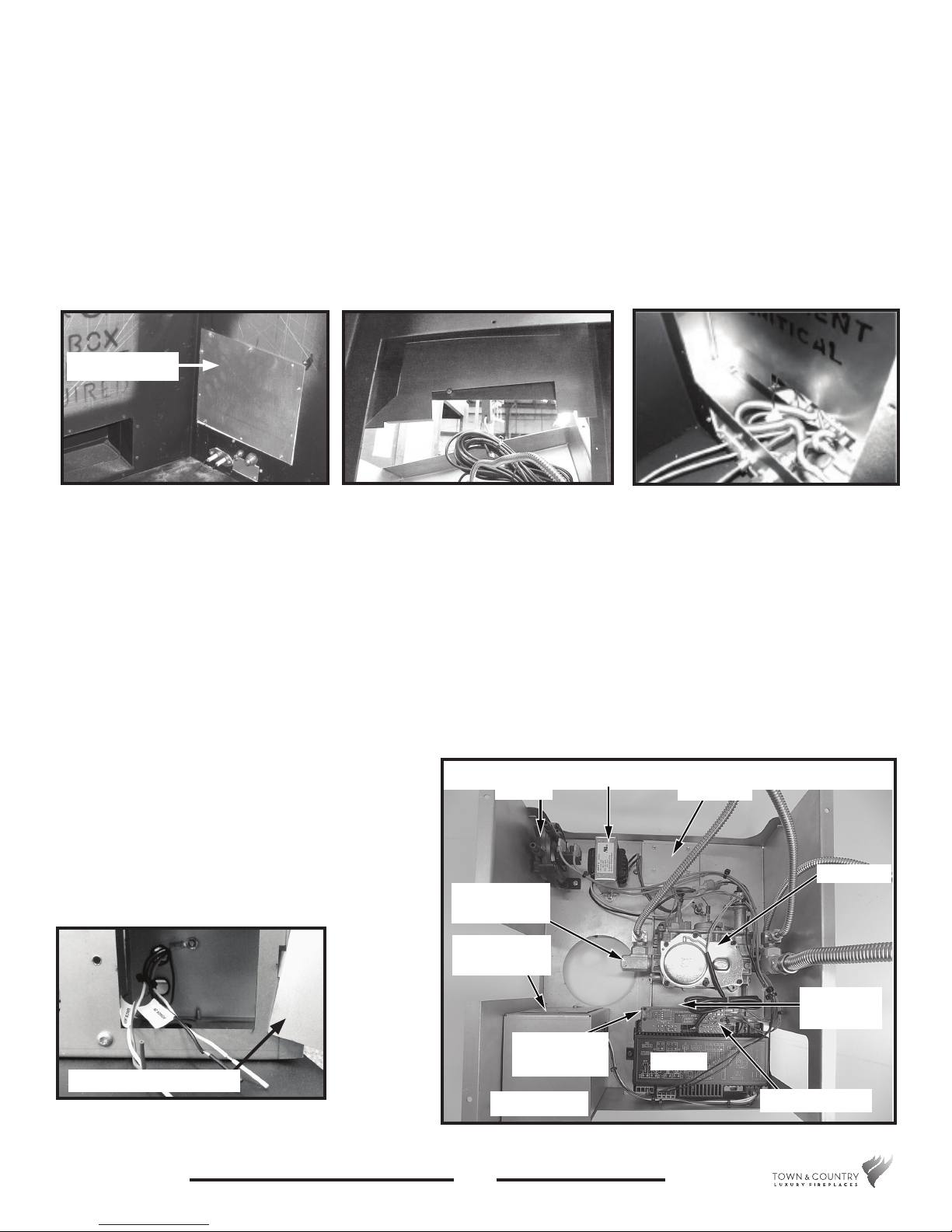

Electrical .................................................................................. 14
Installation ........................................................................ 14
Lintel knock outs.............................................................. 14
Wall Switch and Remote Control ............................................. 16
Linking the remote control unit to the wall switch............ 16
Wall Switch to IFC Communication Cable Continuity Check .. 16
Selecting Natural Vent and Power Vent Modes ....................... 17
Home Automation ................................................................... 18
Gas Supply .............................................................................. 19
Gas Pressure Check ................................................................ 19
Correct gas pressure requirement:................................... 19
Venting ..................................................................................... 20
Wall Termination Venting ......................................................... 20
Vent System Components ............................................... 20
Roof Termination Venting ........................................................ 21
Ceiling Opening:............................................................... 21
Ceiling Firestop: ............................................................... 21
Vent Pipe: ......................................................................... 21
Roof Support Bracket: ..................................................... 21
Roof Termination Venting Chart ............................................... 22
Roof Vent Terminal: .......................................................... 23
Vent Terminal Minimum Clearances ........................................ 24
Vent Terminal Clearance .......................................................... 25
Roof Pitch Table ............................................................... 25
Vent Pipe Sealant .................................................................... 25
Vent Restrictor Adjustment ..................................................... 26
Roof Termination Kit ................................................................ 27
Vent Pipe Dimensions ............................................................. 28
Vent Offset Chart ..................................................................... 29
Firebox Panels Installation ...................................................... 30
Installing rebox panels into a “D” series replace.......... 30
Finishing Touch Trim Kit Instructions ....................................... 31
Linking Remote Handset to the Fireplace ............................... 32
Step 1: Procedure for linking / pairing wall
switch to replace................................................ 32
Step 2: Procedure for linking / pairing the wall
switch to remote handset ................................... 33
Maintenance ............................................................................ 34
Glass Panel ...................................................................... 34
Annual Inspection:............................................................ 34
Periodically:...................................................................... 34
TCWS.54D Replacement Parts ............................................... 35
Replacement Parts – Valve Control System ............................ 36
Wiring Diagram ........................................................................ 37
Quick Panel Removal for Valve Service .................................. 38
Rating Label ............................................................................ 39
Attention!
• Turn off the main gas supply for
the appliance during installation
or maintenance of the receiver/
module device.
• Turn off main gas supply for the
appliance prior to removing or
reinserting the batteries.
• In case of remote control mal-
function, turn off the replace
using the “on/off” main switch
located on the wall.
• For installation/maintenance,
turn off the replace at the on/off
switch located on the wall and at
the replace power supply circuit
breaker.
2TCWS54D2 091418-40
HOT GLASS WILL CAUSE
BURNS.
DO NOT TOUCH GLASS UNTIL
COOLED.
NEVER ALLOW CHILDREN TO
TOUCH GLASS.
!
DANGER
A barrier designed to reduce the risk of burns from the
hot viewing glass is provided with the appliance and
shall be installed for the protection of children and
other at-risk individuals.

100001021-50
Due to high temperatures, this gas appliance should be located out of trafc and away from furniture and draperies.
Children and adults should be alerted to the hazards of high surface temperatures and should stay away to avoid burns
or clothing ignition.
Young children should be carefully supervised when they are in the same room as the appliance. Toddlers, young chil-
dren, and others may be susceptible to accidental contact burns. A physical barrier is recommended if there are at-risk
individuals in the house. To restrict access to a replace or stove, install an adjustable safety gate to keep toddlers,
young children, and other at-risk individuals out of the room and away from hot surfaces.
Clothing or other ammable material should not be placed on or near the appliance.
Any grill, panel or door removed for servicing the unit must be replaced prior to operating. Failure to do so may create a
hazardous condition.
Installation and repair should be done by a qualied service person. The appliance should be inspected before use and
at least annually by a professional service person. More frequent cleaning may be required due to excessive lint from
carpeting, bedding material, etc. It is imperative that control compartments, burners and circulating air passageways of
the appliance be kept clean.
It is our policy that no responsibility is assumed by the Company or by any of its employees or representatives for any
damages caused by an inoperable, inadequate, or unsafe condition which is the result, either directly or indirectly, of any
improper operation or installation procedures.
This appliance must not be connected to a chimney ue serving a separate solid fuel burning appliance.
FOR YOUR SAFETY - Do not install or operate your Town & Country replace without rst reading and understanding
this manual. Any installation or operational deviation from the following instructions voids the Town & Country
FireplacesTM Warranty and may prove hazardous.
This appliance and its individual shut off valve must be disconnected from gas supply piping system during any pressure
testing of that system at test pressures in excess of 1/2 psig (3.5 kPa).
This appliance must be isolated from the gas supply piping system by closing its individual manual shut off valve during
any pressure testing of the gas supply piping system at test pressures equal to or less than 1/2 psig (3.5 kPa).
Note: When lit for the rst time, the appliance will emit a slight odour for a couple of hours. This is due to the curing of
paints, sealants and lubricants used in the manufacturing process. This condition is temporary. Open doors and win-
dows to ventilate area. Smoke and fumes caused by the curing process may cause discomfort to some individuals.
Do not use the replace if any part has been under water. Immediately call a qualied service technician to inspect the
replace and to replace any part of the control system and any gas control which has been under water.
3
TCWS54D2 091418-40
Caution
Safety
We recommend that our gas hearth
products be installed and serviced
by professionals who are certied
in the United States by the National
Fireplace Institute® (NFI) as NFI
Gas Specialists

100001021-50 4TCWS54D2 091418-40
Important Note for the Commonwealth of Massachusetts
From Massachusetts Rules and Regulations 248 CMR 5.08:
(a) For all side wall horizontally vented gas fuelled equipment installed in every dwelling, building or structure used in whole or in part for residential
purposes, including those owned or operated by the Commonwealth and where the side wall exhaust vent termination is less than seven (7) feet
above nished grade in the area of the venting, including but not limited to decks and porches, the following requirements shall be satised.
1. INSTALLATION OF CARBON MONOXIDE DETECTORS. At the time of installation of the side wall horizontal vented gas fuelled equipment, the
installing plumber or gas tter shall observe that a hard wired carbon monoxide detector with an alarm and battery back-up is installed on the oor
level where the gas equipment is to be installed, in addition, the installing plumber or gas tter shall observe that a battery operated or hard-wired
carbon monoxide detector with an alarm is installed on each additional level of the dwelling, building or structure served by the side wall horizontal
vented gas fuelled equipment. It shall be the responsibility of the property owner to secure the services of qualied licensed professionals for the
installation of hard-wired carbon monoxide detectors.
a. In the event that the side wall horizontally vented gas fuelled equipment is installed in a crawl space or an attic, the hard-wired carbon monoxide
detector with alarm and battery back-up may be installed on the next adjacent oor level.
b. In the event that the requirements of this subdivision cannot be met at the time of completion of installation, the owner shall have a period of thirty
(30) days to comply with the above requirements; provided, however, that during said thirty (30) day period, a battery operated carbon monoxide
detector with an alarm shall be installed.
2. APPROVED CARBON MONOXIDE DETECTORS. Each carbon monoxide detector as required in accordance with the above provisions shall
comply with NFPA 720 and be ANSI/UL 2034 listed as IAS certied.
3. SIGNAGE. A metal or plastic identication plate shall be permanently mounted to the exterior of the building at a minimum height of eight (8) feet
above grade directly in line with the exhaust vent terminal for the horizontally vented gas fuelled heating appliance or equipment. The sign shall
read, in print size no less than one-half (1/2) inch in size, “GAS VENT DIRECTLY BELOW. KEEP CLEAR OF ALL OBSTRUCTIONS”.
4. INSPECTION. The state or local gas inspector of the side wall horizontally vented gas fuelled equipment shall not approve the installation unless,
upon inspection, the inspector observes carbon monoxide detectors and signage installed in accordance with the provisions of 248 CMR 5.089(2)
(a) 1 through 4.
(b) EXEMPTIONS. The following equipment is exempt from 248 CMR 5.089(2)(a) 1 through 4.
1. The equipment listed in Chapter 10 entitled “Equipment Not Required To Be Vented” in the most current edition of NFPA 54 as adopted by the
Board; and
2. Product Approved side wall horizontal vented gas fuelled equipment installed in a room or structure separate from the dwelling, building or structure
used in whole or in part for residential purposes.
(c) MANUFACTURER REQUIREMENTS – GAS EQUIPMENT VENTING SYSTEM PROVIDED. When the manufacturer of Product Approved side wall
horizontally vented gas equipment provides a venting system design or venting system components with the equipment, the instructions provided
by the manufacturer for installation of the equipment and the venting system shall include:
1. Detailed instructions for the installation of the venting system design or the venting system components; and
2. A complete parts list for the venting system design or venting system.
(d) MANUFACTURER REQUIREMENTS – GAS EQUIPMENT VENTING SYSTEM NOT PROVIDED. When the manufacturer of a Product Approved
side wall horizontally vented gas fuelled equipment does not provide the parts for venting the fuel gases, but identies “special venting systems”, the
following requirements shall be satised by the manufacturer.
1. The referenced “special venting system” instructions shall be included with the appliance or equipment installation instructions; and
2. The “special venting systems” shall be Product Approved by the Board, and the instructions for that system shall include a parts list and detailed
installation instructions.
(e) A copy of all installation instructions for all Product Approved side wall horizontally vented gas fuelled equipment, all venting instructions, all parts
lists for venting instructions, and/or all venting design instructions shall remain with the appliance or equipment at the completion of the installation.

100001021-50
D 12”
E 6 3/4”
F 1 1/2”
MANTEL CLEARANCE
CHART
* MANTEL CLEARANCE
** MANTEL DEPTH
A 9”
B 6”
C 3”
MAY USE COMBUSTIBLE
FACING MATERIAL IN THIS AREA
NON-COMBUSTIBLE
FINISH MATERIAL
SEE FIG #11 & 13
NON-COMBUSTIBLE ZONE.
DO NOT INSTALL ANY COMBUSTIBLE MATERIAL,
ELECTRICAL WIRING OR GAS PLUMBING IN THIS
AREA.
COMBUSTIBLE FRAMING AND
FINISH WALL ABOVE STANDOFFS
STANDOFFS
STEEL FRAMING
FIREPLACE FRONT
TOP OF LINTEL BAR
A
B
C
D
E
F
Figure 2: TCWS54D Mantel clearances.
29 3/4"
24"
4“
CEILING
ADJACENT WALL
OR MANTEL SUPPORT
12”
COMBUSTIBLE FLOOR
COMBUSTIBLE HEARTH
*
**
Figure 3: TCWS54D Minimum mantel clearances.
Minimum Clearances:
Side standoffs ...................................................... 0 in. (0 mm)
Back standoff ....................................................... 0 in. (0 mm)
Top standoffs........................................................ 0 in. (0 mm)
Bottom of appliance............................................. 0 in. (0 mm)
Adjacent side wall ................................................ 4 in. (102 mm)
Ceiling to appliance............................................ 24 in. (610 mm)
*Mantel to appliance..............................See Figure #2
**Maximum Mantel extension................See Figure #2
Mantel support ..................................................... 4 in. (102 mm)
Vertical vent pipe .......................................... 1 3/4" in. (45 mm)
5
TCWS54D2 091418-40
Fireplace Dimensions
Minimum Clearances to Combustible Material
Figure 1: TCWS54 Dimensions.

100001021-50
Figure 6: Handle.
Figure 4: Safety barrier screen.
HANDLE
SAFETY BARRIER
SCREEN
Figure 5: Accessing handle.
6TCWS54D2 091418-40
The Town & Country Fireplace installation and venting must conform to the current CAN/CGA-B149 installation code (in Canada)
or the current National Fuel Gas Code, ANSI Z223.1 (in the USA), and approved per local codes. Only qualied (licensed or trained)
personnel should install this product.
In the state of Massachusetts, only a licensed Plumber and Gas Fitter may install this product.
In some jurisdictions, the Town & Country Fireplace may be installed in Manufactured Homes after the "rst sale". Consult local codes
for approval. The replace must be fastened in place.
Install in accordance with the current standard Mobile Homes, CAN/CSA Z240 MH (in CANADA), and the Manufacturer's Home
Construction and Safety Standard, Title 24 CFR, Part 3280 or the current Standard for Fire Safety Criteria for Manufactured Home
Installations, Sites and Communities ANSI/NFPA 501A (in the USA).
Installation Requirements
Manufactured (Mobile) Home

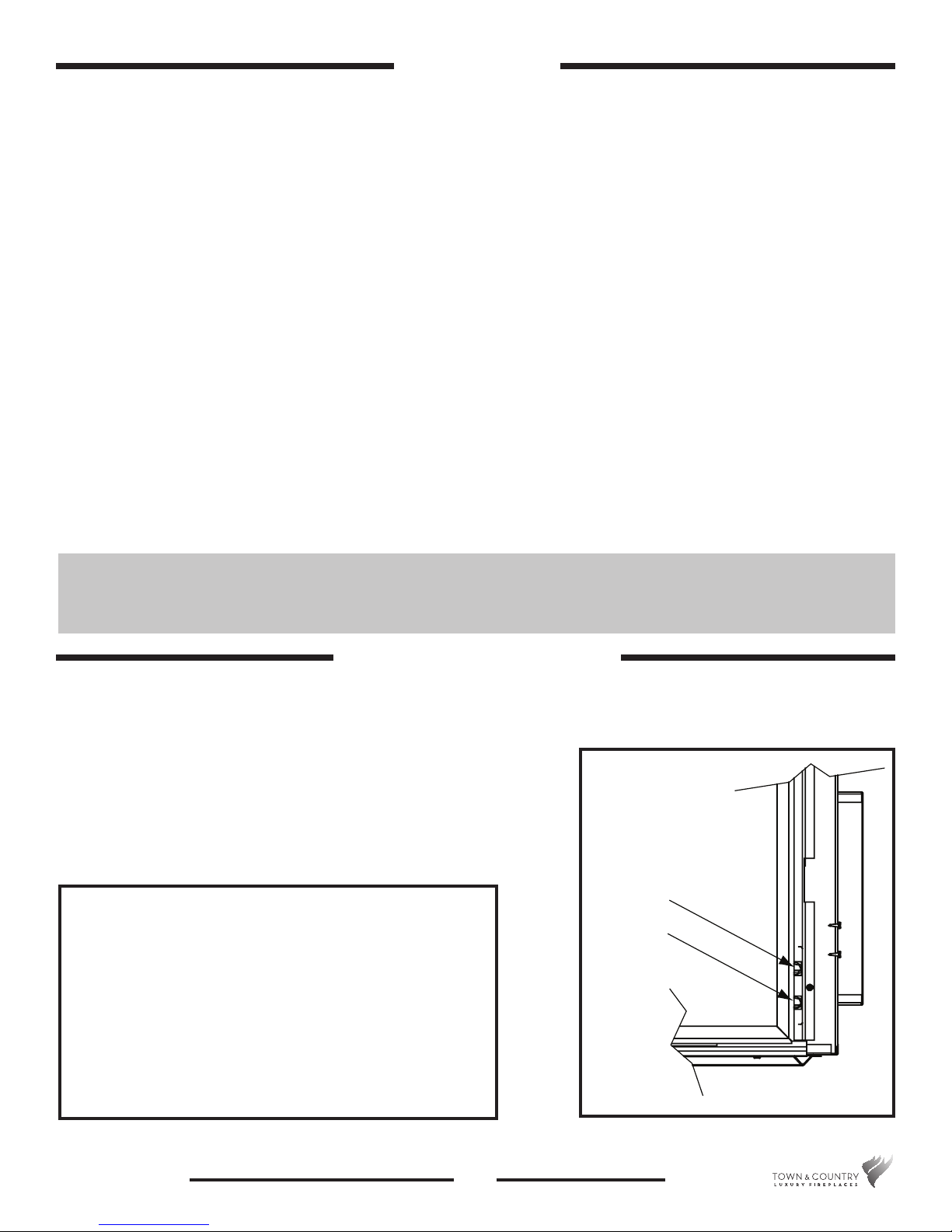

Window Frame Removal
Warning: Turn off the fireplace, and allow ample time for the unit to cool before proceeding.
Caution: The ceramic glass is very fragile, and should be handled with care.
The window frame is held in place by two spring-loaded latches that are operated by a one-piece latch handle.
1. Remove safety barrier screen (Figure 4) by prying the top portion of the screen toward you, then lift the screen from its tabs (inset)
located at the base of the window frame.
2. Remove the TC Finishing Touch Trim Kit from the window frame. (If installed)
3. Using a screwdriver (Figure 5) or other similar object, push against the notch in the top of the latch and grab the bottom of the
latch handle as it protrudes (Figure 6). Lift handle until latch hook disengages. Repeat for other side while holding glass so it does
not tip out.
4. Tilt the top of the window frame out to clear the top edge of the unit. Grasp the sides of the frame and lift up and out to disengage
from its bottom track.
5. Place the window frame in a safe place to avoid damage.
6. Re-assemble in reverse order. Latch handle should snap into place and be ush with window frame when engaged correctly.
7. Reinstall Trim Kit if required.
8. Reinstall safety barrier screen.
TIP:
To ensure glass is properly latched, grasp the top left and right sides of the glass
frame, under moderate pressure it should pull forward and return to original position
evenly on both sides.

100001021-50
TOP STANDOFFS
Figure 7: TCWS54D Stand offs.
Figure 8: TCWS54D Possible locations.
The standoffs are shipped loose inside the replace and must be installed on the top and the side of the replace as shown
in Figure 7. Do this once the replace is on site and in position.
In planning the installation for the replace, it is necessary to determine where the unit is to be installed, location of vent system and
where gas supply piping may be plumbed. Various installations are possible, such as, into an existing wall, a corner, a built-in wall or a
wall projection (Figure 9). Due to high temperatures, do not locate this replace in areas of high trafc or near furniture or draperies.
The minimum clearances from the fireplace to combustible surfaces must be adhered to and are shown in Figure 2 and Figure 3.
HANDLE
7
TCWS54D2 091418-40
Locating The Fireplace
Top Standoffs
CONTROL
BOX

NOTE: After frame is assembled,
make sure to have the side of the
frame without the screw holes facing
toward the inside of the room.
side of frame with
screw holes
Flat side
of frame
74 3/4"
55 1/16"

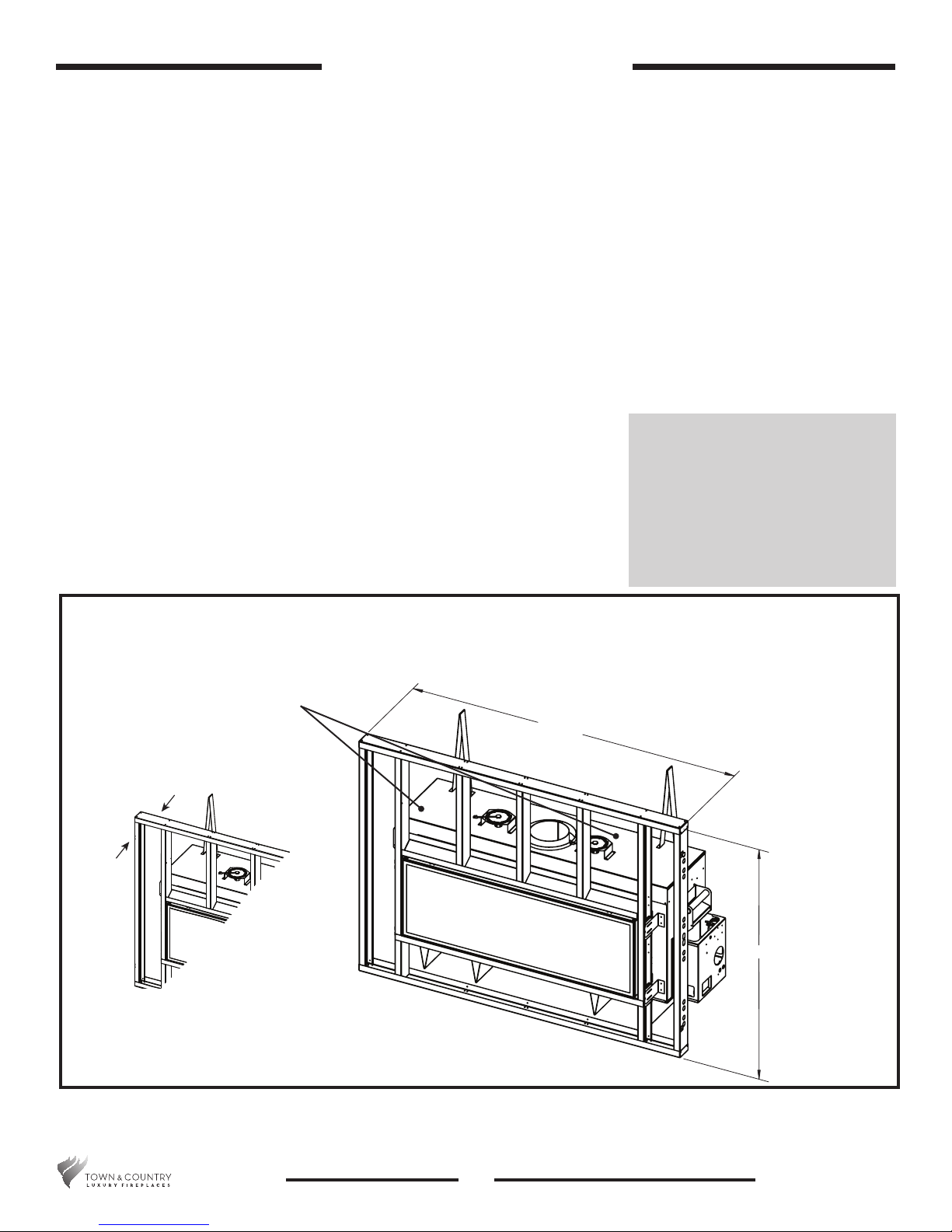

Figure 9: TCWS54D with steel frame.
100001021-50
Note: The fireplace should be in place
and venting installed before framing
in or building an enclosure around the
unit.
The Town & Country replace must be
framed in as described below or totally
enclosed with non-combustible material,
such as facing brick.
Determine the total thickness of facing
material to be used. A thickness of 3/4"
will allow the nishing surface to be ush
with the front of the unit. If preferred,
additional masonry type non-combustible
material can be installed above and to
the sides up to 6 inches forward of the
appliance. The nishing material must not
interfere with glass frame access.
A Steel Stud Framing Kit is supplied with
the replace and must be used unless the
replace is totally enclosed with
non-combustible material. Assemble
the framing kit as per the instructions
on pages 11 - 13 of this manual. Attach
the steel frame to the replace once the
replace is in its nal position. Secure the
steel frame to the framing brackets on
each side of the unit. Ensure that the studs
are set back far enough to allow for thick-
ness of nishing surface.
The sides, back and top of the replace
can be framed in up to the steel studs and
the replace standoffs using conventional
lumber. Consult local building codes for
specic requirements.
Due to high temperatures, non-combusti-
ble backer board, such as cement board
or its equivalent, must be used to sheet
in the front of the replace, extending
12" below, 12” above and 9 5/8" to the
side of the framing edge bars (Figure 11).
Standard sheetrock (dry wall) may be used
beyond this.
If the backer board is not to be nished
with other non-combustible material such
as tiles, it is recommended that top sec-
tions of the board be a single sheet of
calcium silicate board or its equivalent.
Taped and mudded joints may crack due
to the elevated temperatures.
Chase Insulation:
When installing this replace against a
non-insulated exterior wall or chase, it
is recommended that the outer walls be
insulated to same degree as other exte-
rior walls. Do not place replace directly
against the insulation. Cover the insula-
tion and plastic vapour barrier with a solid
surface, such as dry wall (sheet rock).
Consult local codes. Do not insulate or
use plastic vapour barrier within the fram-
ing kit.
CAUTION: See “Figure 13” on page
10 BEFORE PROCEEDING.
ALL OTHER FRAMING CAN BE
DONE WITH CONVENTIONAL
LUMBER
NON-COMBUSTIBLE ZONE. DO NOT INSTALL ANY
COMBUSTIBLE MATERIAL, ELECTRICAL WIRING,
INSULATION, PLASTIC VAPOR BARRIER OR GAS
PLUMBING WITHIN THE STEEL STUD FRAMING
STEEL STUD FRAMING KIT DIMENSIONS
(Supplied with fireplace)
NOTE:
The chase must be properly
sealed at the ceiling level or
between floors in a multi-
level installation.
8TCWS54D2 091418-40
Framing and Finishing

100001021-50

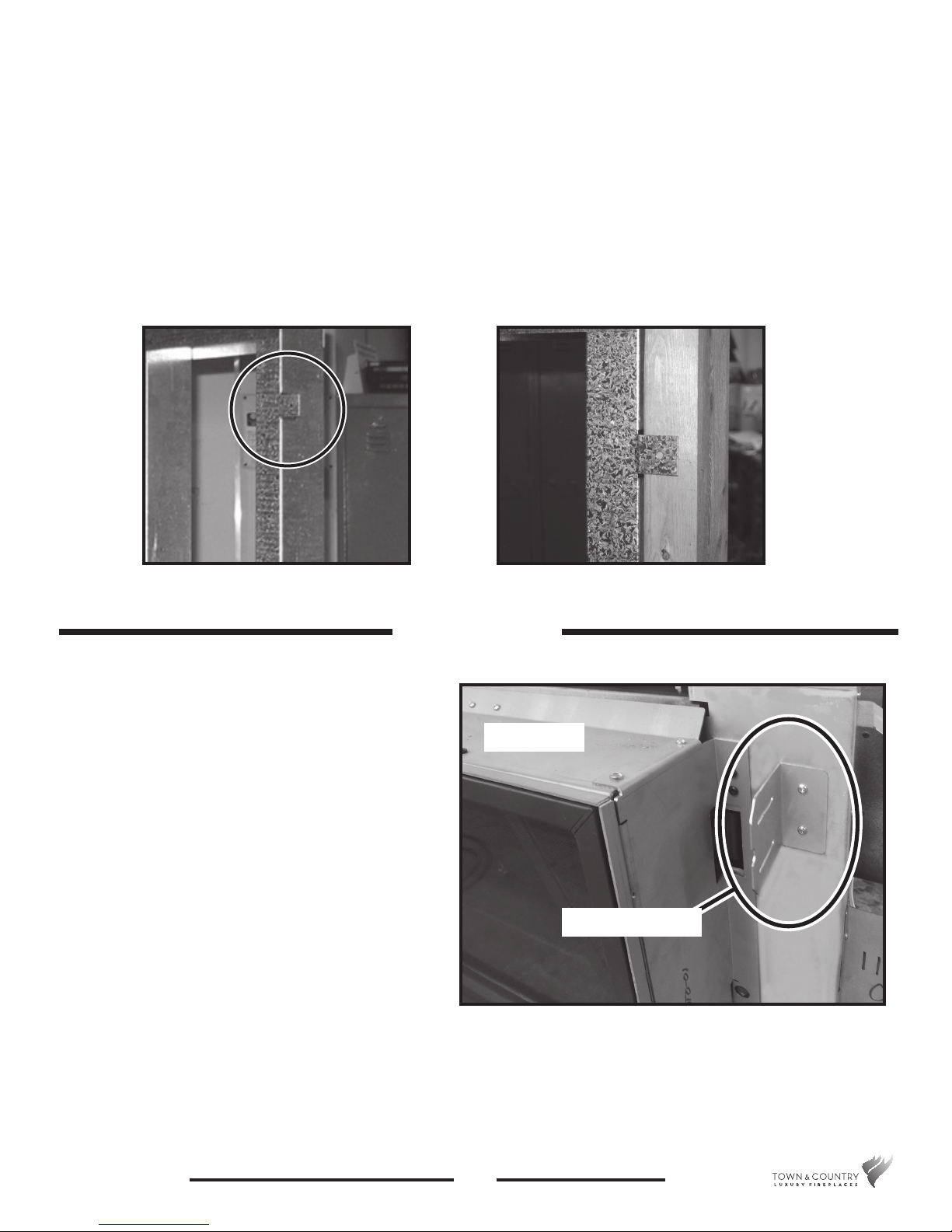

Figure 10: Light wiring retaining clip.
NOTE: This fireplace ships with the light wiring secured in retaining clips. Remove light
wiring from the retaining clip before installing and walling up the fireplace.
Wire retaining clip
9
TCWS54D2 091418-40
Removing LED light wire retaining clip

100001021-50
Figure 13: Non-combustible board
location.
NON-COMBUSTIBLE
BOARD
If nishing the wall above the unit with
paint, the framing kit shipped with the
unit should be discarded.Use full sheets
of calcium silicate board or equivalent
and full length metal studs to nish and
frame around the unit.
Calcium silicate board is a high grade
material with cement, quartz and natural
minerals as the main raw materials.
(Note: Calcium Silicate is 1/2” thick)
CAUTION: Calcium Silicate board
can be damaged if dropped or struck.
Handle with care. Inspect board prior to
installation and do not use if cracked.
NOTE: It is recommended to pre-drill
mounting holes in the board prior to
securing to the framing. This will pre-
vent the board from cracking.
12”
9 5/8”
12”

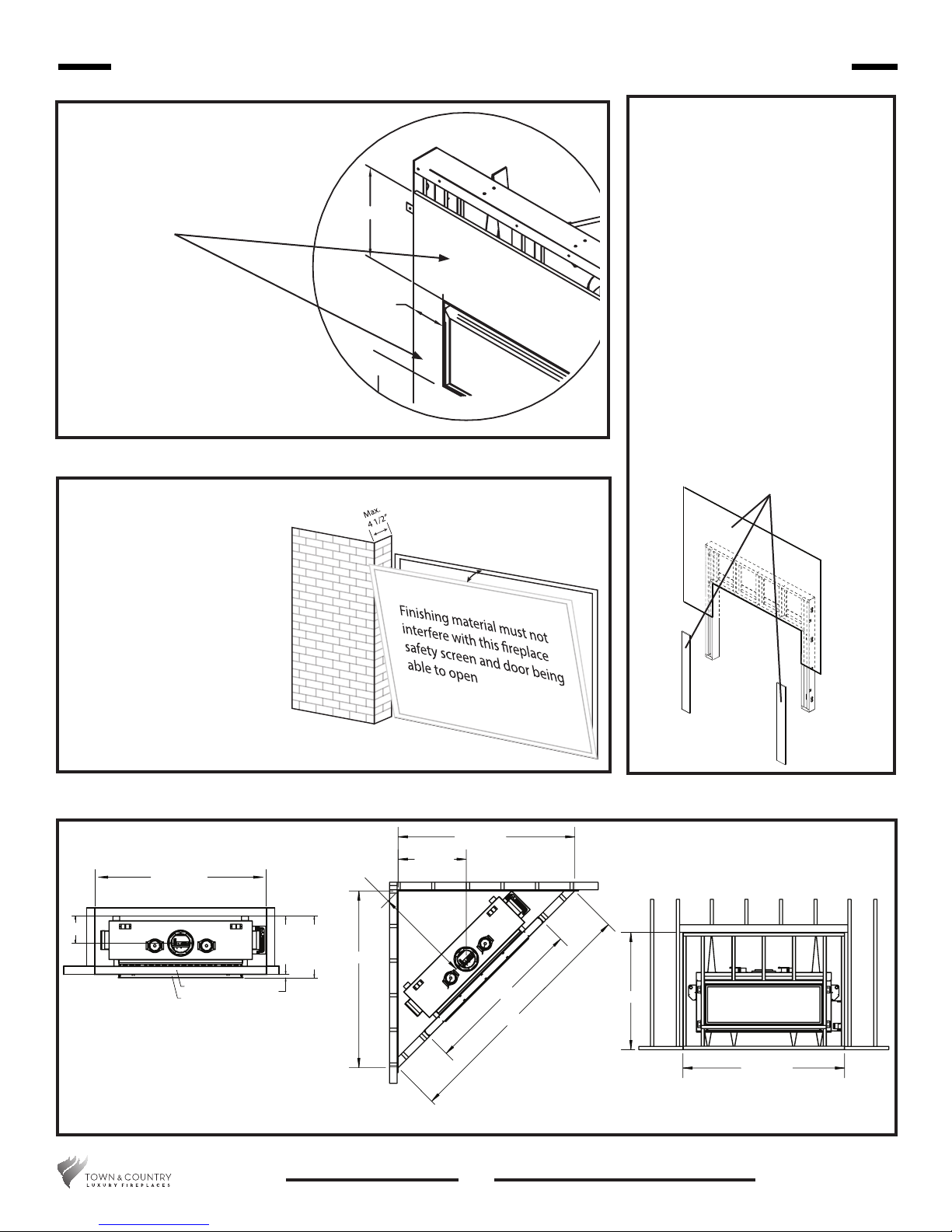

Figure 11: Non-combustible board within frame.
NON-COMBUSTIBLE RECESSED
INSTALLATION DETAIL
This replace may be recessed up
to a maximum depth of 4 1/2”. This
recess must be constructed from
non-combustible material.
Finishing material must not pro-
trude past framing anges under
ANY circumstance. The safety
screen and the window, with trim
tted, must be able to move freely.
Figure 12: TCWS54D Reccessed installation details.
31 1/2"
44 9/16"
74 13/16"
81 11/16"
81 11/16"
115 9/16"
55 1/4"
74 13/16"
NOTE: FIREPLACE SHOULD BE IN ITS FINAL LOCATION BEFORE FRAMING
RANGE
23 11/16"
to
25 7/16"
RANGE
25 3/8”
to
26 7/8"
RANGE
1/32"
to
3 3/16"
11 3/4"
FRAMING
LINTEL
74 3/4"
Figure 14: TCWS54D Minimum combustible framing.
Non - combustible board area
TCWS54D Minimum Combustible Framing Dimensions
NON-COMBUSTIBLE
MATERIAL MUST EXTEND
12" ABOVE, 9 5/8" TO
THE SIDES AND 12”
BELOW THE FRAMING
EDGES.
NON-COMBUSTIBLE
BOARD
10 TCWS54D2 091418-40

100001021-50
3
5
7
8
Figure 15: TCWS54D Framing kit.
Each Kit Contains:
FRONT VIEW (slightly angled)
BEND OUT FRAMING
TABS TO FRONT
SCREW INTO
SIDE
Item Description Qty.
1 SCREW, WAFER #8 x 1/2
(Not shown)
Pkg
40
2 STUD, SIDES 55” L 2
3 STUD, OUTER SIDES 55” L 2
4 STUD, UPPER/LOWER
74 3/4” L
2
4
4
22
66
3
Item Description Qty.
5 INNER CROSS BRACE
56 5/8 L
1
6 STUD, CENTER 25” L 3
7 LOWER CROSS BRACE
56 5/8 L
1
8 FRAMING PLATE 4
SLOPED SIDE
DOWN
8
8
7
5
11
TCWS54D2 091418-40
Steel Stud Framing Kit

Framing plates
located behind
support brackets Access holes
Figure 16: Aligning steel frame to replace.
100001021-50
1. On a at surface, place 2 upper/lower studs (#4). One is to become the top-most horizontal stud and one is to
become the bottom-most horizontal stud. Stand all pieces up on their narrow ends throughout assembly.
2. Place 3 center studs (#6) perpendicular to, and below the above horizontal beam at the beams
3 middle-most securing points. Make sure that the lower pointed ends of the center studs are closest to you. Use
wafer screws (1) to join the top side of the vertical pieces to the horizontal piece.
3. Position Inner Cross Brace (#5) horizontally along the bottom ends of the 3 center studs (#6) and fasten with
wafer screws to the center-most 3 positions along the cross brace. Cross brace should be perpendicular with the
center studs and horizontal to the upper beam.
4. Position Side Studs (#2) at each end of the assembled frame so that the side studs are vertical and perpendicular
to the upper stud and inner cross brace. Use wafer screws to fasten the side studs to the assembled frame.
5. Position the Lower Cross Brace (#7) - screen tab slots side up - between the two side studs and about 12” from
the lower ends of the side studs. Attach each end of the lower cross brace to the side studs with wafer screws.
6. Place the lower horizontal beam at the bottom-most end of the frame. Attach the lower beam to the side studs
leaving the ends of the lower horizontal beam extending out past the side studs so that it positioned in line with
the upper horizontal beam.
7. Place and attach the two Outer Side studs at the ends of both the upper and lower beams and attach with wafer
screws.
8. Once the top side of the frame is complete, turn it over so that the wafer screws can be used to fasten the other
side of the frame.
9. Align the assembled frame to the unit framing plates (#8). Attach at the fastening points through the access holes
(Figure 16) in the outer side studs (#3).
NOTE: Sheet metal parts have sharp edges, use caution when handling.
Frame Assembly
12 TCWS54D2 091418-40

100001021-50
Figure 17: Bend tab out 90 degrees.
Fixed Lintel
Figure 18: Attaching metal tab to frame.
The lintel on the TCWS54D2 is in a xed position on
the replace and so there is no adjustment to move
the lintel toward you or away from you once the re-
place has been located in its nal position. Instead,
the replace itself must be manoeuvered so that the
front of the replace determines the nal position.
The Framing Kit allows for a 2 1/4 inch adjustment
along the Framing Brackets. Use this range to help
determine the front of the facing material.
The thickness of the facing material, wether 1/2 inch
calcium silicate board or a rock facing must be taken
into consideration before settling on a nal position
of the replace. See “Fireplace Facing Allowance” on
page 14.
Framing Kit Adjustment
Framing bracket
Fixed lintel
Figure 19: Fixed lintel and framing bracket.
Attach the Assembled Frame and fireplace to the combustible framing.
Bend out the tabs 90 degrees before inserting the unit into its framed housing (Figure 17).
Attach the assembled framing kit to the Fireplace.
Secure the frame assembly to the wood frame through the tabs (Figure 18).
Install Non-Combustible Board
Use drywall screws, to install the non-combustible board.
13
TCWS54D2 091418-40

100001021-50
The gas control system is located on the right hand side of the rebox behind an access panel and the decorative rebox panel (if
installed). The replace is operated via a wall control and a hand held remote control unit.
The wall control is connected to the replace by a 40 ft. communication cable supplied with the replace.
Electrical
Note: Installation must be performed by a qulaified
installer, service agency or gas supplier.
Installation
1. Place the replace in the desired location.
2. Remove the window from the replace.
3. Remove access panel from right hand side of the rebox (Figure 22).
Lintel knock outs
There are six knock outs on top of the lintel. These
knock outs should remain in place and not knocked
out during installation. The knock outs are for a future
optional “TV KIT” which will allow a television to be
mounted above the replace while having the heat
from the replace re-directed to a vent which will be
located above the TV.
This replace is designed to nish either
ush with the facing material or can be
installed with a 4 1/2 inch recess, See
“Figure 12: TCWS54D Reccessed installation
details.” on page 10.
The replace can accommodate facing
material thickness from 1/2 of an inch to 2
1/4 inches if installing ush.
Care should be taken to correctly determine
the facing material thickness so that the
replace is positioned so that the front of the
replace is ush with the facing material.
Facing material must not interfere with the
ability for the door or the screen to open.
Fireplace Facing Allowance
Figure 20: Knock outs for future TV Kit feature.
NON-COMBUSTIBLE
FINISH MATERIAL NON-COMBUSTIBLE
BUILDING MATERIAL MAY NOT
EXTEND PAST THIS POINT
SCREEN
DOOR
Figure 21: Facing edge location.
14 TCWS54D2 091418-40

100001021-50
Figure 22: Firebox access panel.
JUNCTION BOX
FIREBOX
ACCESS PANEL
4. Lift the control box heat shield from the bottom opening to clear the location tabs and pull inwards. Lower the heat shield to clear
the top tab. Lift the heat shield and locate on the screw above the opening.
Note: The flex lines may have to be pushed down to allow the shield to be lowered enough to clear the top tab.
5. Connect 110 V. AC electrical supply to the wires installed inside the junction box (Figure 25). The replace is rated at 110 volts,
60Hz, 0.25A. The optional power vent kit is rated at 115 volts, 60Hz, 1.8A.
6. The electrical wires can be accessed from both inside and outside the junction box by removing one of the two small access
panels (Figure 25 and Figure 26).
7. Attach the wall switch to the framing in the desired location (40 ft is supplied with replace).
8. Route the wall switch control cable (supplied) as required to the wall switch (Figure 28).
9. Attach one end of the wall switch control cable to the wall control (Figure 28), and the other end to the interface board (Figure 26).
10. Insert the 4 supplied “AA” batteries into the battery pack of the wall switch (Figure 29).
11. If not already installed, install the burner using the
instructions supplied with the burner kit.
12. Turn on the gas supply and check that all connections
are tight and leak free.
13. Turn on gas and electrical supplies.
14. Move the center button on the wall control (Figure 27)
to the “ON” position. The igniter will start to spark.
After a short delay delay, the pilot will light followed
by the main burner.
Figure 23: Heat shield raised. Figure 24: Heat shield.
Figure 25: Junction box wiring.
Transformer
Vacuum
switch
Inside access
panel
Gas
connector
Wall switch
connector
Junction box
Module
Interface board
Power vent
switch
Regulator
board
Gas valve
Figure 26: Control box.
OUTER ACCESS PANEL
15
TCWS54D2 091418-40

100001021-50
Figure 27: Town and Country
wall switch.
Figure 28: Wall switch - interface side.
Linking the remote control
unit to the wall switch.
1. Begin by moving the selector
toggle on the wall switch to the
“REMOTE” position.
2. Insert a straightened paper clip
into the “PROGRAM” slot on the
wall switch.
3. Press the internal “PROGRAM”
button once and wait until you
hear 3 beeps from the wall switch.
4. Press the ON/OFF button of the
remote unit. Once the wall unit
beeps 3 times, the remote is pro-
grammed.
5. The toggle on the wall switch
must be kept in the “REMOTE”
position in order to use the remote
control unit.
TO FIREPLACE
Wall Switch and Remote Control
Figure 29: Wall switch - battery side.
Wall Switch to IFC Communication Cable Continuity Check
It is important that the continuity of the individual wires encased within the communication cable be checked
before the cable is plugged into both the wall switch and the IFC Module. This will ensure that the cable is
in good condition before the cable is walled in or otherwise covered up. Provided that no staples, screws
or nails accidentally impale the cable during the walling up process, or any cables have otherwise been cut,
the cable itself will be able to be ruled out as a possible cause should trouble shooting the wall switch be
required.
16 TCWS54D2 091418-40

100001021-50
The NV / PV (Natural Vent / Power Vent) switch
(Figure 30) on the interface board (Figure 26) is
set according to which type of evacuating vent
system is present. If the replace is vented with-
out the assistance of a power vent, the switch
must be set to “NV”. If using a power vent, “PV”
must be selected. Follow the instructions pro-
vided with the power vent kit for proper installa-
tion.
Figure 30: Vent mode selection switch.
Selecting Natural Vent and Power Vent Modes
17
TCWS54D2 091418-40

100001021-50
Figure 31: Complete communication wiring.
TO HOME
AUTOMATION
SYSTEM
NOTE:
• Digital I/O must be connected to a dry contact relay.
• Analog ame and light input through 0 - 10 volt DC
signal scaled as follows:
Low = 1 volt
High = 10 volts
The home automation feature supplied with this replace is
capable of controlling the ame and light on/off function with
the use of a dry contact relay common to home automation
systems. Furthermore, the ame and light level may be modu-
lated from high to low using the 0 - 10 volt analog output avail-
able on most home automation systems.
Figure 31 shows the wire designations required to connect the
replace to a home automation system.
Home Automation
NOTE:
When a signal has been supplied by the home automation system, the fireplace control
will repeat the signal every 2 hours or until a new command has been received.
Leave the wall switch on the “Remote” setting when using home automation.
Figure 32: Home automation wiring.
18 TCWS54D2 091418-40

100001021-50
Correct gas pressure requirement:
Natural Gas Propane
Min. Pressure 5.0" WC 12.5" WC
(For purpose of input adjustment)
Max. Pressure 13.9" WC 13.9" WC
Manifold Pressure
Maximum 3.5" WC 10" WC
Minimum 1.6" WC 6.4" WC
Note: To test the gas pressure, turn off the gas supply before removing the plug from the supply pressure test
port or manifold pressure test port.
Caution: The gas line should be installed by a qualied service person in accordance with all building codes. This
section is intended as a guide for qualied technicians installing this appliance. Consult local and / or national building
codes before proceeding.
Gas supply line access holes are located at the top and left sides of the Control Box. Gas valve inlet accepts a 3/8"
N.P.T. tting. Correct gas line diameter must be used to assure proper operation and pressure.
NOTE: This replace has an input rate of 54,900 BTU/HR on both Natural Gas and Propane.
It is essential that a union or anged connection be installed just upstream of the valve and inside the control compart-
ment to allow for repair or replacement of the gas valve.
NOTE: A sediment trap, as per national fuel gas code, must be installed in the gas supply line no more than 6 feet from
the gas control valve to minimize the possibility of any loose scale or dirt within the gas supply line from entering the
control valve.
DO NOT HARD PIPE GAS LINE TO VALVE. A method of disconnecting the valve from the gas line such as a union or
are tting must be provided to allow for repair or replacement of the gas valve.
Check local codes for additional requirements.
1. Connect the gas supply to the valve (Figure 26).
2. Turn on the gas supply and check that all connections are tight and leak free.
WARNING: The access panel including gasket must be reinstalled after conversion/installation or
servicing has been completed. Failure to do so will cause overheating and premature
failure of the control system.
Verify gas pressures with the replace lit and on the highest
setting.
Please refer to the Burner Installation Manual for gas pressure
testing procedure.
SUPPLY
PRESSURE
MANIFOLD
PRESSURE
Figure 33: Test ports.
19
TCWS54D2 091418-40
Gas Supply
Gas Pressure Check

100001021-50
This fireplace can only be wall terminated using the TCVT. PV1.25 or TCVT.PV7.110 power vent kit.
Please see the instructions supplied with the kit for installation details.
Before installing venting for this unit, the installer should read these instructions to insure that the proper vent
conguration has been selected.
Use only Town and Country Termination kits #:
TCVT.RTA - Roof Termination Kit
For vent system components approved for use with the Town and Country Fireplace, See “Vent System
Components” on page 20.
Various combinations of vent runs may be used. See “Figure 36: Roof venting chart.” on page 22 for
details. For optimum performance and ame appearance, keep the vent length to a minimum and limit the
number of elbows. Connections between each vent system component must be tightly joined, secured with
sheet metal screws and sealed with provided high temperature self adhesive tape.
VENT SUPPORTS: A minimum of 1 support every 4’ must be used.
NOTE: Optional Power Vents (TCVT.PVI.25, TCVT.PV7.110 & TCVT.PVCV) require different venting.
Please refer to Power Vent manuals.
CAUTION: UNDER NO CONDITION SHOULD COMBUSTIBLE MATERIAL BE CLOSER THAN 1 3/4
INCHES FROM THE TOP AND 1 3/4 INCHES FROM THE SIDES OF A HORIZONTAL SECTION AND 1 3/4
INCHES FROM THE VERTICAL SECTIONS OF THE VENT PIPE.
Vent System Components
Town & Country
12" Pipe Length..................................................... TCVT.811X12
18" Pipe Length..................................................... TCVT.811X18
24" Pipe Length..................................................... TCVT.811X24
48" Pipe Length..................................................... TCVT.811X48
12" Adjustable Pipe Length.............................TCVT.811X12ADJ
45° Elbow .......................................................... TCVT.811XLB45
Wall/Offset Support.............................................. TCVT.811XOS
*A minimum of 1 support every 4’ must be used.*
Roof Termination Kit .................................................... TCVT.RTA
Wall Shield/Ceiling Firestop.................................... TCVT.THIMA
Roof Flashing, Adjustable .................................TCVT.811FLADJ
Roof Flashing, Flat .............................................TCVT.811FLFLT
Roof Flashing, Steep .........................................TCVT.811FLSTP
or any ashing that ts 11" pipe
20 TCWS54D2 091418-40
Venting
Wall Termination Venting
