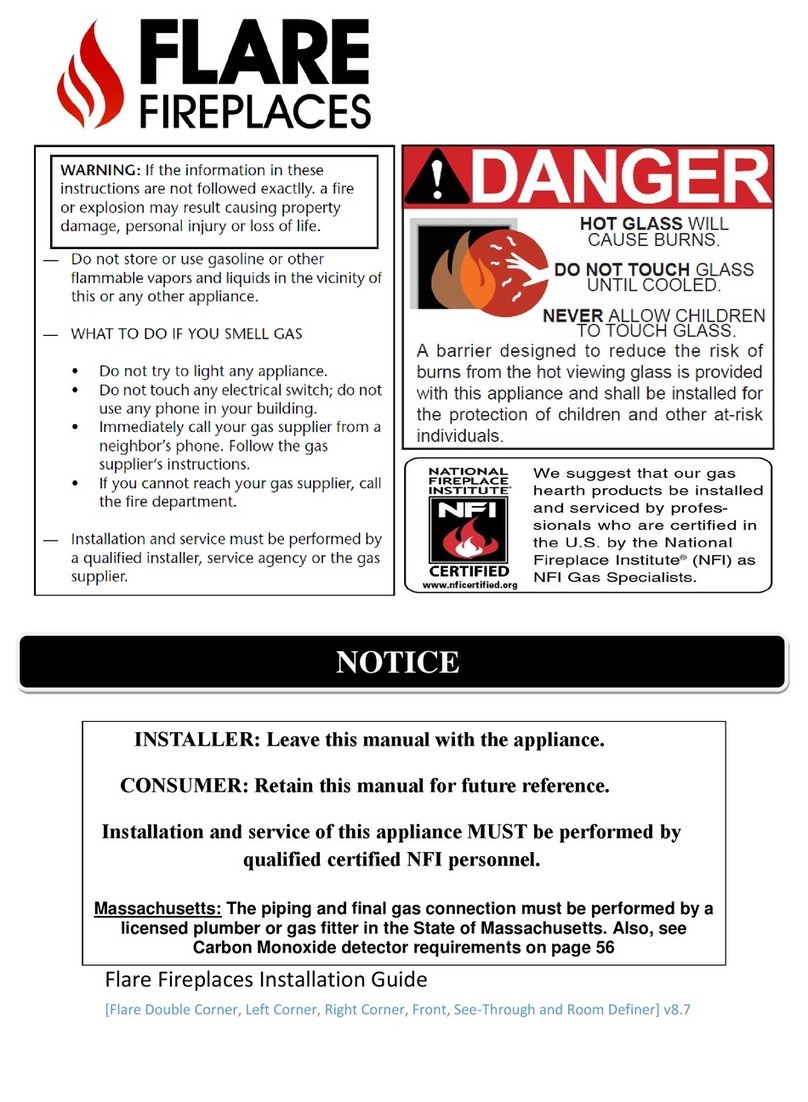

Flare Fireplaces Front 16 User manual

Modern Gas Fireplaces - Linear Fireplaces
FLARE REQUIRES INSTALLATION BE
PERFORMED BY AN NFI CERTIFIED INSTALLER,
OR A CERTIFIED FLAREAUTHORIZED INSTALLER.
INSTALLATIONS THAT DO NOT FOLLOW THIS
INSTRUCTION WILL NOT BE COVERED BY
WARRANTY OR SERVICED.
NOTICE
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
INSTALLATION AND SERVICE OF THIS APPLIANCE MUST BE PERFORMED BY
QUALIFIED CERTIFIED NFI PERSONNEL OR CERTIFIED FLARE FIREPLACE
DEALER.
Massachusetts: The piping and final gas connection must be performed by a
licensed plumber or gas fitter in the State of Massachusetts. Also, see
Carbon Monoxide detector requirements on page 56.
Flare Fireplaces Installation Guide- Honeywell- Control Sys. 7
[Flare Double Corner, Left Corner, Right Corner, Front, See-Through and Room Definer] v15.1

2| Page
TABLE OF CONTENTS
SAFETY INFO AND WARNINGS 5
FLARE FIREPLACES –FRAMELESS IN EVERY WAY 7
SAFETY 7
CSA CERTIFICATION 7
MANUAL MODEL LIST & INFORMATION 8
FIREPLACE OPERATION 9
ELECTRICAL AND POWER REQUIREMENTS 9
ON/OFF OPERATION 9
WALL SWITCH 10
MEDIA ARRANGEMENTS 11
MEDIA CALCULATIONS 12
FEATURE REMOVAL 13
SAFETY SCREEN REMOVAL 13
EXTERNAL TEMPERED GLASS REMOVAL –DOUBLE GLASS FIREPLACE 14
INTERNAL CERAMIC GLASS REMOVAL 15
SIDE GLASS TRIM REMOVAL /INSTALLATION –FLARE H&EH 17
SIDE GLASS TRIM REMOVAL /INSTALLATION (C &RD) 18
REFLECTIVE BACK INSTALL 19
INSTALLATION STEPS 20
INSTALLATION PREPARATION 21
ACCESS PANEL 21
FIREPLACE UNPACKING 22
FIREPLACE TELESCOPIC LEGS SETUP 23
LEG SETUP FOR FRONT AND SEE-THROUGH UNITS 24
LEG SETUP FOR CORNER UNITS 25
UNPACKING CONTROL UNIT AND ACCESSORIES 26
FIREPLACE POSITIONING 27
LED LIGHTS 28
LED LIGHT INSTALL AND POWER 29
LED CONTROLLER AND REMOTE 31
OPTIONAL BLOWER KIT FOR SCREENED UNIT 32
VENT TERMINATION 33
VENT AND FIREPLACE SIZE 34
MINIMUM COMBUSTIBLE CLEARANCES FROM VENT 34
VERTICAL TERMINATION 35
HORIZONTAL TERMINATION 36

3| Page
VENT TERMINATION CLEARANCES 37
VENT RESTRICTOR SETUP 39
CHIMNEY PATH INSTALLATION AND PLANNING 40
FLARE 30/30H 41
FLARE 45/45H/45EH 42
FLARE 50/50H/50EH 43
FLARE 60/60H/60EH 44
FLARE 70/70H/70EH 45
FLARE 80/80H/80EH 46
FLARE 100/100H/100EH 47
POWER VENTING 48
ELECTRICAL CONNECTION TO THE PV SYSTEM 50
ELECTRICAL CONNECTION AND ADJUSTING TO THE PV SYSTEM 51
GAS INSTALLATION 52
GENERAL 52
USING A REDUCER TO DE-RATE YOUR FLARE FIREPLACE 54
ADDING THE FLARE FIREPLACES DE-RATING REDUCER 56
ORIFICE SIZE 57
GAS VALVE ACCESS DOOR 57
LIQUID PROPANE USAGE IN AFLARE FIREPLACE 58
COMMONWEALTH OF MASSACHUSETTS 59
FLARE FIREPLACES - DOUBLE GLASS 60
OVERVIEW 60
DOUBLE GLASS -INSTRUCTIONS 61
POWER REQUIREMENT –ELECTRICAL REQUIREMENT 62
TELEVISION MOUNTING ABOVE FIREPLACE 62
TV INSTALL –FLAT EXAMPLE 63
TV INSTALL –L TYPE E 64
TV INSTALL RECESS –45 DEGREE ELBOW ON TOP OF THE UNIT 65
TV INSTALL WITHOUT RECESS –MANTEL INSTALLATION 66
CLEARANCES 67
GENERAL INFORMATION AND STEPS 67
CLEARANCES SPECIFICATION 74
MANTEL CLEARANCE 75
CLEARANCE TO SPRINKLER 76
HEAT RELEASES 77
AIR INTAKE 77
EXAMPLES OF HEAT RELEASES 78
SETTING UP YOUR FLARE FIREPLACE FOR ENHANCED OPERABILITY 79

4| Page
KEEPING THE WALL ABOVE YOUR FIREPLACE AS COOL AS POSSIBLE 79
KEEPING YOUR DOUBLE GLASS AS COOL AS POSSIBLE 80
FLARE FRONT,SEE THROUGH,AND CORNER FIREPLACE CLEARANCE 81
Flat –side and isometric view 81
L shape –side and isometric view 83
INDOOR/OUUTDOOR KIT 85
APPLIANCE LOCATION 85
BURNER DIMENSIONS 88
HOME AUTOMATION 89
ELECTRIC AND CONTROL 90
ELECTRIC DIAGRAM -SCREEN 90
HONEYWELL DIAGRAM –DOUBLE GLASS AND POWER VENT 91
DOUBLE GLASS BOARD &LED LIGHT GUIDE 92
ELECTRIC DIAGRAM –PV SYSTEM 93
REPLACEMENT PARTS 94
MAINTENANCE 95
TORUBLESHOOTING 97
ADJUSTING YOUR AIR SHUTTER TO PREVENT SOOTING 97
APPENDIX 98
MAINTENANCE LOG 98
WARRANTY POLICY 99
18 Month COMPREHENSIVE WARRANTY 99
LIMITED FIVE-YEAR COVERAGE 99
LIMITED 10-YEAR COVERAGE 99
conditions 100
exclusions 100
warranty voided when 100

5| Page
SAFETY INFO AND WARNINGS
WARNING!
If the information in these instructions is not followed exactly, a fire or explosion may result causing property
damage, personal injury, or loss of life.
Installation and services must be performed by a qualified installer, service agency or the supplier.
The direct vent system appliance must be installed as an OEM installation in manufactured homes (USA only)
or an aftermarket permanently located, or a mobile home, where no prohibited by local codes and must be
installed in accordance with Manufacturer’s instructions and the Manufactured Home Construction and Safety
Standard, Title 24 CFR, Part 3280, in the United States, or the Standard for Installation in Mobile Homes, CAN/
CSA Z240 MH Series, in Canada.
This appliance is only for use with the type(s) of gas indicated on the rating plate. A conversion kit is supplied
with the appliance.
This product is listed to the ANSI standards for ANSI A21.50b-2009 / CSA 2.22b-2009 Vented Gas
Fireplaces CAN/ CGA 2.17-M91 Gas-Fired Appliance for use at high altitudes.
NEVER LEAVE CHILDREN OR ANY OTHER AT-RISK INDIVIDUAL ALONE WITH
THE APPLIANCE.
Due to high temperatures, the appliance should be located out of traffic and away from furniture and draperies.
Children and adults should be alerted to the hazards of high surface temperature and should stay away to avoid burns or
clothing ignition.
Young children should be carefully supervised when they are in the same room as the appliance. Toddlers, young children,
and others may be susceptible to accidental contact burns. A physical barrier is recommended if there are at-risk
individuals in the house. To restrict access to a fireplace or stove, install an adjustable safety gate to keep toddlers, young
children, and other at-risk individuals out of the room and away from hot surfaces.
This appliance must be electrically wired and grounded in accordance with local codes, or in the absence of local codes,
with National Electric Code ANSI/NFPA 70 –latest edition or the Canadian Electric Code CSA C22.1
A 110-120V AC Circuit for this product must be protected with ground-fault circuit-interrupter protection, in compliance
with the applicable electrical codes, when it is installed in locations such as bathrooms or near sinks.
State of California. Proposition 65 Warning. Fuels used in gas, wood-burning or oil-fired appliances, and the
products of combustion of such fuels, contain chemicals known to the State of California to cause cancer, birth defects and
other reproductive harm. California Health & Safety Code Sec. 25249.6

6| Page

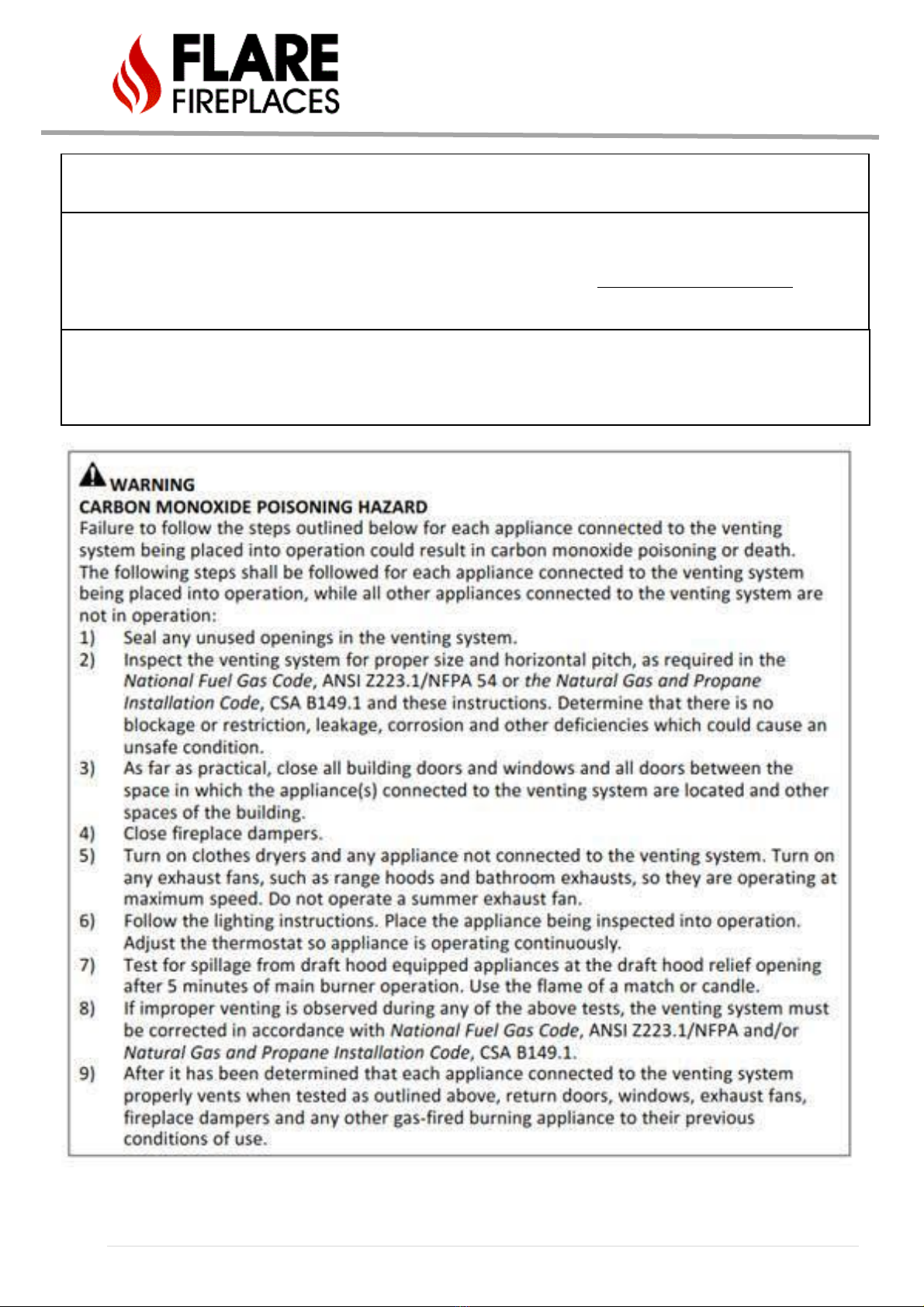

When an existing Category I heater is removed or replaced, the original venting system may no longer be sized
to properly vent the attached appliances. Instructions shall also indicate effects of an improperly sized venting
system (formation of condensate, leakage, spillage, etc.) and shall specify the following test procedure.
WARNING!
Proposition 65 Warning: Fuels used in gas, wood burning or oil-fired appliances, and the products of combustion of such
fuels, contain chemicals known to the State of California to cause cancer, birth defects and other reproductive harm.
California Health & Safety Code Sec. 25249.6. In the State of Massachusetts, only a licensed plumber and gas fitter may
install this product. See Note for the Commonwealth of Massachusetts.

7| Page
FLARE FIREPLACES –FRAMELESS IN EVERY WAY
Flare Fireplaces is where innovation, quality and luxury come together to form new ideas. By combining
superior raw materials, contemporary design, creative technology, and a frameless way of thinking, we
have created a full line of direct-vent fireplaces that are luxurious, simple to operate, and efficient. Our
modern gas fireplaces are distinguished by their clean linear design, superior built quality, and unique
features.
SAFETY
CSA CERTIFICATION
All our fireplaces are tested and have been certified to meet stringent CSA guidelines, ensuring optimum
quality, safety, and efficiency.
All our fireplaces have been certified and tested to work with Natural Gas or Propane.
Certification Information:
ANSI Z21.88/CSA 2.33-2014- Vented Gas Fireplace Heaters
CSA CLASSES:
CLASS 2901 84 / CLASS 2901 04
All fireplaces are rated for commercial and residential use.
The CSA Mark
The Canadian Standards Association (CSA) is a nonprofit association serving business, industry, government
and consumers in Canada and the global marketplace. Among many other activities, CSA develops
standards that enhance public safety.
A Nationally Recognized Testing Laboratory, CSA is familiar with U.S. requirements. According to OSHA
regulations, the CSA-US Mark qualifies as an alternative to the UL Mark.
Here are some areas where CSA standards are applied:
●Canadian Electrical Code, Part III-Outside Wiring
●Electrical Engineering Standards
●Electromagnetic Compatibility

8| Page
MANUAL MODEL LIST & INFORMATION
The Following manual should be used for the following Flare Fireplaces Models:
●Flare Front 30-100 “– 16” (R), 24” (H), 30” (EH)
●Flare See-Through 30-100” – 16” (R), 24” (H), 30” (EH)
●Flare Corner Right & Left 30-100” – 16” (R), 24” (H)
●Flare Double Corner 30-100” – 16” (R), 24” (H)
●Flare Room Definer 45-100” – 16” (R), 24” (H), 30” (EH)
All models share the same gas valve system, remote, gas connection, and glass type, simplifying installation and
operation.
All warnings and instructions apply to all models.
Refer to the model’s name for specific model, clearance and installation information.
Flare Fireplaces should only be connected to M&G DuraVent or ICC 4x6 or 5x8 venting system. Refer to the specific
appliance model and size to determine vent size (Gas specification table) and chimney pathway requirements
(Chimney path installation & planning table). For detailed chimney installation information please use the M&G
DuraVent direct vent installation manual: http://www.duravent.com
For details on ICC direct vent installation, please use the ICC installation guide.
http://icc-chimney.com/en/exceldirect-support
This product is listed to ANSI standards for “Vented Gas Fireplace Heaters” and applicable sections of “Gas Burning
Heating Appliances for Manufactured Homes and Recreational Vehicles”, and “Gas Fired Appliances for Use at High
Altitudes”.
Installation MUST comply with local, regional, state, and national codes and regulations. Consult insurance carrier,
local building inspector, fire officials or authorities having jurisdiction over restrictions, installation inspection and
permits.
This installation must conform to local codes. In the absence of local codes, you must comply with the
National Fuel Gas Code, ANSI Z223.1-latest edition in the U.S.A. and the CAN/CGA B149 Installation Codes in Canada.
Improper installation, adjustment, alteration, service, or maintenance can cause injury or property damage. For
assistance or additional information, consult a qualified service technician, service agency or your dealer.
FLARE REQUIRES INSTALLATION BE
PERFORMED BY AN NFI CERTIFIED INSTALLER,
OR A CERTIFIED FLARE DEALER. INSTALLATIONS
THAT DO NOT FOLLOW THIS INSTRUCTION
WILL NOT BE COVERED BY WARRANTY OR
SERVICED.

9| Page
FIREPLACE OPERATION
ELECTRICAL AND POWER REQUIREMENTS
Screen Unit: 110V, 15A Outlet (Dedicated circuit is optional but recommended) or Directly wired. When using an outlet, make sure
the outlet is accessible in the event of servicing.
**110V, 15A additional power source needed if Optional RGB-LEDs are included in unit.
Double Glass: 110V, 15A Outlet (Dedicated circuit is optional but recommended) or Directly wired. When using an outlet, make
sure the outlet is accessible in the event of servicing.
**No additional power source needed for optional RGB-LEDs.
ON/OFF OPERATION
The ON Off operation on the Flare Fireplaces with a Honeywell valve is controlled by switching ON or Off power supply to the
fireplace plug or hotwire.
The Fireplace will attempt to start whenever electric power is supplied to it. The Fireplace power supply needs to be wired by
QUALIFIED ELECTRICIAN.
The electrician can provide the operator a switch to control the outlet the fireplace is connected to.
The use of the plug should only be done when access to the outlet is available even after installation is completed.
This appliance must be grounded. In the event of a malfunction or breakdown, grounding provides a path of least resistance for
electric current to reduce the risk of electric shock. This appliance is equipped with a cord having an equipment-grounding
conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is professionally installed and
grounded in accordance with all local codes and ordinances.
The Flare Fireplaces with a Honeywell is provided with a 110V plug that can be connected to a controlled outlet for
ON/OFF operation of the fireplace. Plug can also be removed to connect directly for hardwire operation.

10 | Page
WALL SWITCH
The Fireplace ON/OFF operation can be done with a standard wall switch provided by the electrician and wired to
control the supply of power to the fireplace outlet or hardwire setup.

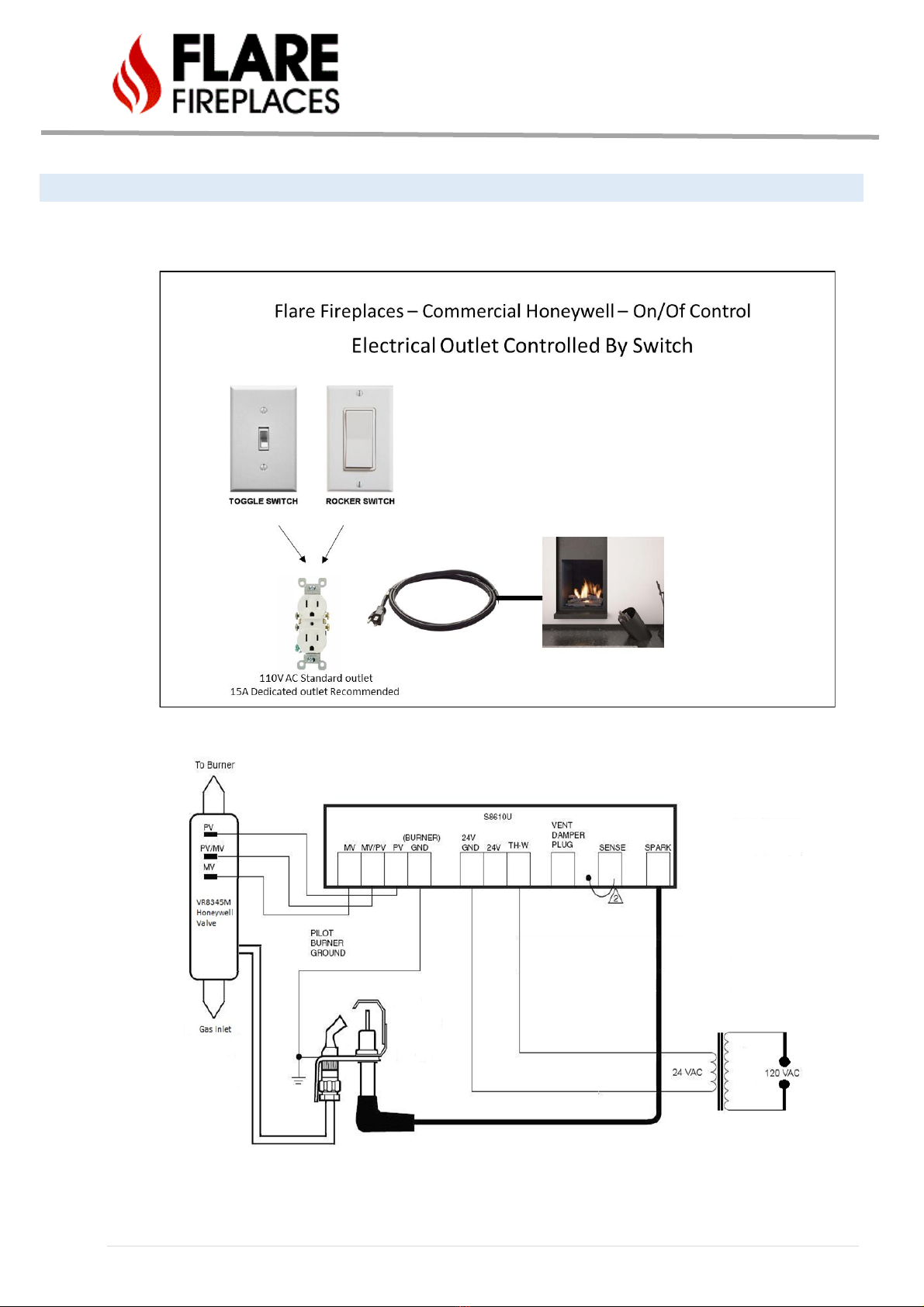

Honeywell System Diagram

11 | Page

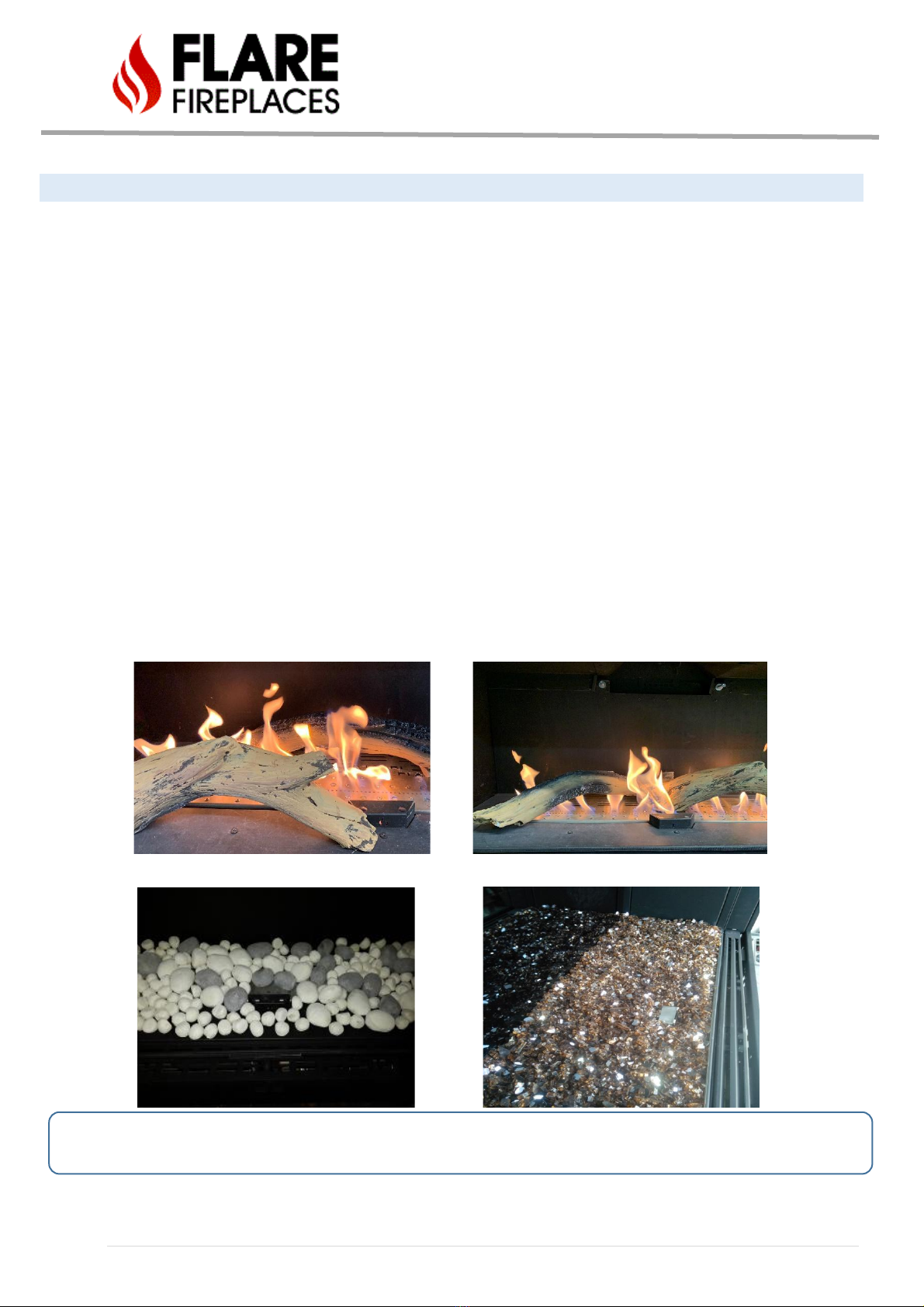

MEDIA ARRANGEMENTS
Flare Fireplaces can be equipped with different media types. Follow the instructions below for information on how to
add and arrange media in your Fireplace:
●Do not place any type of media on the pilot or in front of the pilot. Keep 1” distance from the pilot to allow
correct operation of the pilot.
●Media can be put over the Flare burner. Avoid placing media over the main burner ports as it may disrupt
flame in case of a clogged port. Avoid placing driftwood arching over burner, instead place in front or behind.
●If using media that was not supplied by Flare Fireplace, make sure that the media is certified/suitable to be
used in direct vent gas fireplaces.
●Keep the pilot front cover view open to be able to view the pilot spark and flame from outside.
●Fireglass:
a. ¼” or ½” Fire Glass may be used.
b. When the fireplace viewing window is open, and media is placed, make sure Fire Glass does not fall
on the ceramic glass lower frame as that may cause breakage when putting back the ceramic glass.
c. Make sure pilot is clear of any Fire Glass particles.
d. Flare Fire Glass can be put safely into the firebox. Avoid overloading the burner with Fire Glass,
specifically over the main burner ports.
●Maintain minimum distance of ¼” from media to the fireplace glass panels.
●Use the manual for instructions on how to remove, replace, & arrange the fireplace glass media.
PROPER DRIFTWOOD PLACEMENT IMPROPER DRIFTWOOD PLACEMENT
Ceramic Pebbles Fireglass
CHOKING HAZARD! Ensure that the fireplace area is clear of fire glass particles as these could be ingested by small
children. Vacuum area after installation.

12 | Page
MEDIA CALCULATIONS
Please follow the below described quantities of media placement in your firebox. Please note, over saturation of
media throughout the firebox may result in improper combustion or Soot within the fireplace or termination cap.

13 | Page
FEATURE REMOVAL
SAFETY SCREEN REMOVAL
Follow the instructions below for safety screen removal.
PLEASE NOTE: Safety screen may be shipped separately from the appliance.
The barrier is designed to reduce the risk of burns from the hot viewing glass and is
provided with this appliance. It must remain installed for the protection of children and
other at-risk individuals.
Do NOT operate the fireplace without the safety screen barrier.
Front, See Through, and Corner Units
●Safety screen removal requires no tools.
●Push the top frame of the screen up until it clears the bottom of the opening.
●Tilt the bottom of the screen out and pull down so the top frame clears the opening.

14 | Page
EXTERNAL TEMPERED GLASS REMOVAL –DOUBLE GLASS FIREPLACE
Follow the procedure below to remove and install back the fireplace external glass (double glass fireplace configuration).
Note: Suction cups are needed to remove the glass.
Warning! Turn off the fireplace and allow time for the unit to cool before proceeding.
Caution: The glass is very fragile and should be handled with care.
Warning! Double glass fireplace should NOT be operated without the external glass.
●Confirm lock screws have been removed during install (should be done once, during install only).
●Attach glass suction cups to the glass. Use more than one suction cup if needed (any unit above 45”).
●Using suction cups, slightly push in the external glass top edge.
●Once glass has been pushed, slightly lift the glass to clear bottom part of the glass.
●Remove the glass and place in a secure location.
Install back external glass.
●Attach glass suction cups to the glass. Use more than one suction cup if needed (any unit above 45”)
●Place upper edge of the glass in position and push latching trim.
●Once trim has been pushed in, slide glass top in position.
●Tilt in bottom edge of the glass in position as you are lifting the glass up.
●Glass is now secure in place. No bolts are needed to lock the glass.

15 | Page
INTERNAL CERAMIC GLASS REMOVAL
Follow the procedures below to remove and install the internal ceramic glass (double glass fireplace configuration).
Note: Suction cups are needed to remove the glass.
Warning! Turn off the fireplace and allow time for the unit to cool before attempting to remove the glass.
CAUTION:The ceramic glass is very fragile and should be handled with care.
CAUTION: Do not operate the appliance with glass removed, cracked, or broken. Replacement of the panel(s) should
be done by a licensed or qualified service person.
Step 1 –Attach glass suction cups to the glass. Remove the glass’ lower magnetic trim. Place the trim in a secure
place. Any unit above 45” requires 2 suction cups to hold the glass.
Step 2 –Release the lower glass trim. The lower trim bolts can be released by hand and should not require any tools.
Once bolts are released remove lower glass holder trim.
Step 3 –Hold the glass suction cups and hand release trim bolt on the top. The trim does not need to be removed and
will only open to allow a gap for glass removal.
Step 4 –Push the glass up and clear it from the bottom as shown.
When putting the glass back, DO NOT overtighten the bolts or glass may break.
Step 1 Step 2

16 | Page
Step 3 Step 4-1
Step 4-2
When putting back the glass, DO NOT overtighten the bolts or glass may break.
●Use step 4 –1 for putting the glass back.
●Glass trim screws should be closed hand tight. DO NOT overtighten the bolts or glass may break.

17 | Page
SIDE GLASS TRIM REMOVAL / INSTALLATION –FLARE H & EH
Side Glass trim for Front & ST unit (R, H, EH) is installed by Hanging the side trim over the trim holder as shown in the picture
below.
Then moving the lower side of the trim toward the holder as shown in the picture below.

18 | Page

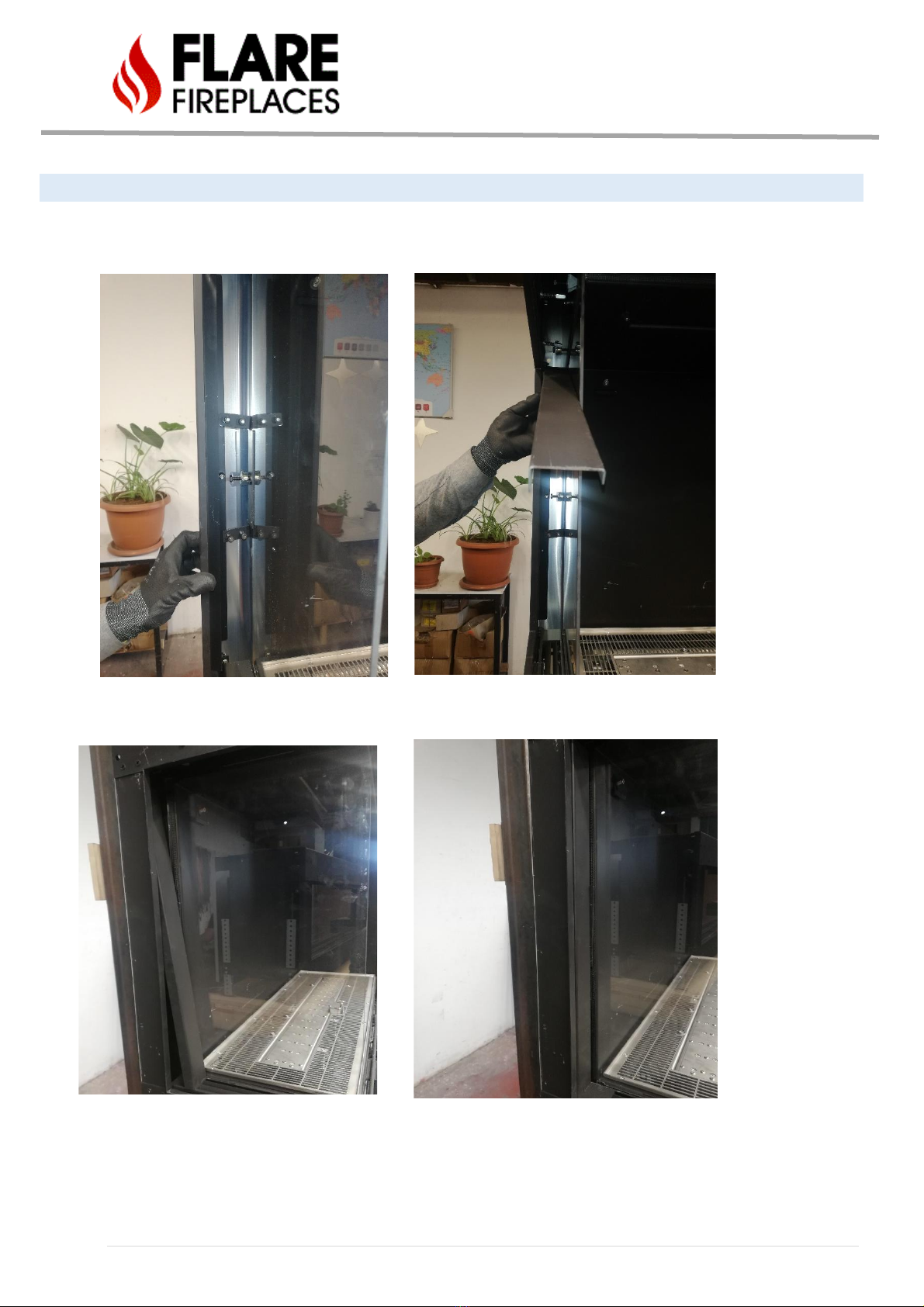

SIDE GLASS TRIM REMOVAL / INSTALLATION (C & RD)
Side Glass trim for C & RD unit (R, H, EH) is installed by placing the side trim over the trim holder magnetics as shown in the
picture below.
Then moving the lower side of the trim toward the holder as shown in the picture below.

19 | Page
REFLECTIVE BACK INSTALL
The Flare Fireplace may be ordered with a reflective ceramic glass backing. The ceramic glass is tinted black to create
a reflection when the fireplace is running. The ceramic glass will enhance and protect the fireplace look and is easy to
clean.
The reflective back is shipped outside the unit, inside a sleeve with the other glass panes. It should be mounted at the
back of the fireplace, placed in the gap between the fire bed (shown yellow below) and held by the top mounting
brackets (red circle).
Carefully carry the reflective back using suction cups, and place at a 45-degree angle as shown below.
Screw the mirror clamp as shown below, make sure you do not over-tighten the screw, & leave 1” of the screw
length out.

20 | Page
INSTALLATION STEPS
1. Prior to starting the installation, make sure you read and understand all WARNING information in the
manual. Do not start the installation if you are unclear about any of the installation related subjects.
2. Determine the following:
●The vent system configuration to be used based on the fireplace location. Follow the manual venting
section (Chimney path installation & planning tables) to determine the venting requirements and
setting.
Note: Venting requirements are model specific.
Note: Make sure the vent requirements are supported by the Flare manual and installation
instruction.
●Clearance requirements from combustible and non-combustible materials. Follow the clearance
instruction and example in the manual.
Note: Clearance instructions and examples are model specific.
●Gas supply piping.
●Confirm if the fireplace is going to operate using Natural Gas (NG) or Propane. Use the attached
product label to confirm the fireplace is set for the expected gas type.
●Electrical wiring requirements.
●Framing and finishing details.
3. Unpack the fireplace box, adjust telescopic legs and place in the upright position. Follow instruction for
fireplace unpacking.
4. Put the Fireplace in the desired location. Verify clearance to non-combustible and combustible materials.
Follow the clearance instruction and example in the manual.
5. For LED units, connect LED system and test LED.
6. Attach the units back bracket to the wall framing.
7. For double glass units only: remove glass locking screws and discard.
8. Adjust Fireplace vent restrictor based on vent configuration and planning guide. Document vent restrictor
setup here: ___________________________.
9. Connect vent system to the Fireplace.
10. Connect gas (Gas connection section) line to the Fireplace and verify gas inlet and outlet pressure. Measure
and document gas pressure here: Inlet _______ W.C.
11. Confirm if adjustments for high altitude are needed (Installation at above 2000 Ft from sea level).
12. Connect electrical wiring for applicable units.
13. Insert and place Fireplace media. Use media arrangement guide from the manual.
14. Verification of:
●Ignition and pilot system.
●Burning and flame.
15. Complete framing and wall cover.
Read all the instructions before starting the installation. Follow these instructions carefully during the installation to ensure
maximum safety and benefit.
Follow the Steps above to insure proper installation of the Gas appliance.
WARNING! Risk of Fire or Explosion! Damaged parts could impair safe operation. DO NOT install damaged, incomplete or
substitute components.
