Flebi SUPRA ECO User manual

User manual

Índice
Unpacking and assembly
1. Box contents
2. Introduction of the set
handlebar
3. Packed in original box
Start up
4. Handlebar adjustment
5. Saddle adjustment
6. Brake adjustment
7. Tire inflation
8. Chain placement
Electrical operation
9. Battery recharge
10. Display operation LCD C300S
11. Operation of the throttle
(optional) (opcional)
Folding & Unfolding
12. Unfolding the bike
13. Folding the bike
14. Swingarm operation
15. Opening/Closing the frame
16. Folding/Unfolding the pedals
17. Handlebar folding mechanism
18. Quick fold easy-folding

Unpacking and assembly
Box contents

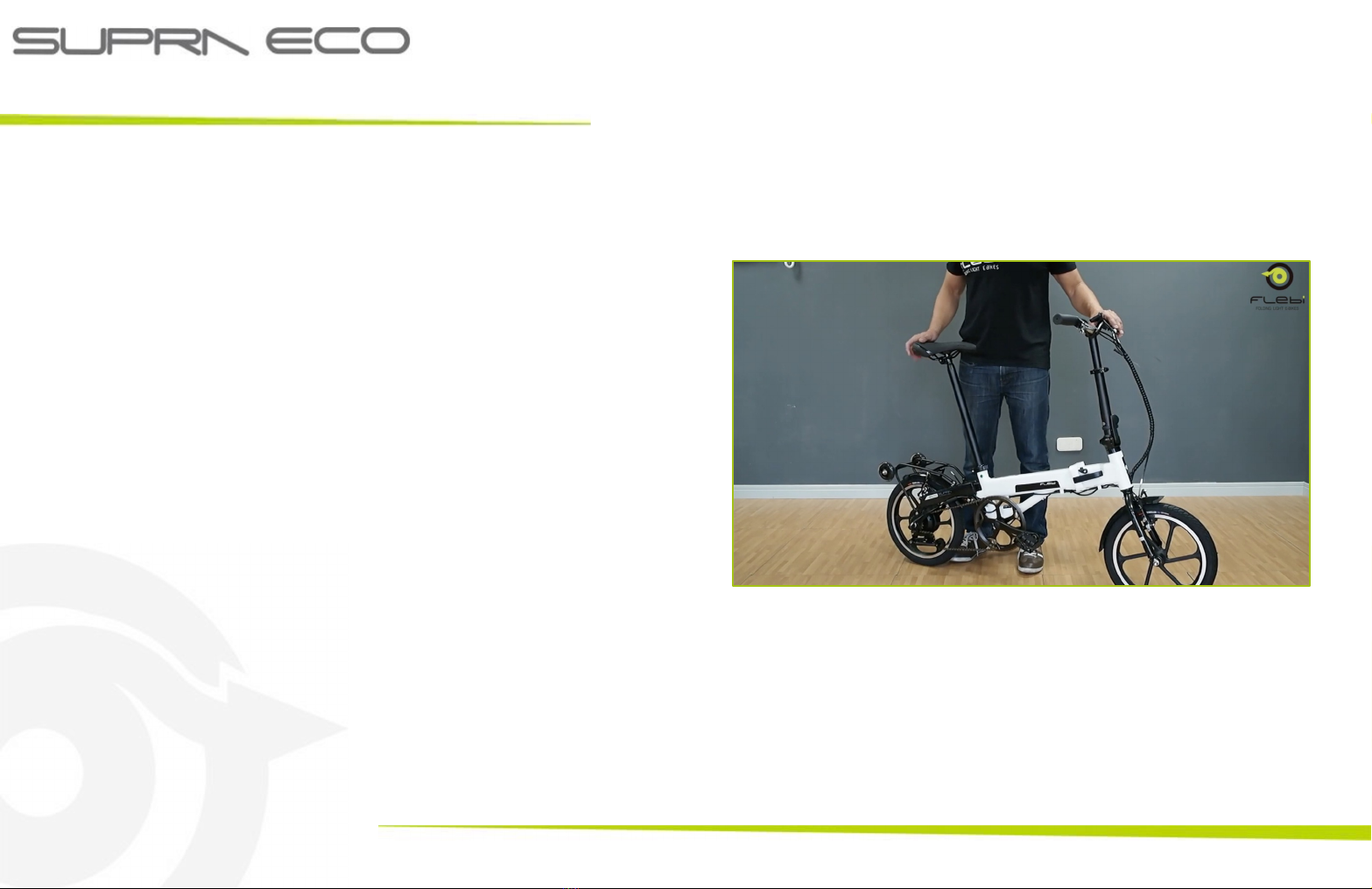

The assembly of your Flebi Supra ECO is very
easy and fast!
-Take your Supra ECO out of the box
-Remove the protections
-Unfold the bike (see 12)
-Insert the handlebar assembly (see 2)
-Place the seat post on the frame
Check the box contents:
-Flebi Supra ECO bicycle with integrated
battery in the frame
-Battery charger
1Video: https://youtu.be/NvmTTiGN8nU

Unpacking and assembly
Introduction of the set
handlebar
To install the assembly made up of the
handlebar and the telescopic seatpost
that allows you to adjust the height, you
have to insert it into the handlebar stem
before placing it in its natural position,
following the guides that you will find.
Check that the cables go down the left
side cleanly and remember to tighten
the closing key firmly.
2Video: https://youtu.be/UOFuB2fcxkk

Unpacking and assembly
Packed in original box
If you have to repackage your bike in its
original box to send it to Flebi’s technical
service, we recommend that you follow
these steps:
-Cover the parts with protections
-Remove the seat post
-Extract the handlebar assembly
-Fold the bike (see 13)
-Put it in the box
-Place the cork fixing the front wheel
-Rest the pedal on aprotection
-Put the front folding lever inwards
Introduce the rest of the accessories and
seal the box.
3Video: https://youtu.be/NvmTTiGN8nU

Start up
Handlebar adjustment
You can adjust the height of the
handlebar to accommodate your height.
To do this, open the telescopic closure
and place the seatpost in the desired
position, taking care not to exceed the
safety mark.Then tighten the clasp
firmly so it doesn't move.
You can also use this same adjustment
to correct slight deviations in the
direction of the bike.Open the lock, turn
the handlebar left or right looking for
the right one alignment, and retighten
the closing.
4Video: https://youtu.be/UOFuB2fcxkk

Start up
Saddle adjustment
You can also adjust the height of the
saddle to perfectly adapt it to your
height.To adjust the hardness you must
tighten the thread according to your
tastes.
Check that it is not too loose or the
seatpost will move.
To modify the angle of the saddle, you
can use anumber 13 wrench to decide
the inclination of the saddle.Remember
to tighten it well.
5Video: https://youtu.be/lNBEfWJ4lWI

Start up
Brake adjustment
If your Flebi Supra ECO had aloose
brake pad, you must make an
approximation of it to place it.
It is done by manually pressing the
brake so that it goes to its initial
position, seeking the greatest contact
without rubbing the tire.
The ideal is to do it little by little, to test if
it brakes cleanly.
6Video: https://youtu.be/hJybgO3e0u8

Start up
Tire inflation
To check the amount of air in the tires,
remember that the Supra ECO has 3.5
bar of pressure, so it is convenient to
use an inflator with apressure gauge.
The Supra ECO is very comfortable,
since you can inflate the wheels in the
semifolded position, without the need to
support it on the wall or turn it over.
7Video: https://youtu.be/fAKTJvfjjWs

Start up
Chain placement
To return the chain of your Flebi Supra
ECO to its natural position.You have to
the chain to the pinion and pay
attention to the pulley, carrying the
crowns in the exact way that we tell you
in the explanatory video.
Check that it does not come out again
with the folding position.
8Video: https://youtu.be/vi1yrq9J-UM

Electrical operation
Battery recharge
The Supra ECO battery is inside the
frame, for which you will have to plug
the charger into the mains, and the
charger connector to the battery
recharge connector.
The charging point is located in the
lower part of the frame, under arubber
cover that must be removed to access
the connector.
The led light of the charger will turn red
indicating that it is charging, until it is
fully charged (about 3hours), which will
turn green, indicating that you can now
disconnect.
9Video: https://youtu.be/VmHFdIxvolA

Electrical operation

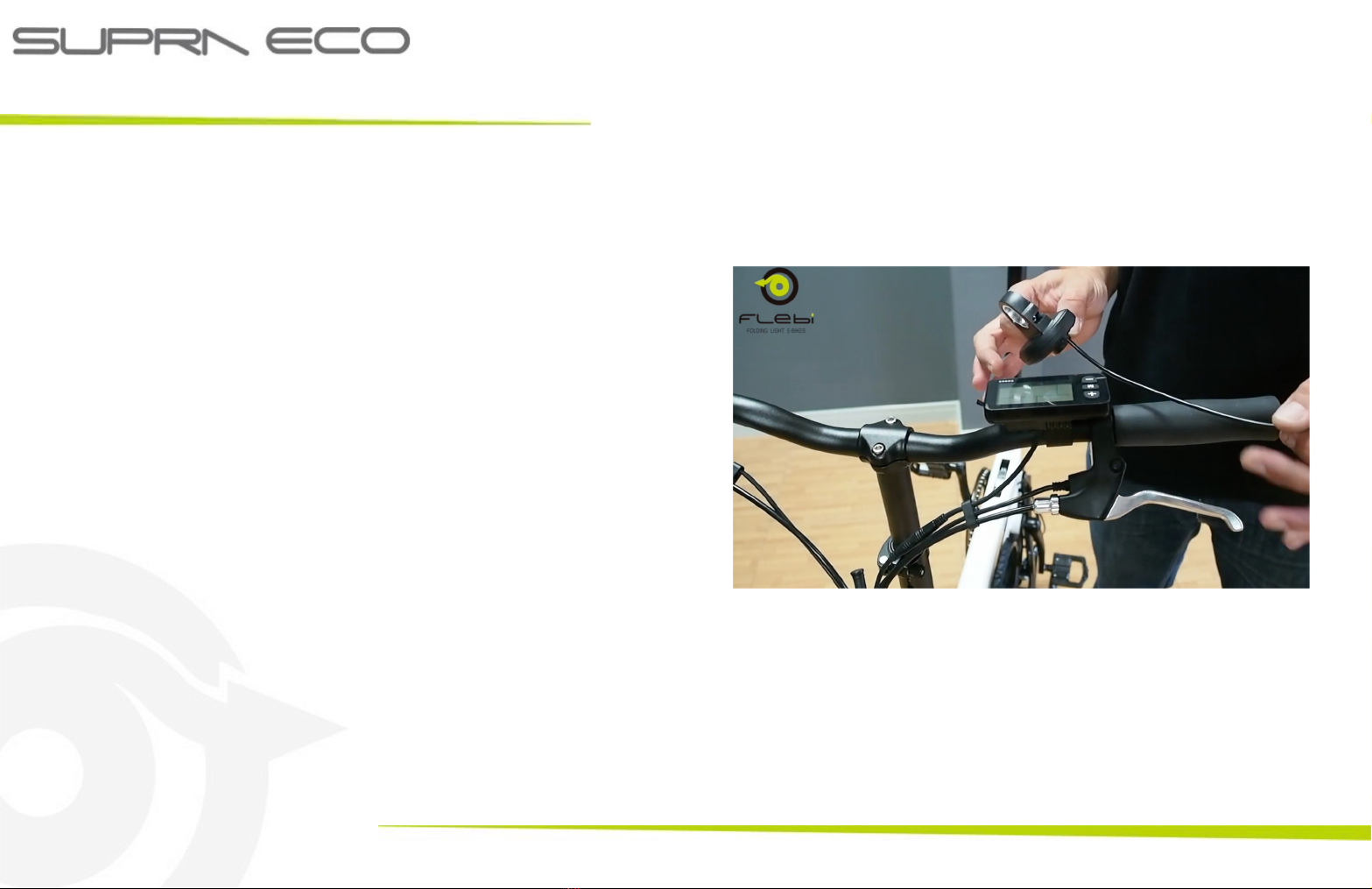

Display operation LCD C300S
El The display is activated by pressing
the power button located in the center
of it (M).
Once turned on, you will see several
indicators:remaining battery level, pedal
assistance level (1-6), speed and
accumulated km.
If you press the minus button in any of
the levels, the “Walking Mode” (6 km/h)
will be activated.
Remember that the more assistance
level you have selected, the more power
and consumption of the battery.
10Video: https://youtu.be/TQJvuPQ2E-c

Electrical operation
Operation of the throttle
(optional)
Unlike the PAS (Pedal Assist System), the
accelerator makes the motor work
without the need to pedal.
In order for the trigger-type accelerator
to work, you must turn on the display
and set the assistance level to 0.
From this state, you must press the –
button to remove any level of
assistance.
Then the throttle is already operational
and it will work by pressing the trigger.
11Video: https://youtu.be/v3EkLS2K82s
The accelerator is an option that we install is
under the responsibility of the user, since this
mode of operation is not compatible with the
European standard EN15194 that regulates
electric bicycles.

Folding & Unfolding
Unfolding the bike
The steps to deploy your Flebi Supra ECO
are:
-Place the seat post inside the frame
-Unfold the frame, tighten the front closure
and place the safety (see 17)
-Raise the stem of the handlebar, close the
folding lever and insert the safety
-Tilt the rear part of the frame until it
returns to its natural position.Once
engaged, it locks automatically
-Unfold the pedals (see 16)
12Video: https://youtu.be/9l71mLApJq8

Folding & Unfolding
Folding the bike
The steps to fold your Flebi Supra ECO are:
-Release the swingarm by pressing the
lever located on the frame next to the seat
post.
-Fold the pedals (see 16)
-Remove the safety and release the front
folding lever to then open the frame (see
15)
-Reduces the potential of the handlebar,
removing the safety first and making sure
that the cables are not tense
-Extract the seat post and place it between
the frame parts
13Video: https://youtu.be/9l71mLApJq8

Folding & Unfolding
Swingarm operation
One of the main advantages of the Supra
ECO is its comfortable and effective folding
mechanism, since with asimple movement
you can semi-fold and reduce its length by
half, very practical for easy transport.
To do this, you just have to act on the folding
lever located on the frame next to the seat
post.
To unfold it again, you just have to return it
to its position and the system is
automatically locked.
14Video: https://youtu.be/9l71mLApJq8

Folding & Unfolding
Opening/Closing the frame
To open or close the front of the frame,
you just have to remove the safety in case
of opening it and put it in case of closing it.
And release the lever of the fold out to
open it, and press it inward to close it.
15Video: https://youtu.be/9l71mLApJq8

Folding & Unfolding
Folding/Unfolding the pedals
To fold or unfold each pedal you must
press the control outwards and, at the
same time, fold the pedal inwards
(folded) or outwards (unfolded) until the
blockage is noticed.
16Video: https://youtu.be/9l71mLApJq8

Folding & Unfolding
Handlebar folding mechanism
First make sure that the cables are not
tangled or too tight due to fixed
handlebar height.
To fold the handlebar stem, you must
remove the lever lock and open it by
pressing outwards to then lower the
stem.
17Video: https://youtu.be/UOFuB2fcxkk

Folding & Unfolding
Quick fold easy-folding
This folding system is an alternative to
the conventional one, which has the
advantage of being faster (2 steps
instead of 3), and reducing the width of
the folded bike as much as possible,
sacrificing length.
The procedure is the same as the
previous one (see 13), without folding
the frame at the joint.You only have to
semi-fold it and lower the handlebar.
18Video: https://youtu.be/QdXeuRvVYRM
