Flex DWL 2500 User manual

DWL 2500 12.0/18.0V
Manufacturer : AEC Lighting Solutions Co., Ltd.

Instruction manual .....................................................3
493.635_DWL 2500_12.0_18.0.book Seite 2 Donnerstag, 19. September 2019 1:19 13

DWL 2500 12.0/18.0V Instruction manual
3
Contents
Meanings of signal words . . . . . . . . . . . . 3
Important safety informations . . . . . . . . . 3
GENERAL POWER TOOL SAFETY
WARNINGS . . . . . . . . . . . . . . . . . . . . . . 4
SPECIFIC SAFETY RULES AND
SYMBOLS . . . . . . . . . . . . . . . . . . . . . . . . 6
Technical specifications . . . . . . . . . . . . . 7
Overview . . . . . . . . . . . . . . . . . . . . . . . . . 8
Operating instructions . . . . . . . . . . . . . . . 9
Maintenance and care . . . . . . . . . . . . . . 11
Disposal information. . . . . . . . . . . . . . . . 11
Warranty . . . . . . . . . . . . . . . . . . . . . . . . 12
Meanings of signal words
WARNING
WARNING indicates a potentially
hazardous situations which, if ignored,
could result in death or serious injury.
CAUTION
CAUTION indicates a potentially hazardous
situations which, if not avoided, may result
in minor or moderate injury, or may cause
machine damage.
NOTE
NOTE emphasizes essential information.
Important safety informations
Read and understand all of the safety
precautions, warnings and operating
instructions in the Instruction manual before
operating or maintaining this power tool.
Most accidents that result from power tool
operation and maintenance are caused by
the failure to observe basic safety rules or
precautions.
An accident can often be avoided by
recognizing a potentially hazardous
situation before it occurs, and by observing
appropriate safety procedures.
Basic safety precautions are outlined in the
“SAFETY” section of this Instruction manual
and in the sections which contain the
operation and maintenance instructions.
Hazards that must be avoided to prevent
bodily injury or machine damage are
identified by WARNINGS on the power tool
and in this Instruction manual.
NEVER use this power tool in a manner that
has not been specifically recommended by
FLEX.
Intended use
The LED rechargeable work lamp
DWL 2500 12.0/18.0V is designed for
–for commercial use in industry and trade,
–checking large surfaces during polishing,
painting and cleaning as well as color
matching
–for targeted illumination of the workplace,
–for illuminating rooms.
The LED rechargeable work lamp
DWL 2500 12.0/18.0V is not suitable
–for use as a headlight.
493.635_DWL 2500_12.0_18.0.book Seite 3 Donnerstag, 19. September 2019 1:19 13

Instruction manual DWL 2500 12.0/18.0V
4
GENERAL POWER TOOL SAFETY WARNINGS
WARNING:
Read all safety warnings, instructions, illustrations and specifications
provided with this power tool.
Failure to follow all instructions listed below may result in electric
shock, fire and/or serious injury.
SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE
REFERENCE.
1. Work area safety
(a) Know your light. Read the manual
carefully. Learn the applications and
limitations, as well as the specific potential
hazards related to this tool.
Following these rules will reduce the risk of
electric shock, fire or serious injury.
(b) Do not permit children to use the light; it
is not a toy.
2. Electrical safety
(a) Do not expose power tools to rain or wet
conditions.
Water entering a power tool will increase the
risk of electric shock.
3. Personal safety
(a) Do not stare into the light. Avoid direct
eye exposure.
The light can cause flash blindness.
4. Power tool use and care
(a) Store idle power tools out of the reach of
children and do not allow persons unfamiliar
with the power tool or these instructions to
operate the power tool.
Power tools are dangerous in the hands of
untrained users.
5. Battery tool use and care
(a) Disconnect the battery pack from the
power tool before making any adjustments,
changing accessories or storing power
tools.
Such preventive safety measures reduce the
risk of starting the power tool accidentally.
(b) Recharge only with the charger specified
by the manufacturer.
A charger that is suitable for one type of
battery pack may present a fire risk when
used with another battery pack.
(c) Use power tools only with specifically
designated battery packs.
Use of any other battery packs may present
a fire risk and cause injury.
(d) When the battery pack is not in use,
keep it away from other metal objects, like
paper clips, coins, keys, nails, screws or
other small metal objects that can make a
connection from one terminal to another.
Shorting the battery terminals together may
cause burns or a fire.
(e) Under abusive conditions, liquid may be
ejected from the battery; avoid contact. If
contact accidentally occurs, flush with
water. If liquid contacts eyes, additionally
seek medical help.
Liquid ejected from the battery may cause
irritation or burns.
(f) Do not use a battery pack or tool that is
damaged or modified.
Damaged or modified batteries may exhibit
unpredictable behavior resulting in fire,
explosion or injury.
493.635_DWL 2500_12.0_18.0.book Seite 4 Donnerstag, 19. September 2019 1:19 13

DWL 2500 12.0/18.0V Instruction manual
5
(g) Do not expose a battery pack or tool to
fire or excessive temperature.
Exposure to fire or temperature above
265°F may cause explosion.
(h) Follow all charging instructions and do
not charge the battery pack or tool outside
the temperature range specified in the
instructions.
Charging improperly or at temperatures
outside the specified range may damage
the battery and increase the risk of fire.
6. Service
(a) Have your power tool serviced by a
qualified repair person using only identical
replacement parts.
This will ensure that the safety of the power
tool is maintained.
(b) Do not modify or attempt to repair the
appliance or the battery pack (as applicable)
except as indicated in the instructions for use
and care.
CAUTION
Do not touch hot parts.
WARNING
When using electrical appliances, basic
precautions should always be followed,
including the following:
–Read all the instructions before using the
appliance.
–To reduce the risk of injury, close
supervision is necessary when an
appliance is used near children.
–Use only the battery and charger
recommended or sold by the
manufacturer to recharge.
–To reduce the risk of electric shock, do
not submerge the light and battery pack in
water or other liquid. Do not place or store
the appliance where it can fall or be pulled
into a tub or sink.
493.635_DWL 2500_12.0_18.0.book Seite 5 Donnerstag, 19. September 2019 1:19 13

Instruction manual DWL 2500 12.0/18.0V
6
SPECIFIC SAFETY RULES AND SYMBOLS
1. Safety warnings for
rechargeable LED work lamps
(a) This power tool is intended to function
as a rechargeable LED work light. Read all
safety warnings, instructions, illustrations
and specifications provided with this power
tool.
Failure to follow all instructions listed below
may result in electric shock, fire and/or
serious injury.
2. Additional warnings
(a) The mains voltage and the voltage
specifications on the rating plate must
correspond.
(b) Only FLEX AUTHORIZED SERVICE
CENTER should disassemble or assemble
this power tool, and only genuine FLEX
replacement parts should be installed.
(c) Clean the exterior of the power tool only
with a soft cloth moistened with soapy
water, and dry thoroughly.
(d) Never use solvents, gasoline or thinners
on plastic components; otherwise the
plastic may dissolve.
(e) The light source contained in this luminaire
shall only be replaced by the manufacturer or
his service agent or a similar qualified person.
3. Definitions for symbols used on
this tool
SAVE THESE INSTRUCTIONS
Before switching on the power
tool, read the operating manual!
Disposal information
(see page 11)!
Do not look into the light source!
Rugged lamps IK07
Dust-proof degree 2 and protection
against ingress of water 0
(with battery)
Dust-proof degree 6 and protection
against ingress of water 7
(without battery)
WARNING-Risk of fireMinimum
distance from lighted objects 0.1 m
493.635_DWL 2500_12.0_18.0.book Seite 6 Donnerstag, 19. September 2019 1:19 13

DWL 2500 12.0/18.0V Instruction manual
7
Technical specifications
DWL 2500 12.0/18.0V
Machine type LED rechargeable work lamp
Lithium-ion battery V/Ah 18.0/2.5
18.0/5.0
12.0/2.5
12.0/4.0
12.0/6.0
Lighting duration h ~ 3.0 -30
Backup: 2h at 10%/300 lm
Color temperature K 2500/3500/4500/5500/6500
Total flux lm
3000/100%
2250/75%
1500/50%
750/25%
300/10%
Weight according to “EPTA Procedure
01/2003” (without battery) lbs 4.4
Size (LxWxH) in 9.4x9.0x4.1
493.635_DWL 2500_12.0_18.0.book Seite 7 Donnerstag, 19. September 2019 1:19 13

Instruction manual DWL 2500 12.0/18.0V
8
Overview
1 Support frame
2LED unit
3 Slot for battery
4 Handle
5 Mounting option for a tripod
6 USB port
7 Control element
8 Li-ion battery (2.5 Ah or 5.0 Ah)
9 Release button for battery
10 State of charge indicator
493.635_DWL 2500_12.0_18.0.book Seite 8 Donnerstag, 19. September 2019 1:19 13

DWL 2500 12.0/18.0V Instruction manual
9
Operating instructions
WARNING
Risk of electric shock! Before carrying out
any work on the power tool, always remove
the battery.
Before switching on the power
tool
Unpack power tool and accessories and
check that no parts are missing or damaged.
Inserting/replacing the battery
1. Press charged battery fully into
the power tool.
2. To remove the battery, press the
release buttons (1.) and pull out the
battery (2.).
CAUTION
When the device is not in use, protect the
battery contacts. Loose metal parts may
short-circuit the contacts; explosion and fire
hazard!
Battery state of charge
1. Press the button to check the state of
charge at the state of charge indicator
LEDs.
The indicator goes out after 5 seconds.
If one of the LEDs flashes, the battery must
be recharged. If none of the LEDs light up
after the button is pressed, the battery is
faulty and must be replaced.
Switching on and off
1. Switch the LED rechargeable work lamp
on and off by pressing the on/off switch.
493.635_DWL 2500_12.0_18.0.book Seite 9 Donnerstag, 19. September 2019 1:19 13

Instruction manual DWL 2500 12.0/18.0V
10

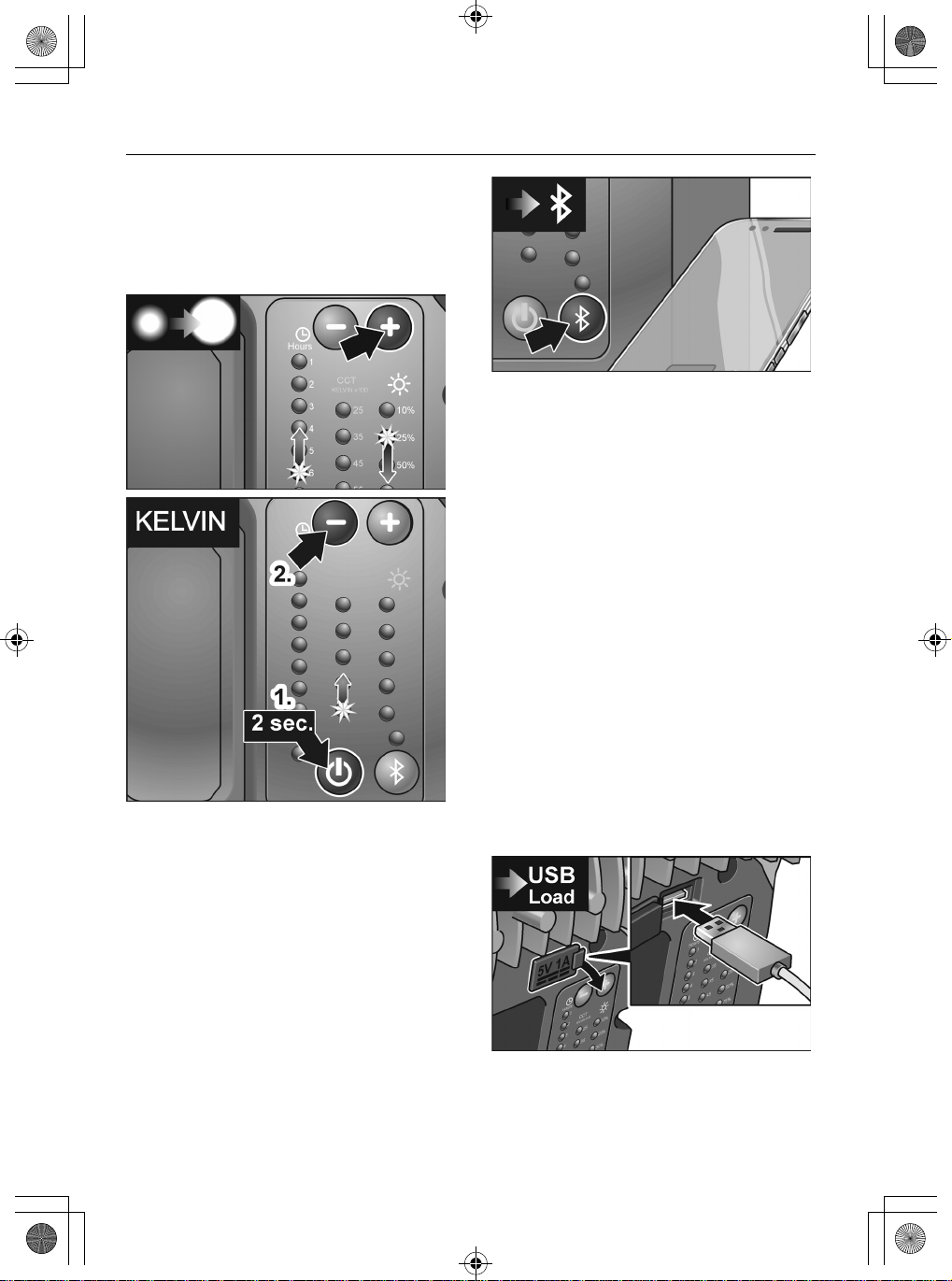

Adjusting light intensity
The light intensity of the LED rechargeable
work lamp can be adjusted by pressing "+"
or "-".
The LED display on the left indicates the
remaining lighting duration.
Adjusting color temperature
You can change the color temperature of the
LED rechargeable work lamp incrementally in
5 stages by pressing the on/off switch for
longer than 2 seconds and then pressing the
"+" and "-" button.
Bluetooth® control
The LED rechargeable work lamp can be
controlled via the integrated Bluetooth® light
control system. Activate by pressing the
"Bluetooth® button" and connect to the app.
Functions
–Switch lamp on/off
–Adjust light intensity
–Select color temperature
–Connect up to 4 lamps together
–Select pin code so that no one else can
control the lamp
The process to delete the pin code is:
1. Turn on the Bluetooth function.
2. Press the Bluetooth button for 10
second.
3. The pin code is reset.
Compatible with iPhone 5 or higher/Android
5.0 or higher.
Visit the iTunes App Store/Google Play/or
download the app from our website.
Powerbank function
The LED rechargeable work lamp has an
integrated powerbank. The lamp lasts for up
to 2 hours with a luminous flux of 300 lumen
- without rechargeable battery. With
rechargeable battery- It allows mobile units,
e.g. smartphones, to be charged via the
USB socket.
Charge voltage/current: 5V/1A
493.635_DWL 2500_12.0_18.0.book Seite 10 Donnerstag, 19. September 2019 1:19 13

DWL 2500 12.0/18.0V Instruction manual
11
Assembly
You can set up the LED rechargeable work
lamp in any position with the aid of a support
stand.
You can mount the LED rechargeable work
lamp on a tripod or attach it to any magnetic
surface with the aid of a magnet holder.
Maintenance and care
WARNING
Risk of electric shock! Before carrying out
any work on the power tool, always remove
the battery.
Cleaning
Electric power tool
WARNING
Do not use water or liquid detergents.
1. Remove dirt and dust from the housing
with a paint brush or dry cloth.
Repairs
Repairs may be carried out by an authorised
customer service centre only.
Spare parts and accessories
NOTE
Only the tools released by FLEX may be used.
Other accessories, in particular insertion
tools, can be found in the manufacturer’s
catalogues.
Exploded drawings and spare-part lists can
be found on our homepage:
www.flex-tools.com
Disposal information
WARNING
Render redundant power tools unusable:
–by removing the power cord on mains
operated power tools,
–by removing the battery on battery
operated power tools.
EU countries only:
Do not dispose of electric power tools in
the household waste!
In accordance with the European Directive
2012/19/EU on Waste Electrical and
Electronic Equipment and its incorporation
into national law, used power tools must be
collected separately and recycled in an
environmentally friendly manner.
Raw material recovery instead of
waste disposal.
493.635_DWL 2500_12.0_18.0.book Seite 11 Donnerstag, 19. September 2019 1:19 13

Instruction manual DWL 2500 12.0/18.0V
12
Device, accessories and packaging should
be recycled in an environmentally friendly
manner. Plastic parts are identified for
recycling according to material type.
WARNING
Do not throw batteries into the household
waste, fire or water. Do not open used
batteries.
Accumulators/batteries should be collected,
recycled or disposed of in an environ-
mentally friendly manner.
EU countries only:
In accordance with Directive 2006/66/EC
defective or used batteries must be recycled
NOTE
Please ask your dealer about disposal
options!
Warranty
FLEX North America limited one
year warranty
FLEX North America warrants its Profes-
sional Power Tools for a period of one year
from the date of original purchase. We will
repair or replace at our option, any part or
parts of the product and accessories covered
under this warranty, which, after examination,
prove(s) to be defective in workmanship or
material during the warranty period. For repair
or replacement, return the complete tool or
accessory, transportation prepaid, to your
nearest Authorized Service Station.
Proof of purchase may be required.
Thiswarranty does not apply to repair or
replacement due to misuse, abuse, normal
wear and tear or repairs attempted or made by
someone other than our Authorized Service
Stations.
ANY IMPLIED WARRANTY, INCLUDING
THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR
PARTICULAR PURPOSE, WILL LAST
ONLY FOR ONE (1) YEAR FROM THE
DATE OF PURCHASE.
To obtain information on warranty perfor-
mance, please write to:
FLEX - North America, Inc.
2720 E. Phillips Road
Greer, SC 29650, U.S.A.
1-877-331-6103 (main line)
1-888-331-6104 (fax line)
www.FlexNorthAmerica.com
THE FOREGOING OBLIGATION IS FLEX
NORTH AMERICA'S SOLE LIABILITY
UNDER THIS OR ANY IMPLIED WARRAN-
TY AND UNDER NO CIRCUMSTANCES
SHALL FLEX NORTH AMERICA BE
LIABLE FOR ANY INCIDENTAL
CONSEQUENTIAL DAMAGES.
Some states do not allow limitations or how
long an implied warranty lasts or the
exclusion or limitation of incidental or
consequential damages, so the above
limitation or exclusion may not apply to you.
This warranty gives you specific legal rights
and you may also have other legal rights,
which vary from state to state.
493.635_DWL 2500_12.0_18.0.book Seite 12 Donnerstag, 19. September 2019 1:19 13
FCC WARNING
This device complies with Part 15 of the FCC rules.
Operation is subject to the following two conditions:
1) this device may not cause harmful interference, and
2) this device must accept any interference received,
including interference that may cause undesired operation.
Caution: changes or modifications not expressly approved
by the party responsible for compliance could void your
authority to operate the equipment.
Radiation Exposure Statement
The device has been evaluated to meet general RF
exposure requirement.
The device can be used in portable exposure condition
without restriction.

493.635 / 09–2019 / No responsibility for typographical errors. Technical changes reserved.
Flex-Elektrowerkzeuge GmbH
Bahnhofstr. 15
D-71711 Steinheim/Murr
Tel. [phone]
Fax [phone]
[email protected]
www.flex-tools.com
Flex-North America, Inc.
Warehouse/Distribution Center
2720 E. Phillips Road
Greer, SC 29650
[phone] (Customer Service)
[phone] (Fax)
Flex-North America, Inc.
US-Corporate Office
13057 West Center Street – Suite 6
Omaha, NE 68118
[phone] (Office)
[phone] (Fax)
www.flexnorthamerica.com
