Fliegl Noah TTW User manual

Operating instructions

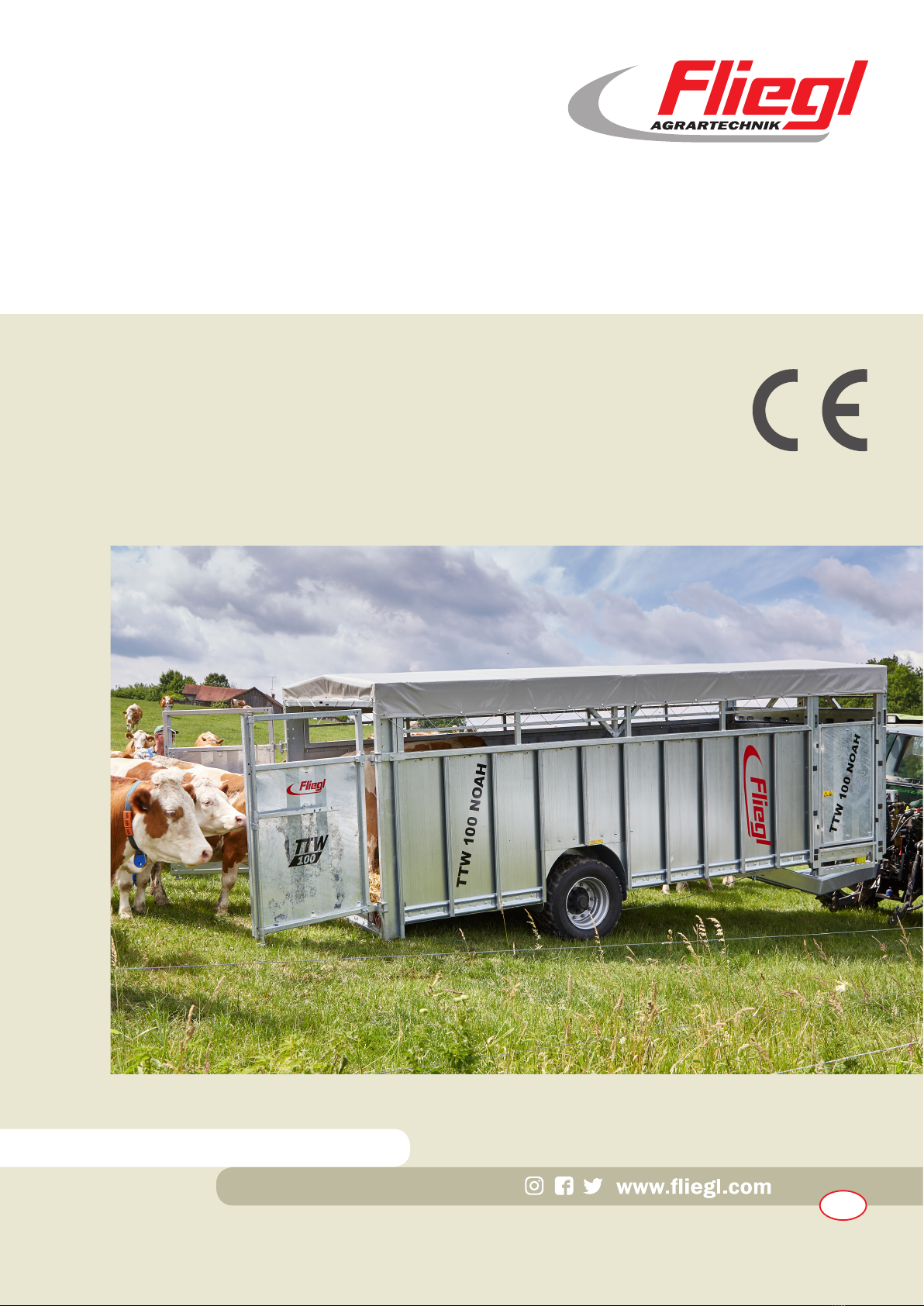

TTW Noah livestock trailer
We are Fliegl.
GB
TTW

Read these operating instructions prior to first-time start-up and observe them at
all times!
Retain for future reference!

Foreword
Dear valued customer,
Thank you for purchasing the Fliegl Noah livestock trailer.
Fliegl machines and attachments are manufactured with care under continuous monitoring.
The Fliegl Noah livestock trailer you have purchased is a product manufactured to the highest quality
standards.
To avoid accidents, and therefore personal injuries and material damage, you must read and understand
the corresponding cautionary and warning notices in these operating instructions and on the Fliegl Noah
livestock trailer before beginning operation or maintenance of the trailer.
These operating instructions must therefore also be passed on to the operating personnel.
Before putting the Fliegl Noah livestock trailer into operation, every operator must be familiar with how to
handle the machine as described in these operating instructions.
The safety requirements must be strictly followed.
Compliance with safety regulations applicable to your country is also mandatory.
The Fliegl livestock trailer can be attached to different vehicles, such as tractors.
The limits of use are described in this manual.
Any types of operation or use other than those described in these operating instructions, or beyond the
limits of use specified by the manufacturer, are strictly prohibited.

TTW Noah livestock trailer
Contents
Fliegl Agrartechnik GmbH, 84453 Mühldorf am Inn, Germany
3 of 69
Contents
Foreword .................................................................................................................................................... 2
Contents ..................................................................................................................................................... 3
Legal notices .............................................................................................................................................. 7
Identification ............................................................................................................................................... 8
EC Declaration of Conformity..................................................................................................................... 9
1. User instructions................................................................................................................................ 10
1.1 Purpose of this document......................................................................................................... 10
1.2 Locations in the operating instructions..................................................................................... 11
1.3 Illustrations used....................................................................................................................... 11
1.4 Cross references ...................................................................................................................... 11
1.5 Terminology: "trailer", "machine".............................................................................................. 11
1.6 Figures...................................................................................................................................... 11
1.7 Scope of the document............................................................................................................. 11
1.8 Presentation of safety instructions ........................................................................................... 12
1.9 Liability and damages............................................................................................................... 12
1.10 Duty to inform ........................................................................................................................... 12
2. Basic safety instructions.................................................................................................................... 13
2.1 Designated use......................................................................................................................... 15
2.2 Reasonably foreseeable misuse .............................................................................................. 16
2.3 Service life of the machine ....................................................................................................... 16
2.4 Risks when working with the machine...................................................................................... 17
2.5 Residual risks ........................................................................................................................... 17
2.6 Obligations of the operator ....................................................................................................... 17
2.7 Obligations of personnel........................................................................................................... 17
2.8 Qualification of operating personnel......................................................................................... 17
2.9 Qualification of specialist personnel......................................................................................... 18
2.10 Personal protective equipment................................................................................................. 18
2.11 Operational safety .................................................................................................................... 19
2.11.1 Operation without correct start-up ...................................................................................... 19
2.11.2 Safeguarding perfect technical condition............................................................................ 19
2.11.3 Danger due to machine damage ........................................................................................ 19
2.11.4 Technical limits ................................................................................................................... 19
2.12 Safety and protective devices .................................................................................................. 20
2.12.1 Emergency stop device ...................................................................................................... 20
2.12.2 Description of additional safety and protective devices...................................................... 20
2.12.3 In case of faulty protective devices..................................................................................... 20
2.12.4 Testing safety and protective devices ................................................................................ 20

TTW Noah livestock trailer
Contents
Fliegl Agrartechnik GmbH, 84453 Mühldorf am Inn, Germany
4 of 69
2.13 Workstation of operating personnel..........................................................................................20
2.14 Danger areas............................................................................................................................21
2.15 Machine identification ............................................................................................................... 22
3. Description of the machine................................................................................................................23
3.1 Applications...............................................................................................................................23
3.2 Design variants.........................................................................................................................23
3.3 Functional description...............................................................................................................23
3.4 Layout of the trailer...................................................................................................................24
3.5 Assemblies and components....................................................................................................25
3.6 Dimensions and weights........................................................................................................... 28
4. Transport and installation..................................................................................................................29
4.1 Basic requirements...................................................................................................................29
4.2 Supply and installation..............................................................................................................29
4.2.1 Drawbar eye connection.......................................................................................................29
4.2.2 Establishing the electrical connection................................................................................... 30
4.2.3 Compressed air supply.........................................................................................................30
4.2.4 Hydraulic connections........................................................................................................... 30
5. Start-up.............................................................................................................................................. 32
5.1 First-time start-up...................................................................................................................... 32
5.2 Check before start-up...............................................................................................................32
5.3 Returning to service..................................................................................................................32
6. Preparation and setup.......................................................................................................................33
6.1 Compressed air brake system with manual control valve ........................................................33
6.2 Hydraulic brake (option not for Germany) ................................................................................34
6.3 Brake system without load adjustment valve............................................................................34
6.4 Brake system with load adjustment valve.................................................................................34
6.5 Spindle brake / parking brake...................................................................................................35
6.6 Electrical systems..................................................................................................................... 35
7. Use and operation.............................................................................................................................36
7.1 Trailer operation........................................................................................................................ 36
7.1.1 Before operation ................................................................................................................... 36
7.1.2 Setting up the trailer coupling on the towing vehicle ............................................................36
7.1.3 Coupling the trailer................................................................................................................36
7.1.4 Conducting a trial run............................................................................................................37
7.1.5 Uncoupling the trailer............................................................................................................37
7.2 Working with the machine.........................................................................................................38
7.2.1 General safety and operating instructions............................................................................38
7.2.2 Loading the trailer................................................................................................................. 39

TTW Noah livestock trailer
Contents
Fliegl Agrartechnik GmbH, 84453 Mühldorf am Inn, Germany
5 of 69
7.2.3 Emptying the trailer............................................................................................................... 39
7.2.4 Using the vehicle doors ........................................................................................................ 40
7.2.5 Using the separating grid...................................................................................................... 41
8. Equipment......................................................................................................................................... 42
8.1 Load floor.................................................................................................................................. 42
8.2 Flange coupling ........................................................................................................................ 42
8.3 Tarpaulin (optional)................................................................................................................... 42
9. Service and maintenance.................................................................................................................. 43
9.1 Customer service...................................................................................................................... 43
9.2 Replacement parts ................................................................................................................... 43
9.3 Fliegl VIN (vehicle ID number) and type plate.......................................................................... 44
9.4 Operational maintenance ......................................................................................................... 45
9.4.1 General instructions for maintenance................................................................................... 45
9.4.2 Cleaning the vehicle ............................................................................................................. 46
9.4.3 Corrosion protection ............................................................................................................. 47
9.4.4 Lubrication............................................................................................................................ 47
9.4.5 Tyres and wheels ................................................................................................................. 48
9.5 Troubleshooting and fault elimination....................................................................................... 50
9.5.1 List of warning and fault signals ........................................................................................... 50
9.6 Decommissioning..................................................................................................................... 51
9.6.1 Temporary shutdown............................................................................................................ 51
9.6.2 Storage conditions................................................................................................................ 51
9.6.3 Disassembly and final shutdown.......................................................................................... 51
9.6.4 Scrapping and recycling....................................................................................................... 51
10. Electrics........................................................................................................................................ 52
10.1 Contact assignment plan.......................................................................................................... 52
10.2 Rear light model ....................................................................................................................... 52
11. Axles............................................................................................................................................. 53
11.1 Axle assemblies........................................................................................................................ 53
11.1.1 Single-axle assembly –TTW 100....................................................................................... 53
11.1.2 Tandem assembly –TTW 140............................................................................................ 53
11.2 Axle maintenance work ............................................................................................................ 53
12. Spare parts lists............................................................................................................................ 54
13. Livestock transport regulations..................................................................................................... 57
13.1 Livestock transport requirements ............................................................................................. 57
13.2 Agricultural livestock transport up to 50 km.............................................................................. 57
13.3 Agricultural livestock transport up to 65 km.............................................................................. 58
13.4 Transport duration .................................................................................................................... 58

TTW Noah livestock trailer
Contents
Fliegl Agrartechnik GmbH, 84453 Mühldorf am Inn, Germany
6 of 69
13.5 Condition and construction of the transport trailer....................................................................59
13.5.1 Livestock transport specifications....................................................................................... 59
13.6 Cleaning and disinfecting the transport trailer..........................................................................60
13.7 Space requirements for livestock transport..............................................................................60
13.7.1 Transporting cattle .............................................................................................................. 60
13.7.2 Transporting pigs ................................................................................................................ 61
13.8 Laws, directives and other regulations .....................................................................................61
14. Index.............................................................................................................................................62

TTW Noah livestock trailer
Legal notices
Fliegl Agrartechnik GmbH, 84453 Mühldorf am Inn, Germany
7 of 69
Legal notices
1. When the Noah livestock trailer is delivered, check immediately to determine whether the
machine is complete. State any complaints to the freight forwarder, have them certified on the
delivery documents and inform the delivering plant within 14 days after you become aware of
the problem (see "Scope of delivery").
2. The manufacturer is liable for technical defects. The owner is liable for defects that were
caused by improper operation.
The warranty period is 1 year from delivery.
3. At our discretion, the warranty will either cover the cost of repair of the faulty part or
replacement of the part, or delivery of the part from the factory, carriage due. Any other claims
for compensation (such as for losses due to business interruption) are expressly excluded.
4. The warranty will be invalidated if the attachment or device is modified by installing third-party
parts without our knowledge or prior agreement, especially if improper modifications were
made.
5. The warranty will also be invalidated if a defect is not rectified completely and correctly
immediately after it is discovered. Repairs required for functional reasons need our prior
approval if a claim is to be made for full or partial compensation of expenses.
6. Liability is excluded for damage to the Noah livestock trailer resulting from exceeding the
allowable working capacity or transport speed. The warranty does not cover natural wear,
damage resulting from negligent or improper handling of the machine, or storage and
corrosion damage.
7. Parts not manufactured by ourselves are covered by the warranty provided by the relevant
manufacturer. Machine parts for which claims are made under the terms of the warranty must
be sent without delay to our address in Mühldorf for the purpose of material examination to
determine the damage. If a replacement is made, these parts become our property.
8. Legal warranty provisions also apply to the Fliegl Noah livestock trailer.

TTW Noah livestock trailer
Identification
Fliegl Agrartechnik GmbH, 84453 Mühldorf am Inn, Germany
8 of 69
Identification
Machine identification data
Manufacturer:
Fliegl Agrartechnik GmbH
Product:
Noah livestock trailer
Type:
TTW 100
TTW 140
Serial number:
WGJXXXXXXXXXXXXXX
Manufacturer details
Fliegl Agrartechnik GmbH
Bürgermeister-Boch-Straße 1
84453 Mühldorf am Inn, Germany
Telephone: [phone] - 0
Fax: [phone] - 550
E-mail: [e-mail]
Internet: www.fliegl.com
Formal details of operating instructions
Document no.:
1-030B03192.0
Version/revision:
2.0
Creation date:
09/05/2018
Last revision:
29/08/2019
Language of original operating instructions: German
(Translation of original operating instructions)
Copyright Fliegl, 2019 All rights reserved.
Reproduction, in whole or in part, is only permitted with the approval of Fliegl.
We are constantly developing and enhancing our products and therefore reserve the right to make changes to
them without prior notification.
This may result in differences in the illustrations and descriptions in these operating instructions.

TTW Noah livestock trailer
Declaration of conformity
Fliegl Agrartechnik GmbH, 84453 Mühldorf am Inn, Germany
9 of 69
EC Declaration of Conformity
As stipulated in EC Machinery Directive 2006/42/EC, Annex II, 1.A (ORIGINAL)
Manufacturer:
Fliegl Agrartechnik GmbH
Bürgermeister-Boch-Straße 1
84453 Mühldorf am Inn, Germany
Person residing in the European Community authorised to compile the relevant technical
documentation:
Kopold Gerald
Fliegl Agrartechnik GmbH
Bürgermeister-Boch-Straße 1
84453 Mühldorf am Inn, Germany
Description and identification:
Product: Livestock trailer
Type: TTW 100 single-axle, TTW 140 tandem
Project designation: Fliegl TTW
Trade name: Fliegl TTW Noah livestock trailer
Function: Transport trailer for livestock
It is expressly stated that this machine complies with all relevant provisions of the following
EC directives:
2006/42/EC:2006-05-17 EC Machinery Directive 2006/42/EC
Source of the harmonised standards applied in accordance with Article 7(2):
ISO 12100:2010 Safety of machinery –General principles for design –Risk assessment and risk
reduction
Mühldorf am Inn 29/08/2019
Place, Date

TTW Noah livestock trailer
User instructions
Fliegl Agrartechnik GmbH, 84453 Mühldorf am Inn, Germany
10 of 69
1.User instructions
This manual provides information about the
Structure
Function
Operation
Maintenance
Accessory parts
of the Fliegl Noah livestock trailer and ensures long, problem-free operation if it is carefully observed. In
case of malfunctions, it can be used to troubleshoot and rectify errors. The purpose of the safety
instructions is to prevent personal injury and damage to the Noah livestock trailer.
All operators are required to read these safety instructions and comply with them at all times.
The regulations of agricultural employers' liability insurance associations also apply.
Fliegl Agrartechnik GmbH assumes no liability and honours no warranty for damage and malfunctions
resulting from failure to comply with the operating instructions.
This information is required to ensure a smooth replacement parts ordering
process:
Copy the relevant information from the type plate into the box below:
For replacement part orders please contact:
Fliegl Agro-Center GmbH
Maierhof 1
84556 Kastl, Germany
Tel.: [phone] / 9600 - 0
Fax: [phone] / 9600 - 71
E-mail: [e-mail]
www.agro-center.de
1.1 Purpose of this document
These operating instructions:
- Describe the function, operation and maintenance of the machine
- Provide important advice for safe and efficient handling of the machine
Vehicle ID no.
(serial number)
…………………………………………………………………………………
Type
…………………………………………………………………………………
Year of manufacture
…………………………………………………………………………………

TTW Noah livestock trailer
User instructions
Fliegl Agrartechnik GmbH, 84453 Mühldorf am Inn, Germany
11 of 69
1.2 Locations in the operating instructions
All directions and locations in these instructions are based on the operator's workstation.
Top
Rear Front
Side view, right
Fig. 1: Main view of the livestock trailer
1.3 Illustrations used
Instructions and system responses
The steps to be taken by operating personnel are presented in the form of a (numbered) list.
These steps must be followed in the correct order. The system response to each operator action is
marked with an arrow. Example:
Operator action step 1
System response to operator action step 1
1.4 Cross references
Cross references to other points in the operating instructions appear in the text along with the relevant
chapter and subchapter or section.
1.5 Terminology: "trailer", "machine"
Within this document, the livestock trailer is also referred to as the "trailer" or "machine".
1.6 Figures
The figures in this document do not always depict the exact machine type.
The information relating to the figures always corresponds to the machine type described in
this document.
1.7 Scope of the document
In addition to the standard models, B variants of the machine are also described in this document. Your
machine may deviate from this.

TTW Noah livestock trailer
User instructions
Fliegl Agrartechnik GmbH, 84453 Mühldorf am Inn, Germany
12 of 69
1.8 Presentation of safety instructions
Danger!
Imminent risk that will lead to serious bodily harm or death.
Warning!
Potentially hazardous situation that could lead to serious bodily harm or death.
Caution!
Potentially hazardous situation that could lead to minor bodily harm. Also potential
damage to property.
Notice!
Potentially harmful situation in which the product or other property in the vicinity
could be damaged.
Important!
For advice about usage and other useful information.
1.9 Liability and damages
The product must only be operated by persons who are familiar with the operating instructions, the
product and national laws, directives and regulations relating to health and safety at work as well as
accident prevention. We accept no liability for personal or material damage caused, or contributed to, by
untrained persons due to non-compliance with regulations regarding health and safety at work as well as
accident prevention.
Based on the specifications in these operating instructions, Fliegl Agrartechnik GmbH assumes no
liability for direct or consequential damage attributable to improper operation or maintenance. For your
own safety, you should only use original replacement parts and accessory products. Fliegl Agrartechnik
GmbH assumes no liability for the use of other products and any resulting damage. No claims for
modification of delivered products can be made on the basis of the information, images and descriptions
provided in this manual.
1.10 Duty to inform
These operating instructions are to be considered part of the livestock trailer.
If the machine is passed on to another party by the customer, the operating instructions must also be
passed on and the party receiving the machine must be instructed regarding the regulations cited above.
Only the procedures described in these operating instructions are safe.
Read and observe the contents of chapter 2 Basic safety instructions before first using the
machine.
Before performing any work with the machine, always read and observe the contents of the
relevant sections of the operating instructions.
The operating instructions must be stored such that they are always on hand for the machine
user.

TTW Noah livestock trailer
Safety instructions
Fliegl Agrartechnik GmbH, 84453 Mühldorf am Inn, Germany
13 of 69
2. Basic safety instructions
Failure to observe the safety instructions and warnings can pose a risk to
persons, property and the environment.
When driving on public roads, be aware of the following:
When driving on public roads, the provisions of the country-specific registration regulations must be
observed. A licence is required to operate agricultural trailers.
The trailer includes an operating permit or vehicle title.
(The operator is personally responsible for the registration of the vehicle.)
Be aware of the legal requirements of your respective country.
Lost permit documents can only be replaced by agreement with the administrative authority specified
below. A duplicate certificate will be given to the customer by the administrative authority.
Before driving on public roads:
- Before travelling on public roads, ensure that the maximum permissible dimensions, weights as
well as axle, drawbar and trailer loads dictated by EU or national law are not exceeded.
- The doors must be closed.
- The supporting mechanism must be fully retracted.
- Lighting equipment must be connected.
- A functional check of the lighting equipment must be performed.
The towing vehicle to be used with the trailer must meet the following requirements:
The permitted trailer load must correspond to the permitted total weight of the trailer as a minimum.
The towing vehicle must have a sufficient number of hydraulic connections available in order to supply
the trailer's individual hydraulic circuits.
The controls of the on-board hydraulic system must be laid out so that visual contact
with the trailer can be maintained during operation.
Before the trailer is connected to the towing vehicle, its compatibility with tow
connection(s), hydraulic connections, permitted drawbar loads, axle loads etc. must
be adapted to the operating conditions and set accordingly.
Entering or remaining in the trailer is only permitted when it is stopped and the
towing vehicle is turned off.
Check the trailer after use every day for obvious damage and defects.
In the case of damage that affects safety, repair the trailer immediately.
In the event of any faults that affect safety, the trailer must be stopped immediately.
The trailer and the tractor must be secured against reactivation.
Changes to the trailer must only be carried out following consultation and with
express permission of the manufacturer.
Use only original replacement parts.
Follow the stipulated maintenance intervals in this manual.
In addition to this manual, the operating instructions included for third-party
components must be observed.
Note the permitted axle load, support load, total weight and maximum speed.

TTW Noah livestock trailer
Safety instructions
Fliegl Agrartechnik GmbH, 84453 Mühldorf am Inn, Germany
14 of 69
Notes on driving with the TTW
The handling characteristics of a towing vehicle are influenced by the coupled
trailer.
Always adapt the vehicle speed and driving style to the local conditions.
Avoid sudden cornering when driving uphill and downhill as well as when crossing a
slope. There is a risk of tipping.
When driving uphill, use a low gear. Never change or disengage gears on a
gradient.
Stop the towing vehicle immediately if a brake fault occurs.
Attend to faults immediately.
The operator workstation is the driver's seat of the towing vehicle.
The towing vehicle is to be fitted with ballast weights (if necessary) to ensure
steering and braking capability (at least 20% of the vehicle's empty weight on the
front axle).
Carrying persons on the trailer is prohibited.
Climbing on and off safely
Careless behaviour can result in falling when climbing on and off the machine. Persons climbing
on to the machine without using the designated access points may slip, fall and suffer serious
injuries.
The safety of access points can be impaired by dirt and debris.
Always ensure that access points are clean and in working condition.
Never climb on or off the machine while it is moving.
Never jump off the machine.
Only climb on and off the machine via the access points specified in the operating
instructions.
Notes on coupling and uncoupling the TTW
There is an injury risk when coupling devices to the tractor.
When coupling, do not step between the trailer and the tractor while the tractor is
moving backwards.
Nobody must enter the area between the tractor and the trailer unless the vehicles
have been secured against rolling away with the parking brake and/or wheel chocks.
Before starting to drive, release the parking brake.
Parking the TTW
Attention! Secure the trailer to prevent it rolling away.
Park the livestock trailer on level, solid ground.
On soft ground, the supporting foot's surface area must be increased by using a
suitable aid (e.g. a wood plank).
Apply the parking brake.
Extend the supporting stand.
Secure with wheel chocks.
Handling the mechanical supporting stand
Couple the TTW to the tractor.
The load on the supporting stand can be reduced by operating the lock.
Retract the supporting foot and lock it again.
Ensure it is properly locked.
The tractor is a weight-bearing element for single-axle and tandem trailers.
Therefore, the trailer must only be set down on the supporting foot when it is
empty.

TTW Noah livestock trailer
Safety instructions
Fliegl Agrartechnik GmbH, 84453 Mühldorf am Inn, Germany
15 of 69
2.1 Designated use
The machine is constructed according to the EC Machinery Directive using the latest technology and in
accordance with the recognised safety regulations.
However, during use there is a risk to life and limb for the user or third party, or risk of damage to the
machine or other property.
The TTW must only be used as intended and when in good and safe working
condition.
Operational safety of the machine is guaranteed only if it is used as intended.
An unequally distributed load can cause damage to the vehicle, for which Fliegl Agrartechnik GmbH
shall assume no liability.
To be used exclusively for transporting livestock (e.g. cattle, pigs, sheep etc.).
Always use a signaller when reversing (as required by German road traffic regulations).
The machine is intended solely for agricultural use and must only be used if:
All safety equipment specified in the operating instruction is present and in the safety position
All safety instructions in the operating instructions are observed and complied with, including the
information in the chapter "Basic safety instructions" as well as the specific instructions in the
individual chapters
The operating instructions form part of the machine and must remain with the machine at all times. The
machine must only be operated following appropriate instruction and in strict compliance with these
operating instructions.
Any use of the machine not described in the operating instructions can result in serious injury or death
and may also lead to machine and property damage.
Unauthorised changes to the machine can have a negative impact on the machine properties or impair
its correct function. Unauthorised changes will therefore release the manufacturer from any resulting
liability.
Designated use also includes compliance with the operating, maintenance, cleaning and repair
instructions prescribed by the manufacturer.

TTW Noah livestock trailer
Safety instructions
Fliegl Agrartechnik GmbH, 84453 Mühldorf am Inn, Germany
16 of 69
2.2 Reasonably foreseeable misuse
Any use other than the defined "designated use" or any use which exceeds this shall be defined as
misuse. The manufacturer/supplier accepts no liability for any resulting damages.
Misuse can be dangerous.
Examples of such misuse are:
Transporting persons
Exceeding the permissible total weight
Failure to observe safety stickers on the machine and safety information in the operating
instructions
Performing troubleshooting, adjustments, cleaning, repairs and maintenance contrary to the
specifications in the operating instruction
Unauthorised changes to the machine
Attachment of additional equipment that has not been authorised or approved
Use of non-original FLIEGL replacement parts
Transporting scrap steel, goods with sharp edges or aggressive substances
Caution when reversing:
Because the area behind the livestock trailer cannot be seen, or can only be partially seen from the
operator workstation, a signaller is mandatory when reversing (as required by German road traffic
regulations).
Modifications and changes
Any unauthorised modifications and changes to the machine (such as welding onto bearing parts) will
void all liabilities and the manufacturer's warranty.
Additions or modifications of any kind can affect the electro-magnetic behaviour of the machine.
Therefore, do not make any changes or add anything to the machine without consulting and receiving
written agreement from the manufacturer.
Replacement and wear parts and auxiliary materials
The use of replacement and wear parts or auxiliary materials from third parties can lead to dangers. The
manufacturer accepts no liability for damage resulting from the use of these parts. Therefore, use only
original parts or parts approved by the manufacturer.
2.3 Service life of the machine
The service life of this machine greatly depends on its correct use and maintenance as well as
the specific applications and operating conditions.
Following the instructions and information in these operating instructions will safeguard the
operational readiness of the machine and maximise its service life.
After each season of use, the machine must be checked thoroughly for signs of wear and other
damage.
Damaged or worn parts must be replaced before any subsequent use of the machine.
Following a prescribed, type-specific period of use, the machine must be subjected to a
comprehensive technical inspection. A decision as to the ongoing use of the machine must then
be made based on the results of this inspection.
The service life of the machine is theoretically unlimited since all worn or damaged parts can be
replaced.

TTW Noah livestock trailer
Safety instructions
Fliegl Agrartechnik GmbH, 84453 Mühldorf am Inn, Germany
17 of 69
2.4 Risks when working with the machine
Risks and impairments can arise when using the machine
- Risk to life and limb of the operator or third parties
- Risk for the machine itself
- Risk for other material assets
Safe and fault-free operation of the machine requires knowledge of the safety and user instructions set
out in this manual.
Always store the operating instructions at the usage location of the machine.
The operating instructions must be available to operators and maintenance
personnel at all times. Also be aware of the following:
General and location-specific regulations regarding accident prevention and
environmental protection.
2.5 Residual risks
The machine is built according to the state of the art and recognised safety rules.
However, during use there is a risk to life and limb for the user or third party, or risk of damage to the
machine or other property.
In addition to the manufacturer's countermeasures against dangers caused by residual energy, the
operator must also take appropriate countermeasures. Personnel must be briefed about these dangers
and the measures to be taken to prevent them.
2.6 Obligations of the operator
The operating company is required to instruct its personnel regarding:
- Basic regulations regarding work safety and accident prevention
- Correct operation of the machine
- The operating instructions (ensure that personnel have read and understood them)
The requirements of the EC Directive for the use of work equipment 89/655/EEC must be observed.
2.7 Obligations of personnel
Before starting work, all personnel tasked with working on the machine undertake to:
- Comply with the basic regulations regarding work safety and accident prevention
- Read and comply with the safety section and warnings in these operating instructions
Please contact the manufacturer with any questions; see page 10.
2.8 Qualification of operating personnel
To avoid accidents, any person working with the machine must meet the following minimum
requirements:
He or she must be physically capable of operating the machine.
He or she can perform their work with the machine safely and in compliance with these
operating instructions.
He or she understands the function of the machine within the context of their duties and can
recognise and avert the dangers arising from their work.
He or she is familiar with the safe operation of vehicles.
For travel on public roads, he or she possesses sufficient knowledge of road traffic regulations
as well as the required driver's license.

TTW Noah livestock trailer
Safety instructions
Fliegl Agrartechnik GmbH, 84453 Mühldorf am Inn, Germany
18 of 69
2.9 Qualification of specialist personnel
If the required work on the machine (assembly, alteration, conversion, extension, repairs, retrofits) is
performed incorrectly, this can lead to serious injury or death. To avoid accidents, any person
performing work in accordance with these operating instructions must meet the following minimum
requirements:
He or she is a qualified specialist with the requisite training.
Based on their technical expertise, he or she is able to assemble the (partially) disassembled
machine as described in the manufacturer's assembly instructions.
Based on their technical expertise, he or she is able to expand, alter or restore the function of the
machine as prescribed in the relevant instructions of the manufacturer.
He or she can perform the work described in these operating instructions in a safe manner.
He or she understands the function of the required work as well as the machine and can
recognise and avert the dangers arising from this work.
He or she has read these operating instructions and can apply the information contained therein
in an appropriate manner.
2.10 Personal protective equipment
The operating company must provide the following personal protective equipment.
Safety footwear with protective toe caps
Close-fitting protective clothing
Safety and protective devices
The machine must only be operated if all safety and protective devices are
complete and fully functional.
