Floorpul ROXY User manual

Operator’s Manual
ROXY
Noise-static Vacuum Cleaner
● Please read this Operator’s Manual carefully and make sure fully
understand before using the appliance.
● Please keep this Manual for future reference.

CONTENTS
Operate Safety Instruction………………………………..…………….2
Machine Introduction…………………………………….……………...4
Technical Specifications……………………………….……………….4
Spare parts name…………………………………….…………………..5
Accessory…………………………………………….…………………...6
Preparation before operation……………………….………………….7
How to operate machine………………………………….……………..8
Service manual and spare parts
Daily maintenance……………………………………………..……….10
Special attention…………………………………………….………….12
Rubbish empty method…………………………………..……………13
Common malfunction diagnosis……………………………..………14

1
Operate safety instruction
This manual is also one of the important attachments of this appliance, make
sure the operator read or listen to the professional person’s introduction on this
manual. Save the manual in the place where you can easily fetch and regular
read. This manual adopts the following three kinds of figure as the important
indication:
INDICATION:
Information on economical using.
The possible accident aroused by disobeying the manual.
NOTICE:
The possible accident and estate damage aroused by disobeying the
manual
FORBIDDANCE
The possible severe damage to person and estate arouse by instruction
disobeyed.
Safety Notice
I In order to avoid the fire affair, this machine is forbidden to say in the area
with explosive defending requirements.
The electricity shot accident is probably aroused, if you do not cut off the
power when you amend the machine. Do cut off the power before your
maintenance
Electricity shot accident can be possibly caused by using the damaged
cable. Do not operate the machine when the cable is damaged. Do not drag
the machine with cable
Please read this manual carefully before using this appliance
In this manual, there are common safety instructions in details on appliance
preparing, operating and maintenance. And operator must obey these accident
preventive regulations when use this machine. Any accident aroused by regulations
disobey, producer will not bear any liability.

2
Only the authorized service center or the technician who is familiar with related
safety instruction can maintain the machine, or will cause person injury and
damage to machine
Electrical components of this machine can “short-out” if exposed to water or
moisture. Keep the electrical components of machine dry. Wipe the machine
down after each use. For storage, keep the machine in a dry building.
The main function of this machine is dust suction, do not suck water. Water
suction will severely destroy machine motor.
In order to avoid danger, never let children operate the machine

3
Machine instruction
ROXY noise-static vacuum cleaner, it is FLOORPUL’s latest product, which gathers all
advantages of congeneric products in worldwide. It is an excellent performance machine
with smooth outlook, special wheel arrangement (two are active wheels, the other two
are stable ones) which make the following ability of machine much better, non-static
operation. This machine adopts FLOORPUL owned non-static patented technology,
which make the machine work under very low noise. It is the ideal new generation
product for hotel, restaurant and other professional cleaning place.
It is a great honour for us that you choose our products and share our achievements. If
you find any defect of this machine in design and produce, please e-mail to
[e-mail], we appreciate it very much.
Technical Specification
Model ROXY
Voltage(V) 230V
Frequency(Hz) 50Hz
Power(W) 1200W
Tank capacity 10L
Max. vacuum 25kPa
Air flow 35L/S
Weight 6.8kg
Cable length 10m
Noise grade 59dB(A)
4

Spare parts name
1 hose 7 cord hook
2 crevice nozzle 8 lock
3 handle 9 air inlet
4 small round brush 10 Combination tool
5 cord 11 2 separated stainless steel tube
6 switch 12 stainless steel telescopic
tube(optional)

5
Accessory
Combination tool ⑩
⑩⑩
⑩

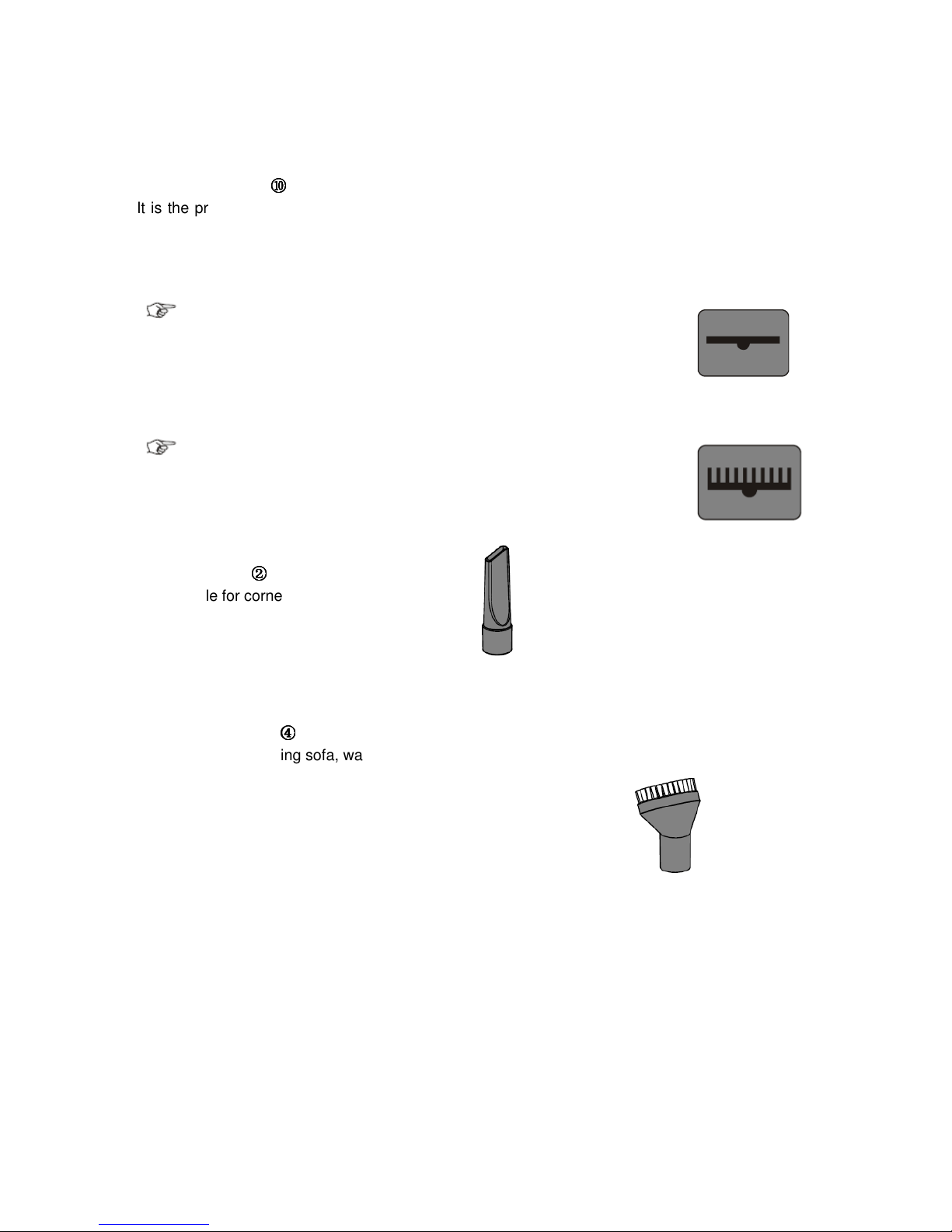

It is the professional accessory for carpet and floor dust suction. This brush is the European
standard brush. Equipped with dual situation control bar, you can choose the working style of
the brush based on floor and carpet two different situations freely, and achieve the best efforts.
when you press the button, same as the right picture, the brush is
suitable for carpet dust suction. The smooth metal bottom is strong and
durable, which makes your operate easy and comfortable, and the
suction efficiency is better.
when you press the button, same as the right picture, the air strip in the
brush will pop-up automatically. You can operate with this style on floor,
tile and other hard floor surface.
Crevice nozzle ②
②②
②
It is suitable for corner and gap cleaning.
Small round brush ④
④④
④
It is suitable for cleaning sofa, wall corner, roof and other place that metal brush can not reach

6
Prepare jobs before operation

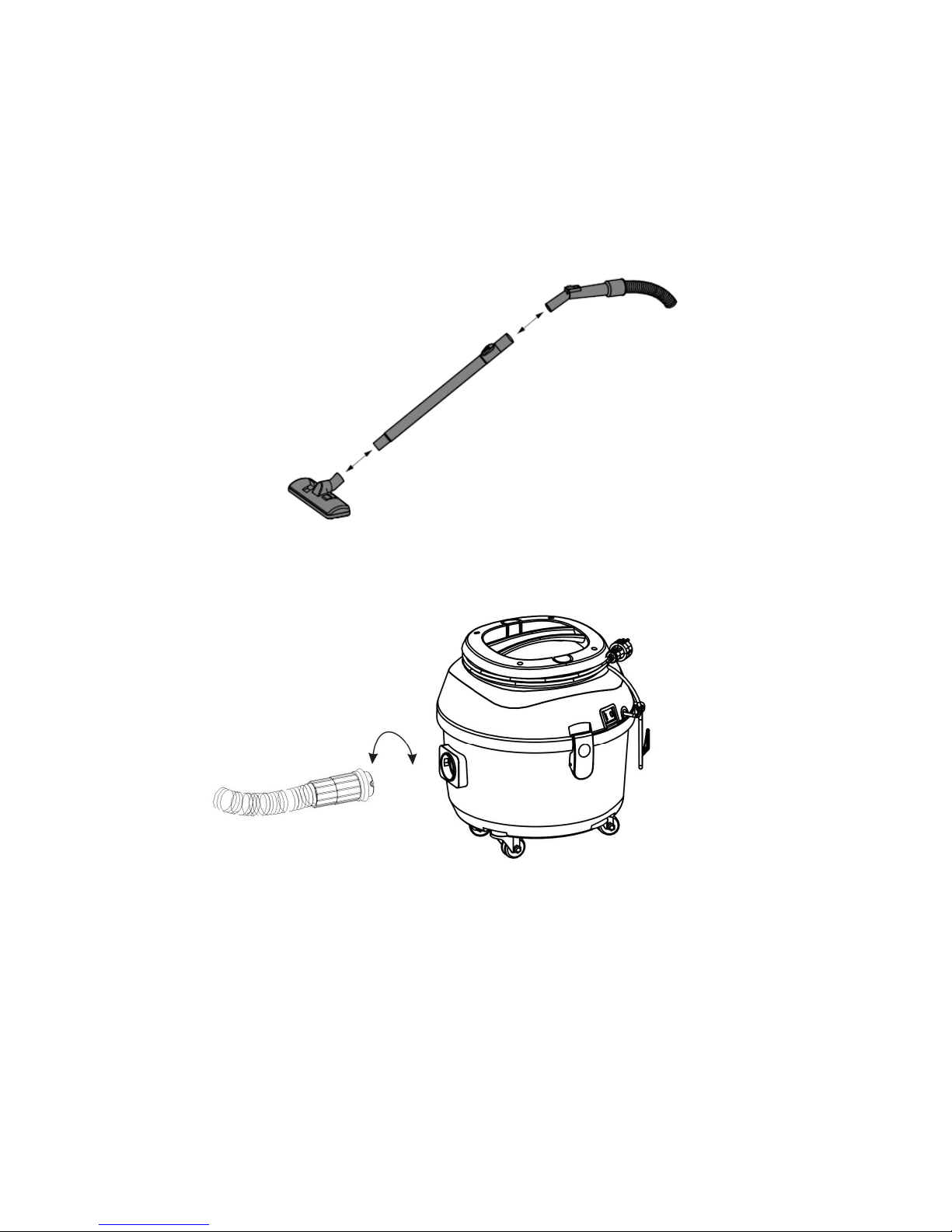

1. Before your power connection, check whether the power you use is the same as the
machine nameplate shows
2. match the brush with one head of stainless steel (telescope) tube, also connect the other
head to the handle
3. Insert the other head of hose into the machine air inlet mouth, and turn it to right slightly to
lock it. If you want to take the hose away, turn the hose to left with you hands, the hose will
be released

7
How to operate the machine
1. In order to convenient the transportation, the hose and accessories are packed in the
machine tank, when you open the packing, please take out all the accessories.
2. Please confirm that the hose accessories are connected based on the “prepare jobs before
operation”, and check the filter support and filter sponge are installed..
3. Confirm that the machine head and body are locked firmly, also the cord fixer hang the cord
properly.
4. Switch is on one side of the machine, press “on” to start the machine, while press “off” close
the machine.
5. ROXY adopts HEPA filter design , so dust will be sucked into tank directly. Please empty
the tank after your operation in time, which is healthful and good for machine protection.
6. In order to lengthen the use life of HEPA filter, we recommend our FLOORPUL professional
filter cover, which will increase the filter efficiency and control your cost in the best level.
Note:
It is forbidden to operate the machine without the HEPA filter! Or all the dust will enter
into motor directly , which will severely effect the use life of motor.

8
How to operate the machine
Note:
When you sense the suction power is decreased during your operation, please soon check whether
the hose is blocked or not? the dust in the tank is too much? the filter contains too much dust or not?
If you use the machine in this situation for long time, the motor will be damaged.
7. There is a adjust slip device on the hose handle. This adjust slip device is used to adjust the
suction power. If you want to decrease the suction power during your operation, you can
just adjust the slip device to meet your requirements.

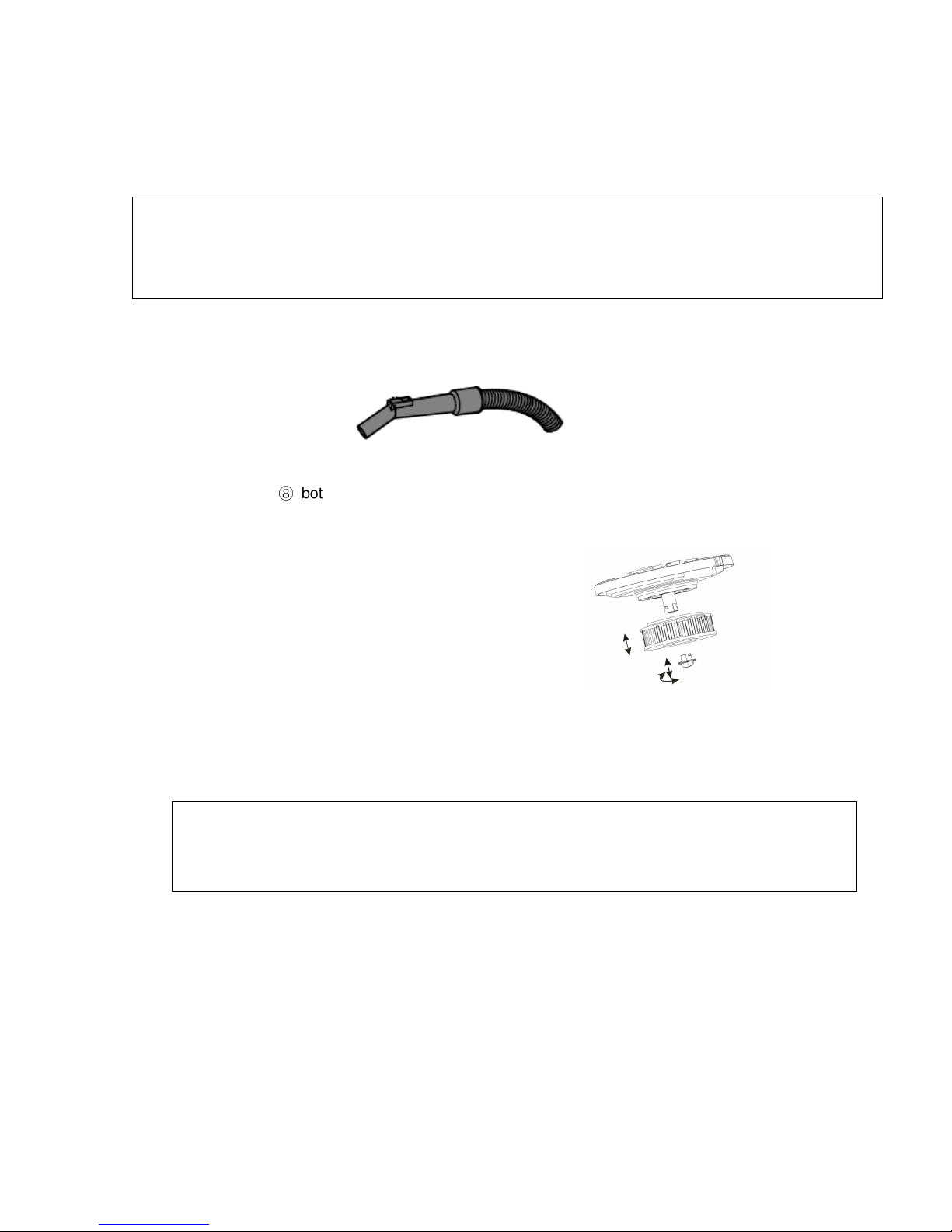

8. When you want to check the filter support, filter cover or empty dust inside the tank, please
life up the lock ⑧ bottom, then you can take away the machine head, flap the filter
support and filter cover to clean the dust; also empty the dust in the suitable place, do not
pollute the around environment.
9. When you sense the suction decreases, you need to clean
the HEPA filter and filter cover, disassemble as the picture
shows.
10. If you sense the suction efficiency is still not perfect after cleaing the HEPA filter,please
disassemble the HEPA filter, and rinse with clean water.check . But you can only restart the
machine after the HEPA filter dries completely.
Note:
After cleaning the filter cover, HEPA filter, you can only restart the machine until them dry
completely. Or the moisture will enter into the motor and damage it.

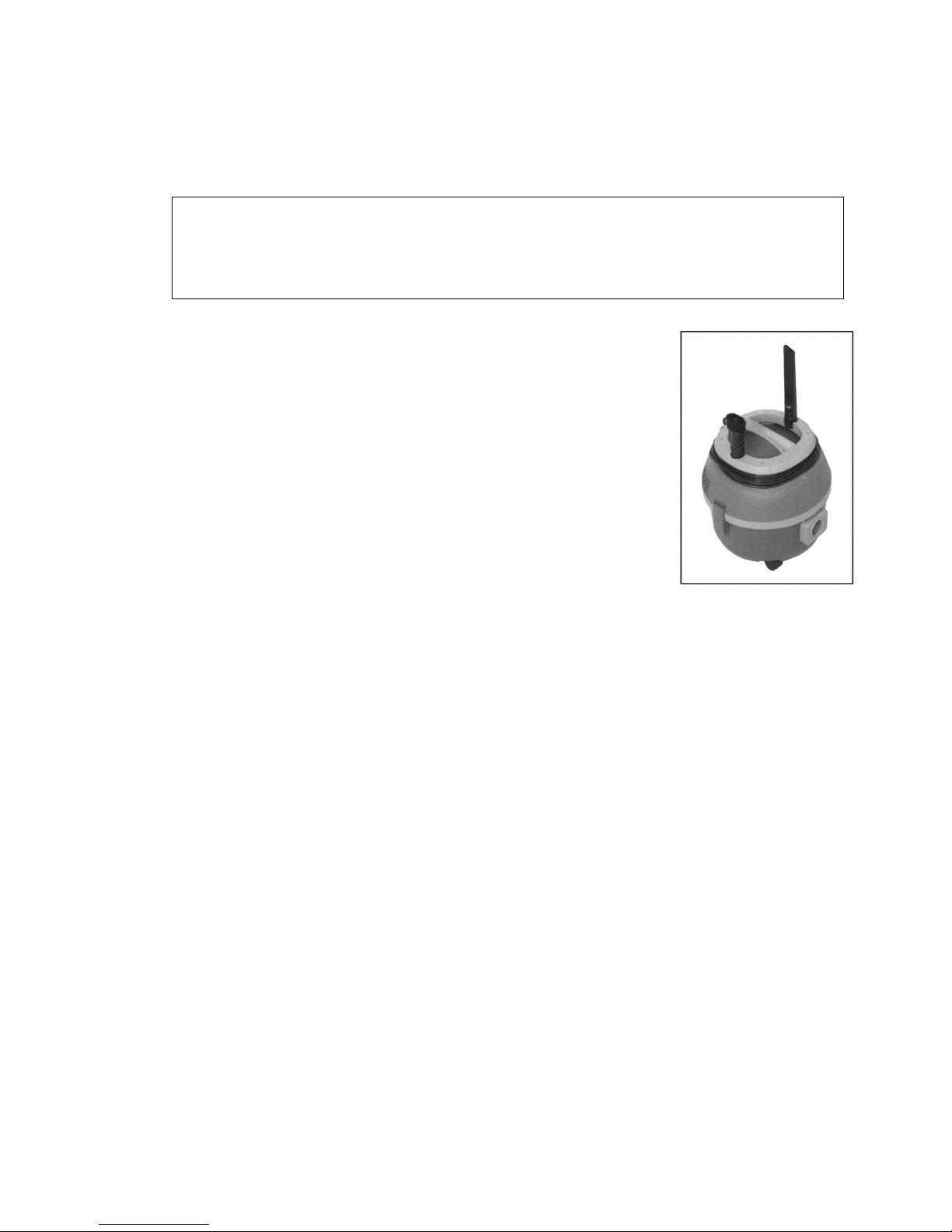

11. The machine handle has different functions: firstly, it is a handle, you can use it to move the
machine; secondly, it is a accessory holder, you can put the small round brush, crevice
nozzle on the predesigned place; thirdly, it is a holder for cord circling, when finish your
operation, you can just circle the cord on the handle directly. It is very easy to cord
collection.

9
Daily maintenance
A professional vacuum cleaner is your production tool, please protect and maintain it during your
operation and after operation, which will not only lengthen the production life, but also make your
operation much more comfortable. So daily maintenance is a very important job, please pay more
attention to it. Thanks.
1. Empty the machine tank after your operation each day, also check and clean the dust
on the filter cover, which will keep the machine in good situation.

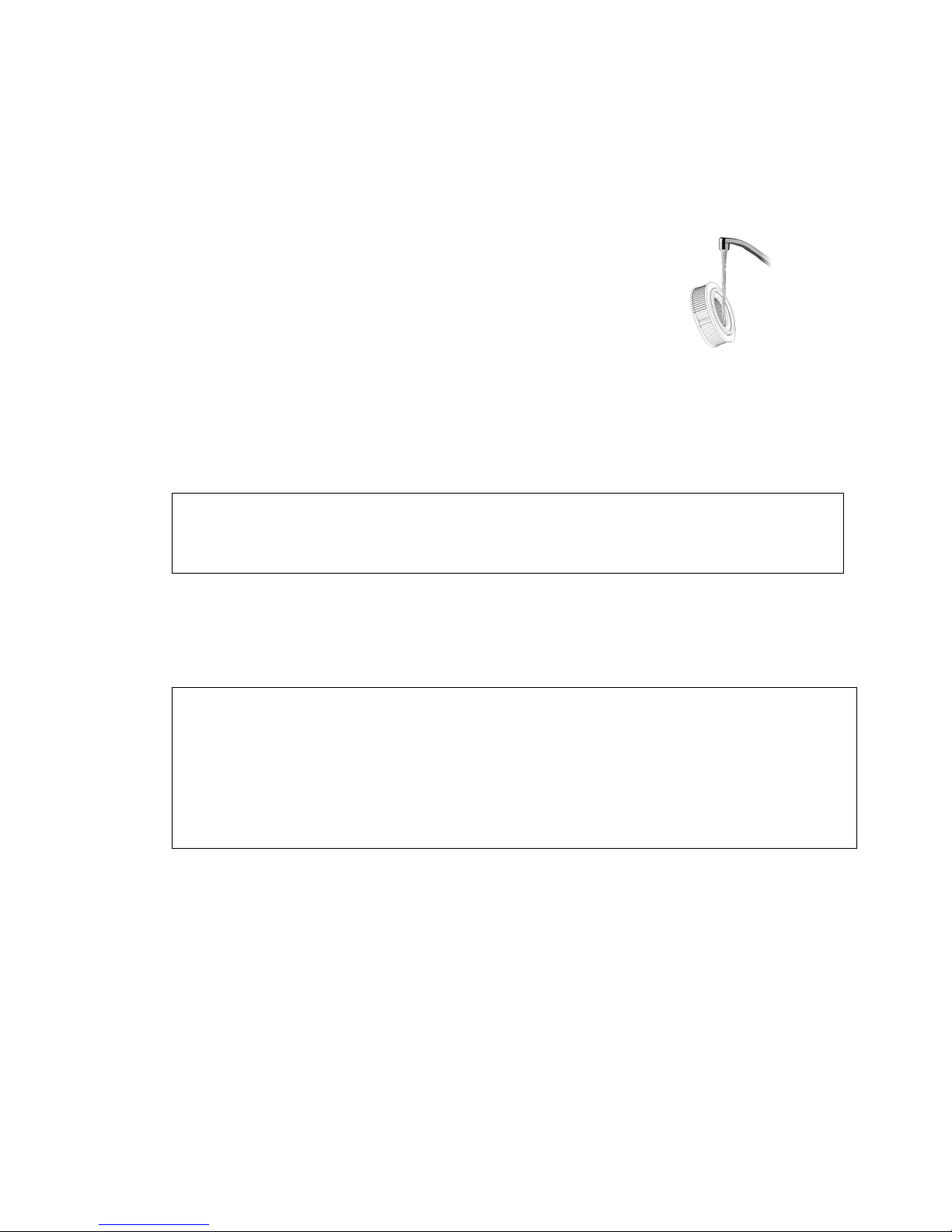

2. Circle the cord properly after your operation, and insert the
accessories on the handle. See the right figure:
3. If you can not do as the rule No.1, please do check the machine
when you sense the suction power decreases.
Press the switch off, pull out the power plug, take away the hose,
separate the machine head and tank, and empty the dust inside the
tank first;
Check whether the filter cover is blocked or not, flap the filter cover in the suitable
place to clean the block, and if still a lot of dust on the HEPA filter, take off the HEPA filter
and clean it;
Re-assemble the filter cover, HEPA filter, match the machine head and lock firmly,
connect the power, open the machine. Firstly, listen the machine noise, check whether it is
normal noise, and check the suction on hose connect mouth, if everything is ok, then
start the machine.
10

Daily maintenance
Insert the hose, and check the suction is normal or not both on the stainless steel
connection and on the air inlet mouth of brush, confirm the hose is blocked or not, if it is
un-normal, please check where the block is, and clean it in time.
4, If you can not clean the dust on the filter cover and HEPA filter when
they are dry, you can wash them with water,as the picture shows
4.1 Rinse with water against the dust enter direction, do not knead it, do not use detergent,
or it will destroy the filter structure;
4.2 Put it under sun or in the ventilated place, re-assemble then until they are dry
completely.
Note:
It is forbidden to use the non-complete dry filter cover or HEPA filter , or not only the
motor will be damaged, but also the dust and filter conglutination will arise severely block
4. Do not wash the machine head (electronic parts) with water, if there is dirt, please just
wipe with wet cloth or the soft cloth soaked neutral detergent, then clean with dry
cloth;
After cleaning, re-sue them until the spare parts are dry completely.
Note:
1. Do not clean the machine body with water directly
2. Never use benzene, thinner wipe the machine body, which will deform the plastic body
and change its colour!
3. Do not wash the filter in washing machine, or dry the filter with drying machine or other
kind blower
4. Do not wash emphatically or wrest the filter.

11
Pay special attention to following matters
1. This machine is suitable to suck building powder, such as cement, gesso powder and
other kinds of extremely small powder, which will severely block the filter. And the
block increases the motor temperature rapidly, which will make big effect to motor life.
2. Do not suck the burning cigarette, the easy explosive thing such as petrol, thinner;
3. This machine equips motor automatic protection system. When the filter system or the
hose are severely blocked, the system will cut off the power automatically, stop the
motor, please do pull out the plug, and check the machine, find out the problem and
solve it, then you can re-connect the power and restart your operation;
4. The air outlet mouth is forbidden to be blocked. After the period of time work, the
temperature of motor will increase ,and hot air will vent from the air outlet mouth,
these are normal;
5. Do pull out the plug, both before cleaning and maintaining vacuum cleaner and after
your operation;
6. During your using, avoid severe bending, trample, drag to the hose, which will shorten
its use life.
7. When you store the machine, please keep it away from the oven and other heat
source, or the high temperature will deform the plastic body and change its colour!
Danger:
Stop using the machine when the cord damaged, or it will cause electrical shot accident.
Please do replace the cord which does not confirm the safe requirements, you can ask
for the genuine spare parts from Keeper agency.
12

Danger:
This machine is just for inside use only. It is forbidden to leave the machine in oust
open air, also it is forbidden to operate this machine in the rainy outside.
Note:
When the motor automatic system start, please check and find out the malfunction
reason. After 20~30 minute later, connect the power again, the machine will be ok
Note:
If the malfunction is eliminated, and the machine re-close automatically when you
re-start your operation, please do not re-start the machine constrainedly, let the
professional person check the machine
How to empty the rubbish?
1. loose the lock
2. take off the machine head
3. take off the filter
4. use the tool such as teeth brush to flap the filter slightly, and accumulate the dust in
the filter mesh
5. empty the tank
6. re-assemble the filter and the machine head
13

Common malfunction diagnosis
If your machine has problem, please check the following file.
If your machine still works unproperly, stop the machine! Please ask for help from ROXY
agency or service centre, let the professional person repair the machine
PROBLEM REASON ANALYSIST RESOLVENT
Not working
1. the cord plug is not connected
properly
2. no power in the plug outlet
Cable damaged
3.you operation is wrong, or the
dust is too much, or the hose is
blocked, or the filter system is
blocked, which arise the motor
protective system
1. connect the plug properly
2. check the plug outlet fuse or the
breaker, maybe the cord capability is
smaller than machine capability.
Replace the cable
3.find out the reason and solve the
problem, pull out the plug, and insert the
plug 30 minutes later, start the machine
After empty the
dust, the
suction still not
increase
1. the filter is dirty.
2. hose or brush head is
blocked
1. clean all spare parts of filter system
2. clean the related filter parts
3. replace the new filter parts
4. check the machine based on “daily
maintenance” ③
14
