Floorwash FB25 Instruction manual

MANUAL OF USE AND MAINTENANCE

2
Foreword 4
Manual content, use and maintenance 4
Storage of manual of use and maintenance 4
Updating the manual 4
Condentiality 4
Machine delivery 4
FB25 Technical description 4
Liability limitations 5
Warranty 5
Serial number 6
General safety rules 6
Recommendations 6
Warnings 7
Li-Ion Battery 8
Li-Ion Battery Warnings 8
Li-Ion Battery Recommendations 9
Technical data 10
Battery technical data 10

3
Battery charger technical data 10
Spare parts 11
Packaging specications and dimensions 12
Machine unpacking 12
Machine assembly 13

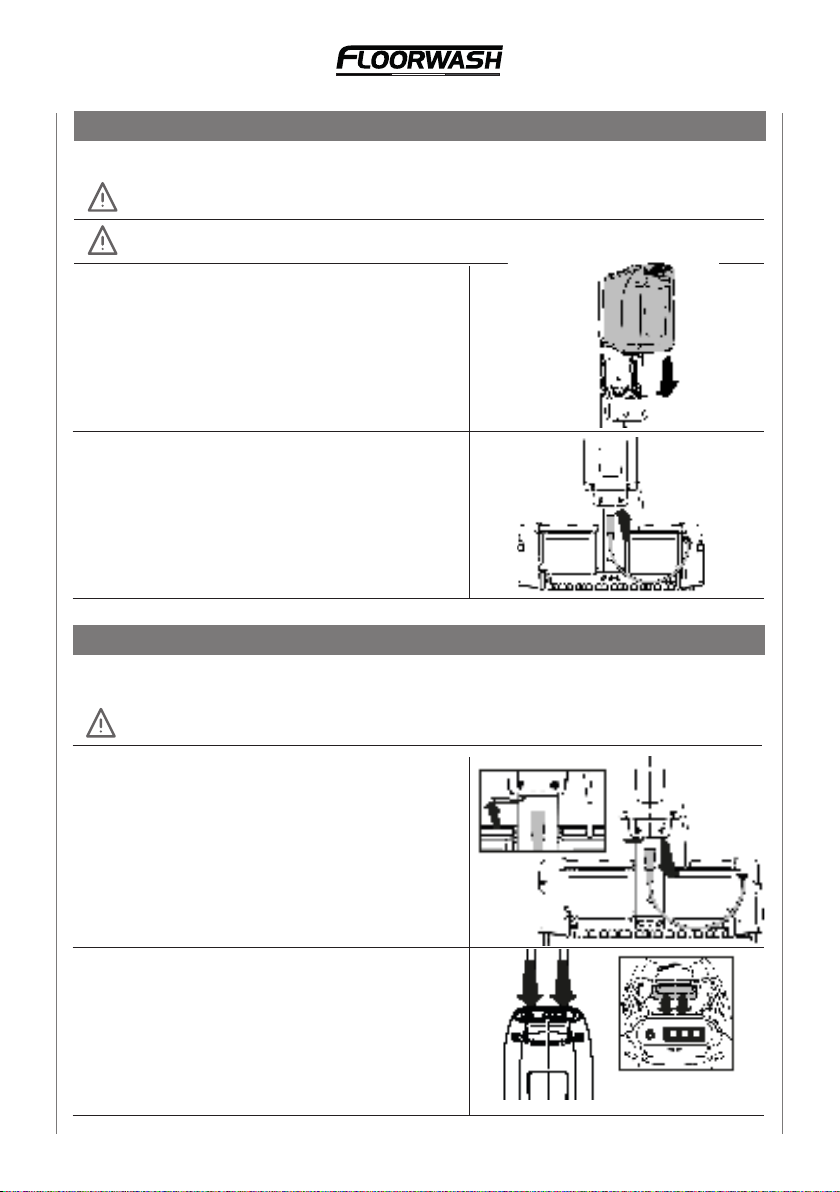

Installing the battery 14
Uninstalling the battery 14

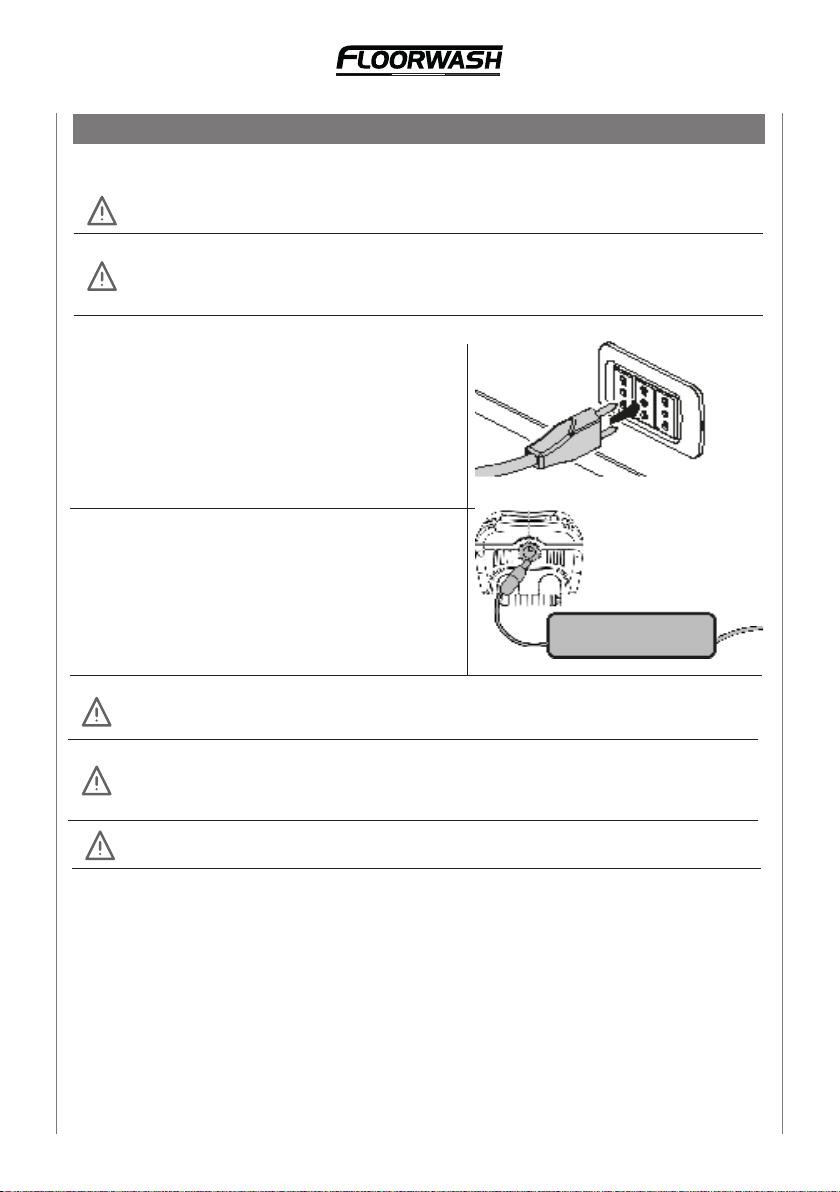

Charging the battery 15
How to get started 16
ON/OFF 17

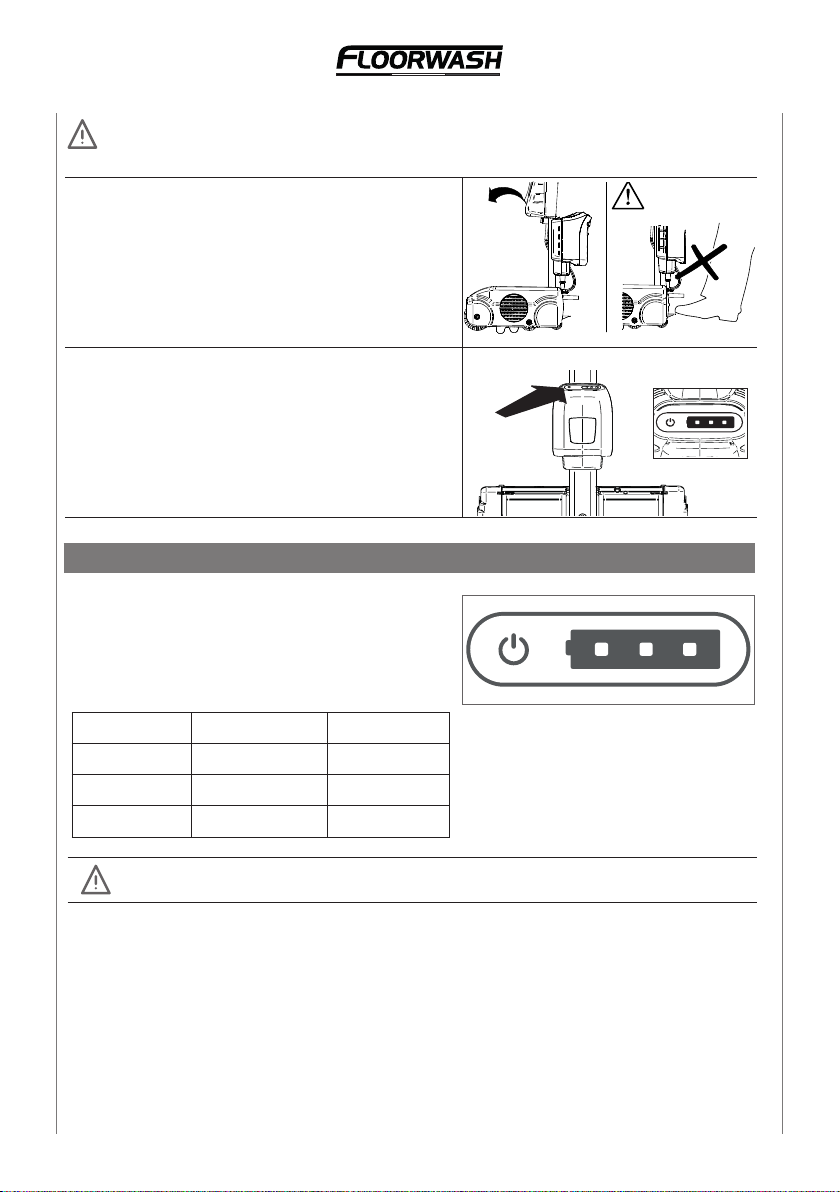

Battery charge level 18

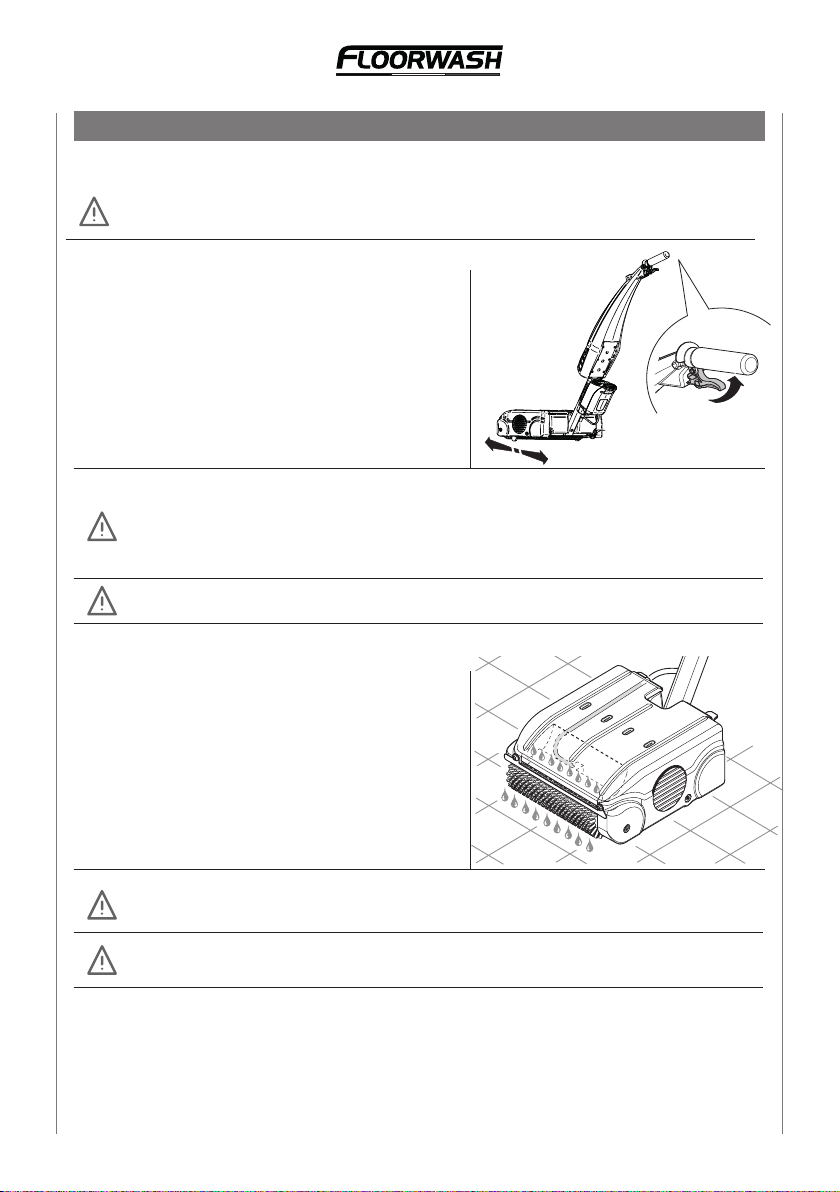

Functioning 19
Transport 20
After cleaning 21
Maintenance 22
Troubleshooting tips 23

4
FOREWORD
It is of outmost importance to keep the machine at its maximum eciency by carrying out the main-
tenance described in this manual carefully. It is important to keep this instruction manual in a safe place
so that it can be referred to whenever necessary. For further requirements, please contact our customer
service centre or your nearest authorised dealer.
MANUAL CONTENT, USE AND MAINTENANCE
The following manual has been drawn up to provide customers with all necessary information in
order to use the machine as safely and smoothly as possible.
STORAGE OF MANUAL OF USE AND MAINTENANCE
The manual of use and maintenance should be kept in a safe and easy accessible place in the im-
mediate proximity to the machine. To avoid compromising its readability, keep this manual away
from sources of heat, liquids or detergents.
UPDATING THE MANUAL
The contents of this manual reect the state of the art at the time the appliance was launched on
the market.
The Manufacturer reserves the right to make changes to the machines at any time for any techni-
cal or commercial reasons whatsoever without any prior notice.
CONFIDENTIALITY
The technical information (texts, drawings and illustrations) contained in this manual are the property
of Floorwash® S.r.l. and must be considered condential. It is strictly forbidden to disclose, reproduce or
translate this document, even partially, without obtaining prior written permission from Floorwash® S.r.l.
MACHINE DELIVERY
The Floorwash® S.r.l machine is delivered in a protective packaging. Ensure that the packaging is fully
intact and that there are no signs of tempering when the product is taken over. The customer should
notify our customer service immediately in case of damages.
FB25 TECHNICAL DESCRIPTION
The FB25 is a mechanical oor scrubber-dryer that ensures eective cleaning surfaces including une-
ven supercies. The combined mechanical action of brush, water and centrifugal force will guarantee
the best results with minimum eort. It cleans, rubs and collects the lth and it is perfect for constant
and frequent use. This scrubber dryer is particularly suited for the treatment and cleaning
of oors made of terracotta, pottery, setts, clinker, rubber, resin, marble, linoleum, raw concrete,
agstone, serizzo granite, stone, carpets and rugs.

5
LIABILITY LIMITATIONS
Floorwash® S.r.ldeclines any responsibility for damage to people and property caused by:
• Improper use of the machine or failure to comply with the instructions provided;
• Use of the machine not in compliance with the regulations in force;
• Use not in compliance with national safety and accident prevention laws;
• Tampering with even a single part of the machine;
• Incorrect installation and/or connection to the foreseen power sources or use of non-original
spare parts.
WARRANTLY
Floorwash® S.r.l. warrants this product against manufacturing or material defects for a period of two
years from the date of purchase. During this period, Floorwash®S.r.l.. at its discretion, shall repair or
replace any faulty product at no charge. However, Floorwash® S.r.l. species that the warranty is not
valid in the following cases:
• Improper use of the machine;
• Lack of or improper maintenance;
• Use of non-original spare parts;
• Damage from natural events such as earthquakes, oods, res or accidents;
• Tampering with or modifying the machine;
The warranty conditions neither minimise nor modify the legal provisions in force applicable to the
sale of the product to the consumer.
The Warranty does not cover shipping costs which are borne by the customer.

6
SERIAL NUMBER
The label with the serial number is located below the machine, in the underlying part of the ex-
ternal left side. That number shall be always notied for technical assistance or request of spare
parts.
Recommendations
• The machine is not intended to be used by persons (including children)
whose physical, sensory and mental capacities are impaired, or with lack
of the necessary experience and knowledge, unless they are supervised
or instructed in its use by persons responsible for their safety.
• Children shall be supervised to ensure that they do not play with the ma-
chine.
• If the power supply is damaged, it shall be replaced by the manufacturer
or its authorised technical assistance.
• Do not use the machine on slopes.
• Use only brushes provided with the machine or supplied by an authori-
sed dealer and/or reseller to avoid compromising safety and warranty.
• The machine shall not be left unattended, but stored in a protected area
to prevent the machine from being moved accidentally.
GENERAL SAFETY RULES
This oor scrubber-dryer is easy to use; anyway, it is necessary to read the following rules carefully
in order to avoid damages to both the operator and the machine.
11111111

7
Warnings
Do not use or keep the machine outside in wet conditions, and
avoid direct exposure to rain.
The machine is suitable for use in dry conditions at a temperature
range of +5°C to +35°C (+41°F to +95°F).
Do not insert objects through openings. Do not use when
openings are clogged.
Protect the machine from sunlight and UV radiation.
Do not suck gases, liquids or potentially explosive and combustible
dusts. These substances may corrode materials used in the
construction of the machine.
Follow the basic safety rules for use in hazardous areas, such as
service station or gas distributors.
Do not use the machine in potentially explosive atmospheres.
Do not place containers holding liquids on the machine.
For use in work environments, do not hit shelves or scaoldings
where there is a risk of objects falling. The user shall be equipped
with adequate safety equipment (gloves, footwear, helmet,
goggles, etc.).
Request original spare parts only to dealers and/or authorised
resellers in case of parts replacement or maintenance.
Check the machine in an authorised service centre at least once a
year.
Organise the disposal of waste materials complying scrupulously
with current regulations.

8
LI-ION BATTERY
Warnings
Please read this manual carefully before using and checking the
battery and charger.
The manufacturer declines any responsibility for damage to
property and/or people resulting from the failure to comply with
the warnings stated in the manual or the improper use of the
battery.
Do not touch the electrodes with either your body or metal
elements.
Before removing the battery, the device must be disconnected
from the power supply.
Neither pour liquids on the battery nor immerse the battery in any
kind of liquid whatsoever.
Do not burn or heat the battery as it may violently explode or
burst into ames.
Do not leave the battery directly exposed to sunlight.
Keep the battery away from heat sources.
Do not break, open, force, weld or puncture the battery pack.
Do not solder cables to the battery poles; do not short-circuit the
battery terminals.
Do not reverse the positive and negative terminals during use.
In case of battery leakage, avoid skin and eye contact.
In case of skin and eye contact with spilled liquids, seek immediate
medical attention.

9
Recommendations
• In the event of battery faults (odour emissions, excessive heat generation,
deformation, etc.) or malfunctions, immediately remove the battery from
the unit or charger and proceed with replacement and disposal.
• Only use chargers that are compatible with the technical specications
of the battery to be charged. The use of the Battery Charger supplied is
for the exclusive purpose of charging the battery.
• Do not use or leave the battery exposed to high temperatures. The resul-
ting overheating could compromise its functionality and durability.
• Do not use the battery in environments with static electricity or
magnetic elds.
• Do not charge the battery below 0 degrees centigrade.
• Do not use the Floor Washer when the battery is low..
• The presence of dirt on the battery terminals could compromise the
correct operation of the device. Clean the dirty terminals with a dry cloth
before use.
• Stock and store the battery in a cool, dry place.
• Do not carry or store the battery with metal objects.
• Do not disperse the battery in the environment.
• The battery and charger present must be disposed of in accordance
with local regulations. The Customer is legally responsible for the danger
created when disposing of batteries.
• If the battery is stocked for a long period (more than three months) store
it in a cool, dry place and perform a charge and discharge cycle every six
months.

10
TECHINCAL DATA FLOORWASH® FB25
Machine weight 140 mm
Machine width 285 mm
Machine length 330 mm
Front brush Ø 86 700 Rpm
Rear brush Ø 54 1145 Rpm
Working width 250 mm
Working capacity 200 mq/h
Brushless motor power 580 Watt
Voltage 36 V DC
Total storage capacity 4 l
Recovery tank capacity 1 l
Total empty weight (without battery) 8,5 kg
BATTERY TECHNICAL DATA
Supplied voltage 36 Volt
Supplied urrent 5,8 A/h - 208,8 Watt/h
Dimensions 110 mm X 170 mm X 102 mm
Max autonomy 60 min
Recharge time 90 min
Weight 1,40 kg
CHARGER TECHINCAL DATA
Input Voltage 100 - 240 V
Output Current 4 A

11
SPARE PARTS
1 COMPLETE NYLON EXTERNAL LEFT SIDE
1A NYLON EXTERNAL LEFT SIDE
DAD2 LOW SQUARE NUT 4MA
CAFB25 MACHINE BODY FB25
15 UNIVERSAL REAR BRUSH
16 UNIVERSAL FRONT BRUSH
18 COMPLETE HEXAGON SPRING PLUNGER CH10
18A HEXAGON PLUNGER INSERT BUTTON CH10
18B HEXAGON PLUNGER CH10
18C SPRING LATCH FOR EXAGON PLUNGER CH10
18D HEXAGON PLUNGER EJECT BUTTON CH10
20 COMPLETE HEXAGON SPRING PLUNGER CH7
20A HEXAGON PLUNGER INSERT BUTTON CH7
20B HEXAGON PLUNGER CH7
20C SPRING LATCH FOR HEXAGON PLUNGER CH7
20D HEXAGON PLUNGER EJECT BUTTON CH7
37 COMPLETE NYLON EXTERNAL RIGHT SIDE
37A NYLON EXTERNAL RIGHT SIDE
38 COMPLETE COVER FB25
50 COMPLETE TANK
51 WASTE WATER TANK
SPA .BAT 01 COMPLETE BATTERY
SPA.BAT 04 COMPLETE HANDLE
SPA .BAT 05 COMPLETE CHARGER
15
50
38
51
18C 18D
VIT17 18A 18B
DAD2
37A
VIT19
39
16
DAD2 1A
1
18
VIT18
20A
20C
20D
20B 20
37
29
04
01
05

12
PACKAGING SPECIFICATIONS AND DIMENSIONS
The FB25 machine is delivered in a protective
packaging. Ensure that the packaging is fully
intact and that there are no signs of tempering
when the product is taken over. In case of damage,
the customer shall notify our customer service
immediately.
MACHINE UNPACKING
Follow the procedure below:
1 Place the packaging on the oor/work table softly by laying it down on the right part.
2 Open the external cardboard by using a pair of scissors, when necessary. (Do not use an utility
knife).
3 Remove the machine body, tank and extensible tube, and place them on the oor softly.
4 Keep the cardboard box and its components away from sources of heat, in a dry and easily
accessible place.
Do not break or throw the packaging and its components away so that it can be used
again for future transportation.
For your safety, wear protective gloves when carrying out these operations, in order to avoid
injuries in case of accidental contact with sharp edges of the cardboard box, direct contact
with detergent residues or metal edges.
35 80
31

13

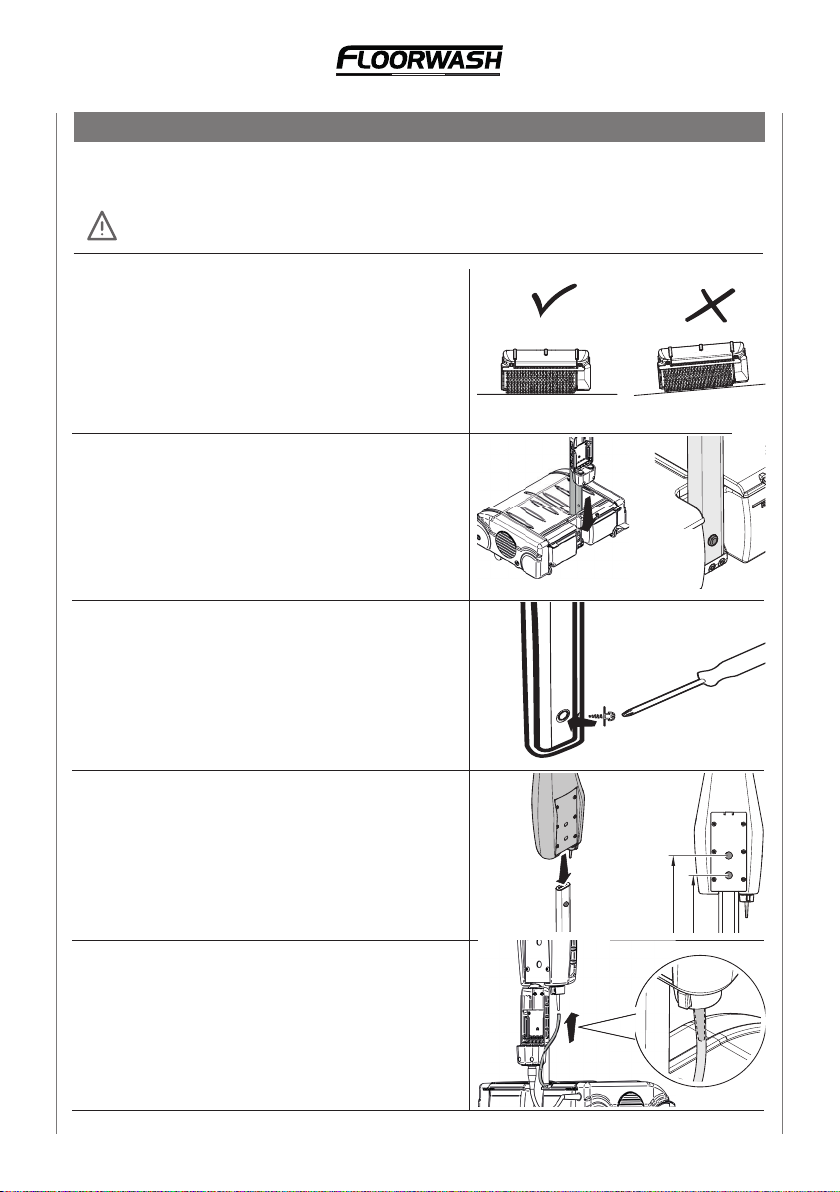

MACHINE ASSEMBLY
Follow the procedure below:
The FB25 machine has a fast assembly system since no tools are required. Do not use any
tool to avoid injuries or damage to the machine.
1Place the body of the machine on a stable surface
without slopes.
2Insert the handle in the axle of the machine body.
3Insert the appropriate screw into the hole and,
using a screwdriver, x the handle to the machine
body.
4Insert the tank in the handle at the desired height
(2 dierent heights).
5Insert the small transparent water tube in the relief
valve situated on the lower part of the tank.
CLACK!
h1
h2
CLACK!
CLACK!
h1
h2
CLACK!

14
INSTALLING THE BATTERY
Follow the procedure below:
Check the Battery charge level before use.
1Insert the Battery into its holder.
2Insert the plug into the socket located on the
bottom of the battery holder.
UNINSTALLING THE BATTERY
Follow the procedure below:
1Push the release lever upwards and, simultaneou-
sly, remove the plug from the socket located at the
bottom of the battery holder.
2Gently push the battery down and at the same
time pull the release button towards you.
Make sure the battery is o before performing any operations
Make sure the battery is o before performing any operations

15
CHARGING THE BATTERY
Follow the procedure below:
Use only the Charger supplied by the Manufacturer. Any damage or malfunction caused by
the use of Chargers other than those supplied by the Manufacturer shall not be covered by
the Warranty.
1Insert the plug of the power cable of the Charger
into a 230 volt power outlet.
2Plug the Charger connector into the socket located
below the Battery.
The correct charging of the battery will be signaled by the intermittent lighting of one of the
LEDs positioned on the membrane and by the lighting of the red light on the charger.
When the battery is fully charged, the red light on the charger will turn green.
In case of overheating during the charging phase, the battery will automatically suspend
the charge. Once the correct temperature has been restored, the Battery will automatically
resume the charging phase.
Make sure the battery is o before performing any operations

16
HOW TO GET STARTED
The FB25 machine is a mechanical collection device that can achieve excellent results even
with the use of water without detergent. An excellent result is achieved with the use of
specic detergents.
The machine comes with universal brushes (gr 0.12). Anyway, it is possible to request specic
brushes to our customer service according to the type of surface to be treated.
Use foam-controlled detergents to avoid excessive foaming. Do not use pure acids.
Wear protective gloves before handling detergents, alkaline or acid solutions to avoid hand
injuries.
1Remove the tank cap.
2Pour the liquid, clean water and/or detergent in
the concentration specied on the label.
3Replace the tank cap.
Fill the tank with clean water and/or detergent for a maximum of 2lt. Use water at a
temperature not exceeding 40°C or below 10°C.(104°F – 50°F).

17
ON/OFF
Before the start-up of the device, check that the electrical cord and the machine are not
malfunctioning in any way. If this is not the case, do not use the device and contact our service
centre as soon as possible.
3While pressing the kick-start pedal, lower the tank
towards you slowly. At this point, the machine
will switch on automatically and brushes will start
rotating.
4Be careful not to lower the handle excessively.
Maintain a sucient distance from the oor so that
the battery does not touch the oor.
1
2
3
1Press the power button located on the left side of
the battery. Pay attention to the Caution led light
indicating the correct ignition of the battery.
2Press the kick-start pedal situated at the bottom -
right side of the machine.
It is important to press the kick - start pedal completely before lowering the tank towards
you, so as to avoid any damage to the central axle of the machine body.
Do not press the kick - start pedal when returning the tank to the original position.
Make sure the battery is o before performing any operations

18
5The machine will switch o automatically when
returning the tank to a vertical position
(rest position).
6Press the on / o button placed on the battery for
3 seconds to turn o the battery.
1
2
3
BATTERY CHARGE LEVEL
The battery charge level is indicated by the
appropriate led lights on the top of the battery.
Depending on the number and colour of the led
lights, the battery charge level can be
Led colour Number Battery level
Green 367%-100%
Green 234%-66%
Green 10%-33%
Before starting the shutdown procedure, continue to use the appliance for at least ten seconds
without dispensing water in order to complete the drying operation.
The battery will automatically shut o after 20 minutes of inactivity.

19
FUNCTIONING
Check that all steps described above have been completed correctly before using the machine
Before starting the washing procedure with the machine, remove any solid residual such as dust
lumps, stones, glass, paper etc. from the surface which has to be treated.
1After the engine has turned on, move the machine
back and forth with linear movements. The lever
placed beneath the handle will allow you to
dispense the liquid previously poured in the tank.
The engine of this appliance is equipped with a safety device which cuts it o in case of overload.
If this situation occurs, it is necessary to return the handle to its initial position, turn o the
battery and turn it on again, and then resume normal work. In the event that the engine does
not work again, contact our after-sales service.
Do not make circular movements with the machine so that it can collect the dispensed liquid.
2After pulling the lever, the liquid will distribute
uniformly on the front cylinder brush.
In the ongoing stage just pull the lever halfway; in the retuning stage, release the lever, thus al-
lowing the liquid recovery.
In the returning stage, the machine shall pass through the same hallway of the ongoing stage,
thus allowing a complete recovery of the dispensed liquid.

20
3The recovery of the dispensed liquid occurs
automatically by means of mechanical collection.
The liquid will ow into the waste situated in the
lower part of the machine.
It is important to empty the waste when the seep liquid reaches the maximum mark printed on
the back of the waste, thus avoiding an accidental release of the same.
TRANSPORT
To transport the machine safely, follow these steps:
1The machine has two rubber wheels situated in
the lower part. By pulling the tank towards you,
without pressing the kick - start pedal, the front
part of the machine will be lifted up, guaranteeing
an easy transportation..
If the liquid in the waste has reached the highest level, it is necessary to empty it before carrying
the machine.
2It is possible to lift the entire machine up, in order
to move it to an upper oor of the house, by using
the designated slit situated on the lower part of the
tank.
Do not lift the machine up by using the upper knob of the tank.
For transportation with vehicles, ensure the machine so that it cannot in any way move.
CLACK!
Check that the tank is placed in a vertical position before moving the machine. The electrical
cord shall be unplugged from the outlet.
