FLORABEST FRM 1800 B2 User manual

IAN 270737
ElEktro-rasEnmähEr
Originalbetriebsanleitung
ElEctric lawnmowEr
Translation of the original instructions
tondEusE à gazon élEctriquE
Traduction des instructions d‘origine
ElEktrischE grasmaaiEr
Vertaling van de originele gebruiksaanwijzing
ElEctric lawnmowEr Frm 1800 B2
®
270737_flo_Elektro-Rasenmaeher_cover_BE.indd 2 30.09.15 08:11

GB / IE Translation of the original instructions Page 5
FR / BE Traduction des instructions d‘origine Page 18
NL / BE Vertaling van de originele gebruiksaanwijzing Pagina 33
DE / AT / CH Originalbetriebsanleitung Seite 47
Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the
device.
Avant de lire le mode d‘emploi, ouvrez la page contenant les illustrations et familiarisez-vous ensuite avec
toutes les fonctions de l‘appareil.
Vouw vóór het lezen de pagina met de afbeeldingen open en maak u vertrouwd met alle functies van het
apparaat.
Klappen Sie vor dem Lesen die Seite mit den Abbildungen aus und machen Sie sich anschließend mit allen
Funktionen des Gerätes vertraut.
270737_flo_Elektro-Rasenmaeher_cover_BE.indd 3 30.09.15 08:11

3
15
14
13
4
3
1
A
B
10
11
2b
5
6
7
8
9
12
7
3
2a
2a
2a
7

4
9
4
1
3
2b
D
E
C
17
4
16
17

5
GB IE
Contents
Introduction .................................5
Intended purpose.........................5
General Description......................6
Scope of Delivery...........................6
Function Description........................6
Overview ......................................6
Technical specications.................7
Safety information .......................7
Pictorial Diagrams on the
Equipment .....................................8
General safety information ..............8
Assembly...................................11
Assembling the Curved Handle ......11
Operation ..................................11
Hanging On/Removing the Grass
Bag ............................................11
Level gauge .................................12
Emptying the Grass Bag................12
Adjusting the Cut Height ...............12
Switching On and Off...................12
Working with the Lawnmower........12
Cleaning, Maintenance and
Storage......................................13
General Cleaning and Maintenance
Work ..........................................13
Changing the Blade......................13
Storage.......................................14
Waste disposal and
environmental protection ...........14
Replacement parts/Accessories ..14
Trouble Shooting........................15
Guarantee .................................16
Repair Service............................17
Service-Center............................17
Importer ....................................17
Translation of the original
EC declaration of conformity ......62
Exploded Drawing .....................65
Introduction
Congratulations on the purchase of your
new device. With it, you have chosen a
high quality product.
During production, this equipment has
been checked for quality and subjected
to a nal inspection. The functionality of
your equipment is therefore guaranteed. It
cannot be ruled out that residual quantities
of water or lubricants will remain on or in
the equipment/hose lines in isolated cases.
This is not a fault or defect and it repre-
sents no cause for concern.
The operating instructions constitute
part of this product. They contain
important information on safety, use
and disposal.
Before using the product, familiarise
yourself with all of the operating
and safety instructions. Use the
product only as described and for
the applications specied.
Keep this manual safely and in the
event that the product is passed on,
hand over all documents to the third
party.
Intended purpose
The equipment is designed only for mow-
ing domestic lawns and grass areas.
Any other use that is not expressly per-
mitted in these instructions may result in
damage to the equipment and represent a
serious risk to the user.
The equipment is intended for use by
adults. It is not to be used by children or
people who are unfamiliar with these in-
structions. The use of the equipment is pro-
hibited in the rain or a damp environment.

6
GB IE

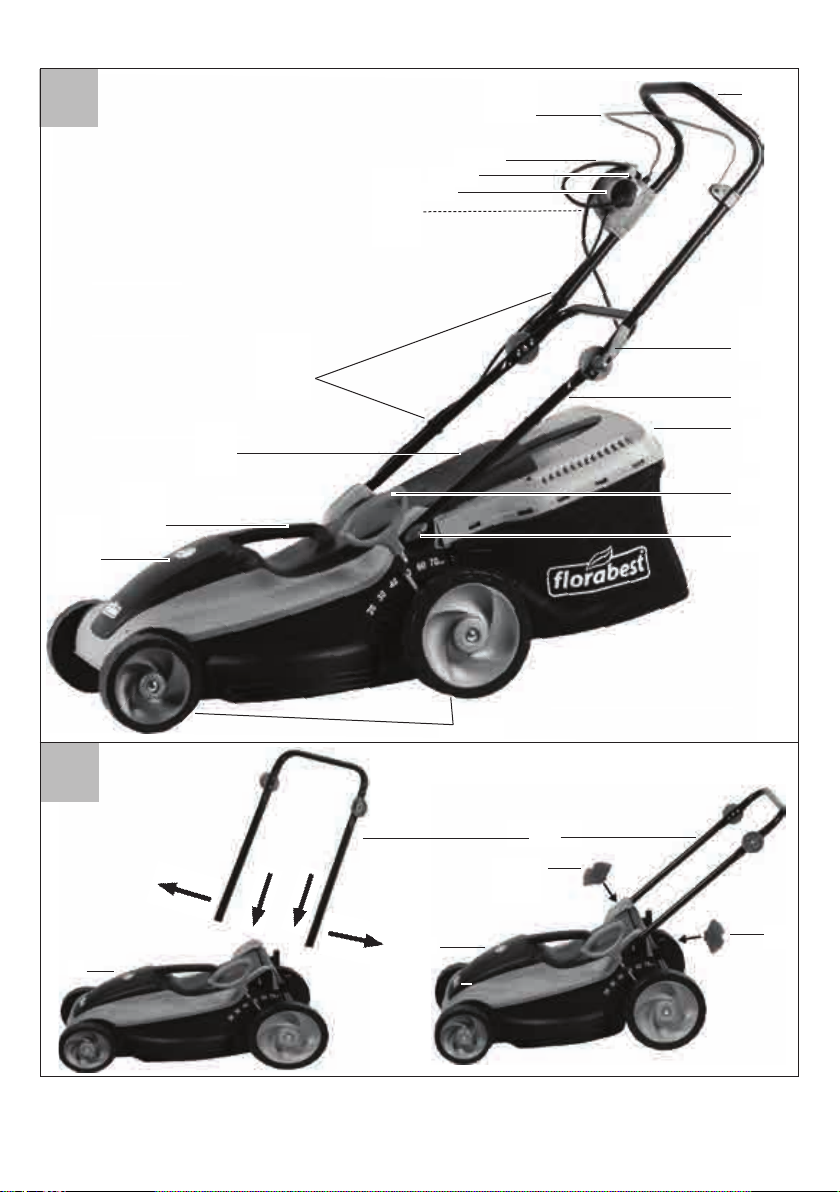

Overview
A
1 Curved handle
2a Buttery nuts
2b Wing nuts
3 Lower bar
4 Grass bag
5 Cut height adjusting lever
6 Wheels
7 Lawnmower housing
8 Handle
9 Collision guard
10 Cable holder
11 Release button (not visible)
12 Power cable outlet
13 Cable strain relief
14 Power cable
15 Start lever
C
16 Screws
E
17 Level gauge
I
18 Blade screw
19 Blade
20 Motor spindle
The manufacturer will not be liable for
damages caused by use other than for the
intended purpose or by incorrect opera-
tion.
General Description
Scope of Delivery
Carefully remove the equipment from the
packaging and check whether the follow-
ing parts are complete:
- Lawnmower and curved handle with
connection cable
- Lower bar
- Lawn bag
- 2 wing nuts and screws for attaching
the curved handle
- 2 buttery nuts for attaching the curved
handle
- 2 holders to attach the
connection cable
- Translation of the original instructions
for use
Function Description
The electric lawnmower has a cutting tool,
which turns parallel to the cutting level. It is
equipped with a high performance electric
motor, robust plastic housing, safety switch,
collision guard, and grass bag. Addition-
ally, the equipment is height adjustable to
six levels and has smooth-running wheels.
For the function of the operating parts,
please refer to the descriptions below.

7
GB IE
Technical specications
Electric Lawnmower ...FRM 1800 B2
Motor input power .....................1800 W
Mains voltage.................. 230 V~, 50 Hz
Idling speed ...........................3250 min-1
Blade width...................Approx. 440 mm
Cut height ............................20 – 70 mm
Protection class ................................. II
Protection type.................................IPX4
Weight ......................................15.1 kg
Lawn bag volume, net....................... 52 l
Sound pressure specication
(LPA)........................85 dB(A); KPA=3 dB
Noise level specication
measured (LWA)..94.1 dB(A); KWA=2.1 dB
guaranteed .......................... 96 dB (A)
Vibration on the handle
(ah)....................1.8 m/s2; K= 1.5 m/s²
This device is designed for operation on
a power supply network with a system im-
pedance (Internal resistance of the mains)
Zmax at the transfer point (domestic con-
nection) of a maximum of 0.277 Ohms.
The user must ensure that the device is
operated only on a power supply network
that fulls this requirement.
If necessary, the local power supply com-
pany can be asked for the system imped-
ance.
The stated vibration emission value was
measured in accordance with a standard
testing procedure and may be used to com-
pare one power tool to another.
The stated vibration emission value may
also be used for a preliminary exposure
assessment.
Warning: The vibration emission
value may differ during actual use
of the power tool from the stated
value depending on the manner in
which the power tool is used.
Safety precautions aimed at protect-
ing the user should be based on
estimated exposure under actual
usage conditions (all parts of the
operating cycle are to be consid-
ered, including, for example, times
during which the power tool is
turned off and times when the tool
is turned on but is running idle).
The noise and vibration values have been
determined in accordance with the stand-
ards and regulations specied in the decla-
ration of conformity.
Technical and visual modications may be
made without notice in the course of further
development. All dimensions, informa-
tion and specications in these operating
instructions are therefore not guaranteed.
As such, no assertion of legal claims can
be enforced on the basis of the operating
instructions.
Safety information
This section covers the basic safety regula-
tions when working with the electric lawn-
mower.

8
GB IE

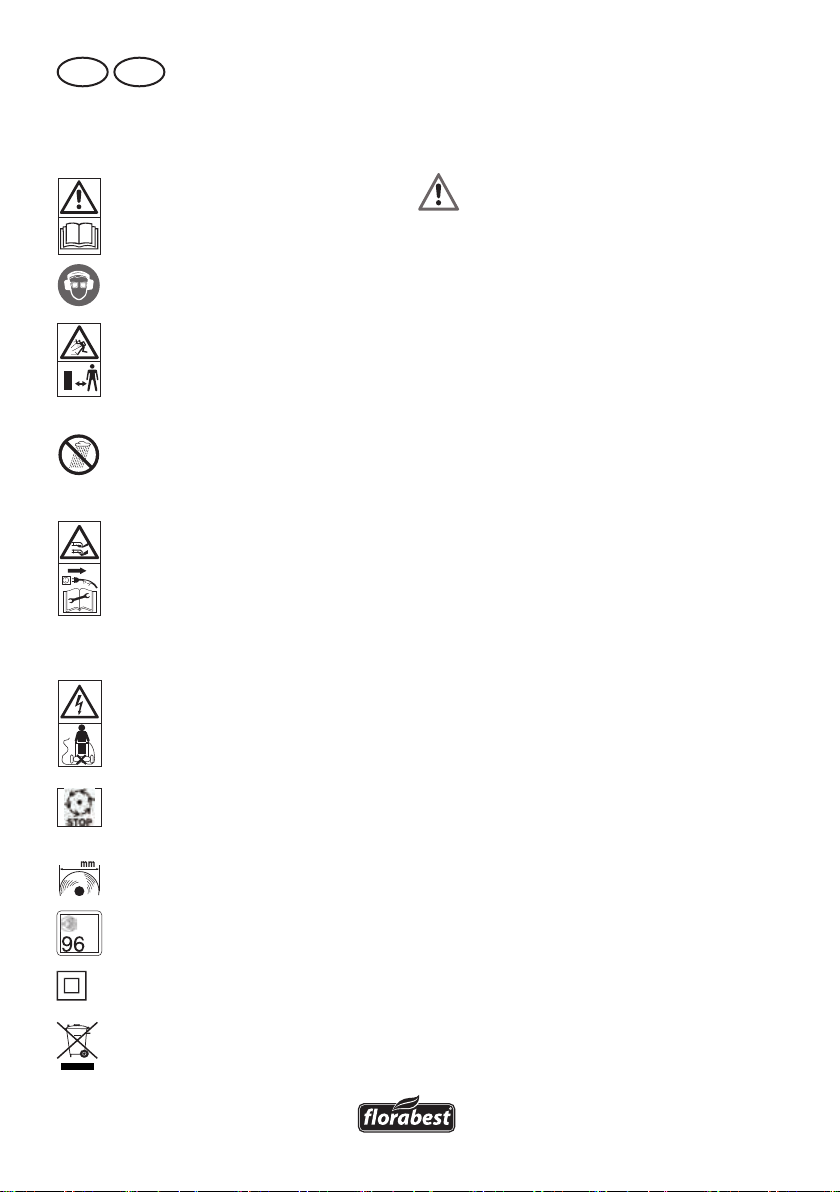

Pictorial Diagrams on the
Equipment
Caution!
Read the operating instructions
carefully.
Wear eye and ear protection.
Risk of injury from parts being
thrown up.
Keep nearby people away from the
mower.
Do not expose the equipment to the
damp. Do not work in the rain and
do not cut wet grass.
Caution – sharp cutting blade!
Keep feet and hands away.
Risk of injury!
Switch off the motor and discon-
nect the plug before adjustment or
repair work or if the power cable is
caught or damaged.
Danger of damaged power cable.
Keep the power cable away from
the cutting blade!
Caution!
The lawnmower blade continues to
run after switching off.
Cutting circle
440
dB
LWA Noise level specication LWA in dB.
Protection class II
Do not dispose of electrical equip-
ment in domestic waste.
General safety information
This equipment may cause serious
injury in the case of improper use.
In order to avoid injury to people
and damage to property, the fol-
lowing safety information must be
observed and users must familiarise
themselves with all operating parts.
Preparation:
• This device can be used by
individuals with reduced physi-
cal, sensory or mental capabili-
ties or a lack of experience or
knowledge if they are super-
vised or have been instructed
in how to use the device safely
and understand the associated
dangers. Children must not play
with the device.
• Before using the unit, carefully read
through the instruction manual and fa-
miliarise yourself with all of its controls.
• Prior to use, always check the con-
necting cable and extension cable for
signs of damage or wear and tear. If
the cable gets damaged during use, it
must be disconnected from the supply
network immediately. Do not touch the
cable before it has been disconnected.
Do not use the machine, if the cable is
worn or damaged.
• Before you shut down the machine, let
the motor cool down.
• Do not allow the use of this equipment
by children or others who are unfamil-
iar with these operating instructions.
Local regulations may specify the mini-
mum age of the operator.
• Do not use the equipment when people
and particularly children or pets are
nearby.

9
GB IE
• Children should be supervised to en-
sure that they do not play with the ap-
pliance.
• The operator or user is responsible for
accidents, injuries to other people or
damage to the property of others.
• Check the terrain on which the equip-
ment is to be used and remove stones,
sticks, wires and other foreign objects
that could become caught and thrown
up.
• Wear suitable work clothing such as
stable shoes with non-slip soles and
robust, long trousers. Do not use the
equipment when barefoot or when
wearing open sandals. Avoid wearing
loose clothing with hanging laces or
belts.
• Before each use, carry out a visual
inspection of the equipment. Do not
use the equipment if protective devices
(e.g. collision guard or grass bag),
parts of the cutting device or bolts are
missing, worn or damaged. To avoid
imbalance, damaged tools and bolts
are to be replaced only in sets.
• Take care with equipment that has sev-
eral cutting tools, as the movement of
one blade may result in the rotation of
the other blades.
• Use only spare parts and accessories
supplied and recommended by the
manufacturer. The use of non-original
parts will immediately invalidate the
guarantee.
Working with the Equipment:
Do not place feet or hands near or
under rotating parts when working.
Risk of injury!
Observe the noise protection and
local regulations.
• Switch on the motor according to the
instructions and only when your feet
are at a safe distance from the cutting
tools.
• Do not use the equipment in the rain,
in poor weather, in a damp environ-
ment, or on wet grass. Work only in
daylight or with good lighting.
• Do not work with the equipment when
tired, lacking concentration or under
the inuence of alcohol or drugs. Al-
ways take breaks in good time. Take a
sensible approach to the work.
• When working, ensure a rm stance,
particularly on slopes. Always work
across the slope, never upwards or
downwards. Take particular care when
changing the direction of travel on
the slope. Do not work on excessively
steep slopes.
• Run the equipment only at a walking
pace. Take particular care when turn-
ing the equipment around, pulling it
towards you or going backwards.
• Switch on the equipment carefully
and in accordance with the directions
in these instructions. Ensure sufcient
distance between feet and the rotating
blades.
• Do not tilt the equipment when starting
other than if it is necessary to do so
when starting up in long grass. In this
case, tilt the equipment by pressing
down the handle bar such that the front
wheels of the equipment are raised. Al-
ways check that both hands are in the
working position before returning the
equipment to the ground.
• Do not work without the grass bag or
collision guard. Keep away from the
ejection hole at all times.
• Do not start the motor when standing
in front of the emission duct.

10
GB IE
Caution! Danger! The blade contin-
ues to run after switching off.
There is a risk of injury.
• The equipment is not to be lifted or
transported while the motor is running.
Switch off the equipment if it has to be
tilted in transit, when crossing surfaces
other than grass, and when the equip-
ment is being transported to and from
the surfaces to be mowed.
• Always keep the grass ejection hole
clean and clear. Remove cut material
only when the equipment is stopped.
• Do not leave the equipment unattended
in the workplace.
• Do not work with equipment that is
damaged, incomplete, or has been
modied without the authorisation of
the manufacturer. Do not use the equip-
ment with damaged safety devices or
screens or with missing safety equip-
ment such as deection and/or grass
collection devices.
• Do not overload the equipment. Work
only within the specied power range
and do not change the regulator set-
tings on the motor. Do not use low-pow-
ered machines for heavy work. Do not
use your equipment for purposes other
than those for which it is designed.
• Do not use the equipment near
inammable liquids or gases. Non-
observance will result in a risk of re or
explosion.
• Do not lift or carry the equipment when
the motor is running.
• Switch off the equipment and discon-
nect the plug:
- Whenever you leave the machine,
- Before cleaning the ejection hole or
removing blockages,
- When the equipment is out of use,
- Before checking, cleaning or working
on the equipment,
- If the power cable is damaged or
frayed,
- If the equipment has hit a foreign
object or if strange vibrations occur
during work. In this case, check the
equipment for damage and have it
repaired if applicable.
• Do not place feet or hands near or
under rotating parts. Do not stand in
front of the grass ejection hole during
mowing.
Maintenance and Storage:
• Ensure that all nuts, bolts and screws
are tightened rmly and the equipment
is in safe working condition.
• Do not attempt to repair the equipment
yourself unless you have been trained
to do so. Any work not specied in
these instructions is to be carried out
only by customer service centres that
we have authorised.
• Keep the equipment in a dry location
and out of reach of children.
• Handle the equipment with care. Keep
tools sharp and clean, in order to fa-
cilitate better and safer work. Follow
the maintenance instructions.
• Wear protective gloves when changing
the cutting device.
• Regularly check the grass collection
device for wear and strains. For safety
reasons, replace worn or damaged
parts. When adjusting the blades, take
particular care to avoid ngers being
trapped between the rotating blades
and xed parts of the machine.
• Check that only replacement tools au-
thorised by the manufacturer are used.
• During maintenance of the cutting
blades, be aware that they can be
brought into motion even when the
power supply is switched off.

11
GB IE
Electrical Safety:
• Ensure that the mains voltage matches
the specications on the rating plate.
• Connect the equipment only to a sock-
et that has a residual current operated
device (RCD switch) with a trip current
of no more than 30 mA.
• Avoid bodily contact with earthed
parts (e.g. metal fences, metal posts).
• Use only authorised power cables of
H05RN-F, which are no more than
75m long and suitable for outdoor
use. The power cable wire cross sec-
tion must be at least 2.5 mm2. Always
completely unroll cable drums before
use. Check the cable for damage.
• To x on the power cable, use the
cable suspension intended for the pur-
pose.
• Keep the power cable away from the
cutting tool when working. The cutting
blades may damage the power cable
and result in contact with live parts. Al-
ways run the power cable behind the
operator.
• Do not use the power cable to pull the
plug from the socket. Protect the power
cable from heat, oil and sharp edges.
• Switch off the equipment and discon-
nect the plug from the socket if the
power cable is damaged. If the power
cable is damaged, it must be replaced
by the manufacturer, the customer
services of the same, or a qualied
person, in order to avoid hazards.
• Do not connect a damaged power
cable to the mains. Do not touch a
damaged power cable when it is
connected to the mains. A damaged
power cable may result in contact with
live parts.
Assembly
Disconnect the plug before any
work on the equipment. There is a
risk of injury.
Assembling the Curved
Handle
B
1. Remove the two pre-installed
buttery nuts (2a) from the lawn-
mower housing (7). Insert the
lower bar (3) into the slot on the
lawnmower housing (7).
2. Fix the bottom bar (3) using the
two screws and buttery nuts
(2a).
C
3. Fix the curved handle (1) using
the enclosed screws (16) and the
wing nuts (2b) on the lower bar
(3). There are two possible posi-
tions.
4. Clip the cable hooks ( A10) into
the bar (3) and the handle (1) to
fasten the cable.
When both wing nuts are loosened,
the curved handle can be folded
down for storing the equipment.
Ensure that the power cable is not
caught.
Operation
Hanging On/Removing the
Grass Bag
D
1. To hang on the grass bag (4),
lift the collision guard (9) and
hang on the grass bag. Fold the
collision guard (9) onto the grass
bag (4). It holds the grass bag in
the correct position.

12
GB IE
2. To remove the grass bag (4),
lift the collision guard (9) and
detach the grass bag. Fold the
collision guard (9) back onto the
mower housing.
Do not work with the lawn-
mower without the collision
guard or lawn box. There is
a risk of injury.
E
Level gauge
The level gauge (17) is located on the side
of the grass catcher (4).
Flap (17) open:
grass catcher (4) empty
Flap (17) closed:
grass catcher (4) full
The level indicator (17) works when
the device is in operation.
Emptying the Grass Bag
To empty the grass collection bag, also use
the bottom bag handle (4).
Adjusting the Cut Height
Switch off the equipment, discon-
nect the plug and wait for the blade
to stop. There is a risk of injury.
F
1. Hold the cut height adjusting
lever (5) and guide it past the
indent to the desired cut height
setting.
2. The handle (8) may be used
to help, in order to prevent to
mower rolling away.
20 mm - Position 1
30 mm - Position 2
40 mm - Position 3
50 mm - Position 4
60 mm - Position 5
70 mm - Position 6
The correct height is around 25 – 40 mm
for a decorative lawn and around 30 –
60mm for a used lawn.
A higher cut height should be se-
lected for the rst cut of the season.
Observe the noise protection and lo-
cal regulations.
Switching On and Off
G
1. Connect the equipment to the
power supply.
2. Before switching on, ensure that
the equipment is not in contact
with any objects.
3. To switch on, press the release but-
ton (11) on the handle at the same
time as pressing the start lever.
Release the release button (11).
4. To switch off, release the start
lever (15).
After switching off the equip-
ment, the blade continues to
turn for several seconds. Do
not touch the moving blade.
There is a risk of injury.
Working with the
Lawnmower
Regular mowing encourages increased foli-
ation of the grass and kills off weeds at the
same time. Therefore, not only does each
mowing increase the density of the lawn, it

13
GB IE
also produces an evenly resilient lawn.
The rst cut is to be made in around April,
at a growth height of 70 – 80 mm. In the
main vegetation period, the lawn is to be
mowed at least once a week.
• Start mowing near the socket and work
away from the socket.
• Always keep the extension cable be-
hind you and when you turn, move
it to the side that has already been
mowed.
• Run the equipment at a walking pace,
in tracks that are as even as possible.
For gap-free mowing, the tracks should
always overlap by a few centimetres.
• Adjust the cut height so the equipment
is not overloaded. Otherwise, the mo-
tor may be damaged.
• On slopes, always work across the
slope. Take particular care when going
backwards and pulling the equipment.
• Clean the equipment after each use, as
described in the chapter on “Cleaning,
Maintenance and Storage”.
Switch off the equipment after
work and in order to transport it,
disconnect the plug and wait until
the blade stops. There is a risk of
injury.
Cleaning, Maintenance
and Storage
Have work that is not de-
scribed in these instructions
carried out by a customer
service centre that we have
authorised. Use only original
parts.
Wear gloves when handling the
blade.
Switch off the equipment before all
maintenance and cleaning work,
disconnect the plug and wait until
the blade stops.
There is a risk of injury.
General Cleaning and
Maintenance Work
Do not hose down the lawn-
mower with water.
• Always keep the equipment clean. To
clean, use a brush or cloth but no de-
tergent or solvent.
• After mowing, use a piece of wood
or plastic to remove adherent plant
remains from the wheels, ventilation
holes, ejection hole and blade area.
Do not use hard or pointed objects, as
these may damage the blade.
• Oil the wheels from time to time.
• Before each use, check the lawnmower
for obvious defects such as loose, worn
or damaged parts. Check that all nuts,
bolts and screws are sitting rmly.
• Check the covers and protective de-
vices for damage and check that they
are sitting correctly. Replace them if
necessary.
Changing the Blade
If the blade is blunt, it can be sharpened
by a specialist workshop. If the blade is
damaged or showing signs of imbalance,
it must be replaced (see chapter on “Spare
Parts”).
I
1. Switch off the equipment, discon-
nect the plug and wait until the
blade stops.
2. Turn the equipment over.
3. Use sturdy gloves and hold the

14
GB IE
blade rmly (19). Turn the blade
screw (18) anticlockwise off of
the motor spindle ( 20) using a
screwdriver (A/F width13).
4. Install the new blade in the
reverse order. Ensure that the
blade is positioned correctly and
the screw tightened rmly.
Storage
• Keep the equipment dry and out of
reach of children. Loosen the wing nuts
and fold down the handle bar so the
equipment takes up less space. Ensure
that the cable is not caught.
• Allow the motor to cool before storing
the equipment in a conned space.
• Do not cover the equipment with nylon
bags as moisture could build up.
We will not be liable for damages caused
by our equipment where these are caused
by improper repair or the use of non-
original parts or by use other than for the
intended purpose.
Waste disposal and en-
vironmental protection
Be environmentally friendly. Return the
tool, accessories and packaging to a recy-
cling centre when you have nished with
them.
The apparatus can not be disposed
of with regular household or bulk
waste.
• Hand over the device at an utilization
location. The plastic and metal parts
employed can be separated out and
thus recycled use can be implemented.
Ask our Service-Center for details.
• You can nd out more about waste
collection sites and times through your
local administration ofce or waste dis-
posal company.
• Throw the cut grass on the compost.
Do not throw it in the normal house-
hold waste.
Replacement parts / Accessories
Spare parts and accessories can be obtained at
www.grizzly-service.eu
If you do not have internet access, please contact the Service Centre via telephone (see
“Service-Center” Page 17). Please have the order number mentioned below ready.
Item Item Description Order number
Instruction Exploded
Manual Drawing
4 22 Grass bag 91103875
19 11 Spare blade 13700303

15
GB IE
Trouble Shooting
Problem Possible Cause Fault Fixing
Equipment does
not start
Power is off Check the socket, cable, wire and plug and have any repairs
carried out by an electrician
Defective start lever
(A15) Repair by customer services
Worn carbon brushes
Defective motor
Grass too long Set a greater cut height. Lift the front wheels slightly by pressing
down on the handle bar.
Motor stops Blockage by foreign
object Remove the foreign object
Result
unsatisfactory or
motor labours
Cut height too low Set a higher cut height
Blade ( I19) blunt Have the blade ( I19)
sharpened or replace it
Blade ( I19) area
blocked Clean the equipment
Blade ( I19)
assembled incorrectly Install the blade ( I19) correctly
Blade ( I19)
fails to turn
Blade ( I19) blocked
by grass Remove the grass
Blade screw ( I18)
loose Tighten the blade screw ( I18)
Strange noises,
rattling or
vibrations
Blade screw ( I18)
loose Tighten the blade screw ( I18)
Blade ( I19)
damaged Replace the blade ( I19)
Level indicator
(E17) does not
work Contamination Cleaning with a soft brush. The
level indicator must close by
itself, if it was opened.

16
GB IE
Guarantee
Dear Customer,
This equipment is provided with a 3-year
guarantee from the date of purchase.
In case of defects, you have statutory rights
against the seller of the product. These
statutory rights are not restricted by our
guarantee presented below.
Terms of Guarantee
The term of the guarantee begins on the
date of purchase. Please retain the original
receipt. This document is required as proof
of purchase.
If a material or manufacturing defect
occurs within three years of the date of
purchase of this product, we will repair or
replace – at our choice – the product for
you free of charge. This guarantee requires
the defective equipment and proof of pur-
chase to be presented within the three-year
period with a brief written description of
what constitutes the defect and when it oc-
curred.
If the defect is covered by our guarantee,
you will receive either the repaired product
or a new product. No new guarantee pe-
riod begins on repair or replacement of the
product.
Guarantee Period and Statutory
Claims for Defects
The guarantee period is not extended by
the guarantee service. This also applies for
replaced or repaired parts. Any damages
and defects already present at the time of
purchase must be reported immediately af-
ter unpacking. Repairs arising after expiry
of the guarantee period are chargeable.
Guarantee Cover
The equipment has been carefully pro-
duced in accordance with strict quality
guidelines and conscientiously checked
prior to delivery.
The guarantee applies for all material and
manufacturing defects. This guarantee
does not extend to cover product parts that
are subject to normal wear and may there-
fore be considered as wearing parts (e.g.
blade) or to cover damage to breakable
parts (e.g. switches).
This guarantee shall be invalid if the prod-
uct has been damaged, used incorrectly or
not maintained. Precise adherence to all of
the instructions specied in the operating
manual is required for proper use of the
product. Intended uses and actions against
which the operating manual advises or
warns must be categorically avoided.
The product is designed only for private
and not commercial use. The guarantee
will be invalidated in case of misuse or
improper handling, use of force, or inter-
ventions not undertaken by our authorised
service branch.
Processing in Case of Guarantee
To ensure quick handling of you issue,
please follow the following directions:
• Please have the receipt and item num-
ber (IAN 270737) ready as proof of
purchase for all enquiries.
• Please nd the item number on the rat-
ing plate.
• Should functional errors or other de-
fects occur, please initially contact the
service department specied below by
telephone or by e-mail. You will then
receive further information on the pro-
cessing of your complaint.

17
GB IE
• After consultation with our customer
service, a product recorded as defec-
tive can be sent postage paid to the
service address communicated to you,
with the proof of purchase (receipt)
and specication of what constitutes
the defect and when it occurred. In or-
der to avoid acceptance problems and
additional costs, please be sure to use
only the address communicated to you.
Ensure that the consignment is not sent
carriage forward or by bulky goods,
express or other special freight. Please
send the equipment inc. all accessories
supplied at the time of purchase and
ensure adequate, safe transport pack-
aging.
Repair Service
For a charge, repairs not covered by the
guarantee can be carried out by our ser-
vice branch, which will be happy to issue
a cost estimate for you.
We can handle only equipment that has
been sent with adequate packaging and
postage.
Attention: Please send your equipment to
our service branch in clean condition and
with an indication of the defect.
Equipment sent carriage forward or by
bulky goods, express or other special
freight will not be accepted.
We will dispose of your defective devices
free of charge when you send them to us.
Service-Center
Service Great Britain
Tel.: [phone]
(£ 0.10/Min.)
E-Mail: [email protected]
IAN 270737
Service Ireland
Tel.: [phone]
(0,08 EUR/Min., (peak))
(0,06 EUR/Min., (off peak))
E-Mail: [email protected]
IAN 270737
Importer
Please note that the following address is
not a service address. Please initially con-
tact the service centre specied above.
Grizzly Tools GmbH & Co. KG
Stockstädter Straße 20
63762 Großostheim
Germany
www.grizzly-service.eu
GB
IE

18
FR BE
Sommaire
Introduction ...............................18
Fins d’utilisation.........................18
Description générale ..................19
Volume de la livraison...................19
Description du fonctionnement .......19
Aperçu........................................19
Données techniques ...................20
Consignes de sécurité.................20
Pictogrammes sur l’appareil ...........20
Consignes générales de sécurité ....21
Montage ....................................25
Monter la poignée en arceau.........25
Utilisation ..................................26
Accrocher/retirer le sac de
ramassage d’herbe.......................26
Clapet.........................................26
Vider le sac de ramassage d’herbe..26
Régler la hauteur de coupe............26
Mettre sous et hors tension ............27
Travailler avec la tondeuse
à gazon ......................................27
Nettoyage/Maintenance/
Stockage....................................27
Travaux généraux de maintenance
et de nettoyage............................28
Changer la lame ..........................28
Stockage.....................................28
Elimination et écologie ...............29
Pièces de rechange/Accessoires..29
Recherche des pannes................30
Garantie ....................................31
Service Réparations ...................32
Service-Center............................32
Importateur ...............................32
Traduction de la déclaration de
conformité CE originale ..............63
Vue éclatée ................................65
Introduction
Toutes nos félicitations pour l’achat de
votre nouvel appareil. Vous avez ainsi
choisi un produit de qualité supérieure.
La qualité de l’appareil a été vériée
pendant la production et il a été soumis
à un contrôle nal. Le fonctionnement de
votre appareil est donc ainsi garanti. Il
n’est pas à exclure que dans certains cas
isolés, il demeure dans l’appareil, ou dans
les tuyauteries exibles, des quantités rési-
duelles d’eau ou de lubriants industriels.
Ceci n’est pas un défaut ou un vice et on
ne doit pas s’inquiéter à ce sujet.
La notice d’utilisation fait partie de
ce produit. Elle contient des instruc-
tions importantes pour la sécurité,
l’utilisation et l’élimination des
déchets. Avant d’utiliser ce produit,
lisez attentivement les consignes
d’emploi et de sécurité. N’utilisez le
produit que tel que décrit et unique-
ment pour les domaines d’emploi
indiqués. Conservez cette notice et
remettez-la avec tous les documents
si vous cédez le produit à un tiers.
Fins d’utilisation
L’appareil est uniquement conçu pour cou-
per le gazon et l’herbe des pelouses dans
le domaine familial.
Toute autre application qui n’est pas ca-
tégoriquement autorisée dans ce mode
d’emploi peut entraîner des dommages sur
l’appareil et présenter un grave danger
pour l’utilisateur.
L’appareil a été conçu pour être utilisé
par des adultes. Les enfants ainsi que les
personnes qui ne connaissent pas ce mode
d’emploi ne doivent pas utiliser l’appareil.

19
FR BE
L’utilisation de l’appareil est interdite en
cas de pluie ou dans un environnement
humide.
Le fabricant n‘est pas responsable des
dommages qui seraient causés par un
usage contraire aux prescriptions ou par
une manipulation non conforme
Description générale
Volume de la livraison
Retirez l’appareil prudemment de l’embal-
lage et vériez si les parties suivantes sont
complètes :
- Tondeuse à gazon et poignée en ar-
ceau avec ligne de raccordement
- Barre inférieure
- Panier de ramassage d’herbe
- 2 vis pour la xation du bras
- 2 écrous d’aile et vis à pour la xation
de la poignée en arceau
- 2 supports pour la xation de la ligne
de raccordement
- Traduction de la notice d’utilisation ori-
ginale
Description du
fonctionnement
La tondeuse à gazon électrique est équi-
pée d’un outil tranchant tournant parallè-
lement au niveau de coupe. Elle est munie
d’un électromoteur à haute performance,
d’un solide boîtier synthétique, d’un com-
mutateur de sécurité, d’une protection an-
ti-chocs et d’un sac de ramassage. De plus
l’appareil est réglable en hauteur sur 6
postions et ses roues sont manoeuvrables.
Les descriptions suivantes vous indiquent
le fonctionnement des dispositifs de com-
mande.
Aperçu
A
1 Poignée en arceau
2a Ecrous d’aile à pour la xation
de la barre
2b Ecrous d’aile à pour la xation
de la barre
3 Barre inférieure
4 Sac de ramassage
5 Commande de réglage de hau-
teur de coupe
6 Roues
7 Boîtier de la tondeuse à gazon
8 Poignée
9 Protection anti-chocs
10 Support de câble
11 Bouton de déverrouillage
(non visible)
12 Prise de courant pour câble d’ali-
mentation
13 La décharge de traction de
câble
14 Câble d’alimentation secteur
15 Levier de démarrage
C
16 Écrous à oreilles
E
17 Clapet
I
18 Vis de la lame
19 Solidement la lame
20 Rapport à l’axe du moteur

20
FR BE
Données techniques
Appareil ....................FRM 1800 B2
Puissance absorbée du moteur.....1800 W
Tension de réseau ......... 230 V ~, 50 Hz
Régime de ralenti ....... 3250 min-1 (tr/mn)
Largeur de la lame ........ environ 440 mm
Hauteur de coupe ............... 20 - 70 mm
Classe de protection ......................... II
Type de protection .......................... IPX4
Poids ........................................15,1 kg
Volumes du panier
de ramassage d’herbe, net................ 52l
Niveau de pression acoustique
(LPA).........................85 dB(A); KPA = 3 dB
Niveau de puissance acoustique
mesuré (LWA).... 94,1 dB(A); KwA =2,1 dB
garanti ................................. 96 dB(A)
Vibration à la poignée
(ah)........................1,8 m/s2; K=1,5 m/s²
Cet appareil est prévu pour l’exploitation
sur un réseau d’alimentation en courant
avec une impédance de système Zmax
(résistance intérieure du let) au point de
transfert (branchement d’abonné) avec un
maximum de 0,277 ohms.
L’utilisateur doit s’assurer que l’appareil
est exploité uniquement avec un réseau
d’alimentation en courant qui remplit cette
demande.
Si nécessaire, l’impédance du système
peut être demandée à l’entreprise locale
d’alimentation en énergie.
Des modications techniques et optiques
en vue d’un perfectionnement sont pos-
sibles sans notication préalable. C’est
pourquoi toutes les dimensions, informa-
tions, remarques et déclarations mention-
nées dans ce manuel sont sans engage-
ment de notre part. Par conséquent, des
prétentions à des revendications juridiques
qui se basent sur le manuel d’instructions
d’emploi seront sans effet.
La valeur totale de vibrations déclarée a
été mesurée conformément à une méthode
d’essai normalisée et peut être utilisée pour
comparer un outil à un autre.
L’indication du fait que la valeur totale de
vibrations déclarée peut également être
utilisée pour une évaluation préliminaire de
l’exposition.
Avertissement :
L’émission de vibration au cours
de l’utilisation réelle de l’outil élec-
trique peut différer de la valeur
totale déclarée, selon les méthodes
d’utilisation de l’outil.
Il est nécessaire de xer des me-
sures de sécurité pour la protection
de l’opérateur, qui sont basées sur
une estimation de l’exposition dans
les conditions d’utilisation réelles
(compte tenu de toutes les parties
constituantes du cycle de fonction-
nement, telles que les temps d’arrêt
de l’outil et de fonctionnement au
repos, en plus du temps de déclen-
chement).
Consignes de sécurité
Cette section traite des principales normes
de sécurité lors du travail avec l’appareil.
Pictogrammes sur l’appareil
Attention !
Lisez attentivement le mode d’em-
ploi.
Portez des protections oculaires et
auriculaires.
