FLOS ROMEO SOFT F User manual

REV. 1
DATE 08/07/2021
1
ROMEO SOFT F
Designed by Philippe Starck, 1998
F6109007
©2021 Flos -All rights reserved -www.flos.com
Flos reserves the right to introduce any changes to its own models, without prior notice.

EN
2
©2021 Flos -All rights reserved -www.flos.com
Flos reserves the right to introduce any changes to its own models, without prior notice.
01. RF03204
–Cover ring
02. RF6100100
–Kit of silicone seats for cover ring
03. RF05274
–Fabric lamp shade
04. RF03321
–Acid-etched diffuser
05. RF6100200
–Kit of screws & bolts
06. RF05307
–Support ring
07. RF04169
– E27 Lamp holder
08. RF02812
–Grey support bracket
10. RF28045
– Led 220/240V 40-250W 4-100W Rondò dimmer
ROMEO SOFT F
F6109007
REV. 1
DATE 08/07/2021

EN
3
RF03204
COVER RING
WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.
For the installation of the spare-part, it is necessary to consult a qualified electrician.
©2021 Flos -All rights reserved -www.flos.com
Flos reserves the right to introduce any changes to its own models, without prior notice.
ROMEO SOFT FF6109007
REV. 1
DATE 08/07/2021
REMARKS
–We advise to supply with the cover ring, also the glass silicone seats (code RF6100100)

4
WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.
For the installation of the spare-part, it is necessary to consult a qualified electrician.
©2021 Flos -All rights reserved -www.flos.com
Flos reserves the right to introduce any changes to its own models, without prior notice.

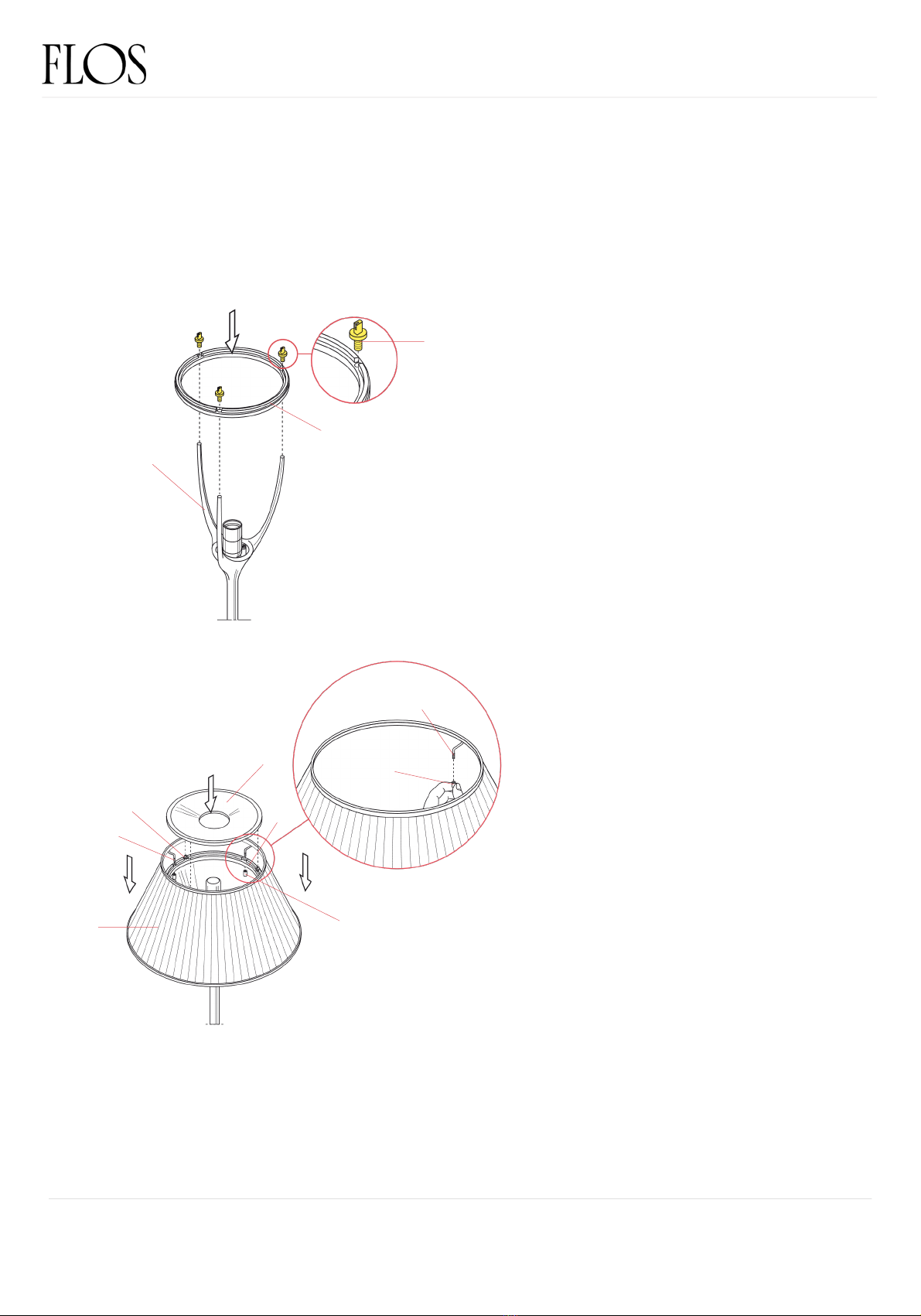

Position the fabric lamp shade (N) on the support ring (D) ensuring to insert the
hook threaded screws (R) into the apposite holes present in the support ring (D),
fasten the small bolts (Q).
Collocate the silicone seats in there apposite holes underneath the cover ring (O).
Rest the covering ring (O) on the pins (G).
EN
Fig.1
R
RF03204
COVER RING
ROMEO SOFT FF6109007
REV. 1
DATE 08/07/2021
Q
G
R
O
D
Q
N

EN
5
RF6100100
KIT OF SILICONE SEATS FOR COVER RING
WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.
For the installation of the spare-part, it is necessary to consult a qualified electrician.
©2021 Flos -All rights reserved -www.flos.com
Flos reserves the right to introduce any changes to its own models, without prior notice.
ROMEO SOFT FF6109007
REV. 1
DATE 08/07/2021
Romeo
Soft F
p.05
Romeo
Soft T1
p.05

6
WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.
For the installation of the spare-part, it is necessary to consult a qualified electrician.
©2021 Flos -All rights reserved -www.flos.com
Flos reserves the right to introduce any changes to its own models, without prior notice.
Position the fabric lamp shade (N) on the support ring (D) ensuring to insert the hook threaded screws
(R) into the apposite holes present in the support ring (D), fasten the small bolts (Q).
Collocate the silicone seats in there apposite holes underneath the cover ring (O).
Rest the covering ring (O) on the pins (G).
EN
Fig.1
RF6100100
KIT OF SILICONE SEATS FOR COVER RING
ROMEO SOFT FF6109007
REV. 1
DATE 08/07/2021
R
Q
G
R
O
D
Q
N

EN
7
RF05274
FABRIC LAMP SHADE
WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.
For the installation of the spare-part, it is necessary to consult a qualified electrician.
©2021 Flos -All rights reserved -www.flos.com
Flos reserves the right to introduce any changes to its own models, without prior notice.
ROMEO SOFT FF6109007
REV. 1
DATE 08/07/2021

8
WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.
For the installation of the spare-part, it is necessary to consult a qualified electrician.
©2021 Flos -All rights reserved -www.flos.com
Flos reserves the right to introduce any changes to its own models, without prior notice.
Position the fabric lamp shade (N) on the support ring (D) ensuring to insert the hook threaded screws
(R) into the apposite holes present in the support ring (D), fasten the small bolts (Q).
Collocate the silicone seats in there apposite holes underneath the cover ring (O).
Rest the covering ring (O) on the pins (G).
EN
Fig.1
ROMEO SOFT FF6109007
REV. 1
DATE 08/07/2021
R
Q
G
R
O
D
Q
N
RF05274
FABRIC LAMP SHADE

EN
9
RF03321
ACID-ETCHED DIFFUSER
WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.
For the installation of the spare-part, it is necessary to consult a qualified electrician.
©2021 Flos -All rights reserved -www.flos.com
Flos reserves the right to introduce any changes to its own models, without prior notice.
ROMEO SOFT FF6109007
REV. 1
DATE 08/07/2021

10
WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.
For the installation of the spare-part, it is necessary to consult a qualified electrician.
©2021 Flos -All rights reserved -www.flos.com
Flos reserves the right to introduce any changes to its own models, without prior notice.
EN

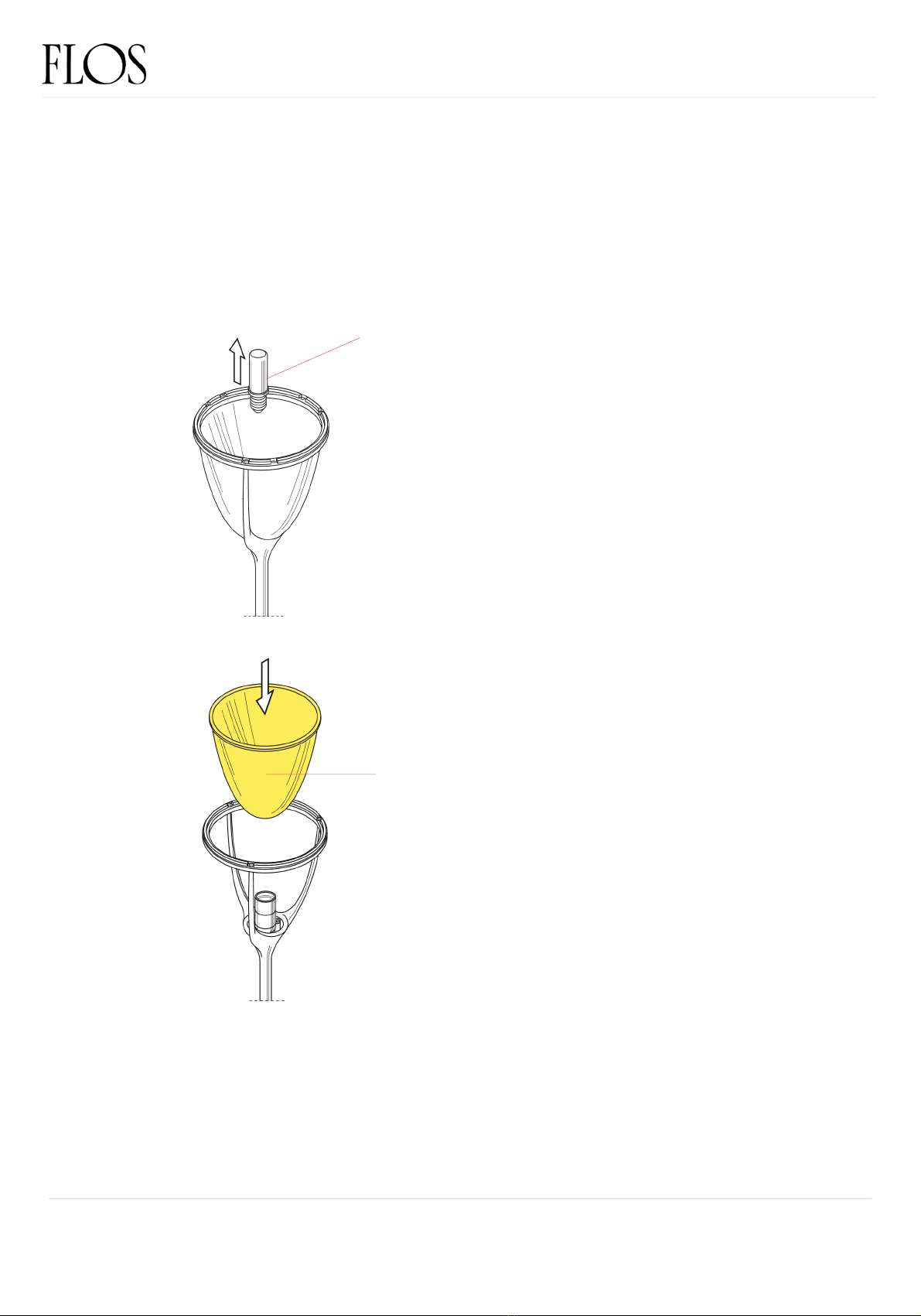

Insert the diffuser (H).
Now, Insert the lamp-bulb (I).
Fig.1
Fig.2
H
ROMEO SOFT FF6109007
REV. 1
DATE 08/07/2021
RF03321
ACID-ETCHED DIFFUSER
Remove the lamp-bulb (I) if still present on the
lamp device.
I

11
WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.
For the installation of the spare-part, it is necessary to consult a qualified electrician.
©2021 Flos -All rights reserved -www.flos.com
Flos reserves the right to introduce any changes to its own models, without prior notice.
Position the fabric lamp shade (N) on the support ring (D) ensuring to insert the
hook threaded screws (R) into the apposite holes present in the support ring (D),
fasten the small bolts (Q).
Collocate the silicone seats in there apposite holes underneath the cover ring (O).
Rest the covering ring (O) on the pins (G).
EN
Fig.3
ROMEO SOFT FF6109007
REV. 1
DATE 08/07/2021
R
Q
G
R
O
D
Q
N
RF03321
ACID-ETCHED DIFFUSER

EN
12
RF6100200
KIT OF SCREWS & BOLTS
WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.
For the installation of the spare-part, it is necessary to consult a qualified electrician.
©2021 Flos -All rights reserved -www.flos.com
Flos reserves the right to introduce any changes to its own models, without prior notice.
ROMEO SOFT FF6109007
REV. 1
DATE 08/07/2021
Romeo
Moon F
p.12
Romeo
Soft F
p.12
Romeo
Moon T1
p.12
Romeo
Soft T1
p.14

13
WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.
For the installation of the spare-part, it is necessary to consult a qualified electrician.
©2021 Flos -All rights reserved -www.flos.com
Flos reserves the right to introduce any changes to its own models, without prior notice.
EN
Position the fabric lamp shade (N) on the
support ring (D) ensuring to insert the hook
threaded screws (R) into the apposite holes
present in the support ring (D), fasten the
small bolts (Q).
Rest the covering ring (O) on the pins (G).
Fig.1
Fig.2
ROMEO SOFT FF6109007
REV. 1
DATE 08/07/2021
Rest the support ring (D) on the support
brackets (E) and lock it by fastening it with the
screw/pivots (F).
F
RF6100200
KIT OF SCREWS & BOLTS
R
Q
G
R
O
D
Q
N
D
E

EN
14
RF05307
SUPPORT RING
WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.
For the installation of the spare-part, it is necessary to consult a qualified electrician.
©2021 Flos -All rights reserved -www.flos.com
Flos reserves the right to introduce any changes to its own models, without prior notice.
ROMEO SOFT FF6109007
REV. 1
DATE 08/07/2021
Romeo
Moon F
p.16
Romeo
Soft F
p.14

15
WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.
For the installation of the spare-part, it is necessary to consult a qualified electrician.
©2021 Flos -All rights reserved -www.flos.com
Flos reserves the right to introduce any changes to its own models, without prior notice.
EN
Insert the diffuser (H).
Fig.1
Fig.2
ROMEO SOFT FF6109007
REV. 1
DATE 08/07/2021
Rest the support ring (D) on the support
brackets (E) and lock it by fastening it with the
screw/pivots (F).
F
D
E
RF05307
SUPPORT RING
H

16
WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.
For the installation of the spare-part, it is necessary to consult a qualified electrician.
©2021 Flos -All rights reserved -www.flos.com
Flos reserves the right to introduce any changes to its own models, without prior notice.
EN
Position the fabric lamp shade (N) on the
support ring (D) ensuring to insert the
hook threaded screws (R) into the apposite
holes present in the support ring (D),
fasten the small bolts (Q).
Collocate the silicone seats in there apposite
holes underneath the cover ring (O).
Rest the covering ring (O) on the pins (G).
Fig.3
Fig.2
ROMEO SOFT FF6109007
REV. 1
DATE 08/07/2021
Insert the lamp-bulb (I).
I
R
Q
G
R
O
D
Q
N
RF05307
SUPPORT RING

EN
17
RF04169
E27 LAMP HOLDER
WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.
For the installation of the spare-part, it is necessary to consult a qualified electrician.
©2021 Flos -All rights reserved -www.flos.com
Flos reserves the right to introduce any changes to its own models, without prior notice.
ROMEO SOFT FF6109007
REV. 1
DATE 08/07/2021
Romeo
Moon F
p.21
Romeo
Soft F
p.17
Romeo
Moon T1
p.21
Romeo
Soft T1
p.22

18
WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.
For the installation of the spare-part, it is necessary to consult a qualified electrician.
©2021 Flos -All rights reserved -www.flos.com
Flos reserves the right to introduce any changes to its own models, without prior notice.
EN
Remove the lamp-bulb (I) if still present on the
lamp device.
Fig.1
Fig.2
REV. 1
DATE 08/07/2021
Remove the cover ring (O).
Remove the fabric lamp shade (N) by
unfastening the small bolts (Q).
Unhook the fabric shade from the support ring
(D).
I
RF04169
E27 LAMP HOLDER
ROMEO SOFT FF6109007
R
Q
G
R
O
D
Q
N

19
WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.
For the installation of the spare-part, it is necessary to consult a qualified electrician.
©2021 Flos -All rights reserved -www.flos.com
Flos reserves the right to introduce any changes to its own models, without prior notice.
EN
Remove the support ring (D) from the support
brackets (E) by unfastening the screw/pivots
(F).
Fig.3
Fig.4
REV. 1
DATE 08/07/2021
Remove the diffuser (H).
H
RF04169
E27 LAMP HOLDER
ROMEO SOFT FF6109007
F
D
E

20
WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.
For the installation of the spare-part, it is necessary to consult a qualified electrician.
©2021 Flos -All rights reserved -www.flos.com
Flos reserves the right to introduce any changes to its own models, without prior notice.
EN
Unfasten the two screws (N) and lift up the
lamp holder assembly (O) with his bracket.
Fig.5
Fig.6
REV. 1
DATE 08/07/2021
Unfasten the locking screw of the cable clamp
(A) present underneath the lamp base (B).
B
RF04169
E27 LAMP HOLDER
ROMEO SOFT FF6109007
O
N
A
