fluidra Astralpool Viron P320 XT User manual

9/08/2017
INSTALLATION AND
OPERATING INSTRUCTIONS
[email protected]
www.astralpool.com.au
Bolero ND Cleaner
Viron Cartridge Filter
INSTALLATION AND OPERATING INSTRUCTIONS I INSTALLATION AND OPERATING INSTRUCTIONS
Viron P320 XT
Viron P520 XT
Pool and Spa Pumps

Inst.434 Viron XT Pool & Spa Pump V08_17
2
Serious injury or death may occur if this product is not used, operated or installed according to these instructions and
relevant Australian standards.
THIS APPLIANCE IS NOT INTENDED FOR USE BY YOUNG CHILDREN OR INFIRM PERSONS. PLEASE ENSURE YOUNG
CHILDREN ARE SUPERVISED SO THAT THEY DO NOT PLAY WITH THE APPLIANCE.
PUMP PRODUCES HIGH PRESSURES –STAND CLEAR OF PUMP AND ALL FILTRATION EQUIPMENT DURING START UP
PUMP MUST ONLY BE INSTALLED BY A QUALIFIED POOL INDUSTRY PROFESSIONAL. INSTALLERS, OPERATORS
AND OWNERS MUST READ THESE INSTRUCTIONS BEFORE USE.
PUMP AUTOMATICALLY RESTARTS AFTER HIGH LIMIT OPERATION, DISCONNECT POWER TO PUMP BEFORE
MAINTENANCE OR REPAIR
INCORRECT SETTING OF THE SPEEDS ON THIS PUMP MAY CAUSE ADVERSE FILTRATION OR OPERATION OF THE
SWIMMING POOL OR SPA. ENSURE PUMP IS INSTALLED, SET AND COMMISSIONED BY AN AUTHORISED
ASTRALPOOL DEALER.
OPERATING PUMP IN OVERDRIVE MODE WILL CREATE VERY HIGH WATER PRESSURE ENSURE ALL CONNECTIONS
ARE WATER TIGHT STAND CLEAR OF ANY FILTER LIDS AND OTHER EQUIPMENT IN THE SYSTEM WHEN OPERATING
IN OVERDRIVE
GENERAL
The Viron XT Pool Pump is a unique variable-speed AC motor combined with an energy efficient pump wet end. When
installed and plumbed correctly, the Viron XT will significantly reduce operating costs, lower noise levels and reduce
greenhouse emissions.
The Viron XT Pool Pump range is available in a variety of models, with the following factory set speeds which offer
approximate flow rates:
Model
High
Medium
Low
Viron P320 XT
320 lpm
206 lpm
128 lpm
Viron P520 XT
520 lpm
426 lpm
200 lpm
(Flow rates based on a maximum speed at 8 m total dynamic head).
Each speed can be easily changed to suit your pool size, filter, plumbing and application. The Viron XT Series pumps must
be installed by a pool professional trained by AstralPool to ensure it has been selected for the correct application, correctly
installed and set up to suit your pool and its operation fully explained to you.

Inst.434 Viron XT Pool & Spa Pump V08_17
3
FEATURES
-Continuous duty rated motor
-Precision reinforced moulded high head impeller, giving extra performance
-Single piece moulded body for added strength and longer life
-Rapid priming diffuser quickly corrects loss of water flow
-Quick and easy disassembly for servicing
-Large capacity basket with easily removed ramp on lid
-Ability to adjust factory pre-set speeds for optimum water flow and maximum energy savings for your pool and its
equipment.
-Double Insulated water circuit for maximum electrical protection

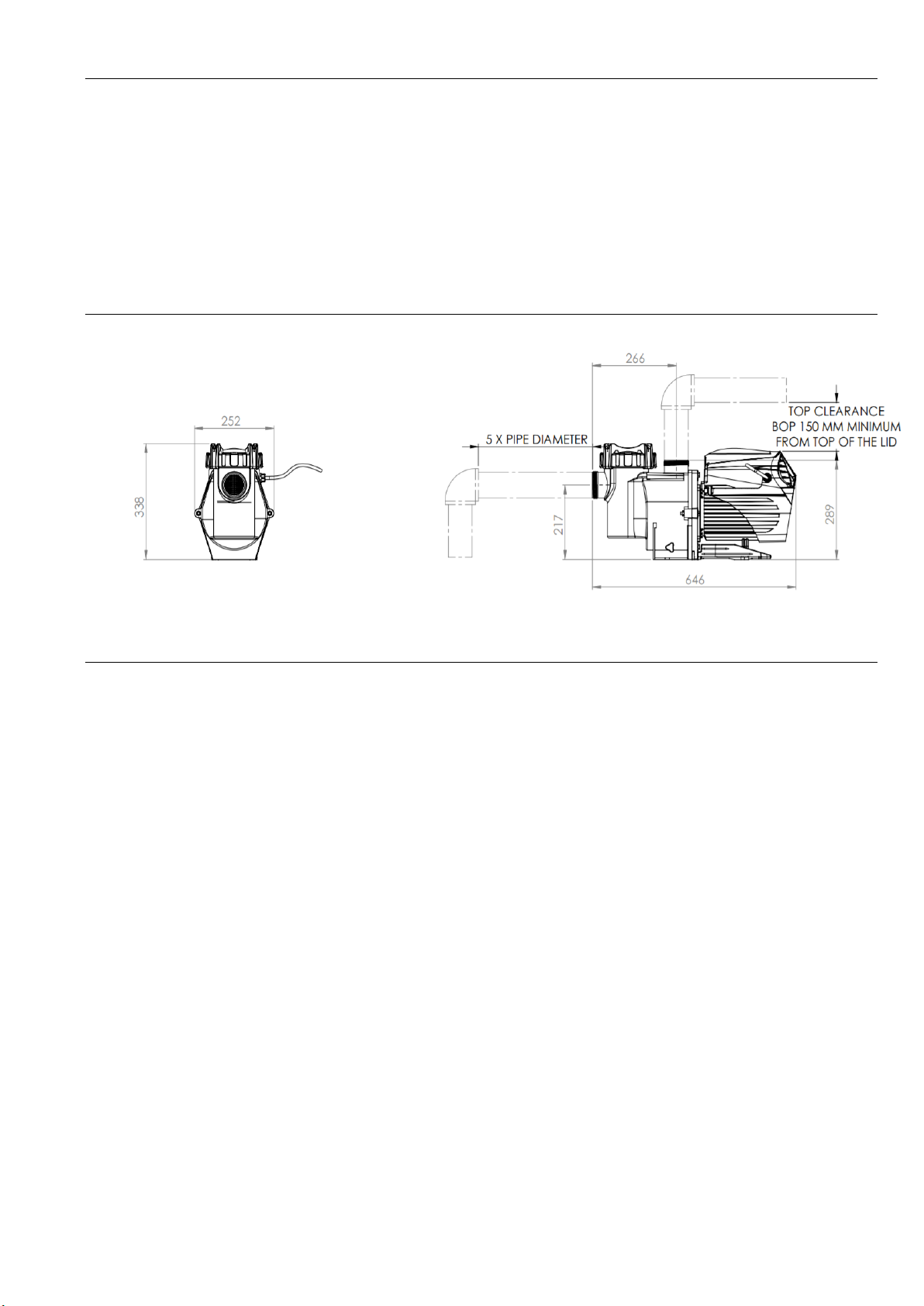

DIMENSIONS
INSTALLATION
This appliance must be installed by a trained pool professional service technician. When installing the appliance, ensure all
parts are installed in the correct zone in accordance with the wiring rules. In particular refer to AS/NZS 3000 (Australia) and
EN 60364 (EU).
A. Plan position of pump so that it will be:
1. Free of water flooding, such as in a sump, garden hollow, ditch or at bottom of bank with run off.
2. On a stable base so that:
a) The pump is not left suspended by its fittings, causing a leak or failure with loss of water.
b) Movement through vibration is restricted
c) No strain is put on attaching pipe or other expensive equipment
3. Accessible for maintenance and easily removed for service.
4. Breathing space. Pump should not be crowded which will prevent cooling airflow from fan. Overheating due
to lack of cooling voids warranty.
5. Within reach of power point without extension/plugs liable to corrosion, shorting, etc.
6. At a minimum height of suction lift of water from pool surface to pump inlet.
B. For best pump performance keep suction pipe length as short as possible with minimum number of bends and use
50mm high pressure PVC suction and return pipe. All equipment such as filters, heaters, chlorinators must have a
minimum of 50mm connections.
C. Secure the barrel unions supplied into the attaching pipe work, using approved priming fluid and solvent cement as
normal practice, coating both surfaces. NOTE: Always wear protective gloves when handling and using glue and
priming fluid. Ensure no excess adhesive runs into the union proper affecting the sealing or removal abilities.
Allow 24 hours to dry before starting pump. Do not use “green” glue on barrel unions. This can cause damage to
the ABS material used to manufacture the unions.
D. Install isolation valves before the pump section and after equipment, if the pump is below the water level of the
pool.
E. For pump installations 500mm above water level, it generally requires a foot valve at the pool or check valve in the
suction line. Suction lines must be installed below water level until just in front of pump location and vertical riser
used to reach pump inlet. AstralPool pumps are rated to a maximum head of 25 meters however refer to your
pumps data plate for actual achievable pressure

Inst.434 Viron XT Pool & Spa Pump V08_17
4
F. All pumps will operate quieter and perform more efficiently if a straight length of 450mm pipe is plumbed
horizontally into the front of the pump.
G. Water temperature not to exceed 45 degrees
H. Pumps must be either
- supplied by an isolating transformer, or
- supplied through a residual current device (RCD) with a rated residual operating current not exceeding 30mA.
Warning: Viron pumps include PCB's and microchips. It is necessary to turn power off completely for 10 seconds
before turning pump back on again. Some brands on chlorinators may bleed a small amount of power into the Viron
Pump even when the pump off mode is selected. If this occurs, the Viron Pump may not reset correctly and may not
start until power is disconnected completely. In some cases, the manufacturer of these chlorinators may be able to
remove or change a capacitor which will completely disconnect power to the pump when turned off. If not, a suitable
chlorinator may be required to be purchased. Astral Pool chlorinators completely disconnect power to the pump when
the pump off mode is selected.
OPERATION
1. Prime pump if hair and lint pot is dry as follows –Close off valve on suction line if present. Remove lint pot lid. Fill
lint pot and chamber with water. Replace and secure lint pot lid and seal.
2. Open all valves, allowing water to flow through pump.
3. Switch on power to pump, motor to start.
4. For initial priming of the pump, press the “Menu” button and “FAST” will be displayed on the screen. The pump will
then run at “overdrive” speed and the display will show 2 rotating circles. The pump will then prime 30% faster than
at the conventional maximum speed. During this priming period the pump will automatically limit its maximum
speed according to the systems total dynamic head and power consumption. Once the pump has primed (or if it
fails to prime within 5 minutes) the speed will drop to the speed that it last ran in “Manual” mode.
5. If some flow of water does not establish within half minute, switch off and prime pump again. If pump does not
prime within 3 attempts, check all suction connections for sealing. If these are satisfactory, a check or foot valve is
required to hold water for prime.
6. If the water flow through pump is always tedious to obtain at start-up after cleaning the lint basket, then an
examination of the system to establish a reason and correct the cause is recommended. Eg. Check valve, air leaks,
faulty seal, cracked lint pot lid, etc.
7. The Viron XT has 3 factory pre-set speed settings –Low, Medium and High. High should be used when
backwashing, manually vacuuming the pool or operating spa jets or some water features such as waterfalls.
Medium speed can be used for gentle spa jet action, when suction cleaner is connected to the skimmer or filtration
for the pool. Low is the recommended setting for everyday filtration of your pool when a cleaner is not connected.
8. In High speed, increasing the speed beyond the normal high speed enters “Overdrive” mode. When this function
is selected the motor will attempt to run at the maximum power consumption it is capable of and when there is
significant friction or total dynamic head in the system, the pump will produce more flow and pressure. The
overdrive mode may be particularly useful when operating spa jets, in floor cleaning systems or other water
features.
9. The Viron XT will automatically start on PRIME speed for the first 5 minutes to assist in priming and substantially
fill the hair and lint pot with water. After 5 minutes the pump will revert to the last speed it was set at before it
was turned off. (See “Operation of Control Panel” section below on how to adjust the Prime speed and prime time)
10. During normal operation, it is recommended that the pump be operated on Low for 12 hours per day. This will
achieve the lowest operating costs with the lowest noise level. Should your pool have areas where water is not
turning over when pump is on Low, increase the speed setting.
Notes: The appliance is not intended for use by person including young children or infirm persons with reduced physical,
sensory or mental capabilities, or lack of experience or knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
Please ensure that young children are supervised to ensure that they do not play with the pump.
To avoid a safety hazard, the supply cord if damaged, must only be replaced by AstralPool, or its service agent or a suitably
qualified person.
Hours of Operation
On low speed your Viron pump makes very little noise and is unlikely to be intrusive to you or your Neighbor’s. Generally,
your pool filter pump should operate for a minimum of 8 hours a day to provide sufficient skimming (thereby reducing the
amount of debris that falls to the bottom of the pool) and to allow the chlorinator to provide sufficient chlorine to sanitize
your pool.
Greater energy savings occur when to operating the pump for longer periods at the lowest speed instead of operating
for shorter periods at a higher speed.

Inst.434 Viron XT Pool & Spa Pump V08_17
5
SELECTION OF APPROPRIATE SPEEDS
General Rules:
The total volume of water in your pool should be turned over at least once a day.
If operating for longer periods of time, you may be able to turn the output of your salt chlorinator to a lower level.
Check your chlorine level frequently to ensure you do not over or under chlorinate your swimming pool.
Low Speed is factory pre set and is the recommended setting for your daily filtration flow rate –enough to gentle
turn the water over once per day and circulate the water completely around your pool. However, it is essential that
your professional pool installer adjust your low speed so that your chlorinator cell remains full or near full of water
during operation and that your skimmer weir door is creating sufficient surface tension to skim leaves from your
pool. Other factors for adjusting low speed may include satisfactory operation of a suction cleaner or increased
flow rate to circulate water to “dead” spots in the swimming pool.
Medium Speed is generally set up as your special purpose flow rate. For example, an In floor cleaning system will
require higher pressures and flow rates to operate and medium speed can be set up to operate the In floor cleaning
system. Other special purpose flow rates may include but are not limited to: operating spa jets, operating water
falls or water features, operating a suction pool cleaner.
High Speed is generally set up to backwash your sand filter. As a rule of thumb, this speed should be set so that
the gauge on your filter is approximately 70kPa to 100 kPa in pressure but this will depend on the size of your filter,
and the size and length of the backwash pipe line.
Overdrive mode can be used to drive in floor cleaning systems, obtain extra pressure when spa jets are selected or
for additional vacuum suction when cleaning the pool.
In warmer weather, or when the pool is used a lot, your pump should operate for 12 hours a day or more. Check your
chlorine levels and visually inspect your water to ensure that (a) you have adequate chlorine and (b) the water in your pool
looks clear and inviting. If you have any doubts, take a sample of water to your local pool shop for a water analysis.
Examples of Speed Selection during operation and use of your Viron P280 or P300 XT Pump:
Function
Speed
Vacuuming Pool or Spa
High Speed or Overdrive
Operating Spa Jets
High Speed or Overdrive
Operating Waterfall or Water Feature
Medium Speed or High Speed, depending on effect
required
Cleaning up pool with Cloudy Water
Up to 24 hours on High Speed or overdrive mode
General Filtration
Low Speed (8 hours in winter, 8 to 12 hours in summer)
Some Tips:
The XT P320 will provide around 15,000 to 18,000 liters per hour on high speed, depending on pipework, valves, filter size
and other equipment installed on your pool. On low speed the factory preset flow rate is approximately 7,500 liters per
hour. Low speed will use approximately 10% of the power consumption that high speed will use. Therefore, operating
the pump 8 hours per day will provide a 60,000 liter pool one complete turn over.
The XT P520 pump will provide around 36,000 liters per hour on high speed, depending on pipe work and the Factory preset
low speed at 1125 RPM will provide around 12,000 liters per minute. This is sufficient to turn a 96,000 liter pool over once
per day.
As a guide, low speed should achieve a visible skimming of the surface of the pool through your skimmer box. When
connected to an AstralPool compatible salt chlorinator, Viron Connect Touch Screen Control System, we recommend that
for one hour a day the filtration period is operated on at least medium speed to achieve full circulation and good surface
skimmer of the pool. The balance of the filtration cycle can then be set on low speed.
However, should your pool water develop cloudiness or your pool surface exhibit algae growth you may need to increase
the low speed of your pump to ensure adequate circulation of water and chlorine to all parts of your pool.
It is important to check your chlorine levels, pH and other parameters to ensure your water quality is correct before
adjusting the speed of your pump. We recommend these checks are carried out by your professional pool shop or service
technician.

Inst.434 Viron XT Pool & Spa Pump V08_17
6
OPERATION OF CONTROL PANEL –VIRON P320 XT & P520 XT
The Viron P320 and P520 XT pumps incorporate an LCD backlit screen with the following features:
In built time clock:
Programmable for up to four timer periods each day
Timer periods can be disused and 1, 2, 3, or 4 periods selected
Different speed (low, medium, high) for each timer period
Displays actual RPM of motor and low, medium and high speed can be adjusted to suit your pool
Time clock and timer periods can be disabled if connected to an external time clock

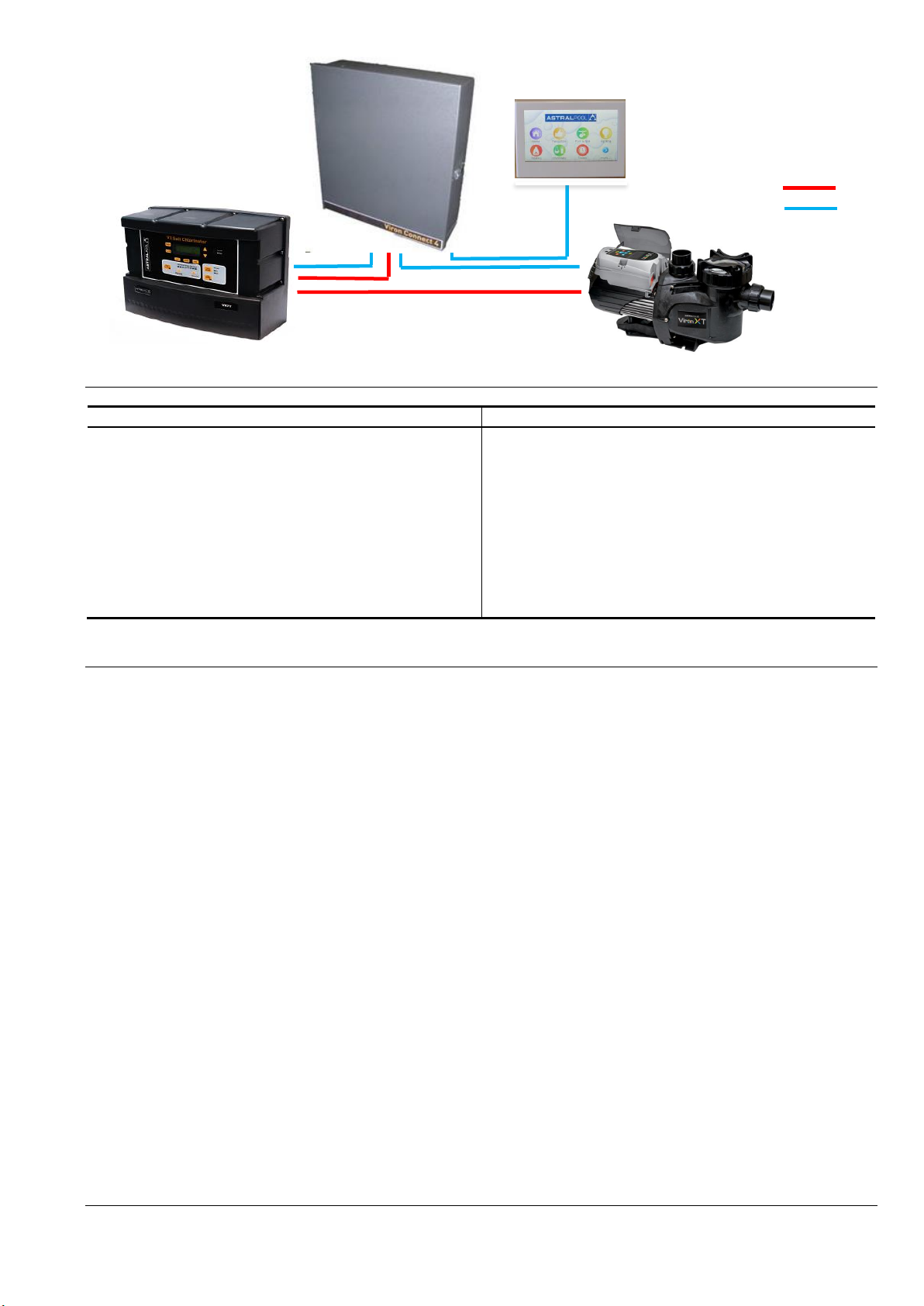

Can be programmed by a compatible AstralPool remote control or chlorinator to operate at different
speeds during different times of the day
Enables the priming (start up) speed to be adjustable and the time of the start up speed to be changed
from 2 minutes up to 120 minutes

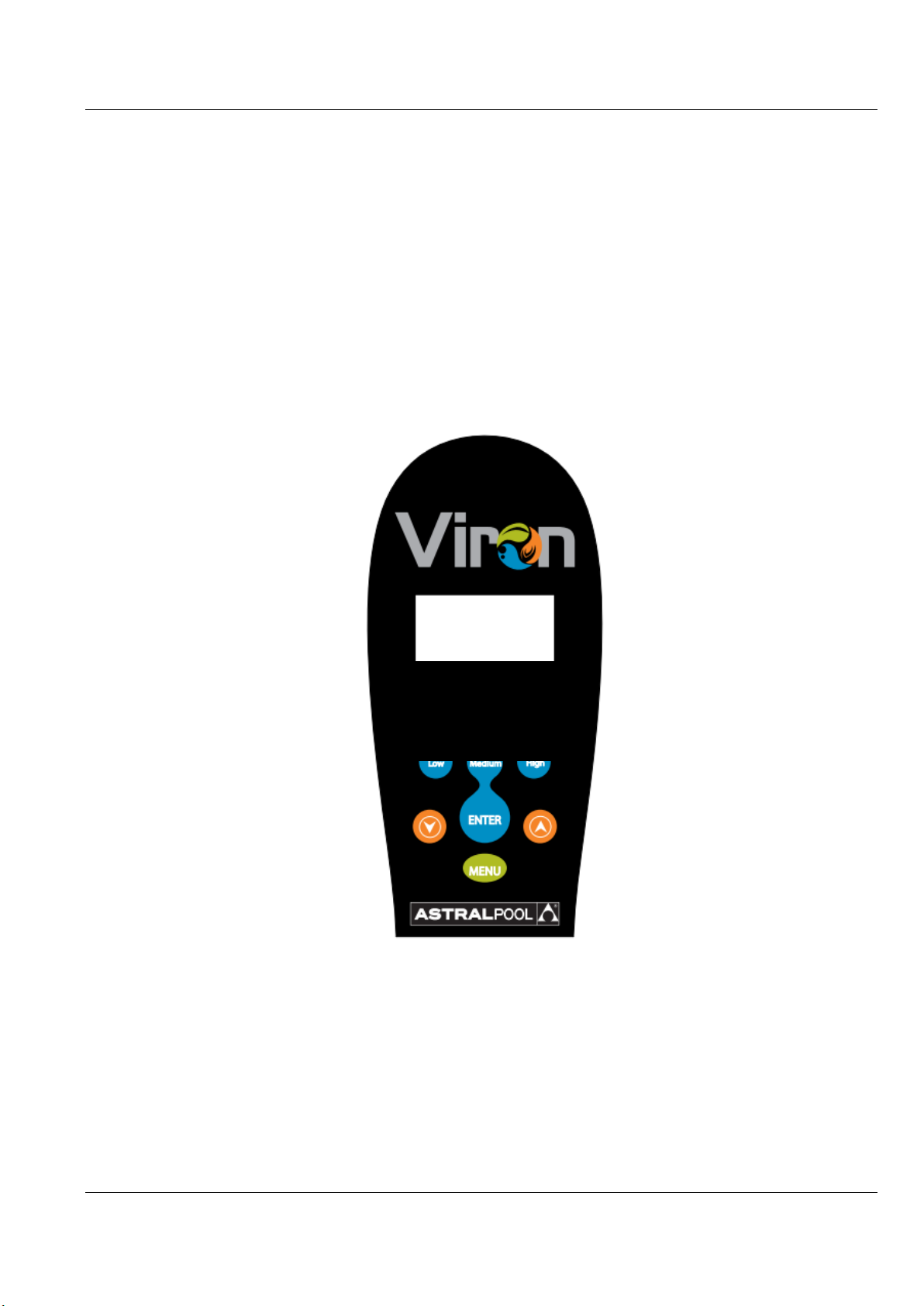

Viron XT Control Panel
1175
Manual on

Inst.434 Viron XT Pool & Spa Pump V08_17
7
OPERATION OF CONTROL PANEL –VIRON P320 & P520 XT (CONT…)
Using the in built timer to operate pump with an AstralPool Chlorinator or EQ dosing unit
Factory Default Setting
1. The inbuilt timers are activated and will control the time the pump operates
2. Connectivity to AstralPool compliant Salt Chlorinators, EQ Chemical dosing controllers or Viron Connect
remote Controls is turned “off”
3. Use the “auto” button to turn the pump on or off. When in on position, the pump will remain off until
the next timer period unless pressed again to manually on. If pump is turned to manually on, it will
continue to operate indefinitely. If in the “Off” position (visible on the LCD), the pump will remain
indefinitely off. For timer operation, ensure the “auto” button is pressed so that the LCD screen displays
“auto”.
Setting the current Time
1. If connected to a compliant AstralPool Salt Chlorinator or EQ dosing controller connect data cable
between rear of pump and the chlorinator in EQ dosing unit.
2. Connect and turn power on to the pump and Chlorinator (or dosing unit)
3. Have pump set in “MANUAL OFF”
4. Press “MENU BUTTON” ONCE “CLK” appears and press “enter” to set time. Use up and down
arrows to set the hour, press “enter” again to set minutes and then press “enter” again to set AM or PM.
5. Press Auto “enter” to accept
6. The LCD screen will quickly flash 3 times to indicate the new setting has been accepted.
Setting pump to operate independently of external AstralPool Compliant Chlorinator or Control System
1. Toggle Menu until “CONF” is displayed on the LCD screen
2. Press and HOLD “enter” for 3 seconds. “TMRS” will appear.
3. Press “enter”
4. Press UP or Down buttons to turn “TMRS ON”
5. Press “enter” to accept
6. Press “auto” to return to main menu.
Changing Low, Med and High Speed Settings
1. Select the Speed Button to be adjusted, Low, Medium or High. Respective LED will light up.
2. Alter the speed in increments of 25 RPM using the up and down arrows until the desired speed is
displayed on the screen. Respective “Speed 1”, Speed 2” or “Speed 3”, will flash while editing.
3. The new speed will automatically save after 2 seconds. Flashing will stop to signal save.
Setting filtration timer periods
1. Press Menu to go to PRIM setting.
2. Prime period is defaulted to 5 minutes and high speed. We recommend if your pump is installed at or
below water level, you change the PRIM to 2 minutes. Press “enter” and then Up or Down arrows to
change the prime speed. Press “enter” to accept. Priming period will now be displayed.
3. Use the Up or Down arrow to change the Priming period. Press “enter” to accept.
4. Press Menu to go to TMR “timer settings” and press “enter” to change.
5. Timer 1 is factory set to start at 8 am. Use up or down arrows to change. Press High, Medium, or Low to
select the speed of the pump during Timer 1. On the LCD Screen High is represented by speed “1”,
medium by speed “2”, and Low by speed “3”.
6. Press Enter to move to the stop or end time of Timer 1. Use the up and down arrows to change the end of
Timer 1.
7. Timer 2 will now appear on the LCD Screen. Repeat instructions 4. to 6. Above.
8. Timer 3 will now appear but is factory pre-set to OFF. Moving any timer to midnight will turn that Timer
period off. Use the up and down arrows to activate the time and repeat process 4 and 5 above.
9. Timer 4 is also factory pre-set to “off” but can be activated by using the up and down arrows.
10. Remember to select the speed you wish to operate during each timer period by pressing the High, Medium
or Low buttons while still in the Timer Start program.
Using the in built pump timers with a non compliant chlorinator or dosing unit.
1. We do not recommend the use of the pump timers when a non compliant chlorinator or chemical doser is
supplied water flow by the Viron P320 or P520 XT pump.
2. In this case, the pump operating hours should be controlled by the chlorinator time clock and the pump
plugged into the chlorinator. This is a safety measure provided for by most chlorinator manufacturers.
3. However, it is important to deactivate the inbuilt pump timers.
4. Have Pump in “MANUAL OFF”
5. Toggle Menu until “CONF” is displayed on the LCD screen
6. Press and HOLD “enter” for 3 seconds
7. Toggle Menu until “TMR” appears.
8. Press UP or Down buttons to turn “TMR OFF”
9. Press “ENTER” to accept
10. Press “AUTO” to return to main menu.

Inst.434 Viron XT Pool & Spa Pump V08_17
8
11. When cycling through the Menu button TMR will no longer appear
12. You will no longer be able to automatically have the speed of the pump changed during different times of
the day.
13. However, if you wish for a period where the pump operates at a high speed, for example to circulate the
water vigorously for a part of the daily filtration, you can use the PRIMING setting to do so.
Using the PRIMING program to circulate the water at a higher flow rate for part of the daily filtration cycle.
1. Have PUMP in MANUAL OFF
2. Press MENU BUTTON TWICE until PRIM appears on the screen
3. Press ENTER To show current Speed, use UP DOWN buttons to Adjust speed. Adjusts in 25 RPM
increments. Once Speed is selected Press ENTER. (Similarly to HIGH Speed, PRIME speed can be set
to overdrive mode by using the Up button to increase the speed above normal high speed) We
recommend high speeds for Priming
4. PRIMING TIME will now appear on the screen. Prime period is defaulted to 5 minutes and high speed.
Use the up and down arrows to change the Priming period From 2 minutes up to 120 minutes. Press
ENTER to accept, Screen will Flash
5. Press “Auto” to exit the programming.
Using Pump with AstralPool compliant external control
AstralPool manufactures Salt Chlorinators, EQ chemical dosing units or the Viron Connect Touch Screen Control
system which can control both the operating times of the all Viron XT pumps PLUS the speed the pump operates
at during each timer period.
For the P320 & P520 you must enable the communication port and disable the Pump in built timers.
1. Toggle Menu until CONF (configure) appears. Hold enter for 3 seconds.
2. Toggle Menu until “TMR” appears.
3. Press UP or Down buttons to turn “TMR OFF”. Remember, you are now using the external control to set
the pump operating hours, so the pump timer must be turned off.
4. Press “enter” to accept
5. Toggle menu until SYS (system) appears. Press the up or down button and turn to “ON”. The Viron
P320 or P520 XT will accept the start, end and pump speed instructions from the AstralPool compliant
control chlorinator EQ & Rolachem dosing controller or Viron Connect Touch Screen Control.
6. Press “auto” to return to main menu.
7. The time will still be visible on the LCD display however, the timer function in the menu setting will no
longer appear. Toggle the menu button will now only display PRIM (priming program), CLK (clock setting)
and CONF (Configuration menu).
8. Refer to your AstralPool compliant Chlorinator, EQ,,RolaChem Dosing Control or Viron Connect Touch
Screen Control manual for details of programming the pump speed and operating hours.
Fault Codes
The P320 & P520 Pump only
Fault Code (displayed on screen)
Meaning
HI T
Over Temperature
HI A
Over Current
Lo V*
Under Input Voltage
BSUC
Motor is Stuck
*Please note: It is normal for the “Lo V” fault code to display briefly on start up.
Data cable connector:
If a compatible AstralPool VX Salt Chlorinator, Viron Salt Chlorinator or Viron Connect Touch Screen, is connected
with the AstralPool communication cable, the speed of the pump and operating hours can be controlled by these
devices.
The Viron P320 & P520 XT must have its inbuilt timer deactivated if the pump operating times and speeds are to be
operated by the compatible AstralPool Salt Chlorinator EQ, RolaChem Dosing Controller or Viron Connect remote touch
screen.
Remove 2 Philips head screens from rear of pump and the data port cover is removed by hand. Plug RJ12 6 wire flat cable
purchased from AstralPool into rear of pump and reassemble. To achieve a proper seal, press the flat cable under the guide
tabs (detailed view A). Slide data port cover back on by aligning the tabs with the slots and the flat cable with the recess
(detailed view B).

Inst.434 Viron XT Pool & Spa Pump V08_17
9

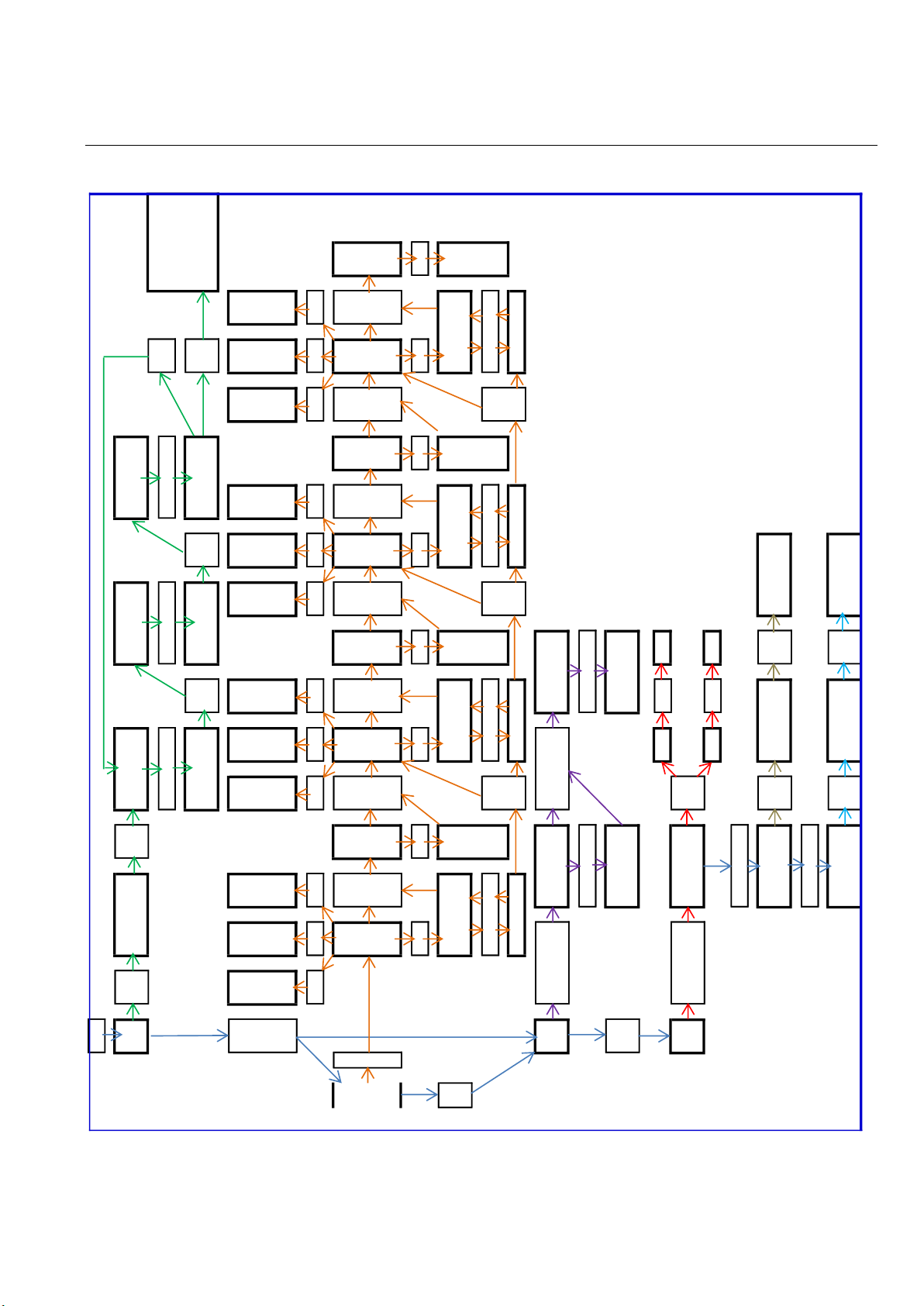

REMOTE CONTROL OF SPEEDS AND TIMER FUNCTIONS
•Viron XT pump stand alone
•4 built in timer periods in pump
•3 programmable speed settings
•Low, medium or high speed can be selected in each timer period
•Priming period can be selected from 2 to 120 minutes
•Prime RPM can be adjusted
240v power
24v Comms data
•
•
•
•All model Viron XT pumps and compatible VX Timer model chlorinator or Viron Salt Chlorinator
•Timer periods set up in chlorinator
•Low, medium or high speed can be selected for each timer period
•Data cable connecting pump to chlorinator via Comms interface module
•XTPump to be set up with timer periods deactivated
•Pump speed can be changed from pump (from chlorinator early 2012)
240v power
24v data
Comms Power
Supply Transfomer
10015
•All model Viron XT pumps, VX S (non timer) model chlorinator and Viron Connect 10 Remote Control System
•Timer periods set up in controller
•3 programmable speed settings on pump
•Select low, medium or high speed during each timer period
•Data cables connecting pump/chlorinator/controller
•XT Pump to be set up with timer periods deactivated
•Pump speed can be changed from pump or controller

Inst.434 Viron XT Pool & Spa Pump V08_17
10
SPEED SELECTION EXAMPLES FOR VIRON P520 XT
Function
Speed
Vacuuming Pool or Spa
Medium Speed (high speed may collapse vacuum hose)
Operating Spa Jets
Medium or High Speed
Operating Waterfall or Water Feature
Medium Speed or High Speed, depending on effect
required
Cleaning up pool with Cloudy Water
Up to 24 hours on High Speed
General Filtration
Low Speed (8 hours in winter, 8 to 12 hours in summer)
Single Pump In-floor Cleaning System
Medium Speed for 3 to 3 hours per day and low speed for 5
or 6 hours per day
Compatible Pressure Cleaner
2 or 3 hours per day on high speed, 5 or 6 hours per day on
low speed
USE WITH SUCTION CLEANERS
When connecting a suction cleaner to the Viron XT pump, it essential that full prime is achieved on the pump prior to
connecting the cleaner hose. During operation at low speeds, the pump may only operate with partial prime in the hair and
lint pot chamber.
To operate a suction cleaner on your pump;
1. Choose the speed button (low, medium or high) on which the pump will operate when the suction cleaner is
connected.
2. Allow pump to operate for a minimum of 2 minutes to allow a full prime to be achieved.
3. Connect cleaner plate and hose to skimmer/wall suction only after all air has been purged from the top of the hair
and lint pot of your Viron Pump.
4. Adjust speed (with increase or decrease buttons) at which the cleaner will travel to all areas of the pool. Factory set
medium speed will usually operate all suction cleaner types in most pools. If using the Low Speed setting, it will
usually be necessary to increase the low speed to ensure the suction cleaner operates reliably.
5. When cleaner is no longer required, disconnect and remove hose/cleaner plate from system. Select the lowest
filtration speed that keeps your pool clean.
6. If replacing or selecting a new cleaner, AstralPool recommend our Robotic Range of Cleaners which operate
independently from the filter pump and allows the pump to operate at a speed which offers the maximum energy
(and cost) savings.
240v power
24v data

Inst.434 Viron XT Pool & Spa Pump V08_17
11

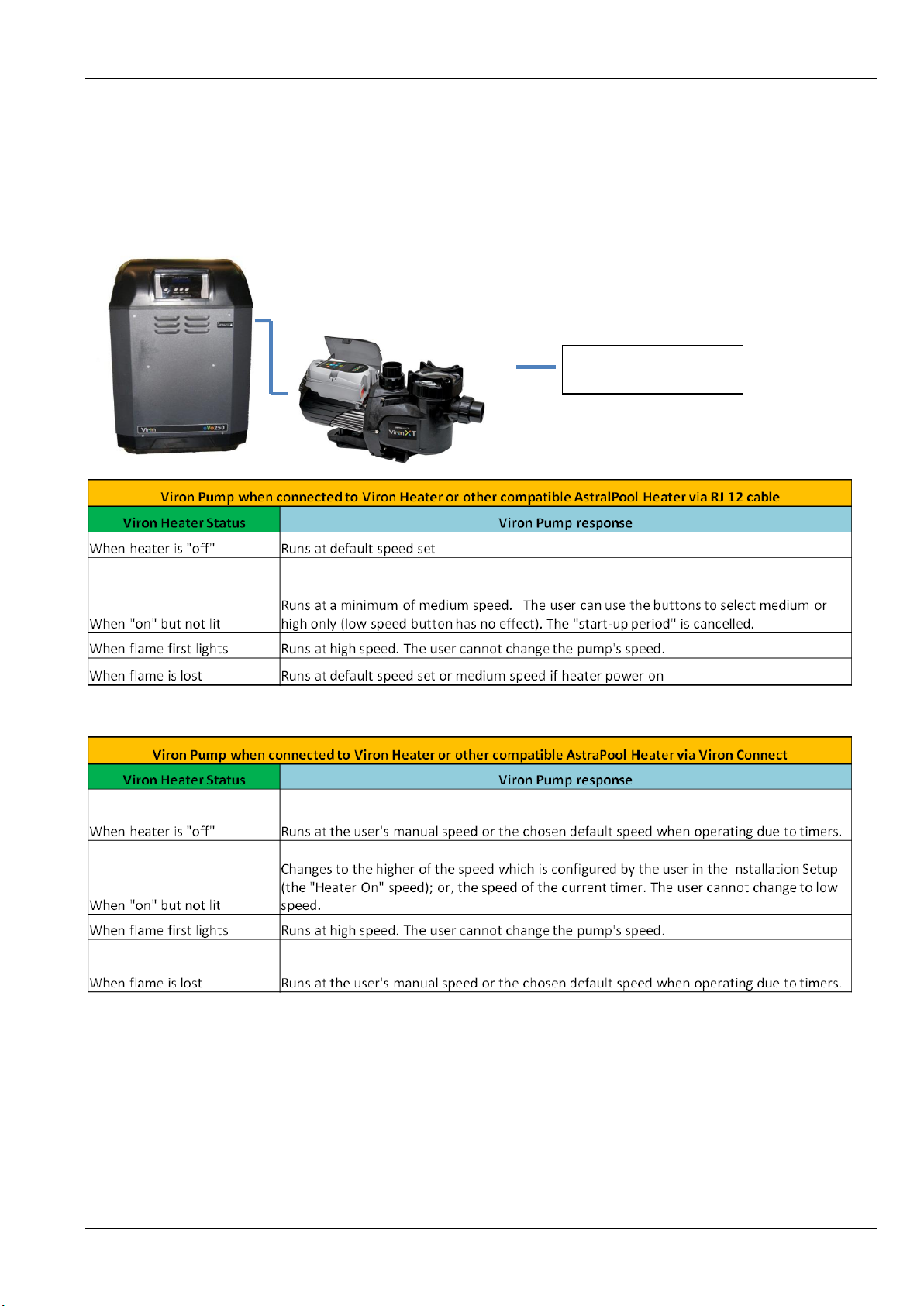

USE WITH ASTRALPOOL GAS HEATERS
Gas heaters (and electric heat pumps) generally rely on a water pressure switch to activate the heater control circuit. When
a variable speed pump operates on low speed the water pressure produced in generally insufficient to activate the pressure
switch and control circuit within the heater.
If using a compatible AstralPool Gas Heater you can automatically increase the speed of your Viron XT pump to ensure the
water pressure switch is activated and the heater obtains enough water flow to operate correctly.
A RJ12 (6 wire flat cable) specifically wired and obtained from AstralPool will connect your pump and heater. Refer to
Heater Instruction Manual for data cable connection details.
24 Volt Data (RJ12
Cable)

Inst.434 Viron XT Pool & Spa Pump V08_17
12
MAINTENANCE
Maintenance Schedule: You new product incorporates moving parts and withstands high velocity water with
chemicals in it. Some of these parts will wear in the normal course of use and require regular checks and
maintenance. Performing these checks and maintenance will identify parts that have worn and require
repair/replacement before further serious damage is sustained. A small amount of regular care and attention to your
pool equipment will help ensure long life and trouble free performance.
To protect against extremes of temperature, your unit is vented to allow expensive electronics to
cool. Ants and some insects are often attracted to the warmer, dry environment inside the enclosure. We
recommend that, with power turned off, you spray a surface insecticide on the surfaces surrounding the
control to prevent ant and insect ingress. Repeat every three months or as necessary.
Timing
Maintenance Check
Service action (if required)
Weekly or sooner
Check and empty hair and lint basket
Empty leaves and debris
Three Monthly
Check Lid O ring and inlet/outlet O rings for
leaks
Isolate Pump, turn power off, clean and
grease O rings or replace if necessary
Three Monthly
Check surroundings for leaves, debris and
flooding
Check for inserts/ants
Remove debris and rectify if any flooding
Spray a surface insecticide on the
surfaces around the unit to prevent ant
and insect ingress.
Three Monthly
Check for leaks from underneath pump
Call Service technician, repair or replace
mechanical seal and motor bearings if
necessary
Important note: Regular maintenance is important to ensure long life and trouble free performance of your pool
equipment. If unable to perform the maintenance yourself, contact your local Astral Pool office who will arrange a trained
service technician to perform the maintenance for you.

Inst.434 Viron XT Pool & Spa Pump V08_17
13
VIRON XT CONTROL FLOW DIAGRAM
M
CLK E E
E E M
M
TIME
R 1
LOW
SPEE
D
TIME
R 1
MED
SPEE
D
TIME
R 1
HIGH
SPEE
D
TIME
R 2
LOW
SPEE
D
TIME
R 2
MED
SPEE
D
TIME
R 2
HIGH
SPEE
D
TIME
R 3
LOW
SPEE
D
TIME
R 3
MED
SPEE
D
TIME
R 3
HIGH
SPEE
D
TIME
R 4
LOW
SPEE
D
TIME
R 4
MED
SPEE
D
TIME
R 4
HIGH
SPEE
D
LOW MED HIGH LOW MED HIGH LOW MED HIGH LOW MED HIGH
TMR E
TIME
R 1
STA
RT
TIME
E
TIME
R 1
STOP
TIME
E
TIME
R 2
STA
RT
TIME
E
TIME
R 2
STOP
TIME
E
TIME
R 3
STA
RT
TIME
E
TIME
R 3
STOP
TIME
E
TIME
R 4
STA
RT
TIME
E
TIME
R 4
STOP
TIME
<> <> <> <> <> <> <> <>
M
PRIM
M
OFF <> ON
CONF E
ON <> OFF
E<>
E<>
CURRENT
PRIMESPEED
NEW PRIME
SPEED
<>
NEW PRIME
DURATION
CURRENT
PRIME
DURATION
E
CURRENT ID
NUMBER
NEW SCREEN
BRIGHTNESS
NEW ID
NUMBER
E
CURRENT TIME
PROMPT
HOUR
FLASH
HOUR CHANGES
<>
<>
HOLD E
3 SECONDS
DIM
M
ID
M
TMRS
CURRENT
SCREEN
BRIGHTNESS
PROMPT
MINUTE
FLASH
MINUTECHANGES
<>
NEW TIMER 4
START TIME
NEW TIMER 3
START TIME
NEW TIMER 1
START TIME
TIMER 4 OFF
<>
TIMER 3 OFF
<>
TIMER 2 OFF
<>
TIMER 1OFF
<>
NEW TIMER 1
START TIME
PROMPT AM/PM
<>
AM/PM CHANGES
E
GOES TO TMR IF
TURNED ON IN
CONF
OR PRIM IF NOT
E
E
E
NEW TIME
R 1
STOP
TIME
NEW TIME
R 4
STOP
TIME
NEW TIME
R 3
STOP
TIME
NEW TIME
R 2
STOP
TIME

Inst.434 Viron XT Pool & Spa Pump V08_17
14
WARRANTY
AstralPool Australia PtyLtd (ABN 97 007 284 504) ("AstralPool") provides the following warranty in relation to its Viron XT
series Pool and Spa pumps ("Product").
The benefits of this warrantyare in addition to anyrights and remedies imposed by Australian State and Federallegislation
that cannot be excluded. Nothing in this warranty is to be interpreted as excluding, restricting or modifying any State or
Federal legislation applicable to the supply of goods and services which cannot be excluded, restricted or modified.
WARRANTY
AstralPool warrants that, subject to the exclusions and limitations below, the Product will be free from defects in materials
and workmanship during the warranty period. The warranty periods are set out below and commence 30 days after the
date of purchase (to allow for installation). The warrantyperiod may varyfor different parts of the Product.
Parts
Warranty Period
Complete assembly
3 years
If adefect appears in the Product before the end of the warranty period and AstralPool finds the Product to be defective in
materials or workmanship, AstralPool will, in its sole discretion, either:
(a) replace or repair the Product or the defective part of the Product free of charge; or
(b) Cause the Product or the defective part of the Product to be replaced or repaired by an Authorised AstralPool
Service Agent free of charge.
AstralPool reserves the right to replace defective parts of the Product with parts and components of similar quality, grade
and composition where an identical part or component is not available.
Goodspresentedforrepairmaybereplacedbyrefurbishedgoodsofthesametyperatherthanbeingrepaired. Refurbished
parts maybe used to repair the goods.
WARRANTY CLAIMS
1. If a fault covered by warranty occurs, the customer must first contact AstralPool at the contact address listed
below, or an Authorised AstralPool Service Agent.
2. Any warranty claim must be accompanied by:
(a) proof of purchase;
(b) full details of the alleged defect; and
(c) appropriate documentation (such as historical and maintenance records).
3. The customer must make the Product available to AstralPool or its Authorised AstralPool Service Agent for
inspection and testing. AstralPool or its Authorised AstralPool Service Agent will attend the premises where the
Product is installed for inspection and testing. If the Product is installed:
(a) outside a capitalcitymetropolitan area; and
(b) is not within a 20 km radius of an Authorised AstralPool Service Agent;
then the customer mayhave to pay a travel fee.
4. If such inspection and testing finds no defect in the Product, the customer must pay AstralPool's usual costs of
service work and testing. If such inspection and testing finds a defect that is not covered by this warranty, the
customer must pay AstralPool's usual costs of service work plus any parts and labour required to repair the
Product, unless recoverable from AstralPool on the failure of anystatutory guarantee under the ACL.
Exclusions
The warranty will not apply where:
(a) the customer is in breach of the Terms and Conditions of Sale;
(b) the Product was used for a purpose other than one it was intended for;
(c) the Product was repaired, modified or altered by anyperson other than AstralPool;
(d) the Product has not been installed, maintained and/or operated in complete compliance with the installation and
operating instructions and any instructions by AstralPool;
(e) the Product has been subject to accident, negligence, alteration, abuse or misuse.
The warranty does not extend to:
a) normal wear and tear;
b) weather and other environmental conditions including but not limited to storm, flood, and/or heat wave damage; or
c) service and maintenance items.
Examples of exclusions include but are not limited to:
running pump without sufficient water flow
addition of chemicals directly to skimmer box
Commercial Installations
Oncommercial installations, such as health clubs, motels/hotels and hydrotherapyfacilities, the warrantyis limited to parts
and in field labour (within capital city metropolitan areas or 20 km radius of Authorised AstralPool Service Agents) for a
period of 12 months from the date of purchase plus 30 days to allow for installation.

Inst.434 Viron XT Pool & Spa Pump V08_17
15
LIMITATIONS
AstralPool makes no expresswarranties or representations other than set out in this warranty.
Therepairorreplacementof theProductorpartoftheProductistheabsolutelimitofAstralPool'sliabilityunder thisexpress
warranty.
This warranty is subject to the conditions and limitations listed herein. All warranties apply to the original purchaser of the
product and are not transferable to new owners. You mustnotify Astral Pool upon the failure of anycomponent within the
warranty period to make a valid claim.
The warrantyoffered is only valid when the equipment has been used in a normal manner, for the purpose for which it was
intended and in accordance with the operating and instruction manual. The replacement of maintenance items used in
routine general maintenance are not covered by this warranty. Maintenance items may include (but not limited to);
Union and lid gaskets / o’rings
Mechanical seal
Pre filter basket
This warranty does not cover any equipment that has been improperly installed, misused, neglected, damaged whether
intentionallyoraccidentally,orrepaired/replacedwithoutauthorizationfrom AstralPooloralteredinanywayfrom itsoriginal
form. Specific items that will void warranty are (but not limited to);
Use in non swimming pool applications
Incorrectpower supplyand/or connection
Addition of salt, chlorine and/or other pool chemicals through the skimmer
Extreme operating conditions beyond the control of Astral Pool such as improper power supply, extreme temperatures or
other conditions that adversely affect the performance or life of the equipment will void the warranty. Insect infestation or
penetration by sand, dust or other foreign bodies will void warranty.
Where in field labor warranty is provided, a 20km radius from an authorized Astral Pool agent is applied. If the location of
the equipment is outside this area, travel charges will apply. If your request for a service call is deemed to be non warranty,
you will be charged for a diagnostic service call.
Astral Pool reserves the right to repair or replace defective components or products at its sole discretion.
Astral Pool shall have no liability for incidental or consequential damages or delays caused either directly or indirectly by
anymalfunction of or defect of or failure of the equipment.
Wheretheequipmentisinstalledincommercialsituationsincluding(but notlimitedto) hotels,motels,caravanparks, health
clubs, public pools, body corporate installations, etc the warrantyis limited to 12 months.
Proof of Purchasemustbe retained for all warrantyclaims.Warrantywill not be considered without Proof of Purchase. No
person is authorized to make any representation or warranty on behalf of Astral Pool without express written consent from
Astral Pool.
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major
failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled tohave the goods repaired or replaced if the
goods failto be of acceptable quality and thefailure does not amount to amajor failure
Record your Equipment details here for quick reference:
Model No.: ____________________________
Serial No.: ____________________________
Inst date.: ____________________________
Installer.: ____________________________

Inst.434 Viron XT Pool & Spa Pump V08_17
16
INSTALLATION AND OPERATING INSTRUCTIONS I INSTALLATION AND OPERATING INSTRUCTIONS
INSTALLATION AND OPERATING INSTRUCTIONS I INSTALLATION AND OPERATING INSTRUCTIONS
